ASWM Enterprise
System Web-based Management
User Manual
E6673
First Edition V2
May 2011
Disclaimer
The manufacturer is not responsible for any damages, including loss of prots, loss of
information, interruption of business, personal injury, and/or any damage or consequential
damage without limitation, incurred before, during, or after the use of our products.
ii
Contents
About this guide .......................................................................................... v
Audience ............................................................................................v
Contents ............................................................................................v
Conventions ......................................................................................vi
Reference ..........................................................................................vi
Chapter 1: Getting Started
1.1 Introduction to ASWM Enterprise ............................................... 1-2
1.1.1 How ASWM Enterprise works ......................................... 1-2
1.1.2 Supported OS platforms ................................................. 1-3
1.2 ASWM Enterprise installation ..................................................... 1-4
1.2.1 ASWM Enterprise main server requirement ................... 1-4
1.2.2 Installing ASWM Enterprise ............................................ 1-5
1.3 Uninstalling ASWM Enterprise.................................................... 1-8
1.3.1 Uninstalling from Windows .............................................. 1-8
1.4 Login ASWM Enterprise .............................................................. 1-9
1.5 The main page ............................................................................ 1-11
Chapter 2: Deployment management
2.1 Deploying new ASWM Enterprise agent .................................... 2-2
2.1.1 Automatically scanning the active directory .................... 2-2
2.1.2 Manually deploying the ASWM Enterpise agents ........... 2-8
2.2 Removing ASWM Enterprise agent .......................................... 2-10
2.2.1 Scanning the self ASWM main server ........................... 2-10
2.2.2 Automatically scanning the Active Directory ................. 2-13
Chapter 3: Main Server Functions
3.1 Monitor .......................................................................................... 3-2
3.2 Account Management .................................................................. 3-5
3.2.1 Current Login Account .................................................... 3-5
3.2.2 Editing the Login Account ............................................... 3-6
3.3 Deployment Management ............................................................ 3-6
3.4 Remote Control ............................................................................ 3-7
3.5 Server Conguration ................................................................... 3-8
3.5.1 SMTP Server................................................................... 3-8
3.5.2 Security ........................................................................... 3-9
3.5.4 ASWM Group ................................................................ 3-10
3.5.5 BIOS ..............................................................................3-11
3.5.6 DataBase .......................................................................3-11
iii
Contents
Chapter 4: Client Monitor Information
4.1 Monitor Overview ......................................................................... 4-2
4.2 HW Sensor .................................................................................... 4-4
4.2.1 Setting thresholds ........................................................... 4-5
4.2.1 Hardware sensor tabs ..................................................... 4-6
4.3 Inventory ....................................................................................... 4-9
4.3.1 Disk Info .......................................................................... 4-9
4.3.2 Device Manager .............................................................4-11
4.4 Event Log .................................................................................... 4-12
4.5 Utilization .................................................................................... 4-15
4.5.1 Partition ......................................................................... 4-15
4.5.2 CPU .............................................................................. 4-15
4.5.3 Memory ......................................................................... 4-16
4.5.4 Network ......................................................................... 4-16
4.6 Software ...................................................................................... 4-17
4.6.1 Application .................................................................... 4-17
4.6.2 Service .......................................................................... 4-17
4.6.3 Process ......................................................................... 4-18
4.6.4 Environment Variables .................................................. 4-19
4.7 Remote Control .......................................................................... 4-20
4.8 BMC ............................................................................................. 4-21
4.9 BIOS Flash .................................................................................. 4-22
4.10 Conguration .............................................................................. 4-23
4.10.1 Notication .................................................................... 4-23
4.10.2 Information .................................................................... 4-24
Appendix: Reference information
A.1 Glossary ........................................................................................A-2
iv
About this guide
Audience
This user guide is intended for system integrators, and experienced users
with at least basic knowledge of conguring a server.
Contents
This guide contains the following parts:
Chapter 1: Getting Started
This chapter introduces the ASWM Enterpirse, and tells how to install and uninstall
it under Windows platform.
Chapter 2: Deployment Management
This chapter describes how to deploy ASWM Enterprise agents and remove agents
through AD or manually.
Chapter 3: Main Server Functions
This chapter describes the Main Server Functions, including Monitor, Account
Management, Deployment Management, Remote Control, and Server
Conguration.
Chapter 4: Client Monitor Information
This chapter describes system status and information of the client.
Appendix: Reference information
This appendix includes a glossary of terms used in this document.
v
Conventions
To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.
WARNING
complete a task.
CAUTION
to complete a task.
IMPORTANT
NOTE
: Information to prevent injury to yourself when trying to
: Information to prevent damage to the components when trying
: Instructions that you MUST follow to complete a task.
: Tips and information to aid in completing a task.
Reference
Visit the ASUS websites worldwide that provide updated information for all ASUS
hardware and software products. Refer to the ASUS contact information for details.
vi
Chapter 1
This chapter introduces the ASWM
Enterprise, and tells how to install and
uninstall it under Windows platform.
ASUS System Web-based Management Enterprise
Getting Started
1.1 Introduction to ASWM Enterprise
Welcome! Thank for buying our server products bundled with ASWM Enterprise
System Web-based Management software. The ASWM Enterprise is a proprietary
server management solution that gives a vital distinction to our servers.
In server management, system stability is a major factor, with efciency, cost-
effectiveness, and convenience following close behind. To comply with this, we
have created a reliable and user-friendly ASWM Enterprise monitoring tool. The
ASWM Enterprise is a web-based interface that allows system administrators to
conveniently manage computers either locally (from the same server), or remotely
(using a web-browser).
With its colorful, graphical, and informative interface, the ASWM Enterprise makes
server management a delightful experience!
1.1.1 How ASWM Enterprise works
The ASWM Enterprise is composed of an “agent” that generally acts as a data
collector, and a set of HTTP web pages that serve as the user interface (UI). The
data collected by the agent, which are essential for the continuous monitoring
operations performed by ASWM Enterprise, are displayed in the UI.
In the monitoring process, the agent basically keeps track of the hardware and
software status of the system. The agent has “sensors” that monitor fan rotation
speeds (in RPM), working voltages, motherboard and CPU temperatures, and the
backplane (if present).
In addition, the agent also monitors hard disk drives health status through the
SMART (Self-Monitoring, Analysis, and Reporting Technology) feature, space
utilization of a le system, CPU or system memory loading, and even the trafc
status of a network device.
The agent records the history of the detected status of all monitored hardware
items. The status record includes the time of alert events (fan, voltage, or
temperature), and the type of alert event (critical, warning, or normal).
You can also congure ASWM Enterprise to react to exceptional situations. For
example, the administrator can be automatically notied by e-mail when a hard
drive starts to malfunction or when a chassis intrusion is detected. In this way,
ASWM Enterprise acts as an active guardian of the system’s key components.
1-2 Chapter 1: Getting started
1.1.2 Supported OS platforms
The ASWM Enterprise agent supports the Microsoft Windows platform, including
Windows 2003 Server, Windows 2003 R2 Server, Windows 2008 Server, and
Windows 2008 R2 Server platform. You can choose the appropriate package
depending on the primary OS installation of your server.
The ASWM Enterprise web pages are fully compatible with W3C HTML 4.0/DOM
standard. The web browsers with Microsoft Silverlight support can work with ASWM
Enterprise:
OS Internet
Explorer 9
Internet
Explorer 8
Internet
Explorer 7
Internet
Explorer 6
Firefox 3+Safari 3+Chrome
4+
Windows Vista
Windows 7
Windows Server
2008
Windows Server
2008 R2
Windows Server
2003, Windows
XP SP2, SP3
Windows 2000
SP4 +KB891861*
Macintosh OS
10.4.11+ (Intelbased)
*Microsoft Consumer Supprt ends July 13, 2010 for this product.
� � � � �
� � � �
� � � � �
� � �
� � � � �
�
� �
1-3ASUS System Web-based Management Enterprise
1.2 ASWM Enterprise installation
You can install ASWM Enterprise in Windows platform. Proceed to the succeeding
sections for the instructions that are applicable to your operating system.
1.2.1 ASWM Enterprise main server requirement
System Requirement
• Microsoft SQL Server 2005 or above (Including Express version)
• Web Server IIS 6 or above
• NET Framework 3.5 SP1
• NET Framework 4.0 (Full)
• Active Directory (Deployment by Active Directory)
* Time zone setting must be the same
Important Notice for Windows Server 2008 or above
Ensure to add the following Features / Roles
• Features: .NET Framework 3.5.1
• Roles: Web Server (IIS)
• Role Services under WebServer(IIS):
(A) Common Http Features (and all sub-items) have to be selected.
(B) IIS 6 Management Compatibility (and all sub-items) have to be
selected.
(C) Application Development
• ASP.NET
• NET Extensibility
• ISAPI Extensions
• ISAPI Filters
1-4 Chapter 1: Getting started
1.2.2 Installing ASWM Enterprise
Any user with administrator privileges on the local system can install ASWM
Enterprise.
To install ASWM Enterprise in Windows:
1. Insert the support DVD into
the optical drive and click
ASUS System Web-based
Management Enterprise
.
Edition
Ensure that your system
meets the requirements
metioned in the previous
page.
2. The ASWM Enterprise Setup
program wizard appears. Click
to continue.
Next
3. Click
to start installation.
Next
1-5ASUS System Web-based Management Enterprise
4. The system is installing ASWM
Enterprise.
5. The system is checking the
installation requirements. Click
to continue.
Next
6. Select an
and click
Authentication
Connection Test
type
to
proceed.
1-6 Chapter 1: Getting started
7. After passing the Connection
Test, click OK and
Next
to
continue.
8. When the installation completes,
click
to exit the wizard.
Close
1-7ASUS System Web-based Management Enterprise
1.3 Uninstalling ASWM Enterprise
1.3.1 Uninstalling from Windows
To uninstall ASWM Enterprise from a Windows platform:
1. Click
2. The system automatically uninstalls ASWM Enterprise.
Start > All Programs > ASUS > ASWM Enterprise > Uninstall
.
1-8 Chapter 1: Getting started
1.4 Login ASWM Enterprise
To login ASWM Enterprise:
1. Double-click the ASWM Enterprise shortcut on the desktop when
you login from the local server. If you login from the remote
server, enter the ASWM Enterprise website (http://HostName(IP)/
aswment) through the web browser.
2. Click
Enter
.
3. Enter your
• The default
• In additional to
and
Name
the login name and password are case sensitive. Refer to
Management
users have only limited privileges.
Password
login name: Administrator, password: aswm
if you would like to change the password.
Administrator
. Click
, You can also login as a
to enter ASWM Enterprise.
Login
Login name: User; password: user
. Note that
Account
. Note that
User
.
1-9ASUS System Web-based Management Enterprise
Limitation when logining as a User
• Only limited functions, including
available.
•
HW Sensor
• You cannot delete the EventLog, but you are allowed to use the
Search
•
Utilization
• You can check the information of the installed software, but
restarting or stopping the selected service is unavailable. Ending process is
also unavailable.
•
Remote Control
• Deleting SEL information on BMC is not allowed.
•
BIOS Flash
•
Conguration
is read-only. You cannot customize the threshold.
function.
is read-only. You cannot customize the threshold.
is dimmed and unavailable.
is read-only. You cannot ash the BIOS.
in
Monitor
is unavailable.
Monitor
and
Account Management
Advanced
Service
of starting,
are
1-10 Chapter 1: Getting started
1.5 The main page
The main control panel of the ASWM Enterprise user interface is displayed as
shown.
1
4
2
3
Full screen view
1
Function buttons
2
Login information
3
Group List
4
Models in the group
5
5
: Click this banner to switch to the full screen view and press
<Esc> to return to the normal window view. You cannot input
text in the full screen view.
: The overall functions of ASWM Enterprise, inlcuding health
monitoring, account management, deployment management,
remote control, and server conguration. Refer to later
chapters for details.
: This area displays the login ID. Different login users have
different level of controlling ASWM Enterprise. Click
to exit ASWM Enterprise.
: The Group List shows the existing groups. It is more
convenient for administrator to manage a large number of
computers through groups.
: This area shows the computers and their general information
in your selected group above.
LogOut
1-11ASUS System Web-based Management Enterprise
1-12 Chapter 1: Getting started
Chapter 2
This chapter describes how to deploy
ASWM Enterprise agents and remove
agents through AD or manually.
ASUS System Web-based Management Enterprise
Deployment management
2.1 Deploying new ASWM Enterprise agent
Install new ASWM Enterpise agents on computer and add them the ASWM
Enterprise server for convenient management, monitor and control.
ASWM Enterprise client agent system requirement
.NET Framework 3.5
Firewall Setting
• Allow "Windows Management Instrumentation (WMI)"
• Allow "File And Printer Share"
• Allow "ICMP Packet Response"
2.1.1 Automatically scanning the active directory
To deploy new agents
1. Click
Deployment Management
on the left.
2-2 Chapter 2: Deployment Management
2. Click
Deploy New ASWM Enterprise Agent
.
3. The wizard will guide you through the deployment process. Click
Start
continue.
to
2-3ASUS System Web-based Management Enterprise
4. Select
Automatically Scan the Active Directory
and click
The system will automatically scan the directory for agents.
to continue.
Next
5. Select a
Click
a desired group to downsize
the scanning range. Doing so
shortens the time for agent
deployment.
Domain
and click
Enable Group
to start scanning.
Scan
and select
2-4 Chapter 2: Deployment Management
6. Enter the
Name
and
Passowrd
7. The system starts scanning.
to login as the AD Administrator.
2-5ASUS System Web-based Management Enterprise
8. Click wanted computers to deploy agents and click
be listed as
shows
Support
Not Support,
If your wanted computers are listed as
in the
SupportStatus
eld. Click the computer that
the reasons will be shown below.
Not Support
. The computer must
Start
. Double check the
followings:
• If it is a supported model. Refer to the beginning of the section for details.
• If it has installed .NET 3.5
• If it has installed ASWM Enterprise Agent
• If old ASWM version existed
• Click
• Click
• The
2-6 Chapter 2: Deployment Management
Select all "Support" computers
Support Computers.
Add to ASWM Group
computers to different groups.
SupportStatus
if you would like to catergorize the selected
shows
Unknown
if you want to deploy agents on all
when
WMIEnable
shows
OFF
.
9. The deployment starts.
2-7ASUS System Web-based Management Enterprise
2.1.2 Manually deploying the ASWM Enterpise agents
To deploy new agents

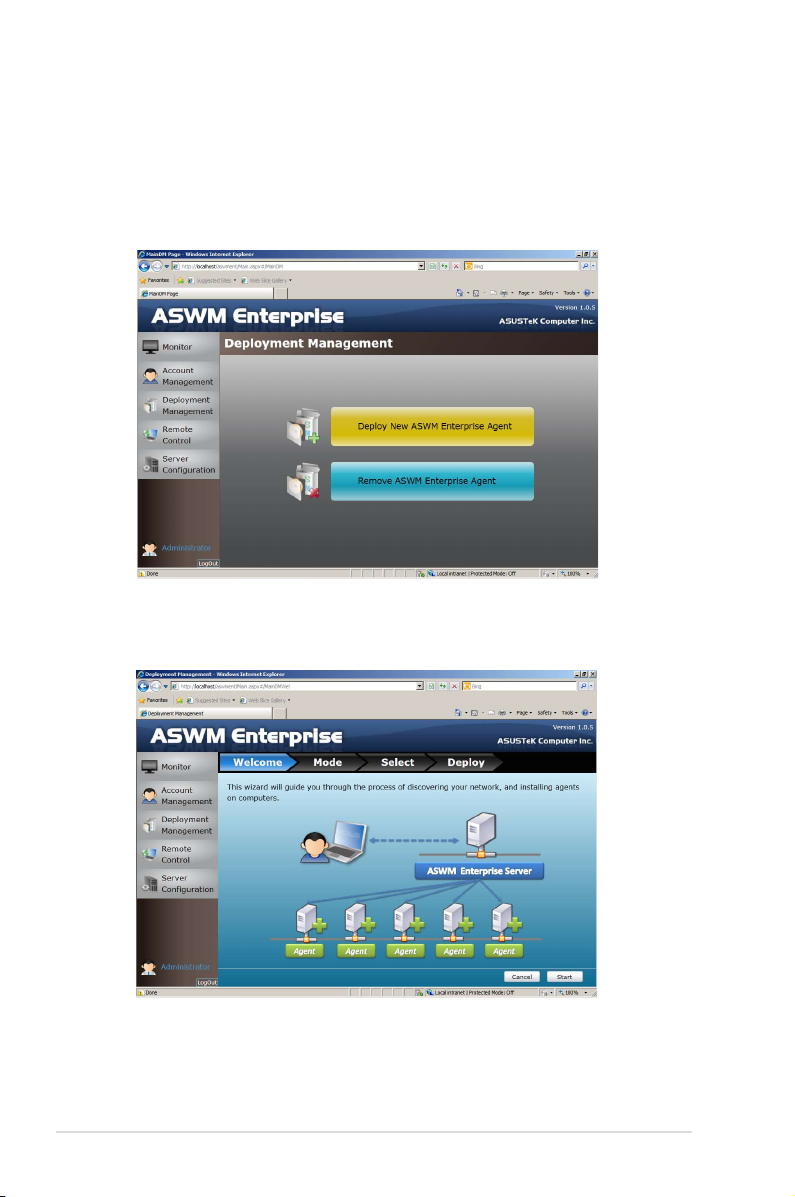

1. Click
2. Click
3. The wizard will guide you through the deployment process. Click
Deployment Management
Deploy New ASWM Enterprise Agent
continue.
on the left.
.
Start
to
2-8 Chapter 2: Deployment Management

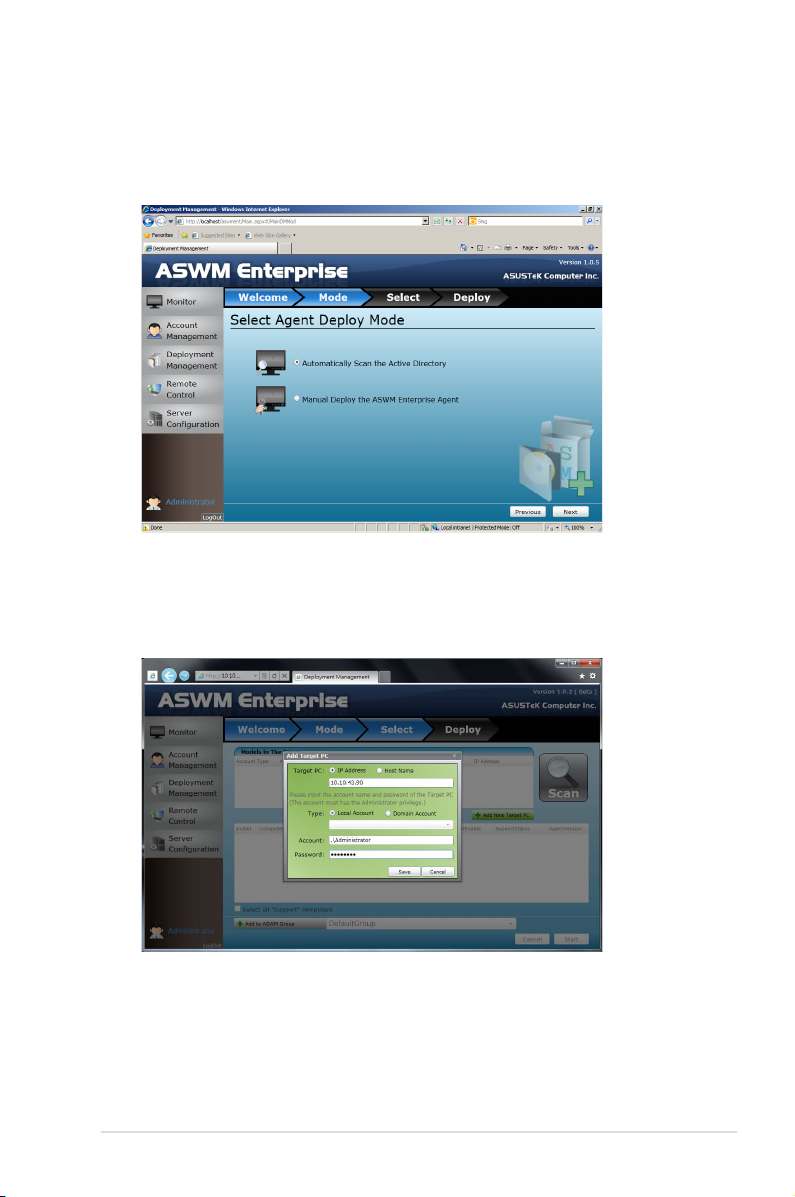

4. Select
continue.
Manual Deploy the ASWM Enterprise Agent
and click
Next
to
5. Click
Add Target PC
Name. Fill in the required leds and click
. You can add the target PC through IP Address or Host
.
Scan
6. Follow the instructions in the previous section to install the agent when the
scanning result is shown.
2-9ASUS System Web-based Management Enterprise
2.2 Removing ASWM Enterprise agent
You are allowed to remove the ASWM Enterprise agents from the main server or in
Active Directory.
2.2.1 Scanning the self ASWM main server
To remove the existing agents
1. Click
2. Click
Deployment Management
Remove ASWM Enterprise Agent
on the left.
.
2-10 Chapter 2: Deployment Management
3. The wizard will guide you through the uninstallation process. Click
Start
continue.
to
4. Click
Scan the self ASWM Enterprise Main Server
continue. The system will scan the main server.
and click
Next
to
2-11ASUS System Web-based Management Enterprise
5. Select the desired computers for agent uninstallation and click
You can easily select all computers, all ofine computers or all online computers
with the checkboxes on the bottom.
Start
.
6. The server automatically removes the agents on the selected computers.
When done, it shows
Success
. Click
to nish the process.
Finish
2-12 Chapter 2: Deployment Management
2.2.2 Automatically scanning the Active Directory
To remove the existing agents
1. Repeat the step 1—3 in the previous section.
2. ClickClick
3. All the computers in Active Directory are shown here, grouped by Support
Automatically Scan the Active Directory
The system will scan the Active Directory.
Status.
and click
to continue.
Next
2-13ASUS System Web-based Management Enterprise
4. Select the desired computers for agent uninstallation and click
Start
.
5. The server automatically removes the agents on the selected computers.
When done, it shows
Success
. Click
to nish the process.
Finish
2-14 Chapter 2: Deployment Management
Chapter 3
This chapter describes the Main
Server Functions, including Monitor,
Account Management, Deployment
Management, Remote Control, and
Server Conguration.
ASUS System Web-based Management Enterprise
Main Server Functions
3.1 Monitor
The overview screen gives you a quick overall status check for all the computers.
You are also allowed to shut down, restart or start the selected computers.
To see the monitor overview
1. Click
2. Select a desired group from the
information of
(Red: Critical; Yellow: Warning; Green: Normal)
Monitor
on the left.
Group List
Client Counts, Connection, Health
. The group clearly shows the
, and
Utilization
status.
3-2 Chapter 3: Main Server Functions
3. In the
Models In the XXX Group
, the general monitoring information of all
computer in this group is displayed as shown, including Connection status,
Model Name, Alias Name, Operating system, BMC WebGUI status, Health
status.
• The crossed-out BMC card means that the BMC is not installed in that
computer.
• If the status of BMC WebGUI shows NO, the WebGUI is inaccessible.
• When you click
web browser does not block the pop-up window.
BMC WebGUI
, a pop-up window appears. Ensure that your
3-3ASUS System Web-based Management Enterprise
To shut down or restart the computer
1. Right-click the desired computer.
2. You can select
PowerON
you have installed BMC card on that computer.
You can also power off or restart the selected computer after entering the
.
Monitor
3-4 Chapter 3: Main Server Functions
or
Restart
is available only when the selected computer appears
PowerOFF
if the computer appears online.
Ofine
Click to power
off or restart
the computer
and
3.2 Account Management
Account Management allows you to see the current login account and edit the
account.
Only limited functions, including
and
Monitor
Management
when you login as a user. Other
functions will be dimmed and
become unavailable.
3.2.1 Current Login Account
Click Account Management on the left to display the current Login Account
information.
Account
are available
3-5ASUS System Web-based Management Enterprise
3.2.2 Editing the Login Account
Click
Edit Account
to edit the login account. Click
The Account E-Mail shows in the Email Settings of Client Conguration.
when done.
Save
3.3 Deployment Management
You can deploy ASWM Enterprise agents and remove agents through AD or
manually. Refer to Chapter 2 for details.
3-6 Chapter 3: Main Server Functions
3.4 Remote Control
Click
Remote Control
on the left and start the
You have to enable the Remote
Desktop on your client computer
before using the remote control
function.
Remote Desktop Web Connection
.
3-7ASUS System Web-based Management Enterprise
3.5 Server Conguration
You are allowed to do general server congurations, including SMTP server, SNMP
Trap, security, etc..
3.5.1 SMTP Server
To set up the SMTP server
1. Setting up the correct SMTP server information if you would like to send the
notication through Email. Click
Edit SMTP Setting
to ll in the elds.
2. Click
3-8 Chapter 3: Main Server Functions
Send Test E-Mail
receiver's E-Mail to see if the SMTP
server has been successfully set
up. If so, click
conguration.
Save
and enter a
to save the
3.5.2 Security
You can set the Access Control List, which permits or denies the specic IPs’
access.
The ACL settings is based on Cisco router settings. Fill in the blank elds and click
Add New ACL Rule
bottom to test if it has been added successfully.
Examples of ACL settings
1. If you want to permit Class C IP addresses 192.168.0.0—192.168.0.255
Rules:
Permit: IP 192.168.0.0 Wildcard Mask: 0.0.0.255
Deny: IP 0.0.0.0 Wildcard Mask: 255.255.255.255
to add a IP on the control list. Use the
ACL Rule Test
on the
2. If you want to permit IP 192.168.0.200 only
Rules:
Permit: IP 192.168.0.200 Wildcard Mask: 0.0.0.0
Deny: IP 0.0.0.0 Wildcard Mask: 255.255.255.255
3. If you want to deny IP 192.168.0.200 only
Rules:
Deny: IP 192.168.0.200 Wildcard Mask: 0.0.0.0
Permit: IP 0.0.0.0 Wildcard Mask: 255.255.255.255
3-9ASUS System Web-based Management Enterprise
3.5.3 SNMP Trap
Fill in the blank elds and click
would like to edit the prole, click
The SNMP prole information is used for sending noticatiton.
Add Prole
Edit Prole
to add the SNMP Trap prole. If you
.
3.5.4 ASWM Group
You can add new ASWM Groups or edit the existing groups. The information of
computers in each group is displayed when the group is selected.
You cannot delete the
DefaultGroup
3-10 Chapter 3: Main Server Functions
DefaultGroup
when their groups are deleted.
and all the clients will be regrouped under
3.5.5 BIOS
The BIOS screen displays all the BIOS cache information. The ASWM Enterprise
automatically detect and download the newest BIOS from the ASUS support site.
It is more convenient to click the check box on the bottom to select the older
version BIOS if you want to remove the older ones.
3.5.6 DataBase
You can clean the database to release some space if needed. Clicking Clean
Database only clears the cache, and no important data will be deleted.
3-11ASUS System Web-based Management Enterprise
3-12 Chapter 3: Main Server Functions
Chapter 4
This chapter describes system status
and information of the client.
ASUS System Web-based Management Enterprise
Client Monitor Information
4.1 Monitor Overview
You can have detailed monitoring information of each client in realtime.
1. Click
2. Select a desired group from the
Monitor
on the left.
Group List
.
4-2 Chapter 3: Client Monitor Information
3. Select a desired client for monitoring in the
Group
4. The Client Information of the selected computer is displayed as shown.
Click to show the model pictures
Display the general client information
Click to power
off or restart
the computer
Click to show
the monitor
summary of
hardware
and utilization
sensors
The function area
4-3ASUS System Web-based Management Enterprise
4.2 HW Sensor
Hardware sensors are responsible for voltage, fans, temperature and backplanes
monitoring. You can have a realtime notication of each component with colored
signals or customize your warning threshold.
Return the previous Client Information screen
Click to switch sensor tabs. The colored
signal and the number indicate the health
status of the sensors (critical or warning).
Click to set the threshold
Display the realtime value. The colored border
shows the default or your customized threshold for
sending critical, warning or normal notications.
4-4 Chapter 3: Client Monitor Information
Scroll down for
more sensors
4.2.1 Setting thresholds
Click the dashboard to customized your own threshold value, including
Critical, High Warning, Low Warning
, and
Low Critical
.
High
To set the threshold
1. Click a desired dashboard for customizing.
2. Move the slider to adjust the threshold value.
3. Click OK to save the conguration.
The value of
must be higher than
Warning
High Warning
must be lower than
Low Critical
.
High Critical
and the
Low
4-5ASUS System Web-based Management Enterprise
4.2.1 Hardware sensor tabs
Voltage
Scroll down for more voltage dashboards or click
Information screen.
Fan
This screen displays the fan status. Click
screen.
Return
to the previous Client Information
Return
to the previous Client
4-6 Chapter 3: Client Monitor Information
Temperature
This screen displays the device temperature. Click
Information screen.
Return
Backplane
This screen displays the blackplane status, including
Exist, Fault
, and
Rebuild
. Click
to the previous Client Information screen.
Return
Drive Presence, Drive Not
to the previous Client
This tab is only available when your system is equipped with backplanes.
4-7ASUS System Web-based Management Enterprise
Chassis
This screen displays the chassis status. If the chassis of the client computer is
opened, the ChassisIntrusion Lock icon will appear unlocked. Click
previous Client Information screen.
Return
to the
4-8 Chapter 3: Client Monitor Information
4.3 Inventory
Inventory shows the general disk info of your installed Hard disk drive, optical disk
drive and the connected external disk drive.
4.3.1 Disk Info
Disk Information
The disk information screen includes
Size, S.M.A.R.T Support
and
Name, Media Type, Status, Manufacturer
S.M.A.R.T Status
.
Click to show
disk information
,
Scroll down for more items.
4-9ASUS System Web-based Management Enterprise
S.M.A.R.T Information
Partition Information
Click to show
SMART information
Click to show
Partition information
4-10 Chapter 3: Client Monitor Information
4.3.2 Device Manager
The Device Manager display all the devices installed on the client PC.
To check the device property
1. Click
2. Click the desired category to expand and show the devices.
Device Manager
tab on the top.
3. Click the device to show the device property.
4-11ASUS System Web-based Management Enterprise
4.4 Event Log
ASWM Enterprise automatically create and record all the signicant events
happening on your system in the event logs. Click the tabs (
Application, System
level types are
Click a desired log to see the detailed information.
, and
Security
Information, Warning
) on the top to browse different categories. The
and
Error
.
ASWM Enterprise
,
4-12 Chapter 3: Client Monitor Information

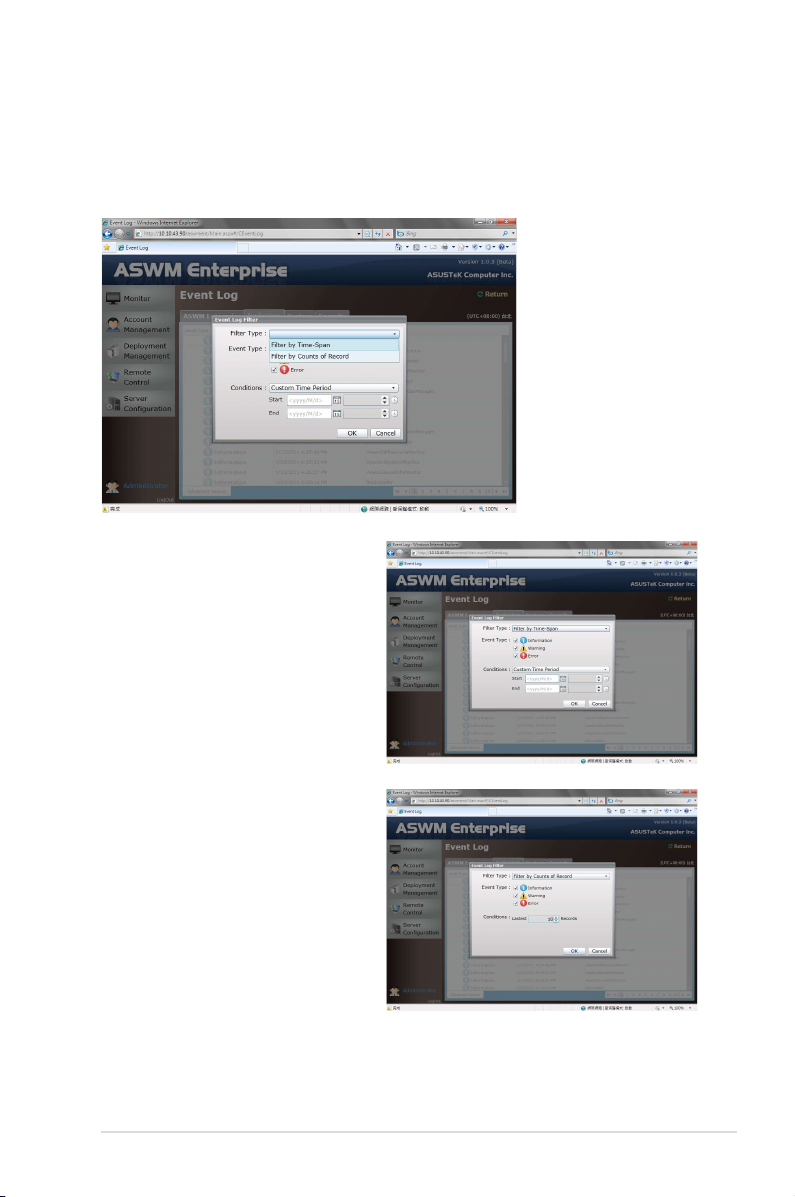

Advanced Search
Click
Advanced Search
more quickly.
Filtering by Time Span
If you select
can decide and search your desired
time period for the logs.
Filter by Time Span
to use the
, you
Event Log Filter
to locate your desired log
Filtering by Counts of Record
If you select
Record
of the logs you would like to see.
Click the arrow buttons to increase or
decrease the number, or you can enter
a desired number directly.
Filter by Counts of
, you can decide the number
4-13ASUS System Web-based Management Enterprise
Clean EventLog
Click
Clean EventLog
to clear all the event logs stored in your client PCs.
4-14 Chapter 3: Client Monitor Information
4.5 Utilization
Utilization Sensor shows the utilization status of disk drives, CPU, Memory and
Network. You can customized the threshold value of each sensor for sending
notications.
4.5.1 PartitionPartition
The Partition screen shows the information of your installed hard disk drives and
the connected external storage devices. Move the slider under each disk drive to
set the warning threshold.
Click to show
general information
Click to set the
threshold value
4.5.2 CPU
This screen shows the CPU usage of each installed CPU.
The number of the CPU here is the logical number of the CPU, not the number
of the installed CPU.
4-15ASUS System Web-based Management Enterprise
4.5.3 Memory
This screen shows the total physical memory, used memory, the available memory,
and the memory utilization status.
4.5.4 Network
This screen shows the general information of the network and the network
utilization status.
4-16 Chapter 3: Client Monitor Information
4.6 Software
Click
Auto Refresh
to refresh the monitoring screen automatically.
4.6.1 Application
Displays all the installed applications on this client and their general information.
4.6.2 Service
Displays the status of each installed applications. Right-click a desired service and
you can start, restart or stop the selected service.
If the
Start Mode
that service.
of the selected service shows
Disabled
, you cannot control
4-17ASUS System Web-based Management Enterprise
4.6.3 Process
Displays the process of the running applications.
To end the process of the running application
1. Right-click the application that you would like to end the process.
2. Select
End Process:XXXXX
to stop the application running.
4-18 Chapter 3: Client Monitor Information
4.6.4 Environment Variables
Displays the environment variables.
4-19ASUS System Web-based Management Enterprise
4.7 Remote Control
Remote Control allows you to open the Remote Desktop and control the client
remotely.
1. Click
Connect
2. Corm the name of the remote computer and click
to allow the
Remote Desktop Connection
Connect
connection.
.
to start the
You have to enable the Remote
Desktop on your client computer
before using the remote control
function.
4-20 Chapter 3: Client Monitor Information
4.8 BMC
BMC Information displays the general information of the installed BMC card.
This button is available only when you BMC card to the client computer.
Click to check
or delete
the SEL
information
Click to
connect BMC
WebGUI
• Only when there is an IP Address, you can click to access the BMC
WebGUI.
• Ensure that your web browser does not block the pop-up window.
4-21ASUS System Web-based Management Enterprise
4.9 BIOS Flash
BIOS Flash screen displays your current BIOS information and you can congure
the settings of BIOS Flash.
Click
BIOS Flash Type
from the FTP or select
BIOS ROM.
and select
Manual Upload BIOS ROM File
Auto Detect ASUS BIOS FTP
to manually upload the
to ash the BIOS
• Click
• If you have installed BMC card to your system, you can click to turn on the
4-22 Chapter 3: Client Monitor Information
Reboot After BIOS Flash
updating the BIOS.
Locator LED
if needed.
if you would like to reboot your system after
4.10 Conguration
4.10.1 Notication
You can set up the notication types, including sending SNMP Traps and Emails,
or you can just keep the event logs.
SNMP Trap Setting
You can manually enter the
click the amplier button to select the built SNMP Trap prole.
Community
and
Receive Address
of SNMP Trap or
Email Setting
You can select the E-mail address from your contacts or manually enter the E-mail
address. Use semicolons if you have more than one receivers.
4-23ASUS System Web-based Management Enterprise
Customizing notications for each sensor
You can the select the notication methods of each sensor, Hardware and
Utilization.
Scroll down for
more sensors
4.10.2 Information
Click
Edit Information
its
Alias Name
Click
Uninstall Client
to relocate this client computer to another group or change
.
if you want to remove the ASWM Enterprise Agent from this
computer.
Add or delete groups in
4-24 Chapter 3: Client Monitor Information
Server Conguration
>
ASWM Group
.
Appendix
This appendix includes a glossary of
terms used in this document.
ASUS System Web-based Management Enterprise
Reference information
A.1 Glossary
Community
Users can dene their own SNMP trap community for a clearer categorization and
convenient management of SNMP traps.
Backplane
A circuit board with sockets in which additional devices can be plugged.
Event Notier
This sends a message to administrators/users When sensors detect changes in
the system.
IIS
Internet Information Server. A web server built into Windows NT and later.
IPMI
Intelligent Platform Management Interface. It is a type of rmware which continues
to monitor the system’s hardware even after a crash or the system has shut down.
Service
A Windows program that runs in the background to perform a certain function when
required such as programs for handling print jobs, e-mail or network connectivity.
SMTP
Simple Mail Transfer Protocol. The protocol used for transferring e-mail over a
network.
SNMP
Simple Network Management Protocol. A TCP/IP protocol that transmits hardware
or software status messages over the Internet.
A-2 Appendix: Reference information
ASUS contact information
ASUSTeK COMPUTER INC.
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site http://www.asus.com.tw
Technical Support
Telephone +86-21-38429911
Fax +86-21-58668722 ext: 9101
Online Support http://support.asus.com/techserv/techserv.aspx
ASUSTeK COMPUTER INC. (Taiwan)
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site http://www.asus.com.tw
Technical Support
Telephone +886-2-2894-3447 (0800-093-456)
Online Support http://support.asus.com/techserv/techserv.aspx
ASUSTeK COMPUTER INC. (China)
Address No.508, Chundong Road, Xinzhuang Industrial Zone,
Minhang District, Shanghai, China.
Telephone +86-21-5442-1616
Fax +86-21-5442-0099
Web site http://www.asus.com.cn
Technical Support
Telephone +86-21-3407-4610 (800-820-6655)
Online Support http://support.asus.com/techserv/techserv.aspx
ASUS contact information
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Fax +1-510-608-4555
Web site http://usa.asus.com
Technical Support
Support fax +1-812-284-0883
General support +1-812-282-2787
Online support http://support.asus.com/techserv/techserv.aspx
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, 40880 Ratingen, Germany
Fax +49-2102-959911
Web site http://www.asus.de
Online contact http://www.asus.de/sales
Technical Support
Telephone +49-1805-010923
Support Fax +49-2102-959911
Online support http://support.asus.com/techserv/techserv.aspx
Loading...
