E5836
Eee PC
User Manual
Windows® Win7 Edition
Eee PC 1001PQ
Table of Contents
About This User’s Manual....................................................................................................... |
iv |
Notes for This Manual.............................................................................................................. |
iv |
Safety Precautions..................................................................................................................... |
v |
Transportation Precautions.................................................................................... |
vi |
Charging Your Batteries.......................................................................................... |
vii |
Airplane Precautions................................................................................................ |
vii |
Chapter 1: |
Knowing the Parts |
|
Top Side..................................................................................................................................... |
|
1-2 |
Bottom Side............................................................................................................................. |
|
1-5 |
Front Side.................................................................................................................................. |
|
1-6 |
Right Side.................................................................................................................................. |
|
1-7 |
Left Side..................................................................................................................................... |
|
1-8 |
Keyboard Usage..................................................................................................................... |
|
1-9 |
Special Function Keys............................................................................................ |
1-9 |
|
Touchpad Usage................................................................................................................... |
|
1-11 |
Multi-finger gesture input (on selected models)...................................... |
1-11 |
Chapter 2: |
Getting Started |
|
Powering on your Eee PC.................................................................................................... |
2-2 |
|
First-time Startup................................................................................................................... |
|
2-3 |
Desktop..................................................................................................................................... |
|
2-5 |
Network Connection............................................................................................................ |
|
2-6 |
Configuring a wireless network connection................................................. |
2-6 |
|
Local Area Network................................................................................................ |
2-7 |
|
Browsing web pages............................................................................................ |
2-10 |
Chapter 3: |
Using the Eee PC |
|
ASUS Update........................................................................................................................... |
|
3-2 |
Updating the BIOS through the Internet........................................................ |
3-2 |
|
Updating the BIOS through a BIOS file........................................................... |
3-3 |
|
Bluetooth Connection (on selected models)............................................................... |
3-4 |
|
Super Hybrid Engine............................................................................................................. |
|
3-6 |
Super Hybrid Engine Modes............................................................................... |
3-6 |
ii |
Table of Contents |
Eee Docking............................................................................................................................. |
3-7 |
Access.......................................................................................................................... |
3-7 |
Sharing........................................................................................................................ |
3-8 |
Experience ................................................................................................................ |
3-8 |
Tools............................................................................................................................. |
3-9 |
Boingo (on selected models)............................................................................................. |
3-9 |
Inspirus Desktop (on selected models)........................................................................ |
3-10 |
Setting Child Safety Control.............................................................................. |
3-10 |
Logging on to Inspirus Desktop...................................................................... |
3-16 |
Using Inspirus Desktop....................................................................................... |
3-17 |
Chapter 4: |
System Recovery |
|
System Recovery.................................................................................................................... |
|
4-2 |
Boot Booster............................................................................................................................ |
|
4-5 |
Appendix |
|
|
Declarations and Safety Statements............................................................................... |
A-2 |
|
Federal Communications Commission Statement..................................... |
A-2 |
|
FCC Radio Frequency (RF) Exposure Caution Statement......................... |
A-3 |
|
Declaration of Conformity(R&TTE directive 1999/5/EC)........................... |
A-4 |
|
IC Radiation Exposure Statement for Canada............................................... |
A-4 |
|
CE Mark Warning..................................................................................................... |
A-6 |
|
Wireless Operation Channel for Different Domains................................... |
A-7 |
|
France Restricted Wireless Frequency Bands................................................ |
A-7 |
|
UL Safety Notices.................................................................................................... |
A-8 |
|
Power Safety Requirement.................................................................................. |
A-9 |
|
REACH Notice........................................................................................................... |
|
A-9 |
Global Environmental Regulation Compliance and Declaration ....... |
A-10 |
|
Takeback Services................................................................................................ |
A-10 |
|
Nordic Lithium Cautions (for lithium-ion batteries)................................ |
A-11 |
|
Copyright Information...................................................................................................... |
|
A-13 |
Limitation of Liability......................................................................................................... |
|
A-14 |
Service and Support.......................................................................................................... |
|
A-14 |
ASUS Eee PC |
iii |
You are reading the Eee PC User’s Manual.This User’s Manual provides information regarding the various components in the Eee PC and how to use them.The following are major sections of this User’s Manual:
1.Knowing the Parts
Provides information on the Eee PC’s components.
2.Getting Started
Provides information on getting started with the Eee PC.
3.Using the Eee PC
Provides information on using the Eee PC’s utilities.
4.System Recovery
Gives you information on system recovery.
5.Appendix
Gives you safety statements.
The actual bundled applications differ by models and territories. There may be differences between your Eee PC and the pictures shown in this manual. Please accept your Eee PC as being correct.
A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively.These notes have different degrees of importance as follows:
WARNING! Important information that must be followed for safe operation.
IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
iv |
Table of Contents |
The following safety precautions will increase the life of the Eee PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.
Disconnect the AC power before cleaning.Wipe the Eee PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.
DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.
DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC.
DO NOT expose to strong magnetic or electrical fields.
DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Eee PC.
DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.
DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the
contacts. DO NOT disassemble the battery.
ASUS Eee PC
SAFE TEMP:This Eee PC
should only be used in environments with ambient temperatures
between 5°C (41°F) and 35°C (95°F).
DO NOT carry or cover a Eee PC that is powered ON with any materials that will reduce air circulation
such as a carrying bag.
INPUT RATING: Refer to the rating label on the bottom of the Eee PC and be sure that your power adapter complies with the rating.
Incorrect installation of battery may cause explosion and damage the Eee PC.
DO NOT throw the Eee PC in municipal waste.This product has been designed to enable proper reuse of parts and recycling.The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste.The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.
To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors.The hard disk drive’s head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport.
Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC.You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches.
vi |
Table of Contents |
If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life.The battery reaches its maximmum capacity after a few full charging and discharging cycles.
Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.
There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items).You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands.
ASUS Eee PC |
vii |
viii |
Table of Contents |
Top Side
Bottom Side
Front Side
Right Side
Left Side
Keyboard Usage
Touchpad Usage
Chapter 1: |
1 |
|
|
Knowing the Parts |
Refer to the illustration below to identify the components on this side of the Eee PC.
The top side may vary in appearance depending on models.
1
2
3
4
5
6
7
The keyboard differs for each territory.
1-2 |
Chapter 1: Knowing the Parts |
1 Microphone (Built-in)
2 Built-in Camera
3 Display Panel
4 Power Switch
The power switch allows powering ON and OFF the Eee PC and recovering from STR. Press the switch once to turn ON and hold it to turn OFF the Eee PC.The power switch only works when the display panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Sleep) mode.This indicator is OFF when the Eee PC is turned OFF.
5 Keyboard
The keyboard provides keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands.
The keyboard differs depending on models.
6 |
Touchpad and Buttons |
The touchpad and its buttons comprises a pointing device that provides the same functions as a desktop mouse.
7 |
Status Indicators |
Power Indicator
The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Sleep) mode.This indicator is OFF when the Eee PC is turned OFF.
Battery Charge Indicator
The battery charge indicator (LED) shows the battery charging status as follows:
ASUS Eee PC |
1-3 |
Powered ON
High battery power |
With Adapter |
Without Adapter |
|
Green ON |
Off |
||
(95%–100%) |
|||
|
|
||
Medium battery power |
|
|
|
Orange ON |
Off |
||
(11%–94%) |
|
|
|
Low battery power |
Orange Blinking |
Orange Blinking |
|
(0%–10%) |
|||
|
|
Powered OFF / Standby mode
High battery power |
With Adapter |
Without Adapter |
|
Green ON |
Off |
||
(95%–100%) |
|||
|
|
||
Medium battery power |
|
|
|
Orange ON |
Off |
||
(11%–94%) |
|
|
|
Low battery power |
Orange Blinking |
Off |
|
(0%–10%) |
|||
|
|
Hard Disk Drive (HDD) Indicator
The hard disk drive indicator blinks when data is written to or read from the disk drive.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless LAN/ Bluetooth (on selected models).When the built-in wireless LAN/Bluetooth is enabled, this indicator lights.
1-4 |
Chapter 1: Knowing the Parts |
Refer to the illustration below to identify the components on this side of the Eee PC.
The bottom side may vary in appearance depending on model.
1 |
2 |
3 |
4
The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT use on soft surfaces such as beds or sofas, which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
ASUS Eee PC |
1-5 |
1 Battery Lock - Spring
The spring battery lock keeps the battery pack secure.When the battery pack is inserted, it will automatically lock.When removing the battery pack, this spring lock must be retained in the unlocked position.
2 Battery Pack
The battery pack is automatically charged when connected to an AC power source and maintains power to the Eee PC
when AC power is not connected.This allows use when moving temporarily between locations. Battery time varies by usage and by the specifications for this Eee PC.The battery pack cannot be disassembled and must be purchased as a single unit.
3 Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.
4 Memory Compartment
The memory module is secured in a dedicated compartment.
Refer to the illustration below to identify the components on this side of the Eee PC.
1
1 Audio Speaker System
The built-in speaker system allows you to hear audio without additional attachments.The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.
1-6 |
Chapter 1: Knowing the Parts |
Refer to the illustration below to identify the components on this side of the Eee PC.
1 |
2 |
3 |
4 |
1 Headphone Output /Microphone Input Combo Jack
The 1/8”stereo combo jack (3.5mm) connects the Eee PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speaker.
The jack is also designed to connect the microphone used for Skype, voice narrations, or simple audio recordings.
2 USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, and storage devices, connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). Also, the USB supports hot-swapping function.
3 Kensington® Lock port
The Kensington® lock port allows the Eee PC to be secured using Kensington® compatible security products.These security products usually include a metal cable and lock that prevent the Eee PC to be removed from a fixed object.
4 LAN Port
The eight-pin RJ-45 LAN port (10/100M bit) supports a standard Ethernet cable for connection to a local network.The built-in connector allows convenient use without additional adapters.
ASUS Eee PC |
1-7 |
Refer to the illustration below to identify the components on this side of the Eee PC.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
|||||
1 |
Power (DC) Input |
|
|
|
|
|
|
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack.To prevent damage to the Eee PC and battery pack, always use the supplied power adapter.
THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
2 Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGAcompatible device such as a monitor or projector to allow viewing on a larger external display.
3 USB Port (2.0/1.1)
4Air Vents
The air vents allow cool air to enter and warm air to exit the Eee PC.
Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.
5 |
Memory Card Slot |
The built-in memory card reader can read SD/SDHC/MMC cards.
1-8 |
Chapter 1: Knowing the Parts |
The following defines the colored hot keys on the Eee PC’s keyboard.The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation.
Zz Icon (F1): Places the Eee PC in suspend mode (Save-to-RAM).
Radio Tower (F2) (Wireless Models Only):Toggles the
internal wireless LAN or Bluetooth (on selected models) ON or OFF with an on-screen-display.
When enabled, the corresponding wireless indicator will light.
Touchpad (F3):Toggles the touchpad ON/OFF.
Resolution Selection (F4): Press to adjust the display resolution.
Sun Down Icon (F5): Decreases the display brightness.
Sun Up Icon (F6): Increases the display brightness.
Crossed Screen Icon (F7):Turns off the display backlight.
LCD/Monitor Icons (F8):Toggles between the Eee PC’s
LCD display and an external monitor.
Task Manager Icon (F9): Initiates the Task Manager to view the application process or terminates applications.
Crossed Speaker Icon (F10): Mutes the speaker.
Volume Down Icon (F11): Decreases speaker volume.
ASUS Eee PC |
1-9 |
Volume Up Icon (F12): Increases the speaker volume.
Super Hybrid Engine (Fn+Space Bar): Toggles among
various power saving modes.The selected mode is shown on the display.
Num Lk (Insert):Toggles the numeric keypad
(number lock) ON and OFF. Allows use of a larger portion of the keyboard for number entering.
Scr Lk (Delete): Toggles the “Scroll Lock”ON and OFF.
Allows you to use a larger portion of the keyboard for cell navigation.
Pg Up (↑): Press to scroll up in documents or the web browser.
Pg Dn (↓): Press to scroll down in documents or the web browser.
Home (←): Press to move the pointer to the beginning of the line.
End (→): Press to move the pointer to the end of the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties menu
and is equivalent to right-clicking the touchpad/mouse on an object.
1-10 |
Chapter 1: Knowing the Parts |
Finger gesture |
Applications |
|
Two-finger zooming in/out |
Adobe reader, Windows Photo Viewer |
|
Two-finger rotating |
Adobe reader, Windows Photo Viewer |
|
Two-finger scrolling up/down or |
Adobe reader, MS Word, MS Excel |
|
left/right |
||
|
||
Three-finger page up/down |
Adobe reader, MS Word, MS Excel |
|
|
|
Two-finger zooming in/out - Moving two fingertips apart or together on the touchpad to zoom in or zoom out.This is convenient when viewing photos or reading documents.
Zoom in |
Zoom out |
Two-finger rotating- Fix one fingertip on the touchpad and make an arc with the other to rotate the photo or the document you are viewing.You can make a clockwise or counterclockwise rotation based on your needs.
ASUS Eee PC |
1-11 |
Two-finger scrolling up/down or left/right- Use two fingertips to slide up/down or left/right on the touchpad to scroll a window up/down or left/ right. If your display window includes several sub-windows, move the pointer on that pane before scrolling.
Three-finger page up/down- Use three fingers to move horizontally on the touchpad to swipe pages. Swipe from left to the right to view the next page or right to the left to return to the previous pages.
1-12 |
Chapter 1: Knowing the Parts |
Powering on your Eee PC First-time Startup Desktop

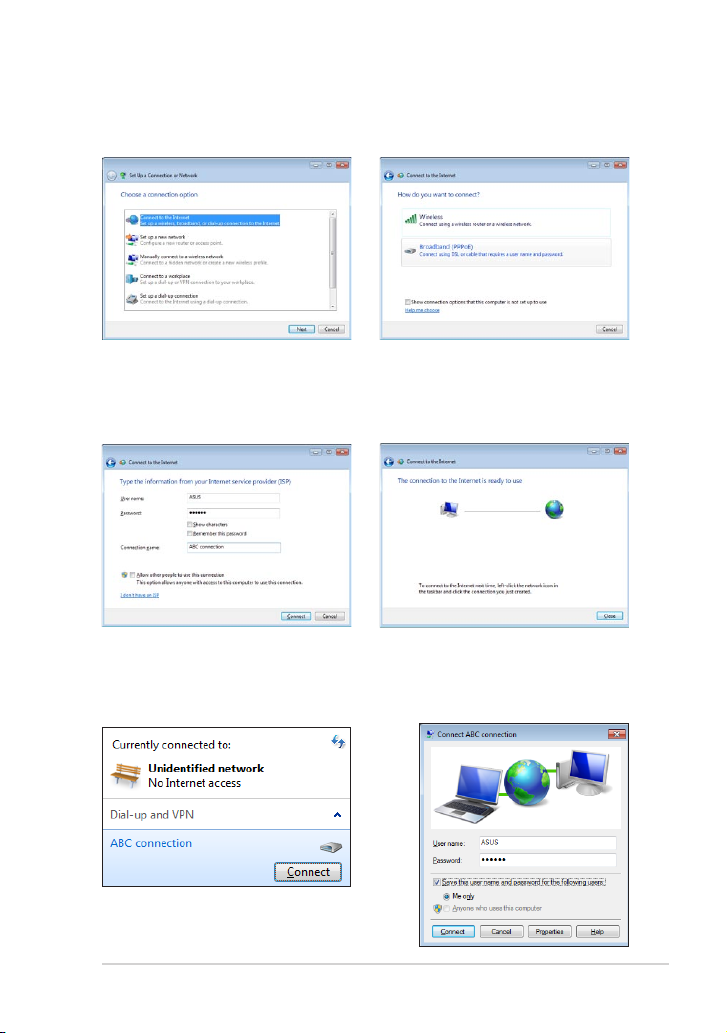

Network Connection
Chapter 2: |
2 |
|
|
Getting Started |
These are only quick instructions for using your Eee PC.
1. Install the battery pack |
2. Connect the AC power |
|
adapter |
|
3 |
|
|
1 |
2 |
2 |
|
|
3 |
||
|
|
|
|
|
|
|
1 |
110V-220V
3.Turn ON the Eee PC
Damage may occur if you use a different adapter to power the Eee PC.You may damage both your battery pack(s) and the Eee PC with a faulty ACDC adapter.
•When you open the display panel, do not force it down to the table or else the hinges may break! Never lift the Eee PC by the display panel!
•Only use battery packs and power adapters supplied with this Eee PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Eee PC.
The input voltage range between the wall outlet and this adapter is AC 100V~240V.
•Never attempt to remove the battery pack while the Eee PC is turned ON, as this may result in the loss of working data.
Remember to fully charge the battery before first use and whenever it is depleted to prolong battery life.
2-2 |
Chapter 2: Getting Started |
