6Line In (Light Blue)14USB 3.2 Gen1 Ports (USB3_12)
7Front Speaker (Lime)**15Antenna Ports
8Microphone (Pink)16HDMI Port
English
5
*ere are two LEDs on each LAN port. Please refer to the tabl e below for the LA N port LED indications.
ACT/LINK LED
SPEED LED
LAN Por t
Activity / Link LEDSpeed LED
StatusDescriptionStatusDescription
ONo LinkO10Mbps connection
BlinkingData ActivityOrange
100Mbps/1Gbps
connection
OnLinkGreen2.5Gbps connection
** If you use a 2- channel speaker, plea se connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance with the ty pe of speaker you use.
English
6
Audio Output
Channels
Front Speaker
(No. 7)
Rear Speaker
(No. 5)
Central / Bass
(No. 4)
2V------
4VV----
6VVV--
8VVVV
Line In
(No. 6)
Z490 Phantom Gaming-ITX/TB3
1.5 WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz
Antenna
WiFi-802.11ax + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ax + BT v5.1
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ax connectivity standards and Bluetooth v5.1. WiFi + BT module is an easy-touse wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v5.1 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 5.1 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs. e 2T2R WiFi
solution sets a WiFi high speed standard and oers max link rate up to 2.4Gbps.
* e transmission speed may vary according to the environment.

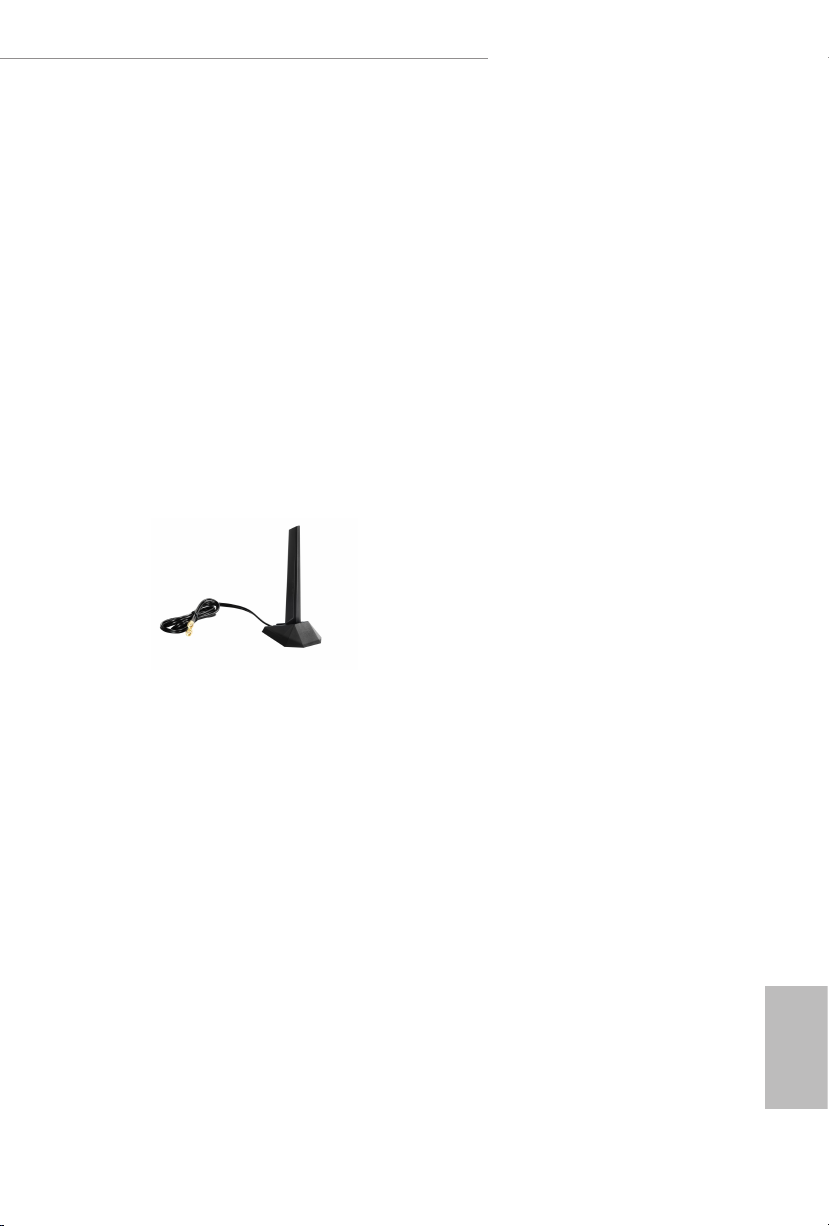

ASRock WiFi 2.4/5 GHz Antenna
English
7
Chapter 1 Introduction
ank you for purchasing ASRock Z490 Phantom Gaming-ITX/TB3 motherboard,
a reliable motherboard produced under ASRock ’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In ca se any modications of this documentation occur, the updated version will be available on ASRock ’s
website w ithout further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.
1.1 Package Contents
ASRock Z490 Phantom Gaming-ITX/TB3 Motherboard (Mini-ITX Form Factor)
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),
Pentium® and Celeron® support DDR4 up to 2666.
•
•
•
•
Z490 Phantom Gaming-ITX/TB3
Mini-ITX Form Factor
8 Layer PCB
2oz Copper PCB
Suppor ts 10th Gen and future generation Intel® CoreTM
Processors (Socket 1200)
Digi Power design
9 Power Phase design
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® K-Series unlocked CPUs
Supports ASRock BCLK Full-range Overclocking
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-par ty
overclocking tools. Overclocking may aect your syste m’s stability, or even cause damage to
the components and devices of your syste m. It should be done at your own risk and expe nse.
We are not responsible for possible damage caused by overclocking.
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
English
14
Z490 Phantom Gaming-ITX/TB3
Chapter 2 Installation
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard
•
components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
15
English
2.1 Installing the CPU
1
1. Be fore you insert the 1200 -Pin CPU into the socket, please check if the P nP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.
2. Unplug all powe r cables before installing the CPU.
English
A
B
2
16
Z490 Phantom Gaming-ITX/TB3
3
5
4
17
English
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer se rvice.
English
18
2.2 Installing the CPU Fan and Heatsink
12
Z490 Phantom Gaming-ITX/TB3
CPU_FAN
English
19
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR 2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
English
20
Z490 Phantom Gaming-ITX/TB3
1
2
3
English
21
2.4 Expansion Slot (PCI Express Slot)
ere is 1 PCI Express slot on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIe slot:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
* Supports PCIe riser cards to extend x16, x8/x8 or x8/x4/x4 slots
English
22
2.5 MOS Heatsink Height
Z490 Phantom Gaming-ITX/TB3
MOS-N Heatsink Height
42.00 mm
50.24 mm
41.95 mm
42.00 mm
English
23
2.6 Onboard Headers and Connectors
#
PWRBTN
HDLED+
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.

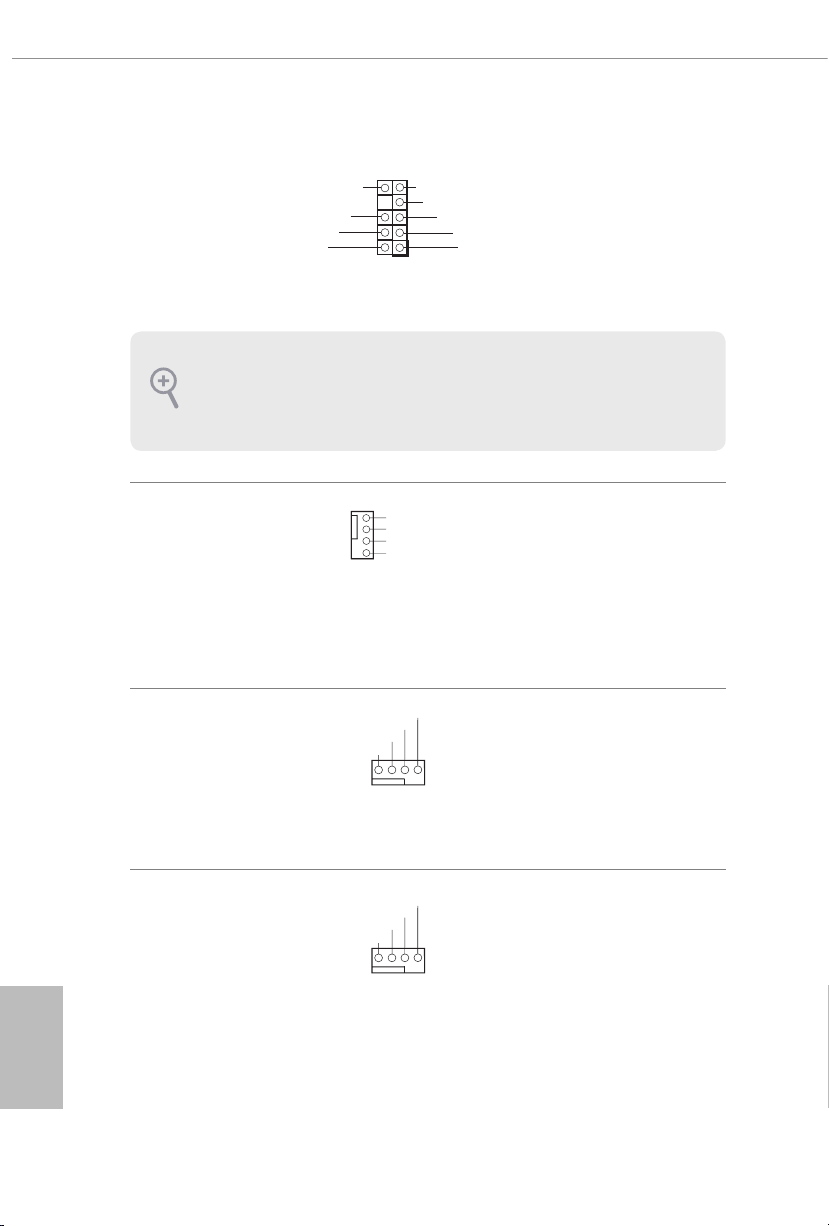

System Panel Header
(9-pi n PANEL1)
(see p.1, No. 11)
PWRBTN (Power Button):
Connec t to the power button on the chassi s front panel. You may congure the way to tur n
o your system using the power button.
RESET (Reset B utton):
Connec t to the reset button on the chassis front panel. Press the reset button to restart the
computer if the computer f reezes and fails to per form a normal restart.
PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel . e LED is on when the
system is operating. e LED k eeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 slee p state or powered o (S5).
HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly con sists of power
button, reset button , power LED, hard dr ive activity LED, speaker and etc. When connecting your chassi s front panel module to this header, make sure the wire a ssignments and the
pin assignments are matched correctly.
GNDRESET
#
PLED-
PLED+
1
GND
GND
HDLED-
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
English
24
Z490 Phantom Gaming-ITX/TB3
1
1
DUMMY
SPEAKER
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.3, No. 21)
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 10)
(SATA3_1:
see p.1, No. 12)
(SATA3_2:
see p.3, No. 18)
(SATA3_3:
see p.3, No. 17)
USB 2.0 Header
(9-pin USB1_2)
(see p.3, No. 20)
SATA3_3
SATA3_2
+5V
DUMMY
SATA3_0
SATA3_1
Please connect the chassis
speaker to this header.
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
ere is one header on
this motherboard. is
USB 2.0 header can
support two ports.
USB 3.2 Gen1 Header
(19-pin USB3_6_7)
(see p.1, No. 8)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
ere is one header on
this motherboard. is
USB 3.2 Gen1 header can
support two ports.
English
25
Front Panel Audio Header
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
MIC2_L
GND
PRESENCE#
GND
1
FAN_SPEED_CONTROL
1 2 3 4
FAN_SPEED_CONTROL
1 2 3 4
(9-pin HD_AUDIO1)
(see p.1, No. 14)
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the in struction s in our manual and chassis
manual to install your system.
is header is for
connecting audio devices
to the front audio panel.
English
26
Chassis Fan Connector
(4-pin CHA_FAN1)
(see p.1, No. 9)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)
CPU/Water Pump Fan
Connector
(4-pin CPU_OPT/W_
PUM P)
(see p.1, No. 4)
2
3
4
CPU_FAN_SPEED
FAN_VOLTAGE
GND
CPU_FAN_SPEED
FAN_VOLTAGE
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
Please connect fan cable
to the fan connectors and
match the black wire to
the ground pin.
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
is motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
Z490 Phantom Gaming-ITX/TB3
4
1
8 5
Signal
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 7)
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
Chassis Intrusion Header
(2-pin CI1)
(see p.3, No. 19)
12
24
is motherboard provides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
1
13
13.
is motherboard
provides an 8-pin ATX
12V power connector. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
1
GND
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
English
27
Loading...
+ 166 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
