ASRock Z490M Pro4 Service Manual

Version 1.1

Published May 2020

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/ perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 7

1.4 I/O Panel 9

Chapter 2 Installation 10

2.1 Installing the CPU 11

2.2 Installing the CPU Fan and Heatsink 14

2.3 Installing Memory Modules (DIMM) 15

2.4 Expansion Slots (PCI Express Slots) 17

2.5 Jumpers Setup 18

2.6 Onboard Headers and Connectors 19

2.7 Post Status Checker 24

2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide 25

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards 25

2.8.2 Driver Installation and Setup 27

2.9 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide 28

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1 and M2_2) 30

Chapter 3 Software and Utilities Operation 32

3.1 Installing Drivers 32

3.2 ASRock Motherboard Utility (A-Tuning) 33

3.3 ASRock Live Update & APP Shop 36

3.3.1 UI Overview 36

3.3.2 Apps 37

3.3.3 BIOS & Drivers 40

3.3.4 Setting 41

3.4 Nahimic Audio 42

3.5 ASRock Polychrome SYNC 43

Chapter 4 UEFI SETUP UTILITY 46

4.1 Introduction 46

4.2 EZ Mode 47

4.3 Advanced Mode 48

4.3.1 UEFI Menu Bar 48

4.3.2 Navigation Keys 49

4.4 Main Screen 50

4.5 OC Tweaker Screen 51

4.6 Advanced Screen 62

4.6.1 CPU Conguration 63

4.6.2 Chipset Conguration 65

4.6.3 Storage Conguration 68

4.6.4 Intel(R) Thunderbolt 69

4.6.5 Super IO Conguration 71

4.6.6 ACPI Conguration 72

4.6.7 USB Conguration 73

4.6.8 Trusted Computing 74

4.7 Tools 75

4.8 Hardware Health Event Monitoring Screen 77

4.9 Security Screen 81

4.10 Boot Screen 82

4.11 Exit Screen 85

Chapter 1 Introduction

ank you for purchasing ASRock Z 490M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website w ithout f urther notice. If you require technical support relate d to this motherboard, please vi sit our website for s pecic information about the model you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Z490M Pro4 Motherboard (Micro ATX Form Factor)

•

ASRock Z490M Pro4 Quick Installation Guide

•

ASRock Z490M Pro4 Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

3 x Screws for M.2 Sockets (Option al)

•

1 x I/O Panel Shield

•

Z490M Pro4

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM(i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

•

Micro ATX Form Factor

Solid Capacitor design

Suppor ts 10th Gen Intel® CoreTM Processors (Socket 1200)

Digi Power design

10 Power Phase design

Supports Intel® Turbo Boost Max 3.0 Technology

Supports Intel® K-Series unlocked CPUs

Intel® Z490

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

Supports DDR4 4300+(OC)*/4266(OC)/4133(OC)/4000

(OC)/3866(OC)/380 0(OC)/3733(OC)/3600(OC)/3200

(OC)/2933/2800/2666/2400/2133 non-ECC, un-buered

memory

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 128GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

English

Expansion Slot

2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16

•

(PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))

* Supports NVMe SSD as boot disks

2 x PCI Express 3.0 x1 Slots

•

Supports AMD Quad CrossFireXTM and CrossFireXTM

•

1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT module

•

and Intel® CNVi (Integrated WiFi/BT)

Z490M Pro4

Graphics

* Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265

•

8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,

MJ PEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.

Graphics, Media & Compute: Microso DirectX 12, OpenGL

•

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /

Switchable Graphics, OpenCL 2.1

Display & Content Security: Rec. 2020 (Wide Color Gamut),

•

Microso PlayReady 3.0, Intel® SGX Content Protection,

UHD/HDR Blu-ray Disc

ree graphics output options: D-Sub, HDMI and

•

DisplayPort 1.4

Supports Triple Monitor

•

Supports HDMI 1.4 with max. resolution up to 4K x 2K

•

(4096x2160) @ 30Hz

Supports DisplayPort 1.4 with max. resolution up to 4K x 2K

•

(4096x2304) @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 1.4 Port

(Compliant HDMI monitor is required)

Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4

•

Ports

Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and

•

DisplayPort 1.4 Ports

Audio

7.1 CH HD Audio with Content Protection (Realtek

•

ALC1200 Audio Codec)

Premium Blu-ray Audio support

•

Supports Surge Protection

•

PCB Isolate Shielding

•

Individual PCB Layers for R/L Audio Channel

•

Nahimic Audio

•

English

LAN

Rear Panel I/O

Storage

Gigabit LAN 10/100/10 00 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

2 x Antenna Ports

•

1 x PS/2 Mouse/Keyboard Port

•

1 x D-Sub Port

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD

•

Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD

•

Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

17), NCQ, AHCI and Hot Plug*

* If M2_1 is occupied, SATA3_3 will be disabled.

2 x Ultra M.2 Sockets (M2 _1 and M2_2), support M Key

•

type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express

module up to Gen3 x4 (32 Gb/s)**

** Supports Intel® OptaneTM Tech nolo gy

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

English

Connector

Z490M Pro4

1 x SPI TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

2 x RGB LED Headers

•

* Support in total up to 12V/3A, 36W LED Strip

2 x Addressable LED Headers

•

* Support in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* e CPU/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_

FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin

fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x 4 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x underbolt AIC Connector (5-pin) (Supports ASRock

•

underbolt 3 AIC R2.0 Card only)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490)

•

(Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

•

(ASMedia ASM1074 hub) (Supports ESD Protection)

BIOS Feature

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, GT, DRAM, PCH 1.05V, VCCIO, VCCST,

•

VCCSA, CPU Internal PLL, GT PLL Voltage Multi-adjust-

ment

English

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-

Hardware Monitor

•

ter Pump Fans

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

•

Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

•

Water Pump Fans

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

•

VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO

Microso® Windows® 10 64-bit

Certications

* For detailed product information, please visit our website: http://www.asrock .com

Please realize that the re is a certain r isk involved with overclo cking, including adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using third-party overclocking tool s. Overclocking may aect your system’s stability, or even cause dam age to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for poss ible damage caused by overclocking.

•

FCC, CE

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

•

English

1.3 Motherboard Layout

Intel

Z490

ATXP WR 1

HDLED RESET

PLED PWRBTN

PANEL1

Z4 90 M Pr o 4

RoHS

CPU_FAN1

PCIE1

SPK_CI1

PCIE2

CMOS

Battery

DDR4 _A2 (64 b it, 288 -pin mo dule)

DDR4 _A1 (64 b it, 288 -pin mo dule)

DDR4 _B2 (64 b it, 288 -pin mo dule)

DDR4 _B1 (64 b it, 288 -pin mo dule)

ATX12V1

SATA3_2

SATA3_3

USB3_5_ 6

CLRMOS1

HD_AUDIO1

M2_1

Top: RJ-45

HDMI 1

CHA_FAN1/WP

USB 3.2 Gen2 T: USB31_TA_1 B: USB31_TC_1

PCIE4

SATA3_1

CHA_FAN2/WP

Ultra M.2

PCIe Gen3 x4

CPU_FAN2/WP

USB3_4

M2_2

SATA3_0

PCIE3

USB3_7_ 8

USB 3.2 Gen1 T: USB3_4 B: USB3_3

M2_3

Top:

LINE I N

Cent er:

FRON T

Bott om:

MIC IN

VGA 1

Disp lay1

USB 3.2 G en1

T: USB3_ 1

B: USB 3_2

PS2

Keybo ard

/Mous e

ATX12V2

RGB_LED2

ADDR_LED1

SPI_TPM_J1

CHA_FAN3/WP

T B1

ADDR_LED2

RGB_LED1

CHA_FAN4/WP

262728

USB1_2

CPU

DRAM

VGA

BOOT

Z490M Pro4

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 ATX 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

7 RGB LED Header (RGB_LED2)

8 Addressable LED Header (ADDR_LED1)

9 ATX Power Connector (ATXPWR1)

10 USB 3.2 Gen1 Header (USB3_5_6)

11 SATA3 Connector (SATA3_0)

12 SATA3 Connector (SATA3_1)

13 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

14 USB 3.2 Gen1 Header (USB3_7_8)

15 SATA3 Connector (SATA3_2)

16 SATA3 Connector (SATA3_3)

17 System Panel Header (PANEL1)

18 Clear CMOS Jumper (CLRMOS1)

19 USB 2.0 Header (USB3_4)

20 USB 2.0 Header (USB1_2)

21 SPI TPM Header (SPI_TPM_J1)

22 Chassis Intrusion and Spea ker Header (SPK_CI1)

23 Post Status Checker (PSC)

24 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

25 underbolt AIC Connector (TB1)

26 Addressable LED Header (ADDR_LED2)

27 RGB LED Header (RGB_LED1)

28 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

29 Front Panel Audio Header (HD_AUDIO1)

30 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

1.4 I/O Panel

1 32

Z490M Pro4

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

2 D-Sub Por t 9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

3 LAN RJ-45 Port* 10 Antenna Bracket

4 Line In (Light Blue)** 11 DisplayPort 1.4

5 Front Speaker (Lime)** 12 HDMI Port

6 Microphone (Pink)** 13 USB 3.2 Gen1 Ports (USB3_1_2)

7 USB 3.2 Gen1 Ports (USB3_3_4)

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

6711

** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out

English

Chapter 2 Installation

is is a Micro ATX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

2.1 Installing the CPU

1. Before you insert the 1200-Pin CPU into the socke t, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to in sert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

2. Unplug all power c ables before in stalling the CPU.

Z490M Pro4

English

Please save and replace the cover if the processor i s removed. e cover must be placed if you wish to return the motherboard for aer service.

Z490M Pro4

English

2.2 Installing the CPU Fan and Heatsink

1 2

English

CPU_FAN

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channe l conguration, you always need to in stall identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memor y Technolog y with only one or three

memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4

slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated 2 Populated Populated Populated Populated

e DIMM only ts in one correct orientation. It will cause permanent dam age to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation.

Z490M Pro4

English

2.4 Expansion Slots (PCI Express Slots)

ere are 4 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and mak e necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Congurations

PCIE1 PCIE4

Single Graphics Card x16 N/A

Z490M Pro4

Two Graphics Cards in

CrossFireXTM Mode

For a better ther mal environment, ple ase connect a ch assi s fan to the motherboard’s chassis fan connector (CHA_ FA N1/WP, CHA_ FAN2/WP, CHA_FAN3/WP or CHA_ FA N4/WP) when using multiple graphics cards.

x16 x4

English

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“O pen”.

Clear CMOS Jumper

(CLRMO S1)

(see p.7, No. 18)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short the pins on CLR MOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed. Please remember toremove the jumper cap aer clearing the CMOS.

2-pin Jumper

English

If you clear the CMOS, the case open may be detec ted. Please adjust the BIOS option “Clear Status” to clear the record of previou s chassis intrusion status.

2.6 Onboard Headers and Connectors

SPEAKER

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these header s and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

Z490M Pro4

System Panel Header

(9-pi n PANEL1)

(see p.7, No. 17)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to turn o your system using the power switch.

RESET (Reset Switch): Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED): Connec t to the power status indicator on the chassis front panel. e LED i s on when the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED): Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the hard drive i s reading or writing data.

e front panel de sign may dier by chassis. A front pane l module mainly consists of power switch , reset switch, power LED, hard dr ive activity LED, speak er and etc. When connecting your chassis front panel module to this head er, make sure the wire assig nments and the pin assig nments are matched correctly.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

Chassis Intrusion and

Speaker Header

(7-pi n SPK _CI1)

(see p.7, No. 22)

DUMMY +5V

SIGNAL

DUMMY

GND

DUMMY

Please connect the

chassis intrusion and the

chassis speaker to this

header.

English

Serial ATA3 Connectors

(SATA3_0:

see p.7, No. 11)

(SATA3_1:

see p.7, No. 12)

(SATA3_ 2:

see p.7, No. 15)

(SATA3_ 3:

see p.7, No. 16)

SATA3_2

ese four SATA3

connectors support SATA

SATA3_0

data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_1

If M2_1 is occupied,

SATA3_3 will be disabled.

SATA3_3

English

USB 2.0 Headers

(9-pin USB1_2)

(see p.7, No. 20)

(9-pin USB3_4)

(see p.7, No. 19)

USB 3.2 Gen1 Headers

(19-pin USB3_5_6)

(see p.7, No. 10)

(19-pin USB3_7_8)

(see p.7, No. 14)

Front Panel Audio Header

(9-pin HD_ AUDIO1)

(see p.7, No. 29)

USB_PWR

IntA_PA_SSRX-

IntA_PA_SSRX+

IntA_PA_SSTX-

IntA_PA_SSTX+

IntA_PA_D-

IntA_PA_D+

GND

MIC2_L

P-

P+

P-

Vbus

GND

PRESENCE#

MIC_RET

OUT2_R

MIC2_R

GND

DUMMY

GND

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

OUT_RET

OUT2_L

J_SENSE

ere are two USB

2.0 headers on this

motherboard.

ere are two USB 3.2

Gen1 headers on this

motherboard. Each USB

3.2 Gen1 header can

support two ports.

is header is for

connecting audio devices

to the front audio panel.

GND

FAN_VOLTAGE_CONTROL

FAN_SPEED

FAN_SPEED_CONTROL

GND

FAN_VOLTAGE_CONTROL

FAN_SPEED

FAN_SPEED_CONTROL

1. High De nition Audio supports Jack Sen sing, but the panel wire on the chassis

must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel , please install it to the front panel audio header by

the steps below: A. Connect Mic_IN (MIC) to MIC2_ L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connec t them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”.

Z490M Pro4

Chassis/Water Pump Fan

Connectors

(4-pin CHA_FAN1/WP)

(see p.7, No. 25)

(4-pin CHA_FAN2/WP)

(see p.7, No.13)

(4-pin CHA_FAN3/WP)

(see p.7, No.24)

(4-pin CHA_FAN4/WP)

(see p.7, No.28)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.7, No. 3)

CPU/Water Pump Fan

Connector

(4-pin CPU_FAN2/WP)

(see p.7, No. 6)

FAN_SPEED_CONTROL

FAN_SPEED

FAN_VOLTAGE_CONTROL

4 3 2 1

GND

FAN_VOLTAGE_CONTROL

FAN_SPEED

FAN_SPEED_CONTROL

4 3 2 1

GND

FAN_VOLTAGE_CONTROL

FAN_SPEED

FAN_SPEED_CONTROL

is motherboard

provides four 4-Pin water

GND

cooling

chassis

fan

connectors. If you plan to

connect a 3-Pin

chassis

water cooler fan, please

connect it to Pin 1-3.

is motherboard pro-

vides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

is motherboard

provides a 4-Pin water

cooling CPU fan

connector. If you plan

to connect a 3-Pin CPU

water cooler fan, please

connect it to Pin 1-3.

English

ATX Power Connector

SPI_DQ3

(24-p i n ATX PWR1)

(see p.7, No. 9)

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.7, No. 1)

ATX 12V Power

Connector

(4-pin ATX12V2)

(see p.7, No. 2)

SPI TPM Header

(13 -pi n SPI_T PM _J1)

(see p.7, No. 21)

SPI_DQ2

+3.3V

TPM_Present

SPI_MISO

SPI_CS0

CLK

SPI_MOSI

GND

RSMRST#

RST#

TPM_PIRQ

SPI_TPM_CS#

is motherboard pro-

vides a 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

Please connect an ATX

12V power supply to this

connector.

*e power supply plug

ts into this connector in

only one orientation.

is connector supports SPI

Trusted Platform Module (TPM)

system, which can securely

store keys, digital certicates,

passwords, and data. A TPM

system also helps enhance

network securit y, protects digital

identities, and ensures platform

integrity.

English

underbolt AIC

Connector

(5-pin TB1)

(see p.7, No. 25)

Please connect a underbolt™

add-in card (AIC) to this

connector via the GPIO cable.

*Please install the underbolt™

AIC card to PCIE4 (default slot).

Z490M Pro4

RGB LED Headers

(4-p i n RGB_ LED1)

(see p.7, No. 27)

(4-pi n RGB _LED2)

(see p.7, No. 7)

Addressable LED Header

(3-pin A DDR _LED1)

(see p.7, No. 8)

(3-pin A DDR _LED2)

(see p.7, No. 26)

12V GRB

12V

DO_ADDR

VOUT

GND

RGB LED headers are used to

connect RGB LED extension

cables which allow users to

choose from various LED light-

ing eects.

Caution: Never install the RGB

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

*Please refer to page 43 for for

further instructions on this

header.

e headers are used to connect

Addressable

LED extension ca-

bles which a llow users to choose

from various LED lighting

eects.

Caution: Never install the

Addressable LED cable in the

wrong orientation; otherwise,

the cable may be damaged.

*Please refer to page 44 for

further instructions on this

header.

English

2.7 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the

machine. It emits a red light to indicate whether the CPU, memory, VGA or stor-

age is dysfunctional. e lights go o if the four mentioned above are functioning

normally.

English

2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide

is motherboard supports CrossFireXTM and Quad CrossFireXTM that allows you

to install up to three identical PCI Express x16 graphics cards.

1. You should only use identical CrossFireXTM-ready g raphics cards that are AM D

certied.

2. Make sure that your g raphics card driver supports AMD CrossFireXTM technology.

Download the drivers from the A MD’s website: www.amd.com

3. Make sure that your power supply unit (PSU) can provide at least th e minimum

power your syste m require s. It is recommended to use a AMD certied PSU. Plea se refer to the AMD’s website for d etail s.

4. If you pair a 12-pipe CrossFireXTM Edition card with a 16-pipe card, both cards will

operate a s 12-pipe cards while in CrossFireXTM mode.

5. Dierent CrossFireXTM cards may require dierent method s to enable CrossFi-

reXTM. Please refer to A MD graphics card manuals for de tailed installation guide.

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards

Step 1

Insert one graphics card into PCIE1 slot

and the other graphics card to PCIE4 slot.

Make sure that the cards are properly

seated on the slots.

Z490M Pro4

CrossFire Bridge

Step 2

Connect two graphics cards by installing

a CrossFire Bridge on the CrossFire Bridge

Interconnects on the top of the graphics

cards. (e CrossFire Bridge is provided

with the graphics card you purchase, not

bundled with this motherboard. Please

refer to your graphics card vendor for

deta ils .)

English

Step 3

Connect a VGA cable or a DVI cable to the

monitor connector or the DVI connec-

tor of the graphics card that is inserted to

PCIE1 slot.

English

2.8.2 Driver Installation and Setup

Step 1

Power on your computer and boot into OS.

Step 2

Remove the AMD drivers if you have any VGA drivers installed in your system.

e Catalyst Uninstalle r is an optional downloa d. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation. Pl ease check A MD’s website for AMD driver update s.

Step 3

Install the required drivers and CATALYST Control Center then restart your

computer. Please check AMD’s website for details.

Step 4

Double-click the AMD Catalyst Control

AMD Catalyst Control Center

Center icon in the Windows® sy stem tray.

Z490M Pro4

Step 5

In the le pane, click Performance and

then AMD CrossFireXTM. en select

Enable AMD CrossFireX and click Apply.

Select the GPU number according to your

graphics card and click Apply.

English

2.9 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket

(Key E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).

* e M.2 socket does not support SATA M.2 SSDs.

Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn o the AC power.

Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)

Step 1

Prepare a type 2230 WiFi/BT module

or Intel® CNVi (Integrated WiFi/BT)

and the screw.

Step 2

Find the nut location to be used.

English

PCB Length: 3cm Module Type: Type2230

Z490M Pro4

Step 3

Gently insert the WiFi/BT module

or Intel® CNVi (Integrated WiFi/

BT) into the M.2 slot. Please be aware

that the module only ts in one

orientation.

Step 4

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

this might damage the module.

English

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1 and M2_2)

The M.2, a lso known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connec tor that aims to replace mPCIe and mSATA. The Ultra M.2

Sockets (M2_1 and M2_2) support M Key ty pe 2280 M.2 SATA3 6.0 Gb/s module and M.2

PCI Express module up to Gen3 x4 (32 Gb/s).

* Please be noted that if M2_1 is occupied, SATA3_3 will be disabled.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

English

Step 2

Before installing a M.2 (NGFF) SSD

modu le, please loosen the screws to

remove the M.2 heatsink. (for M2_1

socket only)

Step 3

Gently insert the M.2 (NGFF) SSD

module into the M.2 slot. Please

be aware that the M.2 (NGFF) SSD

module only ts in one orientation.

No. 1

Nut Location A

PCB Length 8cm

Module Type Type 228 0

Step 3

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

NUT1NUT2

this might damage the module.

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AX NS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C Crucial SATA3 CT120M500SSD4 Crucial SATA3 CT240M500SSD4 Intel SATA3 Intel SSDSCKGW080A401/80G Kingston SATA3 SM2280S3 Kingston PCIe2 x4 SH2280S3/480G Plextor PCIe PX-G256M6e Plextor PCIe PX-G512M6e Samsung PCIe x4 XP941-512G (MZHPU512HCGL) Team SATA3 TM8PS4128GMC105 Team SATA3 TM8PS4 25 6GMC105 Tra nscend SATA3 TS512GMTS800 V-Col or SATA3 VLM100-120G-2280B-RD V-Col or SATA3 V LM100 -240G-2280RGB V-Col or SATA3 VSM100 -240G-2 28 0 V-Col or SATA3 V LM100 -240G-2280B-RD WD SATA3 WDS100T1B0B-00AS40 WD SATA3 WDS240G1G0B-00RC30

Z490M Pro4

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://www.asrock.com

English

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Install All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to insta ll it.

English

3.2 ASRock Motherboard Utility (A-Tuning)

ASRock Motherboard Utilit y (A-Tuning) is ASRock’s multi purpose soware suite

with a new interface, more new features and improved utilities.

3.2.1 Installing ASRock Motherboard Utility (A-Tuning)

ASRock Motherboard Utilit y (A-Tuning) can be downloaded from ASRock Live

Update & APP Shop. Aer the installation, you will nd the icon “ASRock Mother-

board Utility (A-Tuning)“ on your desktop. Double-click the “ASRock Motherboard

Ut il it y (A -Tu ni ng)“ icon, ASRock Motherboard Utility (A-Tuning) main menu

will pop up.

3.2.2 Using ASRock Motherboard Utility (A-Tuning)

ere are ve sections in ASRock Motherboard Utility (A-Tuning) main menu:

Operation Mode, OC Tweaker, System Info, FAN-Tastic Tuning and Settings.

Operation Mode

Choose an operation mode for your computer.

Z490M Pro4

English

OC Tw eaker

Congurations for overclocking the system.

System Info

View information about the system.

*e System Browser tab may not appear for certain models.

English

Z490M Pro4

FAN-Tastic Tuning

Congure up to ve dierent fan speeds using the graph. e fans will automatically shi

to the next speed level when the assigned temperature is met.

Settings

Congure ASRock Motherboard Utility (A-Tuning). Click to select "Auto run

at Windows Startup" if you want ASRock Motherboard Utility (A-Tuning) to be

launched when you start up the Windows operating system.

English

3.3 ASRock Live Update & APP Shop

e ASRock Live Update & APP Shop is an online store for purchasing and

downloading soware applications for your ASRock computer. You can quick ly and

easily insta ll various apps and support utilities. With ASRock Live Update & APP

Shop, you can optimize your system and keep your motherboard up to date simply

with a few clicks.

Double-click on your desktop to access ASRock Live Update & APP Shop utility.

*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.

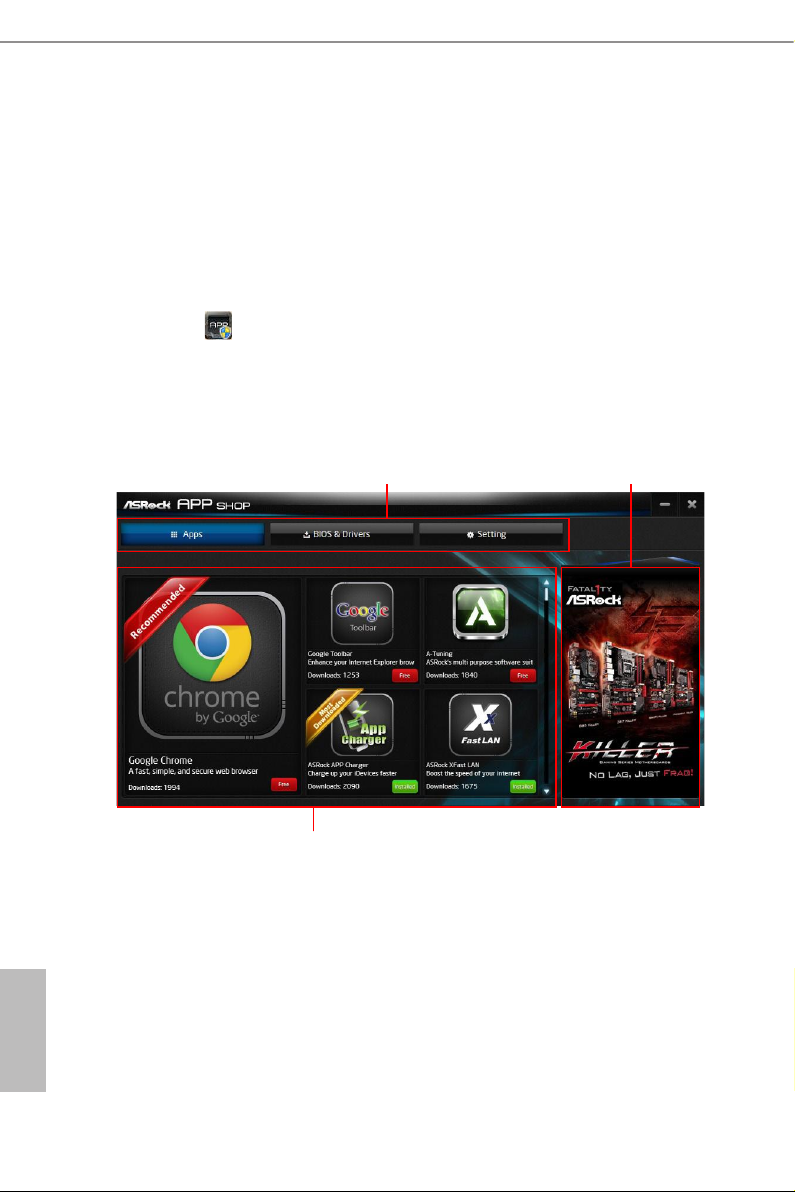

3.3.1 UI Overview

Category Panel

Hot News

English

Information Panel

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

3.3.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

Step 1

Find the app you want to install.

Z490M Pro4

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

You can check the price of the app and whether you have already intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

English

Step 3

If you want to install the app, click on the red icon to start downloading.

Step 4

When installation completes, you can nd the green "Installed " icon appears on the

upper right corner.

English

To uninstall it, simply click on the trash can icon . *e trash icon may not appear for certain apps.

Upgrading an App

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

Z490M Pro4

Step 2

Click on the yellow icon to start upgrading.

English

3.3.3 BIOS & Drivers

Installing BIOS or Drivers

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

Step 1

Please check the item information before update. Click on to see more details.

Step 2

English

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

3.3.4 Setting

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock Live Update & APP Shop

on Windows startup.

Z490M Pro4

English

3.4 Nahimic Audio

Nahimic audio soware provides an incredible high denition sound technology which

boosts the audio and voice performance of your system. Nahimic Audio interface is

composed of four tabs: Audio, Microphone, Sound Tracker and Settings.

ere are four functions in Nahimic audio :

No. Function Description

From this tab, you can mute the current audio device, choose

Audio

between four factory audio proles, turn all audio eects on/o, restores the current prole to its default settings and access Surround Sound and various features.

English

Microphone

Sound

Tracker

Settings

From this tab, you can mute the current mic device, choose between two factory mic proles, turn/o all microphone eects, restore the current prole to its default settings, and access Static Noise Suppression and various features.

e Sound Tracker provides a visual indication localizing the sources of the sounds while in a game. ese are represented by dynamic segments pointing the direction of the sounds: the more opaque they are, the stronger the sounds are.

From this tab, you can access all settings and information of the soware.

Z490M Pro4

12V GRB

3.5 ASRock Polychrome SYNC

ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-

viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by

connecting the LED strip, you can customize various lighting schemes and patterns, including

Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the

motherboard.

RGB LED Headers (RGB_LED1 / RGB_LED2)

RGB_LED2

Z49 0M Pro 4

RGB_LED1

on the

Ultra M. 2

PCIe Gen3 x4

RoHS

CPU

VGA

BOOT

DRAM

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cabl e

may be damaged.

2. Before installing or removing your RGB LED cable, please power o your system

and unplug the powe r cord from the powe r supply. Failure to do so may cause damages to motherboard components.

1. Plea se note that the RGB LED strips do not come with the package.

2. e RGB LED header suppor ts standard 5050 RGB LED str ip (12V/G/R/B), with a

maximum power rating of 3A (12V) and length within 2 meters.

English

Connecting the Addressable RGB LED Strip

Connect your

ADDR _LED2)

Addressable RGB LED

on the motherboard.

Z49 0M Pro 4

strips to the

Addressable LED Headers (ADDR_LED1 /

ADDR_LED1

ADDR_LED2

VOUT

DO_ADDR

GND

Ultra M. 2

PCIe Gen3 x4

RoHS

CPU

VGA

BOOT

DRAM

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cabl e may be damaged.

2. Before installing or removing your RGB LED cable, please power o your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Plea se note that the RGB LED strips do not come with the package.

2. e RGB LED header suppor ts WS2812B addressable RGB LED strip (5V/Data/

GND), with a ma ximum power rating of 3A (5V) and length w ithin 2 meters.

English

ASRock Polychrome SYNC Utility

Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility.

Download this utility from the ASRock Live Update & APP Shop and start coloring your

PC style your way!

Drag the tab to customize your

preference.

Toggle on/o the

RGB LED switch

Sync RGB LED eects

for all LED regions of

the motherboard

Select a RGB LED light eect

from the drop-down menu.

Z490M Pro4

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, other wise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

Becau se the UEFI soware is constantly being upd ated, the following UEFI setup screens and de scriptions are for reference purpose only, and they may not exactly match what you see on your scre en.

English

4.2 EZ Mode

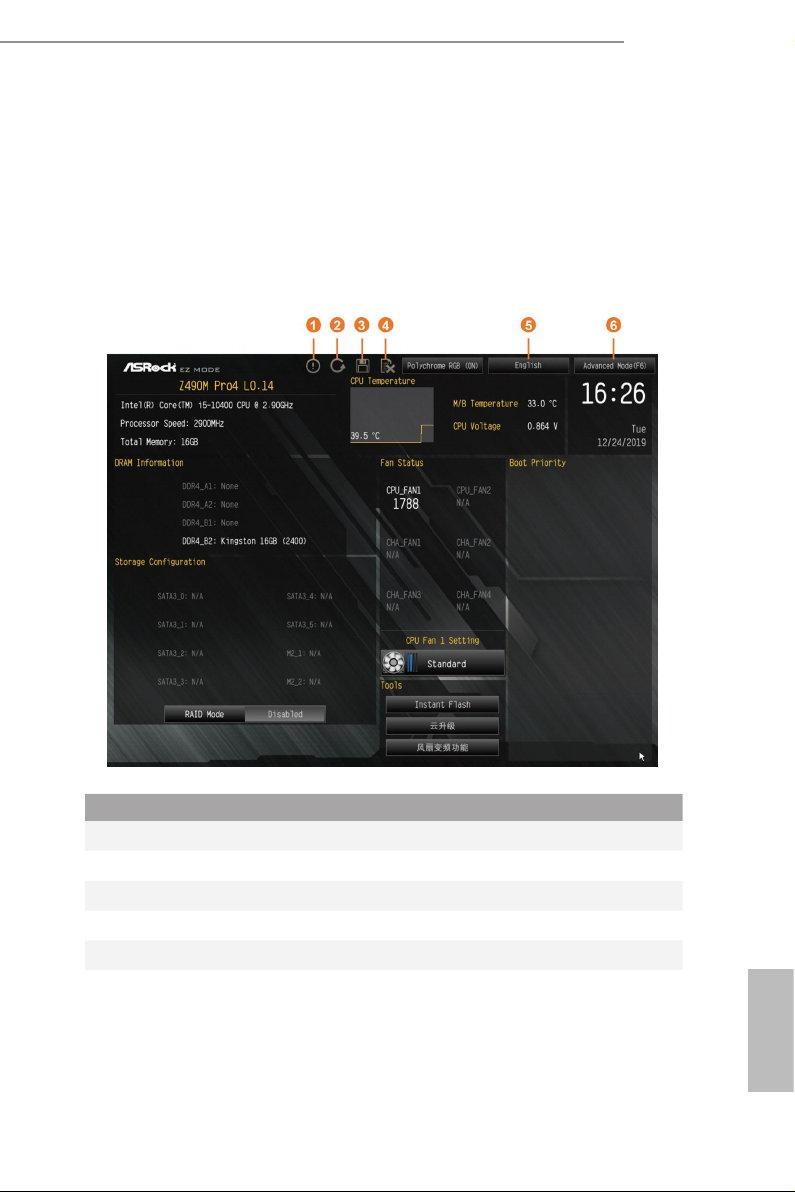

e EZ Mode screen appears when you enter the BIOS setup program by default. EZ

mode is a dashboard which contains multiple readings of the system’s current status.

You can check the most crucial information of your system, such as CPU speed,

DRAM frequency, SATA information, fan speed, etc.

Press <F6> or click the "Advanced Mode" button at the upper right corner of the

screen to switch to "Advanced Mode" for more options.

Z490M Pro4

No. Function

Help

Load UEFI Defaults

Save Changes and Exit

Discard Changes

Change Language

Switch to Advanced Mode

English

4.3 Advanced Mode

e Advanced Mode provides more options to congure the BIOS settings. Refer to

the following sections for the detailed congurations.

To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right

corner of the screen.

4.3.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

Main

OC Tweaker

Advanced

Tool

H/W Monitor

Security

Boot

Exit

For setting system time/date information

For overclocking congurations

For advanced system congurations

Useful tools

Displays current hardware status

For security settings

For conguring boot settings and boot priority

Exit the current screen or the UEFI Setup Utility

English

4.3.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

Z490M Pro4

+ / -

<Tab>

<PGUP>

<PGDN>

<HOME>

<END>

<F1>

<F5>

<F7>

<F9>

<F10>

<F12>

<ESC>

To change option for the selected items

Switch to next function

Go to the previous page

Go to the next page

Go to the top of the screen

Go to the bottom of the screen

To display the General Help Screen

Add / Remove Favorite

Discard changes and exit the SETUP UTILITY

Load optimal default values for all the settings

Save changes and exit the SETUP UTILITY

Print screen

Jump to the Exit Screen or exit the current screen

English

4.4 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system overview.

e availability and location of BIOS settings can be dierent for dierent models and BIOS versions .

English

My Favorite

Display your collection of BIOS items. Press F5 to add/remove your favorite items.

4.5 OC Tweaker Screen

In the OC Tweaker screen, you can set up overclocking features.

Z490M Pro4

Advanced Turbo

You can use this option to increase your system performance. is option appears only

when your CPU supports this function. is option appears only when you adopt K-Series

CPU.

Load Optimized CPU OC Setting

You can use this option to load optimized CPU overclocking setting. Please note that

overclocking may cause damage to your CPU and motherboard. It should be done at your

own risk and expense.

Load Optimized GPU OC Setting

You can use this option to load optimized GPU overclocking setting. Please note that

overclocking may cause damage to your GPU and motherboard. It should be done at your

own risk and expense. is option appears only when you adopt K-Series CPU.

English

CPU Conguration

AVX Ratio Oset

AVX Ratio Oset species a negative oset from the CPU Ratio for AVX workloads.

AVX is a more stressful workload that lower the AVX ratio to ensure maximum

possible ratio for SSE workloads.

BCLK Frequency

e CPU speed is determined by the CPU Ratio multiplied with the BCLK.

Increasing the BCLK will increase the internal CPU clock speed but also aect the

clock speed of other components.

BCLK Spread Spectrum

Enable BCLK Spread Spectrum to reduce electromagnetic interference for passing

EMI tests. Disable to achieve higher clock speeds when overclocking.

BCLK Aware Adaptive Voltage

BCLK Aware Adaptive Voltage enable/disable. When enabled, pcode will be aware

of the BCLK frequency when calculating the CPU V/F curves. is is ideal for

BCLK OC to avoid high voltage overrides.

Boot Performance Mode

Select the performance state that the BIOS will set before OS hando.

FCLK Frequency

Congure the FCLK Frequency.

English

Ring to Core Ratio Oset

Disable Ring to Core Ratio Oset so the ring and core can run at the same fre-

quency.

Intel SpeedStep Technology

Intel SpeedStep technology allows processors to switch between multiple frequen-

cies and voltage points for better power saving and heat dissipation.

Intel Turbo Boost Technology

Intel Turbo Boost Technology enables the processor to run above its base operating

frequency when the operating system requests the highest performance state.

Intel Thermal Velocity Boost Ratio Clipping

is service controls Core frequency reduction caused by high package tempera-

tures for processors that implement the Intel ermal Velocity Boost (TVB) feature.

It is required to be disabled for supporting overclocking at frequencies higher than

the default max turbo frequency.

Intel Thermal Velocity Boost Voltage Optimizations

is service controls thermal based voltage optimizations for processors that

implment the Intel ermal Velocity Boost (TVB) feature.

Long Duration Power Limit

Congure Package Power Limit 1 in watts. When the limit is exceeded, the CPU

ratio will be lowered aer a period of time. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

Long Duration Maintained

Congure the period of time until the CPU ratio is lowered when the Long

Duration Power Limit is exceeded.

Short Duration Power Limit

Congure Package Power Limit 2 in watts. When the limit is exceeded, the CPU

ratio will be lowered immediately. A lower limit can protect the CPU and save

power, while a higher limit may improve performance.

Z490M Pro4

CPU Core Current Limit

Congure the current limit of the CPU core. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

GT Current Limit

Congure the current limit of the GT slice. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

GT Frequency

Congure the frequency of the integrated GPU.

DRAM Conguration

Memory Information

Allows users to browse the serial presence detect (SPD) and Intel extreme memory prole

(XMP) for DDR4 modules.

DRAM Timing Conguration

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s) inserted

English

and assign the appropriate frequency automatically.

Primary Timing

CAS# Latency (tCL)

e time between sending a column address to the memory and the beginning of the data

in response.

RAS# to CAS# Delay and Row Precharge (tRCDtRP)

RAS# to CAS# Delay : e number of clock cycles required between the opening of a row

of memory and accessing columns within it.

Row Precharge: e number of clock cycles required between the issuing of the precharge

command and opening the next row.

RAS# Active Time (tRAS)

e number of clock cycles required between a bank active command and issuing the

precharge command.

Command Rate (CR)

e delay between when a memor y chip is selected and when the rst active command can

be issued.

Secondary Timing

Write Recovery Time (tWR)

e amount of delay that must elapse aer the completion of a valid write operation,

before an active bank can be precharged.

English

Refresh Cycle Time (tRFC)

e number of clocks from a Refresh command until the rst Activate command to

the same rank.

RAS to RAS Delay (tRRD_L)

e number of clocks between two rows activated in dierent banks of the same

rank.

RAS to RAS Delay (tRRD_S)

e number of clocks between two rows activated in dierent banks of the same

rank.

Z490M Pro4

Write to Read Delay (tWTR_L)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

Write to Read Delay (tWTR_S)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

Read to Precharge (tRTP)

e number of clocks that are inserted between a read command to a row pre-

charge command to the same rank.

Four Activate Window (tFAW)

e time window in which four activates are allowed the same rank.

CAS Write Latency (tCWL)

Congure CAS Write Latency.

Third Timing

tREFI

Congure refresh cycles at an average periodic interval.

tCKE

Congure the period of time the DDR4 initiates a minimum of one refresh

command internally once it enters Self-Refresh mode.

Turn Around Timing

tRDRD_sg

Congure between module read to read delay.

tRDRD_dg

Congure between module read to read delay.

tRDRD_dr

Congure between module read to read delay.

tRDRD_dd

Congure between module read to read delay.

English

tRDWR_sg

Congure between module read to write delay.

tRDWR_dg

Congure between module read to write delay.

tRDWR_dr

Congure between module read to write delay.

tRDWR_dd

Congure between module read to write delay.

tWRRD_sg

Congure between module write to read delay.

tWRRD_dg

Congure between module write to read delay.

tWRRD_dr

Congure between module write to read delay.

tWRRD_dd

Congure between module write to read delay.

English

tWRWR_sg

Congure between module write to write delay.

tWRWR_dg

Congure between module write to write delay.

tWRWR_dr

Congure between module write to write delay.

tWRWR_dd

Congure between module write to write delay.

Round Trip Timing

RTL Init Value

Congure round trip latency init value for round trip latency training.

IOL Init Value

Congure IO latency init value for IO latency training.

RTL (CH A)

Congure round trip latency for channel A.

RTL (CH B)

Congure round trip latency for channel B.

IOL (CH A)

Congure IO latency for channel A.

IOL (CH B)

Congure IO latency for channel B.

IOL Oset (CH A)

Congure IO latency oset for channel A.

IOL Oset (CH B)

Congure IO latency oset for channel B.

Z490M Pro4

RFR Delay (CH A)

Congure RFR Delay for Channel A.

RFR Delay (CH B)

Congure RFR Delay for Channel B.

ODT Setting

ODT WR (A1)

Congure the memory on die termination resistors' WR for channel A1.

ODT WR (A2)

Congure the memory on die termination resistors' WR for channel A2.

ODT WR (B1)

Congure the memory on die termination resistors' WR for channel B1.

ODT WR (B2)

Congure the memory on die termination resistors' WR for channel B2.

English

ODT NOM (A1)

Use this to change ODT (CH A1) Auto/Manual settings. e default is [Auto].

ODT NOM (A2)

Use this to change ODT (CH A2) Auto/Manual settings. e default is [Auto].

ODT NOM (B1)

Use this to change ODT (CH B1) Auto/Manual settings. e default is [Auto].

ODT NOM (B2)

Use this to change ODT (CH B2) Auto/Manual settings. e default is [Auto].

ODT PARK (A1)

Congure the memory on die termination resistors' PARK for channel A1.

ODT PARK (A2)

Congure the memory on die termination resistors' PARK for channel A2.

ODT PARK (B1)

Congure the memory on die termination resistors' PARK for channel B1.

ODT PARK (B2)

Congure the memory on die termination resistors' PARK for channel B2.

English

COMP Setting

RCOMP0: DQ ODT (Read)

Default is 121.

RCOMP1: DQ /CLK Ron (Drive Strength)

Default is 75.

RCOMP2: CMD/CTL Ron (Drive Strength)

Default is 100.

DQ ODT Driving

Adjust ODT Driving for better signal. Default is 60.

DQ Driving

Adjust DQ Driving for better signal. Default is 26.

Command Driving

Adjust Command Driving for better signal. Default is 20.

Control Driving

Adjust Control Driving for better signal. Default is 20.

Clock Driving

Adjust Clock Driving for better signal. Default is 26.

DQ Slew Rate

Adjust DQ Slew Rate for better signal. Default is 59.

Command Slew Rate

Adjust Command Slew Rate for better signal. Default is 53 for IN, 89 for 2N.

Contorl Slew Rate

Adjust Control Slew Rate for better signal. Default is 53.

Clock Slew Rate

Adjust Clock Slew Rate for better signal. Default is 53.

Z490M Pro4

Dll Bandwidth 0

Congure Dll Bandwidth 0 (1067 MHz) to maximize the performance of

intergrated memory controller.

Dll Bandwidth 1

Congure Dll Bandwidth 1 (1333 MHz) to maximize the performance of intergrated

memory controller.

Dll Bandwidth 2

Congure Dll Bandwidth 2 (1600 MHz) to maximize the performance of

intergrated memory controller.

Dll Bandwidth 3

Congure Dll Bandwidth 3 (1867 MHz) to maximize the performance of intergrated

memory controller.

MRS Setting

MRS tCL

Congure the tCL for Memory MRS MR0.

English

MRS tWRtRTP

Congure the tWRtRTP for Memory MRS MRC.

MRS tCWL

Congure the tCWL for Memory MRS MR2.

MRS tCCD_L

Congure the tCL for Memory MRS MR6.

Advanced Setting

ASRock Timing Optimization

Congure the fast path through the MRC.

Realtime Memory Timing

Congure the realtime memory timings.

[Enabled] e system will allow performing realtime memory timing changes aer

MRC_DONE.

Command Tristate

Congure the Command Tristate Support.

Exit On Failure

Congure the Exit On Failure for MRC training steps.

English

Reset On Training Fail

Reset system if the MRC training fails.

MRC Fast Boot

Enable Memory Fast Boot to skip DRAM memory training for booting faster.

Voltage Conguration

CPU Core/Cache Voltage

Input voltage for the processor by the external voltage refulator.

CPU Load-Line Calibration

CPU Load-Line Calibration helps prevent CPU voltage droop when the system is

under heav y loading.

GT Voltage

Congure the voltage for the integrated GPU.

GT Load-Line Calibration

GT Load-Line Calibration helps prevent integrated GPU voltage droop when the

system is under heav y load.

DRAM Activating Power Supply

Congure the voltage for the DRAM Activating Power Supply.

DRAM Voltage

Use this to congure DRAM Voltage. e default value is [Auto].

PCH +1.0 Voltage

Congure the chipset voltage (1.0V).

VCCST Voltage

Congure the voltage for the VCCST.

VCCIO Voltage

Congure the voltage for the VCCIO.

Z490M Pro4

VCCSA Voltage

Congure the voltage for the VCCSA.

FIVR Conguration

CPU V/F Curve

Congure CPU Voltage/Frequency Cur ve.

Save User Default

Type a prole name and press enter to save your settings as user default.

Load User Default

Load previously saved user defaults.

Save User UEFI Setup Prole to Disk

It helps you to save current UEFI settings as an user prole to disk.

Load User UEFI Setup Prole from Disk

You can load previous saved prole from the disk.

English

4.6 Advanced Screen

In this section, you may set the congurations for the following items: CPU

Conguration, Chipset Conguration, Storage Conguration, Intel(R) underbolt,

Super IO Conguration, ACPI Conguration, USB Conguration and Trusted

Computing.

English

Setting wrong values in this sec tion may cause the system to malfunction.

UEFI Conguration

UEFI Setup Style

Select the default mode when entering the UEFI setup utility.

Active Page on Entry

Select the default page when entering the UEFI setup utility.

Full HD UEFI

When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor

supports Full HD resolution. If the monitor does not support Full HD resolution,

then the resolution will be set to 1024 x 768. When [Disable] is selected, the

resolution will be set to 1024 x 768 directly.

4.6.1 CPU Conguration

Intel Hyper Threading Technology

Intel Hyper reading Technology allows multiple threads to run on each core, so

that the overall performance on threaded soware is improved.

Z490M Pro4

Active Processor Cores

Select the number of cores to enable in each processor package.

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to keep C3, C6

and C7 all enabled for better power saving.

Enhanced Halt State (C1E)

Enable Enhanced Halt State (C1E) for lower power consumption.

CPU C3 State Support

Enable C3 deep sleep state for lower power consumption.

CPU C6 State Support

Enable C6 deep sleep state for lower power consumption.

CPU C7 State Support

Enable C7 deep sleep state for lower power consumption.

English

CPU C10 State Support

Enable C10 deep sleep state for lower power consumption.

Package C State Support

Enable CPU, PCIe, Memory, Graphics C State Support for power saving.

CFG Lock

is item allows you to disable or enable the CFG Lock.

C6DRAM

Enable/Disable moving of DRAM contents to PRM memory when CPU is in C6

state.

CPU Thermal Throttling

Enable CPU internal thermal control mechanisms to keep the CPU from overheat-

ing.

Intel Virtualization Technology

Intel Virtualization Technology allows a platform to run multiple operating systems

and applications in independent partitions, so that one computer system can

function as multiple virtual systems.

Hardware Prefetcher

Automatically prefetch data and code for the processor. Enable for better

performance.

English

Adjacent Cache Line Prefetch

Automatically prefetch the subsequent cache line while retrieving the currently

requested cache line. Enable for better performance.

Software Guard Extensions (SGX)

Intel SGX is a set of new CPU instructions that can be used by applications to set

aside private regions of code and data.

4.6.2 Chipset Conguration

Primary Graphics Adapter

Select a primary VGA.

Z490M Pro4

Above 4G Decoding

Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space

(only if the system supports 64 bit PCI decoding).

VT-d

Intel® Virtualization Technology for Directed I/O helps your virtual machine

monitor better utilize hardware by improving application compatibility and

reliability, and providing additional levels of manageability, security, isolation, and

I/O performance.

SR-IOV Support

If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single

Root IO Virtualization Support.

DMI Link Speed

Congure DMI Slot Link Speed. Auto mode is optimizing for overclocking.

PCIe 2 Speed

Select the link speed for PCIE 2.

English

PCIe 3 Speed

Select the link speed for PCIE 3.

PCIe 4 Speed

Select the link speed for PCIE 4.

PCI Express Native Control

Select Enable for enhanced PCI Express power saving in OS.

PCIE ASPM Support

is option enables/disables the ASPM support for all CPU downstream devices.

PCH PCIE ASPM Support

is option enables/disables the ASPM support for all PCH PCIE devices.

DMI ASPM Support

is option enables/disables the control of ASPM on CPU side of the DMI Link.

PCH DMI ASPM Support

is option enables/disables the ASPM support for all PCH DMI devices.

Share Memory

Congure the size of memory that is allocated to the integrated graphics processor when

the system boots up.

English

IGPU Multi-Monitor

Select disable to disable the integrated graphics when an external graphics card is installed.

Select enable to keep the integrated graphics enabled at all times.

Inte(R) Ethernet Connection I219-V

Enable or disable the onboard network interface controller (Intel® I219V).

Onboard HD Audio

Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and

automatically disable it when a sound card is installed.

Front Panel

Enable/disable front panel HD audio.

Onboard HDMI HD Audio

Enable audio for the onboard digital outputs.

Onboard WAN Device

Use this item to enable or disable the onboard WAN device.

WAN Radio

Enable/disable the WiFi module's connectivity.

Bluetooth

Enable/disable the Bluetooth connectivity.

Deep Sleep

Congure deep sleep mode for power saving when the computer is shut down.

Restore on AC/Power Loss

Select the power state aer a power failure. If [Power O] is selected, the power will

remain o when the power recovers. If [Power On] is selected, the system will start

to boot up when the power recovers.

Turn On Onboard LED in S5

Turn on Onboard LED in the ACPI S5 state.

Z490M Pro4

Restore Onboard LED Default

Restore Onboard LED default va lue.

RGB LED

is option enables/disables the RGB LED.

English

4.6.3 Storage Conguration

SATA Controller(s)

Enable/disable the SATA controllers.

SATA Mode Selection

AHCI: Supports new features that improve performance.

English

RAID: Combine multiple disk drives into a logical unit.

SATA Aggressive Link Power Management

SATA Aggressive Link Power Management allows SATA devices to enter a low

power state during periods of inactivity to save power. It is only supported by AHCI

mode.

Hard Disk S.M.A.R.T.

S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technolog y. It is a

monitoring system for computer hard disk drives to detect and report on various

indicators of reliability.

4.6.4 Intel(R) Thunderbolt

Discrete Thunderbolt(TM) Support

Enable or disable the Discrete underbolt(TM) Support.

Z490M Pro4

Thunderbolt Boot Support

Enabled to allow booting from Bootable devices which are present behind

underbolt.

Thunderbolt Usb Support

Enabled to allow booting from Usb devices which are present behind underbolt.

Titan Ridge Workaround for OSUP

Enable or disable Titan Ridge Workaround for OSUP.

Security Level

is item allows you to choose a security level for the underbolt ports.

SW SMI on TBT hot-plug

When enbled, BIOS generates soware SMI to assign resource to TBT devices.

ACPI Notify on TBT Hot-plug

When enbled, BIOS generates ACPI Notify.

English

Windows 10 Thunderbolt support

Specif y Windows 10 underbolt support level.

Disabled: No OS native support.

Enabled: OS Native support only. no RTD3.

English

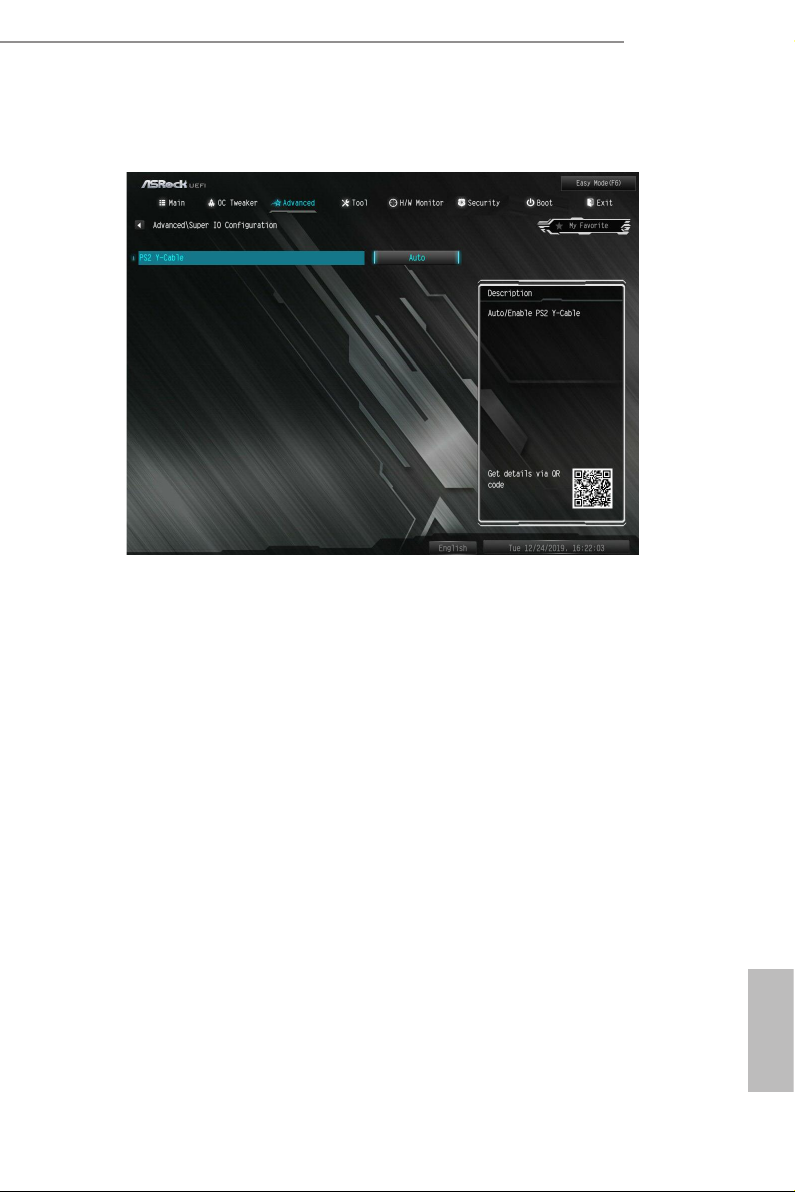

4.6.5 Super IO Conguration

PS2 Y- Cable

Enable the PS2 Y-Cable or set this option to Auto.

Z490M Pro4

English

4.6.6 ACPI Conguration

Suspend to RAM

Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI

S3 power saving.

PS/2 Keyboard S4/S5 Wakeup Support

Allow the system to be waked up by a PS/2 Keyboard in S4/S5.

English

PCIE Devices Power On

Allow the system to be waked up by a PCIE device and enable wake on LAN.

I219 LAN Power On

Allow the system to be waked up by the Onboard Intel LAN.

RTC Alarm Power On

Allow the system to be waked up by the rea l time clock alarm. Set it to By OS to let

it be handled by your operating system.

USB Keyboard/Remote Power On

Allow the system to be waked up by an USB keyboard or remote controller.

USB Mouse Power On

Allow the system to be waked up by an USB mouse.

4.6.7 USB Conguration

Legacy USB Support

Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB

compatibility issues it is recommended to disable legacy USB support. Select UEFI

Setup Only to support USB devices under the UEFI setup and Windows/Linux

operating systems only.

Z490M Pro4

XHCI Hand-o

is is a workaround for OSes without XHCI hand-o support. e XHCI

ownership change should be claimed by XHCI driver.

English

4.6.8 Trusted Computing

Security Device Support

Enable or disable BIOS support for security device.

English

4.7 Tools

ASRock Polychrome RGB

Select LED lighting color.

Z490M Pro4

UEFI Tech Service

Contact ASRock Tech Service if you are having trouble with your PC. Please setup

network conguration before using UEFI Tech Service.

Easy RAID Installer

Easy R AID Installer helps you to copy the R AID driver from the support CD to

your USB storage device. Aer copying the drivers please change the SATA mode to

RAID, then you can start installing the operating system in RAID mode.

SSD Secure Erase Tool

All the SSD's listed that supports Secure Erase function.

NVME Sanitization Tool

Aer you Sanitize SSD, all user data will be permanently destroyed on the SSD and

cannot be recovered.

Instant Flash

Save UEFI les in your USB storage device and run Instant Flash to update your

UEFI.

English

Internet Flash - DHCP (Auto IP), Auto

ASRock Internet Flash downloads and updates the latest UEFI rmware version

from our servers for you. Please setup network conguration before using Internet

Flash.

*For BIOS backup and recovery purpose, it is recommended to plug in your USB

pen drive before using this function.

Network Conguration

Use this to congure internet connection settings for Internet Flash.

English

Internet Setting

Enable or disable sound eects in the setup utility.

UEFI Download Server

Select a server to download the UEFI rmware.

4.8 Hardware Health Event Monitoring Screen

is section allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, fan

speed and voltage.

Z490M Pro4

Fan Tuning

Measure Fan Min Duty Cycle.

Fan-Tastic Tuning

Select a fan mode for CPU Fan, or choose Customize to set 5 CPU temperatures and

assign a respective fan speed for each temperature.

CPU Fan 1 Setting

Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

CPU Fan 1 Step Up

Set the value of CPU Fan Step Up.

CPU Fan 1 Step Down

Set the value of CPU Fan Step Down.

CPU_FAN2 / W_PUMP Switch

Switch CPU_FAN2 / W_PUMP header function.

English

CPU Fan 2 Control Mode

Select DC/PWM mode for CPU Fan 2.

CPU Fan 2 Setting

Select a fan mode for CPU Fan, or choose Customize to set 5 CPU temperatures and assign

a respective fan speed for each temperature.

CPU Fan 2 Temp Source

Select a fan temperature source for CPU Fan 2.

CPU Fan 2 Step Up

Set the value of CPU Fan 2 Step Up.

CPU Fan 2 Step Down

Set the value of CPU Fan 2 Step Down.

CHA_FAN1 / W_PUMP Switch

Select Chassis Fan 1 or Water Pump mode.

Chassis Fan 1 Control Mode

Select PWM mode or DC mode for Chassis Fan 1.

Chassis Fan 1 Setting

Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

English

Chassis Fan 1 Temp Source

Select a fan temperature source for Chassis Fan 1.

Chassis Fan 1 Step Up

Set the value of Chassis Fan 1 Step Up.

Chassis Fan 1 Step Down

Set the value of Chassis Fan 1 Step Down.

CHA_FAN2 / W_Pump Switch

Select Chassis Fan 2 or Water Pump mode.

Chassis Fan 2 Control Mode

Select PWM mode or DC mode for Chassis Fan 2.

Chassis Fan 2 Setting

Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 2 Temp Source

Select a fan temperature source for Chassis Fan 2.

Chassis Fan 2 Step Up

Set the value of Chassis Fan 2 Step Up.

Chassis Fan 2 Step Down

Set the value of Chassis Fan 2 Step Down.

CHA_FAN3 / W_PUMP Switch

Select Chassis Fan 3 or Water Pump mode.

Chassis Fan 3 Control Mode

Select PWM mode or DC mode for Chassis Fan 3.

Chassis Fan 3 Setting

Select a fan mode for Chassis Fan 3, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Z490M Pro4

Chassis Fan 3 Temp Source

Select a fan temperature source for Chassis Fan 3.

Chassis Fan 3 Step Up

Set the value of Chassis Fan 3 Step Up.

Chassis Fan 3 Step Down

Set the value of Chassis Fan 3 Step Down.

CHA_FAN4 / W_PUMP Switch

Select Chassis Fan 4 or Water Pump mode.

Chassis Fan 4 Control Mode

Select PWM mode or DC mode for Chassis Fan 4.

English

Chassis Fan 4 Setting

Select a fan mode for Chassis Fan 4, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 4 Temp Source

Select a fan temperature source for Chassis Fan 4.

Chassis Fan 4 Step Up

Set the value of Chassis Fan 4 Step Up.

Chassis Fan 4 Step Down

Set the value of Chassis Fan 4 Step Down.

Case Open Feature

Enable or disable Case Open Feature to detect whether the chassis cover has been

removed.

English

4.9 Security Screen

In this section you may set or change the supervisor/user password for the system.

You may also clear the user password.

Supervisor Password

Set or change the password for the administrator account. Only the administrator

has authority to change the settings in the UEFI Setup Utility. Leave it blank and

press enter to remove the password.

Z490M Pro4

User Password

Set or change the password for the user account. Users are unable to change the

settings in the UEFI Setup Utility. Leave it blank and press enter to remove the

password.

Secure Boot

Use this item to enable or disable support for Secure Boot.

Intel(R) Platform Trust Technology

Enable/disable Intel PTT in ME. Disable this option to use discrete TPM Module.

English

4.10 Boot Screen

is section displays the available devices on your system for you to congure the

boot settings and the boot priority.

Boot Option Priorities

USB Device BBS Priorities

is page will show only when system install USB Storage.

English

Fast Boot

Fast Boot minimizes your computer's boot time. In fast mode you may not boot

from an USB storage device. e VBIOS must support UEFI GOP if you are using

an external graphics card. Please notice that Ultra Fast mode will boot so fast that

the only way to enter this UEFI Setup Utility is to Clear CMOS or run the Restart to

UEFI utility in Windows.

Boot From Onboard LAN

Allow the system to be waked up by the onboard LAN.

Setup Prompt Timeout

Congure the number of seconds to wait for the setup hot key.

Bootup Num-Lock

Select whether Num Lock should be turned on or o when the system boots up.

Z490M Pro4

Boot Beep

Select whether the Boot Beep should be turned on or o when the system boots up. Please

note that a buzzer is needed.

Full Screen Logo

Enable to display the boot logo or disable to show normal POST messages.

AddOn ROM Display

Enable AddOn ROM Display to see the AddOn ROM messages or congure the

AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.

Boot Failure Guard Message

If the computer fails to boot for a number of times the system automatically restores

the default settings.

CSM (Compatibility Support Module)

CSM

Enable to launch the Compatibility Support Module. Please do not disable unless

you’re running a WHCK test.

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

English

execute both legacy and UEFI option ROM.

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

Other PCI Device ROM Priority

For PCI devices other than Network. Mass storage or Video denes which OpROM

to launch.

English

4.11 Exit Screen

Save Changes and Exit

When you select this option the following message, “Save conguration changes

and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP

UTILITY.

Z490M Pro4

Discard Changes and Exit

When you select this option the following message, “Discard changes and exit

setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving

any changes.

Discard Changes

When you select this option the following message, “Discard changes?” will pop

out. Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for a ll options. e F9 key can be used for this operation.

Launch EFI Shell from lesystem device

Copy shellx64.e to the root directory to launch EFI Shell.

English

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: +31-24-345-44-33

Fax: +31-24-345-44-38

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: +1-909-590-8308

Fax: +1-909-590-1026

DECLARATION OF CONFORMITY

Responsible Party Name:

Address:

Phone/FaxNo:

hereby declares that the product

Product Name : Motherboard

Per FCC Part 2 Section 2.1077(a)

ASRock Incorporation

13848 Magnolia Ave, Chino, CA91710

+1-909-590-8308/+1-909-590-1026

Model Number :

Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

Z490M Pro4

is device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) is device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

James

Representative Person’s Name:

Signature :

Date :

May 12, 2017

EU Declaration of Conformity

EMC —Directive 2014/30/EU (from April 20th, 2016)

☐

For the following equipment:

Motherboard

(Product Name)

Z490M Pro4 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

☐ EN 55022:2010/AC:2011 Class B EN 55024:2010/A1:2015

ڛ EN 55032:2012+AC:2013 Class B ڛڛ EN 61000-3-3:2013 ڛ EN 61000-3-2:2014

☐

LVD —Directive 2014/35/EU (from April 20th, 2016)

EN 60950-1 : 2011+ A2: 2013 ☐

ڛ RoHS — Directive 2011/65/EU ڛ CE marking

EN 60950-1 : 2006/A12: 2011

(EU conformity marking)

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

May 15, 2020

(Date)

P/N: 15G062196001AK V1.1

ASRock Z490M Pro4 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Package Contents

1.3 Motherboard Layout

1.4 I/O Panel

Chapter 2 Installation

2.1 Installing the CPU

2.2 Installing the CPU Fan and Heatsink

2.3 Installing Memory Modules (DIMM)

2.4 Expansion Slots (PCI Express Slots)

2.5 Jumpers Setup

2.6 Onboard Headers and Connectors

2.7 Post Status Checker

2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards

2.8.2 Driver Installation and Setup

2.9 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1 and M2_2)

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

3.2 ASRock Motherboard Utility (A-Tuning)

3.3 ASRock Live Update & APP Shop

3.3.1 UI Overview

3.3.2 Apps

3.3.3 BIOS & Drivers

3.3.4 Setting

3.4 Nahimic Audio

3.5 ASRock Polychrome SYNC

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

4.2 EZ Mode

4.3 Advanced Mode

4.3.1 UEFI Menu Bar

4.3.2 Navigation Keys

4.4 Main Screen

4.5 OC Tweaker Screen

4.6 Advanced Screen

4.6.4 Intel(R) Thunderbolt

4.6.8 Trusted Computing

4.7 Tools

4.8 Hardware Health Event Monitoring Screen

4.9 Security Screen

4.10 Boot Screen

4.11 Exit Screen
