Asrock Z170M-PIO2 User Manual

Version 1.0

Published July 2016

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/ perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

Chapter 2 Installation 10

2.1 Installing the CPU 11

2.2 Installing the CPU Fan and Heatsink 14

2.3 Installing Memory Modules (DIMM) 15

2.4 Expansion Slots (PCI Express Slots) 17

2.5 Onboard Headers and Connectors 18

2.6 M.2_SSD (NGFF) Module Installation Guide 22

Chapter 3 Software and Utilities Operation 25

3.1 Installing Drivers 25

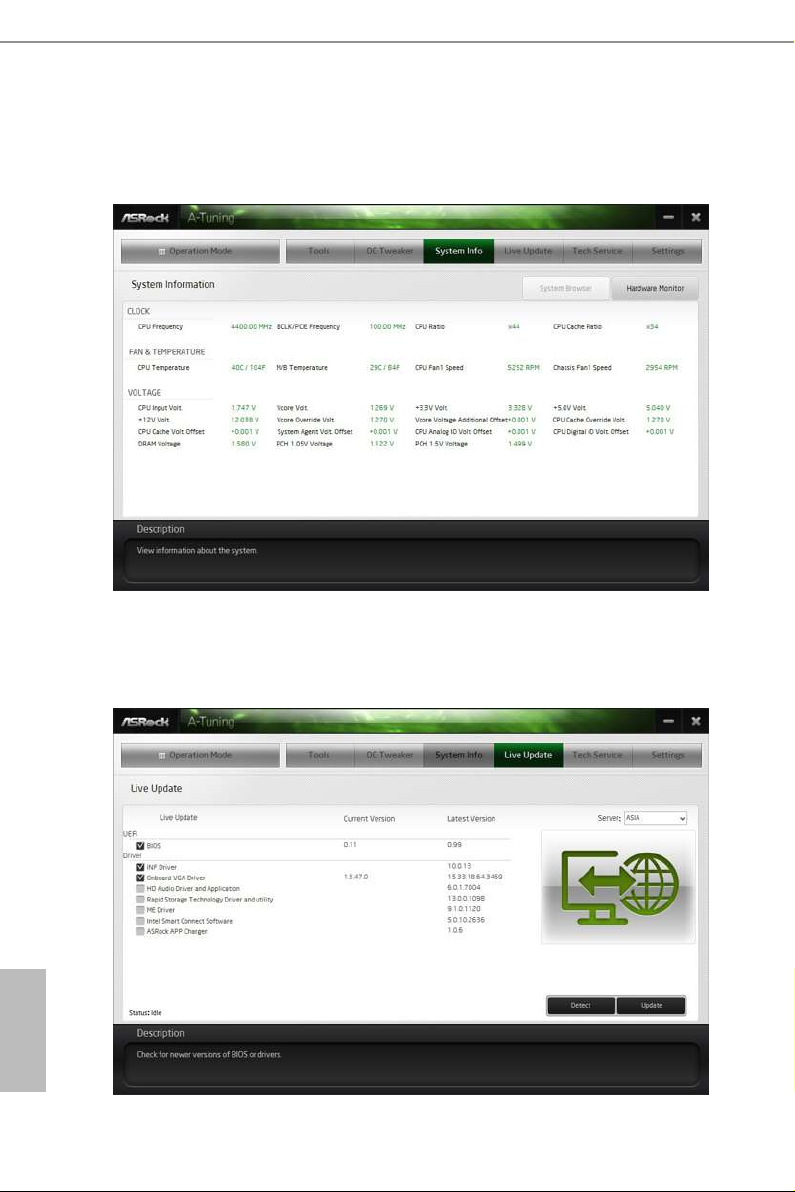

3.2 A-Tuning 26

3.3 ASRock Live Update & APP Shop 30

3.3.1 UI Overview 30

3.3.2 Apps 31

3.3.3 BIOS & Drivers 34

3.3.4 Setting 35

3.4 Enabling USB Ports for Windows® 7 Installation 36

Chapter 4 UEFI SETUP UTILITY 39

4.1 Introduction 39

4.2 EZ Mode 40

4.3 Advanced Mode 41

4.3.1 UEFI Menu Bar 41

4.3.2 Navigation Keys 42

4.4 Main Screen 43

4.5 OC Tweaker Screen 44

4.6 Advanced Screen 53

4.6.1 CPU Conguration 54

4.6.2 Chipset Conguration 56

4.6.3 Storage Conguration 58

4.6.4 ACPI Conguration 59

4.6.5 USB Conguration 61

4.6.6 Trusted Computing 62

4.7 Tools 63

4.8 Hardware Health Event Monitoring Screen 66

4.9 Security Screen 68

4.10 Boot Screen 69

4.11 Exit Screen 72

Chapter 1 Introduction

ank you for purchasing ASRock Z170M-PIO2 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website w ithout f urther notice. If you require technical support relate d to this motherboard, please vi sit our website for s pecic information about the model you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock website ht tp://www.a srock.com.

1.1 Package Contents

ASRock Z170M-PIO2 Motherboard (uDTX Form Factor)

•

ASRock Z170M-PIO2 Quick Installation Guide

•

ASRock Z170M-PIO2 Support CD

•

Serial ATA (SATA) Data Cable (Optional)

•

I/O Panel Shield (Optional)

•

2 x Screws for M.2 Socket (Optional)

•

Z170M-PIO2

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

* 3466+(OC) memory frequency can only be achieved when a

single memory module is installed (Single channel memory).

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

•

uDTX Form Factor supports PIO and Micro ATX

Solid Capacitor design

Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1151)

Supports CPU up to 95W

Digi Power design

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Supports Intel® K-Series unlocked CPUs

Supports ASRock BCLK Full-range Overclocking

Intel® Z170

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

Supports DDR4 3466+(OC)*/3200(OC)/2933(OC)/2800(OC)

/2400(OC)/2133 non-ECC, un-buered memory

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 32GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

English

Expansion Slot

1 x Right Angle PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

•

* Supports NVMe SSD as boot disk

1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT module

•

Graphics

Intel® HD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU

integrated.

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

•

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

Pixel Shader 5.0, DirectX 12

•

Max. shared memory 1024MB

•

* e size of ma ximum shared memory may vary from dierent

operating systems.

Dual graphics output: Support D-Sub and HDMI ports by

•

independent display controllers

Supports HDMI with max. resolution up to 4K x 2K

•

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

Supports Accelerated Media Codecs: HEVC, VP8, VP9

•

Supports HDCP with HDMI Port

•

Supports Full HD 1080p Blu-ray (BD) playback with HDMI

•

Port

Z170M-PIO2

Audio

LAN

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

•

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

Supports Surge Protection (ASRock Full Spike Protection)

•

ELNA Audio Caps

•

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•

Realtek RTL8111GR

•

Supports Wake-On-WAN

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

•

Protection)

Supports LAN Cable Detection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

English

Rear Panel I/O

Storage

Connector

1 x PS/2 Mouse Port

•

1 x PS/2 Keyboard Port

•

1 x D-Sub Port

•

1 x HDMI Port

•

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection))*

* ACPI wake-up function is supported on USB01 ports only.

2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

14 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug

1 x Ultra M.2 Socket, supports type 2260/2280 M.2 SATA3

•

6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4

(32 Gb/s)*

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

1 x COM Port Header

•

1 x TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

1 x CPU Fan Connector (4-pin)

•

1 x Chassis Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x 24 pin ATX Power Connector

•

1 x 4 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

BIOS Feature

Hardware Monitor

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 5.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

DRAM, PCH 1.0V, VCCSA Voltage Multi-adjustment

•

CPU/Chassis temperature sensing

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

•

CPU temperature)

CPU/Chassis Fan multi-speed control

•

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

•

PCH 1.0V, VCCSA

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

•

bit

* To install Windows® 7 OS, a modied installation disk with

xHCI drivers packed into the ISO le is required. Please refer to

page 36 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock ’s

website for details: http://ww w.asrock.com

Z170M-PIO2

FCC, CE, WHQL

Certications

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain r isk involved with overclo cking, including adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using third-party overclocking tool s. Overclocking may aect your system’s stability, or even cause dam age to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for poss ible damage caused by overclocking.

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

•

English

1.3 Motherboard Layout

Int el

Z170

DDR 4_B1 (64 bit, 288- pin modu le)

DDR 4_A1 (64 bit, 288- pin modu le)

ATXP WR 1

Top: RJ-4 5

USB 2.0 T: US B0 B: USB1

HDLED R ESET

PLED PWRBTN

PANEL1

USB_2_3

SPK_CI1

HD_AUD IO1

Z170 M-P IO2

RoH S

VGA 1

USB 3. 0 T: USB1 B: USB 2

CMO S

Bat ter y

USB3_3_4

CPU_FAN1

TPMS1

PCI E xp res s 3. 0

Fro nt U SB 3. 0

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

ATX12V1

SATA3_1

PCIE1

CHA_FAN1

BIOS ROM

PS2

Keyb oard

PS2

Mous e

SATA3_2

M2_ 2

CLRMOS1

COM1

HDM I1

USB_4_5

SATA3_3

SATA3_4

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 Chassis Fan Connector (CHA_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_4)

7 SATA3 Connector (SATA3_3)

8 SATA3 Connector (SATA3_2)

9 SATA3 Connector (SATA3_1)

10 System Panel Header (PANEL1)

11 Chassis Intrusion and Speaker Header (SPK_CI1)

12 USB 2.0 Header (USB_4_5)

13 TPM Header (TPMS1)

14 USB 3.0 Header (USB3_3_4)

15 COM Port Header (COM1)

16 USB 2.0 Header (USB_2 _3)

17 Front Panel Audio Header (HD_AUDIO1)

Z170M-PIO2

English

1.4 I/O Panel

1 2

10 56

No. Description No. Description

1 PS/2 Mouse Port 6 USB 2.0 Ports (USB01)***

2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_12)

3 Line In (Light Blue)** 8 HDMI Port

4 Front Speaker (Lime)** 9 D-Sub Port

5 Microphone (Pink)** 10 PS/2 Keyboard Port

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

English

Z170M-PIO2

** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multichannel audio feature through the audio driver.

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Por ts in 7.1-channel Con guration:

Port Function

Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out

*** ACPI wake-up function is supported on USB01 por ts only.

English

Chapter 2 Installation

is is an uDTX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

2.1 Installing the CPU

1. Before you inser t the 1151-Pin CPU into the socket, please check if the PnP ca p is on the socket, if the CPU sur face is unclean, or if th ere are any b ent pins in the socket. Do not force to insert the CPU into the socket if above situ ation is found. Other wise, the CPU wil l be seriously d amaged.

2. Unplug all power cables before installing the CPU.

Z170M-PIO2

English

Please save and replace the cover if the processor i s removed. e cover must be placed if you wish to return the motherboard for aer service.

Z170M-PIO2

English

2.2 Installing the CPU Fan and Heatsink

1 2

English

FAN

CPU_

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory module instal led.

3. It is not allowed to install a DDR , DDR2 or DDR3 memor y module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

e DIMM only ts in one correct orientation. It will cause permanent dam age to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation .

Z170M-PIO2

English

2.4 Expansion Slots (PCI Express Slots)

ere is 1 Right Angle PCI Express slot on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and mak e necessary hardware settings for the card before you start the installation.

Right Angle PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

Z170M-PIO2

English

2.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these header s and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header

(9-pin PANEL1)

(see p.6, No. 10)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to turn o your system using the power switch.

RESET (Reset Switch):

Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the hard drive i s reading or writing data.

e front panel de sign may dier by chassis. A front pane l module mainly consists of power switch , reset switch, power LED, hard dr ive activity LED, speak er and etc. When connecting your chassis front panel module to this head er, make sure the wire assig nments and the pin assig nments are matched correctly.

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN #

GND

RES ET#

GND

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

English

Z170M-PIO2

Chassis Intrusion and

Speaker Header

(7-pin SPK_CI1)

(see p.6, No. 11)

Serial ATA3 Connectors

(SATA3_1: see p.6, No. 9)

(SATA3_2: see p.6, No. 8)

(SATA3_3: see p.6, No. 7)

(SATA3_4: see p.6, No. 6)

USB 2.0 Headers

(9-pin USB_2_3)

(see p.6, No. 16)

(9-pin USB_4_5)

(see p.6, No. 12)

DUM MY +5V

SIG NAL

USB _P WR

P-

P+

GND GND

USB _PW R

SPE AKE R

DUM MY

GND

P-

P+

DUM MY

SATA3_1 SATA3_2 SATA3_3 SATA3_4

GND

DUM MY

USB _P WR

P-

P+

DUM MY

Please connect the

chassis intrusion and the

chassis speaker to this

header.

ese four SATA3

connectors support SATA

data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

ere are two headers

on this motherboard.

Each USB 2.0 header can

support two ports.

USB 3.0 Header

(19-pin USB3_3_4)

(see p.6, No. 14)

USB _PW R

Vbus

IntA _PA_S SRX-

IntA _PA_S SRX+

GND

IntA _PA_S STX-

IntA _PA_S STX+

GND

IntA _PA_D -

IntA _PA_D +

GND

P+

P-

VbusVbus

IntA _PB_ SSRX -

IntA _PB_ SSRX +

GND

IntA _PB_ SSTX -

IntA _PB_ SSTX +

GND

IntA _PB_ D-

IntA _PB_ D+

Dumm y

Besides two USB 3.0 ports

on the I/O panel, there

is one header on this

motherboard. Each USB

3.0 header can support

two ports.

English

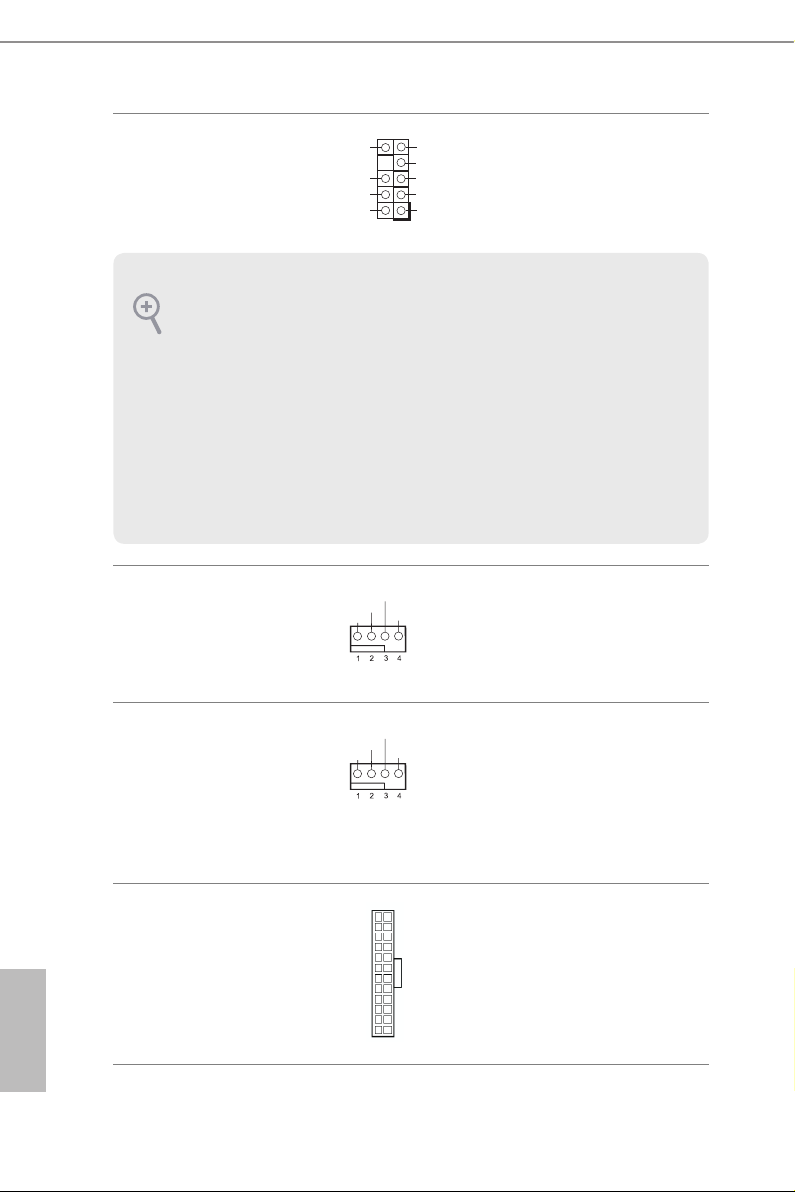

Front Panel Audio Header

GND

FAN_V OLTAGE _CO NTRO L

FAN_S PEE D

FAN_S PEE D_CO NTR OL

GND

FAN_V OLTAGE _CO NTRO L

FAN_S PEE D

FAN_S PEE D_CO NTR OL

(9-pin HD_AUDIO1)

(see p.6, No. 17)

1. Hig h Denition Audio suppor ts Jack Sensing, but the panel wire on the chassi s must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_ L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connec t them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adju st “Recording Volume”.

OUT _R ET

MIC _R ET

PRE SE NCE #

GN D

OUT 2_ L

J_S EN SE OUT 2_ R

MIC 2_ R

MIC 2_ L

is header is for

connecting audio devices

to the front audio panel.

English

Chassis Fan Connector

(4-pin CHA_FAN1)

(see p.6, No. 3)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.6, No. 2)

ATX Power Connector

(24-pin ATXPWR1)

(see p.6, No. 5)

Please connect fan cables

to the fan connector and

match the black wire to

the ground pin.

is motherboard pro-

vides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

Z170M-PIO2

ATX 12V Power

Connector

(4-pin ATX12V1)

(see p.6, No. 1)

Serial Port Header

(9-pin COM1)

(see p.6, No. 15)

TPM Header

(17-pin TPMS1)

(see p.6, No. 13)

is motherboard

provides a 4-pin ATX 12V

power connector.

RRXD 1

TTXD 1

DDCD #1

DDTR #1

DDSR #1

GND

CCTS #1

RRI# 1

RRTS #1

is COM1 header

supports a serial port

module.

is connector supports Trusted

GN D

LAD 0

+3 V

+3V S B

GN D

LAD 1

SER IRQ #

S_P WRD WN #

PC ICL K

LAD 3

PC IRS T #

FRA M E

Platform Module (TPM) system,

which can securely store keys,

digital certicates, passwords,

GN D

LAD 2

and data. A TPM system also

helps enhance network security,

SMB _CL K_M AIN

SMB _DA TA_ MAI N

protects digital identities, and

ensures platform integrity.

English

2.6 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generat ion Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2

Socket (M2_1) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Installing the M.2_SSD (NGFF) Module

Step 1

is motherboard supports M.2 _SSD

(NGFF) module type 2260 and 2280

only. Prepare a proper PCB lent h of

module, the screw and the stando.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

English

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type2260 Type 2280

Z170M-PIO2

Step 3

e stando is placed at the nut

location B by default. Sk ip Step 4 and

go straight to Step 5 if your M.2_SSD

(NGFF) module is type 2280. If your

M.2_SSD (NGFF) module is type

2260, go to Step 4.

Step 4

Peel o the yellow protective lm on

the nut location A. Hand tighten the

stando into the nut location A on

the motherboard.

Step 5

Align and gently insert the M.2

(NGFF) SSD module into the M.2

slot. Please be aware that the M.2

(NGFF) SSD module only ts in one

orientation.

Step 6

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw

as this might damage the module.

English

M.2_SSD (NGFF) Module Support List

Vendor Size Interface Length P/N

ADATA 128GB SATA3 2280 AXNS381E-128GM-B ADATA 256GB SATA3 2280 AXNS381E-256GM-B ADATA 32GB SATA3 2230 AXNS330E-32GM-B Crucial 120GB SATA3 2280 CT120M500SSD4 Crucial 240GB SATA3 2280 CT240M500SSD4 Intel 80GB SATA3 2280 Intel SSDSCKGW080A401/80G Kingston 120GB SATA3 2280 SM2280S3 Kingston 480GB PCIe2 x4 2280 SH2280S3/480G Plextor 256GB PCIe 2280 PX-G256M6e Plextor 512GB PCIe 2280 PX-G512M6e Samsung 256GB PCIe3 x4 2280 SM951 (MZHPV256HDGL) Samsung 512GB PCIe3 x4 2280 SM951 (MZHPV512HDGL) Samsung 512GB PCIe x4 2280 XP941-512G (MZHPU512HCGL) SanDisk 128GB PCIe 2260 SD6PP4M-128G SanDisk 256GB PCIe 2260 SD6PP4M-256G Team 128GB SATA3 2280 TM8PS4128GMC105 Team 256GB SATA3 2280 TM8PS4256GMC105 Transcend 512GB SATA3 2280 TS512GMTS800 Transcend 512GB SATA3 2260 TS512GMTS600

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://www.asrock.com

English

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Instal l All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to insta ll it.

Z170M-PIO2

To improve Windows 7 compatibility, please download and install the following hot x provided by Microso. “KB2720599”: http://support.microso.com/ kb/2720599/en-us

English

3.2 A-Tuning

A-Tuning is ASRock’s multi purpose soware suite with a new interface, more new

features and improved utilities.

3.2.1 Installing A-Tuning

A-Tuning can be downloaded from ASRock Live Update & APP Shop. Aer the

installation, you will nd the icon “A-Tuning“ on your desktop. Double-click the “A-

Tuning“ icon, A-Tuning main menu will pop up.

3.2.2 Using A-Tuning

ere are six sections in A-Tuning main menu: Operation Mode, OC Tweaker,

System Info, FAN-Tastic Tuning, Tech Service and Settings.

Operation Mode

Choose an operation mode for your computer.

English

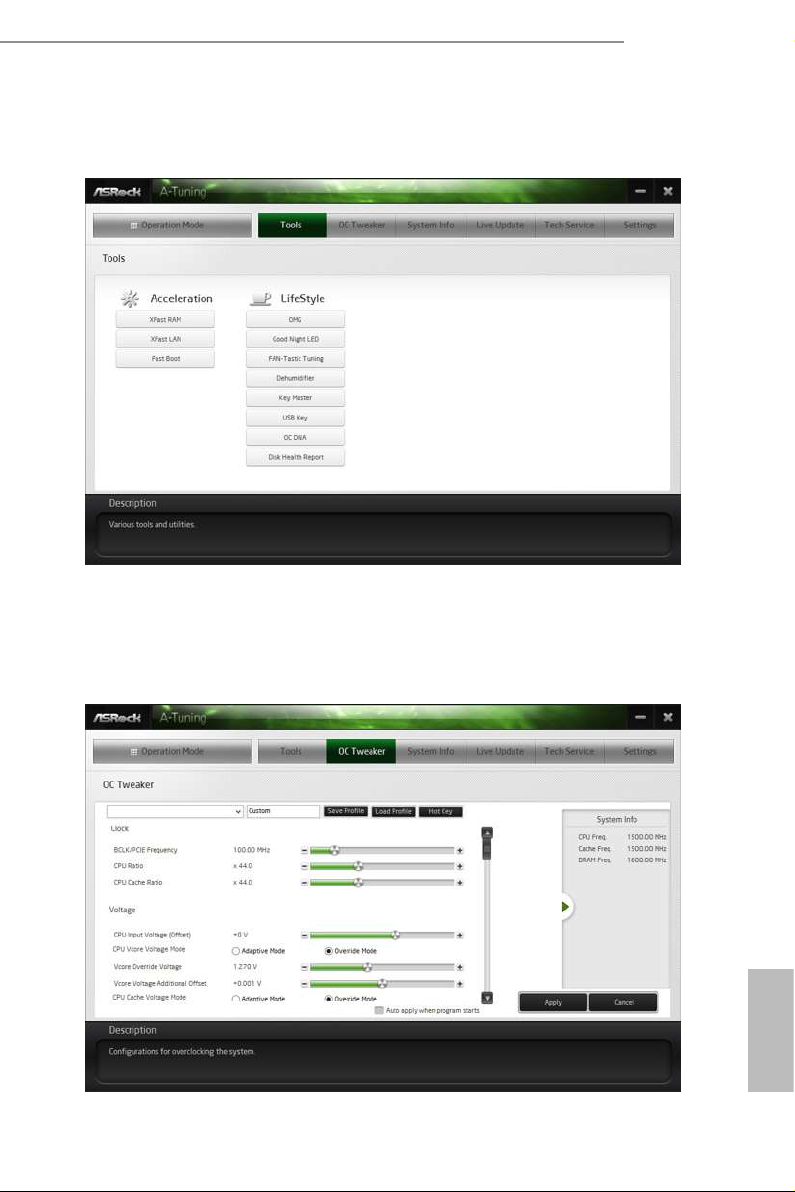

OC Tweaker

Congurations for overclocking the system.

Z170M-PIO2

System Info

View information about the system.

*e System Browser tab may not appear for certain models.

English

FAN-Tastic Tuning

Congure up to ve dierent fan speeds using the graph. e fans will automatically shi

to the next speed level when the assigned temperature is met.

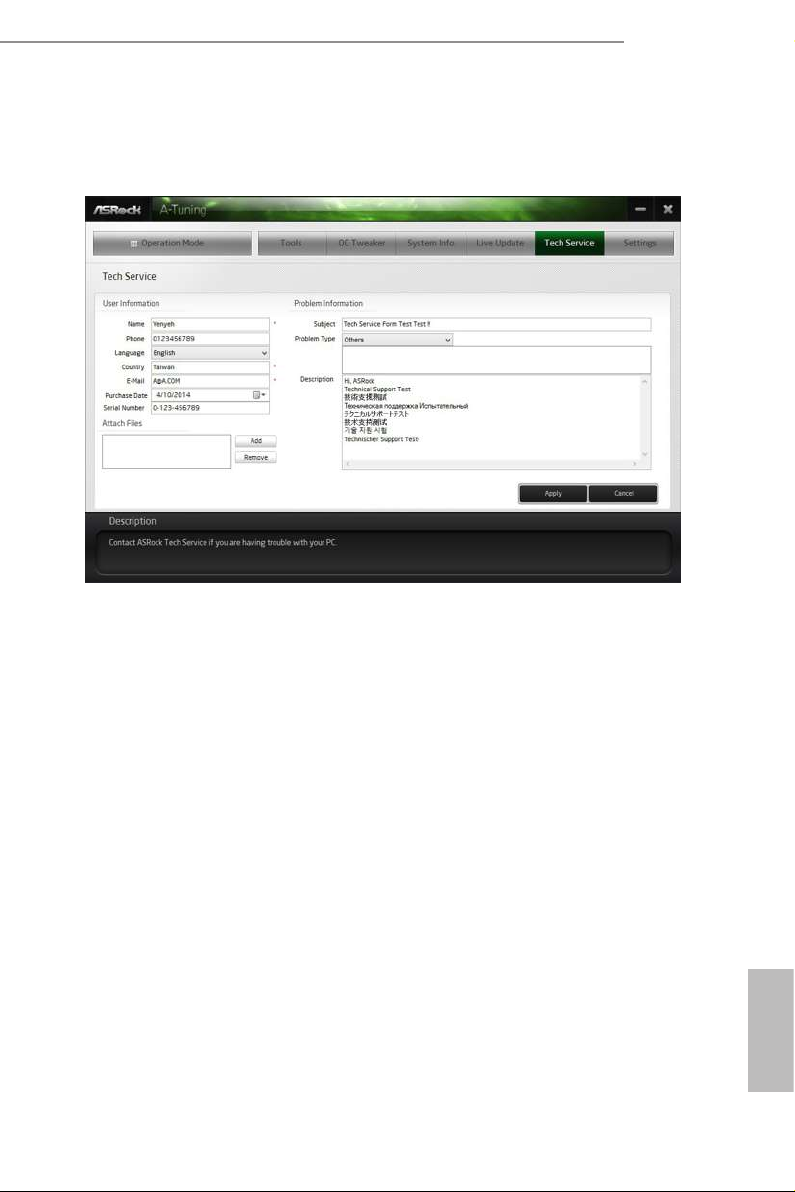

Tech Service

Contact Tech Service if you have problems with your computer. Please leave your

contact information along with details of the problem.

English

Settings

Congure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you

want A-Tuning to be launched when you start up the Windows operating system.

Z170M-PIO2

English

3.3 ASRock Live Update & APP Shop

e ASRock Live Update & APP Shop is an online store for purchasing and

downloading soware applications for your ASRock computer. You can quick ly and

easily insta ll various apps and support utilities, such as USB Key, XFast LAN, XFast

RAM and more. With ASRock Live Update & APP Shop, you can optimize your

system and keep your motherboard up to date simply with a few clicks.

Double-click on your desktop to access ASRock Live Update & APP Shop utility.

*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.

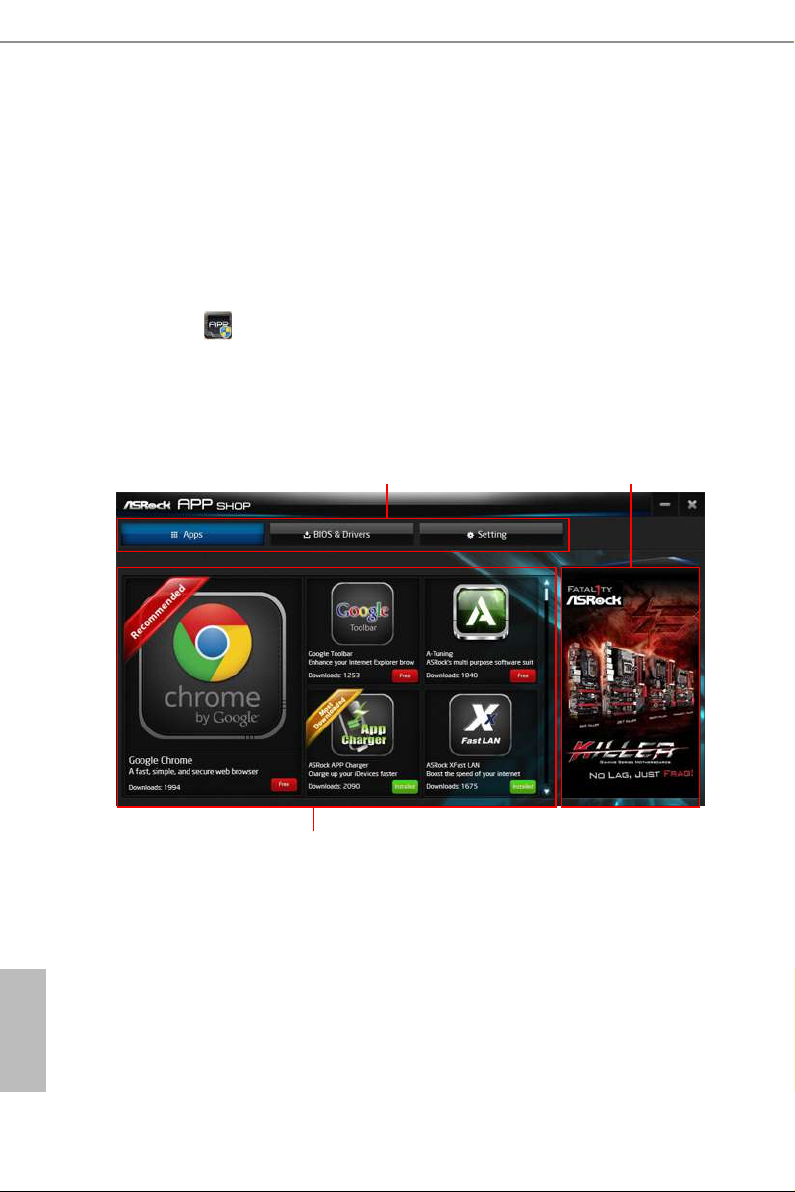

3.3.1 UI Overview

Category Panel

Hot News

English

Information Panel

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

3.3.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

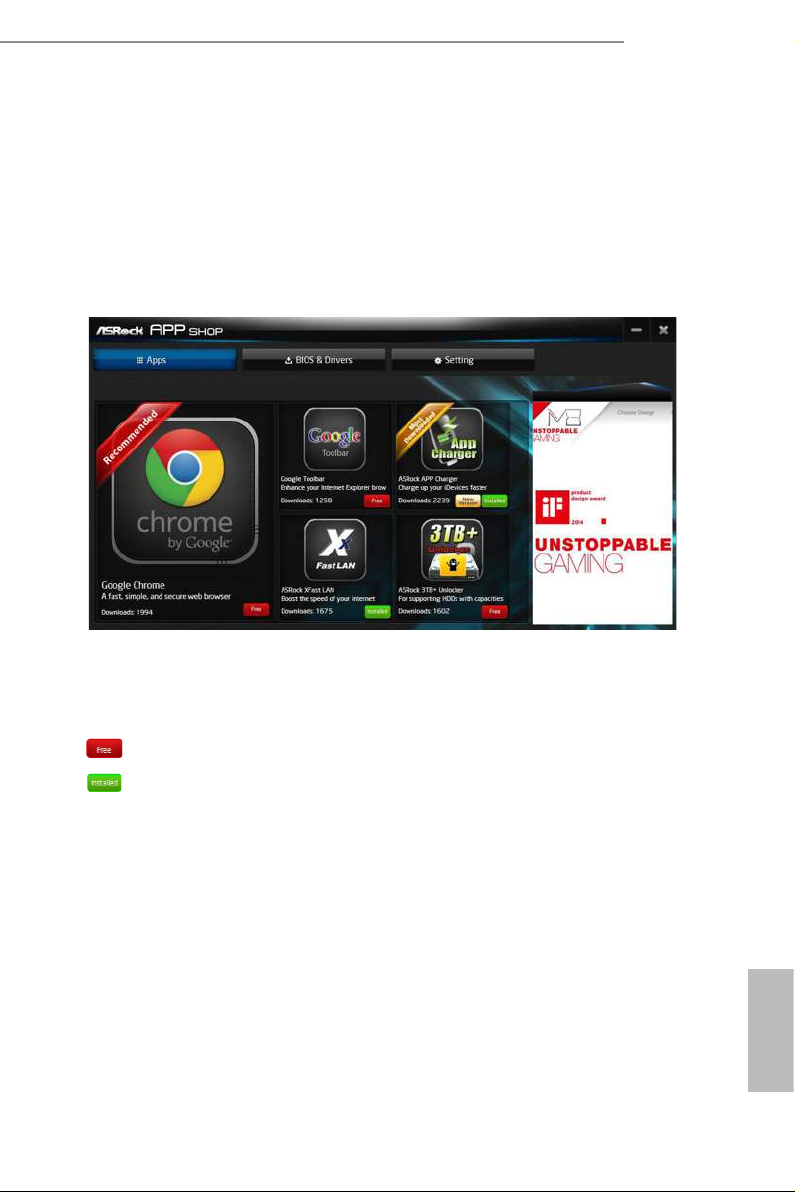

Step 1

Find the app you want to install.

Z170M-PIO2

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

You can check the price of the app and whether you have already intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

English

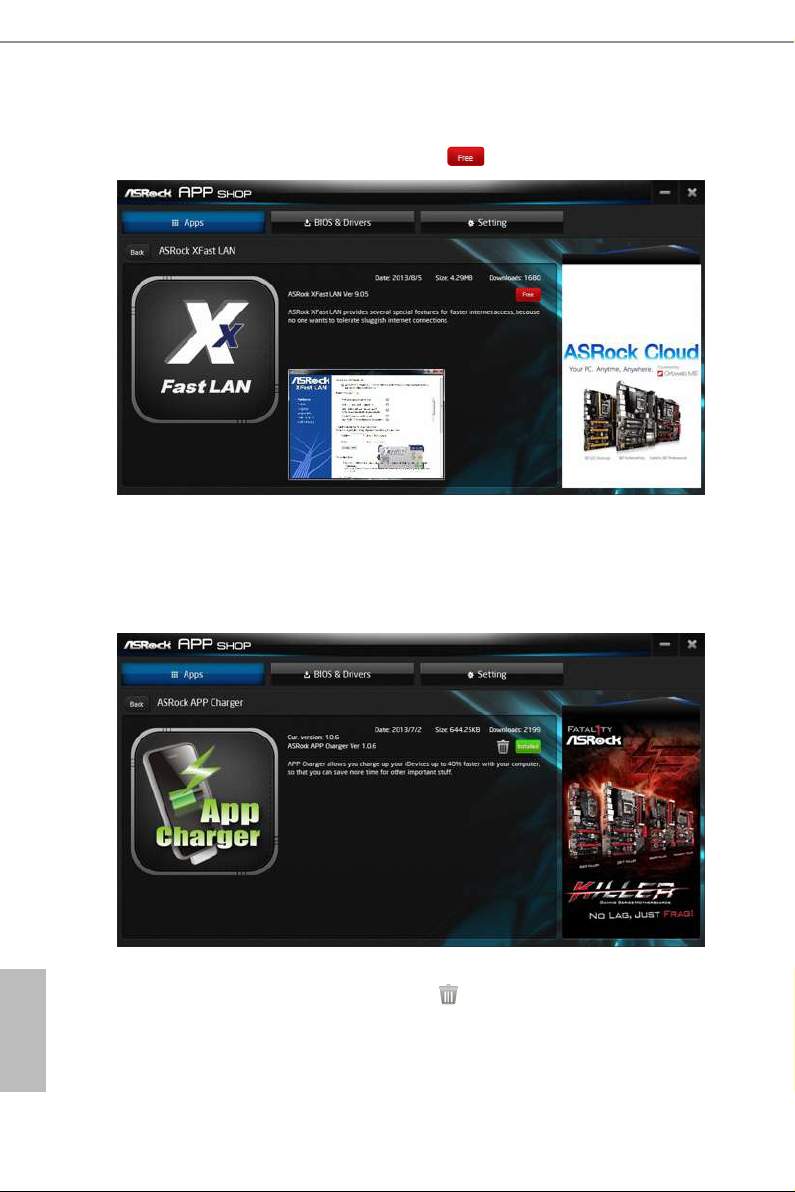

Step 3

If you want to install the app, click on the red icon to start downloading.

Step 4

When installation completes, you can nd the green "Installed " icon appears on the

upper right corner.

English

To uninstall it, simply click on the trash can icon . *e trash icon may not appear for certain apps.

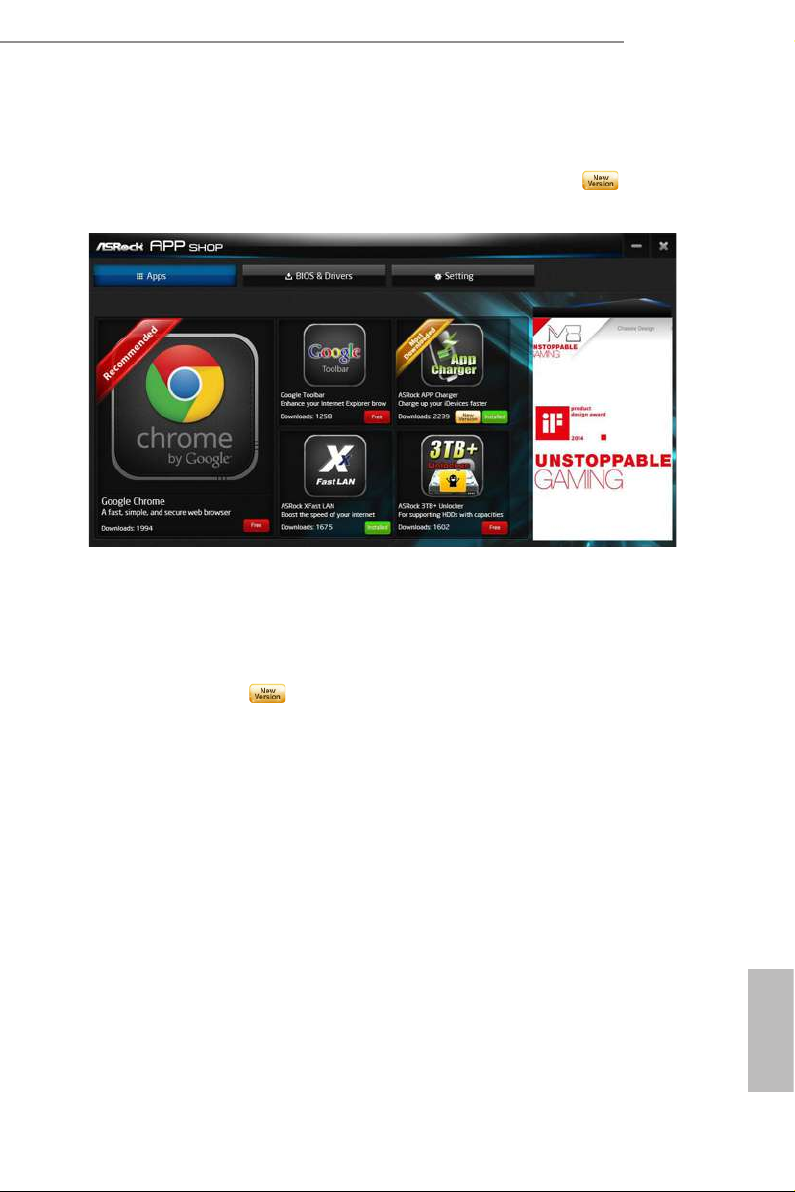

Upgrading an App

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

Z170M-PIO2

Step 2

Click on the yellow icon to start upgrading.

English

3.3.3 BIOS & Drivers

Installing BIOS or Drivers

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

Step 1

Please check the item information before update. Click on to see more details.

Step 2

English

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

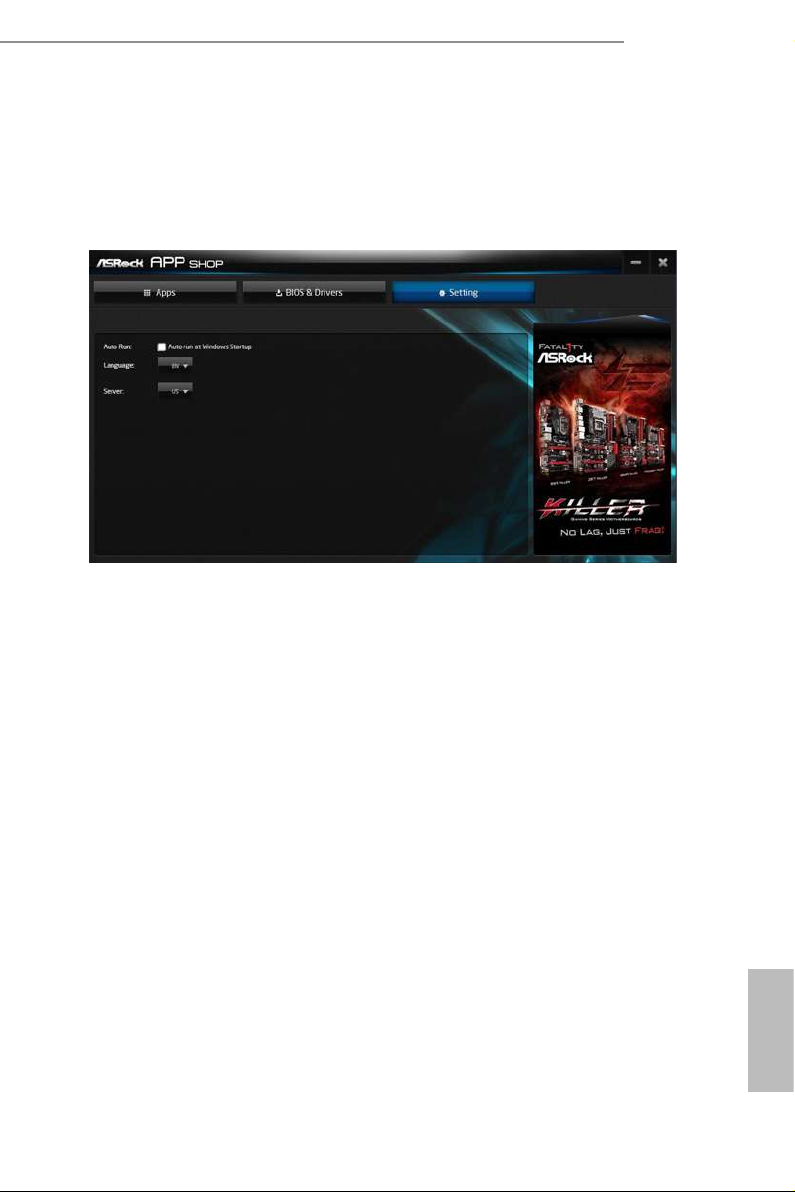

3.3.4 Setting

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock Live Update & APP Shop

on Windows startup.

Z170M-PIO2

English

3.4 Enabling USB Ports for Windows® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host

Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller

Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the

Windows 7 inbox drivers, users may nd it dicult to install Windows 7 operating

system because the USB ports on their motherboard won’t work. In order for the

USB ports to function properly, please create a Windows® 7 installation disk with

the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO

le.

Requirements

A Windows® 7 installation disk or USB drive

•

USB 3.0 drivers (included in the ASRock Support CD or website)

•

A Windows® PC

•

Win7 USB Patcher (included in the ASRock Support CD or website)

•

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer,

you can skip the instructions below and go ahead to install Windows® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the “PS/2

Simulator” option in UEFI SETUP UTILITY > Advanced > USB Conguration, which

allows the USB port to function as a PS/2 port, and then you can install the Windows® 7

OS. Please set PS/S Simulator back to disabled aer the installation.

English

You’ve got nothing:

If you do not have an optical disc drive, please nd another computer and follow the

instructions below to create a new ISO le with the “Win7 USB Patcher”. en use the new

patched Windows® 7 installation USB drive to install Windows® 7 OS.

Instructions

Step 1

Insert the Windows® 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

Step 3

Select the “Win7 Folder” from Step1 by clicking the red circle as shown as the picture

below.

Z170M-PIO2

Step 4

Select the “USB Driver Folder” by clicking the red circle as shown as the picture below.

If you are using ASRock’s Support CD for the USB 3.0 driver, please select your CD-ROM.

English

Step 5

Select where to save the ISO le by pressing the red circle as shown as the picture below.

Step 6

If you want to burn the patched image to a CD, please check “Burn Image” and select “Target

Device to Burn”. If not, the patched ISO image will be exported to the destination selected

in Step5. en Press “Start” to proceed.

Step 7

Now you are able to install Windows® 7 on Braswell or Skylake with the new burned CD.

Or please use the patched ISO image to make an OS USB drive to install the OS.

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, other wise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

Becau se the UEFI soware is constantly being upd ated, the following UEFI setup screens and de scriptions are for reference purpose only, and they may not exactly match what you see on your scre en.

Z170M-PIO2

English

4.2 EZ Mode

e EZ Mode screen appears when you enter the BIOS setup program by default. EZ

mode is a dashboard which contains multiple readings of the system’s current status.

You can check the most crucial information of your system, such as CPU speed,

DRAM frequency, SATA information, fan speed, etc.

Press <F6> or click the "Advanced Mode" button at the upper right corner of the

screen to switch to "Advanced Mode" for more options.

1 2 3 4 5 6

English

No. Function

Help

Load UEFI Defaults

Save Changes and Exit

Discard Changes

Change Language

Switch to Advanced Mode

4.3 Advanced Mode

e Advanced Mode provides more options to congure the BIOS settings. Refer to

the following sections for the detailed congurations.

To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right

corner of the screen.

4.3.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

Z170M-PIO2

Main

OC Tweaker

Advanced

Tool

H/W Monitor

Boot

Security

Exit

For setting system time/date information

For overclocking congurations

For advanced system congurations

Useful tools

Displays current hardware status

For conguring boot settings and boot priority

For security settings

Exit the current screen or the UEFI Setup Utility

English

4.3.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

+ / -

<Tab>

<PGUP>

<PGDN>

<HOME>

<END>

<F1>

<F5>

<F7>

<F9>

<F10>

<F12>

<ESC>

To change option for the selected items

Switch to next function

Go to the previous page

Go to the next page

Go to the top of the screen

Go to the bottom of the screen

To display the General Help Screen

Add / Remove Favorite

Discard changes and exit the SETUP UTILITY

Load optimal default values for all the settings

Save changes and exit the SETUP UTILITY

Print screen

Jump to the Exit Screen or exit the current screen

English

4.4 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system overview.

My Favorite

Display your collection of BIOS items. Press F5 to add/remove your favorite items.

Z170M-PIO2

English

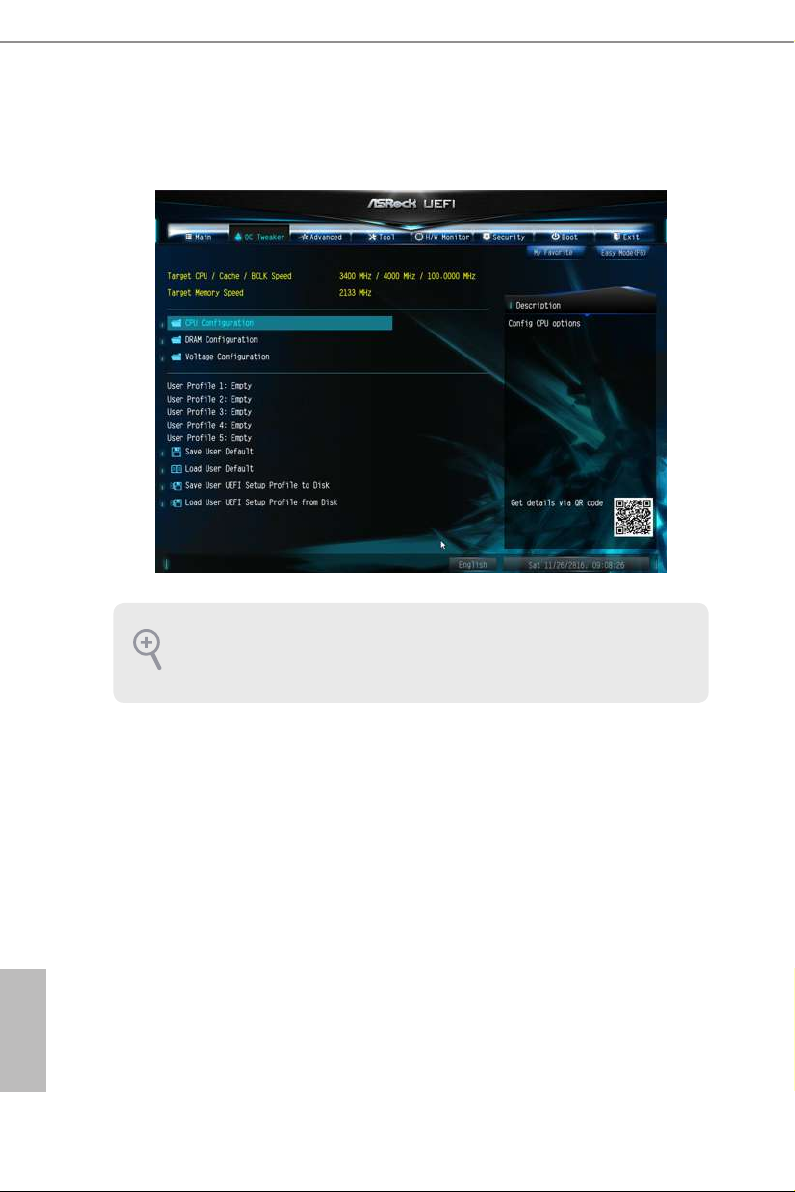

4.5 OC Tweaker Screen

In the OC Tweaker screen, you can set up overclocking features.

English

CPU Conguration

Intel SpeedStep Technology

Intel SpeedStep technology allows processors to switch between multiple frequen-

cies and voltage points for better power saving and heat dissipation.

Intel Turbo Boost Technology

Intel Turbo Boost Technology enables the processor to run above its base operating

frequency when the operating system requests the highest performance state.

Long Duration Power Limit

Congure Package Power Limit 1 in watts. When the limit is exceeded, the CPU

ratio will be lowered aer a period of time. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

Z170M-PIO2

Long Duration Maintained

Congure the period of time until the CPU ratio is lowered when the Long

Duration Power Limit is exceeded.

Short Duration Power Limit

Congure Package Power Limit 2 in watts. When the limit is exceeded, the CPU

ratio will be lowered immediately. A lower limit can protect the CPU and save

power, while a higher limit may improve performance.

GT Frequency

Congure the frequency of the integrated GPU.

DRAM Conguration

DRAM Tweaker

Fine tune the DRAM settings by leaving marks in checkboxes. Click OK to conrm and

apply your new settings.

DRAM Timing Conguration

DRAM Reference Clock

Select Auto for optimized settings.

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s) inserted

and assign the appropriate frequency automatically.

Primary Timing

CAS# Latency (tCL)

e time between sending a column address to the memory and the beginning of the data

in response.

RAS# to CAS# Delay and Row Precharge (tRCDtRP)

RAS# to CAS# Delay : e number of clock cycles required between the opening of a row

of memory and accessing columns within it.

Row Precharge: e number of clock cycles required between the issuing of the precharge

command and opening the next row.

RAS# Active Time (tRAS)

e number of clock cycles required between a bank active command and issuing the

precharge command.

English

Command Rate (CR)

e delay between when a memor y chip is selected and when the rst active command can

be issued.

Secondary Timing

Write Recovery Time (tWR)

e amount of delay that must elapse aer the completion of a valid write operation,

before an active bank can be precharged.

Refresh Cycle Time (tRFC)

e number of clocks from a Refresh command until the rst Activate command to

the same rank.

RAS to RAS Delay (tRRD_L)

e number of clocks between two rows activated in dierent banks of the same

rank.

RAS to RAS Delay (tRRD_S)

e number of clocks between two rows activated in dierent banks of the same

rank.

Write to Read Delay (tWTR_L)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

English

Write to Read Delay (tWTR_S)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

Read to Precharge (tRTP)

e number of clocks that are inserted between a read command to a row pre-

charge command to the same rank.

Four Activate Window (tFAW)

e time window in which four activates are allowed the same rank.

CAS Write Latency (tCWL)

Congure CAS Write Latency.

Third Timing

tREFI

Congure refresh cycles at an average periodic interval.

tCKE

Congure the period of time the DDR4 initiates a minimum of one refresh

command internally once it enters Self-Refresh mode.

tRDRD_sg

Congure between module read to read delay.

tRDRD_dg

Congure between module read to read delay.

tRDRD_dr

Congure between module read to read delay.

tRDRD_dd

Congure between module read to read delay.

tRDWR_sg

Congure between module read to write delay.

Z170M-PIO2

tRDWR_dg

Congure between module read to write delay.

tRDWR_dr

Congure between module read to write delay.

tRDWR_dd

Congure between module read to write delay.

tWRRD_sg

Congure between module write to read delay.

tWRRD_dg

Congure between module write to read delay.

tWRRD_dr

Congure between module write to read delay.

English

tWRRD_dd

Congure between module write to read delay.

tWRWR_sg

Congure between module write to write delay.

tWRWR_dg

Congure between module write to write delay.

tWRWR_dr

Congure between module write to write delay.

tWRWR_dd

Congure between module write to write delay.

RTL Init Value

Congure round trip latency init value for round trip latency training.

IO-L Init Value

Congure IO latency init value for IO latency traning.

RTL (CH A)

Congure round trip latency for channel A.

English

RTL (CH B)

Congure round trip latency for channel B.

IO-L (CH A)

Congure IO latency for channel A.

IO-L (CH B)

Congure IO latency for channel B.

IO-L Oset (CH A)

Congure IO latency oset for channel A.

IO-L Oset (CH B)

Congure IO latency oset for channel B.

RFR Delay (CH A)

Congure RFR Delay for Channel A.

RFR Delay (CH B)

Congure RFR Delay for Channel B.

Fourth Timing

twRPRE

Congure twR PRE.

Write_Early_ODT

Congure Write_Early_ODT.

tAONPD

Congure tAONPD.

tXP

Congure tXP.

tXPDLL

Congure tXPDLL.

tPRPDEN

Congure tPRPDEN.

Z170M-PIO2

tRDPDEN

Congure tR DPDEN.

twRPDEN

Congure twR PDEN.

OREF_RI

Congure OREF_RI.

tREFIx9

Congure tR EFIx9.

txSDLL

Congure txSDLL.

txs_oset

Congure txs_oset.

English

tZQOPER

Congure tZQOPER.

tMOD

Congure tMOD.

ZQCS_period

Congure ZQCS_period.

tZQCS

Congure tZQCS.

Advanced Setting

ODT WR (CH A)

Congure the memory on die termination resistors' WR for channel A.

ODT WR (CH B)

Congure the memory on die termination resistors' WR for channel B.

ODT PARK (CH A)

Congure the memory on die termination resistors' PARK for channel A.

ODT PARK (CH B)

Congure the memory on die termination resistors' PARK for channel B.

English

ODT NOM (CH A)

Use this to change ODT (CH A) Auto/Manual settings. e default is [Auto].

ODT NOM (CH B)

Use this to change ODT (CH B) Auto/Manual settings. e default is [Auto].

MRC Fast Boot

Enable Memory Fast Boot to skip DRAM memory training for booting faster.

Dll Bandwidth 0

Congure the Dll Bandwidth 0.

Dll Bandwidth 1

Congure the Dll Bandwidth 1.

Dll Bandwidth 2

Congure the Dll Bandwidth 2.

Dll Bandwidth 3

Congure the Dll Bandwidth 3.

Margin Limit

Adjust Margin Limit to get better memory margin.

Voltage Conguration

CPU Vcore Voltage

Congure the voltage for the CPU Vcore.

CPU Load-Line Calibration

CPU Load-Line Calibration helps prevent CPU voltage droop when the system is

under heav y loading.

GT Voltage

Congure the voltage for the integrated GPU.

GT Load-Line Calibration

GT Load-Line Calibration helps prevent integrated GPU voltage droop when the

system is under heav y load.

Z170M-PIO2

SET OV

is funtion allows override of normal operation to overvoltage of 2.455.

DRAM Voltage

Use this to congure DRAM Voltage. e default value is [Auto].

PCH Voltage

Congure the chipset voltage.

VCCSA Voltage

Congure the voltage for the VCCSA.

VCCST Voltage

Congure the voltage for the VCCST.

Save User Default

English

Type a prole name and press enter to save your settings as user default.

Load User Default

Load previously saved user defaults.

English

4.6 Advanced Screen

In this section, you may set the congurations for the following items: CPU

Conguration, Chipset Conguration, Storage Conguration, ACPI Conguration,

USB Conguration and Trusted Computing.

Z170M-PIO2

Setting wrong values in this sec tion may cause the system to malfunction.

UEFI Conguration

UEFI Setup Style

Select the default mode when entering the UEFI setup utility.

Active Page on Entry

Select the default page when entering the UEFI setup utility.

Full HD UEFI

When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor

supports Full HD resolution. If the monitor does not support Full HD resolution,

then the resolution will be set to 1024 x 768. When [Disable] is selected, the

resolution will be set to 1024 x 768 directly.

English

4.6.1 CPU Conguration

Intel Hyper Threading Technology

Intel Hyper reading Technology allows multiple threads to run on each core, so

that the overall performance on threaded soware is improved.

Active Processor Cores

Select the number of cores to enable in each processor package.

English

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to keep C3, C6

and C7 all enabled for better power saving.

Enhanced Halt State (C1E)

Enable Enhanced Halt State (C1E) for lower power consumption.

CPU C3 State Support

Enable C3 sleep state for lower power consumption.

CPU C6 State Support

Enable C6 deep sleep state for lower power consumption.

CPU C7 State Support

Enable C7 deep sleep state for lower power consumption.

Package C State Support

Enable CPU, PCIe, Memory, Graphics C State Support for power saving.

CPU Thermal Throttling

Enable CPU internal thermal control mechanisms to keep the CPU from overheat-

ing.

No-Execute Memory Protection

Processors with No-Execution Memory Protection Technology may prevent certain

classes of malicious buer overow attacks.

Intel Virtualization Technology

Intel Virtualization Technology allows a platform to run multiple operating systems

and applications in independent partitions, so that one computer system can

function as multiple virtual systems.

Hardware Prefetcher

Automatically prefetch data and code for the processor. Enable for better

performance.

Adjacent Cache Line Prefetch

Automatically prefetch the subsequent cache line while retrieving the currently

requested cache line. Enable for better performance.

Z170M-PIO2

SW Guard Extensions (SGX)

Intel SGX is a set of new CPU instructions that can be used by applications to set

aside private regions of code and data.

English

4.6.2 Chipset Conguration

Primary Graphics Adapter

Select a primary VGA.

Top Of Lower Usable Dram

Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD

automatically based on largest MMIO length of installed graphic controller.

English

VT-d

Intel® Virtualization Technology for Directed I/O helps your virtual machine

monitor better utilize hardware by improving application compatibility and

reliability, and providing additional levels of manageability, security, isolation, and

I/O performance.

PCIE1 Link Speed

Select the link speed for PCIE1.

PCIE ASPM Support

is option enables/disables the ASPM support for all CPU downstream devices.

PCH PCIE ASPM Support

is option enables/disables the ASPM support for all PCH PCIE devices.

Z170M-PIO2

DMI ASPM Support

is option enables/disables the control of ASPM on CPU side of the DMI Link.

PCH DMI ASPM Support

is option enables/disables the ASPM support for all PCH DMI devices.

IOAPIC 24-119 Entries

I/O APICs contain a redirection table, which is used to route the interrupts it receives from

peripheral buses to one or more local APICs. Enable/disable IOAPIC 24-119 Entries to

expand to PIROI-PIROX.

Share Memory

Congure the size of memory that is allocated to the integrated graphics processor when

the system boots up.

IGPU Multi-Monitor

Select disable to disable the integrated graphics when an external graphics card is installed.

Select enable to keep the integrated graphics enabled at all times.

Onboard LAN

Enable or disable the onboard network interface controller.

Onboard HD Audio

Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and

automatically disable it when a sound card is installed.

Front Panel

Enable/disable front panel HD audio.

Onboard HDMI HD Audio

Enable audio for the onboard digital outputs.

WAN Radio

Enable/disable the WiFi module's connectivity.

Restore on AC/Power Loss

Select the power state aer a power failure. If [Power O] is selected, the power will

remain o when the power recovers. If [Power On] is selected, the system will start

to boot up when the power recovers.

English

4.6.3 Storage Conguration

SATA Controller(s)

Enable/disable the SATA controllers.

SATA Aggressive Link Power Management

SATA Aggressive Link Power Management allows SATA devices to enter a low

power state during periods of inactivity to save power. It is only supported by AHCI

mode.

English

Hard Disk S.M.A.R.T.

S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technolog y. It is a

monitoring system for computer hard disk drives to detect and report on various

indicators of reliability.

4.6.4 ACPI Conguration

Suspend to RAM

Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI

S3 power saving.

Z170M-PIO2

ACPI HEPT Table

Enable the High Precision Event Timer for better performance.

PS/2 Keyboard Power On

Allow the system to be waked up by a PS/2 Keyboard.

PCIE Devices Power On

Allow the system to be waked up by a PCIE device and enable wake on LAN.

Ring-In Power On

Allow the system to be waked up by onboard COM port modem Ring-In signals.

RTC Alarm Power On

Allow the system to be waked up by the rea l time clock alarm. Set it to By OS to let

it be handled by your operating system.

USB Keyboard/Remote Power On

Allow the system to be waked up by an USB keyboard or remote controller.

English

USB Mouse Power On

Allow the system to be waked up by an USB mouse.

English

4.6.5 USB Conguration

Legacy USB Support

Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB

compatibility issues it is recommended to disable legacy USB support. Select UEFI

Setup Only to support USB devices under the UEFI setup and Windows/Linux

operating systems only.

Z170M-PIO2

PS/2 Simulator

Enable PS/2 Simulator. is should be enabled for the complete USB keyboard

legacy support for non-USB aware OSes.

*Enable this option if you install Windows 7.

XHCI Hand-o

is is a workaround for OSes without XHCI hand-o support. e XHCI

ownership change should be claimed by XHCI driver.

English

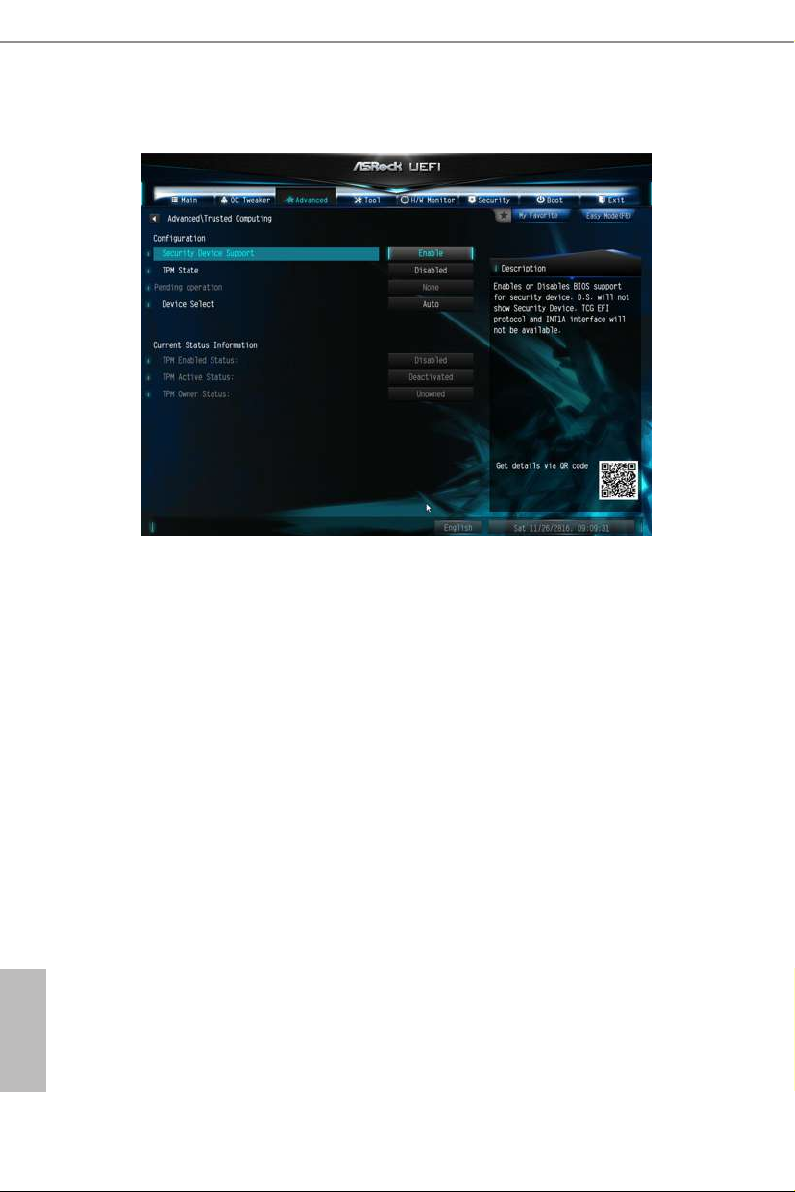

4.6.6 Trusted Computing

Security Device Support

Enable or disable BIOS support for security device.

English

4.7 Tools

System Browser

ASRock System Browser shows the overview of your current PC and the devices

connected.

Z170M-PIO2

OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access

at specied times via OMG. You may schedule the starting and ending hours of

internet access granted to other users. In order to prevent users from bypassing

OMG, guest accounts without permission to modify the system time are required.

UEFI Tech Service

Contact ASRock Tech Service if you are having trouble with your PC. Please setup

network conguration before using UEFI Tech Service.

Easy RAID Installer

Easy R AID Installer helps you to copy the R AID driver from the support CD to

your USB storage device. Aer copying the drivers please change the SATA mode to

RAID, then you can start installing the operating system in RAID mode.

English

Easy Driver Installer

For users that don’t have an optical disk drive to install the drivers from our support

CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver

to your system via an USB storage device, then downloads and installs the other

required drivers automatically.

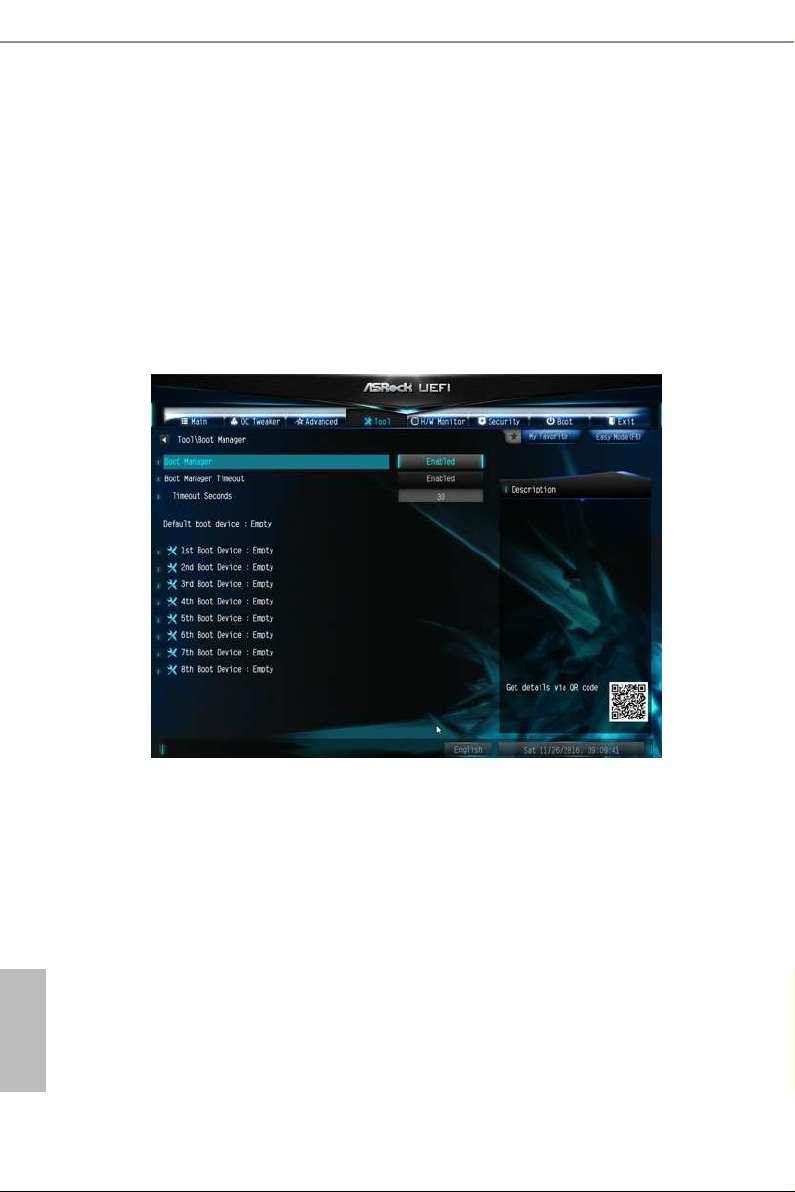

Boot Manager

Boot Manager is specically designed for the dual OS platform/multi-OS platform

users to easily customize and manage the boot menu.

*Please connect more than one boot devices to use this tool.

English

Boot Manager

Enable/disable the Boot Manager.

Boot Manager Timeout

Enable/disable the Boot Manager Timeout.

Timeout Seconds

Congure the number of seconds to wait for the Boot Manager.

Instant Flash

Save UEFI les in your USB storage device and run Instant Flash to update your

UEFI.

Internet Flash - DHCP (Auto IP), Auto

ASRock Internet Flash downloads and updates the latest UEFI rmware version

from our servers for you. Please setup network conguration before using Internet

Flash.

*For BIOS backup and recovery purpose, it is recommended to plug in your USB

pen drive before using this function.

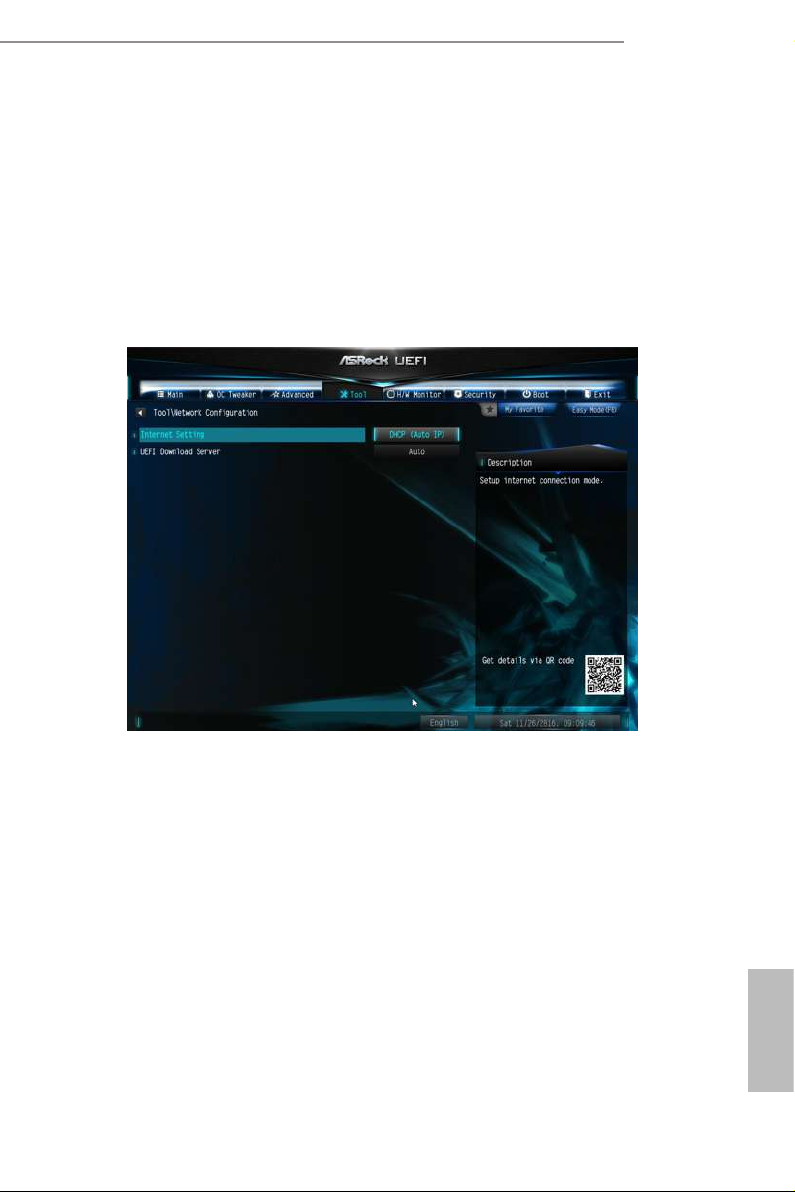

Network Conguration

Use this to congure internet connection settings for Internet Flash.

Z170M-PIO2

Internet Setting

Enable or disable sound eects in the setup utility.

UEFI Download Server

Select a server to download the UEFI rmware.

English

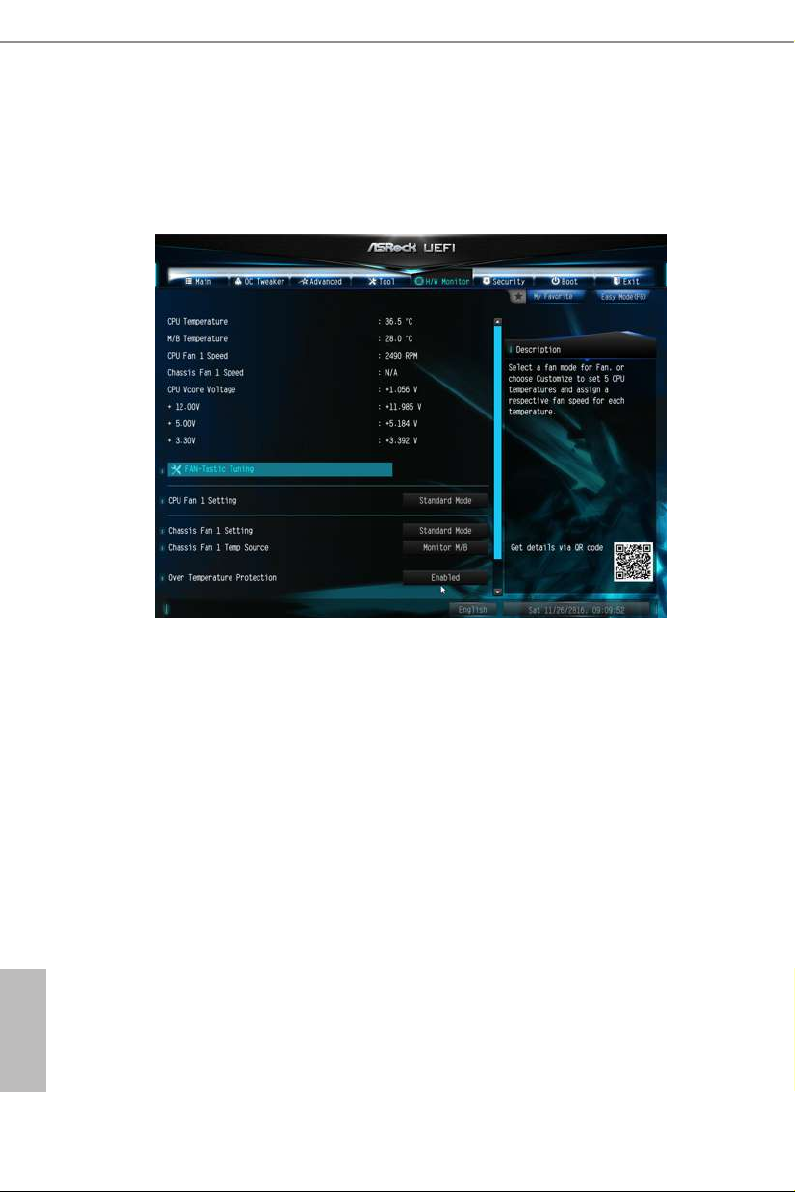

4.8 Hardware Health Event Monitoring Screen

is section allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, fan

speed and voltage.

Fan-Tastic Tuning

Select a fan mode for CPU Fan, or choose Customize to set 5 CPU temperatures and

assign a respective fan speed for each temperature.

English

CPU Fan 1 Setting

Select a fan mode for CPU Fan, or choose Customize to set 5 CPU temperatures and

assign a respective fan speed for each temperature.

Chassis Fan 1 Setting

Select a fan mode for Chassis Fan, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 1 Temp Source

Select a fan temperature source for Chassis Fan.

Over Temperature Protection

When Over Temperature Protection is enabled, the system automatically shuts down when

the motherboard is overheated.

Case Open Feature

Enable or disable Case Open Feature to detect whether the chassis cover has been

removed.

Z170M-PIO2

English

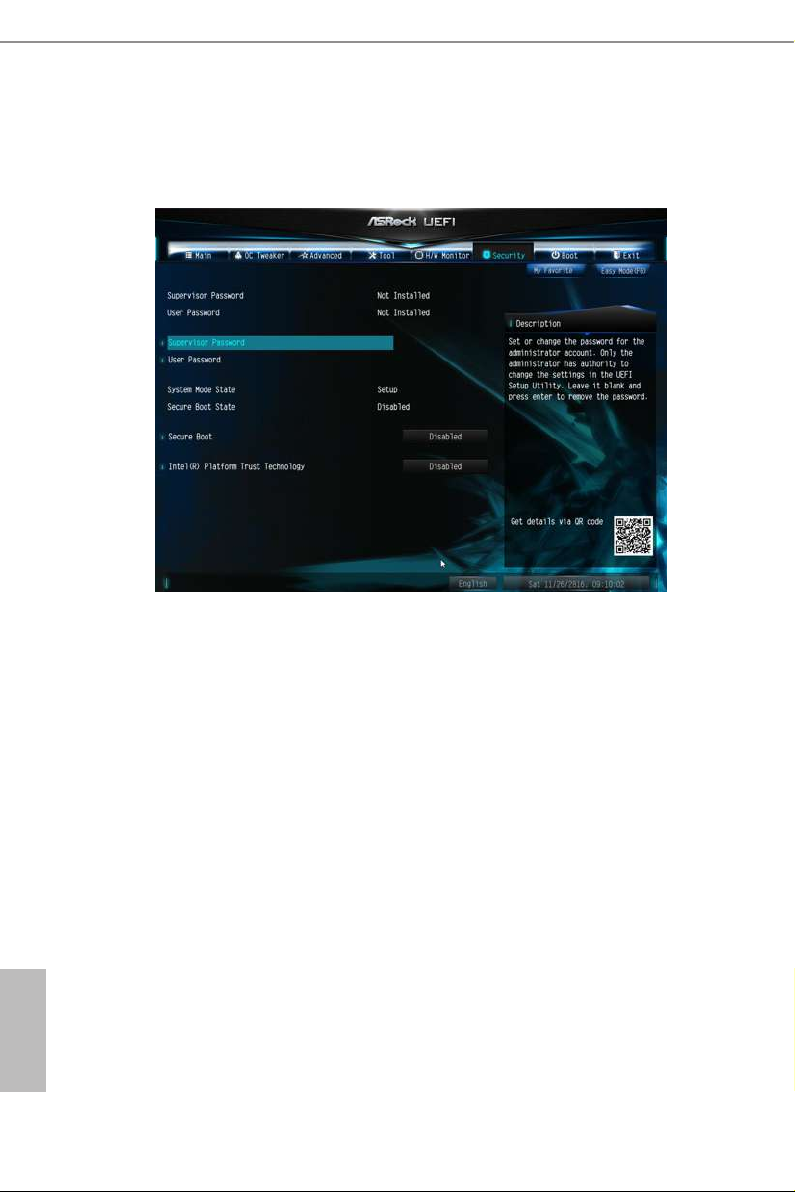

4.9 Security Screen

In this section you may set or change the supervisor/user password for the system.

You may also clear the user password.

Supervisor Password

Set or change the password for the administrator account. Only the administrator

has authority to change the settings in the UEFI Setup Utility. Leave it blank and

press enter to remove the password.

English

User Password

Set or change the password for the user account. Users are unable to change the

settings in the UEFI Setup Utility. Leave it blank and press enter to remove the

password.

Secure Boot

Use this item to enable or disable support for Windows 8.1 Secure Boot.

Intel(R) Platform Trust Technology

Enable/disable Intel PTT in ME. Disable this option to use discrete TPM Module.

4.10 Boot Screen

is section displays the available devices on your system for you to congure the

boot settings and the boot priority.

Fast Boot

Fast Boot minimizes your computer's boot time. In fast mode you may not boot

from an USB storage device. Ultra Fast mode is only supported by Windows 8.1

and the VBIOS must support UEFI GOP if you are using an external graphics card.

Please notice that Ultra Fast mode will boot so fast that the only way to enter this

UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.

Z170M-PIO2

Boot From Onboard LAN

Allow the system to be waked up by the onboard LAN.

Setup Prompt Timeout

Congure the number of seconds to wait for the setup hot key.

Bootup Num-Lock

Select whether Num Lock should be turned on or o when the system boots up.

Boot Beep

Select whether the Boot Beep should be turned on or o when the system boots up. Please

note that a buzzer is needed.

English

Full Screen Logo

Enable to display the boot logo or disable to show normal POST messages.

AddOn ROM Display

Enable AddOn ROM Display to see the AddOn ROM messages or congure the

AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.

Boot Failure Guard Message

If the computer fails to boot for a number of times the system automatically restores

the default settings.

English

CSM (Compatibility Support Module)

CSM

Enable to launch the Compatibility Support Module. Please do not disable unless

you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your

devices support UEFI, you may also disable CSM for faster boot speed.

Z170M-PIO2

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

Launch Video OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

English

4.11 Exit Screen

Save Changes and Exit

When you select this option the following message, “Save conguration changes

and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP

UTILITY.

Discard Changes and Exit

When you select this option the following message, “Discard changes and exit

setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving

any changes.

English

Discard Changes

When you select this option the following message, “Discard changes?” will pop

out. Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for a ll options. e F9 key can be used for this operation.

Launch EFI Shell from lesystem device

Copy shellx64.e to the root directory to launch EFI Shell.

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: +31-24-345-44-33

Fax: +31-24-345-44-38

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

Z170M-PIO2

U.S.A.

Phone: +1-909-590-8308

Fax: +1-909-590-1026

English

Asrock Z170M-PIO2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Package Contents

1.3 Motherboard Layout

1.4 I/O Panel

Chapter 2 Installation

2.1 Installing the CPU

2.2 Installing the CPU Fan and Heatsink

2.3 Installing Memory Modules (DIMM)

2.4 Expansion Slots (PCI Express Slots)

2.5 Onboard Headers and Connectors

2.6 M.2_SSD (NGFF) Module Installation Guide

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

3.2 A-Tuning

3.3 ASRock Live Update & APP Shop

3.3.1 UI Overview

3.3.2 Apps

3.3.3 BIOS & Drivers

3.3.4 Setting

3.4 Enabling USB Ports for Windows® 7 Installation

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

4.2 EZ Mode

4.3 Advanced Mode

4.3.1 UEFI Menu Bar

4.3.2 Navigation Keys

4.4 Main Screen

4.5 OC Tweaker Screen

4.6 Advanced Screen

4.6.6 Trusted Computing

4.7 Tools

4.8 Hardware Health Event Monitoring Screen

4.9 Security Screen

4.10 Boot Screen

4.11 Exit Screen
