ASRock G41M-VS3 R2.0 Datasheet

G41M-VS3 R2.0

Intel® G41+ ICH7 Chipsets

www.asrock.com

Detail Specification

Platform

CPU

- Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm

- LGA 775 for Intel

®

/ Pentium

Dual Core / Celeron® Dual Core / Celeron®, supporting

Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

- Supports FSB1333/1066/800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

®

CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM 2 Duo

Chipset

Memory

Expansion Slot

Graphics

Audio

LAN

Rear Panel I/O

Connector

- Northbridge: Intel

- Southbridge: Intel

- Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB

- 1 x PCI Express x16 slot

- 1 x PCI slot

- Intel

- Pixel Shader 4.0, DirectX 10

- Max. shared memory 1759MB

- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

- 5.1 CH HD Audio (VIA

- Atheros

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

- 4 x SATAII 3.0 Gb/s connectors
(No support for RAID and "Hot Plug" functions)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Print port header

- 1 x COM port header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

®

G41

®

ICH7

®

Graphics Media Accelerator X4500

®

VT1705 Audio Codec)

®

PCIEx1 LAN AR8152

Product Brief

- Supports FSB1333/1066/800/533 MHz CPUs

- Supports Dual Channel DDR3 1333 (OC)

®

Graphics Media Accelerator X4500,

- Intel
Pixel Shader 4.0, DirectX 10, Max. shared
memory 1759MB

- Supports ASRock XFast USB, Instant Boot,
Instant Flash, OC DNA, OC Tuner, IES,
SmartView, APP Charger

- Free Bundle : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial

The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.

BIOS Feature

Support CD

Unique Feature

Hardware Monitor

OS

Certifications

Accessories

- 8Mb AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.3.1 Support

- VCCM, NB, VTT, GTLRef Voltage Multi-adjustment

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock
Software Suite (CyberLink DVD Suite - OEM and Trial; Creative
Sound Blaster X-Fi MB - Trial)

- ASRock OC Tuner

- Intelligent Energy Saver

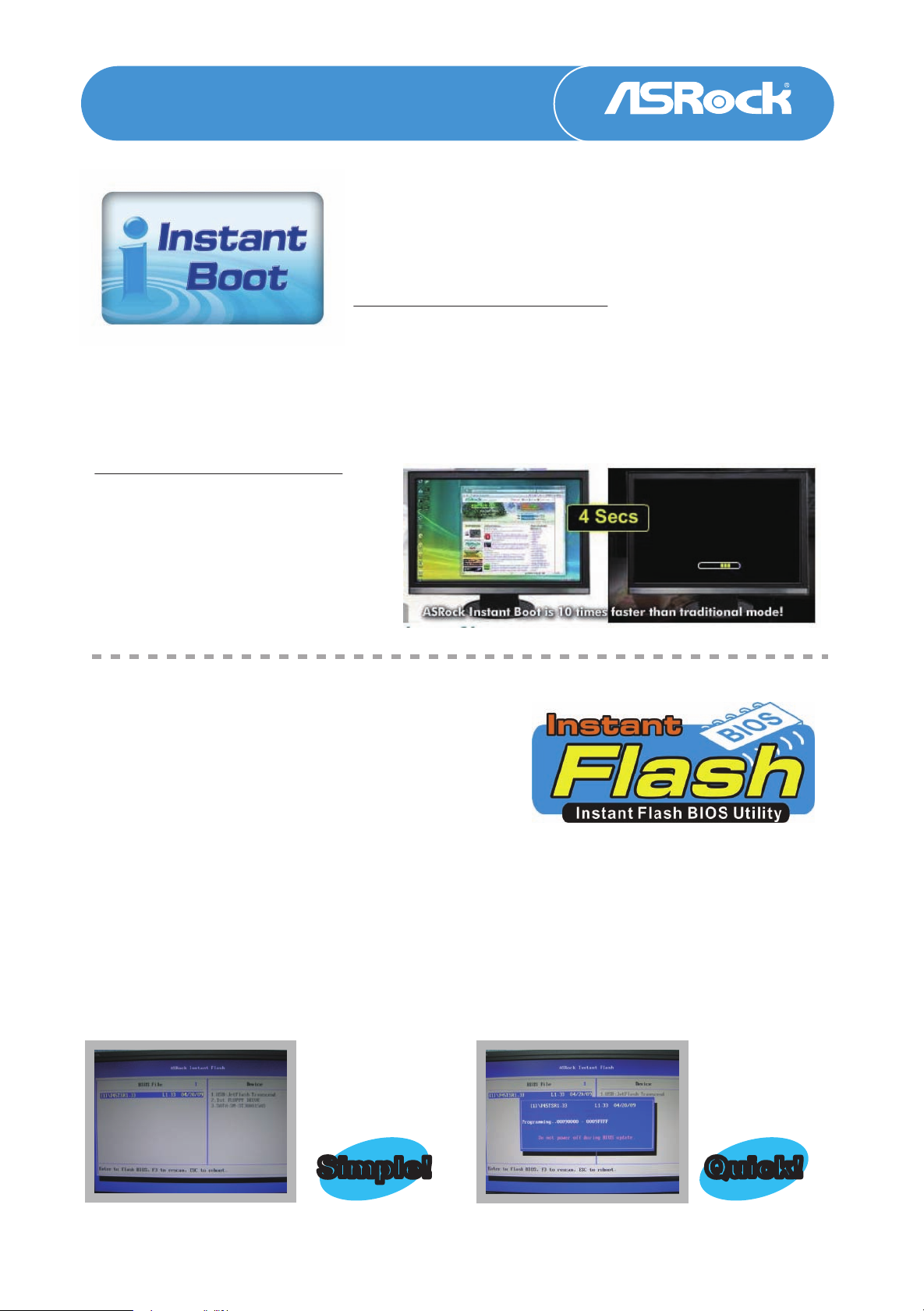

- Instant Boot

- ASRock Instant Flash

- ASRock OC DNA

- ASRock AIWI

- ASRock APP Charger

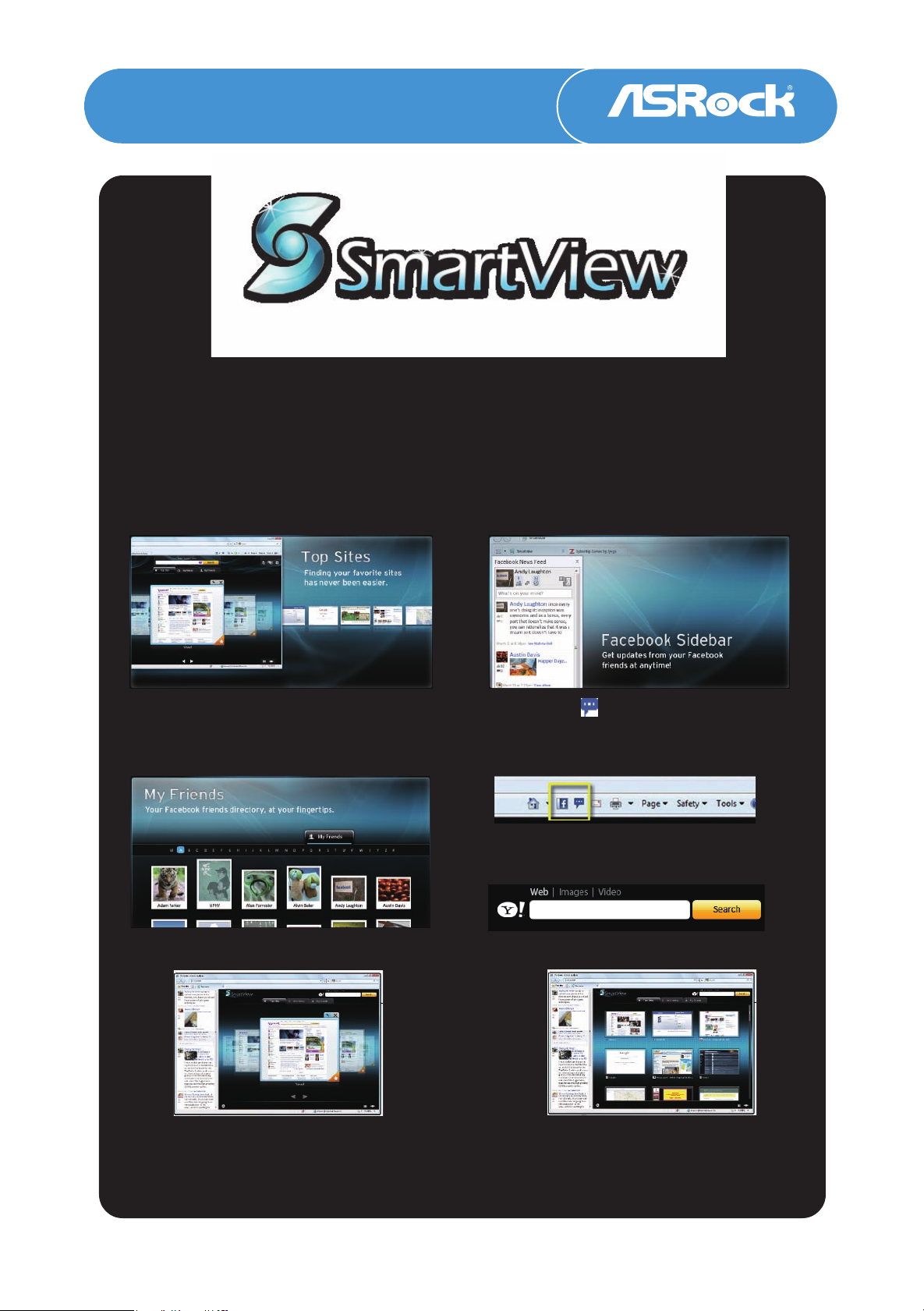

- SmartView

- ASRock XFast USB

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

®

- Microsoft

Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP

64-bit compliant

- FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables (Optional)

G41M-VS3 R2.0

Intel® G41+ ICH7 Chipsets

ASRock XFast USB Technology -

ASRock XFast USB Technology -

Faster Than Your Imagination!

Faster Than Your Imagination!

ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once
again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with
the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to
below graph, it shows that the ASRock XFast USB Technology can even boost USB 2.0 performance up to

384.99% faster!

www.asrock.com

ATTO Disk Benchmark - 4K Read

8173 KB/s

ATTO Disk Benchmark - 4K Write

8173 KB/s

ASRock Motherboard with XFast USB Technology
Other Motherboard without XFast USB Technology

39638 KB/s

ASRock Motherboard with XFast USB Technology
Other Motherboard without XFast USB Technology

38149 KB/s

384.99%

Faster

366.77%

Faster

APP Charger - Fast Charge & Charge Anytime!APP Charger - Fast Charge & Charge Anytime!

If you desire a faster, less restricted way of charging your Apple devices,
such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solution
for you – ASRock App Charger. Simply installing the App Charger driver, it
makes your iPhone charged much quickly from your computer and up to
40% faster than before*. ASRock App Charger allows you to quickly charge
many Apple devices simultaneously and even supports continuous charging
when your PC enters into Standby mode (S1), Suspend to RAM(S3),
hibernation mode (S4) or power off (S5)**. With App Charger driver installed,
you can easily enjoy the marvelous charging experience than ever.

* The charging capability may vary with different power supply design. The more +5V standby current provided, the better charge efficiency you get.
** Please connect the devices to the PC USB ports before the PC enters S1/S3/S4/S5 mode to enable a fast charge.
