INSTRUCTIONS FOR USE
Instructions for use
Steam Oven
ASKO 803OS84401
Dear customer,
2
Information for user
STEAM COOKING
Overview
Steam cooking presents nothing but advantages if you follow the instructions for use. Healthy and natural, steam cooking preserves the full flavour of foods. A delicate sauce or aromatic herb seasonings add that something extra that makes the difference.
This kind of cooking releases no odours. There is no need to season the cooking water with herbs or spices; however, you can flavour a fish by placing it on a bed of seaweed or make a savoury poultry dish by adding a bunch of rosemary or tarragon.
You can simultaneously cook meat, fish and vegetables. Steam cooking gently reheats pasta, rice and mashed potatoes with no risk of food sticking or drying out. It facilitates cooking custard creams and tarts, rice pudding... covered with aluminium foil, the condensation water does not add moisture to the preparations. There is no need to season before cooking, not even the steam water. To make meat look more appetising, quickly brown it on all sides with hot butter in a pan.
Compared to boiling, steam offers nothing but advantages:
It is quick: cooking starts immediately whereas for food in a water-filled dish, the cook time only begins counting down once the water returns to a full boil.
It is healthy: vitamins (those that are water soluble) and minerals are well preserved because they scarcely dissolve in the condensation water that touches the food.
Moreover, no fats are used for this type of cooking. The steam maintains the taste of food. It does not add odours, nor the taste of the grill or the pan. Furthermore, it takes nothing away because the food is not diluted in the water.
Words of advice: there is no point in using this cooking method to prepare fish that is not fresh or vegetables left in the refrigerator for a week: the results will be catastrophic! therefore do not hesitate to save both time and money by cooking items side by side, but without touching. For example, you can cook a fish next to a dessert.
Steam is also appropriate for blanching, defrosting and reheating or even holding warm, especially sauces. First use a very small amount of fat to heat meats like poultry, veal and pork so that they take on an appetizing browned appearance. Then finish cooking them using the steam method.
Cut into pieces, food cooks faster and more evenly than if left whole.
3
Safety instructions
This appliance is intended for Domestic Cooking use and should be used in accordance with the information and instructions included within this manual. Any deviation from this may result in damage or personal injury. This oven was designed for use by private persons in their homes. It is intended solely for cooking foodstuffs. This oven does not contain any asbestos-based components. This appliance is not intended for use by children, the elderly or infirm or persons with reduced physical sensory or mental capabilities unless supervised by a person responsible for their safety. Children should be supervised to ensure they don’t play with the appliance. During use some external parts of this appliance become hot. They can remain hot for some time after the oven has been turned off. Care should be taken to avoid burns. Children should be kept away at all time during use and in the cool down periods to safeguard against burns When you receive the appliance, unpack it or have it unpacked immediately. Give it an overall inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form. Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed. Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety. Keep young children away from the appliance while it is in operation. In this way you will avoid the danger of them being burned by knocking over cooking recipients. Never pull your appliance by the door handle. During cooking, ensure that the door of your oven is completely closed so that the seal can do its job properly.
When in use, the appliance becomes hot. Do not touch the heating elements located inside the oven. In doing so, you would run the risk of suffering serious burns. When placing dishes inside or removing them from the oven, use heat-protective kitchen gloves.
At the end of cooking, do not touch the dishes with bare hands. Do not place heavy weights on the open oven door, and make sure that children are able neither to climb nor sit on it. The oven must be turned off when cleaning inside the oven. Intensive and prolonged use of the appliance may give rise to the need for additional ventilation, by opening a window, or by increasing the power of the mechanical fan. Additionally to the accessories supplied with your oven, only use dishes which resist high temperatures (follow the manufacturer’s instructions). After using your oven, make sure that all the controls are in their stop position. Never use steam or high-pressure devices to clean the oven (requirement imposed by electrical safety concerns).
Information for user
Caution
Installation, maintenance or repairs should be carried out only by a suitably recognized qualified person. This appliance is designed to be built in and fastened securely so as to prevent tipping: See - Installers Information.
Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.
4
List of contents
Describe your oven p.5-7 Submitting your oven p.5-6 Accessories p.7
Using your oven p.8-14 Using the programmer p.8 How to set the time p.8 Cooking immediate p.9
Defrosting p.10 Tips p.11
How to cook deferred p.12 Using the timer function p.13 Adjusting brightness p.14 Table cooking oven p.15-16 What if ... p.16 For the installer p.16-18 Connecting p.17 Flush p.18 Maintenance and cleaning your oven p.19-20 Cleaning the chute p.19 Change the bulb p.20 After-sale 21
5
Description of your appliance
Indicator
panel
Tank
Display
Steam
generator
Water supply
tube
Channel
6
Description of your appliance
1 2 3
5
13
8
15
9
10
4
14
11
6
7
12

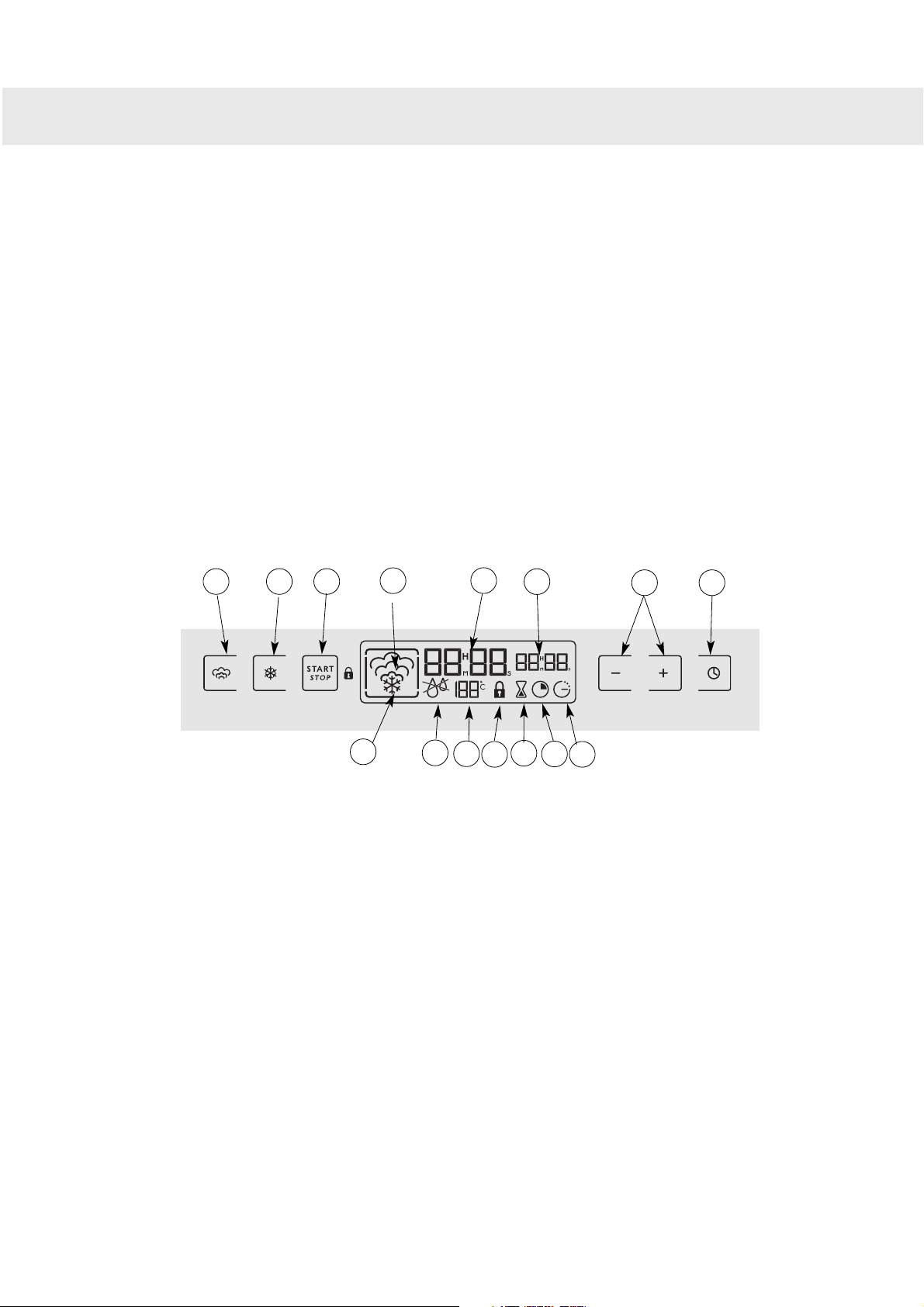

1. Steam cooking control
2. Defrosting button
3. Start/Stop control
4. Time and delay display or timed period
5. Steam cooking symbol
6. Cooking time symbol
7. End of cooking time symbol
8. Temperature display
9. +/- controls for timer
10. Selector button : SET
11. Autonomous timer
12. Water circuit problem signal
13. Defrosting symbol
14. Display of the cooking period or delayed start time
15. Control panel locked
7
Caution
Use of water that is low in calcium will make cleaning your oven easier.
The use of distilled water is forbidden (not suitable for food use).
Accessories
Tank for the independent water supply of your oven. It can hold about 1 litre (maximum level).
Removable tank
Food dish (fig.1) Pierced stainless steel cooking dish to prevent contact between food and condensation water.
Condensate dish (fig.2) Dish to recover the condensation water
When cooking place the fig.1 dish on the fig.2 dish in reverse order so that they do not fit into each other (see diagram).
When storing place the fig.1 dish on the fig.2 dish in the same order so that they fit into each other.
Grid (fig.3) Stainless steel removable support grid: it must be placed in the oven.
The cookware may be cleaned in the dishwasher.
fig.3
fig.1
fig.2
Tin ware
8
Setting the time
The first time the oven is turned
on:Set the time.The display flashes on
12.00.
Use the + and - buttons to adjust the time.
Exemple : 12H30
Validate with SET“ ”.The time is displayed.
Press on the + and - buttons
simultaneously until the time starts
to flash.Adjust the time using the +
and -button.“
2
1
Adjust the time using the + and -button.
Validate with SET“ ”.
Caution
If the time set is not validated by the SET button, it is automatically recorded after one minute.
How to use your oven
9
The symbol comes on. When the temperature is reached, 100° becomes constant, and a beep
sounds.
Validate with the START button.
Adjust the cooking time as necessary ( minimum 5 min and maximum 60 min by pressing on + and - button
Press the button A time of 25 minutes is suggested.
Attention
You MUST IMPERATIVELY fill the water tank up to the maximum level before starting cooking. Put the tank back in place, and push it as far as possible until it CLICKS INTO PLACE.
Cooking immediately
Operational principle
The water contained in the tank reaches the cavity via a tube. This water is transformed into steam on contact with a hot surface placed in the lower part of the cavity: the steam generator. There is no need to add water to the cooking dish. To guarantee TRUE STEAM COOKING, your oven is supplied with a set of specially designed for cookware to perfection.
When cooking, the appliance gets hot. Hot steam may escape when you open the door of the appliance. Keep children out of the way.
Steam coockin
Steam cooking at 100°C.
2
1
3
4
Caution
In order to avoid altering the results of the cooking, avoid opening the appliance door during cooking.
10
How to use your oven
Defrosting
Defrosting at 60°C.
Press the button A time of 40 minutes is suggested.
Adjust the cooking time as necessary ( minimum 5 min and maximum 60 min by
pressing on + and - button.
Validate with the START button.
The symbol comes on. When the temperature is reached, 60° becomes constant, and a beep sounds
2
1
3
4
Modifying the cooking time
At the end of cooking
0m00s displays. The display animation stops. Beeps are heard for a 3 minute period. To stop the beeps, press on STOP and open the door.
Stopping the appliance during cooking
During cooking, you can modify the cooking time by using the + and - buttons.
You can stop the cooking at all times by pressing on START/STOP (hold the button down for about 1 second). If the steam production has not yet started (about 1 minute), the oven will stop immediately and the time setting will disappear. If the steam production has already started, the time passes to 3 minutes and during this period, the steam evacuates before you open the oven.
You MUST IMPERATIVELY empty the tank
In order to make sure the oven is reliable, the fan continues to operate for a certain period after the end of cooking.
11
How to use your oven
In case of problems related to the water circuit during cooking, the 'no water' symbol appears and a beep sounds.This fault is specifically related to:
- an empty tank,
- a wrongly-fitted tank. After checking these two points, the cooking will recommence automatically after the door.
Managing the wate
Freeze small portions; defrosting will be faster, more homogenous and quality will be preserved. When semi-defrosted, you can turn over the food items or spread them out (for example vegetables patties). Protect pastries with a cling wrap or keep the original packaging. Wipe fish and sausages before grilling: humidity stops them from becoming golden brown. For large pieces (roasts, etc.) proceed in steps by turning the piece over several times and adjust the time accordingly.
Reheating
You can reheat a cooked dish in your steam oven. The dish will not dry out, will not become overcooked and will not splatter or stick. Adjust steam sequence at 100°C, place the dish or plate on the grill, protect with aluminium foil or cling wrap to avoid drops of water accumulating and heat for 20 to 25 minutes depending on the dish and your preferences. Examples: A plate of sauerkraut: 20 min. A bowl of soup (300 ml): 20/25 min
Advice
12
The time and the end of cooking time symbol display and flash. The
adjustment of the end of cooking time is now possible: Press the + or - buttons For example : 12h00
Validate with the SET button.
Adjust the cooking time as necessary ( minimum 5 min and maximum 60min) by pressing on +
and - button.For example : 20 min.
How to use your oven
Comment faire une cuisson différée ?
Steam cooking at 100°C. You can program the cooking time so that your dish is ready at a time of your choice.
For example: It is 12h05 o'clock, and you have to go out, your dish should be ready at 13 o'clock and it will take 20 minutes to cook.
Press the button . A time of 25 minutes is suggested.
1
2
3
4
Validate with the SET button.
5
Validate with the SET button.
The time and the end of cooking time become constant. The symbol for the length of cooking time displays.
Modification of cooking time and the end of cooking time
You can consult or modify the length of cooking time and the end of cooking time, at all times. To cancel the programming, press START/STOP.
13
How to use the timer
How to use your oven
Your oven is fitted with an electronic timer that is independent of the operation of the oven, and allows time to be counted down.
This function is independent of your oven. It can not order the end of automatic cooking.
However, this function can be used even during operation of the oven. In this case, the display of the timer is given priority over the display of the time.
Hold the SET button down for a few seconds. 00m00s and the timer symbol flash.
1
Adjust to the period required (maximum 9 minutes and 50 seconds) using the + and - buttons.
After a few seconds, the timer counts down the time. Once the time has run out, beeps will sound every few seconds. 0m00s displays and flashes.
2
The beeps can be stopped by holding down SET or START. Once the countdown has started, you can modify the time remaining by holding down SET then pressing the + or ­buttons. To cancel the timer, hold SET down for a few seconds, then return the time to 0m00s.
Modifying and stopping the timer
14
Cooking times
Artichokes (Small)
TIME
Whatever the quantity
Asparagus
Broccoli
Carrots
Celeriac
Pumpkin
Mushrooms
Courgettes
Chinese artichokes
Spinach
Chicory
Fennel
Green beans
Turnips Fresh peas
Potatoes
40 to 45 min .
35 to 40 min.
18 min.
20 to 22 min.
25 to 30 min.
15 to 20 min.
15 min.
10 to 15 min.
20 min.
20 min.
35 min
30 min.
22 min.
30 to 35 min.
15 to 20 min.
20 to 25 min.
25 min.
40 to 45 min.
placed upside down in the dish
for the tips, reduce the cooking time
in little flowerets
in fine slices
in fine slices
in cubes
in slices
core removed and cut in two lengthwise
cut in 2
cubed
Leeks
25 min.
cut in 2
sliced whole
• These times depend on the nature, size and freshness of the vegetables. Follow the instructions given in the "Preparation" column.
• The cooking time is the same regardless of the quantity to be cooked.
For example :
1 or 4 artichokes, same cooking time.
• To check how well done the food is, test the thickest part of the vegetable; if it is cooked, it will not resist.
(fresh) stir during cooking (frozen) “
/
Cabbage
30 to 35 min.
22 min.
30 to 35 min.
Brussels sprouts
Flowers in little bunches
Green shredded
in fine strips
VEGETABLES
PREPARATION
REMARKS
Scallops
TIME
Mussels/Whelks
Crabs/Lobster/
Dublin Bay
Prawns
10 to 12 min.
20 to 25 min.
25 min.
30 to 35 min.
12 to 15 min.
with aromatic herbs
with aromatic herbs
/
according to weight
/
• Arrange the shellfish on a grill or glass dish, and add a few aromatic herbs
• Arrange seafood on a bed of seaweed.
SHELLFISH
PREPARATION
REMARKS
Apples/ pears/ peaches
TIME
puree
Custards
10 to 15 min.
25 min.
10 min.
whole, peeled
strips of fruit
in ramekins
Time according to ripeness
FRUITS
CUSTARDS
PREPARATION
REMARKS
15
Pike
TIME
Cod/hake
Sea bream
Haddock
Herring
Monkfish
Lotte
Mackerel
Whiting/cod
Skate
25 to 30 min.
13 to 15 min.
20 to 25 min.
15 min.
20 min.
15 to 20 min.
15 min.
20 min.
15 min.
25 to 30 min.
whole (1kg)
steaks (180g)*
whole (1kg)
fillets
whole (200g)
steaks (180 g)
whole (250g)
• *Steaks :slices of fish 2 or 3 cm thick (180/200g) per person.
• Always insist on very fresh products
• Place whole fish directly into the dish or on bay leaves, fennel or other herbs.
• At the end of cooking, remove the skin which will come away easily.
according to thickness
fillets
FISH
PREPARATION
REMARKS
Mullet
Mullets
Dogfish
Salmon
Sole
Tuna
Whole trout (1kg)
15 min.
10 min.
20 min.
15 to 20 min.
10 to 12 min.
20 to 25 min.
20 to 25 min.
whole (200g)
fillets
thick slice (6 to 10 cm long)
steaks (180/200 g)
steaks (180/200 g)
whole
(200g)
13 to 15 min.
fillets
Beef
TIME
Pork (filet mignon)
Poultry (breast, fillet)
(Paupiettes)
Sausages
15 to 30 min.
25 min.
20 to 25 min.
25 min.
20 min.
Joint
800 gr.:
55 to 60 min.
Chicken drumsticks
:
35 to 40 min.
Turkey roast joint : 50 to 60 min.
Morteau 400 g piece
• The brown under grill in another dish.
MEATS/
EGGS
PREPARATION
REMARKS
Black pudding
10 to 15 min.
Place directly in a dish, covered with water or milk. The steam is not sufficiently wet to saturate these foodstuffs that swell. Place a sheet of aluminium foil over the dish to protect it from the droplets of water.
TIME
•Separate grains with a fork at the end of the cooking.
RICE, PASTA
COUCOUS
PREPARATION
REMARKS
Rice pudding
30 min.
100g of washed rice - 20 cl of milk - 2
dessertspoons of sugar
Couscous
20 min.
200g (1/4 litre of water)
7 min.
5 to 6 min.
8 min.
Boi
led eggs : Place directly on the grill.
S
oft-boiled: Place directly on the grill.
Fried eggs : broken in an individual dish on the grill and cover with
cling film
Eggs
eggs that are very fresh and stored at room temperature
10 to 12 min.
Hard / Cocotte see detailed recipes.
Cooking times
16
How to maintain your oven
Troubleshooting
WHAT SHOULD YOU
DO?
POSSIBLE
CAUSES
The light doesn't work.
Water or steam leaking from the door during cooking.
- Change the bulb.
- Switch the oven on at the mains.
- Change the fuse.
The bulb needs replacing. The oven is not switched on at the mains. The fuse has blown.
The door is not shut correctly. The door seal is faulty.
- Contact the After-Sales
Service.
IF YOU REALIZE THAT
In all cases, if you are unable to solve the problem yourself, please contact the
After-Sales Service without delay.
The display panel is not lit up.
A fault in the oven electrical supply.
Electric card out of order.
- Check that the tank has been pushed in completely.
- Contact the After-Sales Service.
17
How to install your oven
Electrical connection
For a permanent connection, make sure a system of disconnection that complies with the installation regulations. The appliance must be placed in such a way as to leave the plug accessible if it is flush-fitted. Use of an earthed power socket, connected in compliance with current safety standards Your installation must be fitted with a 10 amp device for thermal protection. Do not use the oven if the supply cord or its plug are damaged. In this case, they must be replaced by the manufacturer, its after-sales service or similarly qualified persons, to avoid any danger.
Operating voltage ............................................................. 220-240 V ~ 50 Hz
Total power of oven .......................................................................... 2,78 kW
Energy consumption
-Heating to 100°C and maintaining temperature for 1 hour ............... 0,71 kWh
Inside dimensions of oven
Width .............................................................................................. 38,5 cm
Height ............................................................................................. 18,2 cm
Depth .............................................................................................. 33,5 cm
Usable volume ............................................................................. 23,5 litres
18
How to install your oven
Housing
NB
The oven may be housed either under a work surface or built into a column that is open* or closed with a suitable opening.
Your oven works at its best and produces excellent results when cooking and cleaning itself, if its air circulation is not compromised:
• The oven must be centred in the unit so that there is a minimum distance of 5 mm between it and the surrounding unit.
• The housing unit or its outer surface must be capable of withstanding heat.
• To ensure the oven rests firmly in the housing, screw it to the housing unit using the holes on the side uprights provided (see diagram).
To do this:
Remove the rubber stoppers masking the fixing holes.
To prevent the housing unit splintering, drill two holes 3 mm in diameter in the wall of the housing
unit opposite the fixing holes.
Attach the oven using the two screws.
Conceal the hole using the rubber stoppers. (These also help to cushion the closing of the oven
door).
(*) If the housing unit is open at the back, the gap must not be more than 70 mm.
4
3
2
1
450
550 mini
560
378
550
50
20
50
10
400
550
450
mini
560
592
445
26
456
19
How to maintain your oven
How to maintain your oven
Cavity (after each use)
Wipe out the cavity with a dry cloth after the steam generator has cooled or leave the cavity to dry out with the door open.
Water supply tube (Once per month)
Remove the water supply tube by unscrewing it. Remove any scale that may have formed on the inside (using a fine, pointed object such as a skewer or knitting needle).
Steam generator tube (Once per month)
Pour half a glass of spirit vinegar onto the generator. Leave to work for a few minutes, clean and rinse with water. Do not use sponges, abrasive powder, or descaler.
Cleaning the channel
Dismantle this channel by pulling upwards. Wipe it and replace it, using the three notches provided for this purpose.
The oven must not be cleaned with a steam cleaner.
Caution
- Make sure the oven is switched off and not hot.
- Avoid touching heating elements.
20
Before proceeding to manual cleaning your oven, let cool.
In general, abrasive powder and metal sponges and sharp objects are banned.
Changing the bulb
The bulb is by the far right corner.
- Turn the cover slightly anti­clockwise (left).
- Unscrew the bulb the same way. The bulb is a :
- 15 W
- 220-240 V
- 300°C
- Douille E14
Change the bulb and reassemble the unit making sure the seals are positioned correctly.
- Switch the oven back on at the mains.
Caution
Always switch the oven off at the mains before changing the bulb in order to safeguard against electric shocks.
3
2
1
How to maintain your oven
21
After-self service
REPAIRS
I nterventions Any repairs that are made to your appliancemust be handled by a qualified professionalauthorised to work on the brand. When youcall, mention your appliance’s complete refe-rence (model, type, serial number). This infor-mation
appears on the manufacturer’s name-plate (Fig.1).SPARE PARTSDuring maintenance work, request the exclu-sive use of certified genuine replacementparts.
BRANDT APPLIANCES SAS 7 rue Henri Becquerel
MADE IN FRANCE
92500 RUEIL MALMAISON
230V ~ 50 Hz
Loading...
