ARISTON NM10 723 WS EX Daily Reference Guide

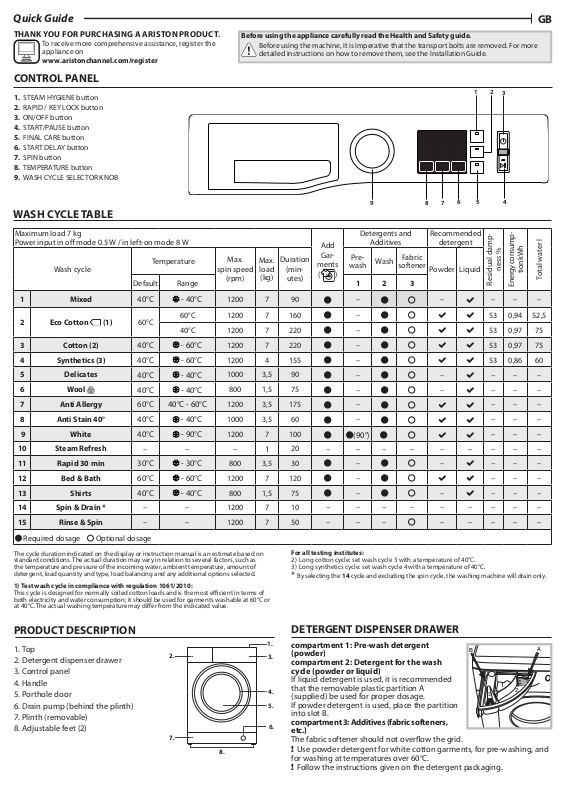

Quick Guide

THANK YOU FOR PURCHASING A ARISTON PRODUCT.

To receive more comprehensive assistance, register the appliance on

www.aristonchannel.com/register

CONTROL PANEL

1. STEAM HYGIENE button

2. RAPID / KEY LOCK button

3. ON/OFF button

4. START/PAUSE button

5. FINAL CARE button

6. START DELAY button

7. SPIN button

8. TEMPERATURE button

9. WASH CYCLE SELECTOR KNOB

WASH CYCLE TABLE

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more detailed instructions on how to remove them, see the Installation Guide.

1 2

Maximum load 7 kg Power input in o mode 0.5 W / in left-on mode 8 W

Wash cycle

1 Mixed

3 Cotton (2)

4 Synthetics (3)

5 Delicates

7 Anti Allergy

8 Anti Stain 40°

9 White

10 Steam Refresh

11 Rapid 30 min

12 Bed & Bath

13 Shirts

14 Spin & Drain *

15 Rinse & Spin

 Required dosage  Optional dosage

The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.

1) Test wash cycle in compliance with regulation 1061/2010: This cycle is designed for normally soiled cotton loads and is the most ecient in terms of both electricity and water consumption; it should be used for garments washable at 60°C or at 40°C. The actual washing temperature may dier from the indicated value.

Eco Cotton

Wool

(1)

Temperature

Default Range 1 2 3

40°C - 40°C

60°C

60°C 1200 7 160

40°C 1200 7 220

40°C - 60°C

40°C - 40°C

60°C 40°C - 60°C

40°C - 40°C

40°C - 90°C

– – – 1

30°C - 30°C

60°C - 60°C

40°C - 40°C

– –

Max.

spin speed

(rpm)

1200 7 90

1200 7 220

1200 4 155

1000 3,5 90

800 1,5 75

1200 3,5 175

1000 3,5 60

1200 7 100

800 3,5 30

1200 7 120

800 1,5 75

1200 7 10

1200 7 50

Max. load

(kg)

Duration

(min-

utes)

Detergents and

Pre-

wash

–

Additives

Wash

softener

 

   

 

   

Add Gar-

ments

(



)

 (90°)    

– – – – – – – – –



–

 

–

   

–

 

Fabric

Recommended

detergent

Powder Liquid

–



–



–



–



–



ness %

Residual damp-

Energy consump-

– – –

53 0,94 52,5

53 0,97 75

53 0,86 60

– – –

– – – – – – – – –

– – –

For all testing institutes:

2) Long cotton cycle: set wash cycle 3 with a temperature of 40°C.

3) Long synthetics cycle: set wash cycle 4 with a temperature of 40°C.



– – – – –

* By selecting the 14 cycle and excluding the spin cycle, the washing machine will drain only.

tion kWh

Total water l

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

compartment 1: Pre-wash detergent

(powder)

compartment 2: Detergent for the wash cycle (powder or liquid)

If liquid detergent is used, it is recommended that the removable plastic partition A

(supplied) be used for proper dosage. If powder detergent is used, place the partition

into slot B.

compartment 3: Additives (fabric softeners,

etc.)

The fabric softener should not overow the grid. ! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging.

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash care label. The value indicated in the symbol is the maximum recommended temperature for washing the garment.

Mixed

For washing lightly to normally soiled resilient garments in cotton, linen, synthetic bres and mixed bres.

Eco Cotton 60°/40°

Suitable for washing moderately soiled cotton garments. At 40°C and 60°C it is the standard cycle for washing cotton garments, and is the most ecient in terms of combined water and electricity consumption.

Cotton

Normally to heavily soiled and robust cottons .

Synthetics

Suitable for washing moderately soiled garments made of synthetic bres (e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.

Delicates

For washing very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments.

Wool - Woolmark Apparel Care - Green:

The “Wool” wash cycle is approved by the Woolmark Company for washing wool garments classied as “hand-washable”, provided that the wash complies with the instructions appearing on the garment’s label and with those provided by the manufacturer of this washing machine. (M1126)

Anti Allergy

Suitable for removing major allergens such as pollen, mites and cat or dog hair.

Anti Stain 40°

The programme is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of dierent colours. We recommend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains.

White

For washing normally to heavily soiled towels, underwear, table and bed linen, etc in resilient cotton and linen. Only when the temperature is selected at 90°C the cycle is provided with a prewash phase before main washing phase. In this case it is recommended to add detergent both, in the prewash and main wash section.

Steam Refresh

The garments will be damp once the cycle is completed, so we recommend hanging them to dry (1 kg, roughly 3 items). This programme refreshes garments by removing bad odours and relaxing the bres. Insert dry items only (that are not dirty) and select programme “Steam Refresh”. Garments will be a little damp at the end of the cycle and can be worn after a few minutes. The “Steam Refresh” programme makes ironing easier. ! Do not add softeners or detergents. ! Not recommended for wool or silk garments.

Rapid 30 min

For washing lightly soiled garments quickly. This cycle lasts only 30 minutes, saving time and energy.

Bed & Bath

For washing home linen in a single cycle. It optimises the use of fabric softener and allows for saving time and electricity. We recommend the use of powder detergent.

Shirts

Use the special wash cycle to wash shirts in dierent fabrics and colours to guarantee they receive the best possible care.

Spin & Drain

Spins the load then empties the water. For resilient garments. If you exclude the spin cycle, the machine will drain only

Rinse & Spin

Rinses and then spins. For resilient garments.

WASH CYCLE PHASE INDICATOR LIGHTS

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one-by-one to indicate which phase of the cycle is currently in progress.

Wash Rinse

Spin & Drain

End of Wash Cycle

DISPLAY INDICATORS

Failure: Call Service Refer to Troubleshooting section

Failure: Water lter clogged Water cannot be drained; water lter might be blocked

Failure: No water No or not sucient inlet water.

In the event of any failure, refer to the “Troubleshooting” section.

Key Lock to activate the control panel lock, press and hold the button for approximately 3 seconds. The lit symbol signals that the control panel is locked. This prevents wash cycles from being modied accidentally (except for the ON/OFF

button), especially if there are children in the home. To deactivate the

control panel lock, press and hold the button for approximately 3 seconds.

Locked door indicator When lit, the symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE button ; if the symbol is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before you use it for the rst time, run a wash cycle with detergent and no laundry, using the wash cycle 9 (60°).

DAILY USE

Prepare the laundry by following the suggestions appearing under the “TIPS AND SUGGESTIONS” section.

- Press the ON/OFF button .

- Open the door. Load the laundry while making sure not to exceed the maximum load quantity indicated in the wash cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments, as described in the “DETERGENT DISPENSER DRAWER” section.

- Close the door.

- Modify the temperature and/or spin.

- Select the desired wash cycle.

- Select the desired options.

- Press the START/PAUSE button to start the wash cycle; the relative indicator light will light up steady and the door will lock ( symbol on).

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again. To start the wash cycle from the point at which it was interrupted, press the START/PAUSE button again.

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the symbol turns on to signal that the door cannot be opened. While a wash cycle is running, the door remains locked. To open the door while a cycle is under way, for example, to add or remove garments, press the START/PAUSE button to pause the cycle. If the symbol is not lit, the door may be opened. Press the START/PAUSE button again to continue the cycle.

ADDING GARMENTS

An icon on the display will signal when additional garments can be introduced into the washing machine, without decreasing the washing performance. To add garments, rst stop the washing machine by pressing the START/PAUSE button then open the door and insert them. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button, then select the desired cycle and press the START/PAUSE button again. ! To cancel a cycle that has already begun, press and hold the ON/OFF button. The cycle will be stopped and the machine will switch o.
