Modell típus:
LB414SPT
termékkód:
03296
Általános jegyzet
Technikai Dokumentáció irányelvei
----------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------
Itt néhány általlános információ találhatsz a technikai dokumentáció egyszerűbb használatához.
1. Azonos termékcsalád típusai azonos robbantott ábrát tartalmaznak, mely a teljes alkatrész választékot mutatja,
általánosságban, nem szükségszerű hogy az adott terméknek is alkatrésze az ábrán feltüntetett.
2. Némely alaktrész bemutatása nem lehetséges közvetlenül a robbantott ábrákon(használai útmutatók, speciális szererlő
csomagok, stb…) Ezen kódok megtalálhatók az alkatrészlistán azonos hivatkozási számmal azoknál ahol az alkatrészek be
vannak építve vagy 099,999 hivatkozással.A kezelési utasítás,ha már létezik, a 000 referencia számmal lesz ellátva.
3. Minden robbantott ábra jobb felső sarkában megtalálható a gyári szám , ami mutatja bizonyos modellek gyártásának kezdetét
, néhány modellnek létezhet több robbantott ábrája az adott kategóriában, ami a gyári számok alapján különbözik egymástól és
egy másik alkatrészlista tartozik hozzá.Ebben az esetben a gyári szám megadása szükséges a helyes alkatrész biztosításához.A
robbantott ábra megfelel a legújabb gyári számnak , de az ez előttiekhez szükséges a megfelelő kiegészítés
4. A robbantott ábrák további frissítéseket igényelnek akár már közvetlenül a megjelenés után.Új alkatrészek hozzáadása a
jelenlegi referenciaszámok folytatásával történik.A robbantott ábra felülvizsgálati száma a gyári szám utolsó négy digitjében
látszódik, a jobb felső sarokban.
5. A robbantott ábrához tartozó alkatrész lista mutatja a vonatkozó kódokat több modellre is , minden egyes alkatrészhez más
infpormáció is rendelkezésre áll
REF:
INDUSTRIAL KÓD:a termék különböző változatainak listája (jelezve a termék cimkéjén)ahol ez az alkatrész
használatos;MEGJEGYZÉS:az információ(k) kódszáma,ami jelöli a teljes szakmai beavatkozást, figyeli a változásokat vagy segít
megtalálni a helyes alkatrész kódot.
6. Néhány megjegyzés ugyanabban a részben általános ezért nem csatolódik közvetlenül az alkatrészhez.Azért ,hogy a legjobban
követhessük a termék változásait,a legjobb,ha követjük az összes megjegyzést és folyamatosan ellenőrizzük a dokumentáció
frissítését.
7. A technikai dokumentáció borítója megmutatja a model nevét és termékkódját
mod.LB414SPT page 2
1060150 Robbantott ábrák
mod.LB414SPT page 3
1060150 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
001 C00019678 láb készlet
002 C00023819 white 26 cabinet 0106552
003 C00019664 rear cover - white
004 C00024552 hose holder
005 C00023846 wiring clamp 6/12
005 C00023847 wiring clamp 11/18
006 C00023820 white 26 top panel
007 C00025033 dashboard castoro74
007 C00030200 dashboard + handle
008 C00025023 1 x C00025034 drawer handle castoro74
009 C00015850 kapcsoló 'ar 412-515-616-818'
010 C00025024 programme disc castoro74 0106427
011 C00019693 timer knob (castoro) 0106427
0106454
012 C00019761 knob front cover (castoro) 0106454
013 C00025031 switch button cover castoro74 0106427
0106454
015 C00003044 fogantyú pecek
025 C00028304 ablak üveg (80107)'lb836enl'
027 C00025027 1 x C00015923 handle button arancio 0106426
027 C00038692 handle button c74
028 C00015437 handle button spring
029 C00020765 1 x C00016632 lid handle castoro74 0106427
030 C00016726 inner frame lid
030 C00025025 1 x C00003017 lid cromato 0106426
0106427
030 C00033231 frame platet lid
031 C00015463 hinge
032 C00015434 1 x C00016632 handle spring
032 C00025256 handle spring
033 C00003052 lid catch
036 C00015835 worktop retainer
mod.LB414SPT page 4
1060250 Robbantott ábrák
mod.LB414SPT page 5
1060250 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
001 C00019675 rugó gyűrű
002 C00021911 2 x C00029165 tank spring red 129 mm
002 C00029165 tartály rugó sárga l= 135mm
003 C00019667 spider retaining bracket
004 C00015492 screw m8x80 t.t.l.
004 C00018234 screw m8x40 ttp
005 C00019757 felső ellensúly 16 kg
005 C00025208 counterweight pad 0106423
005 C00037346 nylon washer
006 C00023841 nut for clamping band tank front
007 C00008665 1 x C00033041 bellows clamp - case front
007 C00032708 expander 0106387
008 C00024551 ablak tömítés 'gazdaságos' 0106411
009 C00019651 clear plastic protection
010 C00019711 1 x C00036780 bellows clamp (over centre)
011 C00003018 clamping band tank front
012 C00023840 bolt m6 x 80 for clamping band
013 C00018237 2 x C00036952 front counterweight
1 x C00052574
015 C00021909 1 x C00031367 tub front (41114)
015 C00031367 1 x C00020941 tank front - enamel 0106379
1 x C00031029
016 C00013579 seal - tank front
017 C00021528 drum (40612) 0106356
017 C00029154 drum 400/600 rpm(80614)str.39 0106356
0106364
0106412
017 C00034398 kit drum triangle rod'600 rpm
017 C00036178 drum for star wheel with sealing 0106448
0106474
018 C00023844 hose-tub to pump 55 mm 0106344
018 C00027926 leeresztő fúvóka d. 70 mm 0106344
019 C00023839 1 x C00027925 tub outer 0106344
1 x C00027926
1 x C00027927
mod.LB414SPT page 6
1060250 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
019 C00027927 1 x C00027928 outer tank kit 0106344
020 C00003036 1 x C00029588 ferodo betét 0106440
021 C00019696 rugóköteg
022 C00019676 plastic bush for spring clamp
023 C00019666 saddle - spring clamp
024 C00003034 1 x C00029588 saru készlet
025 C00019677 gömbcsukló
026 C00019968 kocsi tengely tömítés 600 fordulat 0106412
027 C00024553 1 x C00027925 hose dispenser to tub 0106344
027 C00027925 1 x C00027923 hose-dispenser to tank 0106344
028 C00019718 kereszt elem tömítés 0106408
0106412
028 C00033025 kereszt elem tömítés tömítő
029 C00023111 keresztelem tárcsa 600/400 0106412
029 C00033018 sealing ring 600 rpm 40x22x8.5 0106448
0106474
031 C00019966 1 x C00033025 star wheel 600/400rpm 0106266
1 x C00034202 0106408
0106412
031 C00033021 star wheel with sealing rings 600 0106448
0106474
031 C00034202 star whell 600/400rpm v-ring 0106266
0106408
0106412
032 C00002590 csapágy 17x40x12 6203-2z skf 0106266
033 C00019967 bush pulley 0106356
033 C00029152 tárcsa persely 400/600 g.(80614) 0106356
0106474
034 C00019971 driven pulley 600rpm 0106356
034 C00029153 vezetett tárcsa 400/600 fordulat 0106356
0106448
0106474
035 C00019802 vezetett tárcsa rögzítő csavar 0106449
0106474
036 C00003089 belt (2/12poles-400rpm)
mod.LB414SPT page 7
1060250 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
036 C00027191 ékszíj 9ml 122 1223 mm'400g.
037 C00037135 önzáró anya m4 0106415
038 C00037142 1 x C00037132 washer 4x12x1 stainless 0106415
039 C00037083 1 x C00037177 ellenállás bilincs 0106415
040 C00037133 1 x C00037132 seal 0106415
041 C00037132 csavar készlet m4x12 tmt inox 0106415
mod.LB414SPT page 8

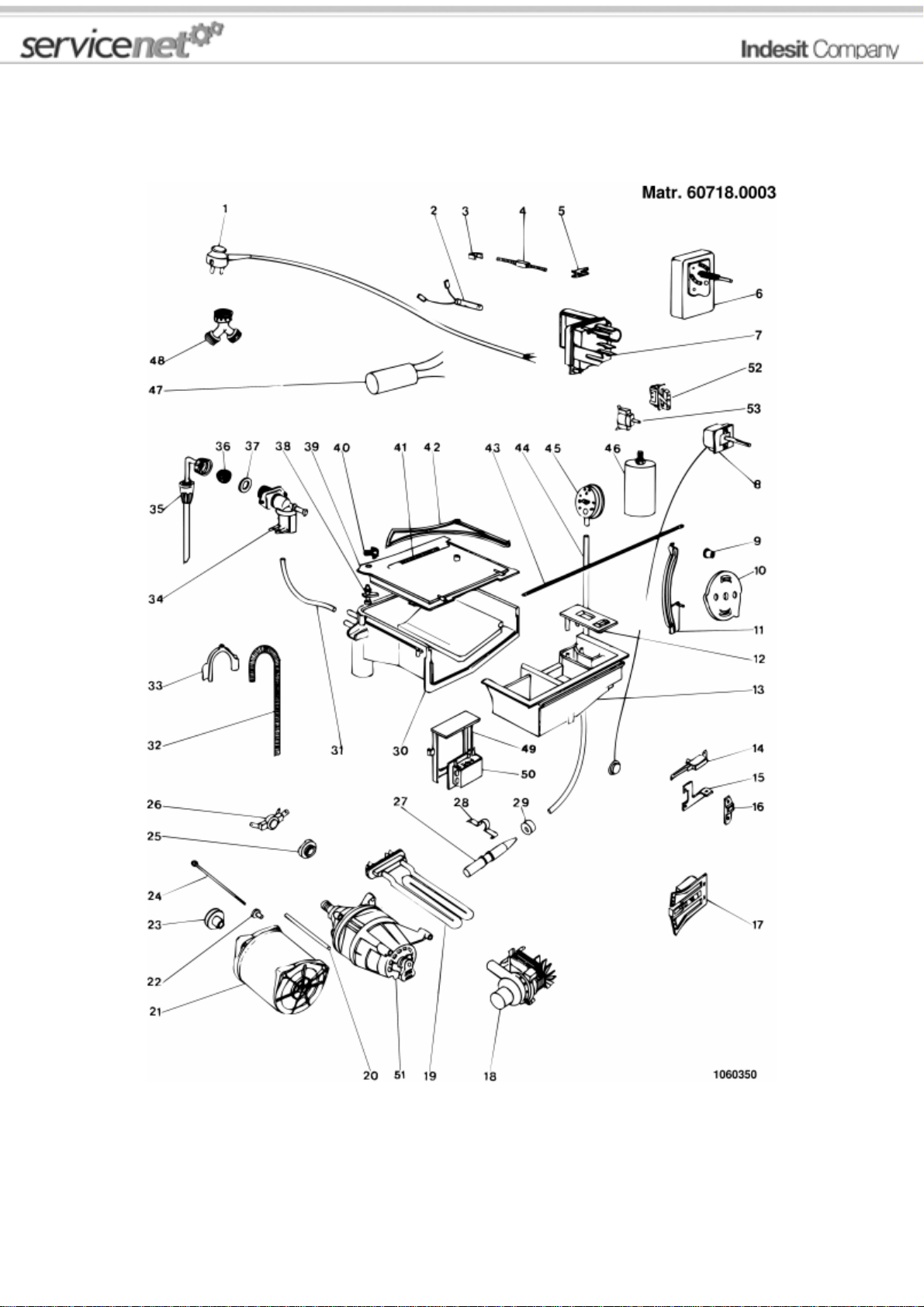

1060350 Robbantott ábrák
mod.LB414SPT page 9
1060350 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
001 C00022357 1 x C00024521 supply cable 3x1 schuko l= 2,70 m
001 C00023863 harness elbi 1128 0106368
0106370
003 C00015868 saddle clamp (earth)
004 C00003143 earthing screw
005 C00019748 terminal connector
006 C00024085 timer elbi 1128
007 C00019747 terminal block box 0106357
007 C00029204 elettrogibi kapocsléc doboz
009 C00020183 bush for timer cam 0106419
0106464
009 C00031082 bush for timer cam black 0106419
010 C00020184 distributor cam 9061.02 / 1128 0106464
010 C00043849 distributor cam 9061.02
011 C00023848 bütyök letapogató 'gazdaságos'
012 C00019840 adalékok fedél 0106486
013 C00022678 mosószer tartály 0106486
014 C00003099 1 x C00027109 microswitch 0106335
1 x C00027110 0106368
0106370
014 C00027110 microswitch s 16 (70707) 0106368
0106370
015 C00003039 1 x C00027109 microswitch holder 0106335
1 x C00027110
016 C00003038 microswitch tongue 0106335
016 C00027109 microswitch holder (70707)
018 C00023868 öntisztuló szivattyú (készlet) 0106391
0106429
019 C00019973 ellenállás 1950 w.'ar658t'/816409 0106457
020 C00019965 motor távtartó 'ar658t'
021 C00015851 1 x C00003096 motor 2/12 poles rade k.
1 x C00019740
022 C00019682 motor pecek persely 20 mm
023 C00003090 driving pulley (2/12poles-400rpm)
024 C00019964 motor bolt m6 x 212 te
mod.LB414SPT page 10
1060350 alkatrész lista
refer Kód Az S/N To S/N Helyettesít Leírás jegyzet ipari kód
025 C00014917 termosztát tömítés 'ls312 570'
025 C00020181 termosztát furat dugó 'ar414'
026 C00015856 termosztát 1t 87[ c nc 'ar 410-818'
027 C00019730 levegő csapda 0106429
028 C00020025 air trap clip
029 C00019755 anti-vibration bush (foam)
030 C00019733 tölcsér 0106486
031 C00015497 1 x C00015498 hose electrovalve to dispenser
032 C00023860 leeresztő cső spirális l=1750
033 C00019902 spirál leeresztő cső alátét
033 C00020664 collar for drain hose
034 C00019734 elektromos szelep 1e 1u 8 lt
035 C00003070 töltőcső 1500 mm 'hajlított
036 C00005781 töltőcső szűrő
037 C00005572 töltőcső tömítés
038 C00021662 dispenser cold water
039 C00019726 1 x C00020878 hopper cover 0106486
040 C00019692 1 x C00028568 toothed moulding for diverter 0106349
1 x C00028569
040 C00028569 osztósín 19 fogas (80126)
041 C00019708 dispenser spring
042 C00019707 1 x C00028568 diverter pivot arm 0106349
1 x C00028569
042 C00028568 diverter pivot arm 18 teeth
043 C00023862 metal operating rod
044 C00019731 pressure switch hose 600mm. 0106429
045 C00023867 pressure switch 1 level 220/95
046 C00013692 capacitor 11mf'2/12 poli rade
046 C00019740 capacitor 14mf 8 micron
047 C00019648 1 x C00026359 radio interference soppressor
052 C00015850 kapcsoló 'ar 412-515-616-818'
mod.LB414SPT page 11
jegyzet
0106266: SUGGESTIONS ON REPLACING BEARINGS FOR STAR WHEEL
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Do not replace the bearings of the tank star wheel, if the fitting is deformed or if the bearings have slipped out of place.
In this case, replace the star wheel, to avoid having to replace the bearings again after a relatively short time.
This problem occurs principally on aluminium star wheels.
0106335: ELIMINATED BRACKET FOR MICROSWITCH
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The microswitch support Cod. 003039 has been eliminated as from serial number 70707.0001. A new microswitch Cod.027110
and a new microswitch tongue Cod.027109 replace those currently mounted.
The new parts are not individually interchangeable with the old parts while the new unit as a whole is.
0106344: MODIFIED UNIONS ON WASHERS AND ARC
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The tubs of the economic compact series of washing machines were modified as from serial no. 71027.0001 in order to reduce
production waste and to eliminate the hose clamp which fixes the dispenser to tub hose.
The modification is as follows: the diameter of the tub to pump hose nozzle has been increased to 70 mm and the dispenser to tub
hose has been replaced by a hole on the tub.
The following have also been modified: the dispenser to tub hose is now installed by fitting the groove on the bottom of the sheet
plate thickness and the tub to pump hose compensate for the larger diameter of the nozzle.
The new enameled tub Cod.027927 and stainless steel tub Cod.027928
complete with dispenser to tub hose Cod.027925 and tub to pump hose
Cod.027926 may be installed to replace the old version tubs.
0106349: MODIFIED DISPENSER GUIDE AND SETTER
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
mod.LB414SPT page 12
As from serial no. 80126.0001, the number of teeth on the pivot arm diverter (from 22 to 18) and on the diverter geared moulding
(from 21 to
19) have been reduced on all the washer and dyrer-washers in order to improve the cold water distributor adjustment.
Codes are as follows:
Cod. 028568 - 18 tooth pivot arm diverter (80126)
Cod. 028569 - 19 tooth diverter geared moulding (80126) The two new parts are not individually interchangeable with
premodification parts but are interchangeable if installed together.
0106356: MODIFIED BASKET ON 400-600 RPM WASHERS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 80614.0001 the drum, the driven pulley and the pulley bushing been modified on all the 400 and 600 rev.
washers with with structures 80 e 39 in order to further the shaft-driven pulley bushing coupling.
The codes of the new parts are as follows:
Washer str.80
Cod. 029089 - 400/600 rev. drum Str.80 AR
Cod. 029152 - 400/600 pulley bushing
Cod. 029153 - 400/600 rev. driven pulley Washer str.39 - LB (Economic)
Cod. 029154 - 400/600 rev. drum Str.39 LB
Cod. 029152 - 400/600 rev. pulley bushing
Cod. 029153 - 400/600 rev. driven pulley This modification eliminates the use of Loctite 638 during production which was used
to fix the driven pulley.
The new parts may be used to replace premodification parts if fitted together.
0106357: MORSETTIERA ELETTROGIBI
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 80620.0001 a new terminal board ELETTROGIBI Code 029204 will be fitted on all washers and washer-driers
This modification has led to the modificiation of the radio antijamming and wiring since the ground wire is fixed to the terminal
board with fastons and not with screws.
The hole for fixing to the cabinet has also been modified since the terminal board has a different shape.
The modified filters and cables are indicated under the same
codes of the premodification parts since there are interchangeable.
Before replacing with premodification parts replace the eyelet with fastons on the earthing wire and fit faston covers on the line
and neutral wire fastons.
The modified cabinets are indicated under the same codes as the premodification cabinets until stocks last. They are
interchangeable only if the specific terminal board is fitted.
Important: please note that during repairs the ground wire of the antijamming filter must be connected to the terminal board as
otherwise there will be electrical dissipation from the appliance with serious danger to the user.
0106364: FORATURA POSTERIORE CESTELLI
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 90119.0001, holes have been made on the back drum flange on all washing machines with structure 39,
80 and on the Snella series of washing machines.
mod.LB414SPT page 13
In addition on all the 1000 rpm washing machine and Margherita washing machines with dryer and on the Marcherit Mulinell
800 rpm the thickness of the drum casing has been increased from
4/10 to 5/19 mm.
The codes of the modified drums are as follows:
029149 - Drum 1000 rpm AR - CD 5/10 mm
029088 - Drum 800 rpm AR - CD
029089 - Drum 400-600 rpm Str. 80
029155 - Drum 400 - 600 - 800 rpm ARC
029090 - Drum 800 rpm LB Str. 39
029154 - Drum 400 - 600 rpm LB str. 39
030381 - Drum assy 1200 rpm AM 5/10 mm
030382 - Drum assy 800 rpm AM 5/10 mm The drums are interchangeable with premodication models and are indicated under
the same SAT codes.
0106368: REPLACED MICROSWITCH WITH DELAY MICROSWITCH
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 90224.0001, the microswtich with microdelay switch code 011140 have been replaced on washing machine
LB445SFR for trademark reasons.
This modification has required the use of new wiring (code 030721), a new handle cover (code 022487) and a new owner's
manual (code 030722).
The above parts may be fitted on premodification models if mounted together.
0106370: ADDITION OF A DELAY MICROSWITCH
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 90303.0001, the microswitch has been replaced with a micro delay switch code 011140 on all washing
machines LB455SFR white 26 and bresil for trademark reasons.
New wiring (code 030788) and the following new parts have been fitted for the modification:
Code 022421 - Beaver 74 handle;
Code 022487 - White 26 handle;
Code 030722 - Owner's Manual.
If used together the above parts may be fitted on premodification models.
0106379: ADDITION OF NEW TUB COVERS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
With the introduction of the "Margherita Restyling", a new modified tub lid has been fitted on all the washer and tumble dryer
models.
The modification involves a new shaped bracket, which ensures that the part on the tub lid closes perfectly and perfect fixing of
the front counterweight screw.
The new lid is fitted on all the appliances of the following series:
Margherita AR - CD - AM;
Quadrifoglio LB;
Snella ARC.
mod.LB414SPT page 14
The codes of the new lids are:
031029 - Stainless steel tub lid;
031367 - Enamelled tub lid.
The premodification lids fitted on models in the above ranges, will be supplied until stocks last.
0106387: EXPANDER FOR FASTENING RING SEAL
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 00412.001 the fixing hole of the front gasket ring has been changed from round to square on all the cabinets of
the washer and tumble dryers.
A spacer cod. 032708 can now be fitted which stops the ring screw from scratching the cabinet and therefore prevents the
formation of rust.
0106391: MODIFIED SELF-CLEANING PUMPS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 00717.0001, an anti-fluff plate has been fitted in the self-cleaning pumps which prevents the fluff from
entering between the pump gasket and the fan shaft.
This problem caused water leakages.
The pumps which have been modified as above are as follows:
027465 - Self-cleaning pump for washer with drier 240 Volts;
027882 - Self-cleaning pump for washer with drier 220 Volts;
025788 - Self-cleaning pump for washer 240 Volts;
023868 - Self-cleaning pump for washer 220 Volts;
The new pumps can not be identified visibly.
The premodification pumps will be handled by the centralised spare parts warehouse until stocks last.
0106408: MODIFIED STAR WHEEL V-RING ON 600 RPM UNITS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 10201.0001, in order to improve the water seal of the hub tank area, the 600 RPM spider wheel code 019966,
has been modified.
The modification involves having increased the external diameter of the spider wheel hub to 70 mm.
This modification has involved the use of the following new parts:
Code 034202 - star hweel 600 rpm
Code 033025 - Seal ring spider wheel gasket.
The two spider wheels can only be interchanged if the corresponding spider wheel gasket if fitted.
0106411: MODIFIED DOOR SEAL
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
mod.LB414SPT page 15
As from de serial no. 10621.0001, the door gasket code number
024551, used in wasching machines of the models Quadrifoglio and Compatta, has been changed in order to prevent the laundry
from getting between the gasket and the drum, since the resulting friction can damage both the gasket and the laundry.
The changed gasket has the same code number as the preceding one, and can be recognized by a reciding edge in the back, like
Margherita, and by some stiffening ribs, used externally to improve its solidity.
To set the new gasket in the place of the old one it is necessary to use the fixing ring code number 033041.
The space-part wharehouse has still the old gasket in stock and this one will be delivered until it will be fully replaced by the new
one.
We remain at your disposal for any further information.
0106412: ANELLI TENUTA SU MODELLI 600 / 800 GIRI
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 10705.0001, spider wheels with seal ring have been used on all the 400, 600 and 800 rpm washers in the
Margherita and Quadrifoglio range in order improve the waterproof capacity of the shaft-drum-spider wheel area.
The new parts used are as follows:
400-600 rpm LB
Cod. 033021 - Spider wheel with 600 rpm seal rings;
Cod. 034398 - 600 rpm drum spider wheel;
Cod. 033018 - 600 rpm 40X22X8,5 seal ring;
Cod. 033026 - 100 g packet of Amplifon TA grease
Cod. 033025 - Seal ring spider wheel gasket;
Cod. 002590 - Bearing 6203-2Z
Cod. 036178 - Complete Str. 39 600 rpm drum
400-600 rpm AI - AV
Cod. 033021 - Spider wheel with 600 rpm seal ring.
Cod. 034398 - 600 rpm spider wheel;
Cod. 033018 - 600 rpm 40X22X8,5 seal ring;
Cod. 033026 - 100 g packet Amplifon TA grease
Cod. 033025 - Seal ring spider wheel gasket;
Cod. 002590 - Bearing 6203-2Z
Cod. 033023 - Complete Str.80 600 rpm drum
800 rpm LB
Cod. 033020 - Spider wheel with 800 rpm seal rings;
Cod. 034397 - 800 rpm drum spider wheel;
Cod. 033019 - 800 rpm 52X35X12 seal ring;
Cod. 033026 - 100 g packet of Amplifon TA grease;
Cod. 033025 - Seal ring spider wheel gaskets;
Cod. 002591 - Bearing 6204 - 2Z.
Cod. 013563 - Bearing 6205 - 2Z
Cod. 034182 - Complete Str. 39 800 rpm drum;
800 rpm AI - AV
Cod. 033020 - Spider wheel with 800 rpm seal ring;
Cod. 034397 - 800 rpm drum spider wheel
Cod. 033019 - 800 rpm 52X35X12 seal ring;
Cod. 033026 - 100 g packet Amplifon TA 100 gr grease;
Cod. 033025 - Seal ring spider wheel gasket;
Cod. 002591 - Bearing 6204 - 2Z.
Cod. 013563 - Bearing 6205 - 2Z
Cod. 033024 - Complete Str.80 800 rpm drum;
When replacing the drum spider wheel remember that you will need the following parts:
3 ME TE 10 X 25 screws Cod. 030679;
3 self-locking nuts M10 Cod. 030680
mod.LB414SPT page 16
3 TP 26 X 10.5 X 2 washers Cod. 030681.
When working on the user's premises, the assembled tank spider wheel or the single parts must be used, in the case of the latter,
remember that the surface of the bearing housing must not be deformed, otherwise the complete spider wheel must be replaced.
When positioning the seal ring on the spider wheel, remember that the printing marked on the ring must be on the outside.
In addition, in order to ensure the perfect seal of the ring, remember to spread about 7 g. of the Amplifon TA grease between the
contact surface of the bearing and ring as well as in the centre hole of the ring.
The above parts are not individually interchangeable with premodification parts.
0106414: USE OF RING SEALS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As an integration to Notices 412 and 413, we advise that a number of parts which have recently gone into production, will replace
those indicated in the above notices.
The parts in question are as follows:
Code 033023 replaced by 036456 (spray drum)
Code 033024 replaced by 036389 (spray drum)
Code 036647 replaced by 036583 (drum with tie rods) In addition, we wish to point out that in Notice 412, in the part regarding
the 800 rpm AI and AV models, the code AM (Mulinello) was omitted with the relevant drum 036654 (all the other parts with
exception of the drum spider wheel code 034397 which can not not be used on the Mulinello, remain unchanged).
0106415: SCREWED-IN BRACKET FOR HEATING ELEMENT
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 11216.0001, the heating element bracket is fixed with a screw and is no longer welded on the washing
machines and tumble dryers manufactured in the Comunanza factory.
This modification involves the following new parts:
Cod. 037083 - Heating element bracket;
Cod. 037132 - 2 Stainless steel M4 X 12 TMT screw
Cod. 037133 - 2 Vellumoide gaskets
Cod. 037135 - 2 self-locking M 4 nuts
Cod. 037142 - 1 - 4 x 12 x 1 washer The assembly order for the above parts is as follows:
Screw with head outside the tank, Vellumoide washer between the screw head and the tank, bracket inside the stainless steel
washer and self-locking nut of the tank.
The bracket must not be loosened when replacing the heating element since it will otherwise not be possible to tighten the screws.
The shape of the new bracket does however make it easy to remove the heating element.
The tanks with screwed bracket have the same code as the premodification part. You will find a packet in the tank with the
bracket assembly kit.
All the tanks with welded bracket currently in stock in the Centralized Spare Parts Warehouse will be supplied until stocks last
and then gradually replaced by those with the heating element bracket fixed with a screw.
0106419: MODIFIED TIMER CAM
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 11112.0001 the Elbi cam code 027210 has been modified on all the washing machines with an ELBI 1088
timer.
mod.LB414SPT page 17
The code of the modified cam is 037238. This cam must be used with the black bushing code 031082.
When replacing one of the above parts, one of the following combinations must be used:
Combination I
Code 027210 - Cam
Code 020183 - Bushing Combination II
Code 037238 - Cam (11112)
Code 031082 - Bushing The premodification parts will be supplied until stocks last.
0106421: MODIFIED DOOR HANDLE FOR WASHER AND WASHER-DRYER DOOR
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
For production reasons, the door handle has been modified on all washers and tumble dryers as from serial no. 11205.0001.
The new handle has a different structure and is made of hostaform instead of polycarbonate; the handle is white and not black.
This handle can not be used to replace the black handle (code 019690) because it does not fit the inner frame of the door.
Technical Servicing Departments must therefore use only the black handle because if necessary, it can be used to replace the
white handle.
0106423: USE OF NYLON BOSS TO REDUCE NOISE
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
In order to reduce the noise level, a nylon washer code 037346 has replaced the counterweight pad code 025208 as from serial no.
20116.0001
on all Quadrifoglio Italy version washers.
The washer must be fitted facing upwards on the screw with tabs and acts as a spacer between the tank and the counterweight.
This solution will subsequently be used on all the models in the different ranges produced in Comunanza.
0106426: WHITE DOOR WITH GLASS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from April 1992, the plastic door has been replaced with a glass door on all washing machines in the Quadrifoglio range,
models LB474LNL - LB878ELNL - LB1495ENL - P44 - P45T - C450 - C450T - LB818XTPT - LB618XTCL - LB414SBE LB414SPT.
In addition, the colour of the handle and pushbutton has been changed.
The pushbutton has an arrow in relief indicating in which direction to push to open the door.
The codes of the door in the case of models LB414S - LB474LNL - LB878ELNL - LB1495ENL - P44 - P45T - C450 - C450T
are as follows:
Code 028304 - glass door
Code 027995 - door handle - white 26
Code 027996 - door pushbutton - white 26
Code 028861 - door frame - white 26
Code 003044 - handle pin
Code 016726 - door frame
Code 003052 - door tooth
Code 015437 - handle pushbutton spring
Code 025256 - handle spring The codes of the glass door in the case of models LB818XTPT - LB618XTCL
mod.LB414SPT page 18
- LB414SBE - LB414SPT are as follows:
Code 020765 - door handle - beaver 74
Code 038692 - door pushbutton - C74
Code 033231 - door frame
Code 003044 - handle pin
Code 016726 - door frame
Code 003052 - door tooth
Code 015437 - handle pushbutton spring
Code 025256 - handle spring
Code 028304 - door glass The parts are not individually interchangeable with the premodification parts, but they are
interchangeable as a unit.
0106427: NEW STYLE FOR CONTROL PANEL AND DOOR
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 20514.0001 the finish of washing machine LB414S in the Quadrifoglio range, has been modified:
The codes of the new parts used are as follows:
Code 028304 - door glass;
Code 027995 - Door handle, white 26;
Code 027996 - Door button, white 26;
Code 028861 - Door frame, white 26;
Code 003044 - Handle pin;
Code 016726 - Door frame;
Code 003052 - Door nib;
Code 015437 - Handle button spring;
Code 025256 - Handle spring;
Code 027999 - Timer knob-cover;
Code 038695 - Programme dial;
Code 028000 - Switch lid;
Code 038694 - Dashboard + handle;
Code 027998 - Timer knob.
0106429: NEW AIR TRAP ON 400-600 RPM UNITS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
In order to prevent water from spilling, as a result of old detergents which do not dissolve completely, and which may partially or
totally plug the air intake, as from serial no. 20525.0001 the air intake has been modified on all the 400/600 washing machines
(excluding the recessed models).
Therefore when you find that the water level is increasing or the water is starting to spill, you should replace the air intake and the
drain pump (only if synchronous with asynchronous code 023868).
When carrying out this modification you will also have to shorten the air intake pipe from 450 mm to 370 mm, in the case of code
030388
and from 600 mm to 520 in the case of code 019731.
The new trap has the same SAT code 019730, although the length of the new part is 24.5 cm instead of 18.5, it is however
interchangeable with the premodification part.
mod.LB414SPT page 19
0106440: USE OF THE ASBESTOS-FREE LINING
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 30317.0001 linings without asbestos are used on all the machines produced in the Comunanza factory in order
to ensure compliance with new laws and to eliminate the possibility of noise on the appliance with stainless steel tub.
The new dark grey sliding block will have the same code number as the premodification part 003036 and is already available
from the
Centralized Spare Parts Warehouse.
Remember that when replacing the sliding block it will be necessary to replace the other three sliding blocks as well in order to
ensure mechanical and typologic uniformity.
0106448: MECHANICAL REINFORCEMENT OF 600 RPM MODEL (QUADRIFOGLIO)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 40218.0001 in order to improve the mechanics LB678ST/1 in the spider-wheel/drum shaft area, the following
parts have been used on all 600 rpm washers in the Quadrifoglio (Four-leaved Clover) range.
Code 042883 - Drum for O-ring 600 rpm str. 39;
Code 042889 - Spider wheel with O-ring 600 rpm str. 39;
Code 042888 - Driven pulley 600 rpm str. 39;
Code 039671 - Screw M8 x 22;
Code 039670 - Washer 8.5 x 28 x 2.5;
Code 042890 - O-ring;
Code 002590 - Bearing 6203-2Z
Code 002591 - Bearing 6204-2Z;
When making repairs either the spider wheel-tank unit or the single components may be used; in the case of the latter, remember
to check that the surface of the bearing housing is not buckled; if so the entire spider wheel must be replaced.
When fitting the O-ring, ensure that the printing on the ring is on the outside.
In addition, in order to ensure a perfect seal, apply approx. 7 g of Ampligon TA grease on the surface between the bearing and the
ring and in the hole at the centre of the ring.
The above mentioned parts are not individually interchangeable with the premodification parts.
0106449: MECHANICAL REINFORCEMENT FOR 800 RPM QUADRIF.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 40303.0001 in order to improve the mechanics in the spider-wheel/drum shaft area, the following parts have
been used on all 800 rpm washers in the Quadrifoglio (Four-leaved Clover) range.
Code 039666 - Drum for O-ring 1000 rpm with holes;
Code 039668 - Spider wheel with O-ring 1000 rpm str. 39;
Code 039669 - Driven pulley 1000 rpm str. 39;
Code 039671 - Screw M8 x 22;
Code 039670 - Washer 8.5 x 28 x 2.5;
Code 039667 - O-ring 1000 rpm;
Code 013563 - Bearing 6205-2Z
Code 002591 - Bearing 6204-2Z;
When making repairs either the spider wheel-tank unit or the single components may be used; in the case of the latter, remember
to check that the surface of the bearing housing is not buckled; if so the entire spider wheel must be replaced.
When fitting the O-ring, ensure that the printing on the ring is external.
In addition, in order to ensure a perfect seal, apply approx. 7 g of Ampligon TA grease on the surface between the bearing and the
mod.LB414SPT page 20
ring and in the hole at the centre of the ring.
The above mentioned parts are not individually interchangeable with the premodification parts.
0106454: STYLE CHANGED FROM CASTORO TO WHITE 26
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 40429.0001 the finish on Washer model LB618XTPT has been changed from beaver to white26.
The codes of the new parts are as follows:
Code 043277 - Dashboard + Handle white 26;
Code 027998 - Timer knob white 26;
Code 027999 - Timer cap white 26;
Code 028000 - Switch cover white 26;
Code 028004 - Temperature control white 26;
Code 038370 - Program disk white 26;
Code 027997 - Door white 26.
0106457: HEATING ELEMENT WITH FUSE
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 40506.0001, the heating element with 1950W/220V thermofuse code 033055 is mounted on Washer model
LB474LNL.
This has required the use of the new part, Wiring code 043534.
0106464: NEW EAS 9213 AND 9061.02 CAMS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
In order to standardise the cam stop bushing as from serial no.
40615.0001, the two new cams Code 043849 and Code 043850 are used on on the washing machines in the Four Clover range
equipped with distribution cam for the Timer Eaton 9061.02 and as from serial no. 40623.0001 on those using the cam for the
Eaton EAS 9213.
The new cams are not individually interchangeable with premodification unless equipped with bushing code 031082.
Cams 020274 and code 020184 will be supplied until stocks last; the cams complete with relevant bushings may be used instead
of the new cams.
0106474: MECHANICAL REINFORCEMENT FOR 400-RPM (QUADRIFOGLIO)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 41024.0001 the following parts have been used on all 400 rpm washers in the Quadrifoglio range in order to
improve the mechanics in the spider-wheel/drum shaft area:
Code 042883 - 600 rpm str.39 spider-wheel drum with O ring;
Code 042889 - 600 rpm str.39 spider wheel with O ring;
mod.LB414SPT page 21
Code 042888 - 600 rpm str.39 pipe pulley;
Code 039671 - M8 X 22 screw;
Code 039670 - 8,5 X 28 X 2,5 washer;
Code 042890 - O ring.
Code 002590 - Bearing 6203-2Z;
Code 002591 - Bearing 6204-2Z;
When carrying out repairs, either the assembled tub spider-wheel unit or the single parts may be used; in the case of the latter,
remember to ensure that the bearing housing is not warped; if so, replace the entire spider-wheel.
When fitting the O-ring on the spider-wheel, ensure that the working printed on the ring remain outside.
In order to ensure the perfect seal of the ring, it is essential to rub about 7 g of Ampligon grease TA on the surfaces between the
bearing and the ring and in the centre hole of the ring.
The above parts are not individually interchangeable with the premodification parts.
0106486: NEW DISPENSER ASSEMBLY FOR AV-AI-LB-AS MODELS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
As from serial no. 50522.0001 the detergent dispenser lid, dispenser body, drawer and additive lid were modified in order to
improve detergent filling on all washer and washer dryers in the "Margherita AI-AV", "Snella", "Quadrifoglio LB"
range with exception of the special models manufactured for the German and English markets:
The codes of the modified parts are as follows:
Code 047276 - DE dispenser lid;
Code 046621 - dispenser body;
Code 046423 - dispenser drawer;
Code 046424 - Additive lid;
The new parts are not individually interchangeable with the premodification parts (that will continue to be supplied) but are
interchangeable if used as a whole.
0106552:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning with serial no. 80825.0001 on the Dialogic washing machines and washer dryers, AB, AL and AB..C, AL..C, the rear
cover, outlet hose, terminal block and cushion frame cabinet have been changed.
The items subjected to new modification are:Dialogic:
Cod. 049515 Rear cover;
Cod. 051738 Outlet hose;
Cod. 041163 Terminal block.
Washing machines and washer dryers AL / AB AL..C / AB..C
Cod. 049515 Rear cover;
Cod. 051738 Outlet hose;
Cod. 041163 Terminal block.
The modified cabinets keep the same SAT codes as the pre-modification ones, and in order to maintain the same
interchangeability, they are handled assembled with rear panel and terminal block.
This modification also applies to cabinets which are no longer produced but still handled as spares. Therefore, in cases where the
cabinet is modified, it is necessary to use rear cover cod. 049515 and terminal block cod. 041163.
mod.LB414SPT page 22
mod.LB414SPT page 23
Loading...
