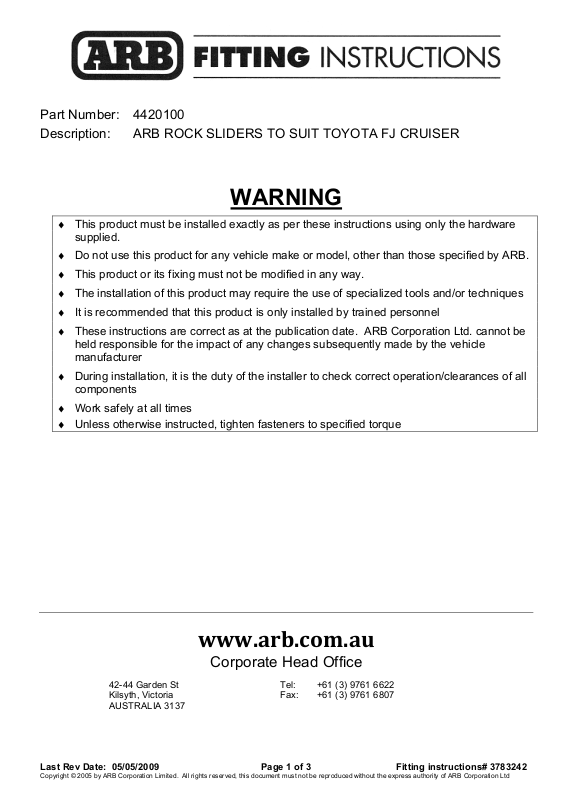

Page 1
Last Rev Date: 05/05/2009
Page 1 of 3
Fitting instructions# 3783242
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
Part Number:
4420100
Description:
ARB ROCK SLIDERS TO SUIT TOYOTA FJ CRUISER
WARNING
♦ This product must be installed exactly as per these instructions using only the hardware
supplied.
♦ Do not use this product for any vehicle make or model, other than those specified by ARB.
♦ This product or its fixing must not be modified in any way.
♦ The installation of this product may require the use of specialized tools and/or techniques
♦ It is recommended that this product is only installed by trained personnel
♦ These instructions are correct as at the publication date. ARB Corporation Ltd. cannot be
held responsible for the impact of any changes subsequently made by the vehicle
manufacturer
♦ During installation, it is the duty of the installer to check correct operation/clearances of all
components
♦ Work safely at all times
♦ Unless otherwise instructed, tighten fasteners to specified torque
www.arb.com.au**
Corporate Head Office
42-44 Garden St Tel: +61 (3) 9761 6622
Kilsyth, Victoria Fax: +61 (3) 9761 6807
AUSTRALIA 3137
Page 2
Last Rev Date: 05/05/2009
Page 2 of 3
Fitting instructions# 3783242
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING REQUIREMENTS
REQUIRED TOOLS FOR FITMENT OF PRODUCT:
Basic tool kit
HAVE AVAILABLE THESE SAFETY ITEMS WHEN FITTING PRODUCT:
Protective eyewear
Hearing protection
NOTE: ‘WARNING’ notes in the fitting procedure relate to OHS situations, where to avoid a
potentially hazardous situation it is suggested that protective safety gear be worn or a safe work
procedure be employed. If these notes and warnings are not heeded, injury may result.
WHERE USED
PART No
QTY
DESCRIPTION
6562529L
1
ROCK SLIDER LEFT HAND SIDE
6562529R
1
ROCK SLIDER RIGHT HAND SIDE
6151022
16
BOLT M8 x 1.25 x 25mm
4581046
16
WASHER SPRING M8
ROCK SLIDERS TO VEHICLE
CHASSIS
4581063
16
WASHER FLAT 25.4 x 3mm GOLD ZINK
MISCELLANEOUS
6500002
4
RUBBER PLUG 60.3mm TUBE
FITTING PROCEDURE
Page 3
Last Rev Date: 05/05/2009
Page 3 of 3
Fitting instructions# 3783242
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
1. Place the rubber plugs supplied into the
ends of the rock sliders.
2. With the help of another person,
carefully lift the rocker rails up to the
chassis. Fix in place using the M8 x
25mm bolts, M8 spring washers and M8
x 24mm flat washers.
NOTE: Carefully position the rear bracket
over the hand brake cable.
3. Repeat for the other side and tighten all
bolts.
NOTE: If jacking the vehicle from the rails,
do so only between the chassis brackets.
