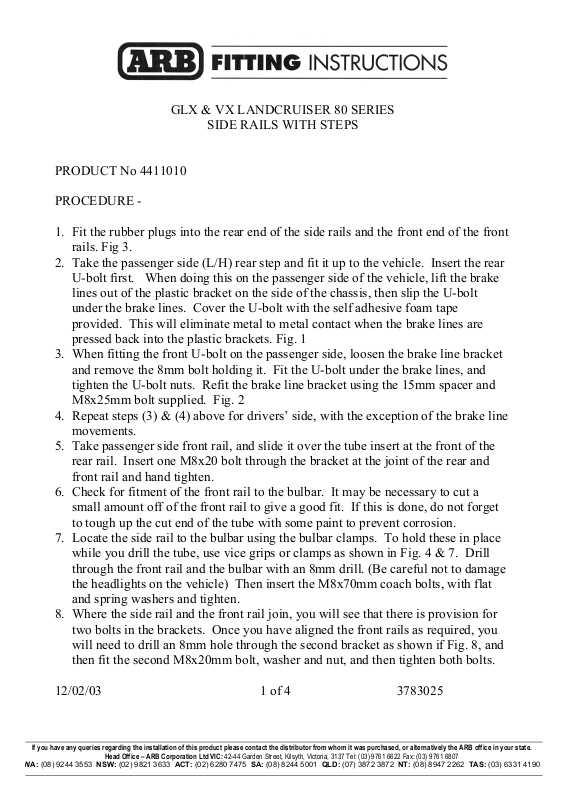

GLX & VX LANDCRUISER 80 SERIES

SIDE RAILS WITH STEPS

PRODUCT No 4411010

PROCEDURE -

1. Fit the rubber plugs into the rear end of the side rails and the front end of the front

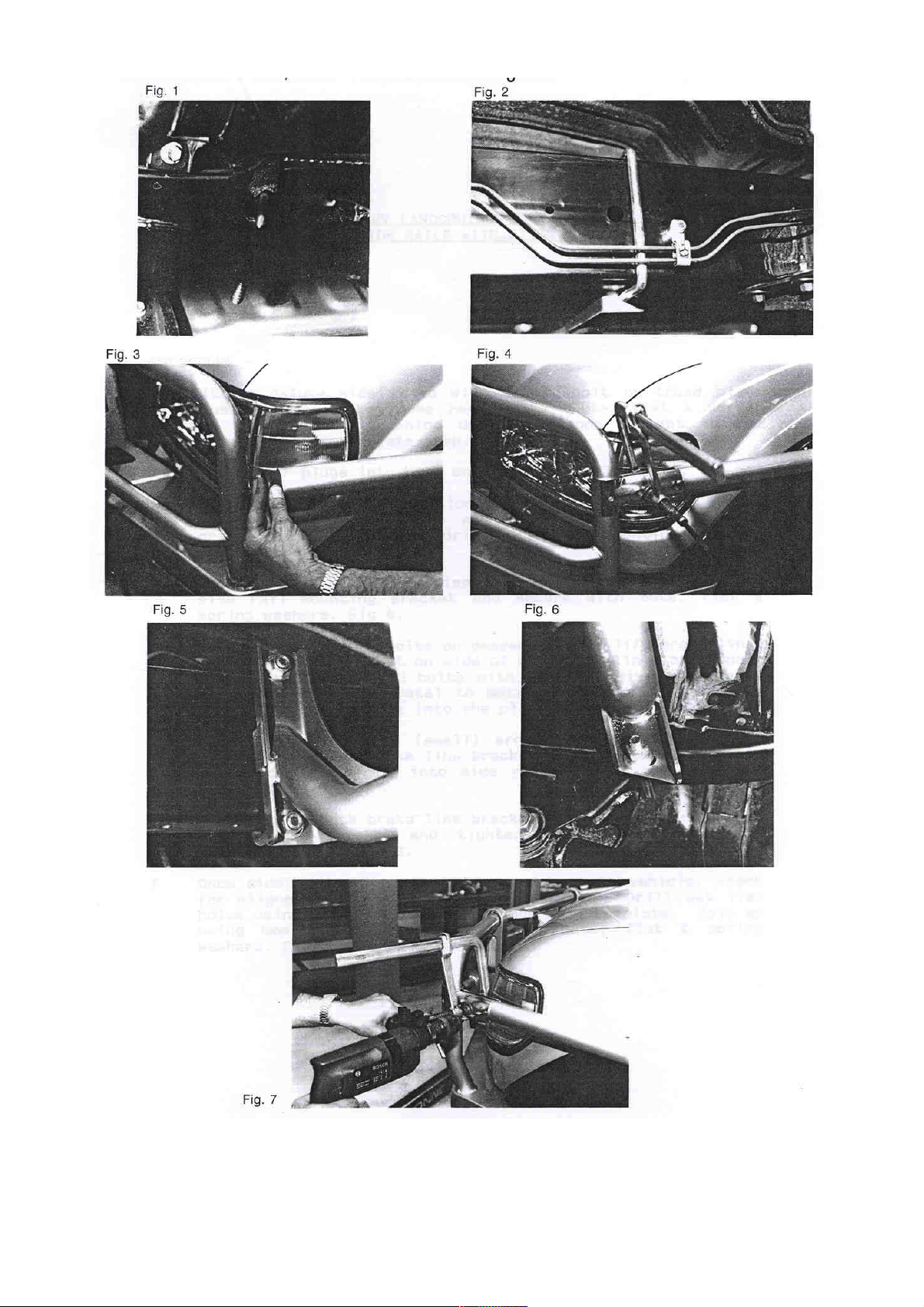

rails. Fig 3.

2. Take the passenger side (L/H) rear step and fit it up to the vehicle. Insert the rear

U-bolt first. When doing this on the passenger side of the vehicle, lift the brake
lines out of the plastic bracket on the side of the chassis, then slip the U-bolt
under the brake lines. Cover the U-bolt with the self adhesive foam tape
provided. This will eliminate metal to metal contact when the brake lines are
pressed back into the plastic brackets. Fig. 1

3. When fitting the front U-bolt on the passenger side, loosen the brake line bracket

and remove the 8mm bolt holding it. Fit the U-bolt under the brake lines, and
tighten the U-bolt nuts. Refit the brake line bracket using the 15mm spacer and
M8x25mm bolt supplied. Fig. 2

4. Repeat steps (3) & (4) above for drivers’ side, with the exception of the brake line

movements.

5. Take passenger side front rail, and slide it over the tube insert at the front of the

rear rail. Insert one M8x20 bolt through the bracket at the joint of the rear and
front rail and hand tighten.

6. Check for fitment of the front rail to the bulbar. It may be necessary to cut a

small amount off of the front rail to give a good fit. If this is done, do not forget
to tough up the cut end of the tube with some paint to prevent corrosion.

7. Locate the side rail to the bulbar using the bulbar clamps. To hold these in place

while you drill the tube, use vice grips or clamps as shown in Fig. 4 & 7. Drill
through the front rail and the bulbar with an 8mm drill. (Be careful not to damage
the headlights on the vehicle) Then insert the M8x70mm coach bolts, with flat
and spring washers and tighten.

8. Where the side rail and the front rail join, you will see that there is provision for

two bolts in the brackets. Once you have aligned the front rails as required, you

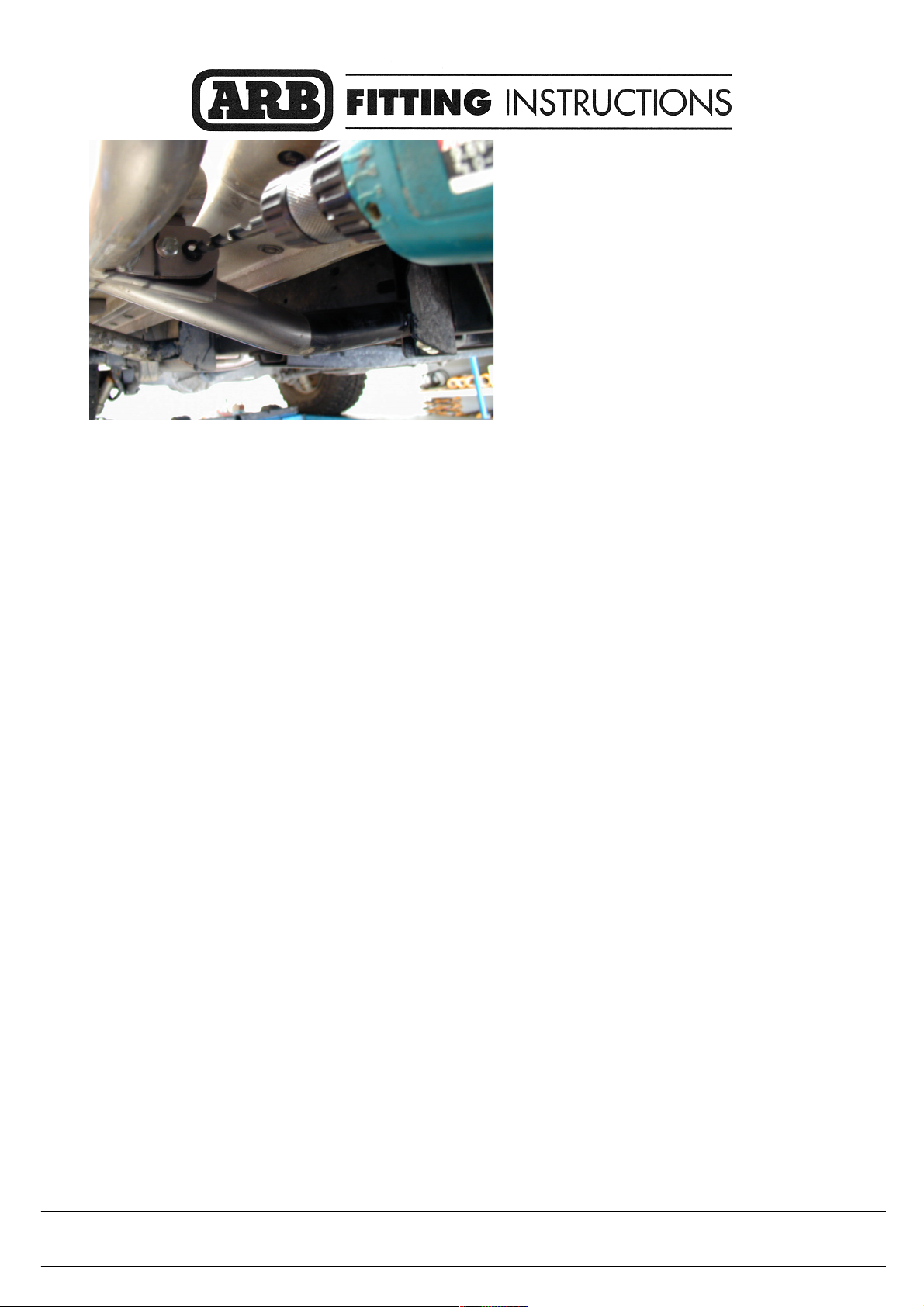

will need to drill an 8mm hole through the second bracket as shown if Fig. 8, and
then fit the second M8x20mm bolt, washer and nut, and then tighten both bolts.
