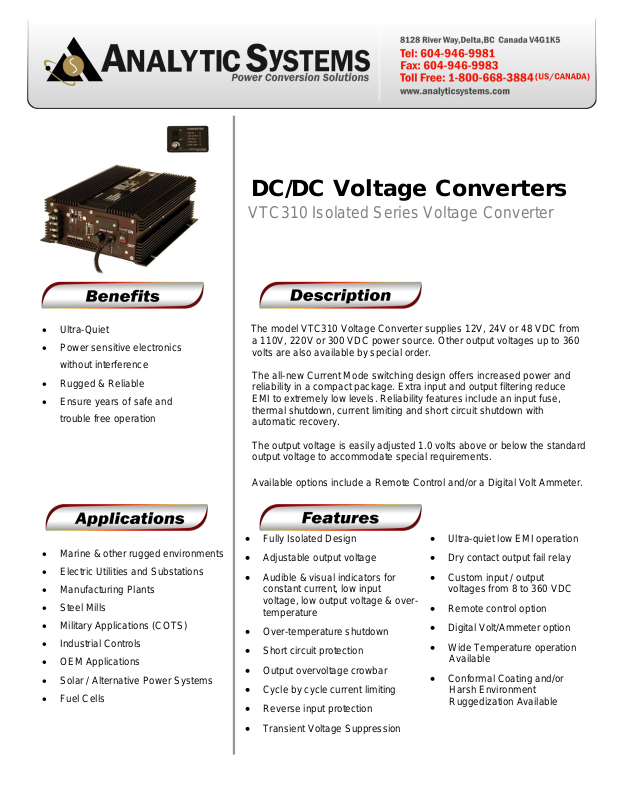

VTC310 Isolated Series Voltage Converter
The model VTC310 Voltage Converter supplies 12V, 24V or 48 VDC from
a 110V, 220V or 300 VDC power source. Other output voltages up to 360
volts are also available by special order.
The all-new Current Mode switching design offers increased power and
reliability in a compact package. Extra input and output filtering reduce
EMI to extremely low levels. Reliability features include an input fuse,
thermal shutdown, current limiting and short circuit shutdown with
automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard
output voltage to accommodate special requirements.
Available options include a Remote Control and/or a Digital Volt Ammeter.
•
• Electric Utilities and Substations
• Manufacturing Plants
• Steel Mills
• Military Applic
• Industrial Controls
• OEM Applications
• Fully Isolated Design
• Adjustable output voltage
• Audible & visual indicators for
constant current, lo w input
voltage, low output voltage & overtemperature
• Over-temperature shutdown
• Short circuit protection
• Output overvoltage crowbar
• Solar / Alternative Power Systems
• Fuel Cells
• Cycle by cycle current limiting
• Reverse input protection
• Transient Voltage Suppression
• Ultra-quiet low EMI operation
• Dry contact output fail relay
• Custom input / output
voltages from 8 to 360 VDC
• Remote control option
• Digital Volt/Ammeter option
• Wide Temperature operation
Available
• Conformal Coating and/or
Harsh Environment
Ruggedization Available
-25° to +40°C @ maximum output
(Optional -40°C extra wide temp. operation avail.)
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise
NONE Ødb @ 3 ft
Typical Service Life
> 10 yrs. (87,600 hrs)
Input-Case & Input-Output 1500VDC
Nominal (ip)
110 250 300
Actual (Vdc)
Input Amps (max)
4.8 2.1 1.5
Input Fuse (MDA)
6 3 2
Noise on Input
< 25 mV
Length
9.6 in / 24.4 cm
Width
8.2 in / 20.8 cm
Height
3.5 in / 6.4 cm
Clearance
1 inch (2.5 cm) all around
Material
Marine Grade Aluminium
Finish
Black Anodize / Powder Epoxy Coat
Fastenings
Weight
7.5 lb / 3.4 kg
Connections
Four contact output terminal
Warranty
Output Nominal (op)
Output Volts (DC)
13.6 ± 0.05 27.2 ± 0.05 54.4 ± 0.05
20 cont. / 10 cont. / 5.0 cont. /
25 peak 13 peak 6.5 peak
Output Crowbar
16.0 ± 0.5V 32.0 ± 1.0V 63.9 ± 2.0V
Output Adjustment
± 1.0 Vdc
Output Ripple & Noise
< 25 mV
Transient Response
< 1V for 50% Surge
Regulation (Line & Load)
< +/- 0.5%
Peak 20% for 10 min max
Available From:
Output Amps
Shown without Digital Meter
100-140 230-280 280-360
12 24 48
Operating Temp.
Range
Humidity
Isolation
Shown with Digital Meter
Derate Linearly 2.5% per °C from 40°C
Output-Case 500VDC (1500VDC @ 48V O/P)
Duty Cycle
Efficiency
Continuous 100% for 24 hours per day
> 80% @ Maximum Output
Safety
All 18-8 Stainless Steel
3 years
Approval to cETLus standards
