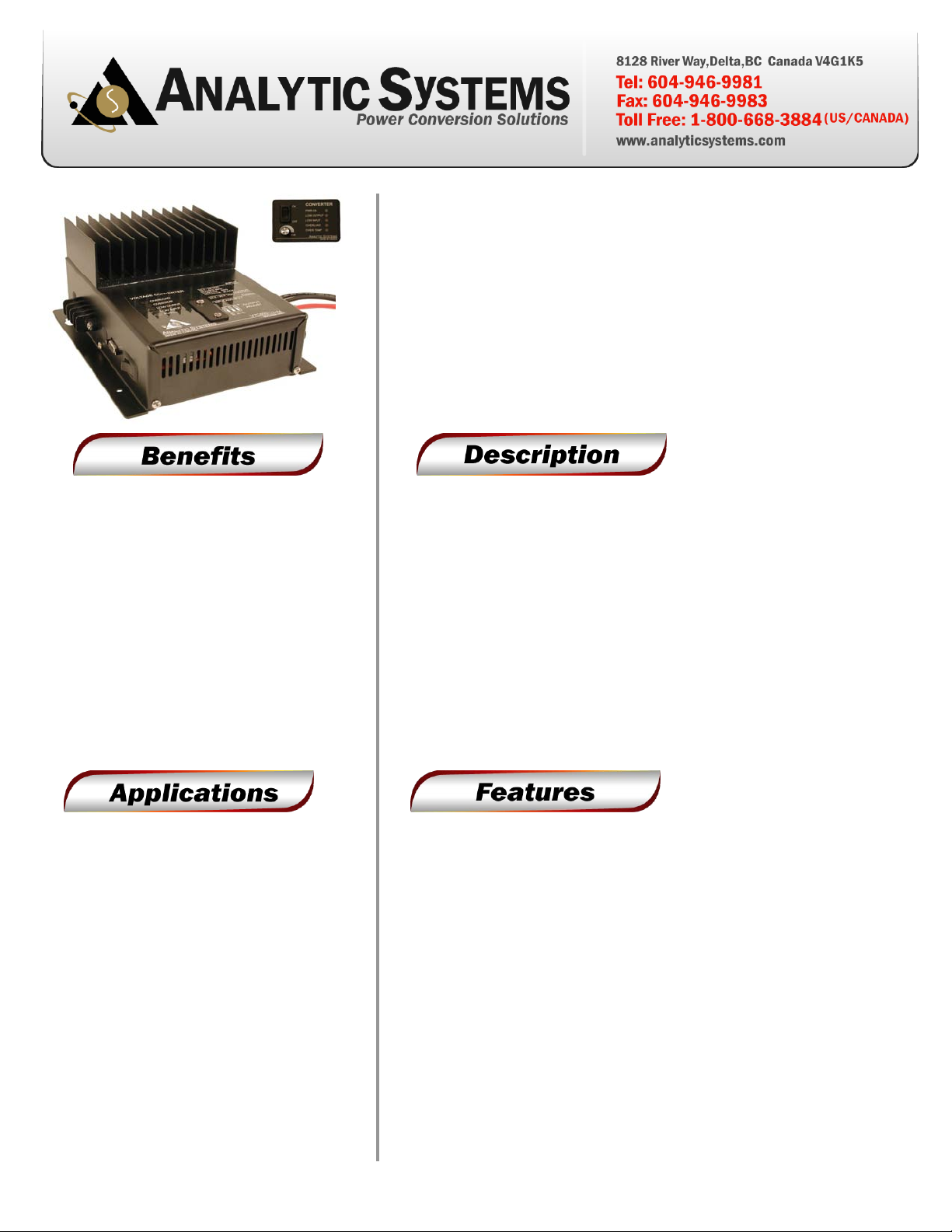

Power sensitive electronics
years of safe and
automotive or aeronautical environments and more.
Marine Electronics Displays
Mobile Offices (TV and Radio Vans)
Base Station Power
Industrial Controls
Temperature
DC/DC Converters

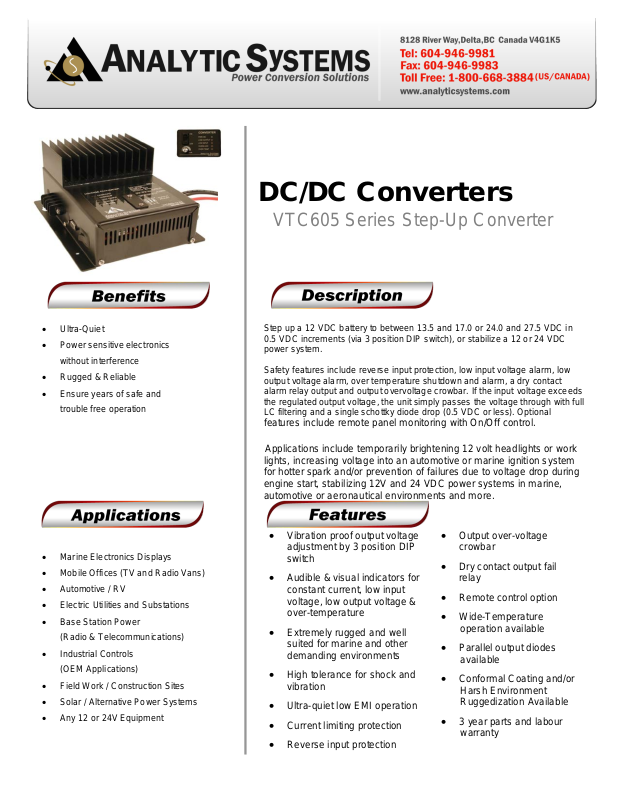

VTC605 Series Step-Up Converter
• Ultra-Quiet
•
without interference
• Rugged & Reliable
• Ensure
trouble free operation
•
•
• Automotive / RV
• Electric Utilities and Substations
•
(Radio & Telecommunications)
•
(OEM Applications)
• Field Work / Construction Sites
• Solar / Alternative Power Systems
• Any 12 or 24V Equipment
Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in
0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC
power system.
Safety features include reverse input protection, low input voltage alarm, low
output voltage alarm, over temperature shutdown and alarm, a dry contact
alarm relay output and output overvoltage crowbar. If the input voltage exceeds
the regulated output voltage, the unit simply passes the voltage through with full
LC filtering and a single schottky diode drop (0.5 VDC or less). Optional
features include remote panel monitoring with On/Off control.
Applications include temporarily brightening 12 volt headlights or work
lights, increasing voltage into an automotive or marine ignition system
for hotter spark and/or prevention of failures due to voltage drop during
engine start, stabilizing 12V and 24 VDC power systems in marine,
• Vibration proof output voltage
adjustment by 3 position DIP
switch
• Audible & visual indicators for
constant current, low input
voltage, low output voltage &
over-temperature
• Extremely rugged and well
suited for marine and other
demanding environments
• High tolerance for shock and
vibration
• Ultra-quiet low EMI operation
• Current limiting protection
• Reverse input protection
• Output over-voltage
crowbar
• Dry contact output fail
relay
• Remote control option
• Wide-
operation available
• Parallel output di odes
available
• Conformal Coating and/or
Harsh Environment
Ruggedization Available
• 3 year parts and labour
warranty
Page 2
-25° to +40°C @ maximum output
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise
NONE Ødb @ 3 ft
Typical Service Life
> 10 yrs. (87,600 hrs)
Input to Output – Common Negative
Input Volts (DC)
10.5-18 10.5-28
Input Amps (max)
50
Input Fuse (AGC)
Noise on Input
< 50 mV
Low Input
Voltage Alarm
Current Limit
50 Amps in
Output Nominal (op)
Input - 1V or 13.5 to 17.0 Input - 1V or 24.0 to 27.5
Output Amps
♦ 45
Output Crowbar
Programmed Output Volts x (1.3 ± 1%)
Output Ripple & Noise
Low Output
Voltage Alarm
Transient Response
< 1V for 50% Surge
Regulation – Line/Load
< +/- 0.5%
Duty Cycle
Efficiency
> 90% @ Maximum Output
Length
9.1 in / 23.1 cm
Width
Height
4.3 in / 10.8 cm
Material
Marine Grade Aluminium
Black Anodize / Powder
Epoxy Coat
Fastenings
Weight
6.0 lb / 2.7 kg
Connections
Four contact output terminals
Warranty
3 years
Available From:
Operating Temp.
25 x 2 Amp
10.5 VDC
Range
Humidity
Isolation
12 24
Output Volts (DC)
♦ The actual output current capability depends upon the input/output voltage ratio. To obtain
the actual output current capability at any given input voltage, use the following formula:
Output Amps = Input Volts/Output Volts x 45
For example, at 10.5 VDC in and 13.6 VDC out, the output current = 10.5/13.6 x 45 = 34.7 amps
Whichever is greater Whichever is greater
< 50 mV
Programmed Output Voltage minus 2.5 VDC
Continuous 100% for 24 hrs per day
Derate Linearly 2.5% per °C from 40°C
(Optional -40°C extra wide temp. operation avail.)
Any Input or Output to Case 500 VDC
7.8 in / 19.8 cm
Finish
All 18-8 Stainless Steel
