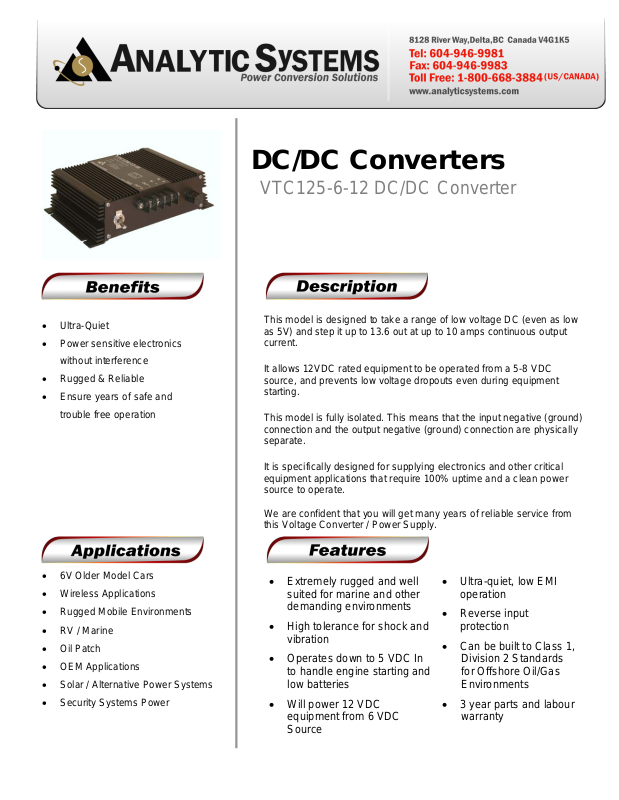

Page 1
Power sensitive electronics
Ensure years of safe and
Rugged Mobile Environments
• Extremely rugged and well
• Ultra-quiet, low EMI
• Ultra-Quiet
•
without interference
• Rugged & Reliable
•
trouble free operation
DC/DC Converters
VTC125-6-12 DC/DC Conver ter
This model is designed to take a range of low voltage DC (even as low
as 5V) and step it up to 13.6 out at up to 10 amps continuous output
current.
It allows 12VDC rated equipment to be operated from a 5-8 VDC
source, and prevents low voltage dropouts even during equipment
starting.
This model is fully isolated. This means that the input negative (ground)
connection and the output negative (ground) connection are physically
separate.
• 6V Older Model Cars
• Wireless Applications
•
• RV / Marine
• Oil Patch
• OEM Applications
• Solar / Alternative Power Systems
• Security Systems Power
It is specifically designed for supplying electronics and other critical
equipment applications that require 100% uptime and a clean power
source to operate.
We are confident that you will get many years of reliable service from
this Voltage Converter / Power Supply.
suited for marine and other
demanding environments
• High tolerance for shock and
vibration
• Operates down to 5 VDC In
to handle engine starting and
low batteries
• Will power 12 VDC
equipment from 6 VDC
operation
• Reverse input
protection
• Can be built to Class 1,
Division 2 Standards
for Offshore Oil/Gas
Environments
• 3 year parts and labour
warranty
Source
Page 2
Model
VTC125-6-12
Input Volts (DC)
5-8
Input Amps (max)
35 max
-25° to +40°C @ maximum output
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise
NONE Ødb @ 3 ft
Typical
Service Life
Output Volts (DC)
(Precision Regulated)
Output Amps
8.0 Cont. / 10.0 Peak
Output Ripple & Noise
< 25 mV
Output Crowbar
16.0 +/- 0.5 VDC
Transient Response
< 1V for 50% Surge (Output Amps/2)
Peak 20% for 5 min maximum
Length
Width
6.0 in / 15.2 cm
Height
2.4 in / 6.1 cm
Material
Marine Grade Aluminium
Finish
Black Anodize / Black Powder Epoxy
Fastenings
All 18-8 Stainless Steel
Weight
2.5 lb / 1.1 kg
Connections
Warranty
3 years
Available From:
Input Fuse (AGC)
Duty Cycle
Efficiency
40
13.6V (12.0 Available)
Continuous 100% for 24 hours per day
> 85% @ Maximum Output
Operating
Temp. Range
Humidity
Isolation
Derate Linearly 2.5% per °C from 40°C
(Optional -40°C extra wide temp. operation avail.)
> 10 yrs. (87,600 hrs)
500VDC Input to Output, Input or Output to Case;
Fully Isolated
7.9 in / 20.1 cm
Four contact output terminal
