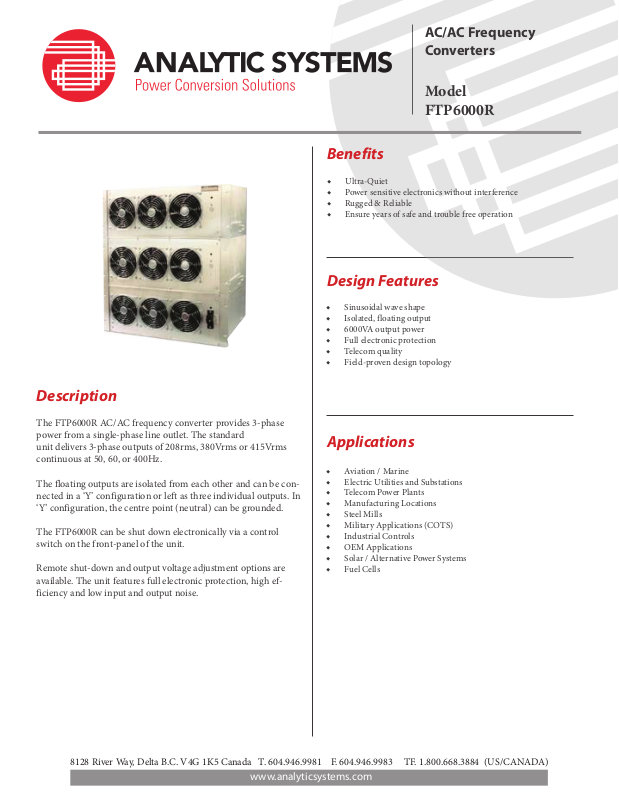

Page 1
AC/AC Frequency
Converters
Model
FTP6000R
Benefits
◆ Ultra-Quiet
◆ Power sensitive electronics without interference
◆ Rugged & Reliable
◆ Ensure years of safe and trouble free operation
Design Features
◆ Sinusoidal wave shape
◆ Isolated, floating output
◆ 6000VA output power
◆ Full electronic protection
◆ Telecom quality
◆ Field-proven design topology
Description
The FTP6000R AC/AC frequency converter provides 3-phase
power from a single-phase line outlet. The standard
unit delivers 3-phase outputs of 208rms, 380Vrms or 415Vrms
continuous at 50, 60, or 400Hz.
The floating outputs are isolated from each other and can be connected in a ‘Y’ configuration or left as three individual outputs. In
‘Y’ configuration, the centre point (neutral) can be grounded.
The FTP6000R can be shut down electronically via a control
switch on the front-panel of the unit.
Remote shut-down and output voltage adjustment options are
available. The unit features full electronic protection, high efficiency and low input and output noise.
Applications
◆ Aviation / Marine
◆ Electric Utilities and Substations
◆ Telecom Power Plants
◆ Manufacturing Locations
◆ Steel Mills
◆ Military Applications (COTS)
◆ Industrial Controls
◆ OEM Applications
◆ Solar / Alternative Power Systems
◆ Fuel Cells
