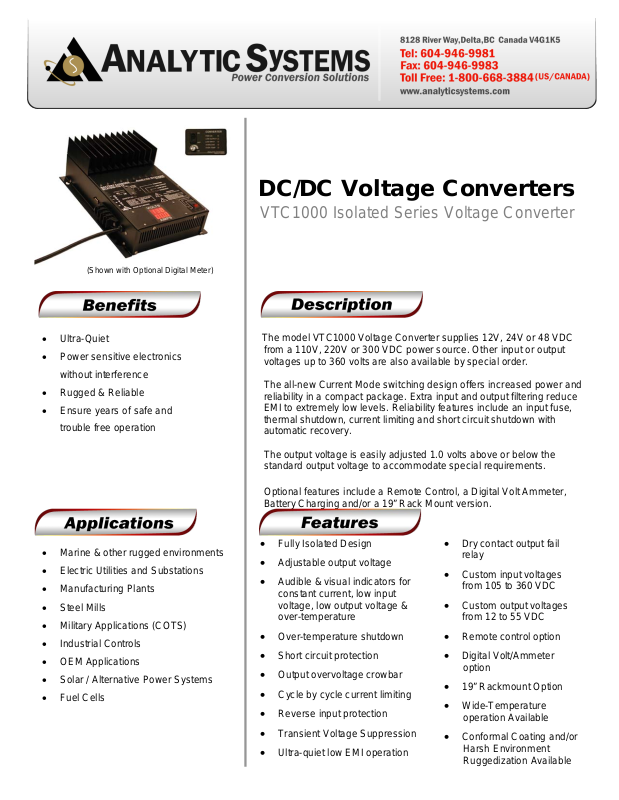

Page 1
(Shown with Optional Digital Meter)
Power sensitive electronics
Ensure years of safe and
Battery Charging and/or a 19” Rack Mount version.
Marine & other rugged environments
Military Applications (COTS)
DC/DC Voltage Converters
VTC1000 Isolated Series Voltage Converter
• Ultra-Quiet
•
without interference
• Rugged & Reliable
•
trouble free operation
•
• Electric Utilities and Substations
• Manufacturing Plants
• Steel Mills
•
• Industrial Controls
• OEM Applications
• Solar / Alternative Power Systems
• Fuel Cells
The model VTC1000 Voltage Converter supplies 12V, 24V or 48 VDC
from a 110V, 220V or 300 VDC power source. Other input or output
voltages up to 360 volts are also available by special order.
The all-new Current Mode switching design offers increased power and
reliability in a compact package. Extra input and output filtering reduce
EMI to extremely low levels. Reliability features include an input fuse,
thermal shutdown, current limiting and short circuit shutdown with
automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the
standard output voltage to accommodate special requirements.
Optional features include a Remote Control, a Digital Volt Ammeter,
• Fully Isolated Design
• Adjustable output voltage
• Audible & visual indicators for
constant current, low input
voltage, low output voltage &
over-temperature
• Over-temperature shutdown
• Short circuit protection
• Output overvoltage crowbar
• Cycle by cycle current limiting
• Reverse input protection
• Transient Voltage Suppression
• Ultra-quiet low EMI operation
• Dry contact output fail
relay
• Custom input voltages
from 105 to 360 VDC
• Custom output voltages
from 12 to 55 VDC
• Remote control option
• Digital Volt/Ammeter
option
• 19” Rackmount Option
• Wide-Temperature
operation Available
• Conformal Coating and/or
Harsh Environment
Ruggedization Available
Page 2
-25° to +40°C @ maximum output
(Optional -40°C extra wide temp. operation avail.)
Audible Noise
NONE Ødb @ 3 ft (34.5 dB when fan operating)
Typical Service Life
> 10 yrs. (87,600 hrs)
Nominal (ip)
110 250 300
Actual (Vdc)
100-140 230-280 280-360
Input Amps (max)
14.5 6.3 5.2
Input Fuse (MDA)
20 10 6
Noise on Input
< 50 mV
Length
14.5 in / 36.8 cm
Width
Height
5.5 in / 14.0 cm
Clearance
1 inch (2.5 cm) all around
Material
Marine Grade Aluminium
Finish
Black Anodize / Powder Epoxy Coat
Fastenings
All 18-8 Stainless Steel
Weight
12.0 lb / 5.5 kg
Connections
Warranty
3 years
Safety
Approval to cETLus standards
Output Nominal (op)
12 24 48
Output Volts (DC)
13.6 ± 0.05 27.2 ± 0.05 54.4 ± 0.05
Output Crowbar
16.0 ± 0.5V 32.0 ± 1.0V 63.9 ± 2.0V
Output Adjustment
± 1.0 V
Output Ripple & Noise
< 50 mV
Transient Response
< 2V for 50% Surge
Regulation (Line & Load)
< +/- 0.5%
Peak 20% for 10 min max
Continuous 100% for 24 hours per day
Available From:
Output Amps
Duty Cycle
Efficiency
60 cont. / 40 cont. / 20 cont. /
70 peak 45 peak 22.5 peak
> 85% @ Maximum Output
Operating Temp.
Range
Humidity
Isolation
Derate Linearly 2.5% per °C from 40°C
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Input-Case & Input-Output 1500VDC
Output-Case 500VDC (1500VDC @ 48V O/P)
9.9 in / 25.1 cm
Four contact output terminals
