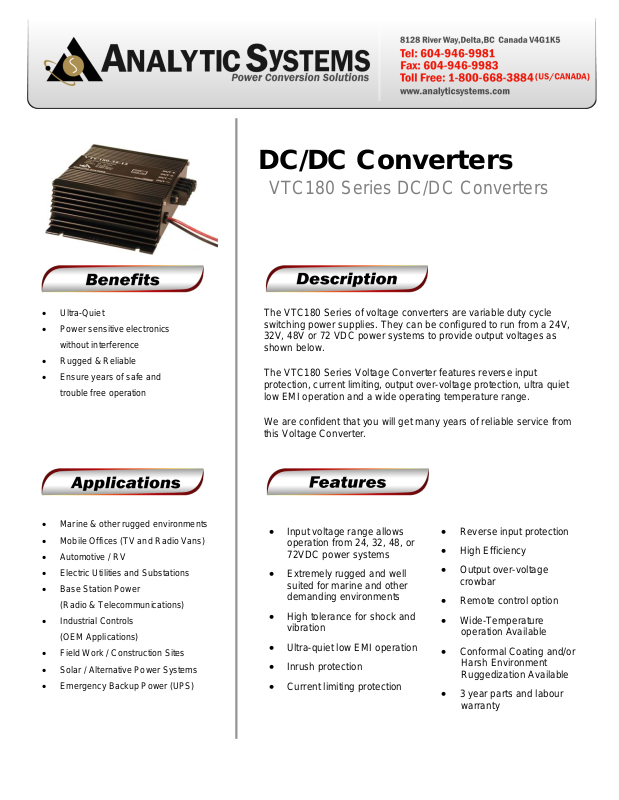

Page 1
Power sensitive electronics
f safe and
Marine & other rugged environments
Mobile Offices (TV and Radio Vans)
ctric Utilities and Substations
Base Station Power
Industrial Controls
DC/DC Converters
VTC180 Series DC/DC Converters
• Ultra-Quiet
•
without interference
• Rugged & Reliable
• Ensure years o
trouble free operation
•
•
• Automotive / RV
• Ele
•
(Radio & Telecommunications)
•
(OEM Applications)
• Field Work / Constr uction Sites
• Solar / Alternative Power Systems
• Emergency Backup Power (UPS)
The VTC180 Series of voltage converters are variable duty cycle
switching power supplies. They can be configured to run from a 24V,
32V, 48V or 72 VDC power systems to provide output voltages as
shown below.
The VTC180 Series Voltage Converter features reverse input
protection, current limiting, output over-voltage protection, ultra quiet
low EMI operation and a wide operating temperature range.
We are confident that you will get many years of reliable service from
this Voltage Converter.
• Input voltage range allows
operation from 24, 32, 48, or
72VDC power systems
• Extremely rugged and well
suited for marine and other
demanding environments
• High tolerance for shock and
vibration
• Ultra-quiet low EMI operation
• Inrush protection
• Current limiting protection
• Reverse input protection
• High Efficiency
• Output over-voltage
crowbar
• Remote control option
• Wide-Temperature
operation Available
• Conformal Coating and/or
Harsh Environment
Ruggedization Available
• 3 year parts and labour
warranty
Page 2
-25° to +50°C @ maximum output
(Optional -40°C extra wide temp. operation avail.)
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise
NONE Ødb @ 3 ft
Typical Service Life
Input Volts (ip)
32 48 72
Input Amps (max)
13.6 6.8 4.3
Input Fuse (MDA)
Noise on Input
< 10 mV
Output Nominal (op)
12 24
Output Volts (DC)
13.6 ± 0.05 27.2 ± 0.05
Output Amps
15 cont. / 18 peak 7.5 cont. / 9.0 peak
Output Crowbar
Output Ripple & Noise
< 10 mV
Transient Response
< 1V for 50% Surge
Regulation (Line & Load)
Peak 20% for 10 min maximum
Efficiency
> 90% @ Maximum Output
Length
7.9 in / 20.1 cm
Width
6.0 in / 15.2 cm
Height
2.4 in / 6.1 cm
Material
Marine Grade Aluminium
Finish
Fastenings
All 18-8 Stainless Steel
Weight
4.0 lb / 1.8 kg
Connections
Warranty
3 years
Available From:
Actual (Vdc)
♦ 30 - 45 Vdc input range for a 24Vdc output
Duty Cycle
♦ 20 – 45 40 – 65 65 – 100
15 10 5
16.0 ± 0.5V 32.0 ± 1.0V
< +/- 0.5%
Continuous 100% for 24 hours per day
Operating Temp.
Range
Humidity
Isolation
Derate Linearly 2.5% per °C from 40°C
> 10 yrs. (87,600 hrs)
Input to Case 1500VDC (500VDC @ 32V Input)
500VDC Output to Case
Black Anodize / Powder Epoxy Coat
Four contact output terminals
