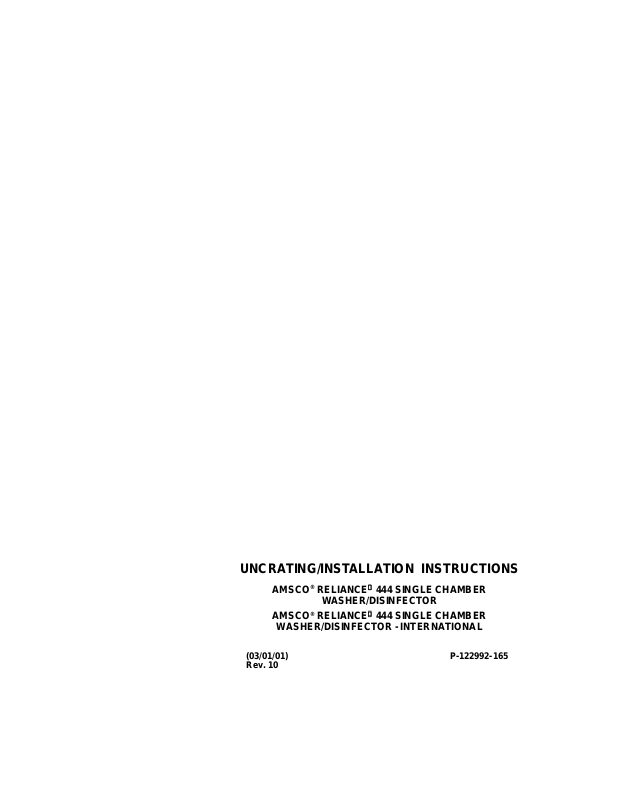

UNCRATING/INSTALLATION INSTRUCTIONS

AMSCO® RELIANCEâ 444 SINGLE CHAMBER

WASHER/DISINFECTOR

AMSCO® RELIANCEâ 444 SINGLE CHAMBER WASHER/DISINFECTOR - INTERNATIONAL

(03/01/01)	P-122992-165
Rev. 10

LIMITATIONS OF LIABILITY AND INDEMNITY

IN NO CASE, WHETHER AS A RESULT OF A BREACH OF CONTRACT, BREACH OF WARRANTY, OR TORT (INCLUDING STERIS’S OR CUSTOMER’S WILLFUL ACTS, NEGLIGENCE, OR STRICT LIABILITY) SHALL STERIS OR CUSTOMER BE LIABLE TO THE OTHER FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES INCURRED BY THE OTHER, INCLUDING, BUT NOT LIMITED TO, LOSS OF REVENUE, PROFITS, OR GOODWILL. HOWEVER, NOTHING CONTAINED IN THIS MANUAL IS INTENDED TO RELIEVE EITHER STERIS OR CUSTOMER FROM CLAIMS, LIABILITY, DAMAGES, OR EXPENSES RESULTING FROM BODILY INJURY, INCLUDING DEATH, OR FROM PROPERTY DAMAGE INCURRED DUE TO THE WILLFUL ACTS, NEGLIGENCE, OR STRICT LIABILITY OF THAT PARTY.

STERIS AGREES TO DEFEND, INDEMNIFY, AND HOLD CUSTOMER HARMLESS FROM ANY AND ALL CLAIMS, LIABILITY, DAMAGES, OR EXPENSES DUE TO PERSONAL INJURIES, INCLUDING DEATH, TO EMPLOYEES OF STERIS AND CUSTOMER AND TO THIRD PARTIES AND FOR PROPERTY DAMAGE TO THE EXTENT CAUSED BY THE WILLFUL ACTS, NEGLIGENCE, OR STRICT LIABILITY OF STERIS . CUSTOMER AGREES TO DEFEND, INDEMNIFY, AND HOLD STERIS HARMLESS FROM ANY AND ALL CLAIMS, LIABILITY, DAMAGES, OR EXPENSES DUE TO PERSONAL INJURIES, INCLUDING DEATH, TO EMPLOYEES OF CUSTOMER AND STERIS AND TO THIRD PARTIES AND FOR PROPERTY DAMAGE TO THE EXTENT CAUSED BY THE WILLFUL ACTS, NEGLIGENCE, OR STRICT LIABILITY OF CUSTOMER.

WARNING - COPYING PROHIBITED

This manual is protected by Federal Copyright Law, which provides for damages of up to $20,000, as well as criminal fines and imprisonment, for unauthorized copying.

A WORD FROM STERIS CORPORATION

Follow each step of the uncrating/installation instructions in the order presented. Open the carton carefully to avoid damage to the equipment inside. If you find any indication of damage to the equipment (no matter how slight), show it to your supervisor.

To properly install this unit, you will need the Equipment Drawings (previously furnished), showing all utility service and space requirements. If drawings cannot be located, replacement copies may be obtained by writing, faxing or telephoning STERIS, giving the serial and model numbers of your equipment.

Once installed, equipment operation should be tested by a qualified service technician prior to your usage of the equipment.

If STERIS supervision is desired, for installing and starting up this equipment, contact your local STERIS representative.

The Amsco® Reliance® 444 Single-Chamber Washer/Disinfector Indications for Use and the Amsco® Reliance® 444 Single-Chamber Washer/

Disinfector - International are indicated for use in the cleaning and low-level disinfection of reusable utensils, trays, glassware, bedpans and urinals, rubber and plastic goods, simple hard-surfaced rigid surgical instruments, such as forceps and clamps, and other similar and related articles found in healthcare facilities.

IMPORTANT: A listing of Safety Warnings and Cautions to be Advisory observed when uncrating, installing and operating this washer can

be found on Page 1-1 of these instructions. Do not begin uncrating/ installing this equipment until you have become familiar with this information.

IMPORTANT: Be sure to check local occupational health and safety regulations, as well as electric and plumbing codes, for any special requirements that may pertain to the installation of this unit.

Any alteration of the equipment not authorized by STERIS Engineering Service which could affect its operation will void the warranty, could adversely affect washing efficacy, could violate national, state and local regulations, and could jeopardize your insurance coverage.

STERIS supervision is recommended for installing and starting up this equipment. Contact the STERIS Regional Office nearest you for availability information on this service.

© 2001, STERIS Corporation. All rights reserved.

Printed in Canada

i

Introduction

Uncrating/Installation Instructions

P-122992-165

A thorough preventive maintenance program is essential to safe

Service Information and proper operation of this equipment. You are encouraged to contact your STERIS representative concerning extended service

maintenance agreements to give your washer planned maintenance, assuring equipment performance according to factory specifications.

A global network of skilled service specialists can provide periodic inspections and adjustments to assure low-cost peak performance. STERIS representatives can provide information regarding Annual Maintenance Agreements.

STERIS carries a complete line of accessories for use in this equipment. Your STERIS representative will gladly review these with you.

Sales and Service Information: Technical Assistance:

STERIS Corporation	STERIS Engineering Services
5960, Heisley Road	2424 West, 23rd Street
Mentor, Ohio 44060	Erie, PA 16506
Tel.: [phone]	Tel.: [phone]
Fax: [phone]	Fax: [phone]
Manufacturing Plant:	EU Authorized Representative
STERIS Canada Corporation	STERIS Limited
415, rue des Alleghanys	The Stable Block
Beauport (Québec)	Cornbury Park
Canada G1C 4N4	Charlbury
Tel.: [phone]	Oxfordshire OX7 3EH
Fax: [phone]	Tel.: [phone]
	Fax: [phone]
STERIS OFFICES WORLDWIDE:
Canada	800 661 3937
Germany	49 2233 6999 0
Hong Kong	852 2 563 3623
Italy	39 0141 590429
Japan	81 78 321 2271
Korea	82 2 554 1661
Latin America	305 442 8202
Singapore	65 841 7677
Spain	34 91 658 5920
United Kingdom	44 1 608 811 822

Web Site: www.steris.com

ii

P-122992-165

Uncrating/Installation Instructions

Introduction

1234567890123456789012345678901212345

Certification

2345678901234567890123456789012123456

	Manufactured		ISO 9001
	Exclusively by
	STERIS Corporation		Certified
	Québec, Canada

IMPORTANT: The designation Amsco® Reliance® 444 SingleChamber Washer/Disinfector - International identifies the washer model which is CE-marked. Information pertaining specifically to the Amsco Reliance 444 Single-Chamber Washer/Disinfector - International is clearly identified throughout the manual.

The Amsco® Reliance® 444 Single Chamber Washer/Disinfector meets the applicable requirements of the following standards:

Underwriters Laboratories (UL):

Standard 544 as certified by ETL Testing Laboratories, Inc.

Canadian Standards Association (CSA):

Standard C22.2 No. 151-M1986.

The Amsco® Reliance® 444 Single Chamber Washer/Disinfector - International meets the applicable requirements of the following standards:

Governing Directive for the affixing of the CE mark:

Medical Device Directive 93/42/EEC

Standards applied to demonstrate conformity to the directives:

EN-292-1 (1991), EN-292-2 (1991), EN-61010-1 (1993), EN-294 (1992), EN-349 (1993), ISO-3746 (1979), EN-457 (1992), EN-418 (1992), EN-55011 (1991), EN-5514 (19991), EN-55022 (1994) CISPR22 (1993), CISPR11 (1990), IEC-801-2 (1991), IEC-801-3 (1984), IEC-801-4 (1988), EN-50082-01 (1992), DIN/EN-60204-01.

The base language of this document is ENGLISH. Any translations must be made from the base language document.

iii

Introduction

Uncrating/Installation Instructions

P-122992-165

TABLE OF CONTENTS

SECTION	TITLE	PAGE
1	LISTING OF WARNINGS, CAUTIONS
	AND SYMBOLS .............................................................	1-1
	Warnings and Cautions ...................................................	1-1
	Symbols ..........................................................................	1-2
2	UNCRATING INSTRUCTIONS ......................................	2-1
	Open Crate .....................................................................	2-1
	Move Equipment and Remove Skid ................................	2-5
	Prepare Unit for Installation .............................................	2-6
	Manual Door Preparation .............................................	2-8
3	INSTALLATION INSTRUCTIONS .................................	3-1
	Technical Specifications .................................................	3-1
	Installation Requirements ................................................	3-2
	Connect Utilities ..............................................................	3-5
	Cleanup...........................................................................	3-6
4	INSTALLATION CHECKLIST .......................................	4-1
5	OPERATIONAL TEST ...................................................	5-1
	Test Procedure ................................................................	5-1
	Gravity Drain ...................................................................	5-5

iv

P-122992-165

Uncrating/Installation Instructions

Table of Contents

LISTING OF WARNINGS, CAUTIONS AND		1
SYMBOLS

The following is a listing of the safety precautions which must be observed when uncrating, and installing equipment. WARNING indicates the potential for danger to personnel and CAUTION indicates the potential for damage to equipment. These precautions are repeated, where applicable, throughout the instructions.

WARNING - PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD:

When moving the unit, use a forklift. Do not use door(s) or door handle(s) for lifting.

When removing manual door counterweight support(s), leave chamber door(s) closed to prevent counterweight(s) from dropping.

WARNING - LACERATION/EYE INJURY HAZARD:

When removing bands, wear gloves and eye protection, and always use a tool specifically designed to cut the bands. The bands used to secure this carton can cause personal injury when cut and tension is released.

WARNING - LACERATION HAZARD:

When removing bolts, wear gloves to protect your hands.

WARNING - PERSONAL INJURY HAZARD:

The chamber door is heavy. Lifting it manually may require two people.

WARNING - BURN HAZARD:

When checking the automatic stop feature, wear gloves and face protection and open chamber door slowly. Hot water/steam may be sprayed through door opening if door is opened during a cycle.

Except for emergency, do not open door when cycle is in progress. In an emergency, first stop cycle by pressing the STOP touch pad and wait for water flow to stop. Wear protective gloves and face shield whenever reaching into chamber.

WARNING - FALL HAZARD:

To prevent falls, keep floors dry. Promptly clean up any spills or drippage.

WARNING - ELECTRICAL SHOCK HAZARD:

Fasteners and star washers are used to ensure protective bonding continuity. Always reinstall any star washer which may have been removed during installation or servicing.

(See next page for additional Warnings and Cautions)

1-1

Listing of Warnings, Cautions and Symbols

Uncrating/Installation Instructions

P-122992-165

CAUTION - POSSIBLE EQUIPMENT DAMAGE:

After utilities are connected to equipment, slowly remove the protective adhesive paper from the exterior cabinet panels to reduce the level of static discharge.

When removing adhesives from stainless steel, use a small amount of non-flammable cleaning solvent. Rub in a back-and-forth motion (in same direction as surface grain). Solvent rubbed in a circular motion or applied with a wire brush or steel wool on door and chamber assemblies can be harmful to stainless steel. Do not use solvents on painted surfaces.

Once three-phase power is connected, check pump for correct rotation (indicated by arrow on pump motor). Incorrect pump rotation may result in pump damage and improper cleaning action.

Before operating unit, always position each manifold or accessory header over a manifold connector. If manifolds or accessory headers are not positioned correctly, damage may result and unit will be unable to effectively wash loads.

Symbols

Symbol

Definition

Transfer of Heat, Hot Surface

Protective Earth (Ground)

Warning! Risk of Electrical Shock

Electrostatic Sensitive Device

Tip'N Tell Indicator

Attention. Refer to Manual for Further

Instructions

Maximum Shipping and Storing

Temperature

1-2

P-122992-165

Uncrating/Installation Instructions

Listing of Warnings, Cautions and Symbols

	Maximum Humidity Level
	This Way Up
	Do Not Stack
	Fragile
	Keep Dry
A	Amperage Rating of the Unit
V	Voltage Rating of the Unit

~Alternating Current

kW	Power Rating of the Unit
Hz	Frequency of the Unit

φPhase of the Unit

1-3

Listing of Warnings, Cautions and Symbols

Uncrating/Installation Instructions

P-122992-165

1-4

P-122992-165

Uncrating/Installation Instructions

Listing of Warnings, Cautions and Symbols
