p r e s s u r e
Specification Sheet
SS-CP-2180-US
NEW SYSTEM A + B PUMPS
Model CPC
Compact Pressure Calibrator
Pressure range
CPC010C 0.7 bar / 10 psi
CPC030C 2 bar / 30 psi
CPC200C 15 bar / 200 psi
Ideal for on-site use
Complete ready-to-use calibration systems in
one carrying case or as individual calibrators
High flexibility
The calibration system can easily be
disassembled with the calibrator being used
separately for pressure monitoring tasks
Save time - instant general view
The display shows reference pressure and
transmitter loop current from the deviceunder-test at the same time
Transmitter loop
Measure the transmitter loop current up
to 24 mA (125%) and the pressure at the
same time
Easy pressure switch test
Automatically records opening and
closing point values on the display
Record min. and maximum readings
Use the CPC calibrator to capture the
minimum and maximum pressure
readings in safety valve applications
Documentation made easy
RS232 communication and JOFRACAL
calibration software are included in the
standard delivery
Complete marine program
Part of a complete program of marine
approved temperature, pressure and signal
calibrators; including temperature sensors
PRODUCT DESCRIPTION
JOFRA CPC series is a traceable,
field instrument designed for easy
and reliable check and calibration
of pressure. Use the CPC series in
process control applications such
as verification or calibration of pressure gauges, transducers, transmitters, pressure switches and safety
valves.
Features
The JOFRA CPC series is recognized by its high quality and carefully
selected features that save time and make calibration tasks easy to perform; e.g. dual information display, 17 different pressure units, transmitter
mA reading, min/max recording, peak reading, and semi-automatic pressure switch test finding the closing, opening and the hysteresis pressure
(dead band).
Maintenance of the instrument is made easy. Recalibration of the unit
can be performed locally with an accurate pressure reference: No need
to send the unit back to the manufacturer for re-calibration. For all systems the pump and the calibrator are seperate so replacement of the
pump does not mean that you have to send the complete system for
repair.
The JOFRA CPC can be delivered as an individual calibrator or as a
complete calibration system ready for use in a carrying case, including
pump, hose, connectors, battery, test leads, user manual, and traceable
calibration certificate.
ISO 9001 Manufacturer
Specification Sheet
SS-CP-2180-US
Model CPC
Compact Pressure Calibrator
2 www.jofra.com
Clear dual line display
Large digits display the pressure,
icons show current status and mode,
and the smaller digits show deviceunder-test conditions.
ON / OFF
Auto shut-off to extend battery
life (user programmable).
mA%
Switches the mA numeric display
between mA and percentage of
range.
Electrical connections
The CPC calibrator have inputs for
mA readings for pressure switches and
transmitters.
Units
Easy acces s to 17 di f fe r e n t
pressure engineering units. Press
and hold while unit is powering
up to change the power saver
setting.
Zero
Keep the high accuracy: ZERO
the instrument before every test.
Switch test
Turns on the switch test mode.
Hold to clear previous test.
Pressure connections
1/8 in NPT female.
Serial interface
Se r ial in terfac e to co m municate with a PC (terminal). Also
used if adjustment of the unit is
necessary.
Max / Min
Reads the highest and lowest
pressure value since the last reset
the CPC. Monitor a safety valve
or look for pressure spikes in the
process.
Model CPC
Compact Pressure Calibrator
Specification Sheet
SS-CP-2180-US
Dedicated switch test funktion
All CPC models have a time saving semi automatic pressure switch test. The instrument records the closing
and opening pressure for the switch. The CPC can also
be used to monitor a certain measurement point in the
process and display the minimum and maximum value.
This feature can be very helpfull when checking pressure
spikes around valves.
ACCESSORIES
Complete aluminum carrying case
The CPC is available as an calibrator or in one of 2 test-ready
systems that are complete and
equipped to meet your pressure
calibration needs.
The complete ready-to-use system is delivered in a practical
aluminum carrying case.
JOFRACAL CALIBRATION SOFTWARE
JOFRACAL calibration software ensures easy calibration
of RTD´s, thermocouples, transmitters, thermoswithes,
pressure gauges and pressure switches. JOFRACAL can
be used with JOFRA DPC-500, APC, CPC and IPI pressure calibrators, all JOFRA temperature calibrators, as well
as JOFRA AMC910, ASC300 multi signal calibrator and
ASM-800 signal multi scanner. When used with JOFRA
ASM-800 signal multi scanner, JOFRACAL can perform a
simultaneous semi automatic calibration on up to 24 pressure and/or temperature devices under test in any combination.
JOFRACAL software controls the complete calibration
procedure, stores the results and provides a calibration
audit trail through hard-copy certificates. All calibration
data are stored for each sensor to monitor drift and optimise recalibration intervals. A scheduler feature allows
planning of future calibrations.
Please find more information about JOFRACAL calibration
software in specification sheet SS-CP-2510, which may be
found at www.jofra.com
REQUIREMENTS JOFRACAL
Minimum hardware requirements:
Intel® Pentium® lI 1.4 GHz processor.
•
64MB RAM (128MB recommended)
•
80MB free disk space on hard disk (120MB
•
recommended) prior to installation
Standard VGA (800x600, 256 colours). 1024x768
•
recommended.
CD-ROM drive for installation of program
•
1 or 2 free RS-232 serial ports, depending on
•
configuration
Minimum software equirements:
Microsoft Windows® 98,Microsoft Windows® NT 4.0,
•
Microsoft Windows® 2000, Microsoft Windows® ME,
Microsoft Windows® XP, Vista.
System fonts: MS Sans Serif and Arial
•
Useful soft case
The CPC calibrator is supplied in a handy softcase
designed for easy vertical
operation during the calibration. The soft case have a
pocket for the test leads and
an opening in the top and
bottom provide easy access
to the termination block and
the pressure module connector. A shoulder strap ensures
convenient transportation when climbing ladders, etc. and
the handy strap at the back makes it possible to hang the
instrument on a pipe, ladder etc, while performing the calibration, test, or service task.
www.jofra.com 3
Specification Sheet
SS-CP-2180-US
Model CPC
Compact Pressure Calibrator
4 www.jofra.com
FUNCTIONAL SPECIFICATIONS
Pressure range
bar ...............................................vacuum to 0.7, 2, or 15bar
psi .............................................vacuum to 10, 30, or 200psi
Engineering units (built-in)
User selectable ........................................................ 17 units
(psi, bar, mbar, kg/cm2, inH2O @ 4°C, inH2O @20°C, inH2O @60°C,
mH2O @4°C, mH2O @20°C, cmH2O@4°C, cmH2O @20°C, ftH2O @4°C,
ftH2O @20°C, ftH2O@60°C, inHg @0°C, mmHg @0°C, kPa)
Pressure accuracy
Accuracy positive pressure ...................... ±0.05% of F.S.
Accuracy vacuum ........................................... ±0.1% F.S.
1)
1)
Temperature compensation ..................................................
....................................±0.005% F.S. /°C outside 18 to 28°C
.................................... ± 0.003% F.S. /°F outside 64 to 82°F
1)
F.S. Full Scale is the numerical value of the postive pressure
range. The accuracy includes non-linearity, hysteresis, repeatability and temperature effect 18 to 28°C / 64 to 82°F.
All above specifications are specified at 23°±3°C / 73°±6°F
unless otherwise noticed.
Media compatibility
.........................................Non-corrosive gasses and liquids
Environmetal
Operating temperature ...........-10°C to 50°C / 14°F to 122°F
Storage temperature ..............-20°C to 60°C / -4°F to 140°F
Display
Display ................Dual information LCD plus icon indicators
Display update ......................................... Twice per second
Input / output
Min/Max Peak hold capture .........................50 milliseconds
mA input ....0 to 24 mA accuracy ± 0.015% of reading +2 µA
Switch test .................................................. Supply max. 9 V
RS232 communication interface
Connector: ......................................................... Stereo jack
Serial: ......... 0-5 VDC, 9600 baud, 8 data, no parity, 1 stop
Protocol: .......................................ASCll command languag
Pressure connection
Connection ..............................................1/8 in. NPT female
see delivery section for adapters
Pressure overload
Overload maximum pressure ...............................+50% F.S.
Overload “OL” in display activates at ...................+20% F.S.
Power supply
Battery ...........................................................1x 9 V Alkaline
Battery life ............................................... Minimum 15 hours
Low battery indicator ................................................... at 7 V
Instrument dimensions (L x W x H)
Calibrator ...............188 x 84 x 52 mm / 7.37 x 3.31 x 2.05 in
Indecator weight ............................................ 400 g / 14.1 oz
Miscellaneous
CE conformity ................... EN50082-1, 1992 and EN55022,
......................................................................... 1994 Class B
Safety ......................................CSA C22.2 No. 1010.1, 1992
Type approval certifcate
The JOFRA CPC systems are type approved by Det Norske
Veritas. Find the certificate at www.jofra.com
Approval, Certificate no. .......................................... A-10549
Model CPC
Compact Pressure Calibrator
JOFRA CPC PRESSURE RANGES
This table shows the resolutions that can be obtained by the CPC calibrators
throughout all engineering units
Specification Sheet
SS-CP-2180-US
Resolution
Imperial ranges
psi -10.0000 10.0000 -12.000 30.000 -12.00 200.00
inH2O@4°C -276.81 276.81 -332.17 830.42 -332.2 5536.1
inH2O@20°C -277.30 277.30 -332.76 831.89 -332.8 5545.9
inH2O@60°F -277.08 277.08 -332.50 831.24 -332.5 5541.6
ftH2O@4°C -23.067 23.067 -27.681 69.202 -27.68 461.35
ftH2O@20°C -23.108 23.108 -27.730 69.324 -27.73 462.16
ftH2O@60°C -23.090 23.090 -27.708 69.270 -27.71 461.80
inHg@0°C -20.360 20.360 -24.432 61.081 -24.43 407.21
Metric ranges
bar -0.7000 0.7000 -0.8300 2.0000 -0.8300 15.0000
mbar -700.00 700.00 -830.0 2000.0 -830,0 15000,0
kPa -70.000 70.000 -83.00 200.00 -83.00 1500.00
kg/cm2 -0.7138 0.7138 -0.8464 2.0394 -0.8464 15.2957
cmH2O@4°C -713.82 713.82 -846.4 2039.5 -846,4 15296,2
cmH2O@20°C -715.08 715.08 -847.9 2043.1 -847,9 15323,2
CPC010C
Vacuum to 10 psi
Vacuum to 0.7 bar
CPC30C
Vacuum to 30 psi
Vacuum to 2 bar
CPC200C
Vacuum to 200 psi
Vacuum to 15 bar
mH2O@4°C -7.1382 7.1382 -8.464 20.395 -8.464 152.962
mH2O@20°C -7.1508 7.1508 -8.479 20.431 -8.479 153.232
mmHg@0°C -525.04 525.04 -622.6 1500.1 -622,6 11251,0
www.jofra.com 5
Specification Sheet
SS-CP-2180-US
Model CPC
Compact Pressure Calibrator
6 www.jofra.com
JOFRA CPC System A
•
0 to 2 bar (30 psi)
•
0 to 21 bar (300 psi)
•
Vacuum to 0 bar (0 psi)

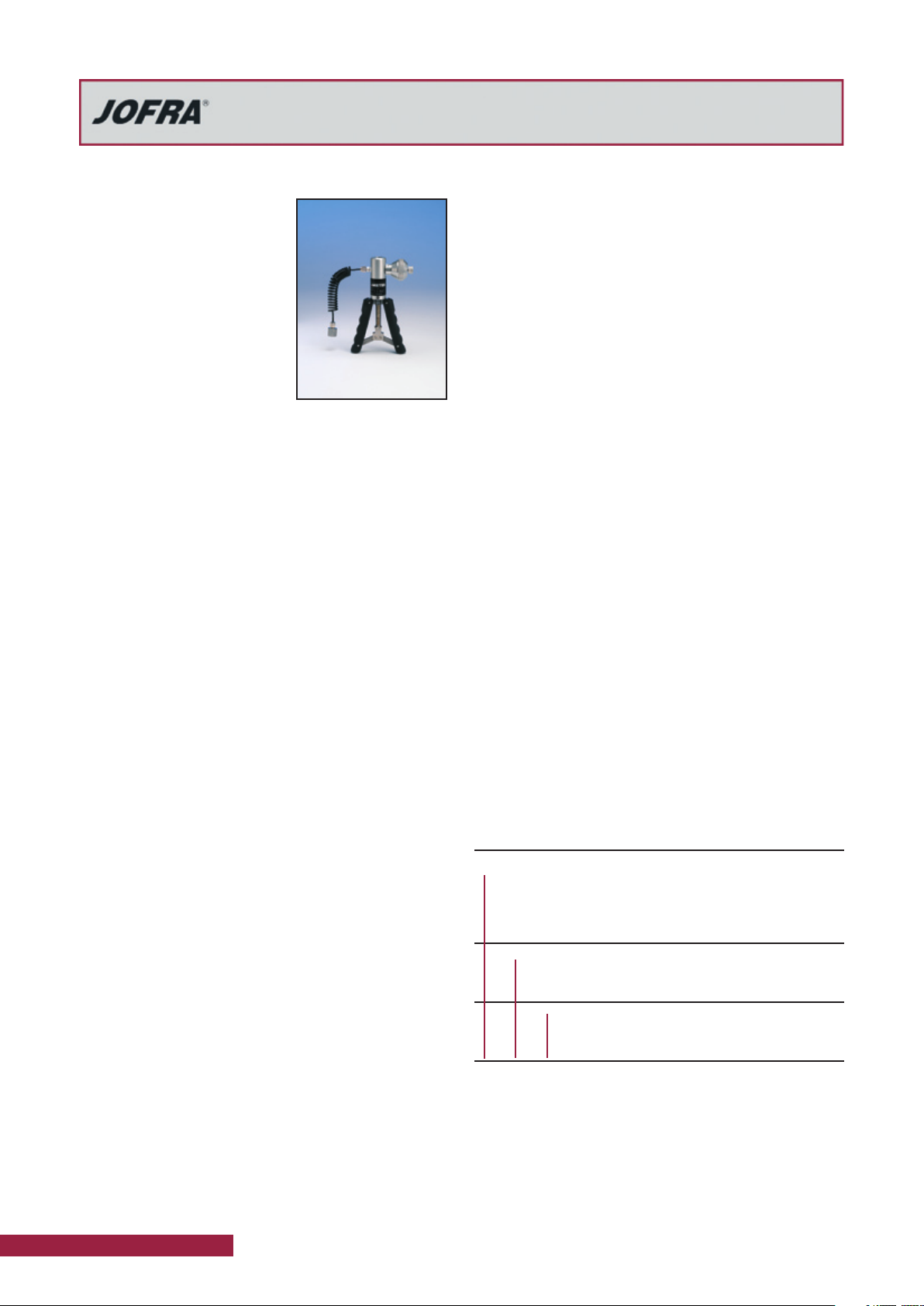

This system includes the JOFRA
CPC calibrator together with
one of the following pneumatic
hand pumps: T-960 and T-970,
depending on the chosen pressure range. System A is an easyto-use single hand operated calibration system. No need
for a flat surface to operate the system - just hold it in
your hand.
The System A comes in an aluminium carrying case with
cutouts for fittings, hose, and the complete assembled
calibration unit - no time is required to assemble the unit
every time you need it. The calibrator can at any time be
used separately for other pressure test tasks.
A special quick connector between the pump and the
calibrator makes it possible to seperate the system in seconds and to swivel the calibrator for easy viewing.
All JOFRA CPC calibrators used in System A are delivered
calibrated in both pressure and vacuum.
Included with System A delivery
Standard delivery (see page 8)
•
Pump T-960 for 0 to 2 bar (0 to 30 psi)
•
Pump T-970 for 0 to 40 bar (0 to 580 psi)
•
3/8” BSP female with 1/4” BSP and NPT female
•
terminations
Quick connector between pump and calibrator
•
1 roll of Teflon tape
•
Protective carrying case
•
Accessories
Part No. Description
75P014 Service kit for T-960 pump
75P016 Service kit for T-970 pump
T-733-2 Pressure hose for T-960/970, 0.6 meter std.
T-733-3 Pressure hose for T-960/970, 0.5 meter
T-733-4 Pressure hose for T-960/970, 1.0 meter
T-733-5 Pressure hose for T-960/970, 2.0 meter
T-733-6 Pressure hose for T-960/970, 5.0 meter
65R191 Set of BSP female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x3/8”, 1x1/2”
65R192 Set of NPT female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x1/4”, 1x3/8” 1x1/2”
60R191 1 set of packing and seals for 65R191 and 65R192
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
SPK-HPC-001 Quick connector set for CPC system A / B
T-960 and T-970 pumps for system A
Model T-960 pneumatic pressure pump features an
extended range vernier adjustment for precisely controlling
pump pressure and comfortable pistol grip handle.
Model T-970 pneumatic pressure pump is similar to the T960, but generate pressure up to 40 bar (580 psi).
Pressure range, T-960 ...................... 0 to 2 bar / 0 to 30 psi
Pressure range, T-970 ....................0 to 40 bar / 0 to 580 psi
Type ..................................................................... Pheumatic
Test medium ..................................................................... Air
Operation ..................................................................Scissor
“O”-rings ................................................................... Buna-N
Wetted parts ............................ Aluminium, brass, stainless,
.......................................................steel, nylon, Nylatron GS
Connections to test object .........................3/8” BSP female
.........................with 1/4” BSP and NPT female terminations
Size........................... 21.6 x 12.1 x 6.2 cm / 8.5 x 4.8 x2.4 in
Weight ............................................................. 1.4 kg / 3.0 lb
Ordering
Part No. Description
T-960 Pump: 0 to 2 bar (30 psi)
T-970 Pump: 0 to 40 bar (580 psi)
Ordering information system A
Order No. Description
Pressure calibrator
CPC CPC pressure calibrator
Calibrator pressure range
010C Vacuum to 0.7 bar (10 psi)
030C Vacuum to 2 bar (30 psi)
200C Vacuum to 15 bar (200 psi)
NONE Pump system only (no calibrator)
Base model number
AXX CPC System A (pump T-960)
AHX CPC System A (pump T-970)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
CPC030CAXXG Sample order number
JOFRA CPC 2 bar (30 psi) calibrator in pressure System
A with pneumatic pressure handpump and NIST traceable
calibration certificate.
Model CPC
Compact Pressure Calibrator
Specification Sheet
SS-CP-2180-US
JOFRA CPC System B
•
Vacuum to 15 bar (200 psi)
This system includes the dual
function pneumatic hand pump.
With this pump you can calibrate both vacuum and pressure
applications. It takes just a few
seconds to switch between
vacuum and pressure, just push
one button (valve) on the T-975
handpump.
The System B comes in an aluminium carrying case with cutouts for fittings, hose and the complete assembled calibration unit - no time required to assemble the unit every time.
The calibrator and the pump are fitted with a special quick
connector that makes it possible to separate the system
in seconds without any tool. This quick connector also
makes it possible to use the assembled system with the
calibrator twisted to any angle.
Included with System B delivery
Standard delivery (see page 8)
•
Handpump T-975 for all ranges
•
3/8” BSP female with 1/4” BSP and NPT female
•
terminations
Quick connector between pump and calibrator
•
•
1 roll of Teflon tape
Protective carrying case
•
Accessories
Part No. Description
75P017 Service kit for T-975 pump
T-733-2 Pressure hose for T-975, 0.6 meter std.
T-733-3 Pressure hose for T-975, 0.5 meter
T-733-4 Pressure hose for T-975, 1.0 meter
T-733-5 Pressure hose for T-975, 2.0 meter
T-733-6 Pressure hose for T-975, 5.0 meter
65R191 Set of BSP female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x3/8”, 1x1/2”
65R192 Set of NPT female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x1/4”, 1x3/8” 1x1/2”
60R191 1 set of packing and seals for 65R191 and 65R192
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
SPK-HPC-001 Quick connector set for CPC system A / B
T-975 hand pump for system B
Model T-975 pneumatic pressure pump features both
vacuum and pressure generation. A button (valve) makes
it easy to switch from vacuum to pressure measurements.
Built-in release valve, vernier valve for fine adjustment and
dual pressure output enable safe and simple operation.
The unit offers both metric and imperial threads on the reference connection and the hose.
Pressure range .............-0.91 to 40 bar / -27 inHg to 580 psi
Type ..................................................................... Pheumatic
Test medium ..................................................................... Air
Operation ..................................................................Scissor
“O”-rings ................................................................... Buna-N
Wetted parts ....... Anodized aluminium, nickel-plated brass,
............................................................ stainless steel, Nylon
Connections to test object .........................3/8” BSP female
.........................with 1/4” BSP and NPT female terminations
Size........................... 21.6 x 12.1 x 6.2 cm / 8.5 x 4.8 x2.4 in
Weight ............................................................. 1.4 kg / 3.0 lb
Ordering
Part No. Description
T-975 Pump: -0.91 to 40 bar (-27 inHg to 580 psi)
Ordering information system B
Order No. Description
Pressure calibrator
CPC CPC pressure calibrator
Calibrator pressure range
200C Vacuum to 15 bar (200 psi)
NONE Pump system only (no calibrator)
Base model number
BXX CPC system B
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
CPC200CBXXG Sample order number
JOFRA CPC 15 bar (200 psi) calibrator in pressure System
B kit with pneumatic combination handpump and NIST
traceable calibration certificate.
www.jofra.com 7
ORDERING INFORMATION - CPC CALIBRATOR
Order No. Description
Pressure calibrator
CPC CPC Pressure Calibrator
Calibrator pressure range
010C Vacuum to 0.7 bar (10 psi)
030C Vacuum to 2 bar (30 psi)
200C Vacuum to 15 bar (200 psi)
Base model number
IND CPC calibrator only with standard accessories for
configuration
Certificate
G NIST traceable certificate (standard)
H Accredited certificate (optional – on quotation basis)
CPC030CINDG Sample order number
JOFRA CPC 2 bar (30 psi) calibrator with standard accessories and NIST
traceable calibration certificate.
STANDARD DELIVERY
CPC calibrator
•
Traceable calibration certificate (NIST)
•
with pressure and vacuum performance
•
9 V Battery
•
Adapter to 1/4 in NPT female
•
Adapter to 1/4 in BSP female
•
Test leads; red and black
•
Connection cable for RS232
•
JOFRACAL calibration software
Soft case and shoulder strap
•
•
User manual
is one of the world’s leading manufacturers and
AMETEK Calibration Instruments
developers of calibration instruments for
temperature, pressure and process signals
as well as for temperature sensors both from
a commercial and a technological point of view.
JOFRA Temperature Instruments
Portable precision thermometers. Dry-block and
liquid bath calibrators : 4 series, with more than
25 models and temperature ranges from
-90° to 1205°C / -130° to 2200°F. All featuring speed,
portabilit y, accuracy and advanced documenting
functions with JOFRACAL calibration software.
JOFRA Pressure Instruments
Convenient electronic systems ranging from
-1 to 1000 bar (25 inHg to 14,500 psi) -
multiple choices of pressure ranges, pumps and
accuracies, fully temperature- compensated
for problem-free and accurate field use.
JOFRA Signal Instruments
Process signal measurement and simulation for
easy control loop calibration and measurement
tasks - from handheld field instruments to
laboratory reference level bench top instruments.
JOFRA / JF Marine Instruments
A complete range of calibration equipment
for temperature, pressure and signal,
approved for marine use.
FP Temperature Sensors
A complete range of temperature sensors
for industrial and marine use.
M&G Pressure Testers
Pneumatic floating-ball or hydraulic piston dead
weight testers with accuracies to 0.015% of reading.
M&G Pumps
Pressure generators from small pneumatic
“bicycle” style pumps to hydraulic pumps
generating up to 1,000 bar (15,000 psi).
Headquarters:
AMETEK Denmark A/S
Gydevang 32-34 • 3450 Allerød • Denmark
Tel: +45 4816 8000 • ametek@ametek.dk
Sales & Service:
Europe, Asia, Africa, Middle East and South America
Information in this document is subject to change without notice.
©2008, by AMETEK, Inc., www.ametek.com. All rights reserved.
Pub code SS-C P-218 0-US Is sue 0808
8 www.jofra.com
.. .beca use calib ratio n is
a ma tter of c onfid ence
www.ametekcalibration.com
www.jofra.com
Sales & Service Offices:
AMETEK Mansfield & Green (North America)
Tel: +1 800 527 9999 • cal.info@ametek.com
AMETEK Singapore Pte. Ltd. (Singapore)
Tel: +65 6 484 2388 • aspl@ametek.com.sg
AMETEK Inc. Beijing Rep. Office (China)
Tel: +86 10 8526 2111 • jofra@ametek.com.cn
AMETEK GmbH (Germany)
Tel: +49 2159 91360 • info@ametek.de
AMETEK Lloyd Instruments (UK)
Tel: +44 (0) 1489 486 404 • jofra@ametek.co.uk
Loading...
