Owner's Manual

Covering ACF4205A and DCF4205

ACF4215A, ACF422GA and ACF4225A

Contents

Important Safety Information .............. 3

Cooking on the Smoothtop ................. 6

Cookware Suggestions ...................... 7

Oven Cooking Methods...................... 8

Before Using the Oven ....................... 9

Features ........................................... 10

Displays and Signals ........................ 11

Using the Oven Control .................... 12

Cooking

Baking .......................................... 17

Broiling.......................................... 20

Roasting ....................................... 21

Electric Smoothtop Range

Braising ........................................ 22

Care and Cleaning............................ 23

Troubleshooting................................ 27

Amana Warranty .............................. 32

Keep instructions for future reference.

Be sure manual stays with range.

Part No.36-32066501-0

Thank you for buying an Amana Range!

Please take the time to complete the registration card and return promptly . If the registration card is missing, call Amana Consumer Affairs Department. When contacting Amana, provide product information from serial plate found on right side of storage door opening:

Model Number_______________________________ Manufacturing (P) Number _____________________ Serial Number (S/N) __________________________ Purchase Date ______________________________ Dealer Name ________________________________ Dealer Address ______________________________ Dealer Phone _______________________________

Keep this manual and your sales receipt together in a safe place for future reference or if warranty service is required.

For answers to questions or to locate an authorized servicer, call

1-800-NA T-LSVC (1-800-628-5782) inside USA or 319-622-551 1 outside USA. Warranty service must be performed by an authorized servicer .

Amana Appliances also recommends contacting an authorized servicer if service is required after warranty expires.

Questions on cooking, cleaning or usage?

Refer to

Product Assistance at www.amana.com

call Consumer Affairs at 1-800-843-0304

Asure Extended

Service Plan

Amana Appliances offers long-term service protection for this new range. Asure™ Extended Service Plan, covering functional parts, labor, and travel charges, is specially designed to supplement a strong warranty. Call 1-800-528-2682 for information.

Parts and Accessories

Purchase replacement parts and additional accessories by phone. To order accessories for your Amana product, call 1-800-843-0304 inside USA or 319-622-5511 outside USA.

Save Time and Money

If something seems unusual, please check “Troubleshooting” section, which is designed to help you solve problems before calling service. If you have a question, call us at (800) 843-0304 or write us at:

Consumer Affairs Department Amana Appliances 2800 - 220th Trail Amana, Iowa 52204

What You Need to Know

About Safety Instructions

Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating range.

Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.

Remember to include model number of your appliance and your phone number.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER—Immediate hazards which WILL result in severe personal

injury or death.

WARNING

WARNING—Hazards or unsafe practices which COULD result in severe

personal injury or death.

CAUTION

CAUTION—Hazards or unsafe practices which COULD result in minor

personal injury or product or property damage.

IMPORTANT SAFETY INFORMATION

WARNING

T o reduce risk of the appliance tipping, it must be secured by a properly installed anti-tip bracket(s). T o verify bracket has been installed properly, remove the storage drawer or panel and look under the range with a flashlight. Bracket(s) must be engaged in the rear corner of the range.

• ALL RANGES CAN TIP

• INJURY TO PERSONS COULD RESULT

• INSTALL ANTI-TIP BRACKET(S) PACKED WITH RANGE

• REFER TO INSTALLATION INSTRUCTIONS

CAUTION

DO NOT TOUCH SURFACE ELEMENTS OR AREAS NEAR ELEMENTS—Surface elements may be hot though they are dark in color. Areas near surface elements may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface elements or areas near surface elements until they have had enough time to cool. These areas include the rangetop and backguard.

CAUTION

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN—Oven heating elements may be hot though they are dark in color. Interior surfaces of an oven may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch heating elements or interior surfaces of oven until they have had enough time to cool. Other range surfaces that may become hot enough to cause burns are the oven door, oven cavity, and oven vent.

WARNING

To avoid personal injury, do not sit, stand or lean on oven door or oven drawer.

WARNING

To avoid risk of electrical shock, personal injury , or death, verify your range has been properly grounded and always disconnect it from main power supply before servicing.

California Safe Drinking Water and

T oxic Enforcement Act

(Proposition 65)

The Governor of California is required to publish a list of substances known to the state of California to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances.

Some appliances contain or produce a chemical or chemicals which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects, or other reproductive harm. To reduce the risk from substances during the self-clean cycle make sure this appliance is installed, operated, and maintained according to the manufacturer’s instructions.

CAUTION

To avoid fire or smoke damage,

• remove any flammable materials from storage drawer. Items like plastic containers and paper manuals can melt or burn.

• clean excess spills before starting a self clean cycle.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION (cont'd)

ALL APPLIANCES

1. Proper Installation—Be sure your appliance is properly installed and grounded by a qualified technician.

2. Never Use Y our Appliance for Warming or Heating the Room.

3. Do Not Leave Children Alone—Children should not be alone or unattended in the area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

4. Wear Proper Apparel—Loose fitting or hanging garments should never be worn while using appliance.

5. User Servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

6. Storage in or on Appliance—Flammable materials (including paper and plastic) should not be stored in an oven, its storage drawer or near surface units.

7. Do Not Use Water On Grease Fires—Smother fire or flame, or use dry chemical or foam-type extinguisher.

8. Use Only Dry Potholders—Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch elements. Do not use a towel or other bulky cloth.

SURFACE

COOKING UNITS

1. Use Proper Pan Size—This appliance is equipped with one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Use of oversized utensils concentrates heat on cooking surface and can cause damage to range. Proper relationship of utensil to burner improves efficiency.

2. Never Leave Surface Units Unattended—Boilover causes smoking and greasy spillovers that may ignite.

3. Glazed Cooking Utensils—Only certain types of glass, ceramic, earthware, or other glazed utensils are suitable for rangetop service without breaking due to sudden change in temperature.

4. Utensil Handles Should Be Turned Inward and Not Extended Over Adjacent Surface Units—To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

CAUTION

Do not store items of interest to children in cabinets above a range or on the backguard of a range—children climbing on the range to reach

items could be seriously injured.

SAVE THESE INSTRUCTIONS

GLASS/CERAMIC

COOKING SURFACES

1. Do Not Cook on Broken Cooktop—If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately .

2. Clean Cooktop With Caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

IMPORTANT SAFETY INFORMATION (cont'd)

OVENS

1. Use Care When Opening Door—Let hot air or steam escape before removing or replacing food.

2. Do Not Heat Unopened Food Containers—Build-up of pressure may cause container to burst and result in injury .

3. Keep Oven Vent Ducts Unobstructed.

4. Placement of Oven Racks—Always place oven racks in desired location while oven is cool. If rack is removed while oven is hot, do not let potholder contact hot heating element in oven.

5. Protective Liners—Do not use aluminum foil to line oven racks or oven bottoms. Improper installation of these liners may result in a risk of electrical shock, or fire.

SELF-CLEANING OVENS

1. Do Not Clean Door Gasket—The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

2. Do Not Use Oven Cleaners—No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the liner.

3. Clean Only Parts Listed in Manual

4. Before Self-Cleaning the Oven—Remove broiler pan, oven racks, and other utensils.

5. Remove All Items From Rangetop and Backguard.

VENTILATION HOODS

1. Clean Ventilating Hoods Frequently—Grease should not be allowed to accumulate on hood or filter.

2. When flaming foods under the hood, turn the fan on.

In Case of Fire

Fires can occur as a result of over cooking or excessive grease. Though a fire is

unlikely , if one occurs, proceed as follows:

Surface Element Fire

1. Smother the fire with a nonflammable lid or baking soda, or use a Class ABC or BC extinguisher. Not water. Not salt. Not flour.

2. As soon as it is safe to do so, turn the surface controls to breaker or fuse box.

Oven Fires

1. If you see smoke from your oven, do not open oven.

2. Turn oven off.

3. As an added precaution, turn off power at main circuit breaker or fuse box.

4. Turn on vent to remove smoke.

5. Allow food or grease to burn itself out in oven.

6. If smoke and fire persist, call fire department.

7. If there is any damage to components, call an authorized servicer before using range.

OFF

. Turn off power at main circuit

Precautions

• Do not cook food directly on rangetop surface, always use cookware.

• Do not mix household cleaning products. Chemical mixtures may interact with objectionable or even hazardous results.

• Do not put plastic items on warm cooking areas. They may melt and stick.

• Do not lift or move range by grasping oven door handle. This can result in window glass breaking or shattering.

• Do not slide rough metal objects across rangetop surface. Scratching or metal marking can result.

• Do not leave fat heating unless you remain nearby. Fat can ignite if overheated by spilling onto hot surfaces.

• Do not allow pots to boil dry as this can cause damage to cooking surface and pan.

• Do not use rangetop surface as a cutting board.

• Do not use range for storage or as a display counter.

SAVE THESE INSTRUCTIONS

Cooking on the Smoothtop

Cooking Safely with

Surface Elements

WARNING

To avoid risk of serious personal injury, property damage, or fire, do not leave surface elements unattended while in operation. Grease and spillovers can ignite causing a fire.

WARNING

To avoid risk of electrical shock or serious personal injury,

• never cook on a broken smoothtop cooking surface. Spillovers can penetrate broken surface and cause electric shock.

• never clean broken cooktop. Cleaners can penetrate broken surface and cause electric shock.

If smoothtop cooking surface breaks, discontinue use and notify an authorized servicer immediately .

Setting Surface Element Controls

Push in and turn the surface element control knobs in either direction to turn on the surface elements. Surface elements are located under the ceramic cooking surface and radiate heat through the cooktop. It is normal for the element to cycle on and off during heating. The controls have infinite settings between LO and HI for fine temperature control.

1. Push in and turn surface element control to desired setting.

2. When finished cooking, turn control to OFF position.

SURFACE ELEMENT

CONTROL SETTINGS

SIM

Use to prepare food at less than boiling temperatures or to simmer. Use to maintain boiling of larger amounts of food, low temperature frying. Use to bring food to boiling temperatures. When food is boiling temperature setting should be reduced to LO through 5.

WHEN TO USE SETTING

WARNING

To avoid serious personal injury , do not use a damp or wet cloth to clean up spills on a hot or warm cooktop. Moist or damp cloths on hot surfaces may result in burns from steam.

Indicator Lights

Surface element operation is indicated by an indicator light that glows when the element is turned on. The location and number of indicator lights vary with each model. After a surface control is turned off, the surface indicator light will

continue to glow until surface elements have cooled to approximately 145°F. The length of time the light remains on will vary. If there is more than one surface element light, do not expect the lights to shut off at the same time.

After you cook...

...remember to establish a cleaning routine for your smoothtop. Cooktops can be sensitive to certain cooking spillovers. Unlike conventional ranges, smoothtops should not be cleaned with a wet dishcloth when wiping down other counters. Daily care is quick, easy and can prevent damage. To purchase Amana recommended cleaning products, contact our Consumer Affairs department at 1-800-843-0304.

Cookware Suggestions

What Should You Consider in Cookware?

Flat Pan Test

For best cooking results, use a pan

Select Avoid

Flat bottomed cookware. Cookware with rounded or warped bottoms.

Pans with aluminum disk bottoms.

Heavy gauge metal cookware. Light gauge metal cookware. Handles that are secure, that are not

heavy enough to tilt pan.

Proper pan size.

Flat bottomed wok Wok with a ringstand on bottom

Glass, glass-ceramic, enamel porcelain or cast iron cookware, canners or pressure cookers.

Cookware with loose or broken handles.

Cookware that is smaller than or greater than heating element size by 1 inch.

with a flat bottom. To determine if pan has a flat bottom.

1. Rotate a ruler along bottom of pan. If pan is not flat, gaps between bottom of pan and edge of ruler can be seen.

2. A small groove or mark on a pan does not affect cooking times. However, if a pan has a gap, formed rings, or an uneven bottom, it does not cook efficiently and in some cases may not boil liquid.

COOKWARE

MATERIAL

Aluminum

Stainless Steel

Copper Clad /

Tin Lined

USES

Heats and cools quickly. Use for frying, braising, and roasting.

Heats and cools at moderate rate. Use for soups, sauces, vegetables, general cooking.

Heats and cools quickly. Use for gourmet cooking, wine sauces, egg dishes.

Can I can?

Canning is not recommended with any of the Amana smoothtop ranges or cooktops due to the intense heat and large cookware required to can.

The heat generated by the canning cookware overheats both the elements and the smoothtop of the range. This can cause the smoothtop to crack, cause failure of the heating elements, and can cause damage to the backguard.

Damage incurred by canning, or attempting to can, using the smoothtop cooktop is not covered under warranty.

Oven Cooking Methods

Bake

Bake (lower) and broil (upper) elements operate during bake. Bake element is not visible on the oven bottom, but housed underneath the oven bottom. Broil element may cycle on and off during bake and is only used to heat oven quickly and brown top of food. Bake can be used to cook foods which are normally baked. Oven should be preheated.

Broil

Upper element operates during broil. Broil can be used to cook foods which are normally broiled. Preheating is not required when using broil. All foods should be turned at least once except fish, which does not need to be turned.

Bake

Broil

WARNING

Never leave oven unattended while broiling. Overcooking may result in a fire.

Need help on how to

cook that meat?

For your reference we have provided meat preparation, handling safety and cooking suggestions in this manual. These recommendations are furnished by the USDA as well as several meat producer associations. See the individual sections for the information.

Broiling Hints

• Remove excess fat from meat before broiling. Cut edges of meat to prevent curling.

• Place food on a cold ungreased broiling pan. If pan is hot, food sticks.

• All food except fish should be turned at least one time. Begin broiling with skin side down.

• Season meat after it has browned.

• Broiling does not require preheating.

• Begin cooking using suggested rack levels in broiler results. If food is not brown enough, cook on a higher rack position. If food is too brown, cook on a lower rack position.

• Oven door must be fully closed.

Broiling

section to test

Before Using the Oven

Oven Racks and Rack Positions

Your range has 6 oven rack positions to accommodate many types of cooking and cookware.

Position oven rack before turning oven on.

1. Pull rack forward to stop position.

2. Raise front edge of rack and pull until rack is out of oven.

3. Place rack in new rack position.

• Curved edge of rack must be

toward rear of oven.

Rack Position Guidelines for Baking,

Roasting and Braising

Rack

Position

Food Type

Aluminum Foil

WARNING

To avoid risk of personal injury, property damage or fire, do not line oven bottom, racks, or broiler pan and grid with aluminum foil.

When placed on the oven bottom or racks, aluminum foil not only creates a hazard, but also affects cooking performance. To minimize spills in the

oven, place a shallow pan or cookie sheet underneath food items that drip or spill. The pan must not touch the oven

walls, front, or back. DO NOT use aluminum foil, even if it is trimmed to size, as a substitute for a drip pan.

4 5 Whole turkey, capons, tip roasts and dressings

Puff pastry products, strudels, casseroles, muffins, small pork loin and Eye of Round roast.

Halved chickens, whole pork tenderloin, Cornish hens, pot pies, frozen pizzas, quick breads (corn bread, biscuits)

Roast tenderloin of beef, whole chicken, whole pork loin, roasted vegetables such as acorn or spaghetti squash.

Large cuts of roast meats such as top round, standing rib roast, crown roast of lamb and boston butts. Baked and sweet potatoes, flat breads and cobblers.

Rack Position Guidelines for Broiling

Rack

Position

Food Type

Boneless pork chops, boneless skinless chicken breast, fish fillets, tuna steaks.

1/2 to 3/4" thick beef or tuna steaks, or pork chops. London Broil.

1 to 1 1/2" thick steaks, 1 to 2" thick pork chops. Lobster tails.

Features

12-hour automatic cancel

This safety feature prevents oven from continuing to operate if it has been left on for over 12 hours. If a cooking function continues longer than 12 hours without any options on oven control being touched, this feature turns oven off. Any time an option is touched, 12-hour automatic cancel is reset.

Oven temperature control adjustment

Your range is calibrated at the factory for proper temperature. Due to individual variances and preferences, it may be necessary to adjust oven once it has been installed.

When first using the oven, follow recipe times and temperatures. Before adjusting oven baking temperature, test a recipe, such as ready-to-bake biscuits, by setting oven temperature higher or lower than the suggested temperature. The baking results should help you to decide how much of a temperature adjustment is required.

An accurate digital thermometer is necessary to calibrate the oven. Store purchased oven thermometers do not accurately measure oven temperature. Oven temperature can be increased or decreased by 35 °F. To avoid over adjusting the oven, only adjust the temperature by 5 °F each time.

code Possible Meaning

F1 Control failure F2 Oven over temperature F3 Sensor open or shorted F9 Door latch circuit failure

DOOR Door has not latched.

NOTE: Remove aluminum foil from racks and oven bottom as this will alter

oven performance. Check for blocked heat vents. If it still appears oven is not performing as expected, a calibration may be done.

1. Turn oven temperature knob to OFF.

2. Press and hold both arrow pads for approximately 5 seconds.

3. A double digit will display ranging from -35 °F to 35 °F.

4. Immediately, press either:

• to increase oven temperature by 5 °F

• to decrease oven temperature by 5 °F

• When temperature is adjusted to a cooler setting, a minus sign (-) will display with the offset temperature.

5. When desired temperature change is displayed, release control and change will be automatically saved after a few seconds. Control will return to time of day display .

• Offset temperature change will be retained through a power failure.

Service codes and tones

Electronic oven control is equipped with a self-diagnostic system. Self-diagnostic system alerts you if there is an error or problem with the unit. If electronic range control sounds a series of short, rapid beeps for over 16 seconds and the display shows an F-code, record F-code shown. Some F-codes can be cleared by disconnecting power to the range for approximately 3 minutes. If the code continues to reoccur disconnect electrical supply to range and contact an authorized servicer.

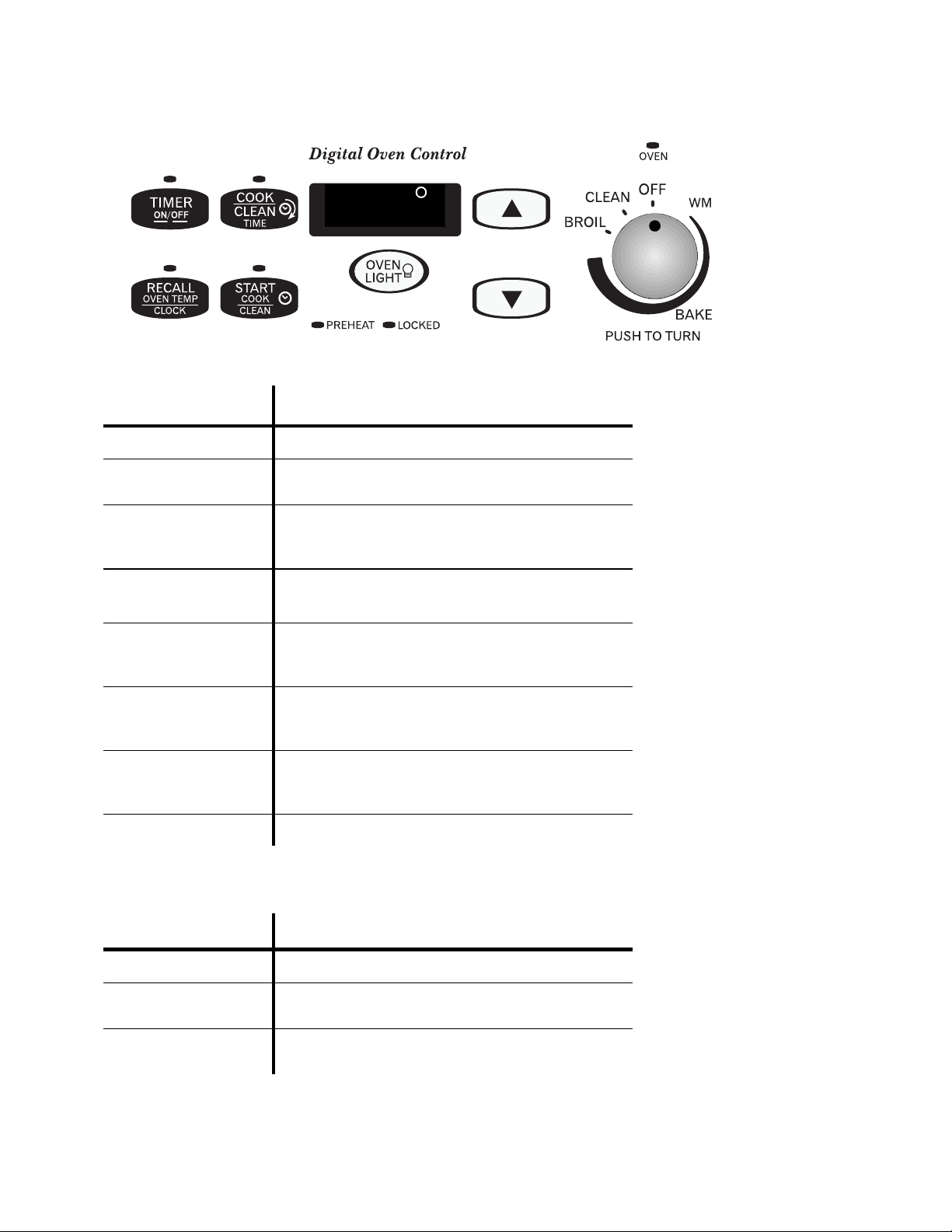

Display and Signals

IGHTS

CLOCK

TIMER ON/OFF

COOK/CLEAN

TIME

START

COOK/CLEAN

PREHEAT

LOCKED

OVEN ON

OVEN LIGHT

350

ESCRIPTION

Clock pad light remains on while time of day is set. Timer On/ Off pad ligh t re mains on while th e timer

counts down. Cook/Clean Time light is turned on when entering

cook or clean time. Light remains on during the cook or clean cycle.

Start Cook/Clean light turns on when entering the time a cooking or cleaning cycle is to start.

Preheat light turns on and remains on while oven is heating to selected temperature. Light shuts off when oven reaches and maintains temperature.

Locked light turns on and remains on when oven door is locked. Locked light flashes when door is automatically locking or unlocking.

Oven On light turns on and remains on while oven is in use. Oven light does not monitor oven cavity temperature.

Turns on when

OVEN LIGH T

pad is pressed.

Clock also displays time of day.

Timer Signal

When time elapses, timer beeps a single, three second tone.

Preheat Signal

After setting oven to bake and selecting a temperature, oven preheats. When oven reaches set temperature, oven signals a one second beep and the preheat light shuts off.

End-of-Cycle Signal

When a timed cooking cycle is complete, the oven will beep four tones approximately one second apart, followed by a continuous series of one second beeps every ten seconds until the oven knob is turned to OFF.

BRL

CLN

END

ISPLAY

ESCRIPTION

Display s wh en oven is broilin g o r se t to b roil . Displays when oven is self cleaning or

is set to self clean. Displays when oven has reached the end of a

baking cycle.

Using the Oven Control

Setting Electronic Clock

Flashing Display

When power is connected or interrupted, oven display flashes. Press CLOCK to reset display . Clock may need to be reset.

Making the Numbers

Increase at a Faster Rate

Time increases in larger increments the longer the + or pad is held.

The 12 hour clock does not display AM, PM or military time. When power is connected or restored, display flashes until RECALL OVEN TEMP/CLOCK pad is pressed or temperature knob is turned.

1. Press RECALL OVEN TEMP/CLOCK pad.

2. Press

3. Time is locked in after 5 seconds of no adjustment.

displays.

or pads until correct time-of-day

Timer Signal

When time elapses, beep will sound. Press TIMER ON/OFF pad to stop timer and return to clock display.

Setting Minute Timer

The timer is a timer only . Electronic timer does not control bake, broil or self-clean function. Timer can be set up to 11 hours and 59 minutes.

1. Press TIMER ON/OFF pad.

2. Press + or pad until desired amount of time displays.

• Time increases in 1 minute and 10 minute increments.

• Timer begins counting down automatically after time is entered.

• To view clock while timer counts down, press RECALL OVEN TEMP/CLOCK pad. Timer will return after 3 seconds of no input.

3. Press and hold TIMER ON/OFF pad to cancel timer signal.

• After time elapses, timer beeps a single, three second tone.

Resetting and Canceling Timer

To reset the time when remaining time is displayed, press TIMER ON/OFF pad, then + or pad until new time displays.

To cancel timer when remaining time is displayed or when signal is beeping, press and hold TIMER ON/OFF pad.

Using the Oven Control (contd)

Baking

While oven is still cool, remove any stored items from the oven cavity .

1. Place racks in desired position and close oven door.

2. Push and turn oven temperature knob to desired temperature.

• Oven indicator light will turn on

and stay on.

• Temperature is displayed in the clock

area in 5 degree increments.

• Temperature range is 170 °F to 550 °F

• Display will return to time of day after

approximately 15 seconds.

• To recall oven temperature, press

RECALL OVEN TEMP/CLOCK pad.

3. PREHEAT light will turn on during the preheat cycle. PREHEA T light shuts of f when oven has reached desired temperature and oven beeps.

4. Open door carefully and place food in oven.

5. After cooking time elapses, remove food and turn oven temperature knob to OFF.

WARNING

To avoid risk of personal injury, property damage or fire, do not line oven bottom, racks, or broiler pan and grid with aluminum foil.

WARNING

To avoid risk of personal injury, property damage or fire, never leave oven unattended while broiling.

Preheating

In most cases, you should preheat the oven before baking. After the range control is set, the oven temperature will begin to rise until the desired cooking temperature is reached (approximately 8 to 10 minutes). When cooking temperature is reached oven signal beeps.

Broiling

Broiling sears in natural juices and provides charbroiled flavor. To broil, center food on broiling grid and pan and place on proper rack in

oven. Do not place aluminum foil over boiling pan, oven rack or oven bottom. Oven door must be fully closed. Broiling does not require preheating so you can place food in oven while it is still cool.

1. Adjust oven racks to desired position.

2. Turn oven temperature knob to BROIL.

• Oven indicator light will turn on and remain on.

• BRL will display.

• Display will return to time of day approximately 15 seconds after broiling begins.

2. Close oven door.

• If oven door is ajar for more than 3 minutes, broil cycle will stop.

• If broil cycle stops because the door was open too long, close oven door and broil cycle will continue.

3. After broiling, remove food and turn oven temperature knob to OFF.

How High or Low Can I

Set the Temperature?

Oven bake temperature can be set from 170 °F to 550 °F . Some minor smoking is normal when using oven for first time.

Preheat Signal

After setting oven to bake and selecting a temperature, oven preheats. When oven reaches set temperature, signal sounds. The preheat light will shut off and remain off after oven has reached the selected temperature.

Using the Oven Control (contd)

What's the difference

between TIMED and

DELAYED cooking?

When using TIMED cooking, the oven begins to heat immediately after the oven control is set. Then, the oven cooks for the specified length of time. When using DELAYED cooking, the oven begins to cook later in the day. Set the time that you want to begin cooking and the how long you want to cook. The oven begins to heat when at the selected time and cooks for the specified length of time.

How Far Ahead Can I Set

the Time?

Cook time and start time can be set up to 11 hours and 59 minutes ahead. To view cook time, press and hold COOK TIME pad. When cooking time has elapsed, an end of cycle signal sounds, oven automatically turns off and display returns to time of day. Oven signal sounds 4 times, then once every 10 seconds until knob is turned to OFF. Broil can not be set to Timed or Delayed.

CAUTION

To reduce risk of food poisoning due to bacterial growth and production of toxins, never hold meat, milk, fish, or eggs for more than 2 hours before cooking.

How much time is left?

For a delayed bake cycle, the cook time can be viewed by pressing the COOK pad. For a timed bake cycle, the stop time can be viewed by pressing the STOP pad.

Timed Baking

Set oven to cook for desired amount of time. Follow recipe directions for preheating the oven.

1. Place food in oven.

2. Press COOK/CLEAN TIME pad.

3. Press or pad until desired length of time is displayed.

• Cook time can be set up to 11 hours and 59 minutes.

4. Push and turn the temperature control knob.

• Temperature displays in 5° increments starting at 170 °F

• Clock will return to time of day after approximately 15 seconds.

• To recall oven temperature, press RECALL OVEN TEMP/CLOCK pad.

5. Oven will automatically begin to heat.

• To adjust cook time, press COOK/CLEAN TIME pad twice while the

remaining cook time is displayed. Cook time can then be adjusted.

• When cooking time has elapsed an end of cycle signal sounds

and END will be displayed. Oven no longer maintains cooking temperature after timed bake is complete.

• Oven signal sounds 4 times, then once every 10 seconds until

oven control knob is turned to OFF.

6. Turn knob to OFF to cancel baking.

Delayed Baking

Set oven to begin baking at a later time.

1. Place food in oven.

2. Press STAR T COOK/CLEAN button.

• Default time displayed is current time of day.

3. Press or pad until desired time displays.

• Start time can be set up to 11 hours and

59 minutes ahead of current time of day.

4. Press COOK/CLEAN TIME pad.

5. Press or pad until desired cooking time displays.

• 1 minute minimum cooking time.

• END will be displayed when cooking time has elapsed.

6. Push and turn oven temperature control knob to desired temperature.

• Temperature displays in 5° increments starting at 170 °F

• Display will return to time of day after 5 seconds of no input.

• START TIME and COOK TIME lights will remain on, but

OVEN ON light will not turn on until cooking begins.

7. Oven will automatically begin to heat at selected start time.

• OVEN ON light will turn on when oven begins to heat.

• To adjust cook time, press COOK/CLEAN TIME pad twice while the

remaining cook time is displayed. Cook time can then be adjusted.

• When cooking time has elapsed an end of cycle signal sounds

and END will be displayed. Oven signal sounds 4 times, then once every 10 seconds until oven control knob is turned to OFF.

Knob must be turned to OFF for oven to stop shut off.

8. Turn knob to OFF to cancel baking.

Using the Oven Control (contd)

Self-cleaning

Self-clean feature uses high oven temperature to clean oven interior. For the oven to operate through a complete self-clean cycle, the self-clean must be set when the oven is cool.

1. Prepare oven for self-cleaning (see below right). Oven bottom recess must be checked for grease build up before beginning a selfclean cycle. See

2. Close door.

3. Push and turn oven temperature knob to CLEAN position.

• The default self-clean cycle length of

3 hours will display .

4. Set cycle length for self-clean.

• Use arrow keys to adjust time as

necessary before oven indicator light turns on.

• Clean cycle can be set from two to four

hours in five minute increments.

• Default setting for the cycle is three hours.

5. Self-clean begins.

• OVEN ON indicator light will be on and will remain on until the end

of the cycle.

• At the end of the self-clean cycle, the OVEN ON indicator light will

shut off.

• At the end of the self-clean cycle, the oven will stop heating,

however, oven will remain hot.

• The LOCKED indicator light will remain on until oven reaches a

cooler temperature. LOCKED light will flash while door is unlocking, and then shut off when door has unlocked. Oven cavity will be hot to the touch. DO NOT attempt to open door prior to LOCKED indicator light shutting off. When oven is cool, turn oven knob to OFF.

Interrupting the self-clean cycle

To stop a self-clean cycle that has already started follow these steps. If the interruption occurs mid cycle, the oven will remain locked, even though the cycle has stopped, until the oven cavity has cooled to a lower temperature.

1. Turn oven temperature knob to OFF position.

2. When oven has cooled to a lower temperature, LOCKED light turns off. Door can be unlocked. DO NOT force door. This can cause damage to the latch.

Care and Cleaning

CAUTION

To avoid fire or smoke damage,

• remove any flammable materials from storage drawer. Items like plastic containers and paper manuals can melt or burn.

• clean excess spills before

starting a self-clean cycle.

WARNING

To avoid risk of personal injury, do not touch oven vents, or area around vents, during self-cleaning. These areas can become hot enough to cause burns.

WARNING

To avoid risk of personal injury, property damage, or fire, clean excess grease and soil from oven before beginning a selfclean cycle.

Do I need to prepare?

To get the best results from the self-clean cycle, follow these steps:

• Clean excess spills from oven interior and bottom thoroughly.

• Remove birds or animals

susceptible to smoke or other fumes from the room or adjoining room.

• Open window if possible.

• Make sure oven light cover is properly in place. Do not use cleaning cycle if it is not.

• Remove oven racks and all cooking utensils from oven.

• Remove items from range top, backguard and storage drawer. These areas can become hot during self-cleaning cycle.

• The range vents from the center bottom of the backguard. Make sure this area is unobstructed by removing all items from backguard and range top.

Using the Oven Control (contd)

WARNING

To avoid risk of personal injury, do not touch oven vents, or area around vents, during self-cleaning. These areas can become hot enough to cause burns.

CAUTION

To avoid fire or smoke damage,

• remove any flammable materials from storage drawer. Items like plastic containers and paper manuals can melt or burn.

• clean excess spills before starting a self-clean cycle.

WARNING

To avoid risk of personal injury, property damage, or fire, clean excess grease and soil from oven before beginning a selfclean cycle.

Do I need to prepare?

To get the best results from the self-clean cycle, follow these steps:

• Clean excess spills from oven interior and bottom thoroughly.

• Remove birds or animals

susceptible to smoke or other fumes from the room or adjoining room.

• Open window if possible.

• Make sure oven light cover is properly in place. Do not use cleaning cycle if it is not.

• Remove oven racks and all cooking utensils from oven.

• Remove items from range top

backguard and storage drawer. These areas can become hot during self-cleaning cycle.

• The range vents from the center bottom of the backguard. Make sure this area is unobstructed by removing all items from backguard and range top.

Delayed Self-clean Cycle

Self-clean feature uses high oven temperature to clean oven interior. Set oven to begin and end cleaning at later time. Range control begins the self-clean at your specified start time.

1. Prepare oven for self-cleaning (see below left). Oven bottom recess must be checked for grease build up before beginning a self-clean cycle. See

2. Close door.

3. Press START COOK/CLEAN pad.

4. Set starting time for the cleaning cycle.

• Default time is current time of day.

• Start time can be set from current time to

current time plus 1 1 hours and 59 minutes.

5. Turn oven temperature knob to CLEAN.

• Default self-clean cycle length of 3 hours will display.

6. Set cycle length for self-clean.

• Use arrow keys to adjust time as necessary.

• Clean cycle can be set from two to four hours in five minute

increments.

• Default setting for the cycle is three hours.

7. Self-clean cycle is set.

• Oven cannot be used until completion of the self-clean cycle.

• Self-clean cycle will begin at selected start time.

• To view start time, press the START COOK/CLEAN pad.

• OVEN ON indicator light will turn on when the self-clean cycle

begins and will remain on until the end of the cycle.

• To view the clean cycle time, press the COOK/CLEAN TIME pad.

• At the end of the self-clean cycle, OVEN ON indicator light shuts

off and the oven does not maintain the high temperatures. Oven will still be hot, however.

• The LOCKED indicator light will remain on until oven reaches a

Interrupting the self-clean cycle

1. Turn oven temperature knob to OFF position.

2. When oven has cooled to a lower temperature, LOCKED light shuts off. Door can be unlocked. DO NOT force door. This can cause damage to the latch.

Care and Cleaning

Cooking

Baking Guidelines

When baking with a new oven, keep in mind temperatures vary from oven to oven. Store-bought thermometers are generally not accurate and should not be used to calibrate oven temperatures.

BAKING TIME GUIDELINES Cake Pan

Type

Oval 7 ¾" x 5 ¾" 2 ½ 350°F 25 to 30

Round, 2" layer

Pan size Cups of

batter

13" x 9 ¾" 8 350°F 25 to 30

6" 2 350°F 25 to 30

Oven

Temp. Minutes

Hints for Cookies,

• Shiny , flat cookie sheets should be used. Avoid cookie pans with high sides - this will cause uneven browning on the top.

• Cookie sheet should not touch the sides of the oven or door.

8 “ 3 350°F 30 to 35

14" 10 350°F 50 to 55

Round, 3" layer

Half Round, 2" layer

Half Round, 3" layer

Square 6" 2 350°F 25 to 30

8" 5 325°F 60 to 65

12" 11 325°F 75 to 80 18" 9 325°F 60 to 65

18" 12 325°F 60 to 65

10" 6 350°F 35 to 40 16" 15 1/2 350°F 45 to 50

Bake Pan Placement

BAKEWARE GUIDELINES

• Keep pans and baking sheets 2 inches from oven walls.

Dark or dull pans

Shiny pans (no sides)

Shiny pans (sides)

Glass pans

Absorb more heat and result in darker browning. Recommended for pies and br eads .

Recommended for cookies.

Recommended for cakes

Lower recommended oven temperature by 25°F.

• Stagger pans placed on different racks so one is not directly over the other.

Preheating

preheat approximately 15–20 minutes before placing food inside oven or wait 10 minutes after oven signal beeps before placing food in oven. The extra time

creates a more stable oven temperature.

Cakes,

• Follow recipe’s directions for pan size. Shiny pans work best for cakes.

• Cake baked in too large a pan will be thin and dry . Too small a pan will be undercooked or unevenly cooked and may spill.

Pies

• Pies should be baked in dark or dull pans to increase browning.

• Frozen pies should be heated on an aluminum cookie sheet.

Cooking (contd)

Common Baking Problems

If you begin to notice consistent problems refer to the chart below for possible solutions. If results are still poor, contact Amana Consumer Affairs at (800) 843-0304.

Test your cakes for doneness

while they are still in the oven. Because of variances across individual ovens, it is best to test for the proper consistency rather than solely relying on time and visual appearance as an indicator.

It may not be the oven

Cake problems may be in the mixing of the batter. Overbeating can cause cake structure to break down and excessive shrinkage of the cake. Underbeating can result in lumpy cakes that may not be cooked thoroughly. All ingredients should be at room temperature—not out of the refrigerator. Make sure to follow the recipes directions for how long the batter should be mixed.

Cake stuck?

Allow cake to cool in cake pan on a rack for 10 minutes before removing. Larger cakes (over 14 inches in diameter) may take 15 minutes. If the cake has cooled too long, reheat in the oven at 250°F for a few minutes.

Problem Cause

Lopsided cakes (bake unevenly)

Cakes, cookies, biscuits too brown on bottom or top

Pies don’t brown

Cakes not done in center

Cakes fall

Excessive shrinkage

Cakes high in middle or cracked

Pans touching each other or oven walls. Batter spread unevenly in pan. Uneven heat distribution in oven. Oven is not level.

Oven not preheated. Pans touching each other or oven walls. Using glass, darkened, warped or dull finish metal pans. Rack position too high or low.

Incorrect use of aluminum foil.

Oven temperature too high. Incorrect rack position.

Using shiny metal pans. Temperature set too low.

Temperature too high. Pan too small. Baking time too short. Pan not centered in oven.

Too much shortening or sugar. Too much or too little liquid. Temperature too low. Old or too little baking powder. Pan too small. Oven door opened frequently (peeking). Insufficient baking.

Too little leavening. Mixing batter too long. Pan too large. Oven temperature too high. Baking time too long.

Temperature set too high. Overmixing. Too much flour. Pans touching each other or oven walls.

Cooking (contd)

Meat Basics

While cooking has always been a talent, it is now becoming a science, also. Amana provides this information as a guide to aid in preparation. For specific questions regarding meat preparation, handling, or storage contact

USDA (United States Department of Agriculture) Meat & Poultry Hotline at (800) 535-4555.

Handling Hints

• When shopping, put meat in its own separate plastic sack to keep drips off other foods.

• Defrost frozen meats in refrigerator, not at room temperature.

• Keep meat cool and covered until it is time to cook.

• Wash hands with warm soapy water before and after handling meat or raw egg.

• Thoroughly wash any surface or utensil raw meat or egg touched.

• Do not put cooked meat on the same plate that held raw meat.

Cooking Tips

• Marinate meat in the refrigerator. Throw out excess marinade that came into contact with meat.

• Use an oven-proof meat thermometer.

• Cook meat to internal temperature recommended by USDA.

• When reheating foods, heat to an internal temperature of at least 165 °F.

• While cooking meats, turn over at least once.

Using a Meat Thermometer

When using a meat thermometer, remember to insert it at a slight angle, in the thickest part of the meat, away from fat and bone. The meat should be removed when 5 °F below the desired final temperature. While the meat sits before carving, it will continue to cook internally , raising the last 5 °F by itself.

A meat thermometer can

• Take the guesswork out of cooking to a desired ‘doneness’.

• Help reduce the risk of foodborne illness.

Oven-safe Thermometer

• Inserted before the meat is placed in the oven, this thermometer stays with the meat while it cooks.

• The internal temperature will rise slowly as the meat cooks.

Instant-read Thermometer

• Not oven safe, these thermometers are placed in the meat when it is removed from the oven.

• While times may vary , an accurate temperature is normally displayed within one to two minutes.

• When using an instant-read, remember to clean the thermometer stem with warm, soapy water between readings.

Storage Safety

• Once carved, refrigerate unused portion immediately .

• Keep hot foods hot and cold foods cold when serving meals.

• Separate cooked foods into small portions for fast cooling.

• Do not store cooked ground meats or meals containing ground meats for longer than 3 to 4 days in the refrigerator.

• Do not allow cooked or uncooked meat juices to come into contact with ready-to-eat foods such as fruits or vegetables.

Tenderizing

Braising is only one way to tenderize less tender cuts. Before cooking, you may pound, cube, marinate, or use commercially prepared meat tenderizers. You may then use a dry method to cook the meat.

• Marinades are acidic liquids such as wine, citrus, or vinegar. Marinades soften meat fibers but only penetrate about one-fourth of an inch into the interior of the meat. Do not marinate meat for longer than 24 hours.

• Pounding with a heavy meat mallet breaks down the connective tissue to tenderize meat.

• Cubing breaks down the structure more than pounding. Cubing is done at the meat counter.

• Commercial tenderizers are primarily enzymes that work on the outer fourth inch on a meat cut. Make sure to follow the manufacturer’s directions.

Cooking (contd)

Broiling Guidelines

Broiling is a dry heat cooking method that allows a restaurant quality charbroiled flavor. Meat is exposed directly to the heating element at high temperatures.

1. Place meat on rack in broiler pan, with the surface of cuts the specified distance from the heating element (specified below).

2. Broil for half the recommended time, or until the surface is browned.

3. Turn meat and continue broiling to desired internal temperature.

4. Season, if desired.

5. Oven door MUST be fully closed.

Meat Cut

Recommended Internal

Temperature

Thickness

(inches)

BEEF

Chuck Shoulder Steak

Rib Eye Steak

Sirloin S t eak

Porterhouse Steak

Filet Mignon (Tenderloin) Flank Steak Ground Beef Patties

Very Rare 130°F Rare 140°F Medium Rare 145°F Medium 160°F Well Done 170°F Very Well Done 180°F

160°F minimum

 

¾ to 1 1 3 to 4 10 to 15

PORK

Chops, bone in Chops, boneless Tenderloin Kabobs 1 inch cubes

Lean Ground Pork Patties

All pork must be cooked to an internal temperature of at least 160°F to reduce the likelihood of Trichinosis.

Failing to cook the meat to this temperature could result in personal injury or illness.

¾ ¾



Weight

(pounds)

to 1

1 to 1

½ ¾

to 1

1 to 1

1 ½ to 3

to 4

to 1

to 2

2 to 3

1 to 1

 

to 1

 

Distance

From Heat

(inches)

2 to 3 3 to 4

2 to 3 3 to 4 4 to 5

2 to 4 10 to 15 2 to 3 12 to 14

4 6 to 8 4 6 to 8 4 15 to 25 4 10 to 20

4 8 to 10

Approximate

Cooking Time

(minutes)

12 to 14

10 to 15 20 to 25

10 to 15 16 to 21 21 to 25

10 to 15 20 to 25

8 to 12

LAMB

Loin Chops 1 Rib Chops 1 Sirloin S t eaks 1

Top Round Steaks 1 Center Leg Steaks 1 Cubes for Kabobs

Lam b P att ies

Medium 160°F Well Done 170°F

x 4 inches

pieces

  

each

3 to 4 10 to 15 3 to 4 10 to 15 3 to 4 12 to 15

3 to 4 12 to 15 3 to 4 15 to 20 3 to 4 10 to 15

3 to 4 12

All times and recommended temperatures are provided by the USDA, the Beef Industry Council, the National Pork Producer’s Council, and the American Sheep Industry Council.

Roasting Guidelines

Tender cuts such as rib and loin cuts are best cooked by dry heat methods, such as roasting. To roast:

1. Heat oven to desired temperature.

2. Place roast directly from refrigerator fat side up in a shallow roasting pan.

3. Insert ovenproof meat thermometer so tip is centered in thickest part of roast. Make sure thermometer does not rest in fat or on bone.

4. Remove roast 5 °F below desired degree of finished internal temperature.

5. Transfer roast to carving board and tent loosely with aluminum foil for approximately 15 minutes.

Cooking (contd)

Meat Cut Recommended Internal Temperature

BEEF

Boneless Rump Roast Tip Roast

Eye Round Roast Tenderloin Roast

Rib Roast

Rib Eye Roast

Very Rare 130°F Rare 140°F Medium Rare 145°F Medium 160°F Well Done 170°F Very Well Done 180°F

PORK

Loin Roast, bone-in Rib Roast, boneless Tenderloin

Ham bone-in , cook-before-ea ting

All pork must be cooked to an internal temperature of at least 160°F to reduce the likelihood of Trichinosis and other food-borne illnesses.

LAMB

Shoulder Rib Roast Rib Crown Roast, n ot st uf fe d

Loin Roast Leg, Frenched Style or Hal f Shank

Medium-Rare 150°F Medium 160°F Well Done 170°F

Oven

Temperature

325°F 4 to 6 25 to 30 325°F

325°F 4 to 6 20 to 30 425°F 2 to 3

325°F

350°F 4 to 6 18 to 24

350°F 3 to 5 350°F 2 to 4 450°F

325°F 7 to 8

325°F 375°F 375°F 2 to 3 25 to 30

325°F 325°F 5 to 7

Weight

(pounds)

to 4

4 to 6 4 to 6

6 to 8

to 1

to 6

– 2

to 1

7 to 9

Approximate Cookin g Time (minutes)

20 minutes

per pound

30 to 40

35 to 45 45 to 60

26 to 42 23 to 35

35 to 40 30 to 35

45 to 55 15 to 20

20 to 25

POULTRY (unstuffed)

Capon Cornish Hens, whole

Duck, whole Goose, whole Pheasant, whole Quail, whole Turkey

To reduce the risk of food-borne illnesses, poultry must be cooked to an internal temperature of 180°F.

325 to 350°F 4 to 8 20 to 30 min/lb. 325 to 350°F

325 to 350°F 325 to 350°F 325 to 350°F 2 30 min/lb. 325 to 350°F — 20 minutes total

325°F 8 to 16 3 ½ to 5 ½ hours

to 1

 

50 to 60 total 18-20 min/lb.

20 to 25 min/lb.

All times and recommended temperatures are provided by the USDA, the Beef Industry Council, the National Pork Producer’s Council, and the American Sheep Industry Council.

Cooking (contd)

Braising Guidelines

Less tender cuts such as those from the round, chuck, brisket and shank require moist cooking. A longer cooking time at lower temperatures with moisture helps soften the meat.

1. Brown meat with a small amount of oil in heavy pan.

2. Pour off excessive drippings, season, if desired.

3. Add small amount of liquid (1/2 to 2 cups) and cover tightly.

• Simmer gently over low heat on top of the range or in a 325 °F oven, until meat is fork tender.

Meat Cut Recommended Internal Temperature

Oven Temperature

Weight (pounds) OR Thickness

Approximate Cookin g Time (hours)

BEEF

Blade Pot Roast 325°F 3 to 5 Arm Pot Roast 325°F 3 to 5 2 to 3

Chuck Roast (boneless) 325°F 3 to 5 2 to 3 Short Ribs 325°F 2 inches

Round Steak 325°F Flank Steak

Meat should be cooked to a temperature of at least 160°F to reduce the likelihood of foodborne illnesses.

325°F

x 2 inches x 4 inches thick

to 1 inch thick 1 to 1

to 2 inches

thick

1 ½ to 2

LAMB

Shoulder Chops, Round Bone or Blade

Riblets 325°F 3 pounds Shanks 325°F 3 pounds Stew Cubes

Meat should be cooked to a temperature of at least 160°F to reduce the likelihood of foodborne illnesses.

325°F 1 inch thick

325°F 1 inch pieces

lbs.

1 to 1

1 to 1 1

to 2

to 1

All times and recommended temperatures are provided by the USDA, the Beef Industry Council, the National Pork Producer’s Council, and the American Sheep Industry Council.

Care and Cleaning

Oven Frame

Hinge Lock

Oven

Door

Removing Oven Door

1. Fully open oven door.

2. Push hinge locks down toward door frame, to the unlocked position.

• This may require a flatblade

screwdriver.

3. Close door to first stop position.

4. Firmly grasp both sides of top of oven door, NOT door handle.

5. Lift door up until hinge arm is clear of the slot.

Replacing Oven Door

1. Grasping door top firmly, seat indentation of hinge arm into bottom edge of the hinge slot.

• Door should be at the first stop position angle.

2. Fully open oven door.

3. Push hinge locks up against the front frame of the oven cavity to locked position.

4. Close oven door.

Door Gasket

CAUTION

To avoid personal injury or property damage, handle oven door with care.

• Do not lift door by handle.

• Remove storage drawer.

• Door is heavy and can be damaged if dropped.

• Screwdriver can scrape or chip range or oven finish.

• Do not scratch or chip glass or twist door. Glass may break suddenly .

Cleaning Oven Door

Not all areas of the oven are cleaned by the self-clean cycle. The oven door, the gasket and area surrounding the gasket will not be cleaned effectively by the self-clean cycle. DO NOT use spray cleaners to clean the outside or inside of the oven door. Cleaner will streak the inner window area.

Removing Storage

Drawer

1. Slide drawer out until it stops.

2. Remove stored items.

3. Grasp drawer sides near back of drawer.

4. Lift up and out. Reverse to reinstall.

DO NOT clean the gasket. Do not wet, rub, soak or use any type of cleaning material to clean the oven gasket. Any damage or defects occurring from attempting to clean or remove the gasket are not covered by warranty .

To clean the area around the gasket make sure oven is cool to the touch. Using a cloth with a mild soap wipe area needing to be cleaned. Avoid gasket. Gasket should not be removed while cleaning. Do not allow water or cleaning solution to spill or drip onto gasket.

Care and Cleaning (contd)

Replacing Oven Light

WARNING

To avoid risk of burns or electrical shock:

• disconnect electrical supply to oven before changing light bulb.

• before replacing light bulb make sure oven and bulb are cool.

• Do not operate oven without bulb and cover in place.

CAUTION

To avoid risk of personal injury, Wear gloves to protect hands from accidental bulb breakage.

To keep your smoothtop looking like new, Amana recommends routine cleaning. The following general instructions for routine and tough spot cleaning are based on the performance of Amana recommended products. To order these products, contact the Consumer Affairs department at 1-800-843-0304.

PART GENERAL DIRECTIONS

Broil element

1. Disconnect electrical supply.

2. Remove oven door if desired.

3. While wearing protective gloves, unscrew counter clockwise the light bulb cover located in rear of oven cavity. Then turn light bulb counterclockwise to remove.

4. Replace light bulb with 120-volt, 40-watt appliance bulb.

Do not over tighten bulb or cover or they may be difficult to remove later.

5. Replace light bulb cover and oven door before use.

6. Reconnect power supply .

Broiler pan and grid

Control knobs

Outside finish

Oven racks

clean broil element. Any soil will burn off when element is heated.

Do not

Drain fat, cool pan and grid slightly. (Do not stand soiled pan and grid in oven to cool.) Sprinkle with soap. Fill the pan with warm water. Let pan and grid stand for a few minutes

Pull off knobs. Wash gently with mild soap and water but do not soak. Dry and return knobs to oven, making sure to match flat area on the knob to the flat area on the shaft.

Wash all glass with cloth dampened in soapy water. Rinse and polish with a dry cloth. If knobs are removed, do not allow water to run down inside surface while cleaning.

For heavy soil, place oven racks in large plastic bag with ammonia and water in cup. Seal ti ghtly and allow to stand overnight. Wash and rinse, dry thoroughly.

Storage drawer

For heavy soil, clean by hand and rinse thoroughly. Remove drawer for ease in cleaning. Be sure drawer is dry before replacing.

Care and Cleaning (contd)

Caring for the smoothtop

For routine cleaning, allow top to cool before cleansing. Wash surface with a dampened cloth and smoothtop cleaner conditioner. Use another clean damp paper towel to wipe of f the cleaner. Use a dry paper towel, buff the smoothtop to make sure all the cleaner conditioner is removed. The smoothtop cleaner conditioner provides a thin layer of protective polish that helps to prevent scratching. Do not use a harsh cleanser or steel wool pad. For specific problems, see below.

PROBLEM CAUSE REMOVAL

Brown streaks and specks

Blackened, burnt on spots

Fine brown gray lines, fine scratches or abrasions

Smearing or streaking

Metal or silver/gray marks

Pitting or flaking

Hard water spots

Cleaning with sponge or cloth containing soiled detergent wa te r

Spatters or spillovers o n a ho t co o kin g are a o r accidental m elting of plas tic like a b rea d ba g

Course particles, like salt, become embedded in top if trapped under pan. Using abrasive cleaning ma terials. S c ratche s from rough ceramic, glass, or ceramic coated cookware.

Using too much smoothtop cleaner conditioner or using a soiled dish cloth.

Sliding or scraping m e tal u ten sils a cro ss top . Remove m a rks b efore top is us ed a ga in. If ma rks

Boilovers of sugar syrup on a hot smoothtop can cause pitting if not removed immediately.

Condensation from cooking can cause minerals found in wate r a nd ac ids in fo od to drip onto smoothtop and cause gray deposits. Spots are often so thin they appear to be in or under smoothtop.

Normal cleansing (provided above)

Clean area with smoothtop cleaner conditioner with clean dam p paper towel, nonabrasive nylon pad, or scouring brush. If spot is not removed, on cool cooktop carefully scrape area with a safety scraper held at a 30degree angle.

Fine scratches are not removable but can be minimized by daily use of smoothtop cleaner conditioner.

Follow label instruc tions ca re fully. S e e Ro u tine Cleaning, above.

are not removed by normal cleaning, use a safety scraper at a 30° angle and cooktop cleaner conditioner to carefully sc ra pe o ff the m ark.

Turn control to LOW setting. W ipe up exces s sp ill with dry cloth. Allow top to co o l an d c a refully scrape area with a safety scraper held at a 30degree angle.

Mix smoothtop cleaner conditioner with water and apply thick paste to stained area. Scrub vigorously. If stain is not rem o ve d , reapply cleaner and repeat process

make sure the su rfac e is coo l and p u t a sm all amount of white vinegar on the spot and let it sit a few minutes. Using a nonabrasive nylon pad, gently rub the spot. Wipe off any exces s with a damp paper towel, then dry.

Care and Cleaning (contd)

Cleaning Stainless Steel

Damage to stainless steel finish due to improper use of cleaning products, or using non-recommended cleaning products, is not covered under warranty. For Amana recommended products, call

Consumer Affairs at 1(800) 843-0304 or online at www.amana.com. Our stainless steel appliances have been factory finished for high shine

and luster. To maintain this quality appearance:

DO USE:DO NOT USE:

Can I use liquid

cleaners on my stainless

steel?

Just because a cleaner is a liquid does not mean it is non-abrasive. Many liquid cleansers designed to be gentle on tile and smooth surfaces still damage stainless steel. Cosmetic damage from using non-recommended products is not covered under warranty.

Citric Acid

Citric acid permanently discolors stainless steel.

To prevent damage to the finish of your stainless steel appliance, do not allow these substances to remain on the steel finish:

• Abrasive powders or liquids

• Citrus based cleaners

• Ammonia

• Steel wool pads

• Abrasive cloths

• Oven cleansers

• Acidic or vinegar based cleaners

• Warm soapy water for routine cleaning

• Soft clean cloths to dry or polish

• Stainless steel cleaner designed for appliances such as

Cleaning Polish and Conditioner for Stainless Steel (#31960801)

Amana

For best cleaning results

1. Wash surfaces with warm soapy water and a soft, clean cloth or sponge.

2. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth. DO NOT use the following harsh cleaners:

• abrasive or acidic cleaners (ammonia, chlorine bleach, vinegar-based

product, etc.)

• citrus-based cleaners

• scouring pads (metal, textured plastic, etc.) These items can scratch, discolor, or permanently tarnish surfaces.

3. Follow up rinsing by immediately drying with a soft, clean cloth. This will avoid water spotting on stainless steel finish.

• mustard

• tomato juice

• marinara sauce

• citrus based sauces

• citrus based products

Questions? Comments?

Concerns? Contact us!

www.amana.com

or call Consumer Affairs at

1-800-843-0304

Troubleshooting

You may save time and money by checking items below before calling for service. List includes common concerns that are not the result of defective workmanship or materials. If your question is not explained below, contact Amana Consumer Affairs Department at 800-843-0304.

Topic Possible Cause Solution

OPERATION

Appliance not working

Frequent cycling of surface element or warming zone

Oven not working

Clock and timer not working

Oven light not working

Self Clean not working

Oven door will not unlock

Oven not clean after a self clean cycle

Locked light displayed

Display flashing F-(numeric) display

Oven smokes the first few times used

Power outage Make sure appliance is plugged in.

Normal Element cycles to maintain proper heat and to prevent

Programming error Shut off power to oven for five minutes by switching off

Power outage Make sure appliance is plugged in. Verify that circuit

Loose bulb Burnt out bulb

Programming error Shut off power to oven for five minutes by switching off

Oven is self-cleaning Oven still hot

Too much soil, grime left in oven

Soot remains in oven after cycle

Door locked If oven is hot, allow to cool rather than trying to force do or

Power failure reset cl ock Press CLOCK. Service code Shut off power to oven for one to two minutes by

Normal Minor smoking is normal the first few times t he oven is

Verify that circuit breaker is not tripped. Replace household fuse but do not change fuse capacity.

damage to smoothtop.

circuit breaker. Reset circuit breaker and try oven again.

breaker is not tripped. Replace household fus e but do not change fuse capacity.

Check for loose bulb. Tighten. Check for burnt out bulb. Replace if necessary with an appliance bulb.

circuit breaker. Reset circuit breaker and try oven again. Allow cycle to complete. Will not unlatch until a certain cooler temperat ure has

been reached. Do not force door open – will void warranty. May blow cooler air on latch with hair dryer at cool setting to quicken process.

Wipe out and remove excess soil prior to running selfclean cycle.

Normal.

latch open.

switching off circuit breaker. Reset breaker. If continues, contact service department.

used.

COOKING

Food not baking properly Food not roasting properly Food not broiling properly Oven temperature too hot or cold

Oven has strong odor

Not boiling or cooking fast enough

See

Various causes Various causes Various causes Calibrate oven temperature

Normal Ovens will have a ‘new’ odor. Run a self-clean cycle to

Improperly sized cooking utensils

Cooking, Common Baking Problems

See

Cooking, Roasting

See

Cooking, Broiling

See

Using the Oven Control, Oven Temperature

Control Adjustment

remove the odor. Make sure pans fit heating elements.

Requirements.

See Cookware

Troubleshooting (contd)

NOISE

Frequent cycling off and on of oven.

Cracking or popping sound

APPEARANCE

Scratches

Discolorat i on

Hot sugar or plastic melted to surface Pattern fading/wear i n g off

Normal To maintain a temperature for baking, the oven

Normal Wet cooking utensils or possible spillage.

Gritty di rt or rough surface on cooking utensils

Shiny scratches

Dirt

Water spots/marks

Items on top of warm co oktop Warm slightly and rem o ve with safety scr aper. Dirt/film buildup Use recommended cleaner conditioner to

cycles on and off.

Use recommended smoothtop cleaner conditioner.

May be a metal mark. Make sure surface is cool. Use a safety scraper to careful l y scrape off the mark. Apply smo othtop cleaner conditioner and gently rub wit h nonabrasive nylon pad.

Use recommended smoothtop cleaner conditioner to remove dirt from smoothtop.

Make sure surface is cool. Put a small amount of white vinegar on t he spot and let sit for a few minutes. Rub with nonabrasive nylon pad. Wipe off any excess with damp paper towel.

remove build up and dirt from smoothtop.

293031

Amana Warranty

Full ONE Year Warranty

Amana Appliances will repair or replace, including related labor and travel, any part (f.o.b. Amana Iowa) which proves defective as to workmanship or materials.

Limited Warranty

After one year from the date of original retail purchase, Amana will provide a free part, as listed below, to replace any part that fails due to a defect in materials or workmanship. The owner will be responsible for paying all other costs including labor, mileage, and transportation.

Second through Fifth Year

Amana will provide replacement glass/ceramic cooktop, seal, and electric surface elements, part only (f.o.b. Amana Iowa) which prove defective as to workmanship or materials.

What is not covered by these

warranties

• Replacement of household fuses, resetting of circuit breakers, or correction to household wiring or plumbing.

• Normal product maintenance and cleaning, including light bulbs.

• Products with original serial numbers removed, altered, or not readily determined.

• Products purchased for commercial, industrial, rental, or leased use.

• Products located outside of the United States or Canada.

• Premium service charges, if the servicer is requested to perform service in addition to normal service or outside normal service hours or area.

• Adjustments after the first year.

• Repairs resulting from the following:

• Improper installation, exhaust system, or

maintenance.

• Any modification, alteration, or adjustment not

authorized by Amana.

• Accident, misuse, abuse, fire, flood, or

acts of nature.

• Connections to improper electrical current,

voltage supply , or gas supply .

• Use of improper pans, containers, or accessories

that cause damage to the product.

To Receive Warranty Service

Service must be performed by an authorized Amana service representative. Appliance must be reasonably accessible to servicer. To schedule service, contact the Amana dealer where you purchased your appliance or contact Amana Appliances Factory Service.

Amana Appliances Factory Service

1-800-628-5782 inside USA

For more information, Amana Appliances Consumer Services

Amana Appliances 2800 220th Trail Amana, Iowa 52204 1-800-843-0304 inside USA (319) 622-551 1 worldwide

When contacting Amana Appliances please

include the following information:

• Your name, address, and telephone number.

• Model number and serial number of your appliance (found on right side of storage drawer opening).

• The name and address of your dealer and the date of purchase.

• A clear description of the problem.

• Proof of purchase (sales receipt).

IN NO EVENT SHALL AMANA BE LIABLE FOR INCIDENT AL OR CONSEQUENTIAL DAMAGES .

This warranty gives you specific legal rights, and you may have others which vary from state to state. For example, some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you.

Part No.36-32066501-0 Printed in U.S.A.07/01

Amana Appliances Online

• http://www.amana.com

2001 Amana Appliances

Amana, Iowa 52204

Amana ACF4225A, DCF4205, ACF4205A, ACF4215A, ACF422GA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
