1. INTRODUCTION

The MC500.4 Four Channels Power Amplifier is designed for professional use and provides unparalleled quality. It

Includes soft start, signal limit, two variable-speed-low-noise fans and a LED meter display. Each channel is equipped

with independent protective circuitry against open circuit, short circuit, mismatched loads and overheat. It includes four

independent channels with separate power supply. Furthermore, every channel has also a main LED that becomes

green for power-on indicator and green for muting or protection, another red LED that shows true amplifier clipping

and a yellow one for the limit stage. The high-quality components and the carefully designed circuits ensure

excellent audio performance and an extremely linear frequency response, giving crystal-clear sound in the high

range and an up-front, full-bodied bottom end. This amplifier guarantees total reliability and a trouble-free use even

in the most demanding conditions. We believe the MC500.4 not only look great, but provide a perfect performance,

what you get is unprecedented performance at an incredibly attractive price.

2. FEATURE

Innovative design and high stability power amplifier

Fan-cooled AB class high power amplifier in 19", 2U size

4 independent channels with separate protection system

DC, infrasonic, overheat & short circuit protection

Smart-designed protection system for auto re-operation after fault

Parallel-input: channel 1 to channel 2, channel 3 to channel 4

Allow selection of Stereo, Bridge or parallel operation

Ultra low-noise and hum
High-pass filter , allow selection of flat, 35 Hz or 75Hz, protect speakers and prevent speaker transformer saturation

with minimal effect on program material.

DIP switch control for clip limit, high-pass filter, bridge-mono selections

AUTO variable- speed-low-noise fans ensure high reliability even under demanding conditions.

Detachable Euroblock: " Barrier strip" input connectors.

Rugged amplifier in a strong, compact chassis

4

3. CONTROL ELEMENTS

3.1

The Front Panel

2

MC500.4

PWR ON

ON

OFF

POWER

1

Power Switch

1

334 5

500W 4 Professional Amplifier

CLIP

PROT

CLIP

-10dB

-10dB

LIMIT

-20dB

-20dB

BRDG

LEVEL PAR LEVEL

20

20

18

18

22

16

16

24

26

12

12

28

6

6

(dB)

30

CH1

CH2

6

998

LEVEL PAR LEVEL

22

16

24

26

12

28

6

(dB)

30

CH3

CLIP

CLIP

PROT

-10dB

-10dB

LIMIT

-20dB

-20dB

BRDG

20

20

18

18

22

22

16

24

24

26

26

12

28

28

6

(dB)

(dB)

30

30

CH4

R

LTO

7

It switches on / off MC500.4 main power.

Power LED

2

This LED lights up when the amplifier is powered on

Input Level Indicator Display

There are three high accurate LED indicators, which shows the level of the input signal. When the respective
channel's output signal distortion exceeds 0.5%, the red LED (clip) indicator lights up. it will warn you that the
level of the input signal is too high and may cause distortion, please attenuate the level of the input signal.

Protection LED

4

This green LED indicator lights up when the amplifier is powered ON, indicating that the soft-start protection
system is working. No sound is output during soft-start up. if one of the protection systems is activated during
normal use, this indicator lights up and no sound is output. The speakers system is actually disconnected from
the amplifier outputs when this indicator lights up. The protection systems are activated when overheating
occurs or a DC voltage is corrected, the protection systems deactivate automatically, this indicator goes out, and
normal amplifier operation is resumed.

Output Limiter LED

5

Set the clip limit switch at "ON" position, the yellow LED lights up when the unit is limiting the output signal.

6

Level Control

This pot provides smooth level changes control.

7

Fan

The unit is equipped with two fans, which can accelerate the flow of air to lower the temperature inside unit. The
inside temperature determines the fan speed, which controls the inside air flowing speed.

Bridge Mode LED Indicator

8

When you operate the unit in bridge mode, the LED indicator lights up .

Parallel Mode LED Indicator

When you operate the unit power amplifier in parallel mode, the LED indicator lights up

5

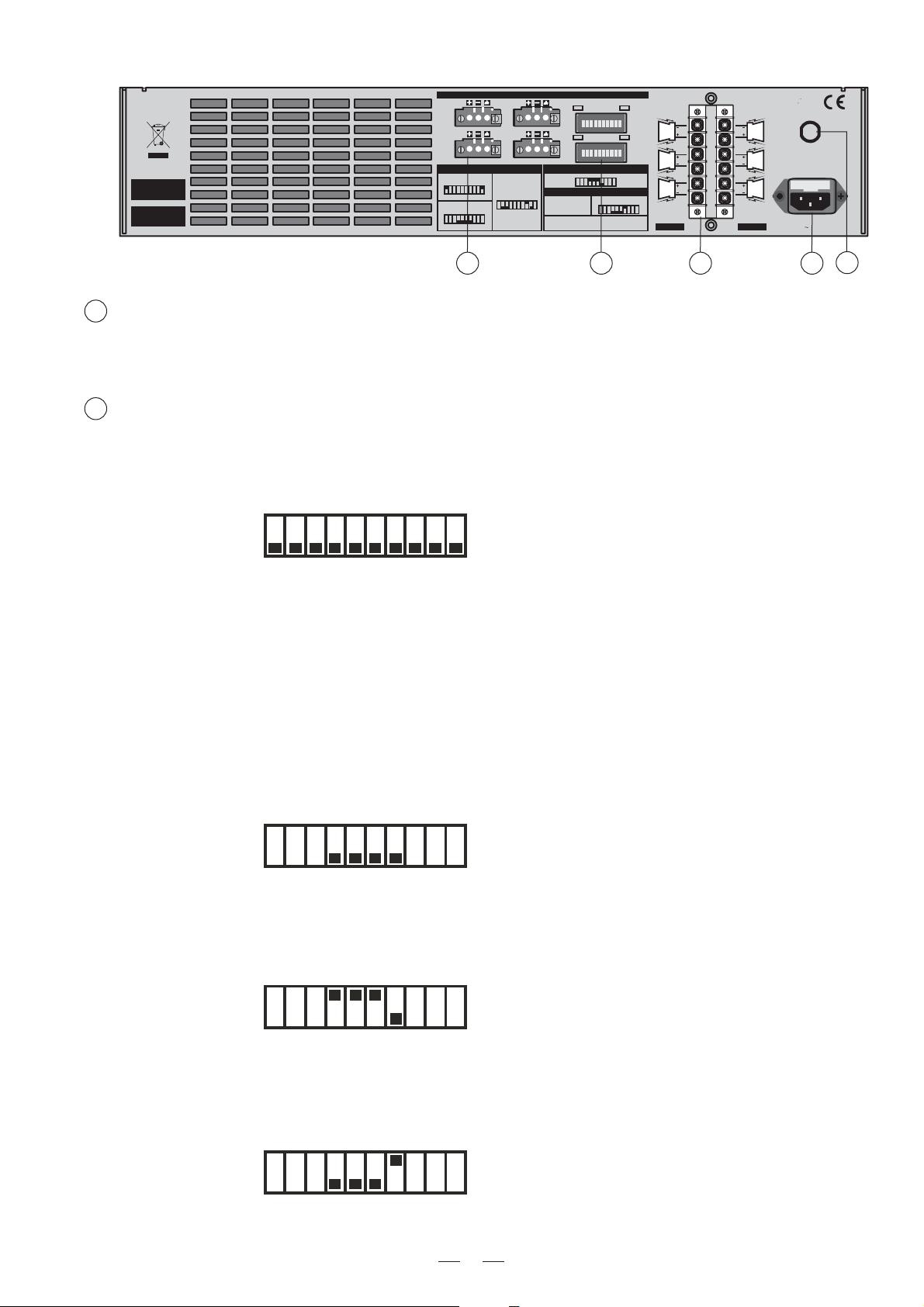

3.2 The Rear Panel

INPUTS

CH2

CH4

FILTERS

35HzFILTER

FILTERON

5

67 10

4

1

FILTEROFF

75HzFILTER

CH1MODE SWITCHES CH2

CH3MODE SWITCHES CH4

PARALLELMODE

12

35HzFILTER

75HzFILTER

BRIDGE MONO

FILTERON

BRIDGEABLE
CHANNEL PAIRS:

CH1AND CH2
CH3AND CH4

TOBRIDGE CHANNEL PAIRS SET INPUT SWITCHES AS
SHOWN.USE THE LOWER NUMBERED CHANNEL'S INPUT

FILTEROFF

ANDGAIN CONTROL. CONNECT SPEAKER AS SHOWN.

12345678910

12345678910

5

3

678910

4

SWITCH SETTINGS
1234567

11

8910

BRIDGE

MONO

CH2

OUTPUTS

12

MODEL

SERIAL

10

INPUT Terminal

CH1

CH3

MODE SWITCH SETTINGS

CLIP LIMIT

ON

5

3

6789

4

2

OFFONOFF

STEREO MODE

5

3

678910

4

12

10

This unit is provided with balanced terminals, which are used to connect the input signal. Channel 1

Apparatenskall anslutas
tilljordat uttag nar den
anslutstill ett natverk

CH3CH1

BRIDGE

MONO

CH4

OUTPUTS

and channel 3

AC INPUT

are used in bridge and parallel mode.

Mode Selector

11

You can choose the right function and output you need via the mode selector switch. In order to make you acquire

these settings, now let me introduce the dip switch.

12345678910

BREAKERBREAKER

14

Useonly with a 250V fuse

13

This switch is made up of 10 small dip switches, these small dip switches from1 to 5 control one channel, these
rest ones (6-10 ) control the other channel, ok, you can choose the right mode setting you need via these small

dip switches. Take the dip switch of channel 1 and channel 2 for example. Channel 3 and channel 4 are the same
as channel 1 and channel 2

- Output Mode Selector

This unit provides three output modes: stereo, bridge and parallel. Here are some details:

turn these small dip switches of 4, 5, 6, 7 up to the top, then channel 1 and channel 2 are inStereo mode: stereo

mode;

STEREO MODE

12345678910

Parallel mode: turn these small dip switches of 4, 5, 6, to the top, and turn the small dip switch of 7 down, then
channel 1 and channel 2 are in parallel mode.

PARALLEL MODE

12345678910

Bridge mode: turn these small dip switch of 7 up to the top, then channel 1 and channel 2 are in bridge

BRIDGE MODE

1234

Please refer to chapter 5 for the connection of loads in detain.

5678910

6

mode.

- function selector

Clip limit : set these small dip switches of 1(ON) and 10(ON) at "ON" position , then the clip limit of channel 1

and channel 2 has been working; once the output level is reach or exceed the level that is predetermined by the

threshold setting selected, it may result in the undesirable distortion .in order to avoid the distortion, the clip begins;
if the dip switch are set at "OFF", the clip limit doesn't work.

CLIP LIMIT

ON

23456789

ON

OFF

Filter: this unit are equipped with two low cut filter eliminating unwanted low- frequency signals like rumble noise:
75Hz and 35Hz. You will activate 35Hz low cut filter by Turning these two small dip switches of 2 and 9 up to the
top, and turn these two small dip switches down, you will choose 75Hz low cut filter.

FILTER ON

35Hz FILTER

5

67 10

FILTER OFF

4

75Hz FILTER

1

Output Terminal

12

You can output the powered signal by the specific output connectors according to the actual application circumstance.

Caution: turn off the unit before connecting the output connectors so as to avoid any electric shock!

OFF

35Hz FILTER

FILTER ON

FILTER OFF

75Hz FILTER

Breaker

13

This switch works as fuse for protecting the unit from damage. When the unit is overloaded or the temperature
inside the unit is too high, this push-button will spring up and break the power supply. The power supply will be
restored with pushing this switch again.

14

AC-Inlet

This standard IEC receptacle is supplied to allow to connect your MC500.4 to mains via the supplied power cord.

4. Installation

4.1 Mains connection

Do not insert the power cord into this unit until voltage has been correctly set. Do not plug the power cord into the

mains until the voltage has been correctly set. Please ensure that the MC500.4 professional power amplifi ris

supplied with the correct voltage before turning on this unit. If you can't power up this unit while turning on the mains

switch (1), check the Breaker (14) on the rear panel fist, maybe it is pressed to reset. Otherwise, contact the

technician or qualified personnel for any service.

Caution: To reduce the risk of electric shock, do not perform any servicing other than contained in this manual unless

you are qualified to do so. Please turn off this unit before any installation and connection, esp. when you connect

your unit into the sound system. This is important to prevent damage to the unit itself as well as other consequent

speaker system. This is important to prevent damage to the unit itself as well as other consequent speaker system.

The mains connection of the MC 500.4 professional power amplifier is made by using the enclosed power cord and

a standard IEC receptacle, and it meets all of the international safety certification requirement.

7

4.2 Rack Mounting
the most secure mounting is on a universal rack shelf available from various rack manufactures or your music dealer.
The MC500.4 professional power amplifier fits into one standard 19" rack unit of space. Be sure that there is enough
air space around the unit for sufficient ventilation. If heat release is inadequate, this unit will retain heat inside, which
may cause the protection, or even a fire.

5. Application

The MC500.4 provides three operating modes with each unit: stereo mode, parallel mode and bridged mode, you

can decide each specific operating mode according to your actual application circumstance. Following examples will

show you the typical connections, you can refer to install your MC500.4 into a sound system:

5.1 Operate MC500.4 Power Amplifier In Stereo Mode

In this mode, channel 1 and channel 2 operate independently ( as a conventional stereo amp).The channel 1 input
signal will be output from the channel 1 output jacks, and the channel 2 input signal will be output form the channel 2
output jacks.(take channel 1 and channel 2 for example)

MODEL

SERIAL

Channel 1

CH1

CH3

MODE SWITCH SETTINGS

CLIP LIMIT

ON

5

3

6789

4

2

OFFONOFF

STEREO MODE

5

3

678910

4

12

INPUTS

CH2

CH4

FILTERS

35HzFILTER

FILTERON

5

67 10

4

1

FILTEROFF

75HzFILTER

CH1MODE SWITCHES CH2

CH3MODE SWITCHES CH4

35HzFILTER

FILTERON

BRIDGEABLE
CHANNEL PAIRS:

CH1AND CH2
CH3AND CH4

TOBRIDGE CHANNEL PAIRS SET INPUT SWITCHES AS
SHOWN.USE THE LOWER NUMBERED CHANNEL'S INPUT

FILTEROFF

ANDGAIN CONTROL. CONNECT SPEAKER AS SHOWN.

75HzFILTER

Channel 2

STEREO MODE

12345678910

12345678910

12345678910

PARALLELMODE

5

3

678910

4

12

BRIDGE MONO

SWITCH SETTINGS

1234567

8910

BRIDGE
MONO

CH2

OUTPUTS

CH3CH1

BRIDGE

MONO

CH4

OUTPUTS

Channel 1

Channel 2

Apparatenskall anslutas
tilljordat uttag nar den
anslutstill ett natverk

BREAKERBREAKER

AC INPUT

+

+

+

Useonly with a 250V fuse

8

5.2 Operate MC500.4 Power Amplifier In Parallel Mode

in this mode, the channel 1 input signal will be output from the output connectors of both channel 1 and channel

2. The channel 2 input jack is not used. The channel 1 and channel 2 volumes can be adjusted independently.

MODEL

SERIAL

5.3 Operate MC500.4 In Bridge Mode

Channel 1

CH1

CH3

MODE SWITCH SETTINGS

CLIP LIMIT

ON

5

3

6789

4

2

OFFONOFF

STEREO MODE

5

3

678910

4

12

INPUTS

CH2

CH4

FILTERS

FILTERON

35HzFILTER

5

67 10

4

1

FILTEROFF

75HzFILTER

CH1MODE SWITCHES CH2

CH3MODE SWITCHES CH4

PARALLELMODE

35HzFILTER

FILTERON

BRIDGEABLE
CHANNEL PAIRS:

CH1AND CH2
CH3AND CH4

TOBRIDGE CHANNEL PAIRS SET INPUT SWITCHES AS
SHOWN.USE THE LOWER NUMBERED CHANNEL'S INPUT

FILTEROFF

ANDGAIN CONTROL. CONNECT SPEAKER AS SHOWN.

75HzFILTER

12345678910

12345678910

5

3

678910

4

12

BRIDGE MONO

SWITCH SETTINGS
1234567

8910

PARALLEL MODE

12345678910

BRIDGE

MONO

CH2

OUTPUTS

CH3CH1

BRIDGE

MONO

CH4

OUTPUTS

Channel 1

Channel 2

Apparatenskall anslutas
tilljordat uttag nar den
anslutstill ett natverk

BREAKERBREAKER

AC INPUT

+

+

+

Useonly with a 250V fuse

In this mode, the channel 1 input signal will be output from the bridge output connectors. In this case, use the channel 1
volume control to adjust the volume. keep the volume control of channel 2 turned completely down (counterclockwise).
Then, you can control the volume of the whole system by adjusting the channel 1 volume control.

MODEL

SERIAL

Channel 1

CH1

CH3

MODE SWITCH SETTINGS

CLIP LIMIT

ON

5

3

6789

4

2

OFFONOFF

STEREO MODE

5

3

678910

4

12

INPUTS

CH2

CH4

FILTERS

35HzFILTER

FILTERON

5

67 10

4

1

FILTEROFF

75HzFILTER

CH1MODE SWITCHES CH2

CH3MODE SWITCHES CH4

PARALLELMODE

12

35HzFILTER

FILTERON

BRIDGEABLE
CHANNEL PAIRS:

CH1AND CH2
CH3AND CH4

TOBRIDGE CHANNEL PAIRS SET INPUT SWITCHES AS
SHOWN.USE THE LOWER NUMBERED CHANNEL'S INPUT

FILTEROFF

ANDGAIN CONTROL. CONNECT SPEAKER AS SHOWN.

75HzFILTER

12345678910

12345678910

5

3

678910

4

BRIDGE MONO

SWITCH SETTINGS
1234567

8910

BRIDGE

MONO

CH2

OUTPUTS

CH3CH1

BRIDGE

MONO

CH4

OUTPUTS

Apparatenskall anslutas
tilljordat uttag nar den
anslutstill ett natverk

BREAKERBREAKER

AC INPUT

Useonly with a 250V fuse

+

BRIDGE MODE

1234

5678910

9

6.CAUTION FOR APPLICATION

6.1 General Application instruction

the following instructions describe the common ways to install your MC500.4 power amplifier into a sound application
system:

First, turn off power switch before connection.

Refer to chapter 5 for speaker connection

MC500.4 power amplifier may be operated in one of the three modes, please slide the mode selector for the
specific operating mode

6.2 caution for speak connection

The output capacity of MC 500.4 power amplifier is very high, be sure to use a speaker system that has sufficient
input capacity. If the input capacity of your speaker system is lower than the rated output of the MC500.4 power
amplifier, you can protect your speakers by connecting a fuse serially between the speaker and the amplifier
as shown below.

MODEL

SERIAL

CH1

CH3

MODE SWITCH SETTINGS

CLIP LIMIT

ON

5

3

6789

4

2

OFFONOFF

STEREO MODE

5

3

678910

4

12

(+)

(-)

Output

INPUTS

CH2

CH4

FILTERS

35HzFILTER

FILTERON

5

67 10

4

1

FILTEROFF

75HzFILTER

CH1MODE SWITCHES CH2

CH3MODE SWITCHES CH4

PARALLELMODE

35HzFILTER

FILTERON

BRIDGEABLE
CHANNEL PAIRS:

CH1AND CH2
CH3AND CH4

TOBRIDGE CHANNEL PAIRS SET INPUT SWITCHES AS
SHOWN.USE THE LOWER NUMBERED CHANNEL'S INPUT

FILTEROFF

ANDGAIN CONTROL. CONNECT SPEAKER AS SHOWN.

75HzFILTER

12345678910

12345678910

5

3

678910

4

12

BRIDGE MONO

SWITCH SETTINGS
1234567

8910

BRIDGE

MONO

CH2

OUTPUTS

Fuse

CH3CH1

BRIDGE

MONO

CH4

OUTPUTS

Apparatenskall anslutas
tilljordat uttag nar den
anslutstill ett natverk

BREAKERBREAKER

AC INPUT

+

Speaker

­System

Useonly with a 250V fuse

Use the following formula to determine the fuse capacity according to the speaker's input capacity.

2

Po=I R I= Po/R
Po[W] : Speaker's continuous input capacity (noise or RMS)
R[ ] : Speaker's nominal impedance
I[A] : Required fuse capacity

As to the speaker cable, if you use a long one, use as thick a cable as possible to prevent deterioration of the
damping factor or power loss inside the cable.

10

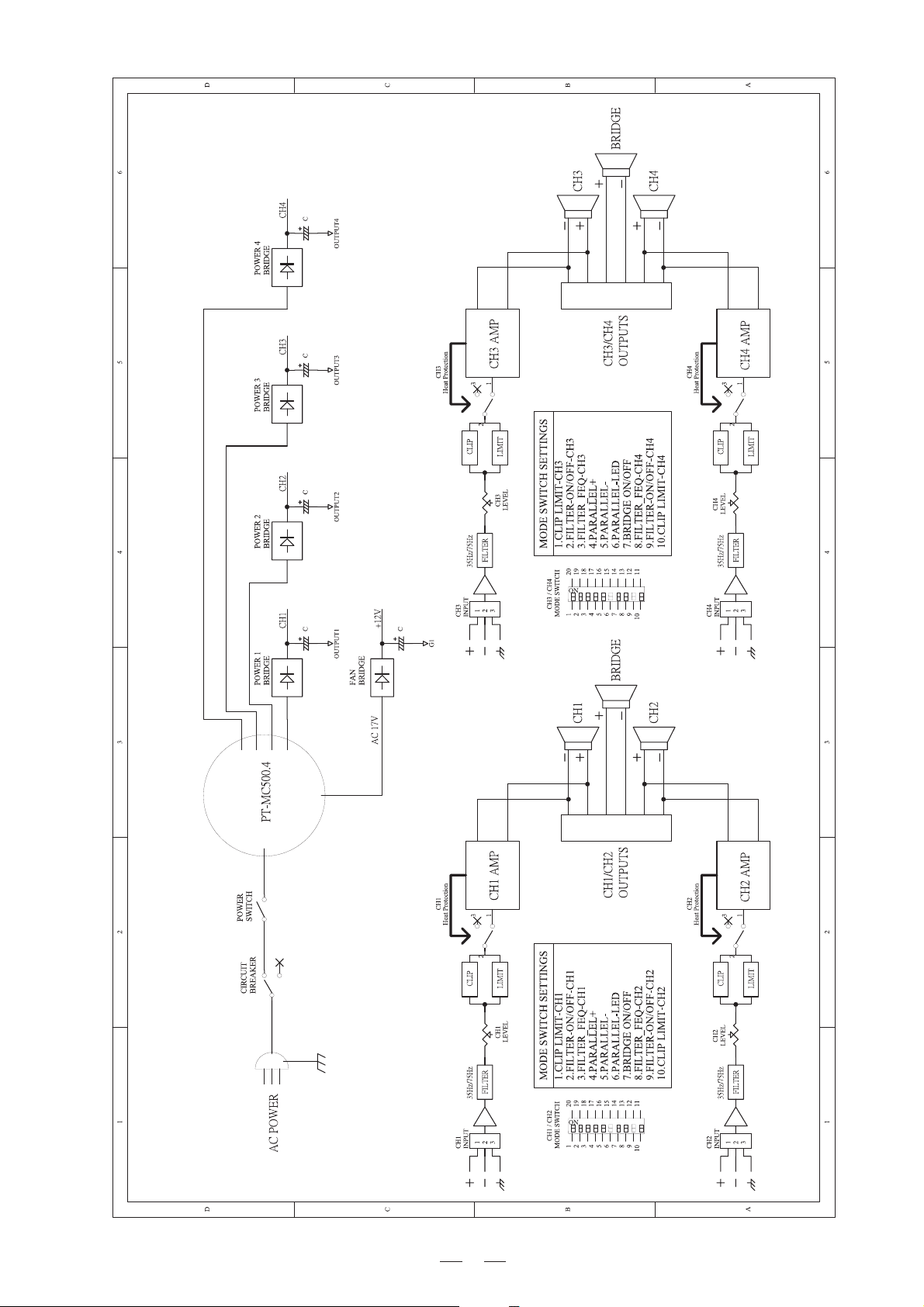

7. BLOCK DIAGRAM

11

8. TECHNICAL SPECIFICATION

Model
Output Power
20Hz 20kHz @0.1%THD , stereo Mode
8 ohms per channel (EIAJ)
4 ohms per channel (EIAJ)
Bridge Mono Mode
8 ohms, 1kHz, 0.1% THD (EIAJ)
Distortion (SMPTE-IM)
Frequency Response
Damping Factor, 1kHz, 0.1%THD(EIAJ)
Signal to Noise, 20Hz-20kHz
Voltage Gain
Input sensitivity @ 4 ohms
Input clipping
Input impedance
Controls

Indicators

Connectors, each channel

cooling
Load protection
Power supply
Dimensions

Net weight

MC500.4

4x300W

4x500W

2 1000W

<0.05%

20Hz- 20kHz 1dB, -3dB point: 10Hz- 60kHz

>300@8 ohms

100dB
40 ( 32dB)

1Vrms
10 Vrms (+22dB)
10Kohms unbalanced, 20 Kohms balanced
Front: AC Switch, Ch1 - Ch4 Gain Knobs
Rear: MODE SWITCHS

Power - On: Blue LED

Protection: Green LED
LIMITER:YellowLED
Clip: Red LED

Parallel-input: Yellow LED
Bridge: Yellow LED
Level: Green LED (-20 and -10dB)

Input: Terminal Block
Output: Screw-terminal Barrier Block

Continuously variable- speed fan, front - to - rear air flow

On / Off muting, overheat & short circuit protection

220-240 ( 110-120) Vac 50-60 Hz

19" ( 48.3 cm) rack mounting, 3.5" ( 8.9 cm) tall(2rackspaces),

15.9" ( 40.3 cm) deep ( rack mounting to rear support ears)
19Kg

12

9. WARRANTY

1. WARRANTY REGISTRATION CARD

To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within
10 days of the Purchase Date.

All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of
the sales status, so as to purport a more effective and efficient after-sales warranty service.

Please fill out all the information carefully and genuinely, miswriting or absence of this card will void your warranty
service.

2. RETURN NOTICE

2.1 In case of return for any warranty service, please make sure that the product is well packed in its original shipping
carton, and it can protect your unit from any other extra damage.

2.2 Please provide a copy of your sales receipt or other proof of purchase with the returned machine, and give detail
information about your return address and contact telephone number.

2.3 A brief description of the defect will be appreciated.

2.4 Please prepay all the costs involved in the return shipping, handling and insurance.

3. TERMS AND CONDITIONS

3.1 warrants that this product will be free from any defects in materials and/or workmanship for a period

LTO

of 1 year from the purchase date if you have completed the Warranty Registration Card in time.

3.2 The warranty service is only available to the original consumer, who purchased this product directly from the
retail dealer, and it can not be transferred.

3.3 During the warranty service, may repair or replace this product at its own option at no charge to you for

LTO

parts or for labor in accordance with the right side of this limited warranty.

3.4 This warranty does not apply to the damages to this product that occurred as the following conditions:

Instead of operating in accordance with the user's manual thoroughly, any abuse or misuse of this product.

Normal tear and wear.

The product has been altered or modified in any way.

Damage which may have been caused either directly or indirectly by another product / force / etc.

Abnormal service or repairing by anyone other than the qualified personnel or technician.

And in such cases, all the expenses will be charged to the buyer.

3.5 In no event shall be liable for any incidental or consequential damages. Some states do not allow the exclu-

LTO

sion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

3.6 This warranty gives you the specific rights, and these rights are compatible with the state laws, you may also
have other statutory rights that may vary from state to state.

13

SEIKAKU TECHNICAL GROUP LIMITED

SEKAKU ELECTRON INDUSTRY CO., LTD.

No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan

http://www.altoproaudio.com Tel: [phone]

email: [e-mail] Fax: [phone]

All rights reserved to ALTO. All features and content might be changed

without prior notice. Any photocopy, translation, or reproduction of part of this

manual without written permission is forbidden. Copyright 2005 SEIKAKU GROUP

c

NF02240-1.0
