LTO

OWNER'S MANUAL

ELVIS SPEAKER ENCLOSURES

PASSIVE AND ACTIVE MODELS

www.altoproaudio.com

Version 2.0 SEPTEMBER 2007

English

IMPORTANT SAFETY INSTRUCTION

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS.

This symbol, wherever used, alerts you to the

presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.

This symbol, wherever used, alerts you to important operating and maintenance instructions.

Please read.

Protective Ground Terminal AC mains (Alternating Current)

Hazardous Live Terminal ON: Denotes the product is turned on. OFF: Denotes the product is turned off.

CAUTION

Describes precautions that should be observed to prevent damage to the product.

Read this Manual carefully before operation. Keep this Manual in a safe place.

Be aware of all warnings reported

with this symbol.

Keep this Equipment away from water and moisture.

Clean it only with dry cloth. Do not use solvent or other chemicals.

Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions.

Power Cords are designed for your safety. Do

not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire.

Unplug this equipment when unused for long

periods of time or during a storm.

Refer all service to qualified service personnel

only. Do not perform any servicing other than those instructions contained within the User's Manual.

To prevent fire and damage to the product,

10.

use only the recommended fuse type as indicated in this manual. Do not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.

WARNING

To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain.

Dispose of this product should notbeplacedinmunicipalwaste and should be separate collection.

MovethisEquipmentonlywithacart,

11.

stand, tripod, or bracket, specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip-over.

12.

Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level. These are shown in the following chart:

HOURS X DAY

8 6 4 3 2 1,5 1 0,5 0,25 or less

According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation.

The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

EXAMPLE

SPL

Small gig

train

Subway train

High level desktop monitors

Classic music concert

100 102 105 110 115

Rock concert

IN THIS MANUAL:

1. INTRODUCTION..................................................................................1

2. QUICK START - PASSIVE SPEAKER CABINETS.......................................2

-. For Passive Full-range Speakers

-. For Passive Subwoofer & Satellite Speakers

3. QUICK START - ACTIVE SPEAKER CABINETS.........................................4

-. For Active Full-range Speakers

-. For Active Subwoofer & Satellite Speakers

4.CONNECTIONS....................................................................................10

-. PASSIVE FULL-RANGE Speaker for ELVIS10/ELVIS12/ELVIS15/ELVIS12M/ELVIS15M

-. PASSIVE SUBWOOFER Speaker for ELVIS12S/ELVIS15S

-. Active FULL-RANGE Speaker for ELVIS10A/ELVIS12/AELVIS15A/ELVIS12MA/ELVIS15MA

-. Active SUBWOOFER Speaker for ELVIS12SA/ELVIS15SA

5. WIRE CONNECTIONS..........................................................................13

6. TECHNICAL SPECIFICATION.................................................................14

7. WARRANTY........................................................................................20

1. INTRODUCTION

Thank you for your purchasing one of our ELVIS speaker enclosures. It is just one of the many Alto products that a talented, multinational Team of Audio Engineers and Musicians have developed with their great passion for music. We design all our transducers and cabinets in Emilia-Romagna of Italy, a lowland famous for music and fast cars. In fact, Lamborghini, Maserati and Ferrari are made just a few miles away from our design centers. The same area has a long tradition in designing and manufacturing some of the world's best professional transducers. Your ELVIS speaker cabinet is capable of very high sound pressure level and it has been created to give you a performance that is better than any loudspeaker in this range. They are flexible in their passive and active configurations and can be used with single and multiple subwoofers. The active models even include a microphone preamplifier and a three-band graphic equalizer.

Enjoy your ELVIS speaker and make sure to read this Manual carefully before operation!

HOOK

2. QUICK START - PASSIVE SPEAKER CABINET

Passive, Full-range, two speakers. This is the simplest set-up. You just need a mixer and a stereo amplifier. It is good for small club gigs, disco,etc. Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned down completely.

1). Connect one side of the speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other side to the Input socket of your Elvis speaker cabinet.

2). Complete other connections as illustrated.

3). Turn on your mixer first, then the stereo power amplifier.

4). Turn up the volume controls of your amplifier to about 70%.

5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.

6). After use, turn off your stereo power amplifier first, then the mixer.

STEREO AMPLIFIER

SIGCLIPPROT SIGCLIPPROT

(dB)

CH1

CH2

500W2500W2

MIXER

If you use a powered mixer for the passive speakers, it is no need to use an amplifier. make sure all the main volume controls of your power mixer are turned down completely.

1). Connect one side of the speaker cable to the SPEAKER OUT of your powered mixer and the other side to the Input socket of your Elvis speaker cabinet.

2). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.

3). After use, turn down of the Main Mix Level control first, then turn off the powered mixer.

APM120

LTO

12CHANNEL1000WATTPOWEREDMIXER WITH

LINE IN

MAIN OUT L

POWERED MIXER

24-BITMULTI-EFFECTSPROCESSOR

LINE IN

MAIN OUT R

HOOK

3. QUICK START - PASSIVE SPEAKER CABINETS

Passive, Full-range, four speakers. It is similar to the first set-up but four speakers are connected instead of two.

1).Follow the same steps as described above.

2).Connect the THROUGH socket of the first Elvis cabinet to the INPUT socket of the second Elvis cabinet.

NOTE: Every time you connect Elvis cabinets this way your parallel them to the output of the amplifier that will read half of the impedance of one speaker.

THROUGH

INPUT

SIGCLIPPROT SIGCLIPPROT

(dB)

CH1

CH2

STEREO AMPLIFIER

INPUT

500W 2

THROUGH

MIXER

HOOK

3. QUICK START - PASSIVE SPEAKER CABINETS

Passive two subwoofers and two satellite speakers. With this example, the stereo amplifier drives both the subwoofers and the satellites. In this case we do not call them full-range anymore because they receive a signal from the subwoofer that is already xovered at 125 Hz. In this way, the high energetic content of the low frequencies is limited to the subwoofer and the satellite's woofer act like a mid-woofer.

1). Connect one side of speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other side to the Input socket of your subwoofer, with the second speaker cable connect the Output of the sub

-woofer to the Input of satellite.

2). Complete other connections as illustrated.

3). Turn on your mixer first, then the stereo power amplifier.

4). Turn up the volume controls of your amplifier to about 70%.

5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.

6). After use, turn off your stereo power amplifier first, then the mixer.

STEREO AMPLIFIER

INPUT

OUTPUT

ELVIS SUBWOOFER

INPUT

SIGCLIPPROT SIGCLIPPROT

(dB)

CH1

CH2

500W2

OUTPUT

INPUT

ELVIS SUBWOOFER

MIXER

INPUT

HOOK

3. QUICK START - ACTIVE SPEAKER CABINETS

Active, Full-range, two speakers. It is similar to the passive example but you do not need a power amplifier in between the mixer and the 2 ELVIS speakers Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned down completely.

1). Connect one side of the signal cable at your mixer into the Main Output Left / Right (with 1/4"Jack or XLR) and the other side of the cable in to the Line Input (COMBO) of your ELVIS active speaker cabinet (with1/4"Jack or XLR).

2). Connect the power cord to mains.

3). Turn ON your mixer first, then the ELVIS cabinets.

4). Turn up the volume control of the ELVIS cabinets.

5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to reach the desired output level.

6). After use, turn off your active speaker cabinets first, then the mixer.

LINE IN

MAIN OUT L

LINE IN

MAIN OUT R

MIXER

HOOK

3. QUICK START - ACTIVE SPEAKER CABINETS

Active, Full-range, multiple speakers. This solution is particularly flexible when you have a large stage and for fixed installations where you want to send the same signal to different zones like in a Bar, Pub, Restaurant, Church, etc. Each ELVIS cabinet has its own volume control so you can adjust different volumes in different zones.

1). Follow the above steps connecting the MAIN OUTPUTS of the mixer to the LINE INPUTS of 2 Elvis active cabinets.

2). Connect the LINE OUT socket of the first ELVIS cabinet to the LINE IN socket of the subsequent piece. You can connect as many speakers as you wish in this way.

LINE IN

LINE OUT

LINE IN

LINE OUT

LINE IN

MIXER

LINE IN

LINE OUT

LINE IN

LINE OUT

LINE IN

HOOK

3. QUICK START - ACTIVE SPEAKER CABINETS

Active, two subwoofers & two satellite speakers. In this example, the mixer is connected to the ELVIS subwoofers and then a 125 Hz xovered line signal is sent to the respective satellites. In this way, the high energetic content of the low frequencies is limited to the subwoofer and the satellite' s woofer act like a mid

-woofer. As a consequence the satellites built-in amplifier is not stressed by low frequency content.

1). Connect one side of signal cable at your mixer into Main Output Left/Right (with1/4" Jack or XLR) and the other side of the cable into the Left/Mono Input (COMBO) of the ELVIS active subwoofers; with the second signal cable connect the Left/Mono Line Output of the subwoofer (Stereo/Mono-Jack or XLR) to the Line input (COMBO) of the active satellite (with Stereo - Jack or XLR).

2). Connect the power cord to mains.

3). Turn on your mixer first, then the active speaker cabinets.

4). Turn up the volume control of the active speaker cabinets.

5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.

6). After use, turn off your active speaker cabinets first, then the mixer.

LINE IN

LINE OUT LEFT/MONO

ELVIS SUBWOOFER

MAIN OUT LEFT

LINE IN LEFT/MONO

LINE IN

LINE OUT LEFT/MONO

MAIN OUT RIGHT

LINE IN LEFT/MONO

ELVIS SUBWOOFER

MIXER

HOOK

3. QUICK START - ACTIVE SPEAKER CABINETS

Active, one subwoofer and two satellite speakers.

This is a very popular combination, especially in small size clubs where there is no need for two subwoofers.

1). Connect one side of signal cable at your mixer into Main Output Left (with 1/4"Jack or XLR) and the other side of the cable into the Left Input of the ELVIS active subwoofer. Repeat for the RIGHT channel. With the second signal cable connect the Left Line Output of the subwoofer (Stereo/Mono

-Jack or XLR) to the Line input (COMBO) of the active satellite (with Stereo

-Jack or XLR). Repeat for the RIGHT channel

2). Connect the power cord to mains.

3). Turn on your mixer first, then the active speaker cabinets.

4). Turn up the volume control of the active speaker cabinets.

5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.

6). After use, turn off your active speaker cabinets first, then the mixer.

LINE IN

LINE OUT LEFT LINE OUT RIGHT

LINEINLEFT

LINEINRIGHT

ELVIS SUBWOOFER

LINE IN

MAIN OUT LEFT

MAIN OUT RIGHT

MIXER

HOOK

3. QUICK START - ACTIVE SPEAKER CABINETS

Active, with Microphone and Line Level instruments.

Your Elvis cabinets come with both Line-level and with Microphone Inputs. You can directly connect a microphone into your Elvis cabinet using the MIC input and a keyboard or an electric guitar (you must interconnect a D/I Box if you want to use the guitar) and use the relative level controls as a simple mixer. You can then use the resident 3-bands graphic equalizer to fine-tune your sound. This configuration is good for presentation, meetings, aerobic centers and fashion shows (you can also connect a wireless microphone into the Line input, or for "One Man band" performances.)

MIC INPUT

LINE INPUT

SPOTLIGHT

4. CONNECTIONS

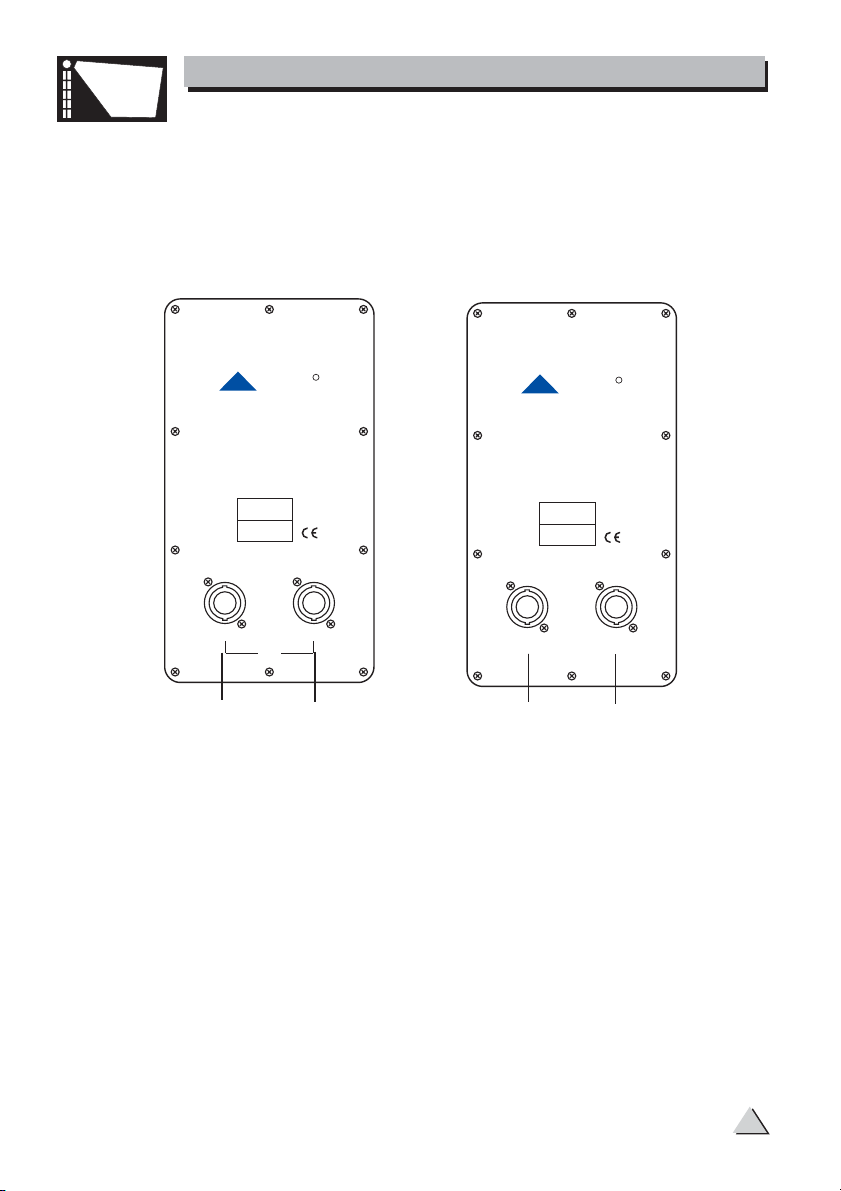

-. PASSIVE FULL-RANGE: ELVIS10/ELVIS12/ELVIS15/ELVIS12M/ELVIS15M

1). Receive the signal coming from an external power amplifier.

INPUT:

(SPK +1/-1 connected; +2/-2 not connected).

2). Direct LINK to connect in parallel a second speaker cabinet

THRU:

(SPK +1/-1 connected; +2/-2 not connected).

LTO

ELVIS 12

SOUND REINFORCEMENTSPEAKER SYSTEM

Power Handling: AES-180Watts PEAK - 360 Watts

IMPEDANCE:

8 ohmsnominal

MODEL

SERIAL

DESIGNEDAND DEVELOPMENT INITALY

INPUT THRU

LINK

(1)

(2)

ELVIS 12S

POWER HANDLING:

AES-200Watts PEAK - 400 Watts

IMPEDANCE:

4 ohmsnominal

MODEL

SERIAL

DESIGNEDAND DEVELOPMENT INITALY

INPUT OUTPUT

(1) (2)

LTO

-. PASSIVE SUBWOOFERS: ELVIS12S/ELVIS15S

1). Receive the signal coming from an external amplifier.

INPUT:

(SPK +1/-1 connected;+2/-2 not connected).

2). Power output for satellite speaker, under passive crossover

OUTPUT:

filtered at 125Hz (SPK +1/-1 connected; +2/-2 not connected).

SPOTLIGHT

4. CONNECTIONS

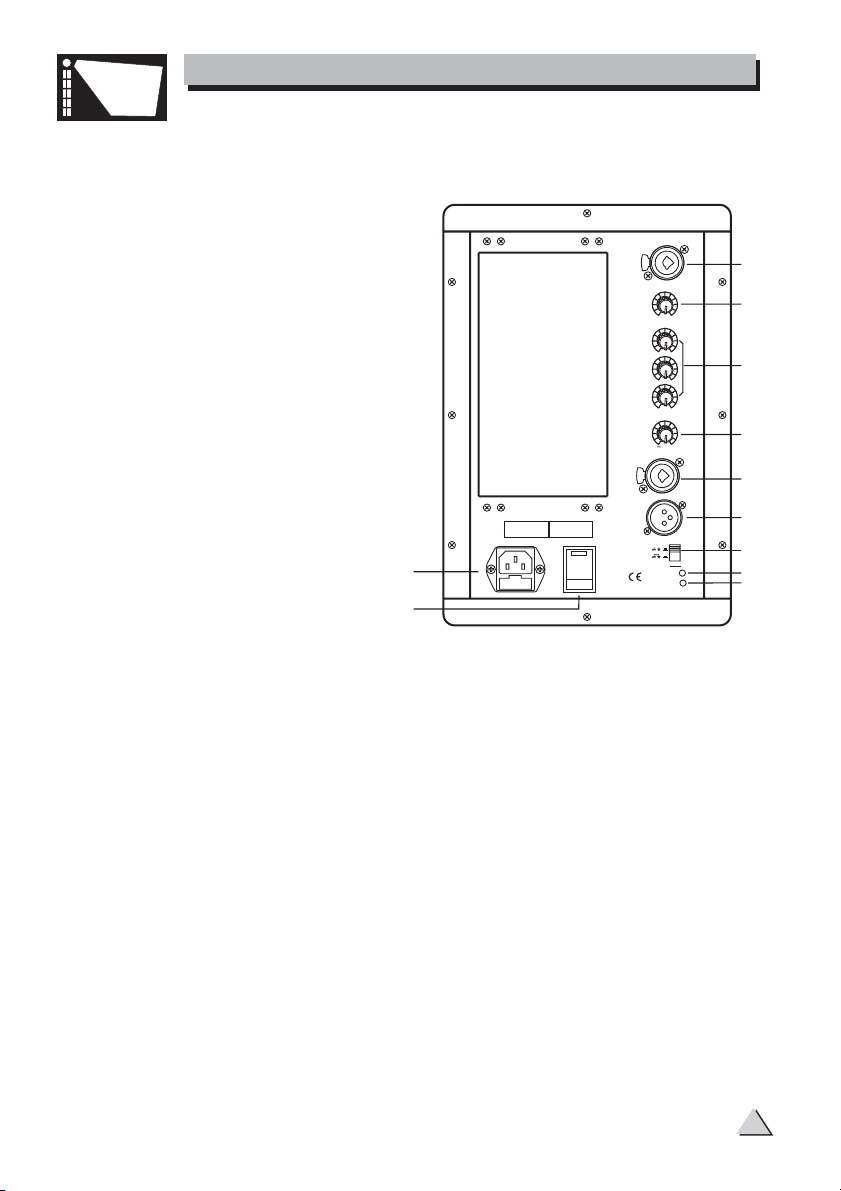

ACTIVE FULL- RANGE :

ELVIS10A/ELVIS12A/ELVIS15A/ELVIS12MA/ELVIS15MA

ON-OFF

1). power switch.

2). Input

3). Switch.

4). blue LED, indicate

5). signal/

6). at + 4dB on XLR

7). at + 4dB on COMBO

8). main power amplifier

9). EQ tone

10). GAIN control for microphone

11). MIC IN on balanced XLR,

3 BANDS EQ

-HI

- MID

- LOW

AC power socket

with main fuse.

Ground lift POWER,

ON status.

SIGN/COMP,

compressor, Green/red LED

LINE OUT

connector

LINE IN

connector.

VOLUME

control.

LOW/MID/HIGH,

control at +/-6dB.

-10/-45dB.

for microphone.

(2)

(1)

MODEL

ACINPUT: 230V~ 50Hz

Useonly with a 250V fuse

SERIAL

OFF

MICGAIN

MIDDLE

VOLUME

LINE-IN

LINE-OUT

TIDE

MICIN

PUSH

NEW

-10dB -45dB

HIGH

-6dB +6dB

LOW

-6dB +6dB

+4dBu

TIDE

PUSH

NEW

GND

SIGN COMP

POWER

You have three EQ control on your Elvis 2-way active cabinets each providing providing +/-6dB of boost and cut. The signal will be unaffected when the controls or on center position.

If you turn this control up you will boost all the frequencies above 12 kHz (shelving filter). You will add transparency to vocals and guitar and also make cymbals crispier. Turn the control down to cut all frequencies above 12 kHz. In such way you can reduce sibilances of human voice or reduce the hiss of a Tape player.

This is a peaking filter and it will boost/cuts frequencies with their center at

2.5 kHz. This control will affect especially upper male and lower female vocal ranges and also the harmonics of most musical instruments.

If you turn this control up you will boost all frequencies below 80 Hz. You will give more punch to bass drums and bass guitar; and you will make the male vocalist more "macho". Turn it down and you will cut all the frequencies below 80 Hz. In this way you can avoid low-frequency vibrations and resonance thus preserving the life of your woofers.

(11)

(10)

(9)

(8)

(7)

(6)

(3)

(5) (4)

SPOTLIGHT

4. CONNECTIONS

ACTIVE SUBWOOFERS: ELVIS12 SA/ELVIS15 SA

1). main power switch.ON-OFF

2). power socket with main fuse.Input AC

3). Switch.Ground lift

4). , blue LED, indicate ON status.POWER

5). , signal/compressor, green/red LEDSIGN/COMP

6). signal output on XLR or Jack connector for active satellite, under

LEFT

electronic crossover at 125 Hz.

7). on XLR connector for active satellite, under electronic crossover

RIGHT

at 125 Hz.

8). main power amplifier control.VOLUME

9). , input signal on XLR connector.RIGHT

10). , input signal on COMBO connector.LEFT/MONO

MODEL

ACINPUT: 230V~ 50Hz

Useonly with a 250V fuse

LINK

LEFT/ MONO

OUT

RIGHT

(6)

(7)

VOLUME

+4dBu

LEFT/ MONO

TIDE

PUSH

NEW

RIGHT

TIDE

PUSH

SERIAL

NEW

GND

OFF

SIGN COMP

POWER

(8)

(10)

(9)

(3)

(5) (4)

(1)(2)

HOOK

5. WIRE CONNECTIONS

-. For Passive Speaker Cabinets

Please use the power connectors to make connections with other signal source

only equipment for the passive speaker cabinets. The power connector has four terminals: 1+, 1-, 2+, 2-.

In our cabinets, only 1+/1- are used to connect the Speaker+/Speaker-, and 2+/2are not used.

-. For Active Speaker Cabinets

As to these circumstances, audio connections is mostly intended for the signal flow, so, determine the wire configuration according to your real application system and its connecting facility. Normally, you have the following choices:

Balanced

TIPRING SLEEVE

Unbalanced

TIPRING SLEEVE

TIPSLEEVE

TIPRING SLEEVE

SLEEVERING TIP

SLEEVETIP

SLEEVERING TIP

Tip

Ring

Sleeve

Ring

Sleeve

Ring

Sleeve

Ring

Sleeve

1 2

Tip

1 2

Tip Ring

Sleeve

1 2

1 2 3

Tip

Sleeve

Tip Ring

Sleeve

1 2 3

6. TECHNICAL SPECIFICATION

Model No. System type Continuous Power Peak Power Rating Sensitivity (1W, 1m) Frequency Response Impedance Crossover Frequency Protection Low-Frequency High-Frequency Spherical Wave Guide Horn Coverage

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No. System type Continuous power Peak Power Rating Sensitivity (1W, 1m) Frequency Response Impedance Crossover Frequency Protection Low-Frequency High-Frequency Spherical Wave Guide Horn Coverage

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS10

2-way Vented Box 120W AES Standard 240W Peak 96 dB/116.5 dB Max

65 Hz/20 kHz +/-6 dB 8 Ohms Nominal 2700 Hz 12 dB/oct. Electronics High Frequencies Protection 10"/266 mm woofer 1" Compression Driver Custom Horn with Polypropilene Reinforced 80 H 80 V 2 x SPK4 Input/Link @+1/-1 connected - +2/-2 not connected Trapezoidal cabinet in 18mm particle board P.B. -Covered with resistant carpet -Black metal grille protection 580 345 305 mm

31.22 lbs/14.16 kg

37.92 lbs/17.2 kg

4.58 CFT

ELVIS12

2-way Vented Box 180 W AES Standard

360 W Peak 97 dB/119.5 dB Max 60 Hz/20 kHz +/-6 dB 8 Ohms Nominal 2500 Hz 12 dB/oct. Electronics High Frequencies Protection 12"/318mm Woofer 1" Compression Driver

Custom Horn with Polypropilene Reinforced 80 H 80 V 2 x SPK4 Input/Link @+1/-1 connected - +2/-2 not connected Trapezoidal cabinet in 18 mm particle board P.B. -Covered with

resistant carpet -Black metal grille protection 635 405 340 mm

40.34 lbs/18.30 kg

48.28 lbs/21.9 kg

6.03 CFT

6. TECHNICAL SPECIFICATION

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS15

2-way Vented Box 250 W AES Standard 500 W Peak

98 dB/122 dB Max 55 Hz/20 kHz +/-6 dB 8 Ohms Nominal 2200 Hz 12 dB/oct.

Electronics High Frequencies Protection 15"/385 mm woofer

1"Compression Driver Custom Horn with Polypropilene Reinforced

80 H 80 V

2 x SPK4 Input/Link @+1/-1 connected - +2/-2 not connected Trapezoidal cabinet in 18 mm particle board P.B. -Covered with resistant carpet -Black metal grille protection 700 455 370 mm

50.17 lbs/22.76 kg

58.86 lbs/26.7 kg

7.35 CFT

ELVIS12M

2-way Vented Box 180 W AES Standard

360 W Peak 97 dB/119 dB Max 75 Hz/20 kHz +/-6 dB 8 Ohms Nominal 2500 Hz 12 dB/oct. Electronics High Frequencies Protection 12"/318mm woofer 1" Compression Driver

Custom Horn with Polypropilene Reinforced 80 H 80 V 2 x SPK4 Input/Link@+1/-1 connected - +2/-2 not connected Trapezoidal cabinet in 18mm particle board P.B. -Covered with resistant carpet -Black metal grille protection 615 405 345 mm

38.93 lbs/17.66 kg

46.29 lbs/21 kg

6.10 CFT

6. TECHNICAL SPECIFICATION

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No. System type Continuous power Peak Power Rating Sensitivity (1W, 1m) Frequency Response Impedance Crossover Frequency Low-Frequency

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS15M

2-way Vented Box 250 W AES Standard 500 W Peak 98 dB/122 dB Max 55 Hz/20 kHz +/-6 dB

8 Ohms Nominal 2200 Hz 12 dB/oct. Electronics High Frequencies Protection

15"/385 mm woofer 1" Compression Driver

Custom Horn with Polypropilene Reinforced 80 H 80 V 2 x SPK4 Input/Link @+1/-1 connected - +2/-2 not connected Trapezoidal cabinet in 18 mm particle board P.B. -Covered with resistant carpet -Black metal grille protection 680 450 370 mm

50.88 lbs/23.08 kg

62.26 lbs/28.24 kg

8.12 CFT

ELVIS12S

Vented Box 200 W AES Standard

400 W Peak 97 dB/119dB Max 50 Hz/20 kHz +/-6 dB 4 Ohms Nominal 125 Hz 6 dB/oct. 12"/318 mm woofer

2 x SPK4 @ in/out Trapezoidal cabinet in 18 mm particle board P.B. -Covered with resistant carpet -Black metal grille protection 495 x 400 x 455 mm

51.15 lbs/23.2 kg

57.98 lbs/26.3 kg

6.15 CFT

6. TECHNICAL SPECIFICATION

Model No. System type Continuous power Peak Power Rating Sensitivity (1W, 1m) Frequency Response Impedance Crossover Frequency Low-Frequency

Connectors(+1/-1) Enclosure

Dimensions (HxWxD) Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No.

Output Power IHF Output Power RMS Max SPL at 1mt Input Sensitivity Input Impedance Connectors Subsonic Filter Protections External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No.

Output Power IHF Output Power RMS Max SPL at 1mt Input Sensitivity Input Impedance Connectors Subsonic Filter Protections External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS15S

Vented Box 300 W AES Standard

600 W Peak 98 dB/122 dB Max 45 Hz/20 kHz +/-6 dB 4 Ohms Nominal 125 Hz 6 dB/oct. 15"/385 mm Woofer 2xSPK4 @ in/out Trapezoidal cabinet in 18 mm particle board P.B. -Covered with resistant carpet -Black metal grille protection

565 x 455 x 525 mm

65.48 lbs/29.7 kg

74.52 lbs/33.8 kg

8.67 CFT

ELVIS10A

150 Watt IHF

84.2 W@8 Ohms

117.5 dB(IHF Power) Line 0 dB/0.775 V/Mic-10 at -45 dB 30 kOhms Balanced -15 kOhms Unbalanced Mic on XLR/Line Input on Combo/Line-Mix Output on XLR 30 Hz-24 dB/oct. Soft-Start, Compressor Mic Gain-EQ-High-Mid-Low-Volume-Ground Switch 230 Volt/115 Volt 50/60 Hz

40.12 lbs/18.2 kg

46.83 lbs/21.24 kg

4.58 CFT

136 W@4 Ohms

ELVIS12A

250 Watt IHF 113 W@8 Ohms 212 W@4 Ohms 121 dB (IHF Power) Line 0 dB/0.775 V/Mic-10 at -45 dB 30 kOhms Balanced - 15 kOhms Unbalanced

Mic on XLR/Line Input on Combo/Line-Mix Output on XLR 30 Hz-24 dB/oct.

Soft-Start, Compressor Mic Gain-EQ-High-Mid-Low-Volume-Ground Switch

230 Volt/115 Volt 50/60 Hz

50.95 lbs/23.11 kg

58.89 lbs/26.71 kg

6.03 CFT

6. TECHNICAL SPECIFICATION

Model No.

Output Power IHF Output Power RMS

Max SPL at 1mt Input Sensitivity

Input Impedance Connectors Subsonic Filter Protections

External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg)

Volume

Model No.

Output Power IHF

Output Power RMS Max SPL at 1mt Input Sensitivity

Input Impedance Connectors

Subsonic Filter Protections External Control

Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No.

Output Power IHF Output Power RMS Max SPL at 1mt Input Sensitivity Input Impedance Connectors Subsonic Filter Protections External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS15A

350 Watt IHF 169 W@8 Ohms 300 W@4 Ohms 123 dB (IHF Power) Line 0 dB/0.775 V/Mic-10 at -45 dB 30 kOhms Balanced - 15 kOhms Unbalanced Mic on XLR/Line Input on Combo/Line-Mix Output on XLR 30 Hz-24 dB/oct. Soft-Start, Compressor Mic Gain-EQ-High-Mid-Low-Volume-Ground Switch 230 Volt/115 Volt 50/60 Hz

62.83 lbs/28.5 kg

71.52 lbs/32.44 kg

7.35 CFT

ELVIS12MA

250 Watt IHF

113 W@8 Ohms 212 W@4 Ohms 121dB (IHF Power)

Line 0 dB/0.775 V/Mic-10 at -45 dB 30 kOhms Balanced - 15 kOhms Unbalanced

Mic on XLR/Line Input on Combo/Line-Mix Output on XLR 30 Hz-24 dB/oct. Soft-Start, Compressor Mic Gain-EQ-High-Mid-Low-Volume-Ground Switch 230 Volt/115 Volt 50/60 Hz

49.54 lbs/22.47 kg

56.92 lbs/25.82 kg

6.10 CFT

ELVIS15MA

350 Watt IHF 169 W@8 Ohms 300 W@4 Ohms 123 dB (IHF Power) Line 0 dB/0.775V/Mic-10 at -45 dB 30 kOhms Balanced-15 kOhms Unbalanced Mic on XLR/Line Input on Combo/Line-Mix Output on XLR 30 Hz-24 dB/oct. Soft-Start, Compressor Mic Gain-EQ-High-Mid-Low-Volume-Ground Switch 230 Volt/115 Volt 50/60 Hz

65.15 lbs/29.55 kg

76.52 lbs/34.71 kg

8.12 CFT

6. TECHNICAL SPECIFICATION

Model No.

Output Power IHF Output Power RMS Max SPL at 1mt Input Sensitivity Input Impedance Connectors Subsonic Filter Protections External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

Model No.

Output Power IHF Output Power RMS Max SPL at 1mt Input Sensitivity Input Impedance Connectors Subsonic Filter Protections External Control Power Supply

Net Weight (lbs/kg) Gross Weight (lbs/kg) Volume

ELVIS12SA

250 Watt IHF 113 W@8 Ohms , 212 W@4 Ohms 121 dB(IHF Power) Line 0 dB/0.775 V

30 kOhms-Input/600 Ohms-Output L/Mono-R IN on XLR/L-R OUT on XLR Electronic Crossover 125 Hz at 24 dB/oct.

Soft - Start, Compressor

Volume-Stereo/Mono&Ground Switch

230 Volt/115 Volt 50/60 Hz

60.36 lbs/27.38 kg

67.19 lbs/30.48 kg

6.15 CFT

ELVIS15SA

350 Watt IHF 169 W@8 Ohms , 300 W@4 Ohms

123 dB (IHF Power) Line 0 dB/0.775 V 30 kOhms-input/600 Ohms-output L/Mono-R IN on XLR/L-R OUT on XLR Electronic Crossover 125 Hz at 24 dB/oct.

Soft - Start, Compressor

Volume-Stereo/Mono & Ground Switch

230 Volt/115 Volt 50/60 Hz

76.68 lbs/34.78 kg

85.72 lbs/38.88 kg

8.67 CFT

7. WARRANTY

1. WARRANTY REGISTRATION CARD

To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide a more effective and efficient after-sales warranty service. Please fill out all the information carefully and genuinely, miswriting or absence of this card will void your warranty service.

2. RETURN NOTICE

2.1 In case of return for any warranty service, please make sure that the product is well packed in its original shipping carton, and it can protect your unit from any other extra damage.

2.2 Please provide a copy of your sales receipt or other proof of purchase with the returned machine, and give detail information about your return address and contact telephone number.

2.3 A brief description of the defect will be appreciated.

2.4 Please prepay all the costs involved in the return shipping, handling and insurance.

3. TERMS AND CONDITIONS

3.1 warrants that this product will be free from any defects in materials

LT O and/or workmanship for a period of 1 year from the purchase date if you have completed the Warranty Registration Card in time.

3.2 The warranty service is only available to the original consumer, who purchased this product directly from the retail dealer, and it can not be transferred.

3.3 During the warranty service, may repair or replace this product at its own option at no charge to you for parts or for labor in accordance with the right side of this limited warranty.

3.4 This warranty does not apply to the damages to this product that occurred as the following conditions:

Instead of operating in accordance with the user's manual thoroughly, any abuse or misuse of this product. Normal tear and wear. The product has been altered or modified in any way. Damage which may have been caused either directly or indirectly by another

product / force / etc. Abnormal service or repairing by anyone other than the qualified personnel or technician.

And in such cases, all the expenses will be charged to the buyer.

3.5 In no event shall be liable for any incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

3.6 This warranty gives you the specific rights, and these rights are compatible with the state laws, you may also have other statutory rights that may vary from state to state.

LT O

NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan

SEIKAKU TECHNICAL GROUP LIMITED

http://www.altoproaudio.com Tel: 886-4-22313737

email: alto@altoproaudio.com Fax: 886-4-22346757

without prior notice. Any photocopy, translation, or reproduction of part of this

NF01105-2.0

Alto Professional ELVIS 15SA MKII User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
