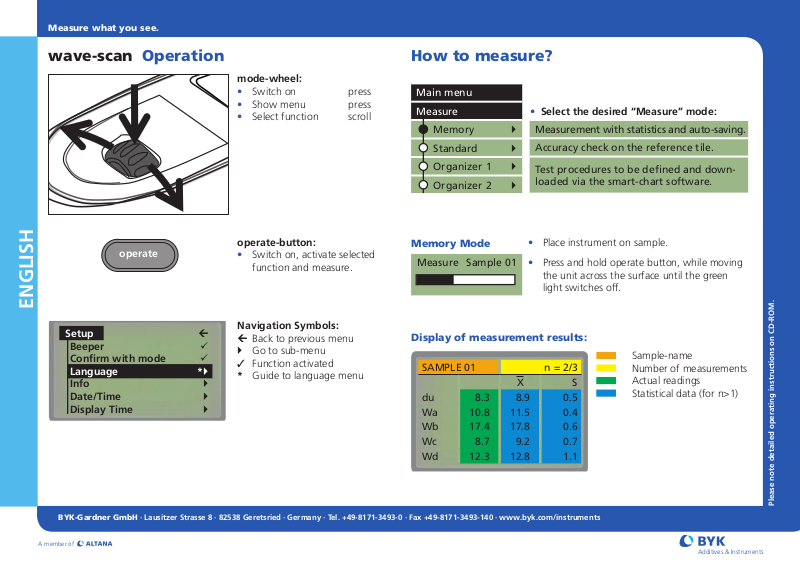

wave-scan Operation

operate

ENGLISH

Setup 

Beeper ü
Confirm with mode ü

Language *}

Info }
Date/Time }
Display Time }

mode-wheel:

• Switch on press

• Show menu press

• Select function scroll

operate-button:

• Switch on, activate selected

function and measure.

Navigation Symbols:

 Back to previous menu
} Go to sub-menu

3 Function activated

* Guide to language menu

How to measure?

Main menu

Measure

Memory }

Standard }

Organizer 1 }

Organizer 2 }

Memory Mode

Measure Sample 01 • Press and hold operate button, while moving

Display of measurement results:

SAMPLE 01 n = 2/3

du 8.3 8.9 0.5
Wa 10.8 11.5 0.4
Wb 17.4 17.8 0.6
Wc 8.7 9.2 0.7
Wd 12.3 12.8 1.1

• Select the desired “Measure” mode:

Measurement with statistics and auto-saving.

Accuracy check on the reference tile.

Test procedures to be defined and down­loaded via the smart-chart software.

• Place instrument on sample.

the unit across the surface until the green
light switches off.

Sample-name
Number of measurements

X S

Actual readings
Statistical data (for n>1)

BYK-Gardner GmbH · Lausitzer Strasse 8 · 82538 Geretsried · Germany · Tel. [phone] · Fax [phone] · www.byk.com/instruments

Additives & Instruments

269 020 584 E 0806

Please note detailed operating instructions on CD-ROM.

Measure what you see.

A member of

How to measure?

Organizer Mode

Measure

Memory }
Standard }
Organizer 1 }
Organizer 2 }

Parameter 2

Silver }
Pearl White }

Hood mid n = 1/3

du
Wa

ENGLISH

Wb
Wc
Wd

How to exit a measurement series?

Measure

Delete Last }
Delete Checkzone }
Delete Test Series }
Inter. Checkzone }
Parameter Info }
End Test Series * }

BYK-Gardner USA · 9104 Guilford Road · Columbia · MD 21046 · USA · Phone [phone] · Fax [phone] · www.byk.com/instruments

• Select the desired Organizer from the

Measure menu.

• Select additional identification parameters

as e.g. color and paint line.

• Perform measurement at the

X S



displayed checkzone.

• After a checkzone has been

completed, press operate to
advance to the next zone.

• Press mode wheel to display a

menu which allows deletion,
interruption of a checkzone
(=skip) or ending of a test series.

How to create a new Memory?

Main menu

Memory }

Config. New }

Copy Config. }

Memory }
Standard }
Organizer 1 }
Organizer 2 }

Memory 01

No. of Meas. 3}
Scanlength 10cm}
Scale1 du}
Scale2 Wa}
Scale3 Wb}

How to change settings?

Main menu

Setup }

• Open the Memory menu and activate

• Select the Configuration of an existing

• A menu appears which allows to change the



• Confirm the changes with

• Open the Setup menu to view or change

Config. New.  A display appears to enter a
new name.

memory.

configuration settings.

general instrument settings, such as:
Language, date/time, switch-off time and
beeper.
