Measure what you see.
Circular Drying Time Recorder
Operating Instructions
A member of |
Additives & Instruments |
Circular Drying
Time Recorder
Operating Instructions
English
PM-9600
PM-9601
PM-9602
PM-9603
BYK - Gardner USA
9104 Guilford Road
Columbia, MD 21046
USA
Phone 800-343-7721
301-483-6500
Fax 800-394-8215
301-483-6555
BYK-Gardner GmbH
Lausitzer Str. 8
D-82538 Geretsried
Germany
Tel. 0-800-gardner
(0-800-4273637)
+49-8171-3493-0
Fax +49-8171-3493-140
www.byk.com/instruments
Description
Description

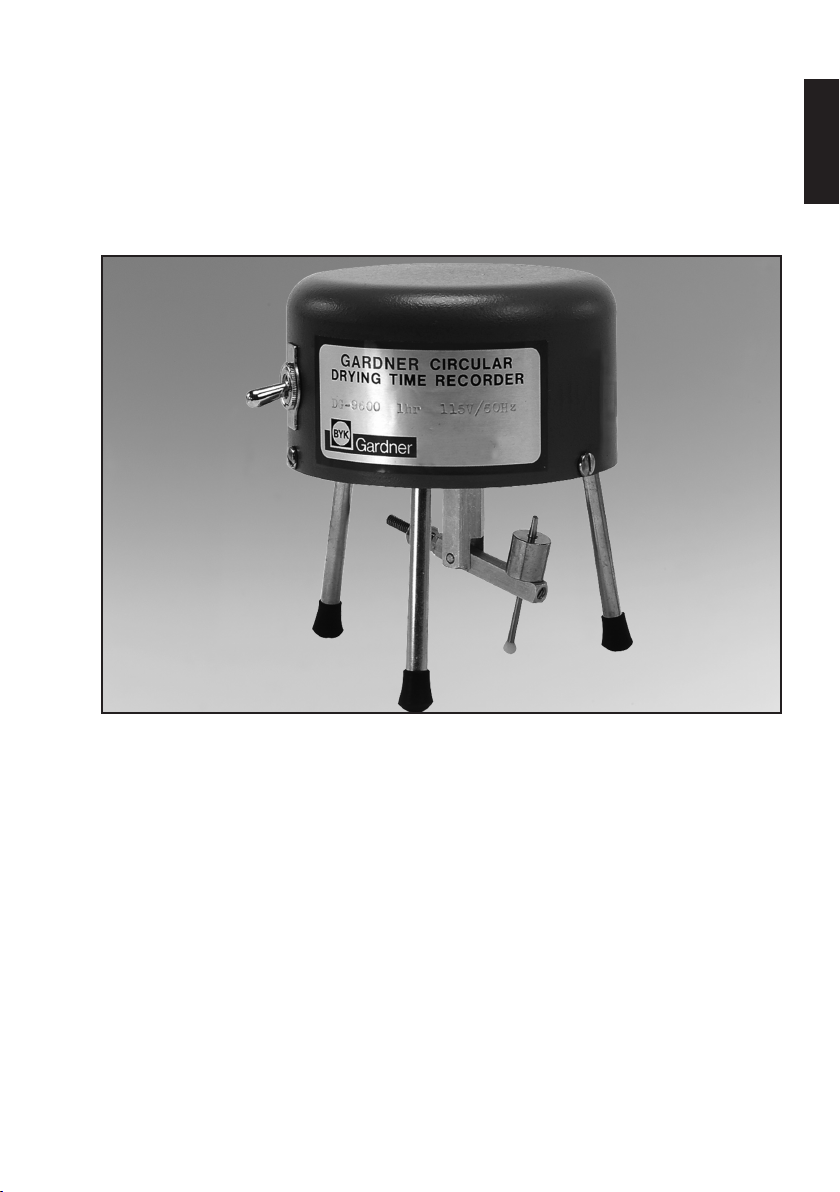

The BYK-Gardner Circular Drying-Time Recorder consists of a synchronous motor, mounted in a metal case on rubber-shod tripod, with its shaft positioned in the true vertical. A pivotable arm assembly is attached to this shaft and operates a counterpoised stylus, vertical stylus, consisting of a thermosetting Teflon sphere that does not stick to the drying film. A transparent plastic template, with scale graduations corresponding to the particular motor speed, is provided for timing the various stages of drying revealed by the scribed pattern under a 12-g load.
2
