AT-MC105XL and AT-MC106XL Fast Ethernet
Media Converters

The AT-MC105XL and AT-MC106XL convert IEEE 802.3u 100Base-TX to
100Base-SX multimode Fast Ethernet network connections. The 100Base-SX
interface is available in ST or SC conne c to r s for multimode fiber cabling. The
100Base-TX interface uses an RJ45 shielded connector.

NML

LNK TST

TX RX

100Base-SX

REC

LNK

100Base-TX

MDI MDI-X

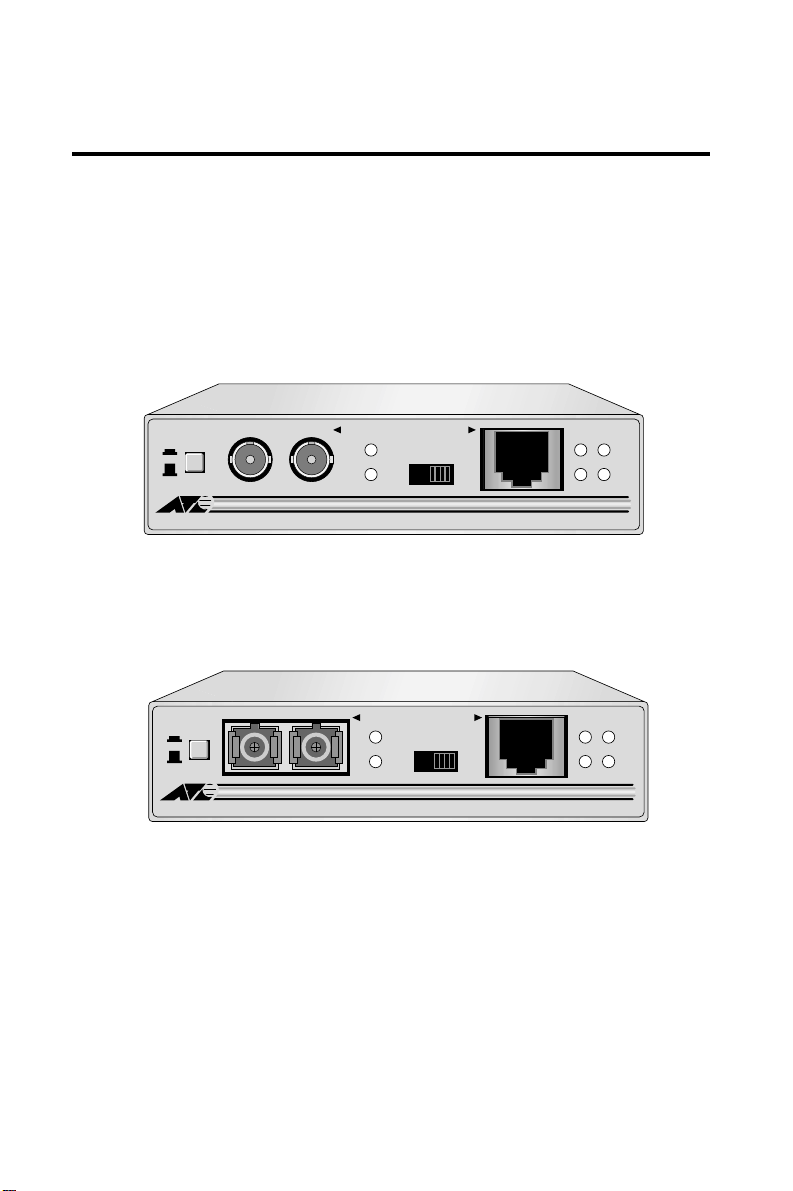

MC105XL FAST ETHERNET MEDIA CONVERTER

Figure 1

NML

LNK TST

AT-MC105XL Front Panel (ST multimode connector)

TX RX

100Base-SX

REC

LNK

MDI MDI-X

MC106XL FAST ETHERNET MEDIA CONVERTER

Figure 2

A T-MC106XL Front Panel (SC multimode connector)

100Base-TX

REC

LNK

REC

LNK

PWR

NML

PWR

NML

1

Key Features

The media converters have the following key features:

❑

LEDs for unit and port status

❑

MDI/MDI-X Switch

❑

NML/LNK TST Switch

❑

100Base-TX ports participate in auto-negotiation for 100 Mbps and
half- or full-duplex modes

❑

MissingLink provides link fault detection on 100Base-TX segments

❑

External AC-DC Power Adapter

❑

Standard, compact size for use with AT-MCR12 rack-mount chassis

❑

Low power consumption

For definitions of technical terms associated with Allied Telesyn products,
refer to the Glossary on Allied Telesyn’s website at
www.alliedtelesyn.com.

Note

LEDs

The PWR LED in the upper right corner of the front panel lights when the
media converter is receiving power. Status LEDs are located on the front panel
next to each port and described in Table 1.

LEDs

Table 1

LED Color State Description

PWR Green
NML Green

REC Green
LNK Green

MDI/MDI-X Switch

The MDI/MDI-X (Med ia Dependent Interf ace/Media Depend ent Interface wit h
Crossover) switch, located on the front panel, is a straight-through or
crossover cable selection switch. It enables the RJ45 port to be connected to a
repeater or DTE device without using a special crossover cable. The default
position of the switch i s MDI-X, whic h means you can co nnect the RJ45 port to
a workstation or to any other DTE device using a straight-through cable.

ON
ON

OFF
ON
ON

Power is applied.
Unit is operating in normal mode.

Unit is operating in link test mode.
Data is being received on the port.
Link established on the port.

2

AT-MC105XL and AT-MC106XL Installation Guide

NML/LNK TST Switch

The NML/LNK TST (Normal/Link Test) switch, located on the front panel,
establishes a fiber/twisted pair link in the test position.

The default position of the switch is IN, which is the normal (NML) operating
mode and enables the MissingLink feature. With the switch in the OUT or
Link Test Mode (LNK TST) position, the MissingLink feature is disabled and
the optical transmitter TX is forced on. The NML LED lights when the NML/
TST LNK switch is in the default (IN) operating position.

Using the Link Test Mode does not interfere with the media converter’s

Note

ability to pass network t raffic.

Auto-Negotiation

The 100Base-TX ports participate in IEEE 802.3u Standard auto-negotiation
with its local link partner.

Note

End stations used with the media converter must operate in the same
duplex mode (either both full-duplex or both half-duplex).

Note

The media converters have an additional feature, allowing the unit to
operate in 100 Mbps half-duplex mode. Certain applications require this
mode, for exampl e two media c onverters installed in a back-to-bac
configuration (fiber-to-fiber) which are attached to unmanaged repeaters
and/or switches that auto-negotiate with the other. For instructions on how
to set up the media converter for this appl ic ation, visit the Technical
Support area of Allied Telesyn’s web site at www.alliedtelesyn.com.

MissingLink



MissingLink gives the host (router , server, switch ) attached to each end of the
converter critical information about the status of the other (remote) segment
link. If either link fails, the converter interacts with both hosts, making each
instantly aware of the link fault. Either host can then execute
preprogrammed, redundant transmission path selection.

3

External AC-DC Power Adapter

An external AC-to-DC power adapter is included with the fast switch for
standalone operation (see Figure 3).The power adapter supplies 12 volts DC to
the media converter. Allied Telesyn supplies an approved safety compliant AC
power adapter for the 120 and 240 V AC versions with an unregu lated outp
of 12 V DC at 1 A. The power required for the media converter is 12 V DC, 500
mA.

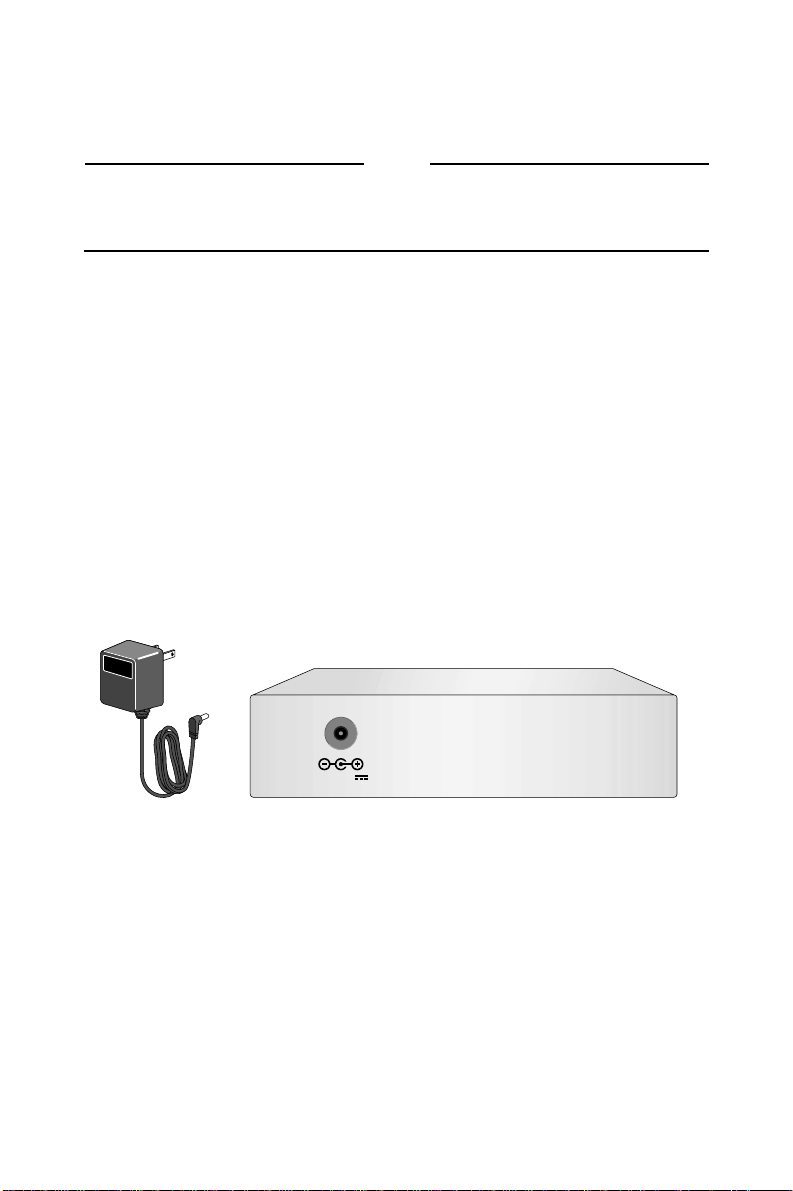

Figure 3

External AC-DC Power Adapter (North American version)

Package Con tents

Make sure the media converter package contains the following items:

❑

AT-MC105XL or AT-MC106XL Fast Ethernet Media Converter

❑

Four Protective Feet (for standalone use only)

❑

External AC-DC Power Adapter

❑

This Installation Guide.

Contact your sales representative if any items are missing or damaged.

4

AT-MC105XL and AT-MC106XL Installation Guide

Installing the Media Converter

Read the warnings below before beginning any installation.

Warning

LIGHTNING DANGER: DO NOT WORK on equipment or CABLES
during periods of LIGHTNING ACTIVITY
DO NOT BLOCK AIR VENTS

!

2

The following steps are for a standalone installation. To install media
converters in a rack-mount chassis, see “Rack-mount Chassis Installation” on
page 7. For information concerning back-to-bac k converter configuration, see
“Back-to-Back Installation” on page 7.

Standalone Installation

1. Remove all equipment from the package and store the packaging in a safe

place

2. Attach the four rubber feet to the base of the unit, placing one rubber foot

in each corner. For rack-mount installation, do not attach the four rubber
feet.

3. Plug the AC-DC power adapter into an appropriate AC power outlet and

insert the power plug into the DC receptacle located on the rear panel.

!

1

12VDC

Figure 4

12 V DC Connector on Rear Panel

4. Verify that the PWR LED lights green.

5. Set the unit in Link Test Mode

6. Remove the dust cap from the fiber optic connectors.

7. Plug the appropria t e fiber cable into th e connector. See Table 3 for IEEE

802.3u cabling speci fications

8. Connect the other end of the fiber cable to the desired end station. Verify

that the link LED is ON.

5

9. If you are making a direct connecti on t o a wor k stat io n using straight-

C

K

MDI MDI-X

through cable, s et the MDI/ MDI-X switch t o the MDI-X p osition. (MDI-X is
the default position.)

If you are connecting the media converter to a hub, switch, or another
media converter with a straight-through cable, set the MDI/MDI-X switch
to the MDI position. See Figure5.

TX RX

100Base-FX

NML

LNK TST

MC105XL FAST ETHERNET MEDIA CONVERTER

REC

LNK

MDI MDI-X

100Base-TX

REC

PWR

NML

LNK

10. Plug a Category 5 twisted pair cable into the RJ45 connector. Connect the

11.Set the unit to Normal (NML) Mode for normal operation.

End stations used with the media converter must operate in the same
duplex mode (either both full-duplex or both half-duplex).

The media converters have an additional feature, allowing the unit to
operate in 100 Mbps half-duplex mode. Certain applications require this
mode, for exampl e two media c onverters installed in a back-to-bac
configuration (fiber-to-fiber) which are attached to unmanaged repeaters
and/or switches that auto-negotiate with the other. For instructions on how
to set up the media converter for this appl ic ation, visit the Technical
Support area of Allied Telesyn’s web site at www.alliedtelesyn.com.

6

Figure 5

MDI/MDI-X Switch

other end of the twisted pair cable to the desired end station. Verify that
the Link LED is ON

Note

Note

AT-MC105XL and AT-MC106XL Installation Guide

Back-to-Back Installation

Review the follo wing befor e doing a bac k-to-b ack inst allati on. See Fig ure8 f or
an illustration of a back-to-back-media converter configuration.

❑

During installation, setup, and testing of back-to-back media
converters, make sure each media converter is in the Link Test Mode.

❑

When two media converters are connected back-to-back with no UTP/
STP cables connected and when the NML/LNK TST switch is in the
OUT position (Link Test Mode), the fiber REC LEDs on each converter
may flash. This is no rmal and will not affect the normal operation of
the converters.

❑

When operating two media converters in a back-to-back configuration,
Allied Telesyn recommends that the MissingLi nk feature on one or
both of the converters be disabled. The MissingLink feature can be
disabled by placing the NML/LNK TST switch in the OUT position
(LNK TST Mode). Disabling the Link Test Mode does not interfere
with the converter’s ability to pass network traffic.

Rack-mount Chassis Installation

To install the media converter in the rack-moun t chassis, refer to the
“AT-MCR12 Media Converter Chassis Installation Manual” or visit the
Technical Support area of Allied Telesyn’s website at

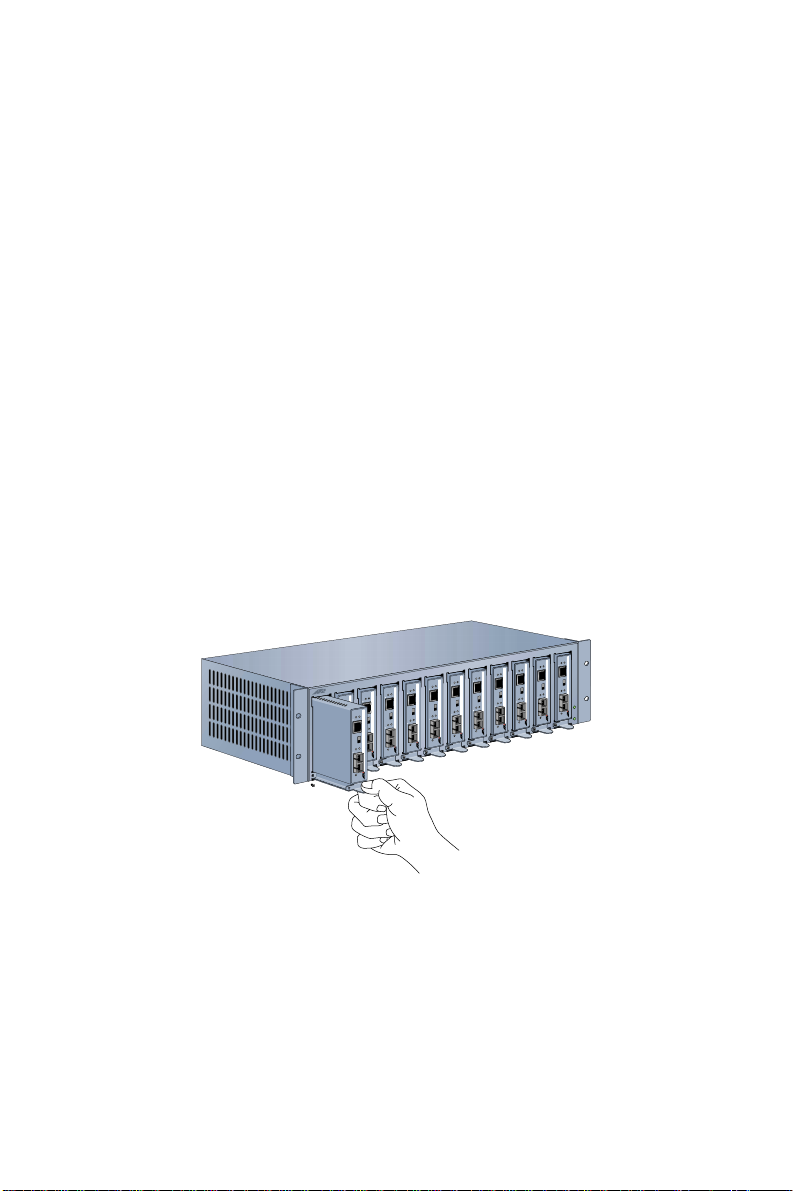

www.alliedtelesyn.com. Figure 6 shows the AT-MCR12 rack-mount chassis

Figure 6

100Base-TX

LNK

REC

100Base-TX

LNK

REC

100Base-TX

LNK

REC

100Base-TX

LNK

REC

100Base-TX

LNK

LNK

REC

100Base-TX

LNK

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

MDI MDI-X

LNK

RECPWR

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

100Base-FX

MC102 FAST ETHERNET MEDIA CONVERTER

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

LNK

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

MC102 FAST ETHERNET MEDIA CONVERTER

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

MC102 FAST ETHERNET MEDIA CONVERTER

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

MC102 FAST ETHERNET MEDIA CONVERTER

100Base-FX

TX RX

MCR12

LNK

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

AT-MCR12 Rack-mount Chassis

LNK

REC

MDI MDI-X

LNK

RECPWR

MC102 FAST ETHERNET MEDIA CONVERTER

LNK

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

LNK

REC

100Base-TX

MDI MDI-X

LNK

RECPWR

100Base-FX

TX RX

MC102 FAST ETHERNET MEDIA CONVERTER

MC102 FAST ETHERNET MEDIA CONVERTER

7

Configurations

RS-232

TERMINAL PORT

STATUS

10BASE-T / 100BASE-TX
FAST ETHERNET SWITCH

PORT ACTIVITY

10BASE-T / 100BASE-TX

RS-232

TERMINAL PORT

STATUS

10BASE-T / 100BASE-TX
FAST ETHERNET SWITCH

PORT ACTIVITY

10BASE-T / 100BASE-TX

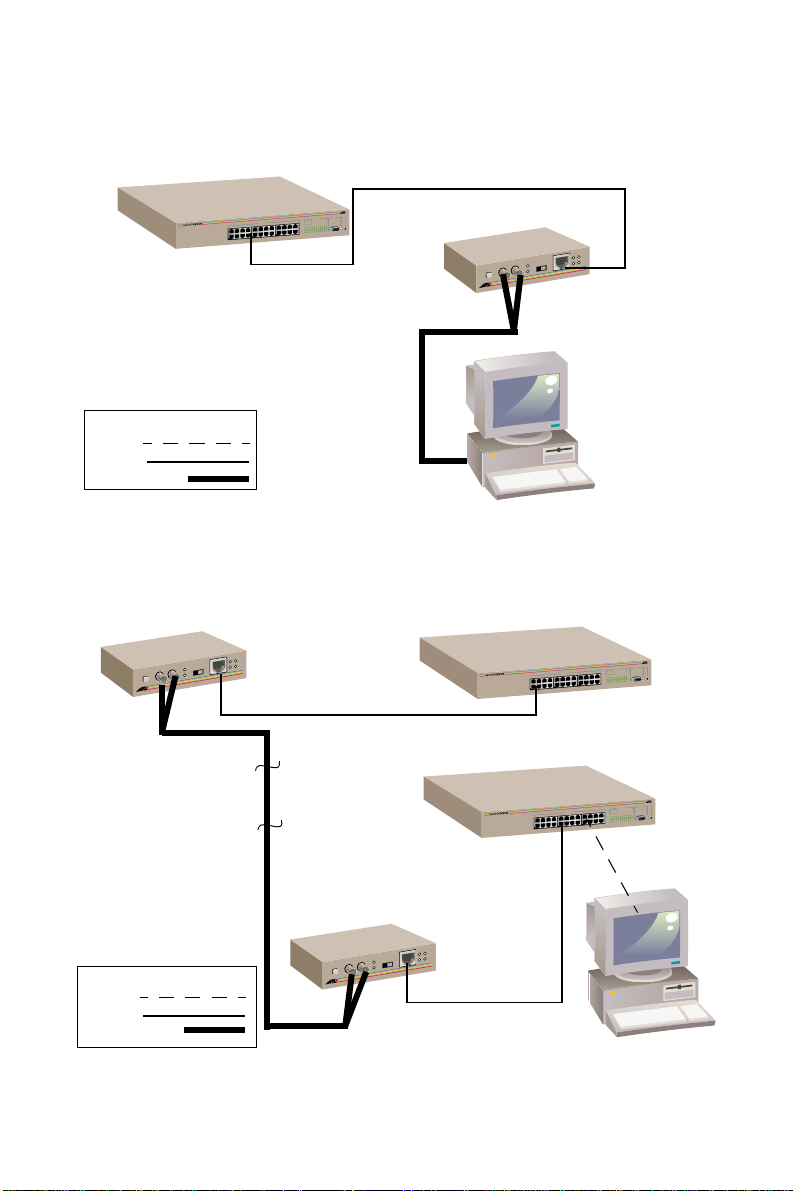

Figure 7 shows a typical network configuration with a workstation connected
to a switch.

AT-8124XL 10/100 Switch

US
T
STA

32

-2

RS

ORT

P
L
A

N
MI

Y

R

T

TE
IVI
T

T AC
R

PO

X

-T
ASE-T / 100BASE
B

Legend

10 Mbps
100 Mbps

100 Mbps (Fiber)

X

T

-

E
0BAS
0
1

E-T /
0BAS
1

H
TC
SWI
T

E
N
R
E

TH

FAST E

10

100Base-SX

MMF

AT-MC1 05 XL

Workstation

100Base-TX

Figure 7

Connection to Workstation and Switch

Figure 8 shows two media converters in a back-to-back configuration.

AT-8124XL 10/100 Switch

AT-8124XL 10/100 Switch

100Base-TX

10Base-T

Workstation

Legend

10 Mbps

100 Mbps

100 Mbps (Fiber)

AT-MC1 05 XL

100Base-SX

MMF

Figure 8

100Base-TX

AT-MC 10 5XL

AT-MC105XL Back-to-Back Configuration

8

AT-MC105XL and AT-MC106XL Installation Guide

Troubleshooting

To troubleshoot your media converter, perform the following:

1. Set the unit in the Link test Mode.

2. End stations used with the media converter mu st operate in the same
duplex mode (either both full-duplex or both half-duplex).

3. Verify that the twisted pair cable is Category 5.

4. Verify that proper fiber cable is being used: multimod e for the
AT-MC105XL and AT-MC106XL.

5. Verify that the near end node transmitter (TX) is connected to the far end
node receiver (RX) and vice versa on the fiber segment.

Technical Specifications

Table 2 lists the media converter technical specifications

Media Converter Technical Specifications

Table 2

Specifications

Dimensions (W x D x H) 4.125 in x 3.75 in x 1.0 in (10.5 cm x 9.5 cm x 2.5 cm )
Max. Operating temperature 0° C to 40° C (32° F to 104° F)

o

Max. Storage temperature -20

C to 80o C (-4° F to 176° F)
Operating altitude up to 10,000 ft (3,048 m)
Humidity 5% to 80% (noncondensing)
EMI/RFI meets FCC Class A, EN55022 Class A
Safety EN60825

EN60950
Immunity EN50082-1 Immunity Standard
Power

Input supply voltage
Max. current
Power consumption

12 V DC +/-5%

500 mA

6W

9

Recommended Cables and Cable Specifications

Table 3 lists the IEEE 802.3u cabling specifications for the media converters.
Refer to this table for cabling recommendations.

IEEE 802.3u Cabling Specifications for AT-MC105XL and AT-MC106XL

Table 3

100Base-SX 100Base-TX

Media 850 nm multimode fiber, 50/125 micron

850 nm multimode fiber, 62.5/125 micron

Topology Star, Tree Star, Tree
External Devices Network Adapter Card, Repeater, Switch,

or Router

Maximum Segment
Length

Multi-mode fiber:
984 ft (300 m) for full- or half-duplex

Unshielded/Shielded
Twisted Pair Category
5 only

Network Adapter Card,
Repeater, Switch, or
Router

328 ft (100 m)

Technical Support and Service

You can contact the reseller or distributor where you purchase d your product
for local assistance. If local support is unable to resolve the problem, Allied
Te lesyn offers technical support via fax, e-mail or telephone.

Refer to Appendi xD or Allied Telesyn’s website at www.alliedtelesyn.com
for current world-wide office locations.

Warranty

The media converters have a lifetime warranty. The po wer a dap ter has a o ne
year warranty.

10

Appendix A

Electrical Safety and Installation Requirements

STANDARDS: This product meets the following standards

U.S. Federal Communications Commissi

RADIATED ENERGY

Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void your right to
operate this equipment.

Industry Canada

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.

RFI Emission EN55022 Class A
WARNING: In a domestic environment this product may cause radio interference in which case the user may be

required to t ak e adequate measures.

Immunity EN50082-1
WARNING: This product requires shielded cables to comply with emission and immunity standards. If it is used with

unshielded cables, the user may be required to take measures to correct the interference problem at their own
expense.

Electrical Safety TUV-EN6095 0, UL1950, CSA 950
Laser EN60825

This is a “CLASS 1 LED PRODUCT”

SAFETY

1 LIGHTNING DANGER

!

DANGER: DO NOT WORK on equipment or CABLES during periods of LIGHTNING ACTIVITY.

2 DO NOT BLOCK AIR VENTS

!

Power to the hub must be sourced only from the adapter.

USA/CANADA

Use a UL Listed/CSA Certified AC adapter of DC 12V, 500mA.

EUROPE - EU

Use TÜV licensed AC adapter of DC 12V, 500mA.

UK

Use a UK Safety Approved AC adapter of DC 12V, minimum 500mA.

OPERATING TEMPERATURE

This product is designed for a maximum ambient temperature of 40 degrees C.
ALL COUNTRIES: Install product in accordance with local and National Electrical Codes.

11

NORMEN: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen
Hochfrequenzstörung EN55022 Klasse A
WARNUNG: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen hervorrufen. In diesem Fall müßte der

Anwender angemessene Gegenmaßnahmen ergreifen.

Störsicherheit EN50082-1
ACHTUNG: Für dieses Produkt sind abgeschirmte Kabel erforderlich, damit den Richtlinien für Emission und

Interferenzschutz entsprochen wird. Falls das Produkt mit nicht abgeschirmten Kabeln verwendet wird, können
weitergehende Maßnahmen für die Korrektur von Interferenzproblemen auf Kosten des Benutzers notwendig werden.

Elektrische Sicherheit TUV-EN60950, UL19 50, CS A 950
Laser EN60825

Das ist ein “LE D Produkt de r K l as s e 1”

SICHERHEIT

1 GEFAHR DURCH BLITZSCHLAG

!

GEFAHR: Keine Arbeiten am Gerät oder an den Kabeln während eines Gewitters ausführen

2 ENTLÜFTUNGSÖFFNUNGEN NICHT VERSPERREN

!

Der Buchse darf nur aus dem Adapter Strom zugeführt werden.

EUROPE - EU

Gebrauchen Sie einen von TÜV zugelassenen Wechselstromadapter für Gleichstrom 12 V, 500 mA.

BETRIEBSTEMPERATUR

Dieses Produkt wurde für den Betrieb in einer Umgebungstemperatur von nicht mehr als 40° C entworfen.

ALLE LÄNDER: Installation muß örtlichen und nationalen elektrischen Vorschriften entsprechen.

STANDARDER: Dette produkt tilfredsstiller de følgende standarder
Radiofrekvens forstyrrelsesemission EN55022 Klasse A
ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves

brugeren muligvis at tage tilstrækkelige foranstaltninger.

Immunitet EN50082-1
ADVARSEL: Dette produkt skal bruges med afskærmede kabler for at overholde bestemmelserne vedrørende

udstråling og støjimmunitet. Hvis det bruges med uafskærmede kabler, kan det blive påkrævet af brugeren at korrigere
interferensp roblemer for eg en regning.

Elektrisk sikk erh e d TUV-EN60950, UL1950, CSA 950
Laser EN60825

Dette er et “PRODUKT UNDER KLASSE 1 LED”

SIKKERHED

1 FARE UNDER UVEJR

!

FARE: UNDLAD at arbejde på udstyr eller KABLER i perioder med LYNAKTIVITET.

2 VENTILATIONSÅBNINGERNE MÅ IKKE BLOKERES

!

Strømforsyningen til apparatet må udelukkende tages fra tilpasningstransformatoren.

EUROPE - EU

Brug kun TÜV g odkendt vekselstrømstransforma to r på 12 V jævnst røm , 50 0 mA.

BETJENINGSTEMPERATUR

Dette apparat er konstrueret til en omgivende temperatur på maksimum 40 grader C.
ALLE LANDE: Installation af produktet skal ske i overensstemmelse med lokal og national lovgivning for elektriske

installationer.

12

AT-MC105XL and AT-MC106XL Installation Guide

EISEN: Dit product voldoet aan de volgende eisen.
RFI Emissie EN55022 Klasse A
WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan

worden om gepaste maatregelen te nemen.

Immuniteit EN50082-1
WAARSCHUWING: Om te voldoen aan de emissie- en immuniteitsnormen dient dit apparaat te zijn voorzien van

afgeschermde kabels. Als het met niet-afgeschermde kabels wordt gebruikt, kan het zijn dat de gebruiker maatregelen
moet treffen om interferentieproblemen voor eigen rekening op te lossen.

Electrische Veiligheid TUV-EN60950, UL1950, CSA 950
Laser EN60825

Dit is een “KLASSE 1 LED-PRODUKT

VEILIGHEID

1 GEVAAR VOOR BLIKSEMINSLAG

!

GEVAAR: NIET aan toestellen of KABELS WERKEN bij BLIKSEM.

2 VENTILATIEGATEN NIET BLOKKEREN

!

Stroom mag alleen via de adapter naar het apparaat toegevoerd worden.

EUROPE - EU

Gebruik een door TÜV gekeurde wisselstroomadapter van 12 Volt gelijkstroom, 500 milliampères.

BEDRIJFSTEMPERATUUR

De omgevingstemperatuur voor dit produkt mag niet meer bedragen dan 40 graden Celsius.

ALLE LANDEN: het to este l installeren overeenkomstig de lokale en nationale elektrische voorschriften.

NORMES: ce produit est conforme aux normes de suivantes
Emission d'in t erf ér en ce s radioélectriq u es EN55022 Classe A
MISE EN GARDE: dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques.

Auquel cas, l'utilisateur devra prendre les mesures adéquates.

Immunité EN50082 - 1
AVERTISSEMENT: Il faut utiliser des câbles blindés pour ce produit afin de respecter les normes d’émission et

d’immunité. Si l’utilisateur choisit d’utiliser des câbles non blindés, il sera peut-être contraint de prendre les mesures
nécessaires pour corriger les problèmes d’interférences, ainsi que d’assumer le coût correspondant.

Sécurité électr i que TUV-EN60950, UL 19 50, CSA 950
Laser EN60825

Ce matériel est un “PRODUIT À DIODE ÉLECTROLUMINESCENTE DE CLASSE 1”

SÉCURITÉ

1 DANGER DE FOUDRE

!

DANGER: NE PAS MANIER le matériel ou les CÂBLES lors d'activité orageuse.

2 NE PAS BLOQUER LES FENTES D'AÉRATION

!

L'alimentation du concentrateur doit être uniquement fournie par l'adaptateur.

EUROPE - EU

Utiliser un adaptateur secteur conforme TÜV de 12 V, 500 mA en courant continu.

TEMPÉRATURE DE FONCTIONNE MEN T

Ce matériel est capable de tolérer une température ambiante maximum de 40 degrés Celsius.
POUR TOUS PAYS: Installer le matériel conformément aux normes électriques nationales et locales.

13

STANDARDI : Tämä tuote on seuraavien standardien mukainen
Radioaaltojen häirintä EN55022 Luokka A
VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on

mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin.

Kestävyys EN50082-1
VAROITUS: Tämä tuote vaatii suojattuja kaapeleita toimiakseen emissio- ja häiriönsietostandardien mukaisesti. Jos

tuotetta käytetään ilman suojattuja kaapeleita, käyttäjä voi joutua korjaamaan häirinnän aiheuttaman ongelman omalla
kustannuksellaan.

Sähköturvallisuus TUV-EN60950, UL1950, CSA 950
Laser EN60825

Tämä on “ENSIMMÄISEN LUOKAN VALODIODITUOTE”

TURVALLISUUS

1 SALAMANISKUVAARA

!

ENGENVAARA: ÄLÄ TYÖSKENTELE laitteiden tai KAAPELEIDEN KANSSA SALAMOINNIN AIKANA.

2 ÄLÄ TUKI ILMAREIKIÄ

!

Tähtipisteeseen (hub) syötettävän virran pitää tulla ainoastaan sovittimesta.

EUROPE - EU

Käytä TÜV-lisenssillä valmistettua verkkosovitinta, jonka tasajännitteen nimellisarvot ovat DC 12 V, 500 mA
(milliampeeria).

KÄYTTÖLÄMPÖTILA

Tämä tuote on suunniteltu ympäröivän ilman maksimilämpötilalle 40° C.

KAIKKI MAAT: Asenna tuote paikallisten ja kansallisten sähköturvallisuusmääräysten mukaisesti.

STANDARD: Questo prodotto è conforme ai seguenti standard
Emissione RFI (interferenza di radiofrequenza) EN55022 Classe A
AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare radio interferenza. In questo caso potrebbe

richiedersi all'utente di prendere gli adeguati provvedimenti.

Immunità EN50082-1
AVVERTENZA: questo prodotto, se utilizzato con cavi schermati, è conforme alle norme sulle emissioni e

sull’immunità. In caso di uso senza cavi schermati, l’utente può dover adottare a proprie spese misure correttive contro
le interferenze.

Sicurezza elettrica TUV-EN60950, UL1950, CSA 950
Laser EN60825

Questo è un “PRODOTTO CON LED DI CLASSE 1”

NORME DI SICUREZZA

1 PERICOLO DI FULMINI

!

PERICOLO: NON LAVORARE sul dispositivo o sui CAVI durante PRECIPITAZIONI TEMPORALESCHE.

2 NON OSTRUIRE LE PRESE D'ARIA

!

Questo dispositivo deve essere alimentato solo mediante l’adattatore.

EUROPE - EU

Utilizzare l’adattatore per c.a. da 12 V c.c. e 500 mA conforme alla normativa TÜV.

TEMPERATURA DI FUNZIONAMENTO

Questo prodotto è concepito per una temperatura ambientale massima di 40 gradi centigradi.
TUTTI I PAESI: installare il prodotto in conformità delle vigenti normative elettriche nazionali.

14

AT-MC105XL and AT-MC106XL Installation Guide

SIKKERHETSNORME : Dette produktet tilfredsstiller følgende sikkerhetsnormer
RFI stråling EN55022 Klasse A
ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer,

må brukeren ta de n ø dvendige forhold sregler.

Immunitet EN50082-1
ADVARSEL: Dette produktet må brukes med vernede kabler for å tilfredsstille emisjons- og fritakelsesstandarder.

Dersom produktet brukes med uvernede kabler, må brukeren muligens rette forstyrrelsesproblemene for egen
regning.

Elektrisk sikk erh e t TUV-EN60950, UL 1950, CSA 950
Laser EN60825

Dette er et “KLASSE 1 LED PRODUKT”

SIKKERHET

1 FARE FOR LYNNEDSLAG

!

FARE: ARBEID IKKE på utstyr eller KABLER i TORDENVÆR.

2 BLOKKER IKKE LUFTVENTILENE

!

All strømtilførsel må komme fra adapteren.

EUROPE - EU

Benytt TÜV-godkjent AC-adapter på 12V DC, 500mA (millismpere)

DRIFTSTEMPERATUR

Dette produktet er konstruert for bruk i maksimum romtemperatur på 40 grader celsius.

ALLE LAND: Produktet må installeres i samsvar med de lokale og nasjonale elektriske koder.

PADRÕES: Este produto atende aos seguintes padrões.
Emissão De Interferência De Radiofrequência EN55022 Classe A
AVISO: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser

necessário que o utente tome as medidas adequadas.

Imunidade EN50082-1
Advertência: Este produto requer a utilização de cabos blindados para cumprimento dos standards de limites de

emissão e imunidade. Se o produto for utilizado com cabos não blindados, o utilizador poderá necessitar de tomar
medidas para correcção de problemas de interferência, por sua própria conta.

Segurança Eléctrica TUV-EN60950, UL1950, CSA 950
Laser EN60825

Este é um “PRODUTO CLASSE 1 LED”

SEGURANÇA

1 PERIGO DE CHOQUE CAUSADO P O R RAIO

!

PERIGO: NÃO TRABALHE no equipamento ou nos CABOS durante períodos suscetíveis a QUEDAS DE RAIO.

2 NÃO BLOQUEIE AS ABERTURAS DE VENTILAÇÃO

!

Use somente o adaptador fornecido para alimentação elétrica do hub.

EUROPE - EU

Use um adaptador de corrente alternada com saída DC de 12V e 500mA em conformidade com as especificações
da TÜV.

TEMPERATURA DE FUNCIONAME NTO

Este produto foi projetado para uma temperatura ambiente máxima de 40 graus centígrados.
TODOS OS PAÍSES: Instale o produto de acordo com as normas nacionais e locais para instalações elétricas.

15

ESTÁNDARES: Este producto cumple con los siguientes estándares
Emisión RFI EN55022 Clase A
ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede

requerirse del usuario que tome las medidas que sean convenientes al respecto.

Inmunidad EN50082-1
ADVERTENCIA: Este producto exige cables protectores para ajustarse a las normas de emisión e inmunidad. Si se

utiliza con cables sin protección, el usuario tendrá que correr con los gastos por las medidas a tomar en caso de
problemas de interferencias.

Seguridad eléctrica TUV-EN60950, UL1950, CSA 950
Laser EN60825

Este es un “PRODUCTO DE DIODO LUMINISCENTE (LED) CLASE 1”

SEGURIDAD

1 PELIGRO DE RAYOS

!

ELIGRO: NO REALICE NINGUN TIPO DE TRABAJO O CONEXION en los equipos o en LOS CABLES durante
TORMENTAS ELECTRICAS.

2 NO BLOQUEE LAS ABERTURAS PARA VENTILACION

!

La energía para el dispositivo central o "hub" debe provenir únicamente del adaptador.

EUROPE - EU

Utilizar un adaptador de corriente alterna autorizado TÜV de 12 voltios de corriente continua y 500 miliamperios.

TEMPERATURA REQUERIDA PARA LA OPERACIÓN

Este producto está diseñado para una temperatura ambiental máxima de 40 grados C.

PARA TODOS LOS PAÍSES: Monte el producto de acuerdo con los Códigos Eléctricos locales y nacionales.

STANDARDER: Denna produkt uppfyller följande standarder
Radiostörning EN55022 Klass A
VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga

erforderliga åtgärder.

Immunitet EN50082-1
VARNING! Denna produkt kräver skärmade kablar för att uppfylla standardkraven för emission och immunitet. Om den

används med oskärmade kablar kan användaren vara tvungen att vidta åtgärder på egen bekostnad för att åtgärda
störningsproblemet.

Elsäkerhet TUV-EN60950, UL1950, CS A 950
Laser EN60825

Detta är en “KLASS 1 LYSDIODPRODUKT”

SÄKERHET

1 FARA FÖR BLIXTNEDSLAG

!

FARA: ARBETA EJ på utrustningen eller kablarna vid ÅSKVÄDER.

2 BLOCKERA INTE LUFTVENTILERNA

!

Endast anslutningsenheten får vara kraftkälla till centralen.

EUROPE - EU

Använd en växelströmsanslutningsenhet licensierad av TÜV. Likström 12V, 500mA.

DRIFTSTEMPERATUR

Denna produkt är konstruerad för rumstemperatur ej överstigande 40 grader Celsius.
ALLA LÄNDE R: Installera produkten i enlighet med lokala och statliga bestämmelser för elektrisk utrustning.

16

Appendix B

A T-MC105XL and A T-MC106XL Installation Guide Feedback

Please tell us what additional informat io n y ou would like to see discussed in
this guide. If there are topics you would like information on that were not
covered in this guide, please photocopy this page, answer the questions and
fax or mail this fo rm back to Allied Telesyn. The mailin g add ress and fax
number are at the bottom of the page. Your comments are valuable when we
plan future revisions of this guide.

I found the following the most valuable __________________________________

______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

I would like the following more developed ________________________________

______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

I would find this guide more useful if ____________________________________

______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

Please fax or mail your feedback. Fax to 1-408-736-0100. Or mail to:

Allied Telesyn International, Corp.

c/o Technical Communications
960 Stewart Drive, Suite B
Sunnyvale, CA 94086 USA

PN 613-10800-00 Rev A

17

Appendix C

Technical Support Fax Order

Name________________________________________________________________________
Company _____________________________________________________________________
Address ______________________________________________________________________
City_____________________________State/Province__________________________________
Zip/Postal Code _______________________Country__________________________________
Phone___________________________________ Fax__________________________________

Incident Summary

Model number of Allied Telesyn product I am using ____________________________________
Firmware release number of Allied Telesyn product ____________________________________
Other network software products I am using (e.g., network managers)

_____________________________________________________________________________
_____________________________________________________________________________

Brief summary of problem ________________________________________________________

_____________________________________________________________________________

Conditions (List the steps that led up to the problem.)___________________________________

_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________

_____________________________________________________________________________
Detailed description (Please use separate sheet)
Please also fax printouts of relevant files such as batch files and configuration files.

When completed, fax this sheet to the appropriate Allied Telesyn office. Fax numbers can be found
on p age21.

19

Appendix D

Where To Find Us

For Technical Support or Service

Location Phone Fax

Americas

United States, Canada, Mexico, Central America,
South Americ a

Asia

Singapore, Taiwan, Thailand, Malaysia,
Indonesia, Korea, Philippines, China, India

Australia

Australia, New Zealand

France

France, Belgium, Luxembourg, The Netherlands,
Middle East, Africa

Germany

Germany, Switzerland, Austria, Eastern Europe

Hong Kong

Italy

Italy, Spain, Portugal, Greece, Turkey, Israel

Japan

United Kingdom

United Kingdom, Denmark, Norway, Sweden,
Finland, Iceland

Technical Bulletin Board Service

Technical Su pport Address

CompuServe

FTP Server

1 [phone] 1 [phone]

([phone] ([phone]

(61) 2-943-5111 (61) 2-9438-4966

([phone] ([phone]

([phone] ([phone]

([phone] ([phone]

([phone] ([phone]

([phone] ([phone]

([phone] ([phone]

1 [phone]

[e-mail]

Go ALLIED

Addres s :gateway.centre.com [lowercase letters]
Login: anonymous [lowercase letters]
Password: your e-mail address [requested by the server at
login]

For Information Regarding Allied Telesyn International, Corp.

Allied Telesyn International, Corp.

19015 North Creek Parkway
Bothell, WA 98011
Tel: [phone]
Fax: [phone]

World Wide Web

Allied Telesyn International, Corp.

960 Stewart Drive, Suite B
Sunnyvale, CA 94086
Tel: [phone] (USA and Canada)
Fax: [phone]

http://www.alliedtelesyn.com

21
