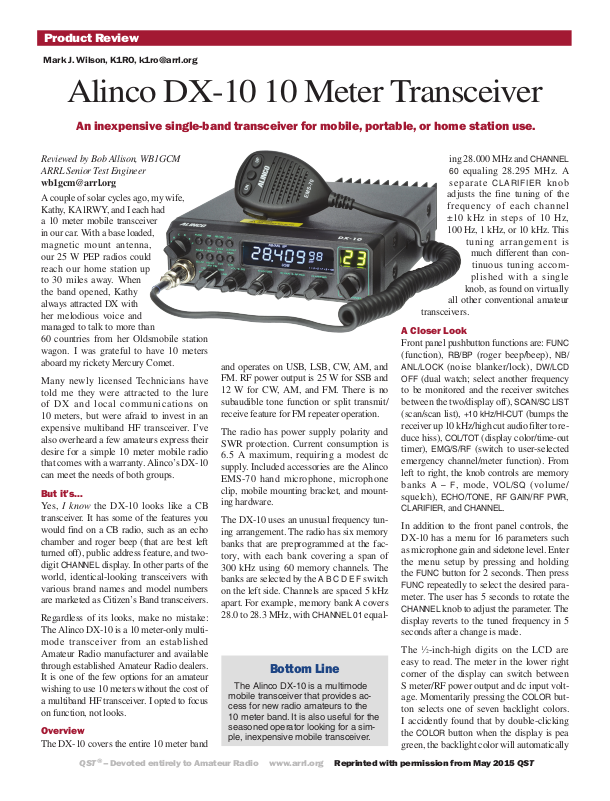

Alinco DX-10 10 Meter Transceiver
An inexpensive single-band transceiver for mobile, portable, or home station use.
Reviewed by Bob Allison, WB1GCM
ARRL Senior Test Engineer
wb1gcm@arrl.org
A couple of solar cycles ago, my wife,
Kathy, KA1RWY, and I each had
a 10 meter mobile transceiver
in our car. With a base loaded,
magnetic mount antenna,
our 25 W PEP radios could
reach our home station up
to 30 miles away. When
the band opened, Kathy
always attracted DX with
her melodious voice and
managed to talk to more than
60 countries from her Oldsmobile station
wagon. I was grateful to have 10 meters
aboard my rickety Mercury Comet.
Many newly licensed Technicians have
told me they were attracted to the lure
of DX and local communications on
10 meters, but were afraid to invest in an
expensive multiband HF transceiver. I’ve
also overheard a few amateurs express their
desire for a simple 10 meter mobile radio
that comes with a warranty. Alinco’s DX-10
can meet the needs of both groups.
But it’s…
Yes, I know the DX-10 looks like a CB
trans ceiver. It has some of the features you
would find on a CB radio, such as an echo
chamber and roger beep (that are best left
turned off), public address feature, and twodigit
CHANNEL
display. In other parts of the
world, identical-looking transceivers with
various brand names and model numbers
are marketed as Citizen’s Band transceivers.
Regardless of its looks, make no mistake:
The Alinco DX-10 is a 10 meter-only multi mode transceiver from an established
Amateur Radio manufacturer and available
through established Amateur Radio dealers.
It is one of the few options for an amateur
wishing to use 10 meters without the cost of
a multiband HF transceiver. I opted to focus
on function, not looks.
Overview
The DX-10 covers the entire 10 meter band
and operates on USB, LSB, CW, AM, and
FM. RF power output is 25 W for SSB and
12 W for CW, AM, and FM. There is no
subaudible tone function or split transmit/
receive feature for FM repeater operation.
The radio has power supply polarity and
SWR protection. Current consumption is
6.5 A maximum, requiring a modest dc
supply. Included accessories are the Alinco
EMS-70 hand microphone, microphone
clip, mobile mounting bracket, and mounting hardware.
The DX-10 uses an unusual frequency tuning arrangement. The radio has six memory
banks that are preprogrammed at the factory, with each bank covering a span of
300 kHz using 60 memory channels. The
banks are selected by the
A B C D E F
switch
on the left side. Channels are spaced 5 kHz
apart. For example, memory bank A covers
28.0 to 28.3 MHz, with
CHANNEL 01
equal-
Bottom Line
The Alinco DX-10 is a multimode
mobile transceiver that provides access for new radio amateurs to the
10 meter band. It is also useful for the
seasoned operator looking for a simple, inexpensive mobile transceiver.
ing 28.000 MHz and
60
equaling 28.295 MHz. A
separate
CLARIFIER
CHANNEL
knob
adjusts the fine tuning of the
frequency of each channel
±10 kHz in steps of 10 Hz,
100 Hz, 1 kHz, or 10 kHz. This
tuning arrangement is
much different than con-
tinuous tuning accom-
plished with a single
knob, as found on virtually
all other conventional amateur
transceivers.
A Closer Look
Front panel pushbutton functions are:
(function),
ANL/LOCK
OFF
RB/BP
(roger beep/beep),
(noise blanker/lock),
(dual watch; select another frequency
FUNC
NB/
DW/LCD
to be monitored and the receiver switches
between the two/display off),
(scan/scan list),
+10 kHz/HI-CUT
SCAN/SC LIST
(bumps the
receiver up 10 kHz/high cut audio filter to reduce hiss),
timer),
COL/TOT
EMG/S/RF
(display color/time-out
(switch to user-selected
emergency channel/meter function). From
left to right, the knob controls are memory
banks A – F, mode,
squelch),
CLARIFIER
ECHO/TONE, RF GAIN/RF PWR
, and
VOL/SQ
CHANNEL
(volume/
.
In addition to the front panel controls, the
DX-10 has a menu for 16 parameters such
as microphone gain and sidetone level. Enter
the menu setup by pressing and holding
the
FUNC
button for 2 seconds. Then press
FUNC
repeatedly to select the desired para-
meter. The user has 5 seconds to rotate the
CHANNEL
knob to adjust the parameter. The
display reverts to the tuned frequency in 5
seconds after a change is made.
The 1⁄2-inch-high digits on the LCD are
easy to read. The meter in the lower right
corner of the display can switch between
S meter/RF power output and dc input voltage. Momentarily pressing the
COLOR
button selects one of seven backlight colors.
I accidently found that by double-clicking
the
COLOR
button when the display is pea
green, the backlight color will automatically
,
QST® – Devoted entirely to Amateur Radio www.arrl.org Reprinted with permission from May 2015 QST
change every second. Pressing
COLOR
once
more stops this light show.
The rear panel heat sink fins protrude 1.5
inches from the chassis. Connections include an SO-239 antenna jack, 1⁄8-inch jacks
for external speaker and CW (straight) key,
and dc power. There is also a mini USB data
jack for PC programming with an optional
cable, though no programming software was
available from Alinco at the time of publication. A 2-inch speaker is located behind the
bottom panel of the chassis.
Lab Testing
ARRL Lab testing (Table 1) revealed some
good results and some not so good. Let’s
start with the good. Overall receiver sensitivity is very good. The two-tone thirdorder IMD dynamic range is only 73 dB at
20 kHz spacing. That’s not as good as recent
multiband transceivers I’ve tested, but is
adequate for use with a mobile antenna or
modest home station antenna. The DX-10
also has very good image and IF rejection. I
was pleased to see the wide range of squelch
sensitivity, 1 µV to nearly 7.6 mV. Adjusting
the receiver to make it less sensitive is handy
in high-noise environments to minimize
false squelch openings from noise sources.
The most troublesome finding is the keying waveform and timing. Figure 1 shows
a lengthy 120 ms delay from the time the
key is pressed to the time RF comes out
the antenna jack. Unfortunately, this delay
also applies to the CW sidetone heard from
the speaker. Press the key and it’s a 120 ms
pause until you hear what you just sent in the
sidetone. With such a delay, sending CW is
confusing and maddening for the user unless
you turn off the transceiver’s sidetone and
use an external sidetone.
Figure 2 shows rather wide keying sidebands at 60 WPM, which will interfere with
nearby stations if signals are loud enough.
Figure 3 shows that close to the carrier the
DX-10’s transmitted phase noise is higher
than most other transmitters I’ve tested.
I found that receiver audio output reached
the 10% THD threshold at 2.3 W. The volume can be increased further, but only with
increased audio output distortion. At a comfortable listening volume (1 V RMS), audio
distortion is 7%. This level of distortion may
cause operator fatigue in a quiet room, but
will not be very noticeable while riding in
an automobile.
Table 1
Alinco DX-10, serial number A000592
Manufacturer’s Specifications Measured in the ARRL Lab
Frequency coverage: 28 – 29.7 MHz. Receive and transmit, as specified.
Power requirement: Receive, 13.8 V dc ±15% At 13.8 V dc: Transmit, SSB, 6.5 A (max),
transmit, 6 A max; receive, 750 mA max, 1.1 A (min); CW, 5.0 A (max), 2.6 A (min);
350 mA squelched. AM and FM, 5.0 A (max), 2.5 A (min).
Modes of operation: LSB, USB, CW, AM, FM. As specified.
Receiver Receiver Dynamic Testing
CW sensitivity: 0.25 µV. Noise floor (MDS), CW mode,
2.4 kHz filter: ‒135 dBm.
AM sensitivity: 0.25 µV. 10 dB (S+N)/N, 1 kHz, 30% modulation,
6 kHz filter: 0.6 µV.
FM sensitivity: 0.50 µV. For 12 dB SINAD, 15 kHz BW: 0.2 µV.
ARRL Lab Two-Tone IMD Testing (2.4 kHz bandwidth)
Measured Measured Measured Calculated
Band Spacing IMD Level Input Level IMD DR IP3
28 MHz 20 kHz –135 dBm –62 dBm 73 dB +25 dBm
–97 dBm –39 dBm +10 dBm
Second-order intercept point: Not specified. 28 MHz, +41 dBm.
FM adjacent channel selectivity: Not specified. 82 dB.
FM two-tone, third order IMD dynamic range: 67 dB.
S meter sensitivity: Not specified. For S9 signal, 4.78 µV.
Squelch sensitivity: Not specified. 1 µV (min), 7.58 mV (max).
IF/audio response: Not specified. Range at –6 dB points (bandwidth):
CW: 294-2840 Hz (2546 Hz)
USB, 309-3998 Hz (3689 Hz)
LSB, 328-3980 Hz (3659 Hz)
AM, 210-3571 Hz (6722 Hz)
Receiver audio output: 3 W. 2.3 W @ 10% THD. THD @ 1 V RMS, 7%.
IF and image rejection: Not specified. IF rejection, 98 dB;
image rejection, 111 dB.*
Transmitter Transmitter Dynamic Testing
Power output: AM, FM, CW, 1 to 12 W AM, FM, CW, 1.6 – 11.4 W;
(adjustable); SSB, 0 to 25 W (adjustable). SSB, 0 – 27 W PEP. Power output
was identical at 11.7 V dc.
Spurious-signal and harmonic suppression: 64 dB. Complies with FCC emission
Not specified. standards.
SSB carrier suppression: Not specified. USB, 53 dB; LSB, 59 dB.
Undesired sideband suppression: 80 dB. USB, 47 dB; LSB, 48 dB.
Third-order intermodulation distortion (IMD): 3rd/5th/7th/9th order:
Not specified. –25/–38/–50/–55 dBc.
Transmit-receive turn-around time (PTT release S9 signal, 123 ms.
to 50% audio output): Not specified.
Receive-transmit turn-around time (tx delay): 117 ms.
Not specified.
Size (height, width, depth): 2.0 × 6.7 × 9.3 inches including protrusions; weight, 3.1 lb.
Price: $280.
†
Second-order intercept point was determined using S5 reference.
*Measurement was noise limited at the value indicated.
Receive, 560 mA (no signal, max volume).
†
Reprinted with permission from May 2015 QST ARRL, the national association for Amateur Radio
®
www.arrl.org
Time (s)
0
0.08
QS1505-ProdRev01
Frequency in kHz
Response (dB)
QS1505-ProdRev02
Level in dBc/Hz
Frequency Offset
QS1505-ProdRev03
Figure 1 — CW keying waveform for the Alinco
DX-10 showing the first two dits in full-break-in
(QSK) mode using external keying. Equivalent
keying speed is 60 WPM. The upper trace is
the actual key closure; the lower trace is the RF
envelope. (Note that the first key closure starts at
the left edge of the figure.) Horizontal divisions
are 10 ms. The transceiver was being operated
at 11 W output on the 28 MHz band.
Figure 3 — Spectral display of the Alinco DXSR9T transmitter output during phase noise
testing. Power output is 11 W on the 28 MHz
band. The carrier, off the left edge of the plot, is
not shown. This plot shows composite transmitted
noise 100 Hz to 1 MHz from the carrier. The reference level is 0 dBc, and the vertical scale is in dB.
On the Air with the DX-10
I had an opportunity to try the transceiver
on Sunday morning of the ARRL 10 Meter
Contest. Band conditions were good and
there were plenty of stations to contact on
SSB as I tuned the band using my elevated
ground plane antenna. The DX-10’s 25 W
output was enough to contact every station
I heard. At one point, in the excitement of
calling a DX station, I accidently turned on
the echo chamber and was quickly chided in
a language I didn’t understand.
After a while, I grew a little weary from turning the multiple tuning controls. Spacing between knobs was sometimes a problem for
my large fingers. At times, my index finger
would get stuck between two of the concentric controls, with a pinch roller effect. I still
had fun, but came to the conclusion that the
plex operation with positive results.
The DX-10’s SWR protection worked when
I accidently transmitted into the wrong
antenna. The radio stopped transmitting,
beeped and displayed
SWR. I couldn’t get the built in SWR meter
to work. The manual indicates the band control must be set to D and channel 20 selected
to activate the SWR meter, but I had no luck.
Going Mobile
Kathy agreed to let me try the DX-10 in
her Ford Fusion. An opening in front of the
stick shift that is normally used for storage
happened to be a perfect place for it (see
Figure 4). A 12 V dc accessory outlet provided power to the DX-10, since the 5-footlong dc power cord provided could not reach
the car’s battery. I wouldn’t recommend
using the accessory socket on a permanent
basis, but with this particular automobile,
it worked, aside from some slight ignition
noise crackle. The noise blanker reduced this
noise significantly when engaged.
As a mobile transceiver, the DX-10 has
more than enough volume from the speaker.
The frequency display is at times difficult to
read. All display options are rich in color,
but low in brightness. Yellow, as an option,
would have been helpful. While driving, I
0.01 0.02 0.03 0.04 0.05 0.06 0.07
0
–
20
–
40
–
60
–
80
–
100
–
120
–
140
–
160
–
180
100 Hz 1 kHz 10 kHz 100 kHz 1 MHz
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
fc-4 fc-2 fc+2 fc+4
Figure 2 — Spectral display of the Alinco DXSR9T transmitter during keying sideband testing. Equivalent keying speed is 60 WPM using
external keying. Spectrum analyzer resolution
bandwidth is 10 Hz, and the sweep time is 30
seconds. The transmitter was being operated at
11 W PEP output on the 28 MHz band, and this
plot shows the transmitter output ±5 kHz from the
carrier. The reference level is 0 dBc, and the vertical scale is in dB.
f
c
found random tuning around the band difficult with the multiple frequency controls. I
found it best to leave the fine tuning step set
Figure 4 — Our Ford Fusion had just the right
spot for the Alinco DX-10.
to 100 Hz. For trips around town, I left the
frequency knobs alone and talked to Kathy.
Overall, my experience with the DX-10 was
favorable and brought memories of the use-
DX-10 is not suited for quickly tuning the
band during a contest.
On a more casual day, I had a pleasurable time exchanging 10-10 numbers
with stations via short skip. Transmitted
audio reports were mostly “sounds OK”
or “sounds good.” I tried AM and FM sim-
QST® – Devoted entirely to Amateur Radio www.arrl.org Reprinted with permission from May 2015 QST
fulness of 10 meters in a car.
Manufacturer: Alinco, Inc, Yodoyabashi
Dai-Bldg 13F, 4-4-9 Koraibashi, Chuo-ku,
Osaka 541-0043 Japan; www.alinco.com.
Distributed in the US by Remtronix (www.
remtronix.com) and available from Amateur Radio dealers.
See the Digital
Edition of QST
for a video
overview of the
Alinco DX-10
10 Meter
Transceiver.
5 HI
, warning of high
Loading...
