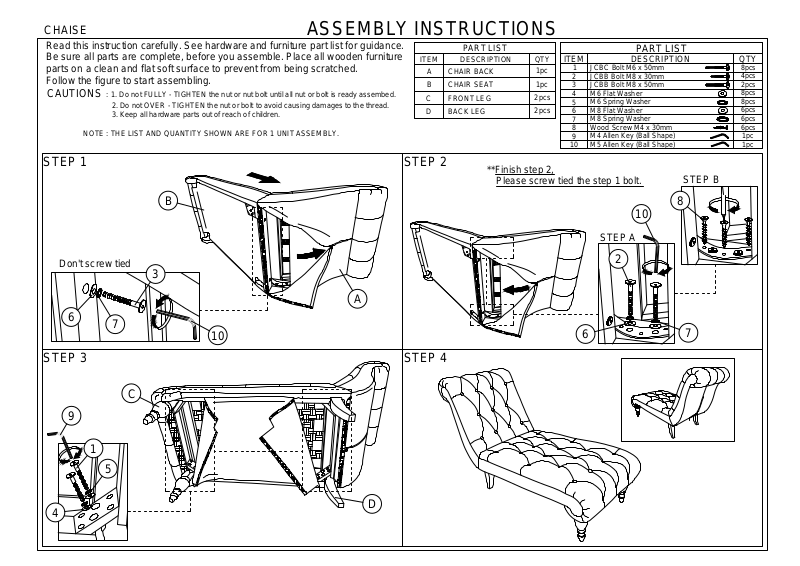

CHAISE
MODEL : BBT5211 Chaise
ASSEMBLY INSTRUCTIONS
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
PART LIST
ITEM DESCRIPTION
A CHAIR BACK
B CHAIR SEAT
C FRONT LEG
D BACK LEG
QTY
1pc
1pc
2pcs
2pcs
PART LIST
ITEM DESCRIPTION
1 JCBC Bolt M6 x 50mm
2 JCBB Bolt M8 x 30mm
3 JCBB Bolt M8 x 50mm
4 M6 Flat Washer
M6 Spring Washer 8pcs
5
6 M8 Flat Washer
M8 Spring Washer 6pcs
7
8 Wood Screw M4 x 30mm
M4 Allen Key (Ball Shape) 1pc
9
M5 Allen Key (Ball Shape) 1pc
10
QTY
8pcs
4pcs
2pcs
8pcs
6pcs
6pcs

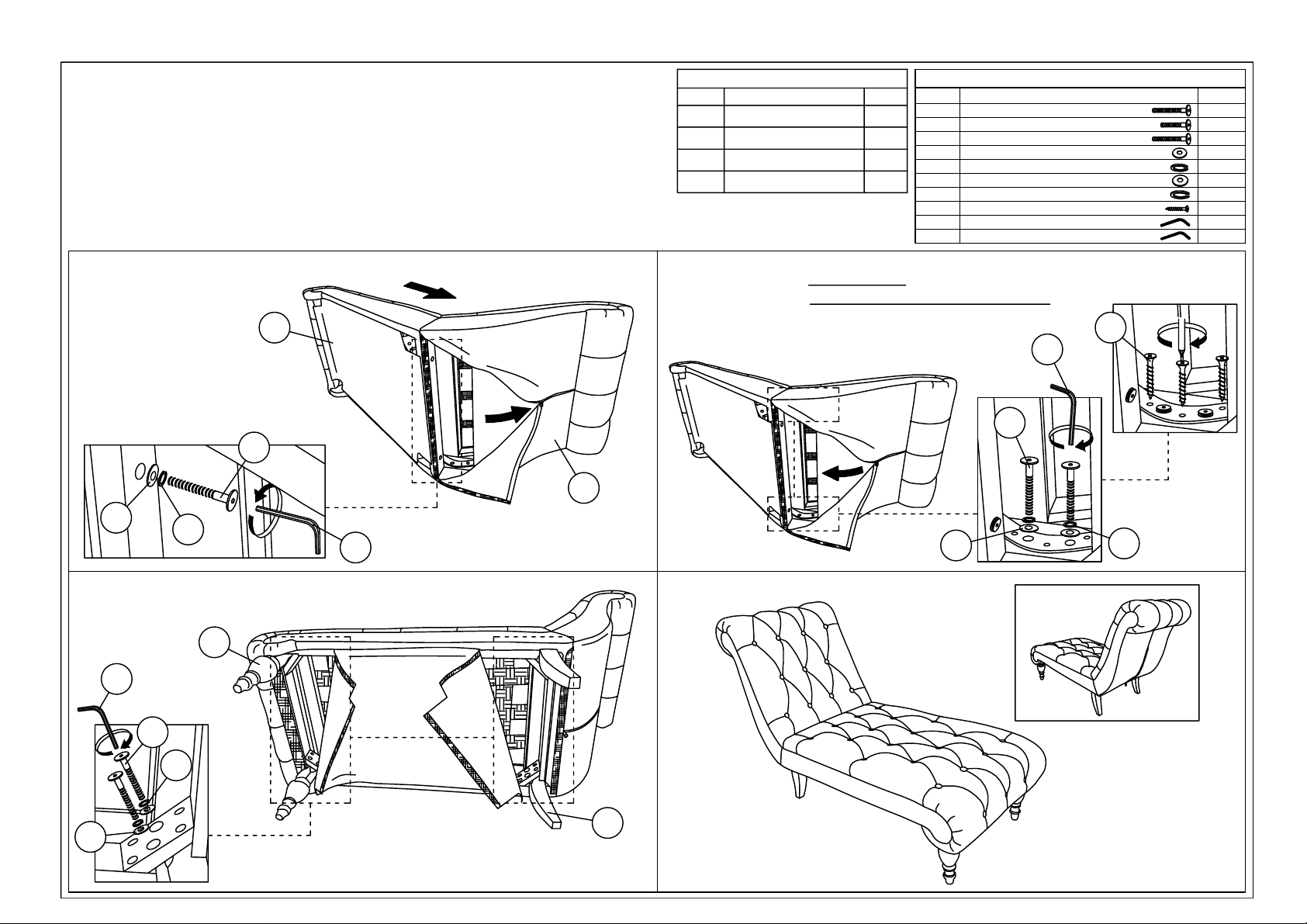

STEP 1 STEP 2
B
Don't screw tied
3
A
6
7
10
STEP 3 STEP 4
C
9
**Finish step 2,
Please screw tied the step 1 bolt.
STEP A
2
6
STEP B
8
10
7
1
5
D
4
