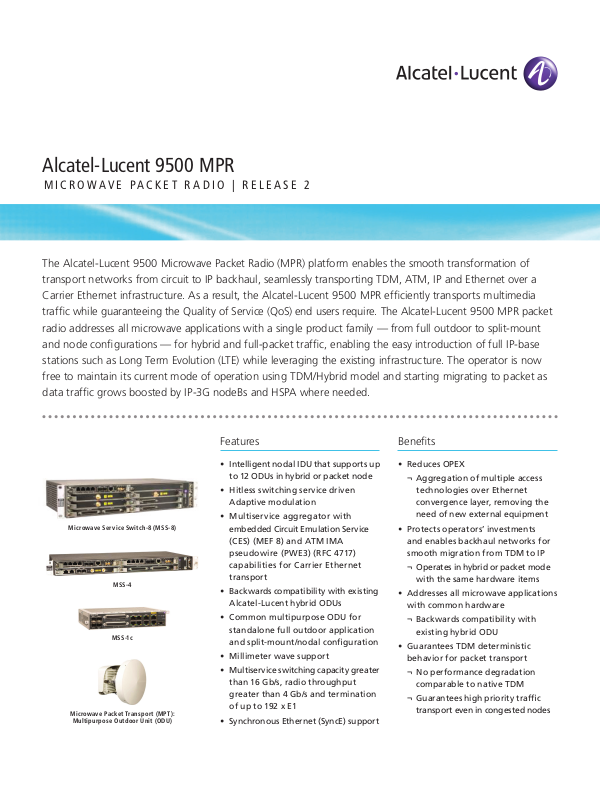

Alcatel-Lucent 9500 MPR

M I C R O W AV E P AC K E T R A D I O | R E L E A S E 2

The Alcatel-Lucent 9500 Microwave Packet Radio (MPR) platform enables the smooth transformation of
transport networks from circuit to IP backhaul, seamlessly transporting TDM, ATM, IP and Ethernet over a
Carrier Ethernet infrastructure. As a result, the Alcatel-Lucent 9500 MPR efficiently transports multimedia
traffic while guaranteeing the Quality of Service (QoS) end users require. The Alcatel-Lucent 9500 MPR packet
radio addresses all microwave applications with a single product family — from full outdoor to split-mount
and node configurations — for hybrid and full-packet traffic, enabling the easy introduction of full IP-base
stations such as Long Term Evolution (LTE) while leveraging the existing infrastructure. The operator is now
free to maintain its current mode of operation using TDM/Hybrid model and starting migrating to packet as
data traffic grows boosted by IP-3G nodeBs and HSPA where needed.

Microwa ve Se rvice Switc h-8 (MSS-8)

MSS-4

MSS-1c

Microwa ve Packet Transpor t (M PT):

Multipurpose O utd oor Unit (ODU)

Features

• Intelligent nodal IDU that supports up
to 12 ODUs in hybrid or packet node

• Hitless switching service driven
Adaptive modulation

• Multiservice aggregator with
embedded Circuit Emulation Service
(CES) (MEF 8) and ATM IMA
pseudowire (PWE3) (RFC 4717)
capabilities for Carrier Ethernet
transport

• Backwards compatibility with existing
Alcatel-Lucent hybrid ODUs

• Common multipurpose ODU for
standalone full outdoor application
and split-mount/nodal configuration

• Millimeter wave support

• Multiservice switching capacity greater
than 16 Gb/s, radio throughput
greater than 4 Gb/s and termination
of up to 192 x E1

• Synchronous Ethernet (SyncE) support

Benefits

• Reduces OPEX

¬ Aggregation of multiple access

technologies over Ethernet
convergence layer, removing the
need of new external equipment

• Protects operators’ investments
and enables backhaul networks for
smooth migration from TDM to IP

¬ Operates in hybrid or packet mode

with the same hardware items

• Addresses all microwave applications
with common hardware

¬ Backwards compatibility with

existing hybrid ODU

• Guarantees TDM deterministic
behavior for packet transport

¬ No performance degradation

comparable to native TDM

¬ Guarantees high priority traffic

transport even in congested nodes

• Simplified deployment

¬ Fast pre-provisioning

¬ Quick setup and network planning

• Drastically reduces footprint and
rack power dissipation

¬ Highest nodal capability with

smallest footprint

¬ Zero footprint in standalone

full-outdoor solution to address
full IP sites such as IP 3G, LTE or IP
DSLAM backhaul; common system
used in the split-mount solution

Figure 1. Alcatel-Lucent 9500 MPR archite cture

• Improves scalability and availability

¬ End-to-end service-aware

management provided by the
Alcatel-Lucent 5620 Service
Aware Manager (SAM) for
the Alcatel-Lucent IP/MPLS
Service Router portfolio and
the Alcatel-Lucent 1350 Optical
Management System (OMS), for
the Alcatel-Lucent T-MPLS/MPLS-TP
Packet Optical Transport portfolio

• Enhanced performance and reliability
with built-in test functionalities

• Embedded synchronization
distribution even in full Ethernet
infrastructure

• Nodal microwave configuration with
a single packet matrix switching

• Full redundancy with no single
point of failure, including Ethernet
matrix switch

Mobile antenna
E1 and Ethernet

Mobile antenna

Ethernet

Mobile antenna
E1 and Ethernet

MSS-1c

NE: 9500 MPR

NE: 9500 MPR-e

MSS-4

NE: 9500 MPR

Hybrid or packet node

Mobile antenna
E1 and Ethernet

MSS-8

NE: 9500 MPR

Point of

aggregation

NE: 9500 MPR

Metro

network

Alcatel-Lucent 9500 MPR | R elease 2 | Da ta Sheet2
