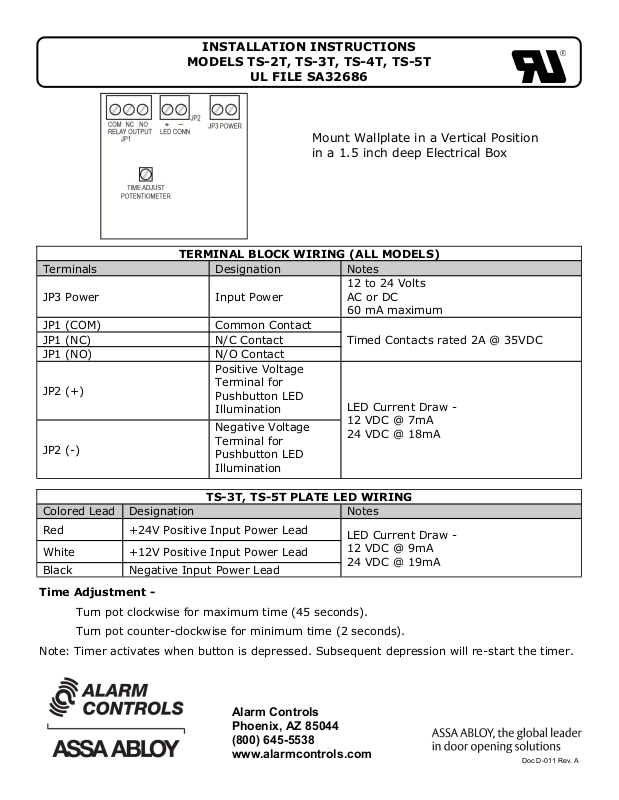

INSTALLATION INSTRUCTIONS
MODELS TS-2T, TS-3T, TS-4T, TS-5T
UL FILE SA32686
Mount Wallplate in a Vertical Position in a 1.5 inch deep Electrical Box
TERMINAL BLOCK WIRING (ALL MODELS)
Terminals |
|
Designation |
Notes |
|
|
|
|
12 to 24 Volts |
|
JP3 Power |
|
Input Power |
AC or DC |
|
|
|
|
60 mA maximum |
|
JP1 (COM) |
|
Common Contact |
|
|
JP1 (NC) |
|
N/C Contact |
Timed Contacts rated 2A @ 35VDC |
|
JP1 (NO) |
|
N/O Contact |
|
|
|
|
Positive Voltage |
|
|
JP2 (+) |
|
Terminal for |
|
|
|
Pushbutton LED |
|
||
|
|
|
||
|
|
Illumination |
LED Current Draw - |
|
|
|
|
12 VDC @ 7mA |
|
|
|
Negative Voltage |
||
|
|
24 VDC @ 18mA |
||
|
|
Terminal for |
||
JP2 (-) |
|
|
||
|
Pushbutton LED |
|
||
|
|
|
||
|
|
Illumination |
|
|
|
|
|
|
|
|
|
|
||
|
TS-3T, TS-5T PLATE LED WIRING |
|||
Colored Lead |
Designation |
Notes |
||
Red |
+24V Positive Input Power Lead |
LED Current Draw - |
||
|
|
|
||
White |
+12V Positive Input Power Lead |
12 VDC @ 9mA |
||
24 VDC @ 19mA |
||||
|
|
|
||
Black |
Negative Input Power Lead |
|||
|
||||
Time Adjustment -
Turn pot clockwise for maximum time (45 seconds).
Turn pot counter-clockwise for minimum time (2 seconds).
Note: Timer activates when button is depressed. Subsequent depression will re-start the timer.
Alarm Controls Phoenix, AZ 85044 (800) 645-5538 www.alarmcontrols.com
Doc D-011 Rev. A
