TS-2

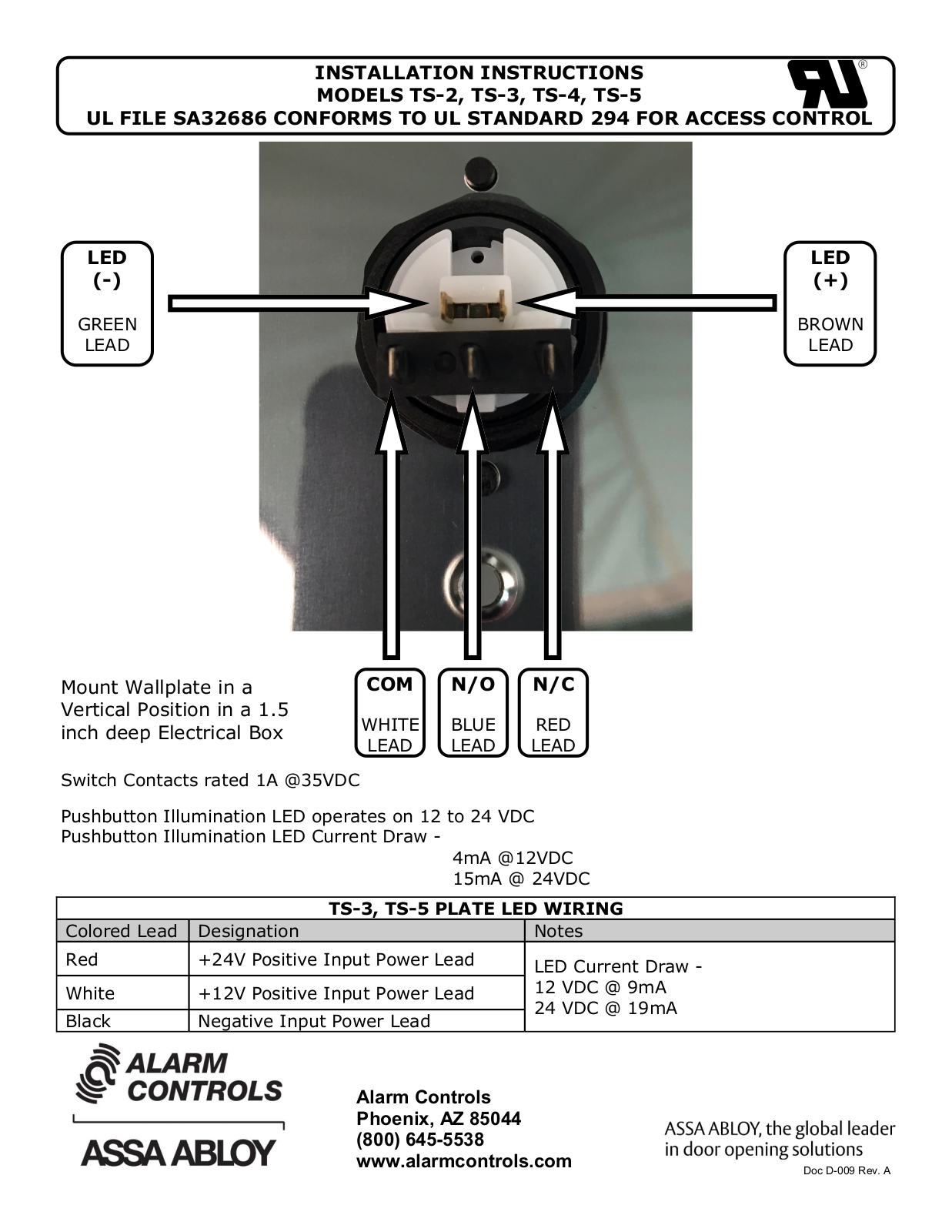

INSTALLATION INSTRUCTIONS
MODELS TS-2, TS-3, TS-4, TS-5
UL FILE SA32686 CONFORMS TO UL STANDARD 294 FOR ACCESS CONTROL
LED |
LED |
(-) |
(+) |
GREEN |
BROWN |
LEAD |
LEAD |
Mount Wallplate in a Vertical Position in a 1.5 inch deep Electrical Box
Switch Contacts rated 1A @35VDC
COM |
N/O |
N/C |
WHITE |
BLUE |
RED |
LEAD |
LEAD |
LEAD |
Pushbutton Illumination LED operates on 12 to 24 VDC
Pushbutton Illumination LED Current Draw -
|
|
|
4mA @12VDC |
||
|
|
|
15mA @ 24VDC |
||
|
|
|
|
||
|
|
TS-3, TS-5 PLATE LED WIRING |
|||
Colored Lead |
Designation |
|
|
Notes |
|
Red |
+24V Positive Input Power Lead |
LED Current Draw - |
|||
|
|
|
|
||
White |
+12V Positive Input Power Lead |
12 VDC @ 9mA |
|||
24 VDC @ 19mA |
|||||
|
|
|
|
||
Black |
Negative Input Power Lead |
|
|||
|
|
||||
Alarm Controls Phoenix, AZ 85044 (800) 645-5538 www.alarmcontrols.com
Doc D-009 Rev. A
