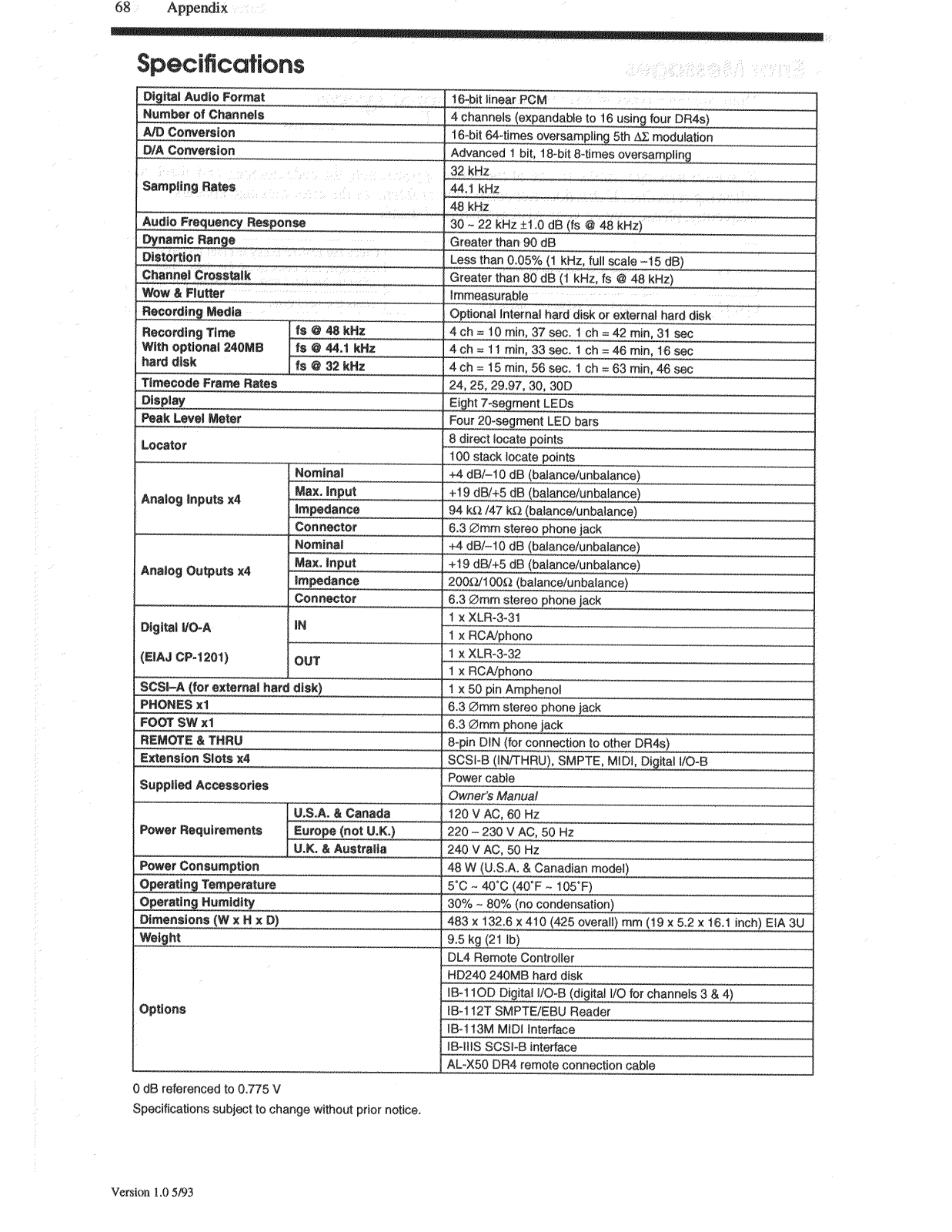

Specifications and Main Features
- Hard disk recorder of 4 channels
- Enables 16 bit PCM in linear form, recording of sound.
- With a sampling frequency of 48 kHz, 100MB of hard disk space allows recording of 17 channels lasting a minute each.
- For a 16 channel system, it allows connection of 4 units.
- A maximum of 7 SCSI hard drives can be interfaced.
- Uses 16 bit A/D converters with 64 times oversampling.
- 8x oversampling D/A Converters of 18 bits.
- Has near instant access to data which removes the long and tedious rewinding process.
- Eliminating the usual wait before a tape begins to play, direct access to the place where one wants to hear is guaranteed.
- If all 4 playbacks are on, they are seamless and smooth.
- Supports up to 100 stack locate points in addition to 8 locate points.

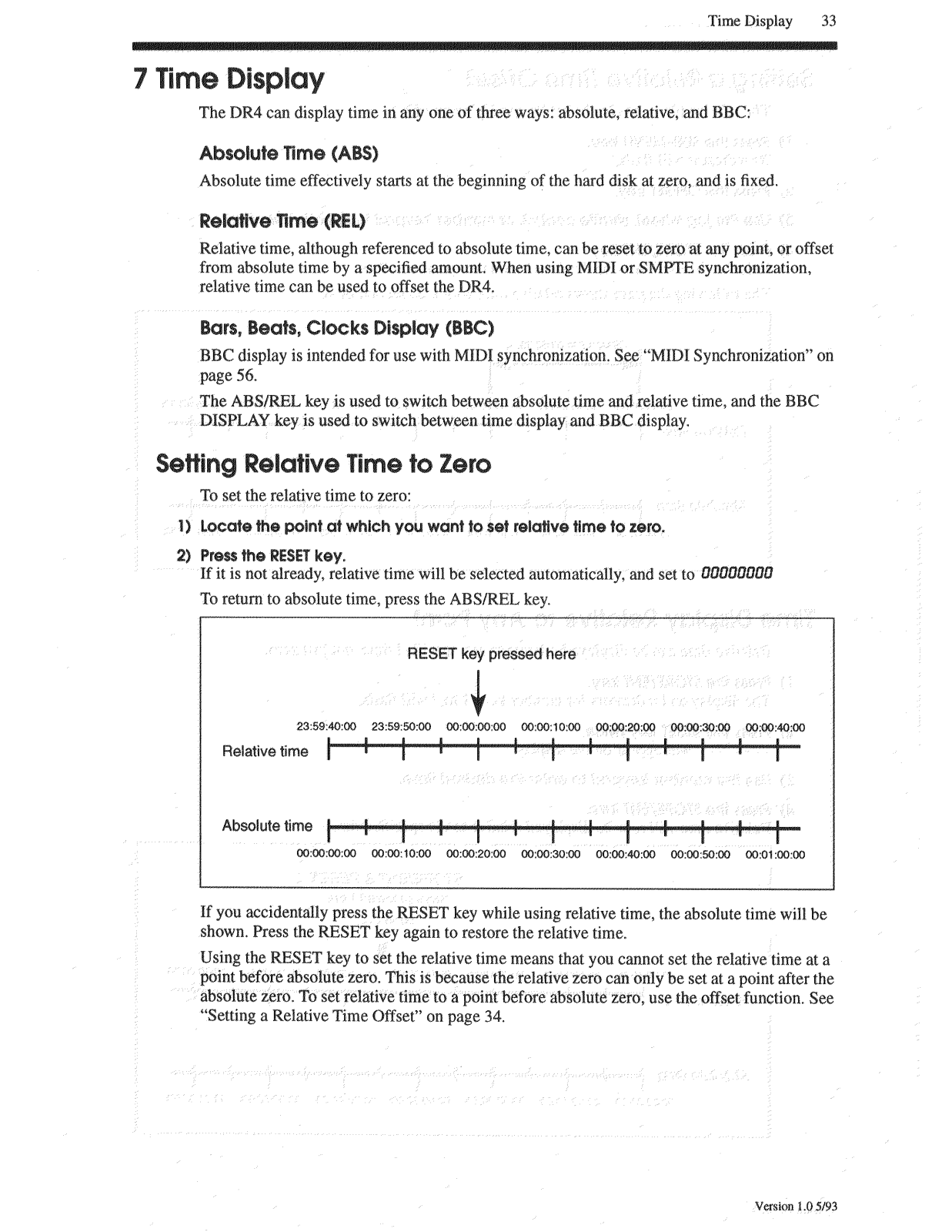

- Time mode allows only to specify absolute and relative time with sync offset
- Has a preset to allow map beat and tempo for a master MIDI clock
- Enables a rotary screw with various rolls for placing audio recordings
- Varipitch and preroll adjustment features Getting the tape to the set place manually, will act as a switch enabling it to begin playing automatically
- The machine supports two types of approaches, “punch in and out” which includes manual, auto
- A jog shuttle is used to find recordings locations.

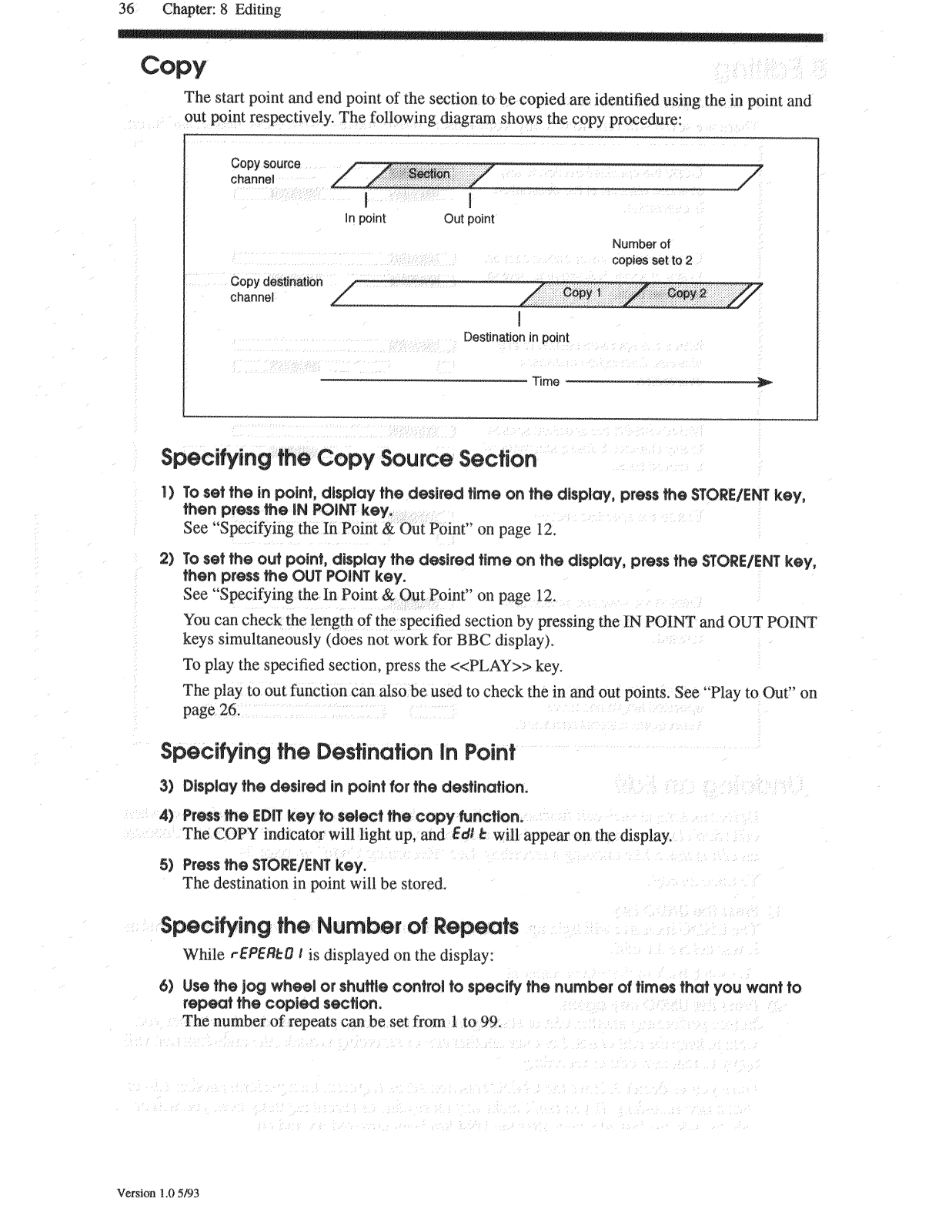

- Past recording can also be modified. Features include copy, moving, erasing and undoing.
- Two types of input units and outputs units. A balanced 1/4 analog: +4 dB and -10 dB plugs are input and output.
- Has two different types of digital in output XLR and RCA phono, one is AES EBU and S PDIF.

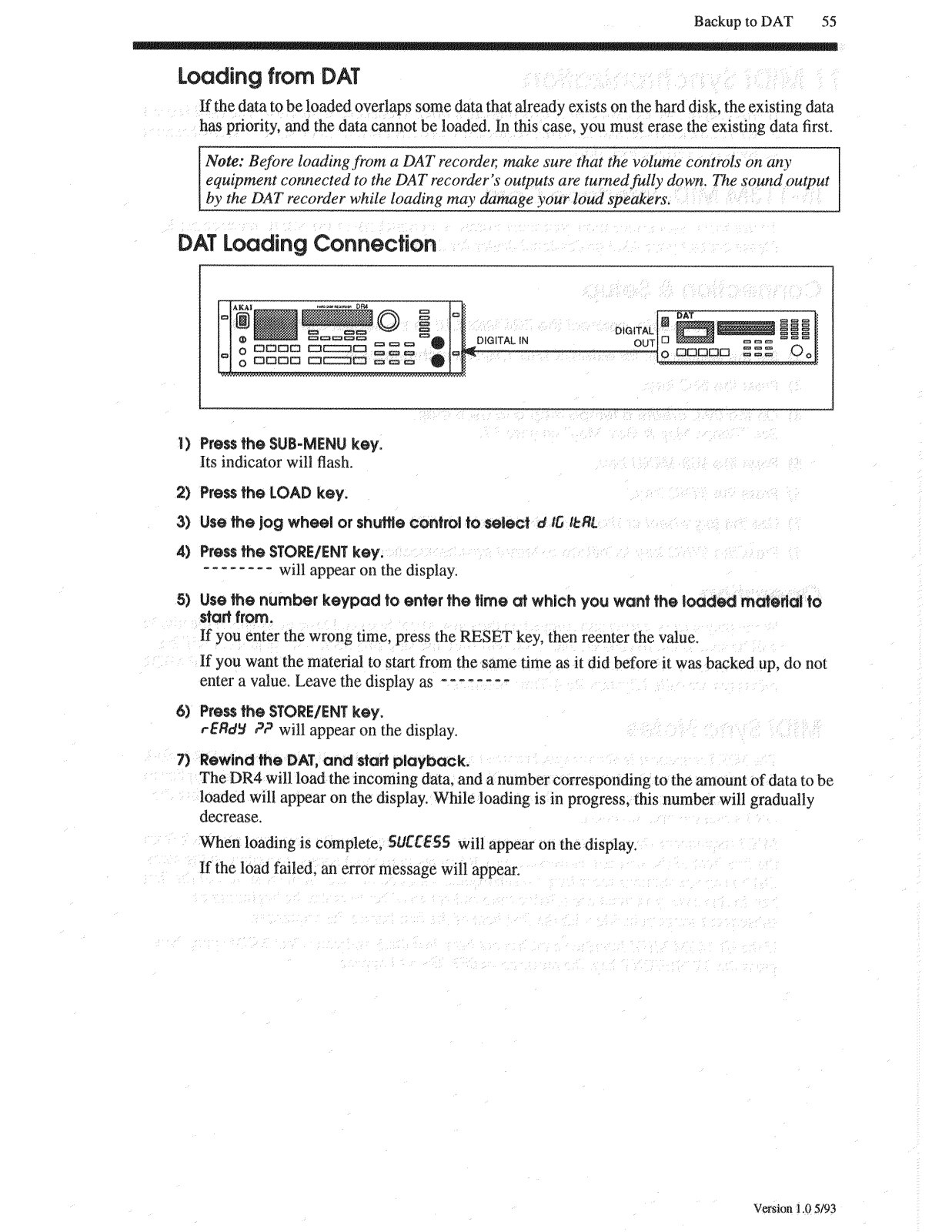

- It is able to transfer information from a computer to the system by connecting the computer’s DAT player.
- Synchronizing with MIDI sequencers and other units can be done using an optional IB-113M midi interface.
- IB-110D is an additional digital interface which allows four channel recording/playing via IO ports for embedding.
- There is an option for the installation of an HD240 240MB hard disk
Frequently Asked Questions
- Q: Akai DR4 offers how many channels?
A: In total, Anda. Akai DR4 has four supplementary channels.
- Q: In what format can recordings be made with the Akai DR4 device?
A: There is the ability to record audio in 16 — bit linear PCM format in the Akai handheld recorder

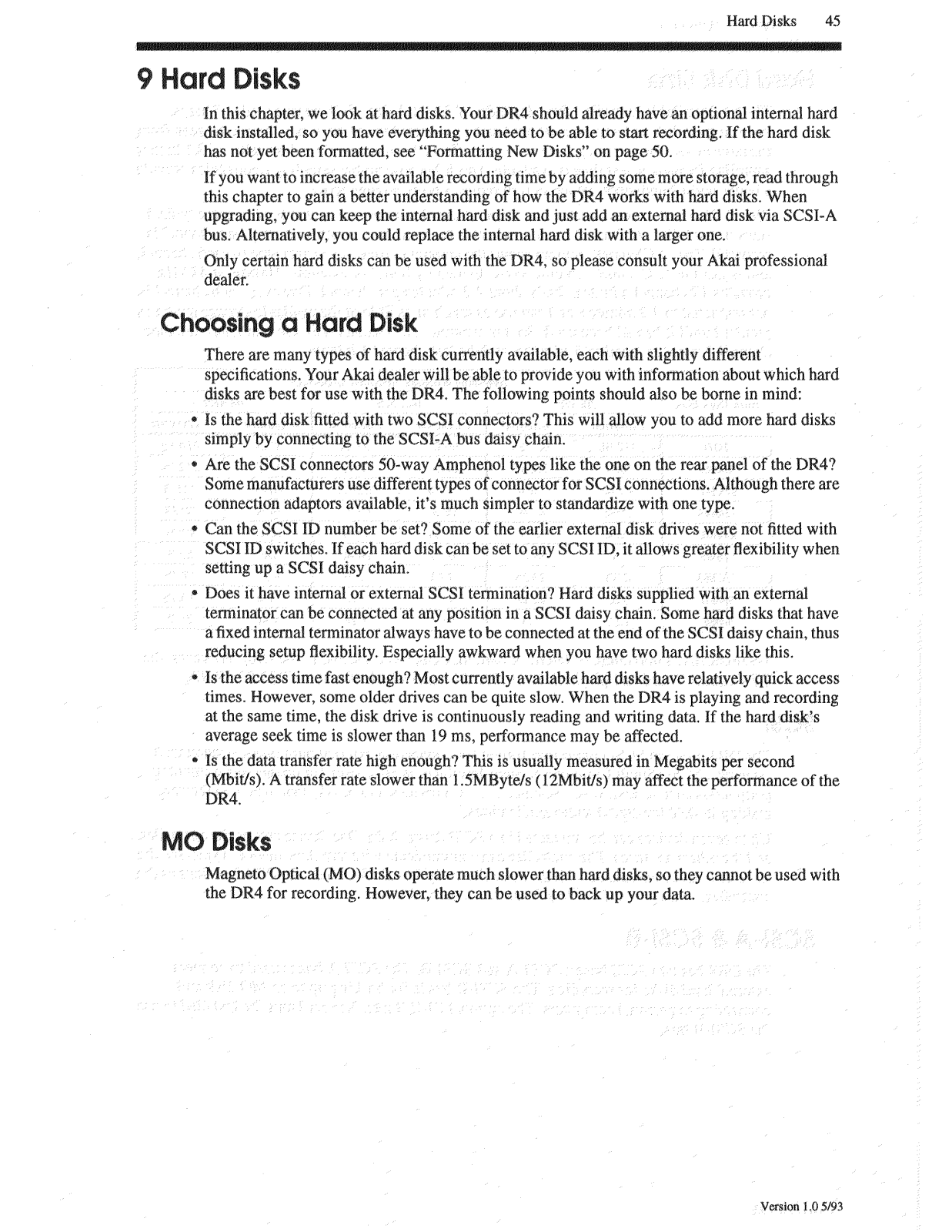

- Q: Is it possible to use external hard disk drives on the DR4?
A: It is possible to connect an additional of up to seven SCSI hard drive
- Q: What are the available options for the recording sampling frequency?
A: Other recording sampling options include 32 kHz and 44.1 KHz
- Q: Allow me to know if you can use MIDI to synchronize the Akai DR4?
A: Yes, it can be synchronized and operated with MIDI using it’s optional IB-113M MIDI Interface

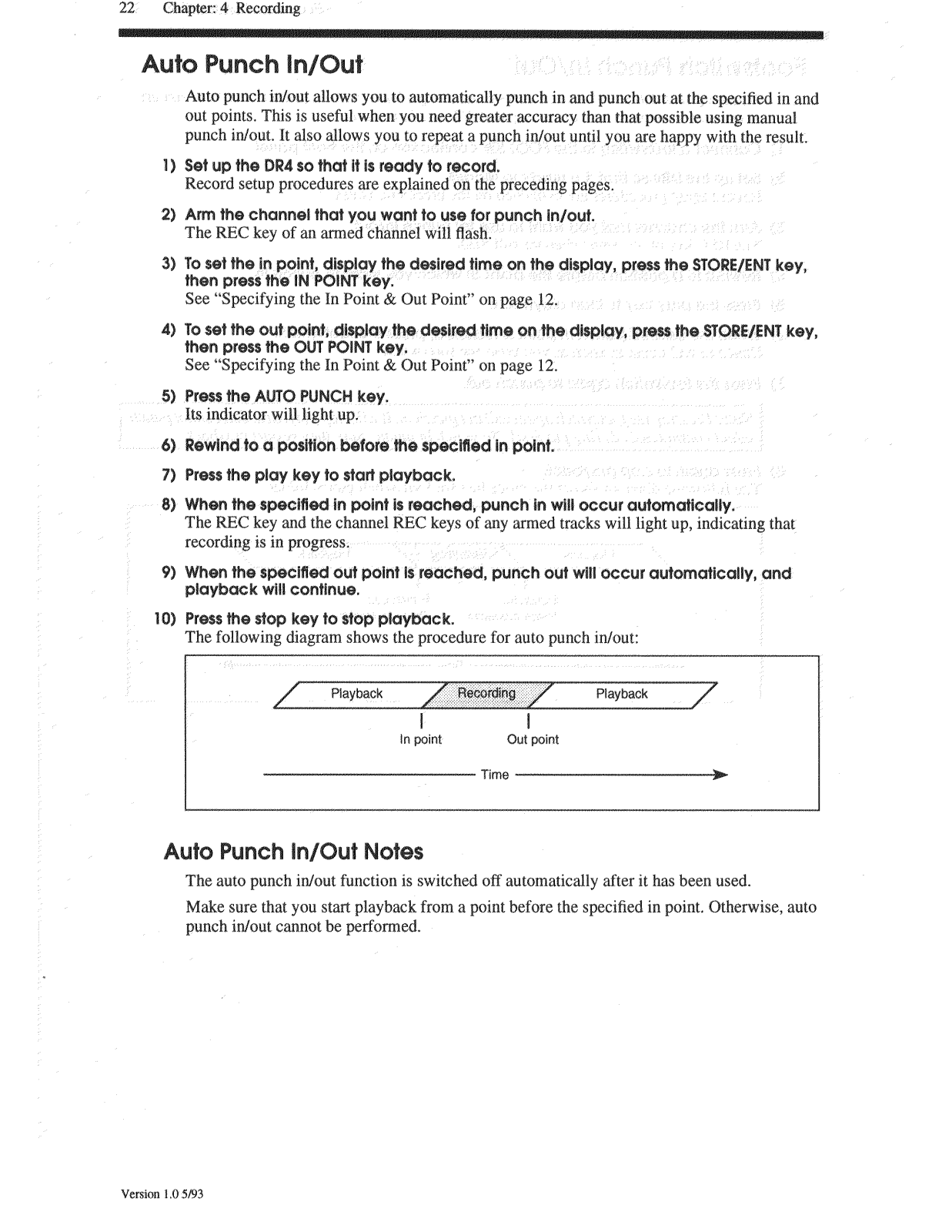

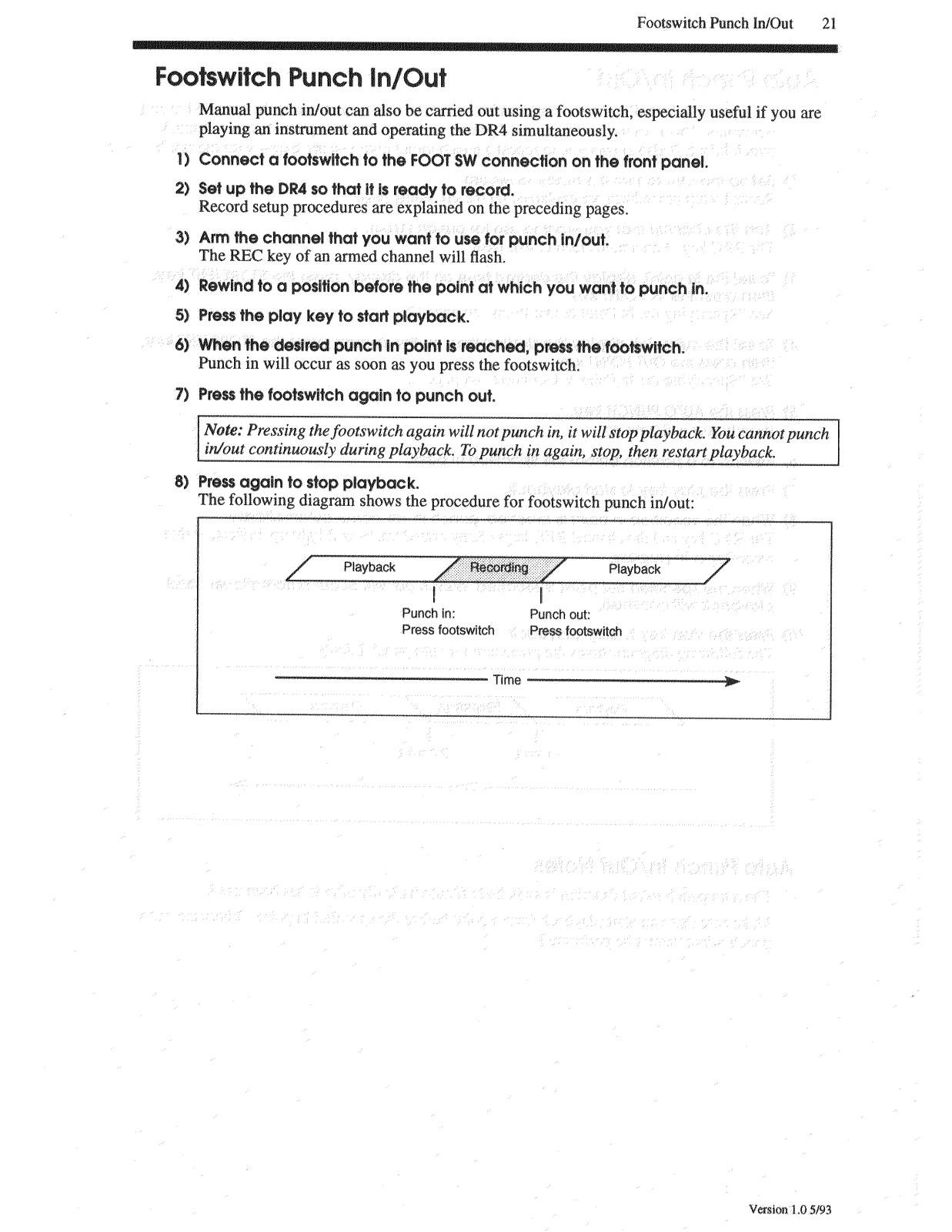

- Q: What about punch in/out recording will the DR4 be able to perform?
A: It is able to perform manual, auto(based on rehearsal recordings) and footswitch punch in/out recording .

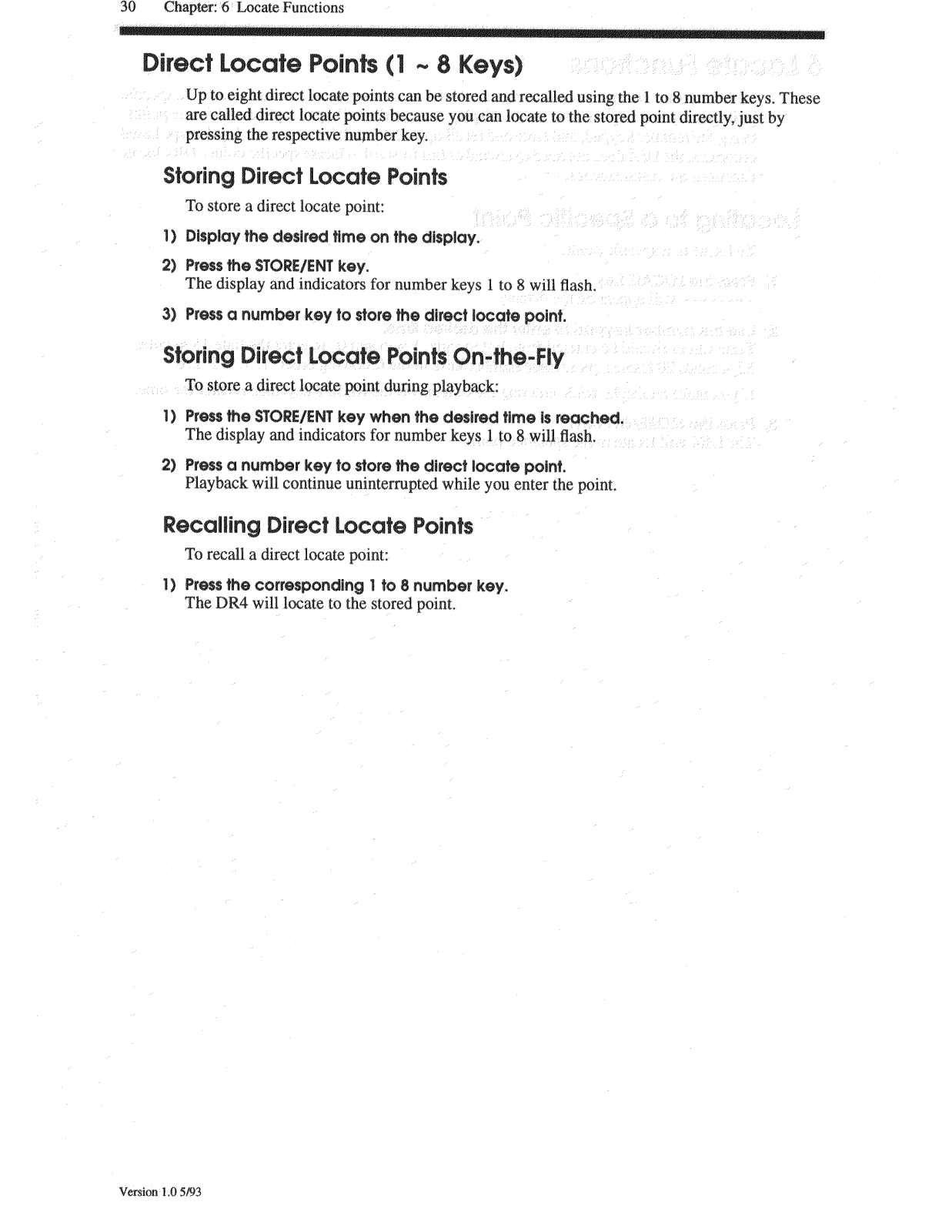

- Q: What is the maximum number of locate points that I can be able to use?
A: Up to 8 direct locate points and 100 stack locate points may be stored in the DR4.
- Q: Is the internal hard disk included in the DR4?
A: The internal hard disk is not included in the cost of the kit and must be purchased separately .
User Manual
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Page 57
Page 58
Page 59
Page 60
Page 61
Page 62
Page 63
Page 64
Page 65
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
Page 73
Page 74
Page 75
Page 76
Page 77
Page 78
Page 79
