AIXAM 2005 |
101 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Accessoires Moteur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
V00220 |
|
MOTEUR KUBOTA Z402B AIX.1 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
1H002 |
|
LIAISON DROITE MOTEUR BOITE 400 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
1K004 |
|
SUPPORT MOTEUR AVANT 400/500 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
1H036 |
|
SUPPORT RADIATEUR 400 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1F40 |
|
CROCHET RADIATEUR 400/500 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
1F43 |
|
PLOT RADIATEUR 50 SH |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
1K006A |
|
SILENT-BLOC MOTEUR 45SH TARAUDE |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
1C37 |
|
DIABOLO M6 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
1K035A |
|
RAIDISSEUR RADIATEUR N/M |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
1K058 |
|
VOLUTE DE RADIATEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
11 |
|
1K059 |
|
PRISE D'AIR MOTEUR 400 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
1AA071 |
|
PIQUAGE MOTEUR KUBOTA |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
1W070 |
|
SONDE TEMPERATURE EAU |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 / 59
AIXAM 2005 |
102 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Accessoires Moteur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
1AA019 |
|
PEDALE D'ACCELERATEUR FRANCE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
1K021 |
|
CABLE D'ACCELERATEUR 400 FRANCE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
1K022 |
|
ENTRETOISE LAITON PEDALE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
1K020 |
|
RESSORT TORSION PEDALIER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1K042 |
|
RENVOI ARRET DE GAINE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
1K901 |
|
ENTRETOISE CABLE ACCELERATEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 3 / 59 |
15/01/2010 |
AIXAM 2005 |
103 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Alimentation |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
1W010 |
|
RESERVOIR 15L CARBURANT 2002 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
1MB015 |
|
GOULOTTE QUADRI |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
1K016 |
|
BOUCHON DE RESERVOIR A CLE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
1K012 |
|
JOINT DE JAUGE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1AA011 |
|
JAUGE A CARBURANT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
1K013 |
|
ECROU DE JAUGE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
1K017 |
|
ENJOLIVEUR DE BOUCHON DE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
1K052 |
|
JOINT DE GOULOTTE (couvercle) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
1L050 |
|
TUYAU RETOUR 4 PLACES L.2100 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
11 |
|
1L051 |
|
TUYAU ALIMENTATION 4 PLACES |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
1A14 |
|
TUYAU GAS-OIL DIAMETRE 7/13 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
1A25 |
|
TUYAU GAS-OIL DIAMETRE 5/10 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
1D33 |
|
TE RETOUR CARBURANT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
1K053 |
|
COLLIER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
1K054 |
|
COLLIER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
19 |
|
1K060 |
|
PASSE-FILS |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
1K063 |
|
PREFILTRE MOTEUR DIESEL |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 4 / 59 |
15/01/2010 |
AIXAM 2005 |
104 |
|
AIXAM CROSSLINE VSP
Pièces détachées Echappement
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
1AA007 |
|
COLLECTEUR ECHAPPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
1AA032 |
|
FLEXIBLE ECHAPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
1K037 |
|
ANNEAU D'ECHAPPEMENT ARR. REF |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
1C37 |
|
DIABOLO M6 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1AA062 |
|
LIGNE INTER ECHAPPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
1AA030 |
|
LIGNE ECHAPPEMENT ARRIERE LONG |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
1S037 |
|
ANNEAU D'ECHAPPEMENT INTER REF |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
1AA040 |
|
ENTRETOISE ECHAP AR VSP-LG |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
1AA070 |
|
CROCHET FIXATION SILENBLOC |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
1S037 |
|
ANNEAU D'ECHAPPEMENT INTER REF |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
11 |
|
1AA040 |
|
ENTRETOISE ECHAP AR VSP-LG |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 5 / 59 |
15/01/2010 |
AIXAM 2005 |
104A |
|
AIXAM CROSSLINE VSP
Pièces détachées Echappement
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
1AA007 |
|
COLLECTEUR ECHAPPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
1AA032 |
|
FLEXIBLE ECHAPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
1K037 |
|
ANNEAU D'ECHAPPEMENT ARR. REF |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
1AA040 |
|
ENTRETOISE ECHAP AR VSP-LG |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1AA062 |
|
LIGNE INTER ECHAPPEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
1AA030A |
|
SILENCIEUX ARRIERE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
1S037 |
|
ANNEAU D'ECHAPPEMENT INTER REF |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
1K061 |
|
CROCHET SILENCIEUX ARR VSP |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 6 / 59 |
15/01/2010 |
AIXAM 2005 |
201 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Chauffage |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
2R005 |
|
RADIATEUR DE CHAUFFAGE GAMME |
1 |
|
|
|
|
|
|
|
|
|
|
||
2 |
|
2B16 |
|
DURITE DE CHAUFFAGE LE METRE |
|
X |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
2MB001 |
|
PULSEUR QUADRI |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
2K012 |
|
ROBINET DE CHAUFFAGE + JOINT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 7 / 59 |
15/01/2010 |
AIXAM 2005 |
202 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Chauffage |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
|
1 |
|
2AA007 |
|
BLOC DIFFUSEUR D'AIR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
2AA026 |
|
BLOC COMMANDE CHAUFFAGE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
2AA029 |
|
BOUTON |
2 |
|

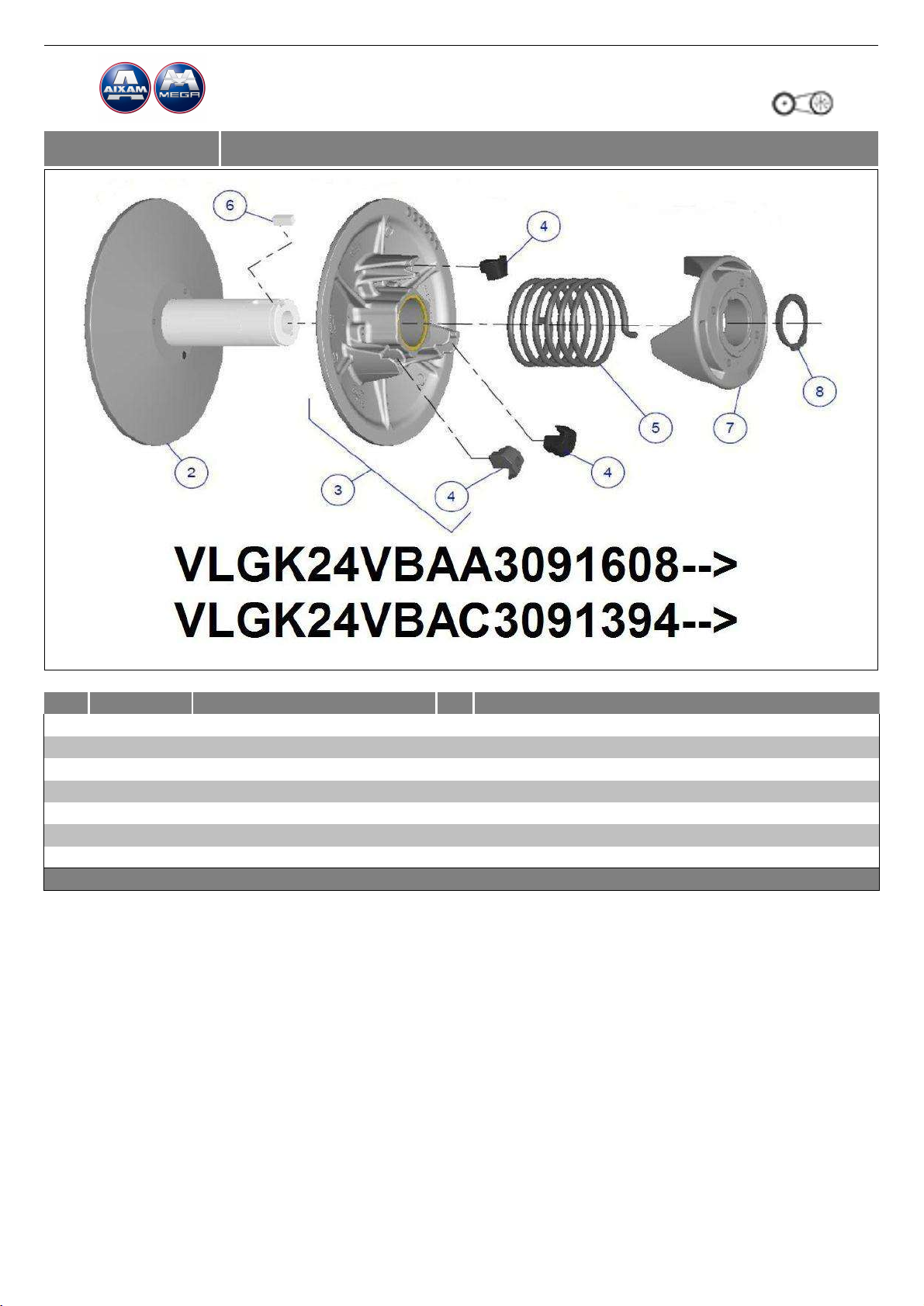

-->VLGK24VBAA3089452 |
|
|
|
|
|
|
|
|
|
|
-->VLGK24VBAC3089420 |
|
|
|
|
|
|
|
|
|
|
|
3 |
|
2AG029 |
|
BOUTON CHROME |
2 |
|
SL |
|
|
|
|
|
|
|
|
|
|
VLGK24VBAA3089453--> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VLGK24VBAC3089421--> |
|
|
|
|
|
|
|
|
|
|
|
4 |
|
2AA027 |
|
CABLE REPARTITION AIR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
2AA028 |
|
CABLE ROBINET CHAUFFAGE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
2AA030 |
|
INTER VENTILATION |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
2AA029A |
|
BOUTON INTER DE VENTILATION |
1 |
|
-->VLGK24VBAA3089452 |
|
|
|
|
|
|
|
|
|
|
-->VLGK24VBAC3089420 |
|
|
|
|
|
|
|
|
|
|
|
7 |
|
2AG029A |
|
BOUTON VENTILATION CHROME |
1 |
|
SL |
|
|
|
|
|
|
|
|
|
|
VLGK24VBAA3089453--> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VLGK24VBAC3089421--> |
|
8 |
|
2AA014 |
|
CLIPS ARRET DE GAINE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 8 / 59 |
15/01/2010 |
AIXAM 2005 |
203 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Ventilateur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
2AA034 |
|
JEU DE DEMI BOITIER DE CHAUFFAGE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
2AA003 |
|
SOUS ENSEMBLE VOLET |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
2AA035 |
|
GRILLE DIFFUSION AIR INTERIEURE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
2AA036 |
|
GRILLE SOUS PARE BRISE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 9 / 59 |
15/01/2010 |
AIXAM 2005 |
301 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Pont inverseur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AA001 |
|
PONT INVERSEUR 1/12 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3A2 |
|
CLAVETTE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3A11 |
|
ECROU NYLSTOP D12 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3K034 |
|
PROTECTION COURROIE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
1K006 |
|
SILENT BLOC MOTEUR 65SH TARAUDE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
3A8 |
|
VIS M12X135 8/8 ZINGUEE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
3G007L |
|
ENTRETOISE ALU. D26/D12.5 LG11 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
3A11 |
|
ECROU NYLSTOP D12 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
3D10 |
|
RONDELLE DIAM. 8 LARGE EPAIS. 3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 10 / 59 |
15/01/2010 |
AIXAM 2005 |
302 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Pont inverseur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AA012 |
|
LEVIER INVERSEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3AA014 |
|
CABLE INVERSEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
8AA002 |
|
CONTACTEUR |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3AA015 |
|
SOUFFLET |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3AA058 |
|
COUVERCLE DE POMMEAU NOIR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3AA059 |
|
COUVERCLE DE POMMEAU CHROME |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 11 / 59 |
15/01/2010 |
AIXAM 2005 |
303 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Pont inverseur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3KC29A |
|
DEMI-CARTER GAUCHE N/M |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3AC14 |
|
VIS |
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3AC1N |
|
JOINT SPI MODIF.BOITE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3AC4N |
|
ROULEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3KC20 |
|
ARBRE D'ENTREE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
3AAC19 |
|
ARBRE DEUXIEME REDUCTION 1/12 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
3AC5 |
|
ARBRE DE MARCHE ARRIERE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
3AC7 |
|
PIGNON MOBILE MARCHE ARRIERE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
3AC21 |
|
PIGNON 1ère REDUCTION |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
3AC21R |
|
RONDELLE POUR PIGNON N/M |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
11 |
|
3AC10N |
|
CIRCLIPS |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
3AAC54 |
|
DIFFERENTIEL COMPLET 1:12 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
3AC3 |
|
CENTREUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
3AAC60 |
|
BOUCHON AIMANTE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
15 |
|
3AC30 |
|
RONDELLE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
3AC45 |
|
ROULEMENT |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
3AC1 |
|
JOINT SPI |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
18 |
|
3KC4 |
|
ROULEMENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 12 / 59 |
15/01/2010 |
AIXAM 2005 |
303A |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Pont inverseur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AC9 |
|
MANCHON CRABOT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3AC4 |
|
ROULEMENT |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3AC10 |
|
CIRCLIPS |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3AC11 |
|
PIGNON FIXE MARCHE ARRIERE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3AAC61 |
|
TUBE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
3AAC12 |
|
RENIFLARD |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
3AC52 |
|
ENTRETOISE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
3AC50 |
|
JOINT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
3AAC48 |
|
PRISE TACHY |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
3AC51 |
|
VIS |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
11 |
|
3AC16 |
|
ECROU |
8 |
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
3AC31 |
|
VIS DE NIVEAU |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
3AC30 |
|
RONDELLE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
3KC46 |
|
DEMI-CARTER DROIT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
15 |
|
3KC43 |
|
JOINT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
3AC24 |
|
BOITIER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
3AC25 |
|
BILLE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
18 |
|
3MBC26 |
|
RESSORT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
19 |
|
3AC47 |
|
VIS T.E. |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
3KC1 |
|
RESSORT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
3KC2 |
|
SELECTEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
22 |
|
3AC33 |
|
ANNEAU |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
23 |
|
3KC32 |
|
GUIDE D'ARBRE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 13 / 59 |
15/01/2010 |
|
|
|
AIXAM 2005 |
303A |
|
|
|
|
|
|
|
|
AIXAM CROSSLINE VSP |
|
|
|
|
|
|
24 |
3AC34 |
CIRCLIPS |
1 |
|
|
|
|
|
|
25 |
3KC36 |
RONDELLE |
1 |
|
|
|
|
|
|
26 |
3AAC35 |
LEVIER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 14 / 59 |
15/01/2010 |
AIXAM 2005 |
305 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Variateur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AAP22 |
|
POULIE MOTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3WP24 |
|
POULIE RECEPTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3HP23 |
|
COURROIE DOUBLE CRANTAGE MOT. |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3BP13 |
|
VIS DE FIXATION M8 X 160 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3W011 |
|
ECROU POULIE RECEPTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 15 / 59 |
15/01/2010 |
AIXAM 2005 |
305A |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Variateur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AAP22A |
|
POULIE MOTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3AAP24A |
|
POULIE RECEPTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3MDP23A |
|
COURROIE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3BP13 |
|
VIS DE FIXATION M8 X 160 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3W011 |
|
ECROU POULIE RECEPTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 16 / 59 |
15/01/2010 |
AIXAM 2005 |
306 |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Variateur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
1 |
|
3AAP001 |
|
DEMI-POULIE FIXE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
3WP002 |
|
ROULEMENT POULIE MOTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3WP002A |
|
ENTRETOISE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3WP004 |
|
RONDELLE DE BAGUE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3WP005 |
|
DEMI-POULIE COULISSANTE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
3FP6 |
|
RESSORT (15 MM ) |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
3WP007 |
|
MASSELOTTE 165 Grammes |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
3FP8 |
|
BLOC DROIT CONIQUE ROUGE |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
3WP009 |
|
PALIER INFERIEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
3FP10 |
|
RESSORT PRINCIPAL |
1 |
|
|
|
|
|
|
|
|
|
|
||
11 |
|
3FP11 |
|
ESPACEUR D'AJUSTEMENT épais. 1.2 |
|
X |
||
|
|
|
|
|
|
|
||
11 |
|
3FP11B |
|
ESPACEUR D'AJUSTEMENT épais. 0.6 |
|
X |
||
|
|
|
|
|
|
|
||
12 |
|
3WP014 |
|
ESPACEUR DE COURROIE épaisseur 0.5 |
|
X |
||
|
|
|
|
|
|
|
||
12 |
|
3WP014A |
|
ESPACEUR DE COURROIE épaisseur 1 |
|
X |
||
|
|
|
|
|
|
|
|
|
13 |
|
3WP012 |
|
PALIER SUPERIEUR VARIATEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
3FP13 |
|
CIRCLIPS |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
15 |
|
3HP15 |
|
CAPUCHON DROIT 20MM |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
3HP16 |
|
RONDELLE EPAISSEUR DIAMETRE 20 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
3HP17 |
|
DEMI-ECROU M20 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 17 / 59 |
15/01/2010 |
AIXAM 2005 |
306A |
|
AIXAM CROSSLINE VSP
Pièces détachées |
|
Variateur |
|
|
|
|
|
|
|
|
|
Rep |
|
Référence |
|
Désignation |
|
Qté |
|
Remarques |
2 |
|
3AAP001A |
|
FLASQUE FIXE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
3WP002 |
|
ROULEMENT POULIE MOTRICE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
3AAP025 |
|
RONDELLE ENTRETOISE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
3WP002A |
|
ENTRETOISE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
3WP004 |
|
RONDELLE DE BAGUE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
3WP005 |
|
DEMI-POULIE COULISSANTE |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
3WP009 |
|
PALIER INFERIEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
3WP014B |
|
CALE DE COURROIE |
1 |
|
|
|
|
|
|
|
|
|
|
||
10 |
|
3WP014A |
|
ESPACEUR DE COURROIE épaisseur 1 |
|
X |
||
|
|
|
|
|
|
|
||
11 |
|
3WP014 |
|
ESPACEUR DE COURROIE épaisseur 0.5 |
|
X |
||
|
|
|
|
|
|
|
|
|
12 |
|
3AAP010 |
|
RESSORT |
1 |
|
|
|
|
|
|
|
|
|
|
||
13 |
|
3FP11 |
|
ESPACEUR D'AJUSTEMENT épais. 1.2 |
|
X |
||
|
|
|
|
|
|
|
||
14 |
|
3FP11B |
|
ESPACEUR D'AJUSTEMENT épais. 0.6 |
|
X |
||
|
|
|
|
|
|
|
|
|
15 |
|
3WP012 |
|
PALIER SUPERIEUR VARIATEUR |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
3FP13 |
|
CIRCLIPS |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
3MDP007A |
|
MASSELOTE 250gr |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
18 |
|
3AAP008 |
|
BLOC |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
19 |
|
3MDP015A |
|
CAPUCHON |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
3HP16 |
|
RONDELLE EPAISSEUR DIAMETRE 20 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
3HP17 |
|
DEMI-ECROU M20 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AIXAM-MEGA |
Page 18 / 59 |
15/01/2010 |
Loading...
