AEG-Electrolux 7509D-W, 7509D-M, 7509D-D User Manual
Specifications and Main Features
- Size: Height is of 420 mm while Width is of 900 mm and Depth is of 260 mm.
- Weight is of: 16 Kg.
- Electrical requirements needed are: 230 V with cable of 240 V attached for use in England.
- Power consumption in total is: 270 W.

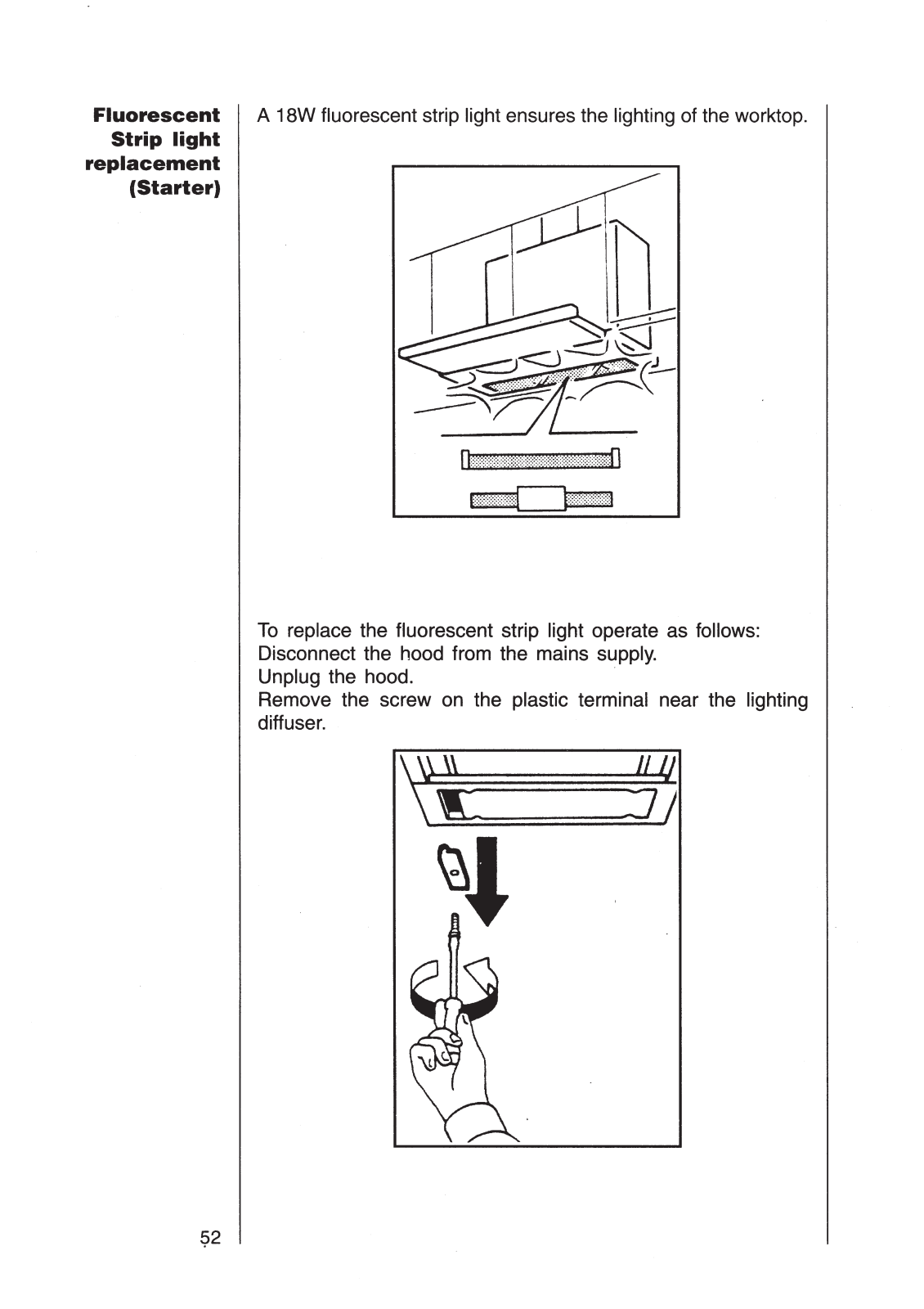

- Motor specifications are: 2x126 W, Lighting specifications are: 1x18 W.
- Capacities in Evacuation mode:
- Speed 1: 250 Cubic meter per hour.
- Speed 2: 370 Cubic meter per hour.
- Speed 3: 480 Cubic meter per hour.
- Capacities when in Recirculation mode are:
- Speed 1: 180 Cubic meter per hour.
- Speed 2: 240 Cubic meter per hour.
- Speed 3: 290 Cubic meter per hour.
- Options Available for Evacuation ducting are: 120 mm, 125 mm, 150 mm.
- Other Features include; an adjustable metal range for their through flow retractable visor, while also including metal filters to retain the grease.
- Fan speed and lighting can be controlled via Slider controls.
- It was built with two installation modes which include: Ru Circulation and Mono Evacuate.
- There is the option to buy special accessories which are Charcoal filters and Evacuation ducts.

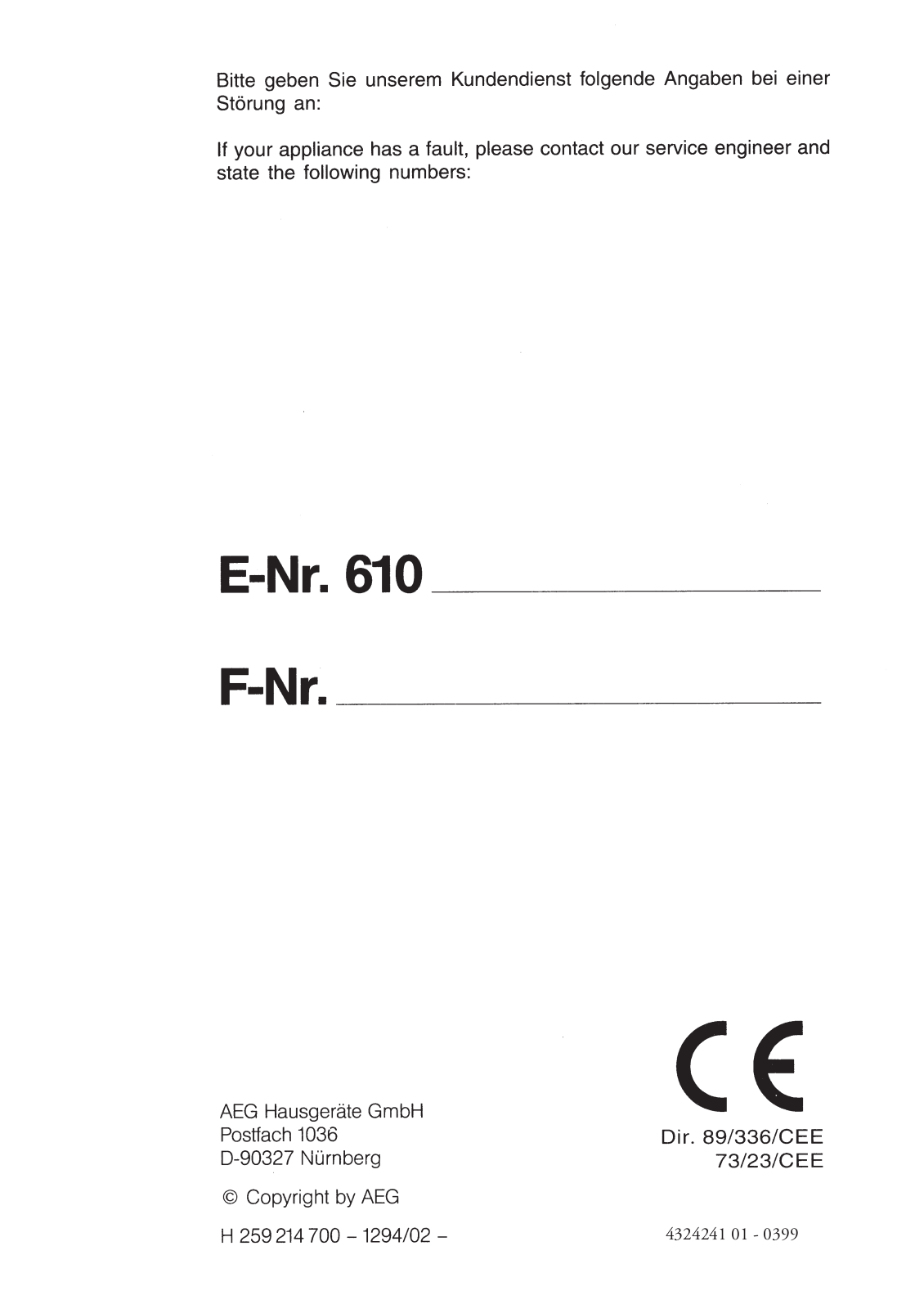

- As per CE-certification, it follows the CEE directives 72/23/EWG and 89/336/EWG.
Frequently Asked Questions
Q: What is the electricity consumption of the appliance?
A: The value of total absorbed power of the device is 270 W, and the device is able to connect to a standard 230 V socket using a cable with a plug at the end.

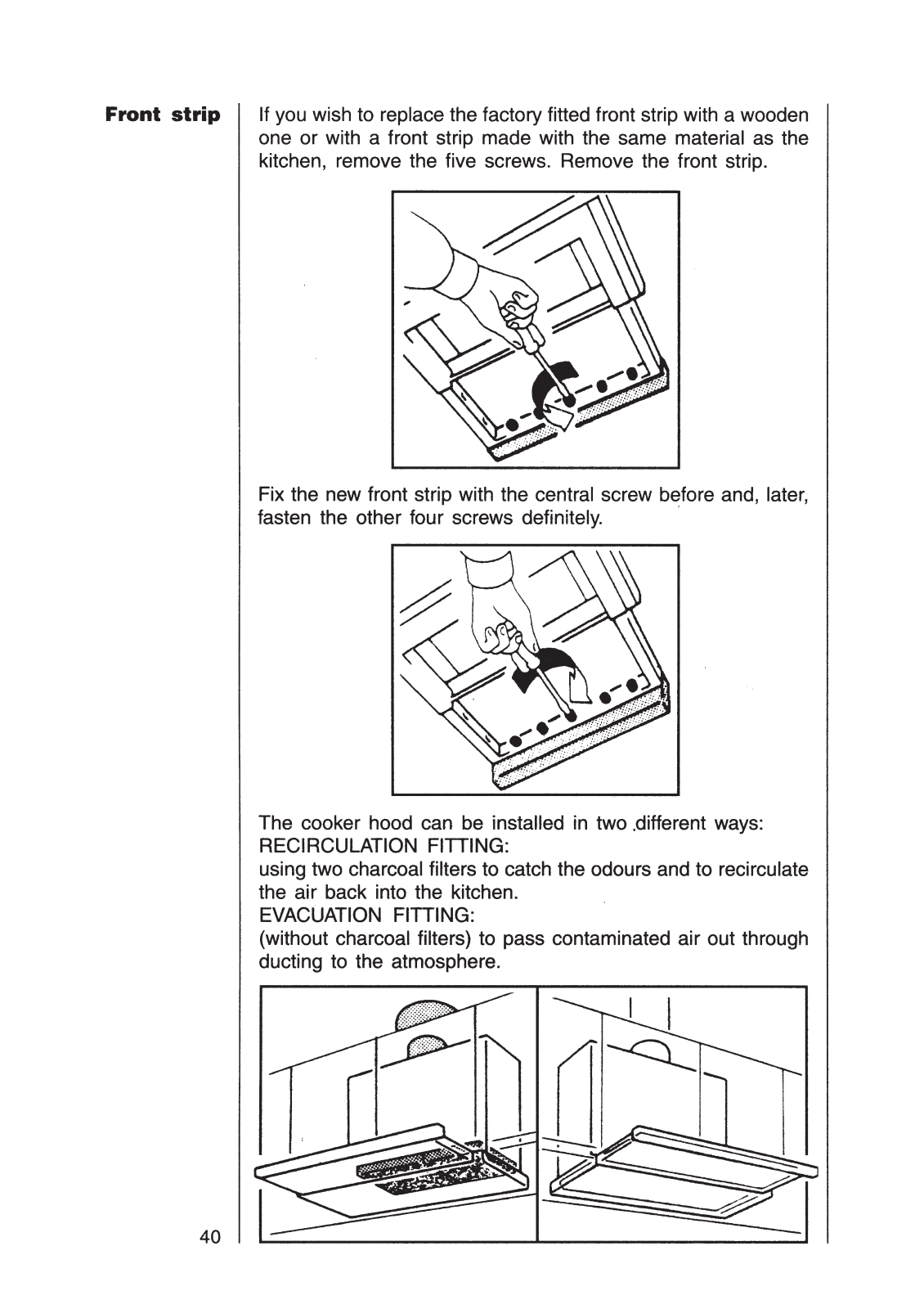

Q: Is there a switching option for both recirculation and evacuation features of the cooker hood?
A: Definitely, the cooker hood can operate in both evacuating mode that does not require filters and recirculation mode that does have the filters fitted.
Q: For gas and electric cook tops what is the distance advised to install the coffee hood?
A: For electric cooktops, the distance should be set not less than 465 mm and for gas cooktops the distance from coffee need to be set around 650 mm.

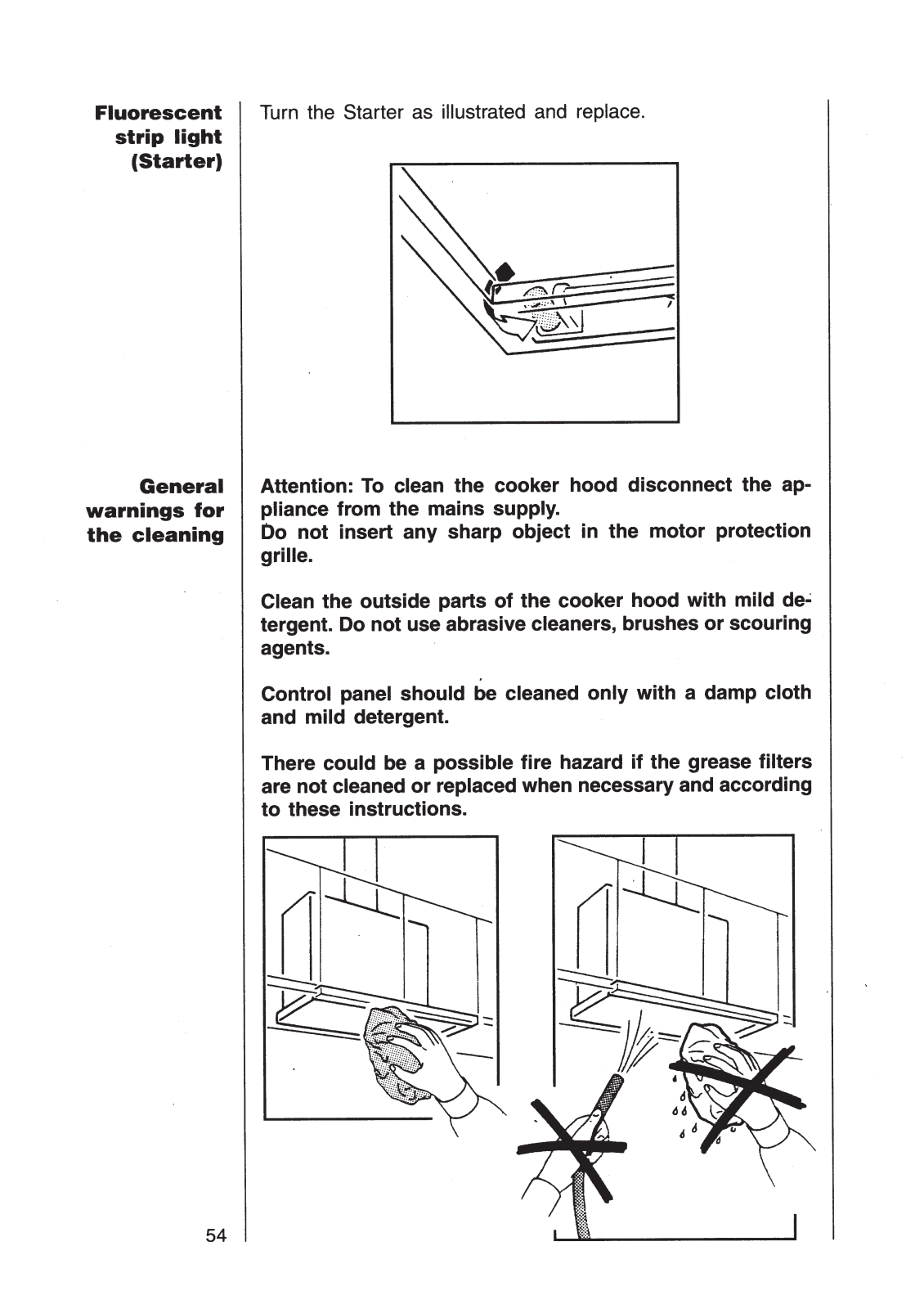

Q: For how long do the metal filters set to work efficiently without being washed?
A: According to the establishments of the manufacturer the metal filters should be cleaned every month.
Q: What is the maximum air extraction capacity in evacuation mode?
A: In speed 3 of evacuation mode, the cooker hood can reach a maximum air extraction capacity of 480 m³/h.

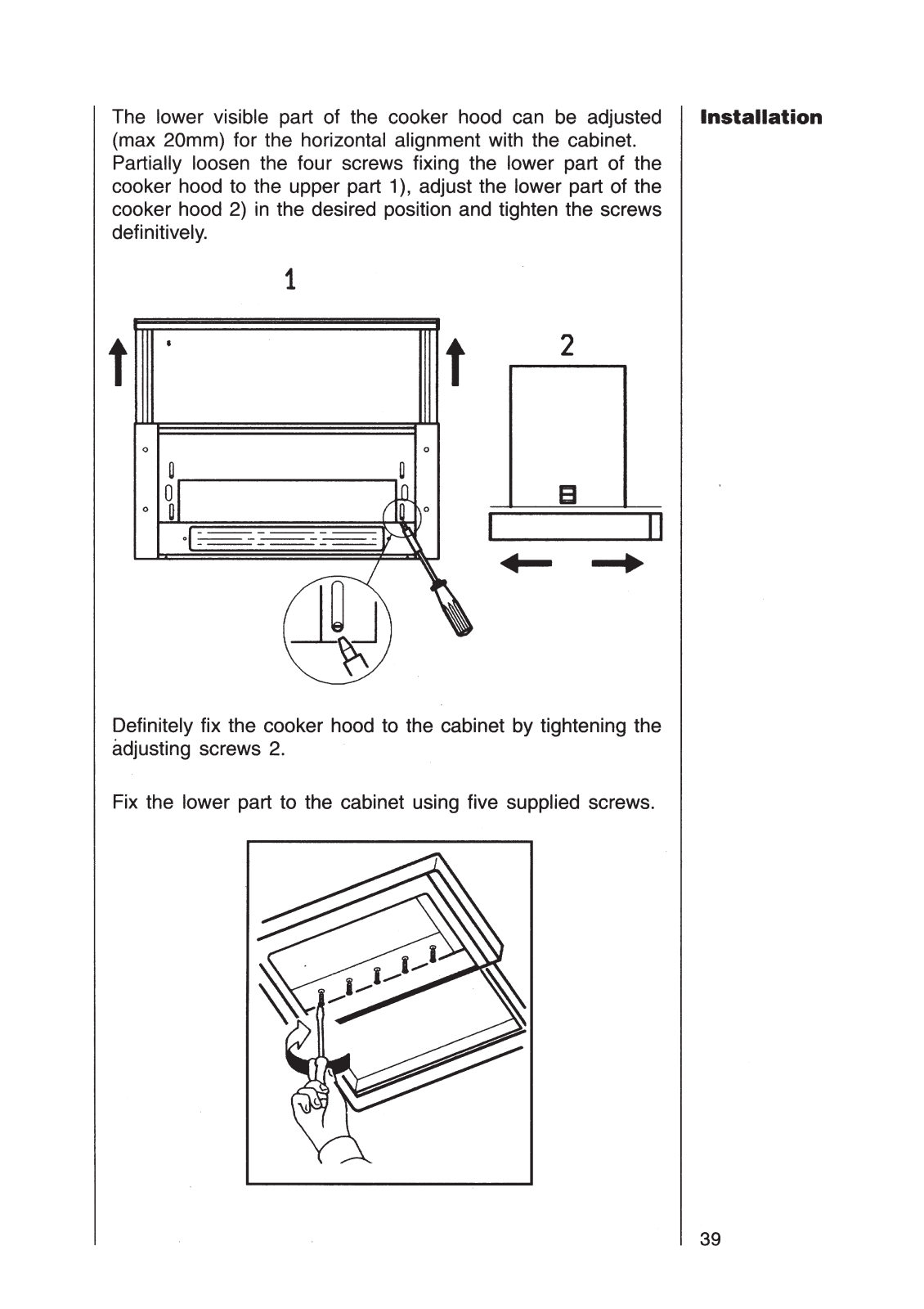

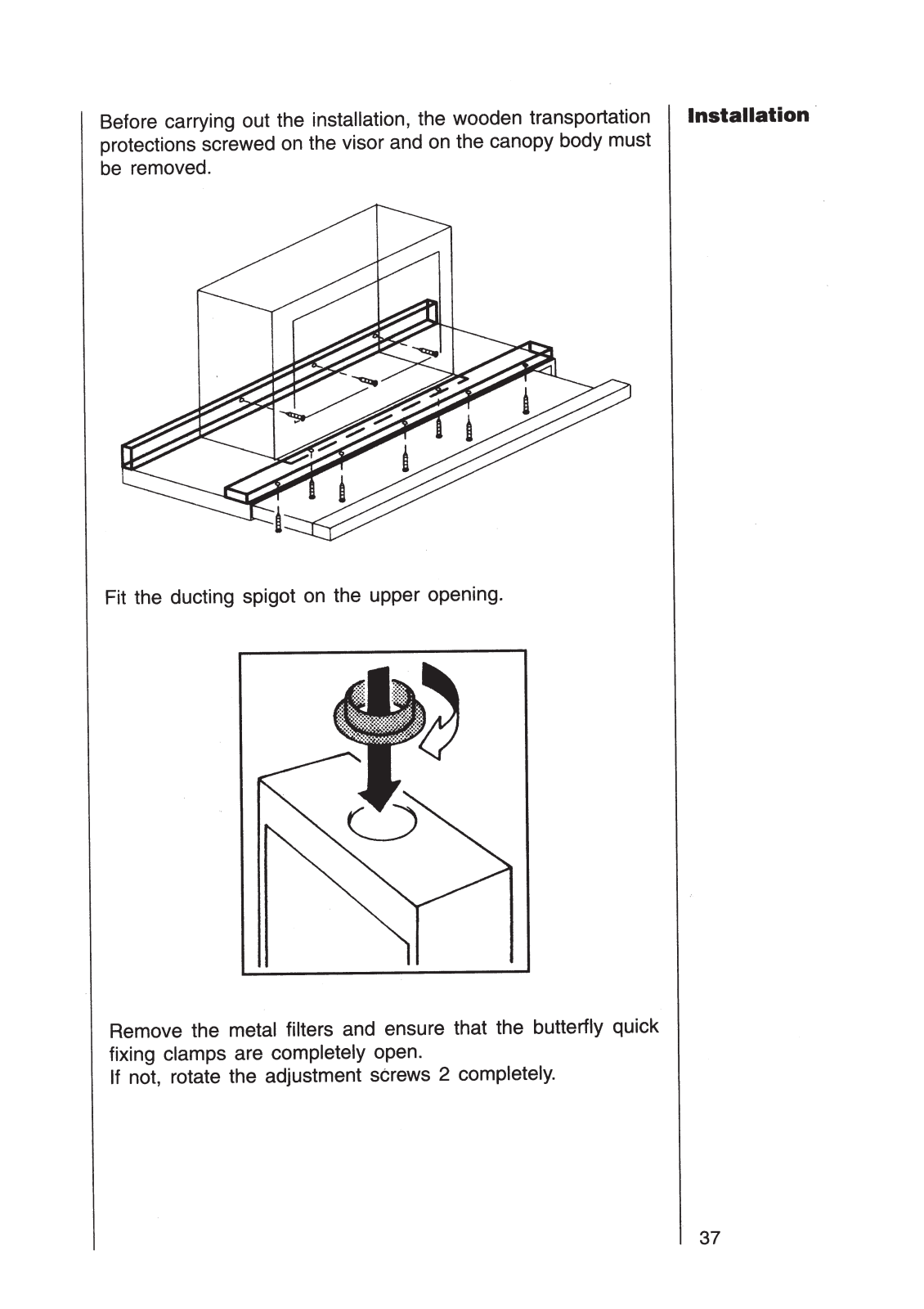

Q: To perform the installation what items should I have at hand?
A: In order to perform the installation of the coffee you should have ready - ducting spigots venting grilles and brackets that go with the appliance.
Q: In what manner is the cooker hood supposed to be installed?
A: In such cases where the cooker hood vent is supposed to be installed it is advisable that a skilled and competent person installs it with the given instructions in the manual.

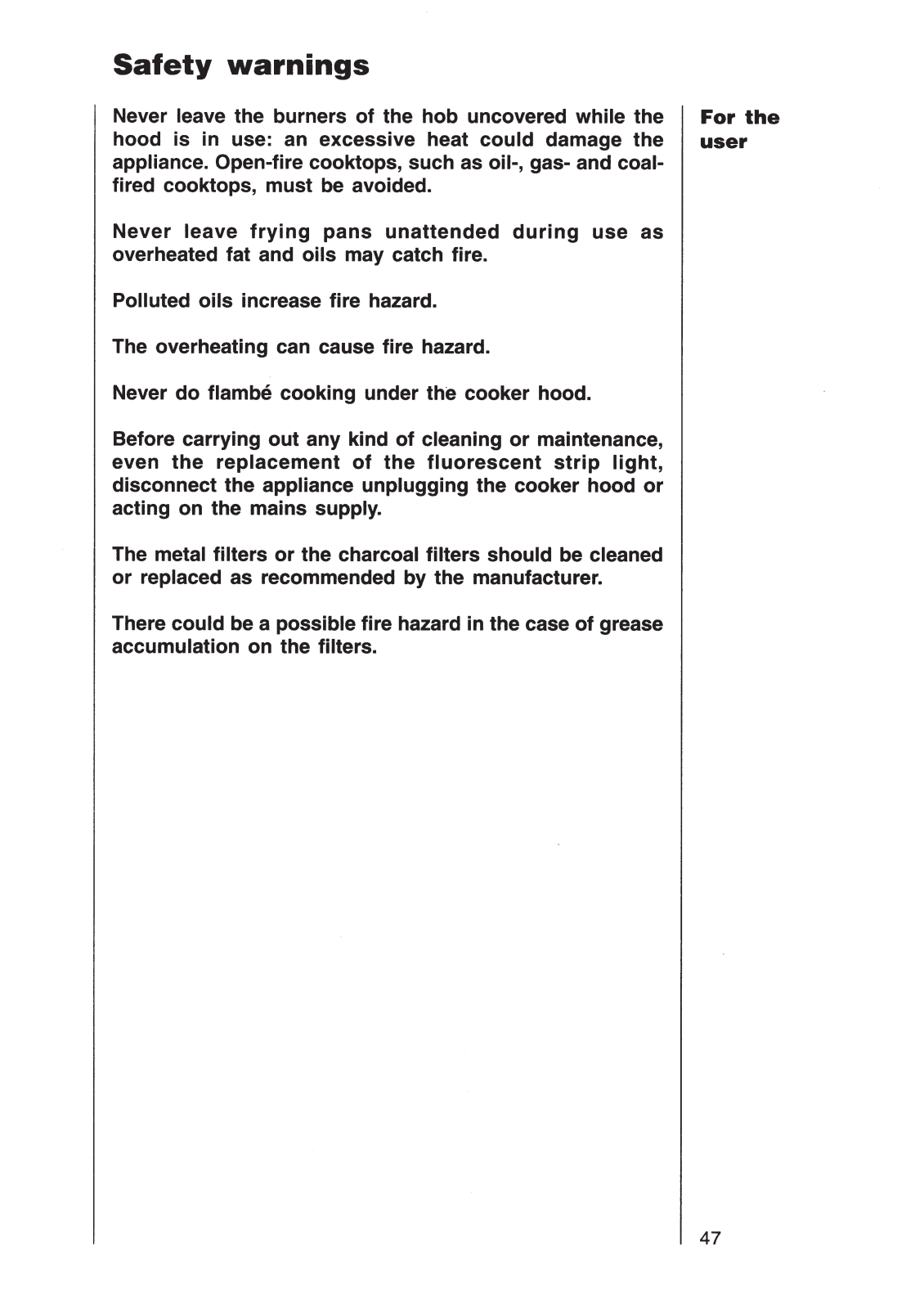

Q: Can you safely operate the cooker hood in conjunction with gas appliances?
A: Operating the gas appliances together with the gas cooker hood is safe, but it is important to ensure that the negative pressure in the room remains above 0.04 mbar to prevent the gas leakage.
