AEG EHG3761X User Manual

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.

You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-Mind.

Good luck!

Important Safety Information

These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance. It is very important that this instruction book should be kept safely for future consultation. If the appliance should be sold or given to another person, please ensure that the booklet goes together with it, so that the new owner can know of the functions of the machine and also be aware of the warnings.

About Installation, Cleaning

and Maintenance

•It is mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations.

•This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

•Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.

•Ensure that the gas supply complies with the gas type stated on the identification label, placed near the gas supply pipe.

•Using a gas cooking appliance will produce heat and moisture in the room which it has been installed in. Ensure a continuous air supply, keeping the air vents in good conditions or installing a cooker hood with discharge tube.

•In case of intensive or long time use of the appliance, make the ventilation more efficient, by opening a window or increasing the electric exhaust fan power.

•Once you removed all packaging from the appliance, ensure that it is not damaged. Otherwise, contact your dealer before proceeding with the installation.

•The manufacturer disclaims any responsability should all the safety measures not be carried out.

•Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

During Operation

•It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.

•Thisappliance hasbeendesignedfornonprofessional purpose in private houses only. It is meant to cook ediblefoodstuffonlyandMUST NOT beusedforanyother purposes.

•It is dangerous to alter the specification in any way.

•Forhygiene and safetyreasons, this applianceshould be kept clean at all times. A build-up of fats or other foodstuff could result in a fire.

•Ensure that all control knobs are in the OFF position when not in use.

•Never use steam or steam machines to clean the appliance.

People Safety

•This appliance has been designed to be operated by adultsandchildrenundersupervision.Youngchildren MUST NOT be allowed to tamper with the controls or play

near or with the oven.

•This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

•Accessible parts of this appliance may become hot when it is in use. Children should be KEPT AWAY until it has cooled.

Environmental Information

•After installation, please dispose of the packaging with due regard to safety and the environment.

•The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

These instructions are only for the countries stated by the symbol printed on the front cover of this instruction book.

Contents

For the User		For the Installer
Important Safety Information	18	Instruction for the Installer	23
Instruction for the User	20	Technical Data	24
Cleaning and Maintenance	22	Electrical connection	25
Service and original Spare Parts	30	Gas connection	26
		Adaptation to different types of gas	27
		Building In	28
		Possibilities for insertion	29

Guide to Use the instructions

Thefollowingsymbolswillbefoundinthetexttoguideyou throughout the Instructions:

Safety Instructions

! Step by step instructions for an operation Hints and Tips

Environmentalinformation

This appliance complies with the following

E.E.C. Directives:

-2006/95(Low Voltage Directive);

-89/336 (Electromagnetical Compatibility Directive);

-93/68 (General Directives) and subsequent modifications.

MANUFACTURER:

ELECTROLUX HOME PRODUCTS ITALY S.p.A.

Viale Bologna, 298

47100 FORLÌ (Italy)

Instruction for the User

Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.

Hob burners control knobs

The hob burners control knobs are situated on the hob right hand side. The symbols on the knobs mean that:

there is no gas supply

there is maximum gas supply

there is minimum gas supply

Lighting the burners

For easier lighting, proceed before putting a pan on the pan support.

!To light a burner:

1. turn the relevant knob anticlockwise to maximum po-

sition () and push down the knob to ignite.

2. After lighting the flame, keep the knob pushed down for about 5 seconds. This will allow the "thermocouple" (Fig. 1, lett. D) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted.

3. Then, check the flame is regular and adjust it as required.

If you cannot light the flame even after several attempts, check the "cap" (Fig. 1, lett. A) and the "crown" (Fig. 1, lett. B) are in the correct position.

To put the flame out, turn the knob to the "off" position (symbol )).

Do not keep the control knob pressed for more than 15 seconds.

If the burner does not light even after 15 seconds, release the control knob, turn it the "off" position and wait for at least one minute before trying to light the burner again.

If the burner accidentally goes out, turn the control knob to the "off" position and wait for at least 1 minute before trying to light the burner again.

•Always turn the flame down or put it out before taking the pans off the burner.

In the absence of electricity, ignition can occur without the electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the "maximum" position.

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

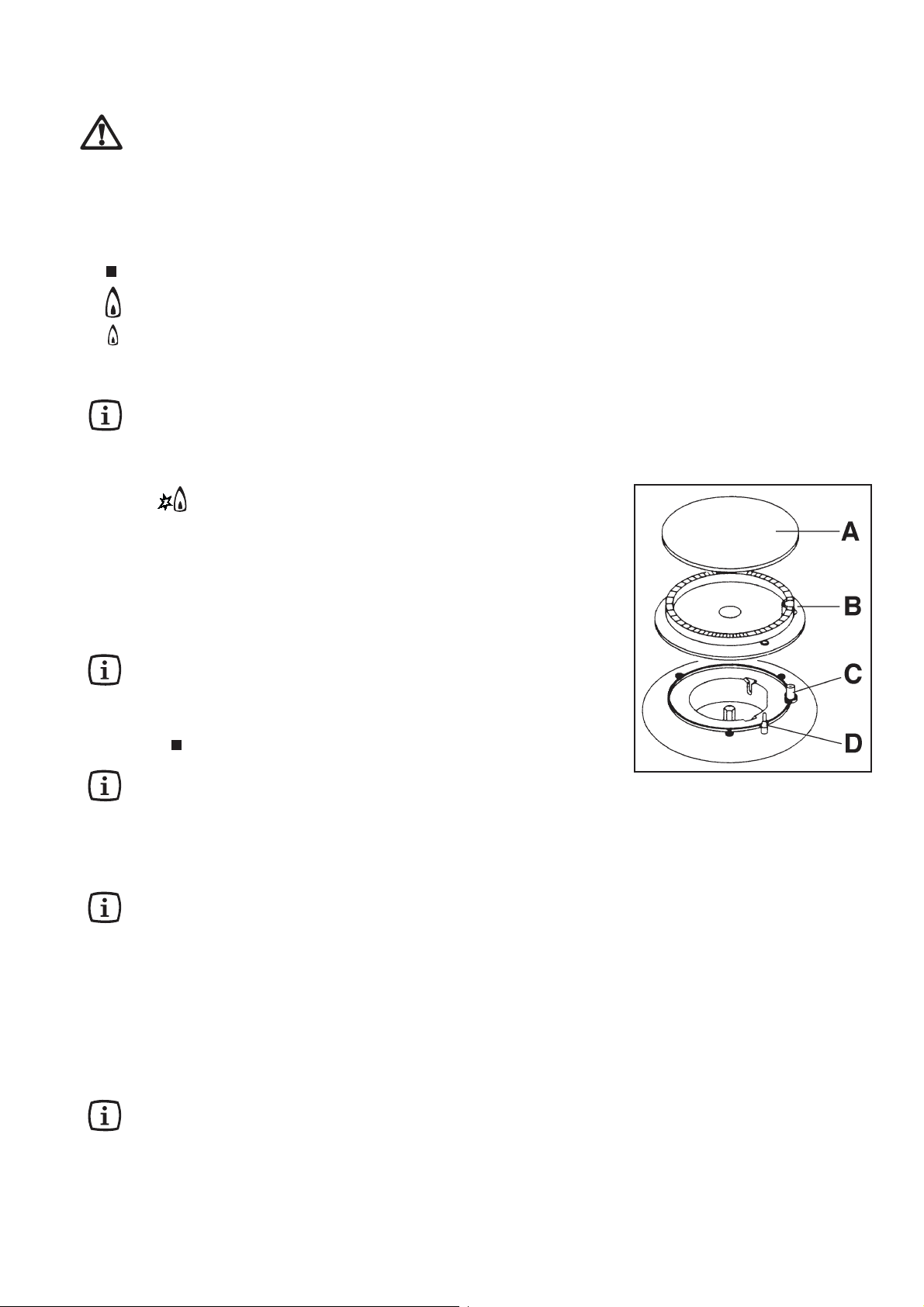

Fig. 1

A - Burner cap B - Burner crown

C - Ignition candle D - Thermocouple

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a bottom fitting the size of the burner used, so that flame will not spread beyond the bottom of the vessel (see the table beside and Fig. 2). It is also advisable, as soon as a liquid starts boiling, to turn down the flame so that it will barely keep the liquid simmering.

Use only pans or pots with flat bottom.

Pots must not enter the control zone.

Carefully supervise cookings with fats or oil, since these types of foodstuff can result in a fire, if over-heated.

Prolonged cooking with potstones, earthenware pans or cast-iron plates is inadvisable. Also, do not use aluminium foil to protect the top during use.

Make sure pots do not protrude over the edges of the cooktop and that they are centrally positioned on the rings in order to obtain lower gas consumption.

Do not place unstable or deformed pots on the rings: they could tip over or spill their contents, causing accidents.

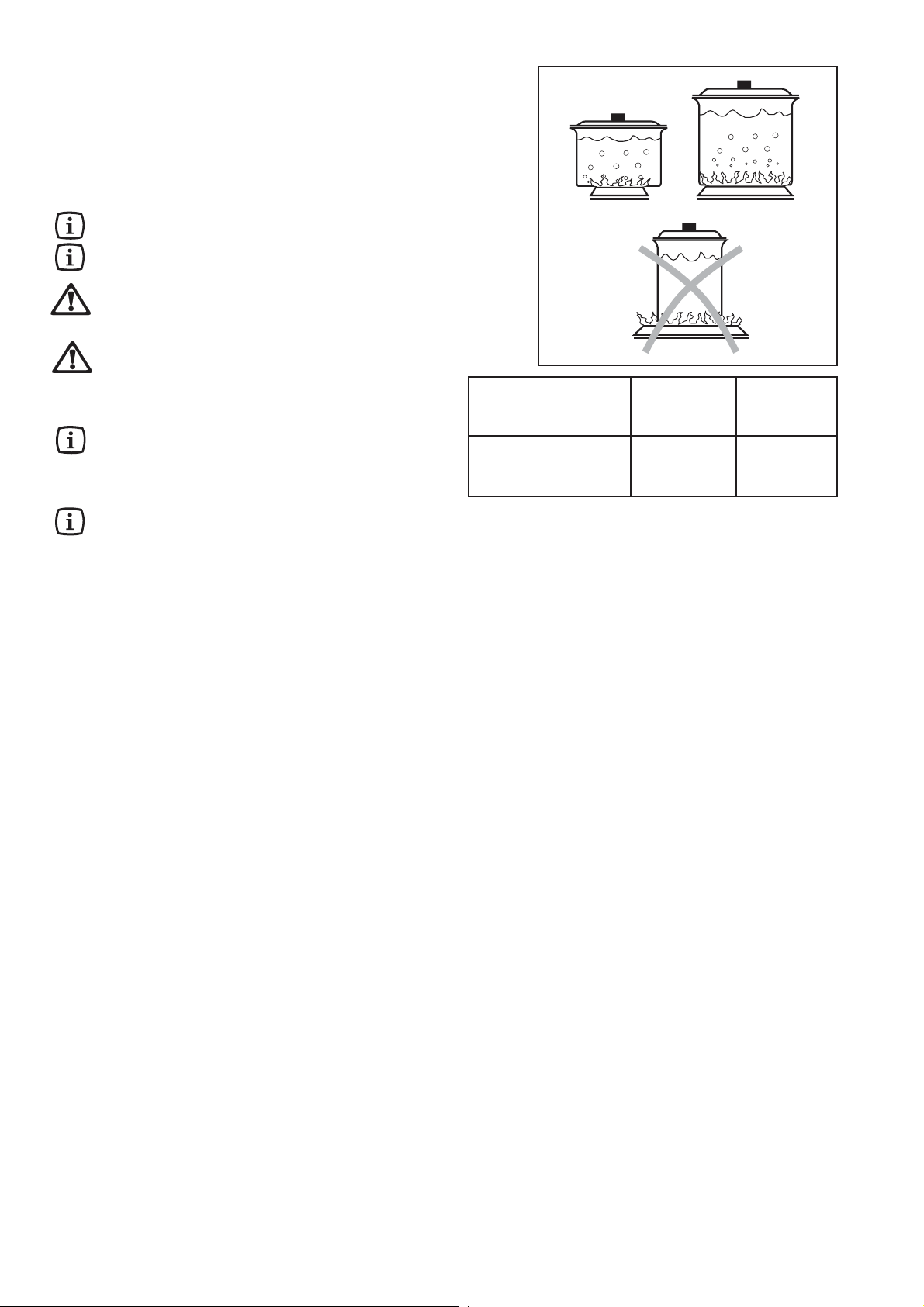

Fig. 2

Burner	minimum	maximum
	diameter	diameter

Large(rapid)	160 mm	240 mm
Small (auxiliary)	80 mm	160 mm
