Important Safety Information
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
About Installation, Cleaning
and Maintenance
• It is mandatory that all operations required for the
installation are carried out by a qualified or competent
person, in accordance with existing rules and
regulations.
• Disconnect the appliance from the electrical supply,
before carrying out any cleaning or maintenance
work.
• Ensure a good ventilation around the appliance. A
poor air supply could cause lack of oxygen.
• Ensure that the gas supply complies with the gas type
stated on the identification label, placed near the gas
supply pipe.
• Using a gas cooking appliance will produce heat
and moisture in the room which it has been
installed in. Ensure a continuous air supply,
keeping the air vents in good conditions or
installing a cooker hood with discharge tube.
• In case of intensive or long time use of the
appliance, make the ventilation more efficient, by
opening a window or increasing the electric
exhaust fan power.
• Once you removed all packaging from the appliance,
ensure that it is not damaged and the electric cable is
in perfect conditions. Otherwise, contact your dealer
before proceeding with the installation.
• The manufacturer disclaims any responsability
should all the safety measures not be carried out.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious
malfunctioning. Refer to your local Service Centre.
Always insist on genuine spare parts.
During Operation
• It is most important that this instruction book should
be retained with the appliance for future reference.
Should the appliance be sold or transferred, always
ensure that the book is left with the appliance in order
that the new owner can get to know the functions of the
appliance and the relevant warnings.
• This appliance has been designed for non professional
purpose in private houses only. It is meant to cook
edible foodstuff only and
purposes.
• It is dangerous to alter the specification in any way.
• For hygiene and safety reasons, this appliance should
be kept clean at all times. A build-up of fats or other
foodstuff could result in a fire.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious
MUST NOT be used for any other
malfunctioning. Refer to your local Service Centre.
Always insist on genuine spare parts.
• Ensure that all control knobs are in the OFF position
when not in use.
• Never use steam or steam machines to clean the
appliance.
• Should you connect any electrical tool to a plug near
this cooking appliance, ensure that electric cables are
not in contact with it and keep them far enough from
the heated parts of this appliance.
• If the appliance is out of order, disconnect it from the
electric supply.
Child Safety
• This appliance has been designed to be operated by
adults and children under supervision. Young children
MUST NOT be allowed to tamper with the controls or play
near or with the oven.
• Accessible parts of this appliance may become hot
when it is in use. Children should be
has cooled.
• This appliance is not intended for use by children or
other persons whose physical, sensory or mental
capabilities or lack of experience and knowledge
prevents them from using the appliance safely without
supervision or instruction by a responsible person to
ensure that they can use the appliance safely.
Environmental Information
• After installation, please dispose of the packaging
with due regard to safety and the environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable.
• The symbol
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
These instructions are only for the countries
stated by the symbol printed on the front cover
of this instruction book.
KEPT AWAY until it
on the product or on its packaging
3
Page 4
Content s
For the User
Important Safety Information 3
Instruction for the User 5
Cleaning and Maintenance 6
Service and original S pare Parts 14
Guide to Use the instructions
The following symbols will be found in the text to guide you
throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental information
For the Installer
Instruction for the Installer 7
Technical Data 7
Gas connection 8
Electrical Connection 9
Adaptation to different types of gas 9
Building In 1 1
This appliance complies with the following
E.E.C. Directives:
- 2006/95 (Low Voltage Directive);
- 89/336
- 90/396 (Gas Appliances)
- 93/68 (General Directives)
and subsequent modifications.
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)
(Electromagnetical Compatibility Directive);
4
Page 5
Instruction for the User
Once the hob has been installed, it is
important to remove any protective materials,
which were put on in the factory.
Hob burners control knobs
The hob burners control knobs are situated on the hob
right hand side. The symbols on the knobs mean that:
there is no gas supply
there is maximum gas supply
there is minimum gas supply
Lighting the burners
For easier lighting, proceed before putting a
pan on the pan support.
To light a burner, push in the relevant knob and
turn it anticlockwise to "maximum position"
(
After lighting the flame, keep the knob pushed
down for about 5 seconds. This will allow the
"thermocouple" (Fig. 1, lett. D) to be heated and
the safety device to be switched off, otherwise the
gas supply would be interrupted.
Then, check the flame is regular and adjust it as
required.
If you cannot light the flame even after several
attempts, check the "cap" (Fig. 1, lett. A) and the
"crown" (Fig. 1, lett. B) are in the correct position.
To put the flame out, turn the knob to the symbol .
• Always turn the flame down or put it out before
taking the pans off the burner.
).
Fig. 1
FO 0204

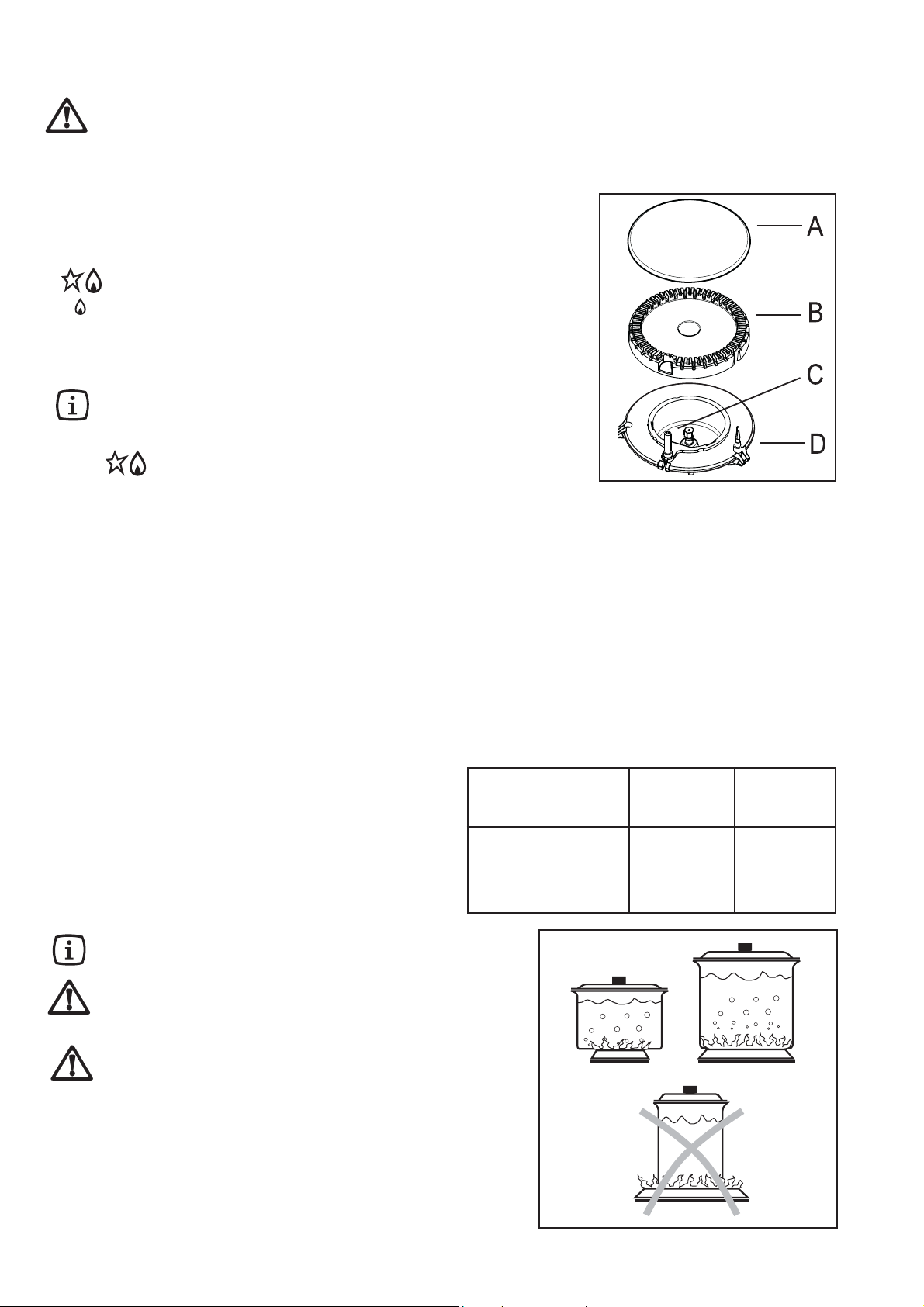

A- Burner cap
B- Burner crown
C- Ignition candle
D- Thermocouple
Using the hob correctly
To ensure maximum burner efficiency, it is strongly
recommended that you use only pots and pans with a
bottom fitting the size of the burner used, so that flame will
not spread beyond the bottom of the vessel (see the table
beside) (Fig. 2).
It is also advisable, as soon as a liquid starts boiling, to
turn down the flame so that it will barely keep the liquid
simmering.
Use only pans or pots with flat bottom.
Carefully supervise cookings with fats or
oil, since these types of foodstuff can result
in a fire, if over-heated.
Do not keep the control knob pressed for
more than 15 seconds.
If the burner does not light even after 15
seconds, release the control knob, turn it
the "off" position and wait for at least one
minute before trying to light the burner
again.
If the burner accidentally goes out, turn the
control knob to the "off" position and wait
for at least 1 minute before trying to light
the burner again.
Burner minimum maximum
diameter diameter
Large (rapid) 180 mm 260 mm
Medium (semirapid) 120 mm 220 mm
Small (auxiliary) 80 mm 160 mm
Fig. 2
5
Page 6
Cleaning and Maintenance
Disconnect the appliance from the electrical
supply, before carrying out any cleaning or
maintenance work.
General cleaning
Wash the enamelled components with warm soapy
water. Never use abrasive cleaners
Frequently wash the "caps" and the "crowns" with hot
soapy water, carefully taking away any built-up of food.
Regularly wipe over the hob top using a soft cloth weel
wrung out in warm water to which a little liquid detergent

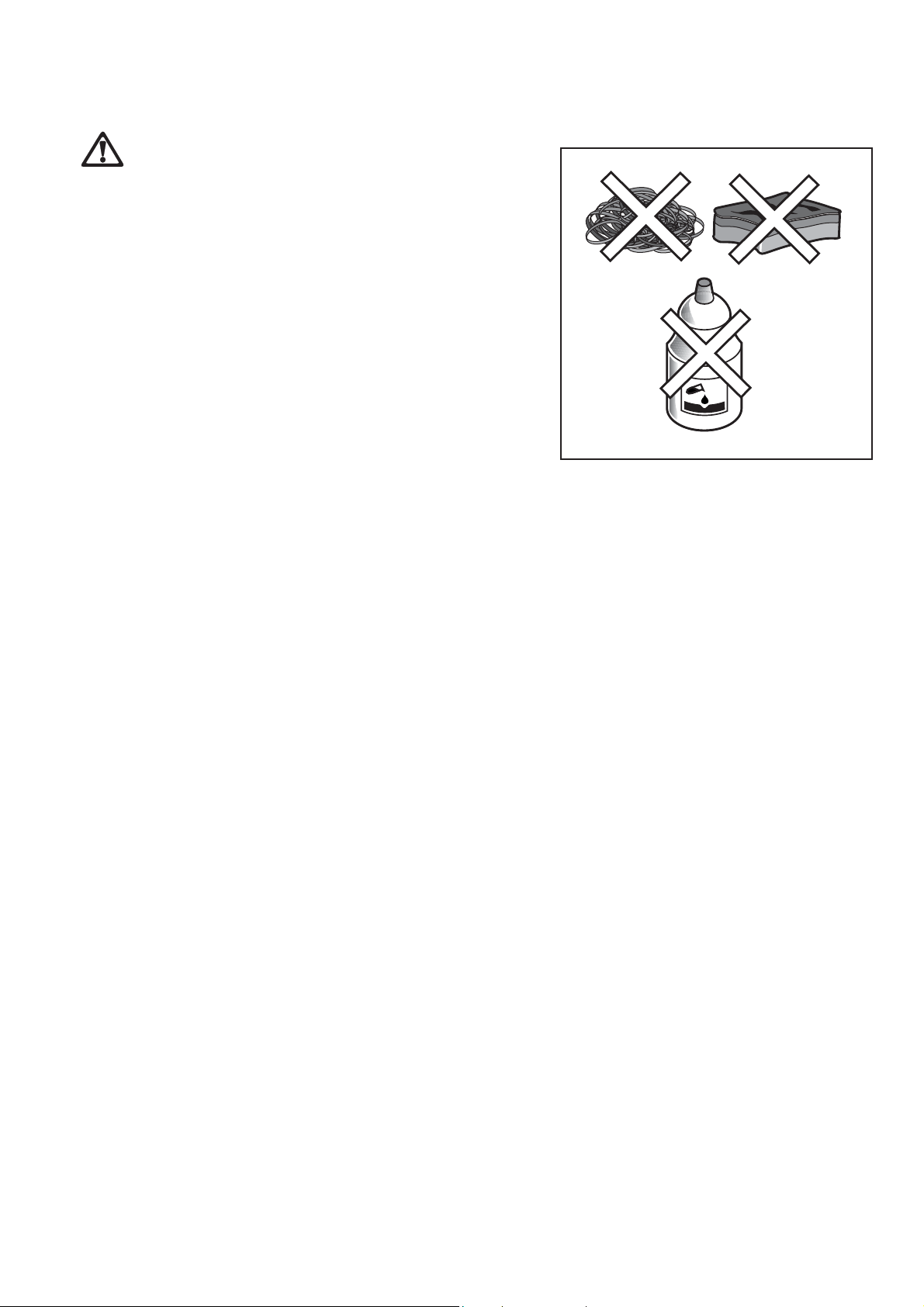

has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a proper cleaning product is used.
Fig. 3
FO 2110
Pan supports
The pan supports are dishwasher proof.
If the marks are particularly difficult to remove, use
common non-abrasive cleaners or specific products.
Never use steel wool pads or acids.
The Burners
The burner caps and crowns (Fig. 1) can be removed for
cleaning. Wash the burner caps and crowns using hot
soapy water, and remove marks with a mild p aste cleaner.
A well moistened soap impregnated steel wool pad can
be used with caution, if the marks are particularly difficult
to remove. After cleaning, be sure to wipe dry with a soft
cloth.
Ignition candle
The electric ignition is obtained through a ceramic
"candle" and a metal electrode (fig.1-lett. C). Keep these
components well clean, to avoid difficult lighting, and
check that the burner crown holes are not obstructed.
Periodic Maintenance
Periodically ask your local Service Centre to check the
conditions of the gas supply pipe and the pressure
adjuster, if fitted.
To ensure the good operation of the hob and its safety
features, it is necessary that the taps are periodically
lubricated.
The periodic lubrication of the taps must be
carried out by qualified personnel, which you
must refer to also in case of malfunctioning.
6
Page 7
Instruction for the Installer
The following instructions about installation and
maintenance must be carried out by qualified
personnel in compliance with the regulation in
force.
The side walls of the unit in which the hob is
going to be installed, must not exceed the height
of the working top.
Avoid installing the appliance in the proximity of
inflammable materials (e.g. curtains, tea towels
etc.).
The appliance must be electrically disconnected
before all interventions. If any electric supply to
the appliance is required to carry out the work,
ensure all the necessary precautions are followed.
THE MANUFACTURER WILL NOT ACCEPT
LIABILITY , SHOULD ANY OF THE OTHER SAFETY
INSTRUCTIONS INCORPORA TED IN THIS BOOK
OR THE REGULA TION IN FORCE BE IGNORED.
T echnical Data
Gas Burners Rating
Rapid Burner 3,0 kW (G20) - 2,8 kW (G30/G31)
Semirapid Burner 2,0 kW
Auxiliary Burner 1,0 kW
Appliance Class 3
Category II2H3B/P
Setting Natural Gas G20 - 20 mbar
Gas connection G 1/2"
Electric Supply 230 V 50 Hz
Hob recess dimensions
Length 550 mm
Width 470 mm
7
Page 8
Gas connection
Choose fixed connections or use a flexible pipe in
stainless steel in compliance with the regulation in force.
If using flexible metallic pipes, be careful they do not
come in contact with mobile parts or they are not
squeezed. Use the same attention when the hob is
combinated with an oven.
IMPORT ANT - To ensure a correct operation, a saving
of energy and the long-life of the appliance, the voltage
pressure of the appliance must correspond to the
recommended values.
The adjustable connection is fixed to the comprehensive
ramp by means of a threaded nut G 1/2". Interpose the
sealing between the components as shown in Fig. 4.
Screw the parts without forcing, adjust the connection in
the required direction and tighten everything.
Connection using flexible non
metal pipes
When the connection can be easily inspected in its full
extent, there is the chance to use a flexible pipe
according to the rules in force. The flexible pipe must be
tightly fixed using clamps according to the rules in force.

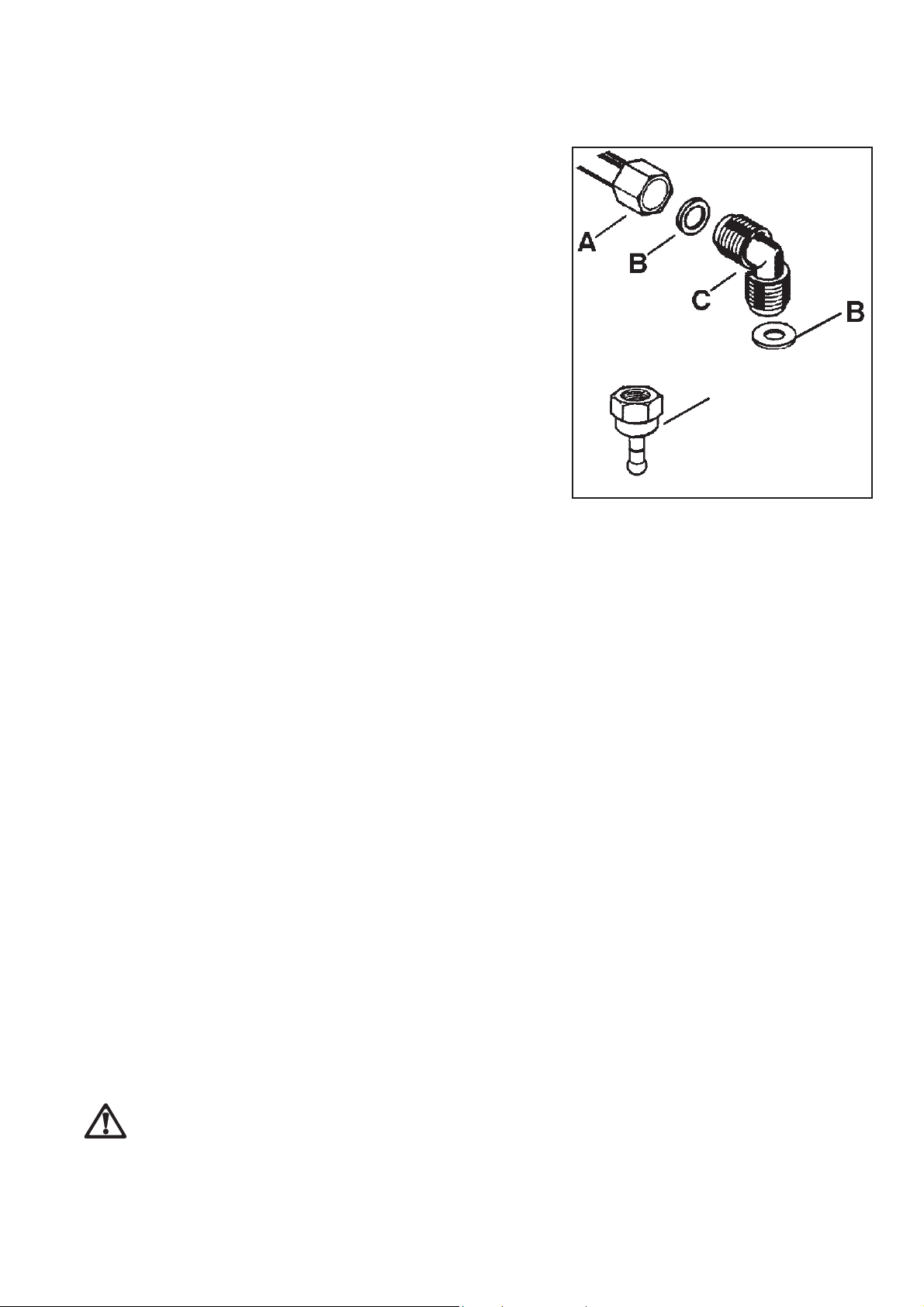

Fig. 4
D
FO 0067
A) Ramp with ending nut
B) Seal
C) Adjustable connection
D) Rubber pipe holder for LPG
LPG : use the rubber pipe holder «D» (Fig. 4).
Always insert the gasket «B». Then proceed with the
gas connection.
The flexible pipe should be made ready for use in such
a way that:
- nowhere it can reach overtemperature, other than
room temperature, higher than 30°C; if the flexible
pipe, to reach the cock, must run behind the range,
it must be installed as shown in Fig. 4;
- it is no longer than 1500 mm;
- it shows no throttles;
- it is not subject to traction or torsion;
- it doesn't get in touch with cutting edges or corners;
- it can be easily inspected in order to check its
condition.
The control of preservation of the flexible pipe consists
in checking that:
- it doesn't show cracks, cuts, marks of burnings both
on the end parts and on its full extent;
- the material is not hardened, but shows its normal
elasticity;
- the fastening clamps are not rusted;
- expiry term is not due.
If one or more abnormalities are seen, do not repair the
pipe, but replace it.
Important
Once installation is complete, check the perfect
seal of every pipe fitting, using a soapy solution,
never a flame
8
Page 9
Electrical Connection
The following instructions about installation
must be carried out by qualified personnel in
compliance with the regulation in force.
The appliance is designed to be connected to 230 V
monophase electricity supply.
The connection must be carried out in compliance with
the laws and regulations in force.
Before the appliance is connected:
1) check that the main fuse and the domestic installation
can support the load (see the rating label);
2) check that the power supply is properly earthed in
compliance with the current rules;
3 ) check the socket or the double pole switch used for
the electrical connection can be easily reached with
the appliance built in the furniture unit.
The appliance is supplied with a connection cable. This
has to be provided with a proper plug, able to support the
load marked on the identification plate. To connect the
plug to the cable, follow the recommendation given in Fig.
5. The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system,
it is necessary that you install a double pole switch
between the appliance and the electricity supply, with a
minimum gap of 3 mm. between the switch contacts and
of a type suitable for the required load in compliance with
the current rules.
The connection cable has to be placed in order that, in each
part, it cannot reach a temperature higher than 90 °C.
The brown coloured phase cable (fitted in the terminal
block contact marked with "L") must always be connected
to the network phase.

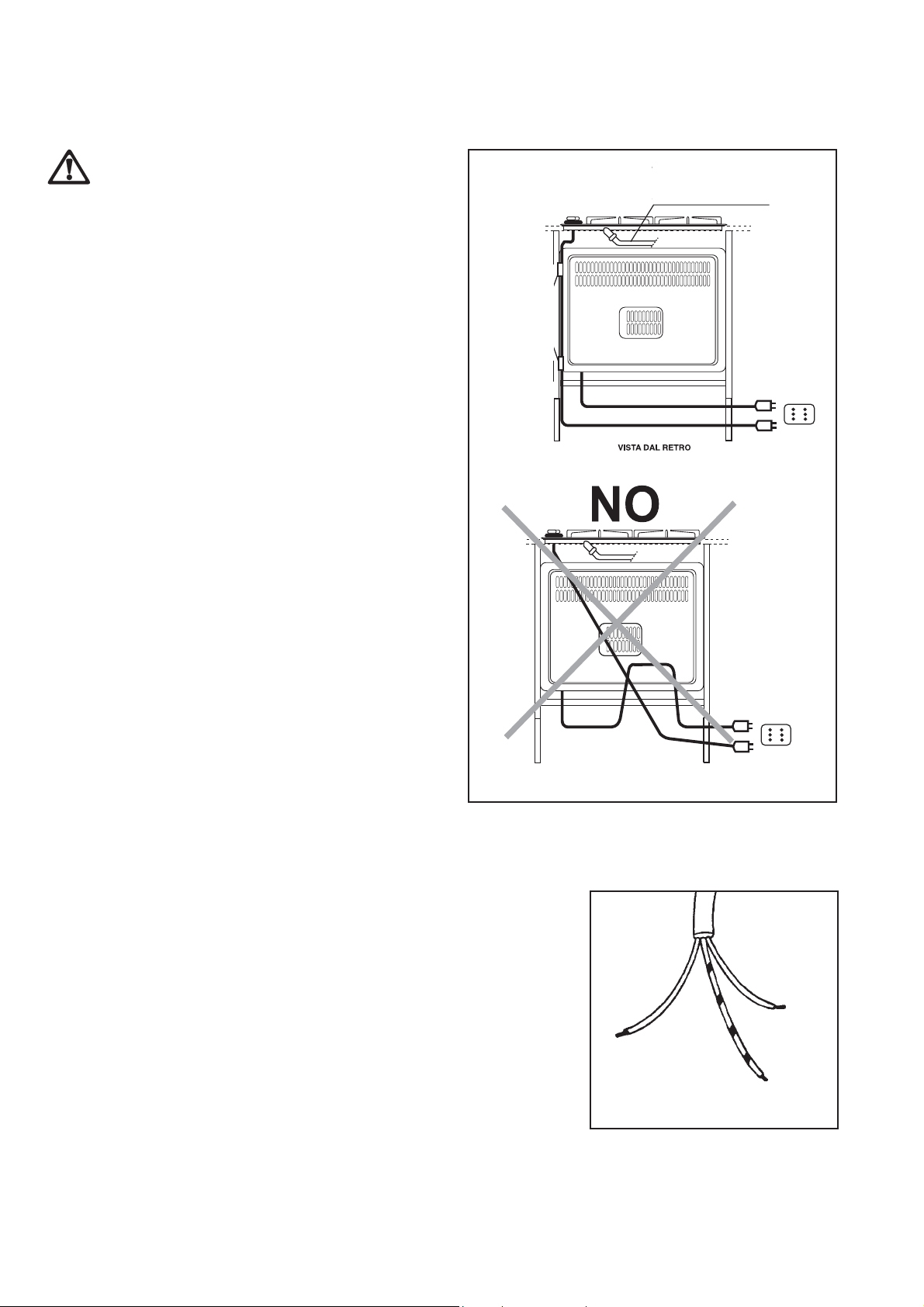

FO 0238
YES
RIGID COPPER PIPE OR
FLEXIBLE PIPE IN STAINLESS
STEEL
Fig. 5
Replacement of the voltage cable
Only cable types H05V2V2-F T90 or H05 BB-F (section:
3 x 1,5 mm
The yellow/green earth wire must be approximately 2 cm
longer than the phase wires (Fig. 6).
2
) must be used.
Neutral
Earth (yellow/green)
FO 0073
Fig. 6
9
Page 10
Adaptation to different types of gas
Injectors replacement
• Remove the pan supports.
• Remove the burner's caps and crowns.
• With a socket spanner 7 unscrew and remove the
injectors (Fig. 7), and replace them with the ones
required for the type of gas in use (see table 2).
• Reassemble the parts, following the same procedure backwards.
• Replace the rating label (placed near the gas supply
pipe) with the relevant one for the new type of gas
supply. You can find this label in the package of the
injectors supplied with the appliance.
Should the feeding gas pressure be different or variable
compared with the required pressure, an appropriate
pressure adjuster must be fitted on the gas supply pipe,
in compliance with the rules in force.

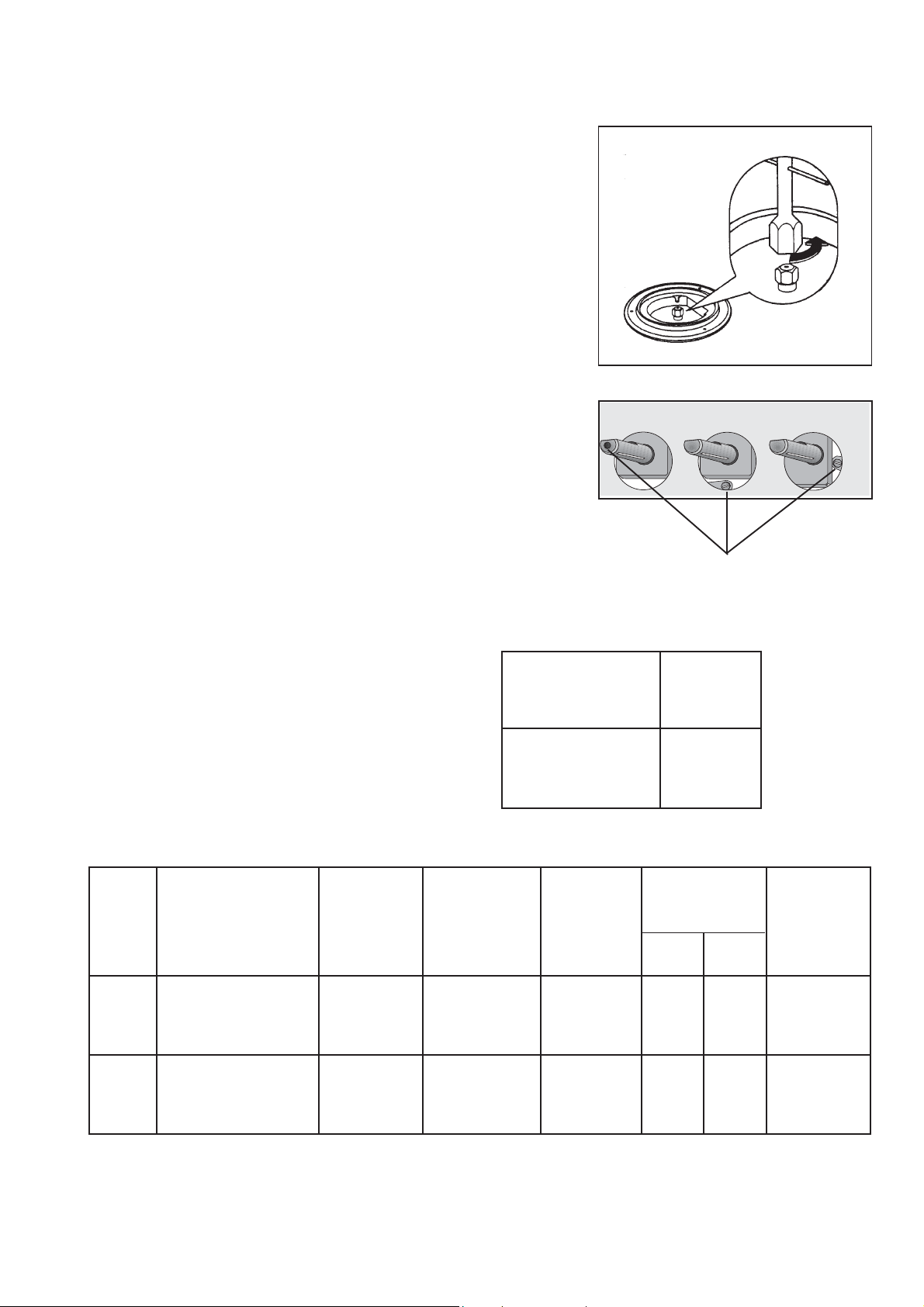

Adjustment of minimum level
Fig. 7
FO 0392
To adjust the minimum level of the burners, proceed as
follows:
• Light the burner.
• Turn the knob on the minimum position.
• Remove the knob.
Fig. 8
By-pass screws
• With a thin screwdriver, adjust the by-pass screw
(see Fig. 8). If changing from natural gas to LPG,
completely tighten clockwise the screw, until a
small regular flame is obtained. If changing from
LPG to natural gas unscrew about 1/4 turn the bypass screw, until a small regular flame is obtained.
• Finally check the flame does not go out when
quickly turning the knob from the maximum position
to the minimum position.
This procedure can easily be carried out, anyhow the hob
has been positioned or built in the working top.
Table 1 : By-pass diameters
Burner Ø By-pass
in 1/100
of mm.
Rapid 42
Semi-rapid 32
Auxiliary 28
Table 2 : injectors
TYPE TYPE OF INJECTORS NOMINAL REDUCED NOMINAL NOMINAL
OF GAS BURNER MARKS POWER POWER POWER PRESSURE
1/100 mm INPUT kW mbar
KW m3/h g/h
NATURAL
GAS
G 20
LPG
(Buthane/
Propane)
10
Rapid (large) 119 3,0 0,75 0,286 -
Semi-rapid (medium) 96 2,0 0,45 0,190 - 20
Auxiliary (small) 70 1,0 0,33 0,095 -
Rapid (large) 86 2,8 0,75 - 202
Semi-rapid (medium) 71 2,0 0,45 - 144 30
Auxiliary (small) 50 1,0 0,33 - 72
Page 11

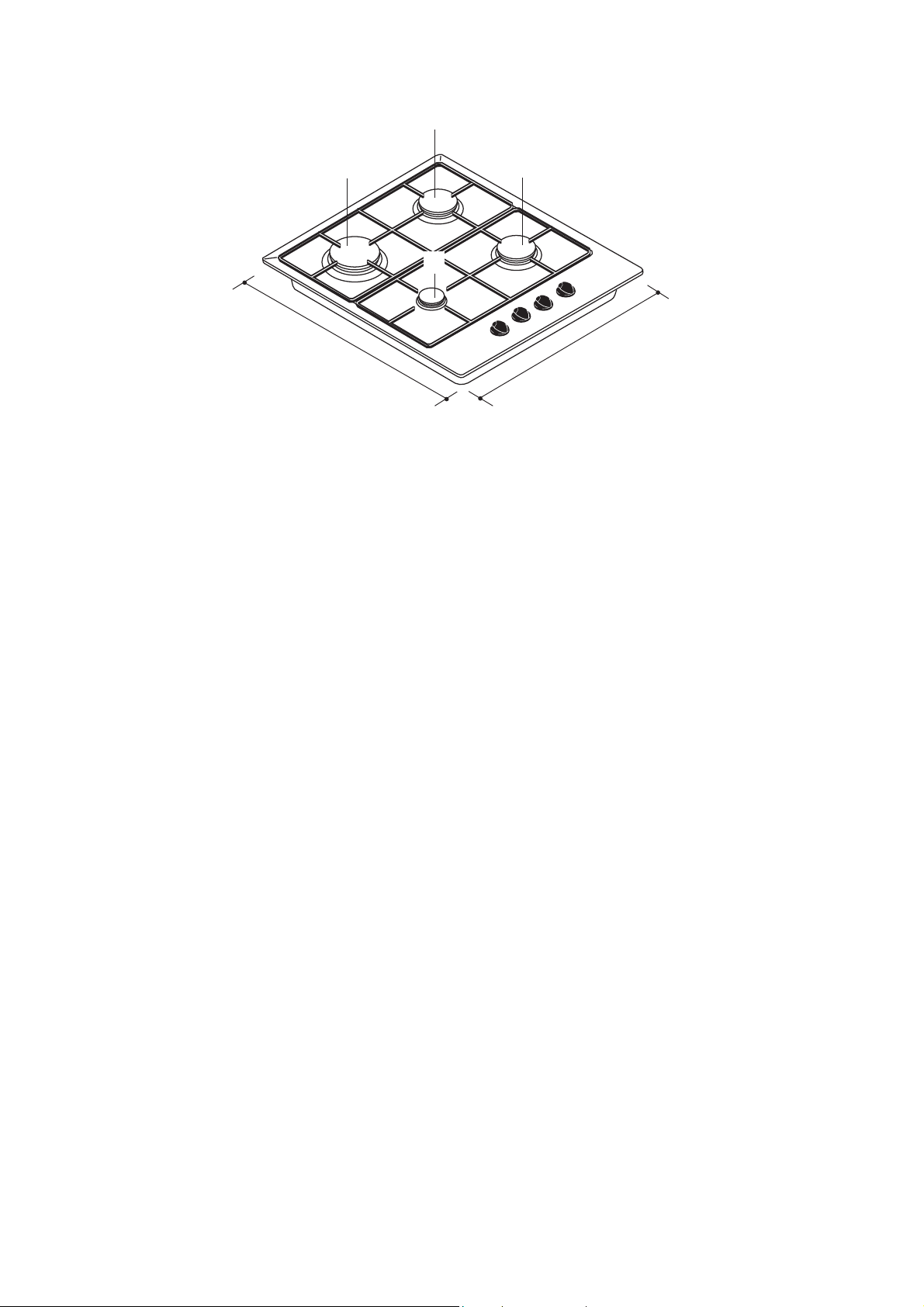

Building In
SR
R
580
This hob can be inserted in a built-in kitchen unit whose
depth is between 550 and 600 mm. The hob dimensions
are shown in the relevant diagram.
The edge of the cut out must have a minimum distance
from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near
the hob, the cut out edges must have a minimum
distance of 100 mm.
SR
A
500
Hanging furniture units or hoods must be placed at 650
mm. minimum from the hob.
R = Rapid burner
SR = Semirapid burner
A = Auxiliary burner
11
Page 12

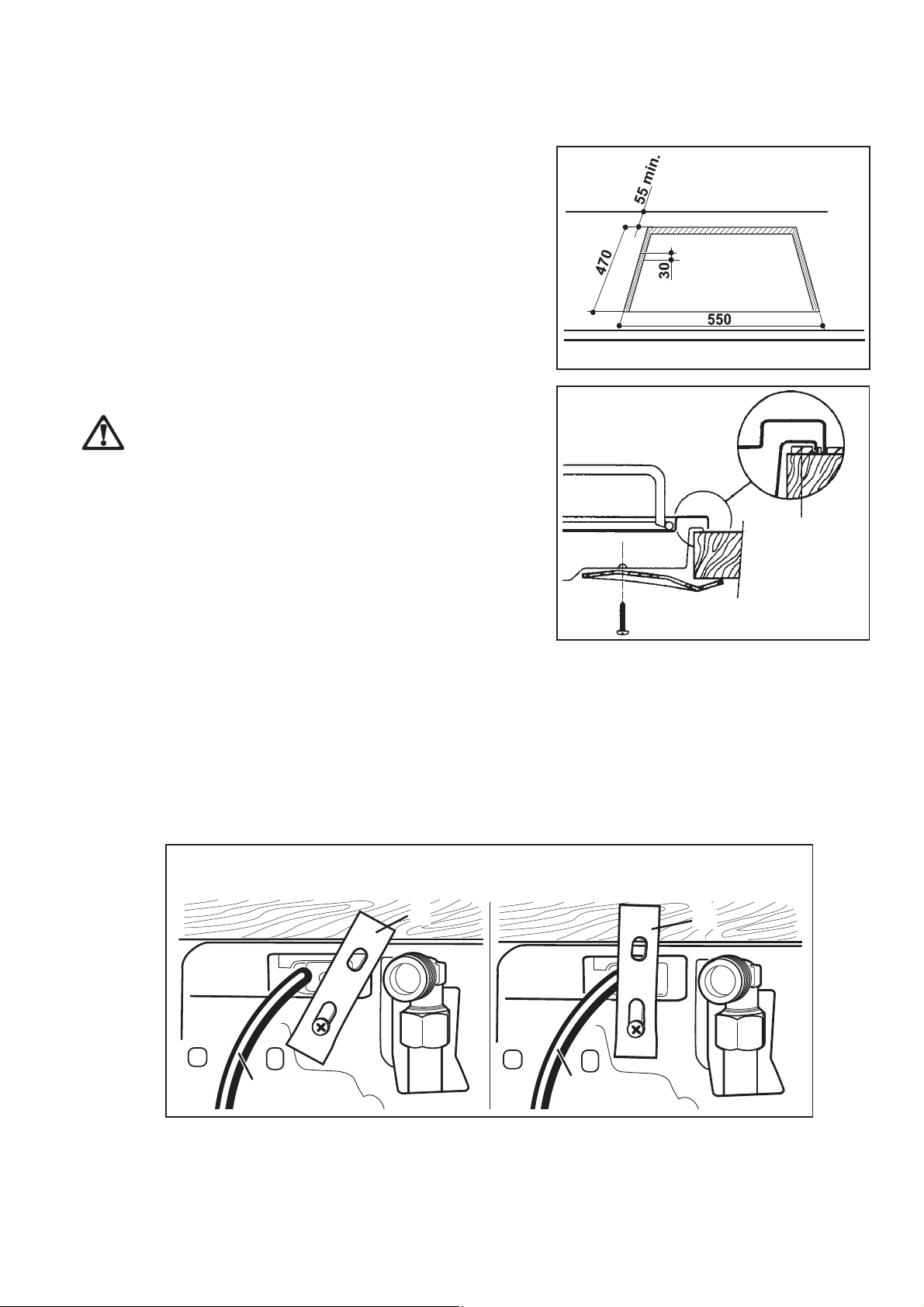

Fitting the hob to the worktop
The hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in
Fig. 9. To install the hob, proceed as follows:
1) Remove the pan supports, the burners caps and
crowns and turn the hob upside down, taking care the
ignition candles are not damaged in this operation.
2) Place the sealing gasket (supplied with the hob) on
the edges of the cut out: place it exactly on the front
and rear edge, taking care that the sealings meet
without overlapping;
3) Fix the hob with the relevant screws (Fig. 10). The
traction of the screws is able to trace the sealing, any
excess of which can be easily removed.
The edge of the hob forms a double labyrinth seal which
provides a total guarantee against infiltration of liquids.
WARNING: When securing the fixing clamp near
the terminal block, always ensure the connection
cable does not come in contact with the edge of
the clamp (see Fig. 1 1).
Fig. 9
Dimensions are given in millimeters
FO 2098
FO 0199
Fig. 10
a) Sealing gasket
YES NO
A
a
A
Fig. 11
12
B
A) Fixing clamp
B) Connection cable
B
Page 13

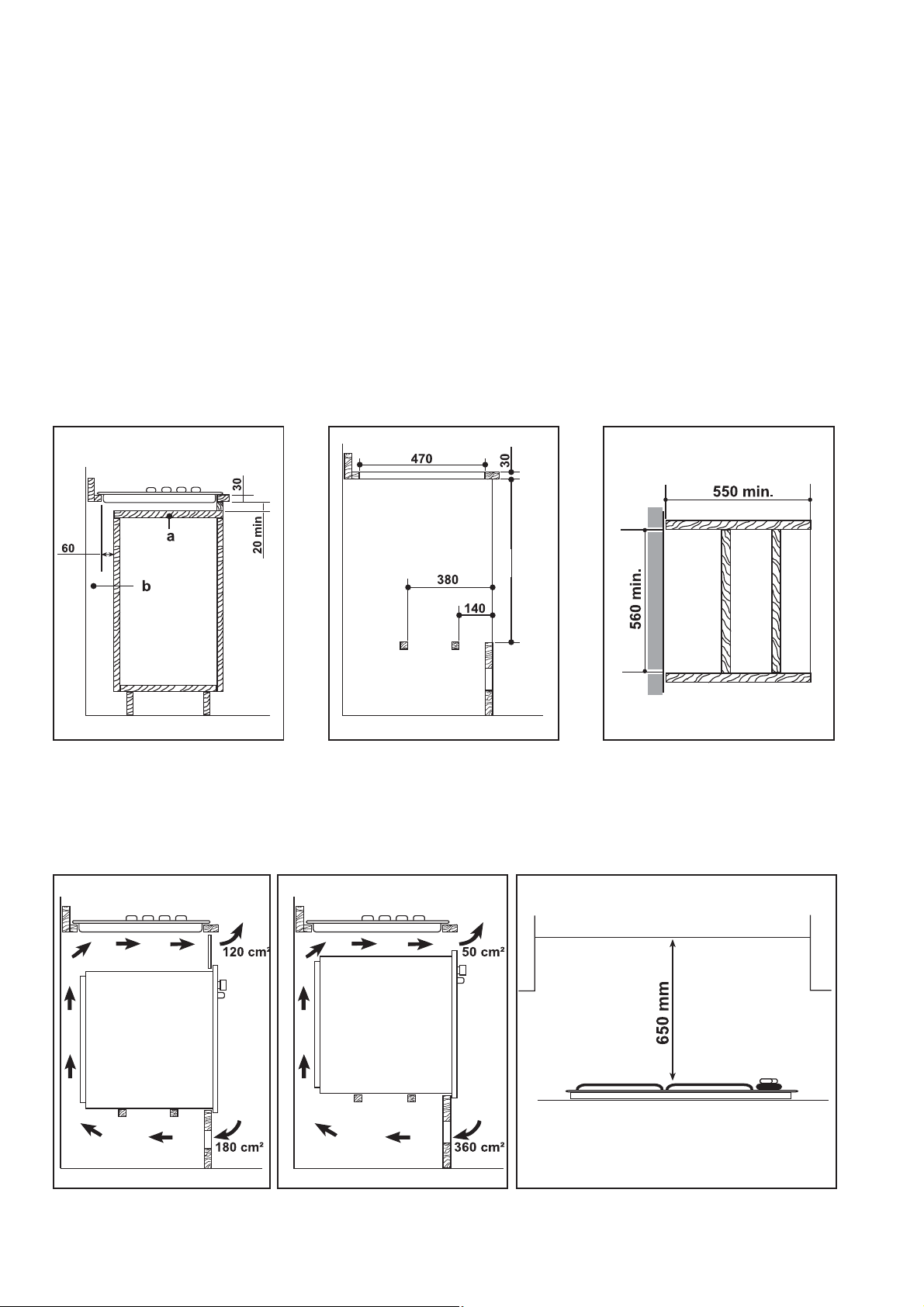

Possibilities for insertion
Kitchen unit with door
Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the
bottom of the hob which can be heated when it is
operated. The recommended solution is shown in Fig.
12.
The panel fitted under the hob should be easily
removable to allow an easy access if a technical
assistance intervention is needed.
Fig. 12
Fig. 13
Kitchen unit with oven
The hob recess dimensions must comply the indication
given in Figs. 13 and 14 and must be provided with
brackets to allow a continuous supply of air.
To avoid overhating, the building in should be carried out
as shown in Figs. 15 e 16.
The hob's electric connection and the oven's one must
be carried out separately, both for safety reasons and
to allow the oven to be easily taken off the unit.
Hanging furniture units or hoods must be placed at 650
mm. minimum from the hob (Fig. 17).
Fig. 14
595
FO 1013
a) Removable panel
b) Space possibly useful for
connections
Fig. 15
FO 0939 FO 0938
Fig. 16
FO 0947
FO 0198
Fig. 17
FO 2099
13
Page 14
Service and original Sp are Part s
This appliance, before leaving the factory, has been
tested and studied by many experts and specialists, in
order to give you the best results.
Any repair work which needs to be carried out should be
done with the utmost care and attention.
For this reason we recommend that for any problem you
contact the dealer who sold it to you, or our nearest
authorized Service Centre, specifying the nature of the
problem, the appliance model (Mod.), the product
number (Prod. No.) and the serial number (Ser. No.)
marked on the identification plate.
Original spareparts, certified by the product
manufacturer and carrying this symbol are only available
at our Service Centre and authorized spareparts shops.
14
Page 15
15
Page 16
08/07
Loading...
