AEG 1000 S User Manual

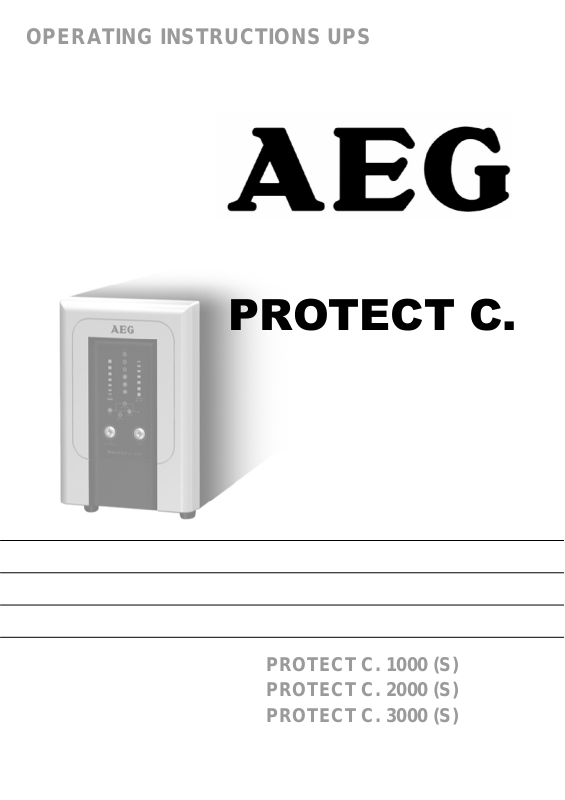

OPERATING INSTRUCTIONS UPS

PROTECT

C. 1000 (S)

PROTECT C. 2000 (S)

PROTECT

C

.

PROTECT C. 3000 (S)

Thank you for purchasing the AEG UPS PROTECT C.
from AEG Power Solutions.

Safety information and operating instructions are
included in this manual. To ensure correct use of the
UPS, please read this manual thoroughly before
operating it. Save this manual properly.

2

1 Notes on these Operating

Instructions

Duty to Provide Information

These operating instructions will help you to install and
operate the U
1000(S), PROTECT C. 2000(S) or PROTECT C. 3000 (S) as
well as the associated external battery units PROTECT
C.1000BP or PROTECT C. 2030 BP – all referred to as
PROTECT C. in this document – safely and properly, and for
its intended purpose. These operating instructions contain
important information necessary to avoid dangers during
operation.

Please read these instructions carefully prior to
commissioning!

These operating instructions are a composite part of the
PROTECT C.

The owner of this unit is obliged to communicate the full
content of these operating instructions to all personnel
transporting or starting the PROTECT C. or performing main­tenance or any other work on the unit.

ninterruptible Power Supply (UPS) PROTECT C.

Validity

These operating instructions comply with the current technical
specifications of the PROTECT C. at the time of delivery. The
contents do not constitute a subject matter of the contract, but
serve for information purposes only.

Warranty and Liability

We reserve the right to alter any specifications given in these
operating instructions, especially with regard to technical data
and operation, prior to start-up or as a result of service work.

Claims in connection with supplied goods must be submitted
within one week of receipt, along with the packing slip.
Subsequent claims cannot be considered.

3

The warranty does not apply to damage caused by non­compliance with these instructions (such damage also
includes damaging the warranty seal). AEG will accept no
liability for consequential damage. AEG reserves the right to
rescind all obligations such as warranty agreements, service
contracts, etc. entered into by AEG and its representatives
without prior notification in the event of maintenance and
repair work being carried out with anything other than original
AEG spare parts or spare parts purchased by AEG.

Handling

PROTECT C. is designed and constructed so that all
necessary steps for start-up and operation can be performed
without any internal manipulation of the unit. Maintenance and
repair work may only be performed by trained and qualified
personnel.

Illustrations are provided to clarify and facilitate certain steps.
If danger to personnel and the unit cannot be ruled out in the

case of certain work, it is highlighted accordingly by
pictograms explained in chapter 3.

Hotline

If you still have questions after having read these operating
instructions, please contact your dealer or our "Hotline":

Tel.: ++49 (0)180 5 234 787
Fax: ++49 (0)180 5 234 789
Internet: www.aegpartnernet.com

Copyright

No part of these operating instructions may be transmitted,
reproduced and/or copied by any electronic or mechanical
means without the express prior written permission of AEG.

© Copyright AEG 2009. All rights reserved.

4

Table of Contents

1 Notes on these Operating Instructions.............................3

2 General Information..........................................................7

2.1 Technology................................................................7

2.2 System Description...................................................8

3 Safety ...............................................................................9

3.1 General Safety Instructions.......................................9

3.2 Safety Instructions for PROTECT C. ........................9

3.3 CE-Certificate..........................................................13

3.4 Technical Data........................................................14

4 Set-Up and Operation ....................................................19

4.1 Unpacking and Inspection.......................................19

4.2 Point of Installation..................................................20

4.3 Overview: Connections, Operating/Display Elements...21

4.3.1 Front View........................................................21

4.3.2 Display.............................................................22

4.3.3 Rear view (connections): .................................23

5 Commissioning...............................................................25

5.1 Mechanical Set-Up..................................................25

5.2 External Battery Expansions...................................26

5.2.1 Electrical Start-Up............................................27

5.3 Operating Statuses .................................................29

5.3.1 Normal Operation ............................................29

5.3.2 Battery Operation / Autonomy Operation ........30

5.3.3 Bypass Operation ............................................31

5.3.4 Unit Overload...................................................32

5.4 Interfaces and communication................................33

5.4.1 Data line protection RJ11 and RJ45................33

5.4.2 Computer interfaces RS232 ............................33

5.4.3 Communication Slot.........................................33

5.4.4 Shutdown and UPS management software.....34

5

6 Signalling and Error Correction......................................35

6.1 Signalling.................................................................35

6.2 Fault Diagnosis / Fault Rectification........................37

6.2.1 Error Messages................................................37

7 Maintenance...................................................................39

7.1 Charging the Battery...............................................39

7.2 Maintenance............................................................39

7.2.1 Visual Check....................................................39

7.2.2 Checking the Battery .......................................40

7.2.3 Fan Checking...................................................40

8 Storage, Dismantling and Disposal................................41

8.1 Storage....................................................................41

8.2 Dismantling .............................................................41

8.3 Disposal ..................................................................41

9 Glossary .........................................................................42

9.1 Technical terms.......................................................42

6

2 General Information

upply

(UPS) for essential loads such as PCs,

workstations, servers, network components,

Inverter

Battery system

Load

charger

PFC

RS232

SNMP

DC/DC booster

filter

2.1 Technology

PROTECT C. is an Uninterruptible Power S

i

telecommunication equipment and similar
devices. It consists of:

♦ Mains filter with surge voltage protection (equipment

protection/class D) and mains energy backfeed protection

♦ Rectifier section with PFC logic (power factor correction unit)
♦ Separate battery charger with switch mode power supply

technology

♦ Sealed, zero-maintenance battery system as energy

storage medium with downstream DC/DC converter unit

♦ IGBT inverter for continuous supply of connected loads

with sinusoidal AC voltage

♦ Automatic bypass as additional passive redundancy
♦ Microprocessor controlled control unit

Mains

Automatic

bypass

Filter

Rectifier

Mains

Battery

View of the PROTECT C. components

7

CPU

control unit

2.2 System Description

The UPS is connected to a shockproof socket between the
public utility's mains and the loads to be protected.

The power section of the rectifier converts the mains voltage
to DC voltage for supplying the inverter. The circuit
technology used (PFC) enables sinusoidal current
consumption and therefore operation with little system
disturbance. A separate, second rectifier (charging REC set
up using switch mode power supply technology) is
responsible for charging or trickle-charging the battery
connected in the intermediate circuit. The configuration of this
charging REC means the harmonic content of the charging
current for the battery is almost zero, so the service life of the
battery is increased even more. The inverter is responsible for
converting the DC voltage into a sinusoidal output voltage. A
microprocessor-controlled control system based on pulse­width modulation (PWM) in conjunction with an extremely
quickly pulsating IGBT power semiconductors of the inverter
guarantee that the voltage system on the protected busbar is
of the highest quality and availability.

In the event of mains faults (e.g. current failures), the voltage
continues to be supplied from the inverter to the load without
any interruption. From this point onwards, the inverter draws
its power from the battery instead of the rectifier. No switching
operations are necessary; this means there is no interruption
in the supply to the load.

For safety reasons (as required by German standards, VDE),
the mains input in the unit will be disconnected by a two-pole
switch in the event of a mains failure. Energy backfeed to the
mains and voltage supply to the pins of the mains connector
are thus reliably avoided.

The automatic bypass serves to increase the reliability of the
supply further. It switches the public mains directly through to
the load if there is an inverter malfunction. As a result, the
automatic bypass represents an extra passive redundancy for
the load.

8

3 Safety

3.1 General Safety Instructions

Read these operating instructions prior to start-up of the
PROTECT C. UPS and its external battery modules (special
accessories), and observe the safety instructions!

Only use the unit if it is in a technically perfect condition and
always in accordance with its intended purpose, while being
aware of safety and danger aspects, and in accordance with
the operating instructions! Immediately eliminate any faults
that could be detrimental to safety.

The following pictograms are used in these operating
instructions to identify dangers and important information:

Danger!

Identifies risk of fatal injury to the operator.

Attention!

Identifies risk of injury and risk of damage to the
unit and parts of the unit.

Information!

Useful and important hints for the operation of

i

the UPS and its external battery modules (special
accessories).

3.2 Safety Instructions for PROTECT C.

This chapter contains important instructions for the
PROTECT C. UPS and its external battery modules (special
accessories). These must be followed during assembly,
operation and maintenance of the uninterruptible power
supply and the battery systems (internal and, if appropriate,
external as well).

9

The UPS carries high voltage. Danger!

The unit

ened by trained and qualified

Repairs may only be carried out by

The output may be live, even if the UPS is not

nected to the mains, since the UPS has its

and safety reasons, the unit must be

circuit

. Incorrect connection or isolation faults

can lead to melting of the plug connections,

The unit has a warning signal that sounds when

C. is exhausted

or when the UPS is not working in its normal

Observe the following safety instructions to

f and

safe work with the UPS and the battery modules

may only be op
personnel.

qualified customer service staff!

con
own internal power supply (battery)!

For health

earthed correctly!

PROTECT C. may only be operated with or connected to a
220 V / 230 V / 240 V mains with protective grounding using a
CE marked mains connection cable with PE conductor
(included in the delivery) that has been tested in accordance
with national standards.

Danger! Risk of burning!

The battery has powerful short-
currents

sparking potential and severe burns!

the battery voltage of PROTECT
mode (see also chapter 6.1).

ensure permanent operational safety o
(special accessories):

♦ Do not dismantle the UPS!

(The UPS does not contain any parts that require regular
maintenance. Bear in mind that the warranty will be
invalidated if the unit is opened!)

♦ Do not install the unit in direct sunshine or in close

proximity of heaters!

10

♦ The unit is designed to be installed inside in heated

rooms. Never install the housing in the vicinity of water or
in an excessively damp environment!

♦ Condensation may occur if the UPS is brought from a

cold environment into the room where it is to be installed.
The UPS must be absolutely dry prior to start-up. As a
result, leave it to acclimatise for at least two hours.

♦ Never connect the mains input to the UPS output, and

vice versa!

♦ Ensure that no fluids or foreign bodies can penetrate the

housing!

♦ Do not block the air vents of the unit! Keep children away

from the unit and ensure that objects are never inserted
through the air vents!

♦ Do not connect household appliances such as hairdryers to

theUPS! Also take care when working with motor loads. It is
essential to avoid back-feeding the inverter, e.g. if the load is
intermittently operated in regenerative mode.

♦ The mains connection should be near the unit and easily

accessible to facilitate disconnecting the AC input or
pulling out the plug!

♦ During operation, do not disconnect the mains connection

cable from the UPS or from the socket outlet in the building
(shockproof socket), otherwise the protective grounding of the
UPS and all the loads connected to it will be cancelled.

Danger! Electric shocks!

Even after the mains voltage has been
disconnected, the components within the UPS
remain connected to the battery and can thus
cause electric shocks. It is therefore imperative to
disconnect the battery circuit before carrying out
any maintenance or repair work!

If it is necessary to replace the battery or carry
out maintenance work, this must be done by or
under the supervision of a specialist familiar with
batteries and the necessary safety precautions!

Only authorised persons are allowed in the
vicinity of the batteries!

11

When replacing the batteries, the following must be observed:

Never open or damage batteries. (Electrolyte

age skin and eyes. It may

Batteries can cause electric shocks and high

Only ever use identical maintenance-free sealed lead
batteries with the same data as the original batteries.

Danger! Explosive!

Never throw batteries into open fire.

may leak out and dam
be toxic!)

short-circuit currents.

Take the following safety precautions when working with the
batteries:

♦ Take off watches, rings and other metallic objects!
♦ Always use tools with insulated handles!

Do not switch loads on and off using the UPS
main switch. Do not use multiple outlet adapters

i

with a central on/off switch, in order to avoid peak
inrush currents.

Switch OFF the UPS using its main switch “OFF” if you do not
intend to use it for some time. PROTECT C. must be switched
off every evening if the electricity supply in your company is
switched off every night. Otherwise, the battery will be
discharged (assumed power failure). Frequent and complete
discharging of the battery leads to a shorter service life of the
battery and should therefore be avoided!

For personal safety reasons, never switch on the
main switch when the mains connector of
PROTECT C. is disconnected!

12

3.3 CE-Certificate

13

3.4 Technical Data

Type power

PROTECT C. 1000 (S) 1000 VA (cos ϕ = 0.7 lag.)

PROTECT C. 2000 (S) 2000 VA (cos ϕ = 0.7 lag.)

PROTECT C. 3000 (S) 3000 VA (cos ϕ = 0.7 lag.)

UPS Input (single phase)

Rated input voltage 220 / 230 / 240 Vac
Voltage tolerance range 160 Vac – 300 Vac ± 5 Vac

Nominal frequency 50 Hz / 60 Hz

Frequency tolerance range ± 4 Hz
Current consumption at full load (max.)
PROTECT C. 1000 (S) 7 A

PROTECT C. 2000 10 A
PROTECT C. 2000 S 12 A
PROTECT C. 3000 (S) 16 A

Input power factor
Connection Non-heating appliance

Datalines RJ11 (phone, fax, modem)
overvoltage protection RJ45 (Ethernet 10/100MBit/s)

700 W

1400 W

2100 W

Bypass 80 Vac – 264 Vac

(automatic detection)

0.96

λ



connector

UPS Output (single phase)

Rated output voltage 220 / 230 / 240 Vac ±2 %

(configuration via software
“CompuWatch”)

Nominal frequency 50 Hz / 60 Hz ± 0,2 %

(depending on mains)

Voltage waveform Harmonic distortion

4 % THD (linear load)



7 % THD (non-linear load)



14

Connection Non-heating appliance

connectors
Current Crest Ratio 3:1
Overload behaviour up to 105 % ± 5 % continuous;

in battery mode > 105 % ± 5 % – < 150 % ± 5 %

for 25 s;

150 % ± 5 % for 200 ms
Overload behaviour up to 105 % ± 5 % continuous;

with existing mains >105 % ± 5% – < 150 % ± 5 %

for 30 s;

150 % ± 5 % for 300 ms

Then automatic inverter to

Bypass in < 4 ms (switches

back when overload damps =

Load < 90%)
Short circuit behaviour 3 x I

for 140 ms

N

Battery

Autonomy time (full load with internal battery)
PROTECT C. 1000 6 min
PROTECT C. 2000 10 min
PROTECT C. 3000 5 min

Autonomy time with external optional battery expansions
(only for PROTECT C. – models):

Coupled

battery modules

1 38 min 55 min 30 min
2 76 min 106 min 60 min

Autonomy time (full load)

C.1000 C. 2000 C. 3000

Rated direct voltage (intermediate circuit)
PROTECT C. 1000 (S) 36 V
PROTECT C. 2000 (S) 96 V
PROTECT C. 3000 (S) 96 V

15

Battery charging current (max.)
PROTECT C. 1000 1 A
PROTECT C. 1000 S 7 A
PROTECT C. 2000 1 A
PROTECT C. 2000 S 9.6 A
PROTECT C. 3000 1 A
PROTECT C. 3000 S 9.6 A

Recharge time ~ 5h (with internal battery only)
(to 90% of rated capacity) ~ 24h (with 1 battery

expansion)
~ 40h (with 2 battery
expansions)

Battery type Sealed, maintenance-free
PROTECT C. 1000 12 V 7.2 Ah x 3
PROTECT C. 2000 12 V 7.2 Ah x 8
PROTECT C. 3000 12 V 7.2 Ah x 8
PROTECT C. 1000BP 12 V 7.2 Ah x 3 x 2
PROTECT C. 2030BP 12 V 7.2 Ah x 8 x 2

“S” versions with increased
battery charger for charging
external battery systems (no
integrated battery)

Communication

Ports RS232

SUB-D (9-pin)
additional: communication slot

for expansion (e.g. AS/400,
USB, SNMP, ...)

Shutdown Software on CD “CompuWatch” for all popular

operating systems like
Windows, Linux, Mac, Unix,
FreeBSD, Novell, Sun

16

General data

Classification VFI SS 211 acc. to IEC 62040–3

Double conversion technology
Overall efficiency AC-AC (full load)

PROTECT C. 1000 (S)
PROTECT C. 2000 (S)
PROTECT C. 3000 (S)

85 %



85 %



88 %



Noise level (1m distance)
PROTECT C. 1000 (S) < 45 dB (A)

PROTECT C. 2000 (S) < 50 dB (A)
PROTECT C. 3000 (S) < 50 dB (A)

Type of cooling Forced cooling

by variable speed fans
Operating temperature range 0°C to +40°C

Recommendation +15°C to

+25°C (due to battery

system)
Storage temperature range 0°C to +40°C
Relative humidity < 95%, non-condensing
Max. site altitude up to 1000 m above sea level

If the UPS is installed or used

in a place where the altitude is

above than 1000m, the output

power has to be reduced:

Altitude (m) 1000 1500 2000 2500 3000
Derating Power 100% 95% 90% 85% 80%

Outlets
PROTECT C. 1000 (S) 4 x IEC 320-10A

PROTECT C. 2000 (S) 6 x IEC 320-10A
PROTECT C. 3000 (S) 4 x IEC 320-10A

+ 1 x IEC 320-16A
Equipment colour Black line

17

Weights:
PROTECT C. 1000 15 kg
PROTECT C. 1000 S 8 kg
PROTECT C. 1000 BP 19 kg
PROTECT C. 2000 34 kg
PROTECT C. 2000 S 15 kg
PROTECT C. 3000 35 kg
PROTECT C. 3000 S 16 kg
PROTECT C. 2030 BP 52 kg

Dimensions W x H x D:
PROTECT C. 1000 (S) 145 mm x 220 mm x 400 mm
PROTECT C. 1000 BP 145 mm x 220 mm x 400 mm
PROTECT C. 2000 (S) 192 mm x 340 mm x 460 mm
PROTECT C. 3000 (S) 192 mm x 340 mm x 460 mm
PROTECT C. 2030 BP 192 mm x 340 mm x 460 mm

Guidelines

The PROTECT C. complies with the product norm EN 50091.
The CE symbol on the unit certifies the compliance to the EG

guidelines for 73/23 EEC low voltage and for 89/336 EEC
electromagnetic compatibility (EMC), when following the
installation instructions in the manual.

For the 73/23 EEC low voltage guidelines
Reference number EN 62040-1-1 : 2003

For 89/336-EMC guidelines
Reference number EN 50091-2 : 1995

EN 61000-3-2 : 1995
EN 61000-3-3 : 1995

18

4 Set-Up and Operation

4.1 Unpacking and Inspection

The device has been fully tested and inspected. Although the
device has been packed and shipped with the usual degree of
care, damage during transport cannot be ruled out
completely.

Claims for damage during transport must always
be made with the transport company!

i

Check the shipping container for damage on arrival. If
necessary, ask the transport company to check the goods
and make a record of the damage in the presence of the
member of staff from the transport company. Don’t turn on the
unit and register the damage with the AEG representative or
dealer immediately.

Check the delivery is complete:

♦ PROTECT C.(S) with 1000, 2000 or 3000 VA
♦ Mains connection cable with shockproof plug
♦ Three load connection cables (10 A)
♦ Communication cable
♦ CD with "CompuWatch" shutdown software
♦ Operating instructions

Delivery of external battery modules includes:

♦ External battery unit
♦ Special battery connection cable

Please contact our hotline (see page 4) in case of any
discrepancy.

The original packaging provides effective protection against
mechanical shocks and should be retained so the unit can be
transported safely later on.

Please keep the plastic packaging bags away
from babies and children in order to safeguard
against suffocation accidents.

19

Handle the components with care. Please take
into account the weight. It may be necessary to
engage the help of a second person, particularly
in the case of the 2 and 3 kVA models and if
there are external battery units.

4.2 Point of Installation

PROTECT C. is designed to be installed in a protected
environment. When installing the unit, pay attention to such
factors as sufficient ventilation and suitable ambient
conditions.

PROTECT C. is air-cooled. Do not obstruct the
air vents!

The UPS and in particular its external battery
modules should preferably be operated at room
temperature (between 15°C and 25°C).

Install the units in a room that is dry, relatively dust-free and
free of chemical vapours.

Make sure that no magnetic storage media are stored and/or
operated close to PROTECT C.

Check the nameplate to make sure the voltage
and frequency data correspond to the values
applicable to your loads.

20

4.3 Overview:
Connections, Operating / Display Elements

4.3.1 Front view

PROTECT C.1000 (S) PROTECT C.2000 (S) PROTECT C.3000 (S)

PROTECT C.1000 BP PROTECT C.2030 BP

21

4.3.2 Display

12
11
10

9
8
7

3

6

4

5

2

1

Explanations:

1. OFF-Pushbutton (OFF)

2. ON-Pushbutton (ON) / Alarm off

3. Orange LED bypass (Bypass)

4. Green LED inverter (Inverter)

5. Orange LED for battery (Battery)

6. Green LED for utility power (Line)

7. - 11. Bar graph LEDs (7-10 green / 11 orange) for
UPS battery utilization respectively capacity
(remaining autonomy time)

7. LED load (0-35%) battery capacity (96-100%)

8. LED load (36-55%) battery capacity (76-95%)

9. LED load (56-75%) battery capacity (51-75%)

10. LED load (76-95%) battery capacity (26-50%)

11. LED load (96-105%) battery capacity (0-25%)

12. Red LED fault (Fault)

You will find detailed explanations of the displays on page 35.

22

4.3.3 Rear view (connections):

PROTECT C. 1000 (S) PROTECT C. 2000 (S)

PROTECT C. 3000 (S)

23

Comments:

1. Mains connection (UPS input)

2. Mains input circuit breaker

3. Load connections (UPS outputs)
PROTECT C. 3000 (S) with additional load
connection (IEC 320-16A)

4. Connection for external battery module

5. Data interface for telephone, modem fax (RJ11)
or 10/100 MBit/s network (RJ45)

6. Vent (Attention: At least 10 cm of free area are
required behind the vent for free ventilation!)

7. Communication interface RS232
(9-pin SUB-D socket)

8. Communication slot for optional expansion cards:
SNMP, USB, AS/400

9. Outlet 16A (only for PROTECT C. 3000 (S))

10. 2 circuit breaker for a pair of non-heating outlet
appliance connectors (only PROTECT C. 3000 (S))

24

5 Commissioning

5.1 Mechanical Set-Up

Note the following points when setting up the UPS system
and its external battery units (special accessories):

♦ The contact surface must be smooth and level. It must

also be sufficiently strong and sturdy to avoid vibration
and shock loads.

♦ Make sure the mounting is able to support the weight:

This is particularly important in conjunction with external
battery units (special accessories).

♦ Set up the units so that adequate air circulation is

assured. There must be at least 100 mm clearance at the
back for ventilation purposes. Do not block the intake
openings on the front and, if present, on the side of the
unit. There must be a gap of at least 50 mm here.

♦ Set up external battery units (special accessories) to the

side of the UPS system. To ensure the greatest possible
mechanical stability, you should not set up the external
battery unit(s) above or below the UPS system.

♦ Avoid extreme temperatures! We recommend an ambient

temperature of 15 °C to 25 °C in order to maximise the
service life of the batteries. Do not expose the units to
direct sunlight or operate them close to other heat
sources such as radiators.

♦ Protect the units against external effects (in particular

moisture and dust). In this regard, please also refer to the
instructions in chapter 4.2, page 20 in these operating
instructions.

If you transport the unit from a cold room into a warm one, or
if the room temperature suddenly drops then condensation
may form inside the unit. To avoid any damage due to
condensation, leave the unit to acclimatise for 2 hours before
you switch it on.

25

5.2 External Battery Expansions

To achieve longer backup time, it is possible to connect multi­battery packs. Connect exclusively
together:

PROTECT C. 1000 with PROTECT C. 1000 BP
PROTECT C. 2000 with PROTECT C. 2030 BP
PROTECT C. 3000 with PROTECT C. 2030 BP

PROTECT C. with 1 battery expansion

Fig.: PROTECT C.1000 and C.1000BP

the following products

1. Check the correct fit of the UPS and the battery
unit (the casings e.g. have to have the same
dimension).

2. Now connect both battery connectors using the
supplied battery connection cable. When
connecting, make sure that you push the plug
quickly and firmly in the battery connectors.

26

PROTECT C. with 2 battery expansions

Fig.: PROTECT C.1000 and two C.1000BP

1. Check the correct fit of the UPS and the battery
unit (the casings e.g. have to have the same
dimension).

2. Now connect the corresponding battery
connectors using the supplied battery connection
cables as shown in the figure above. When
connecting, make sure that you push the plug
quickly and firmly in the battery connectors.

5.2.1 Electrical Start-Up

Verify that UPS voltage of your country corresponds to your
equipment voltage. The default setting is set to 230 V. Output
voltage on the UPS system can be adjusted with the software
“CompuWatch” in steps of 220 Vac, 230 Vac and 240 Vac.

Turn on the PROTECT C. to the mains

1. Now connect the input of the UPS to the mains
connection cable provided and plug the mains
connector into a suitable shockproof socket. Avoid
using extension cables and / or adapters. In
particular in the case of high-capacity types, ensure
that the fusing in your sub-distribution is adequately
dimensioned:The 3kVA system for example requires
its own connection with a 16 A fuse. No other loads
should be connected to this circuit!

2. Activate the mains input circuit breaker. If
necessary switch it to “ON”.

27

Default setting: No automatic supply for load
over integrated bypass after executing step 1

i

3. Then connect the outputs of your UPS to your

4. Now switch on the UPS. To do this, press and

5. When being powered on, the UPS will perform

i

6. When all displays are lit as described, switch on

and 2 (Modification of the configuration with the
provided Software ”CompuWatch“).

loads. Use the load connection cables provided for
this. Don’t switch on the loads yet. Please
contact your dealer if you require additional load
connection cables.

hold the UPS ON switch for about 2 seconds.

self-diagnosis, the Load/Battery level LEDs will be
turned on and then off one after another in
ascending order. After synchronising the inverter
successfully the LED “Inverter” will go on after
some seconds, with the UPS in normal mode. If
the power supply is in order (mains within the
range) an additionally the LED “Line” will go on. If
this LED is flashing, the phase and neutral of the
UPS are exchanged. In this case turn the mains
connector 180

Please shut down the entire system if you
cannot solve any problems which occur. Press
the OFF button for about 2 seconds. Disconnect
the UPS from the mains by pulling the mains
connector. Please contact our hotline (s.p. 4).

your loads one after the other. Note the maximum
permitted UPS load when doing this. Keep in mind
that especially loads like laser printers and big
CTRs have high power consumption and can
cause an overload of the UPS quickly.

0

in the shockproof socket.

i

Behaviour when switching on / off:

The behaviour after switching on (On­Pushbutton) or off (Off-Pushbutton) the UPS can
be defined with the Software “CompuWatch”:
Activation of the automatic bypass or either
deactivation (latter = factory-made presetting).

28

5.3 Operating Statuses

~~~

Battery

5.3.1 Normal Operation

Autom.
bypass

REC

INV

Powercircuit with
mains supply

Mains

Diagram

Battery
charger

Safety busbar:

Load

Once you have connected the UPS to a suitable mains
connection, you can start operation using the UPS main
switch (see also "Electrical Start-Up" on page 27). Normally,
the UPS operates continuously. The UPS now supplies the
output with voltage, this being signalled by the symbols mains
(LED Line) and rectifier (LED Inverter) symbols which light up
permanently.

This is often referred to as “online” mode. It offers the greatest
protection, in particular when there are mains fluctuations and
mains failures, because the loads are supplied continuously
with voltage with no interruptions in this operating mode.

The LED bar graph (LED chain above the pictogram) show
during operation the actual utilization of the UPS (s. chapter
6, page 35).

29

5.3.2 Battery Operation / Autonomy Operation

~

~

~

Mains

Autom.
bypass

Diagram

REC

Battery
charger

Battery

INV

Safety busbar:

Load

The mains is not within the required tolerance range or has
failed. In this case power is supplied to the inverter from the
charged battery without interruption. The power supply to the
loads is therefore also ensured in the event of a mains failure.
This drains the capacity of the battery and it is discharged. This
status is signalled by the battery symbol (LED Battery) lighting
up, as well as an intermittent acoustic signal every 4 seconds
and every second before switching off. This can be suppressed
by pressing the “Alarm off” button. With decreasing battery
capacity the alarm is activated automatically. Depending on the
expansion level, age and condition of the battery and in
particular on the load to be supplied, the standby time can vary
from a few minutes to several hours.

Power circuit with
faulty mains supply

Bypass

Line Inverter

Battery

The LED bar graph (LED chain above the pictogram) show
during operation the actual utilization of the UPS (s. chapter
6, page 35).

The inverter is switched off if the battery voltage drops below
a factory-set minimum voltage value.

Never store the unit in this condition! The discharged battery
system should be recharged within a week at the latest.

30

When the voltage and frequency are within the tolerance

~~~

range once more, the rectifier and the battery charger switch
back on automatically. The rectifier then continues supplying
the inverter and the battery charger takes over charging the
battery.

5.3.3 Bypass Operation

If the inverter is overloaded or if overtemperature is detected,
e.g. also if an inverter defect is detected, voltage is supplied
to the load via the bypass that switches on automatically. This
is signalled by the bypass symbol.

Autom.
bypass

REC

INV

Power circuit with
faulty inverter

Mains

Diagram

Battery
charger

Battery

Safety busbar:

Load

This function is also referred to as passive redundancy. It
protects against total failure of the voltage supply on the
protected busbar, however in the operating status that is now
attained, mains faults would have a direct effect on the load.

As a result, the electronics continuously attempt to switch
back to "online" / normal operating status (e.g. when the
overload or overtemperature no longer applies).

Bypass

Line Inverter

Battery

The bypass is a mechanical link that switches extremely
rapidly. It is located between the load and the mains. The
synchronisation unit ensures that the frequency and phase of
the inverter voltage is synchronised with the mains.

31

The LED bar graph functions as display for UPS
utilisation. The signal goes off during this

i

5.3.4 Unit Overload

The load on the UPS should never exceed the specified rated
load of the unit. If a unit overload occurs nevertheless (from
105% ± 5% of the specified unit rated load) the fault LED is
turned on accompanied with a signal tone (twice per second).
The connected loads continue to be supplied for a certain
time depending on the level of the overload. However, the
connected load must be reduced without delay.

Non-observance of the "Unit overload" condition may cause
the total loss of all UPS functions!

Also avoid short-term unit overloads, which may, for example,
occur when connecting a laser printer or laser fax machine.
Do not connect any household appliances or machine tools to
the UPS.

As a rule, if there has never been an overload during normal
operation, there will not be one during battery operation
either.

operations status every 2 seconds.

Never connect or switch on any additional loads
to the UPS if there is a mains failure, i.e. if the
UPS is working in emergency power operation!

The signalling of the fault LED in combination
with a continuous alarm points out a switching
of fault. Follow the instructions in chapter 6.

32

5.4 Interfaces and communication

5.4.1 Data line protection RJ11 and RJ45

The incoming data lines are connected to the “IN” line at the
rear of the UPS. The “OUT” line is connected via data line
with your terminal.

The data line protection supports networks with
transfer rates between 10 and 100 MBit/s.

i

5.4.2 Computer interfaces RS232

The UPS offers various interfaces to manage the system and
to comfortable readout state information and important
parameters. The communication protocol is optimized for
operation with the shutdown and UPS management software
“CompuWatch” from AEG. To connect to the UPS to you
computer use the provided RS232 communication cable by
attaching them to a free serial port of your pc.

RS232 interface: The interface is connected via a 9 pole
Sub-D connector on the back of the unit (pos. 4 p. 23 / 24).
PINs: 2 = TxD; 3 = RxD; 5 = GND.

5.4.3 Communication Slot

If the cover on the rear of the UPS is removed (pos. 8
p. 23/24), additional optionally available communication
components can be installed there.

AS/400 board: Slot card with status messages, realised via
potential-free relay contacts.

USB board: Slot card for communication via USB.
SNMP board: Slot card for direct connection of the UPS to

the Ethernet network with RJ 45 (TCP/IP).
Details can be found in the description enclosed with the

particular optional component.Other boards are in preparation.

i

Using the communication slot deactivates the
RS232 interface of chapter 5.4.2.

33

5.4.4 Shutdown and UPS management software

The "CompuWatch" software specially developed for these
purposes by AEG continuously checks the mains supply and
the UPS status.

In conjunction with the "intelligent" UPS, this ensures that the
availability of IT components and data security is guaranteed.

The "CompuWatch" shutdown software supports different
operating systems: Windows 98SE/ME, Windows NT/2000/XP,
Windows Vista, Linux, Novell Netware, IBM AIX, HP-UX, SUN
Solaris, Mac OS X, and others.

Refer to the manual on the CD for details about installing the
software on the various operating systems.

Download of Updates: www.AEGpartnernet.com >>
PRODUCTS >> Software >>CompuWatch

34

6 Signalling and Error Correction

6.1 Signalling

12
11
10

9
8
7

3

6

4

5

2

1

1. OFF push button (OFF): Press the OFF switch
for about 2 seconds to switch on the UPS

2. ON push button (ON): Press the ON switch for
about 2 seconds to switch off the UPS.
Deactivate acoustic alarm: By pressing this
switch for about 2 seconds during the alarm an
acoustic alarm can be deactivated.
UPS Test: To execute an UPS self test press this
button for about 2 seconds in the normal operation
mode.

3. LED Bypass (Bypass): The orange-coloured LED
lights up when the UPS system is supplying voltage
provided by the mains power via the bypass.

4. LED Inverter (Inverter): The green-coloured LED
lights up if the UPS system is supplying voltage
provided by the mains power via the inverter.

5. LED Battery (Battery): The orange-coloured LED
lights up when power is supplied by the batteries.

35

6. LED Line (Mains status): The green LED lights
up if mains voltage is in a specified range of
tolerance. The LED Line flashes when the phase
and neutral conductor have been reversed at the
input of the UPS system. In this case turn the
mains connector 180° in the shockproof socket.

7.-11. LED Bargraph for UPS battery utilization resp.

capacity (remaining autonomy time)

These LEDs show the load of the UPS system if
the mains power is available (normal operation):

11. orange LED 96% – 105%

10. green LED 76% – 95%

9. green LED 56% – 75%

8. green LED 36% – 55%

7. green LED 0% – 35%
In the battery operation, the LEDs indicate the

capacity of the batteries:

11. orange LED 0% – 25%

10. green LED 26% – 50%

9. green LED 51% – 75%

8. green LED 76% – 95%

7. green LED 96% –100%

12. LED Fault: The red LED lights up and an acoustic
warning signal is issued continuously when the
UPS system is in fault condition.

36

6.2 Fault Diagnosis / Fault Rectification

The PROTECT C. generates detailed error messages.
Support personal can localise and interpret faults quickly and
precisely.

6.2.1 Error Messages

Problem Cause Solution

UPS does not start.
No indication, no audible
signal even though system
is connected to mains
power supply.

LED “Line” flashes and
audible signal sounding
every 3 minutes.

LED “Line” flashes and
LED “Battery” lights up.

LED “Line” and LED
“Bypass” light up even
though the power supply
is available. No supply of
connected loads.

LED “Inverter” and LED
“Battery” lights up, and
audible signal sounding
every 4 seconds.

Mains and battery voltage
not in the tolerance range,
possible battery deep
discharge.

Phase and neutral
conductor at input of UPS
system are reversed.

Input power and/or
frequency are out of
tolerance.

Inverter not switched on.

Mains power supply has
failed. Automatic switch
to battery mode.

Check building wiring
socket outlet and input
cable.

Rotate mains power
socket by 180° or
connect UPS system.

Check input power
source (Voltage,
frequency) and inform
house electrician if
necessary.

Press On-Switch “ON”
for about 2 seconds.

Try to replace mains
supply (possibly
triggered fuse in sub
distribution). When
audible alarm sounding
every second, battery
is almost unloaded. At
this point it is time to
proceed with an system
shutdown of all you IT
equipment.

LED “fault” lights, audible
signal once a second.

Overload of the UPS
system.

37

Reduce utilizations of
UPS by removing loads
of UPS output.

Emergency supply period
shorter than nominal value

LED “fault” lights, LED
“Battery” flashes, audible
signal once a second

Batteries not fully charged
/ batteries old resp. defect

Charger or Batteries
damaged

Charge the batteries for
at least for the charging
time acc. Chapter 3.4,
page 16 and then
check capacity. If the
problem still persists,
consult your dealer.

Notify dealer!

LED “fault” lights up,
permanent audible signal

UPS fault Notify dealer!

If you cannot solve the problem that has occurred, stop the
entire procedure, switch off the UPS and disconnect the
connector from the socket. Please contact our hotline in this
case (see page 4).

Please have the serial number of the unit as well as the
purchase date to hand in this case. The hotline will provide
you with technical support and can inform you about further
procedures once you have described the problem.

38

7 Maintenance

The PROTECT C. consists of advanced and resistant
components. To guarantee a continuous and high availability
it is recommended to check the unit (especially the batteries
and the fans) in regular intervals (at least every 6 months).

CAUTION:

Follow safety and security regulations
unconditionally!

7.1 Charging the Battery

The battery is automatically charged when the mains is
present, irrespective of the operating mode. This is signalled
by the "Line" LED lighting up (see also chapter 6).

The complete charging time of the battery after a length
discharge period depends, above all, on the number of
additional external battery units.

Charging time up to 90% of rated capacity

Only with internal UPS battery approx. 5 hours
One additional battery unit approx. 24 hours
Two additional battery units approx. 40 hours

7.2 Maintenance

The following maintenance work should be performed:

Task Interval Described in
Visual check 6 months Chapter 7.2.1
Battery/fan check 6 months Chapters 7.2.2 / 7.2.3

7.2.1 Visual Check

When visually checking the unit, check whether:
♦ there is any mechanical damage or foreign bodies can be

found in the system,

♦ any conductive dirt or dust has accumulated in the unit,
♦ accumulation of dust affects heat supply and dissipation.

39

CAUTION:

PROTECT C. must be disconnected from the
power supply prior to carrying out the
following work.

If large quantities of dust have accumulated, the unit should,
as a precaution, be cleaned with dry compressed air, in order
to ensure adequate heat dissipation.

The intervals at which visual checks should be performed are
largely determined by the site conditions.

7.2.2 Checking the Battery

Progressive ageing of the battery system can be detected by
regular capacity checks. Every 6 months, perform
measurements to compare the achievable standby times, e.g.
by simulating a mains failure. In this case, the load should
always have approximately the same capacity demand.
Please contact our hotline if the time drops drastically
compared to the previous measurement (see page 4).

7.2.3 Fan Checking

Regularly check the fans for dust build-up and noticeably
untypical noise development. Clean the intake openings if
they are blocked. Contact our hotline if a fan is running
unusually loud or irregularly (see page 4).

40

8 Storage, Dismantling and Disposal

ging or

discharging the battery at regular intervals may

C. to the mains before

putting it into storage, in order to make sure that

should at least match the time specified in

8.1 Storage

Long storage times without char
lead to permanent damage of the battery.

If the battery is stored at room temperature (20° C to 30° C) it
will automatically discharge at a rate of 3 - 6% per month due
to internal reactions. Storing the battery at temperatures
above room temperature should be avoided. A high storage
temperature also means greater battery self-discharge.

Batteries that are stored at room temperature should be
recharged every six months to maintain their full capacity and
service life.

Connect PROTECT

i

the battery is fully charged. The charging time
chapter 7.1 Charging the Battery on page 39.

8.2 Dismantling

The system is dismantled in reverse order of the installation
instructions.

8.3 Disposal

In the interest of environmental protection and recycling,
please dispose of the individual system components in
accordance with the regulations and legal guidelines when
permanently taking the system out of operation. Please
consider that infringements to these regulations may result in
civil or criminal prosecution.

41

9 Glossary

9.1 Technical terms

Class D, Class III see equipment protection
DC/DC Booster Circuit technology to boost the direct voltage on

Equipment protection Technology term of the surge voltage protection:

IGBT I

LED L

PFC P

PWM P

SNMP Simple Network Management Protocol

VFD Output V

VI Output V

VFI Output

a higher voltage level

the conventional surge voltage protection consists
of a lightning current protection (class B, class I), a
surge voltage protection (class C, class II) and an
equipment protection (class D, class III) – see also
e.g. http://www.phoenixcontact.de (topic „TRABTECH“)

nsulated Gate Bipolar Transistor
The latest design of high-performance transistors
with minimum control power requirement (MOSFET
structure) and minimum losses on the output side
(structure of a bipolar transistor)

ight Emitting Diode
Electronic semiconductor component, commonly
called light diode. Used for optical signalling.

ower Factor Correction
Circuit technology for sine-wave input current;
less mains distortion (important for non linear loads)

ulse Width Modulation
Here: Circuit technology for generating a sinusoidal
voltage of the highest quality from an existing DC
voltage

common protocol in networks to manage / control
appliances

oltage and Frequency Dependent from
mains supply
The UPS output depends of mains voltage and
frequency variations. Former notation: OFFLINE

oltage Independent from mains supply
The UPS output is independent of mains voltage
and frequency variations. The mains voltage
however is rectified by electronic / passive voltage
regulators. Former notation: LINE-INTERACTIVE

Voltage and Frequency Independent from

mains supply
The UPS output is independent of mains voltage
and frequency variations. Former notation: ONLINE

42

Guarantee certificate

Type: …….…………………......................................................

Serial-no.: ……………………..……………...............................

Date of purchase: …………….............……………………........

Trading stamp / Signature

Specifications are subject to change without notice.

AEG Power Solutions GmbH

Emil-Siepmann-Straße 32

59581 Warstein-Belecke

Germany

Operating Instructions

BAL 8000019812_01 EN

43
