Adtran T1 ESF CSU ACE User Manual

61203025L1-1C
May 2001

T1 ESF CSU ACE

User Manual

Part Number 1203025L1

Trademark Information:

T-WATCH is a trademark of ADTRAN.
OpenView isa registered trademark of Hewlett Packard Company.
SunNet Manager is a trademark of Sun Micro Systems, Inc.

901 Explorer Boulevard

P.O. Box 140000

Huntsville, AL 35814-4000

[phone]

© 2001 ADTRAN, Inc.

All Rights Reserved.

Printed in U.S.A.

The following conventions are used in this manual.

Notes provide additional useful information.

Cautions signify information that could prevent service interruption.

Warnings provide information that could prevent damage to the equip­ment or endangerment to human life.

Important Safety Instructions

When using your telephone equipment, please follow these basic safety precautions
to reduce the risk of fire, electrical shock, or personal injury:

1. Do not use this product near water, such as near a bathtub, wash bowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.

2. Avoid using a telephone (other than a cordless-type) during an electrical storm.
There isa remote risk of shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use onlythe power cord, power supply, and/or batteries indicated in the manual.
Do not dispose of batteries in a fire. They may explode. Check with local codes
for special disposal instructions.

Save These Important Safety Instructions

iii

Affidavit Requirements for Connection to Digital Services

• An affidavit is required to be given to the telephone company whenever digital
terminal equipment without encoded analog content and billing protection is
used to transmit digital signals containing encoded analog content which are
intended for eventual conversion into vo ice band analog signal and transmitted
on the network.

• The affidavit shall affirm that either no encoded analog content or billing informa­tion is being transmitted or that the output of the device meets Part 68 encoded
analog content or billing protection specification.

• End use/customer will be responsible to file an affidavit with the local exchange
carrier when connecting unprotected CPE to a 1.544 Mbps or subrate digital ser­vice.

• Until such time as subrate digital terminal equipment is registered for voice appli­cations, the affidavit requirements for subrate services are waived.

iv

Affidavit for Connection of Customer Premises Equipment to 1.544 MBPS and/

or Subrate Digital Services

For the work to be performed in the certified territory of ______________ (telco name)

State of ________________________________

County of ______________________________

I, _______________________ (name), ____________________ (business address),
_____________________ (telephone number) being duly sworn, state:

I have the responsibility for the operation and maintenance of the terminal equipment
to be connected to 1.544 Mbps and/or __________________ subrate digital services.
The terminal equipment to be connected complies with Part 68 of the FCC rules
except for the encoded analog content and billing protection specification.With
respect to encoded analog content and billing protection:

( ) I attest that all operations associated with the establishment, maintenance and adjust­ment of the digital CPE with respect to encoded analog content and billing protection
information continuously complies with Part 68 of the FCC rules and Regulations.

( ) The digital CPE does not transmit digital signals containing encoded analog con­tent or billing information which is intended to be decoded within the telecommuni­cations network.

( ) The encoded analog content and billing protection is factory set and is not under
the control of the customer.

I attest that the operator(s) maintainer(s) of the digital CPE responsible for the estab­lishment, maintenance and adjustment of the encoded analog content and billing
information has (have) been trained to perform these functions by successfully having
completed one of the following (check appropriate blocks):

( ) A. A training course provided by the manufacturer/grantee of the equipment used
to encode analog signals; or

( ) B. A training course provided by the customer or authorized representative, using
training materials and instructions provided by the manufacturer/grantee of the
equipmentused to encode analog signals; or

( ) C. An independent training course (e.g., trade school or technical institution) rec­ognized by the manufacturer/grantee of the equipment used to encode analog sig­nals; or

v

( ) D. In lieu of the proceeding training requirements, the operator(s)/maintainer(S) is
(are) under the control of asupervisor trained in accordance with _______________
(circle one) above.

I agree to provide ____________________(telco’s name) with proper documentation
to demonstrate compliance with the information in the preceding paragraph, if so
requested.

_____________________ Signature

_____________________ Title

_____________________ Date

Subscribed and sworn to before me

This _________ day of ___________________, 20__

_______________________________________
Notary Public

My commission expires: _________________________

vi

FCC regulations r equire that the following information be provided in this man­ual:

1. This equipment complies with Part 68 of the FCC rules. On the bottom of the

equipment housing is a label that shows the FCC registration number and Ringer
Equivalence Number (REN) for this equipment, if applicable. If required, this
information must be given to the telephone company.

2. The following information may be required when applying to the local telephone

company for leased line facilities.

Service Type REN/SOC FIC USOC

1.544 Mbps - SF 6.0F 04DU9-BN RJ48C

1.544 Mbps - SF and B8ZS 6.0F 04DU9-DN RJ48C

1.544 Mbps - ESF 6.0F 04DU9-1KN RJ48C

1.544 Mbps - ESF and B8ZS 6.0F 04DU9-1SN RJ48C

3. An FCC compliant telephone cord with a modular plug may be provided with

this equipment. This equipment is designed to be connected to the telephone net­work or premises wiring using a compatible modular jack, which is FCC Part 68
compliant. See installation instructions for details.

4. If this equipment causes harm to the telephone network, the telephone company

may temporarily discontinue service. If possible, advance notification is given;
otherwise, notification is given as soon as possible. The telephone company will
advise the customer of the right to file a complaint with the FCC.

5. The telephone company may make changes in its facilities, equipment, operations,

or procedures that could affect the proper operation of this equipment. If t his hap­pens, the telephone company will provide advance notification and the opportunity
to make the necessary modifications to maintain uninterrupted service.

6. If experiencing difficulty with this equipment, please contact ADTRAN for repair and

warranty information. If the equipment is causing harm to the network, the tele­phone company may request this equipment to be disconnected from the network
until the problem is resolved or it is certain that the equipment is not malfunctioning.

7. This unit contains no user-serviceable parts.

8. The FCC recommends that the AC outlet to which equipment requiring AC

power is to be installed is provided with an AC surge arrester.

vii

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A dig­ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio fre­quency energy and, if not installed and used in accordance with the instruction man­ual, may causeharmful interferenceto radio frequencies. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.

Shielded cables must be used with this unit to ensure compliance with Class A FCC
limits.

Change or modifications to this unit not expressly approved by the party re­sponsible for compliance could void the user’s authority to operate the equip­ment.

Canadian Emissions Requirements

This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard enti­tled “Digital Apparatus," ICES-003 of the Department of Communications.

Cet appareil nuerique respecte les limites de bruits radioelectriques applicables aux
appareils numeriques de Class A prescrites dans la norme sur le materiel brouilleur:
"Appareils Numeriques," NMB-003 edictee par le ministre des Communications.

viii

Canadian Equipment Limitations

Notice: The Canadian Industry and Science Canada label identifies certified equip­ment. This certification means that the equipment meets certain telecommunications
network protective, operational, and safety requirements. The Department does not
guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be con­nected to the facilities of the local telecommunications company. The equipment must
also be installed using an acceptable methods of connection. In some cases, the com­pany’s inside wiring associated with a single line individual service may be extended
by means of a certified connector assembly (telephone extension cord). The customer
should be aware that compliance with the above limitations may not prevent degra­dation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian mainte­nance facility designated by the supplier. Any repairs or alterations made by the user
to this equipment, or equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.

Users should ensurefor their own protection that the electrical groundconnectionsof
the power utility, telephone lines and internal metallic water pipe system, if present,
are connected together. This precaution may be particularly important in rural areas.

Users should not attempt to make such connections themselves, but
should contract the appropriate electric inspection authority, or an elec­trician, as appropriate.

TheLoadNumber(LN)assignedtoeachterminaldevicedenotesthepercentageof
the total load to be connected to a telephone loop which is u sed by the device, to pre­vent overloading. The termination on a loop may consist of any combination of
devices subject only to the requirement that the total of the Load Numbers of all
devices does not exceed 100.

ix

Limited Product Warranty

ADTRAN warrants that for five (5) years from the date of shipment to Customer, all
products manufactured by ADTRAN will be free from defects in materials and work­manship. ADTRAN also warrants that products will conform to the applicable speci­fications and drawings for such products, as contained in the Product Manual or in
ADTRAN's internal specifications and drawings for such products (which may or
may not be reflected in the Product Manual). This warranty only applies if Customer
gives ADTRAN written notice of defects during the warranty period. Upon such
notice, ADTRAN will, at its option, either repair or replace the defective item. If ADT­RAN is unable, in a reasonable time, to repair or replace any equipment to a condition
as warranted, Customer is entitled to a full refund of the purchase price upon return
of the equipment to ADTRAN. This warranty applies only to the original purchaser
and is not transferable without ADTRAN's express written permission. This warranty
becomes null and void if Customer modifies or alters the equipment in any way, other
than as specifically authorized by ADTRAN.

EXCEPT FOR THE LIMITEDW ARRANTY DESCRIBED ABOVE, THE FOREGOING
CONSTITUTES THE SOLE AND EXCLUSIVE REMEDY OF THE CUSTOMER AND
THE EXCLUSIVE LIABILITY OF ADTRAN AND IS IN LIEU OF ANY AND ALL
OTHER WARRANTIES (EXPRESSED OR IMPLIED). ADTRAN SPECIFICALLY DIS­CLAIMS ALL OTHER WARRANTIES, INCLUDING (WITHOUT LIMITATION),
ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIEDWAR­RANTIES, SO THIS EXCLUSION MAY NOT APPLYTO CUSTOMER.

In no event will ADTRAN or its suppliers be liable to Customer for any incidental,
special, punitive, exemplary or consequential damages experienced by either Cus­tomer or a third party (including, but not limited to, loss of data or information, loss
of profits, or loss of use). ADTRAN is not liable for damages for any cause whatso­ever (whether based in contract, tort, or otherwise) in excess of the amount paid for
the item. Some states do not allow the limitation or exclusion of liability for incidental
or consequential damages, so the above limitation or exclusion may not apply to Cus­tomer.

x

Customer Service, Product Support Information, and Training

ADTRAN will replace or repair this product within five years from the date of ship­ment if the product does not meet its published specification, or if it fails while in ser­vice.

A return material authorization (RMA) is required prior to returning equipment to
ADTRAN.Forservice,RMArequests,training,ormoreinformation,seethetoll-free
contact numbers given below.

Presales Inquiries and Applications Support

Please contact your local distributor, ADTRAN Applications Engineering, or ADT­RAN Sales:

Applications Engineering [phone]
Sales [phone]

Post-Sale Support

Please contact your local distributor first. If your local distributor cannot help, please
contact ADTRAN Technical Support and have the unit serial number available.

Technical Support (888) 4ADTRAN

The Custom Extended Services (ACES) program offers multiple types and levels of ser­vice plans which allow you to choose the kind of assistance you need. For questions,
call the ACES Help Desk.

ACES Help Desk [phone]

Repair and Return

If ADTRAN Technical Support determines that a repair is needed, Technical Support
will coordinate with the Custom and Product Service (CAPS)department to issue an
RMA number. For information regarding equipment currently in house or possible
fees associated with repair, contact CAPS directly at the following number:

CAPS Department [phone]

xi

Identify the RMA number clearly onthe package (below address), and return to the fol­lowing address:

ADTRAN Customer and Product Service
901 Explorer Blvd.
Huntsville, Alabama 35806

RMA # _____________

Training

The Enterprise Network (EN) Technical Training Department offers training on our
most popular products. These courses include overviews on product features and func­tions while covering applicationsof ADTRAN's product lines. ADT RANprovidesa va­riety of training options, including customized training and courses taught at our
facilities or at your site. For more information about training, please contact your Terri­tory Manager or the Enterprise Training Coordinator.

Training - phone [phone], ext. 7500
Training - fax [phone]
Training - email [e-mail]

xii

Table of Contents

List of Figures ..................................................................................................................xvii

List of Tables ......................................................................................................................xix

Chapter 1. Introduction

T1/FT1 Overview ................................................................................................................ 1-1

T1 Service Offerings...................................................................................................... 1-1

T1 ESF CSU ACE Overview .............................................................................................. 1-2

Features ..........................................................................................................................1-5

Interface Features ..................................................................................................1-6

NI (Labeled NET) .......................................................................................... 1-6

T1 (Labeled CPE) ...........................................................................................1-6

Control Port Input (Labeled EIA-232) ........................................................ 1-6

Four Methods of Control ....................................................................................................1-7

Front Panel..................................................................................................................... 1-7

ADTRAN PC Program.................................................................................................1-7

SNMP.............................................................................................................................. 1-7

ASCII Terminal.............................................................................................................. 1-8

T1 ESF CSU ACE Testing ................................................................................................... 1-8

Self Test........................................................................................................................... 1-8

Loopback Tests..............................................................................................................1-9

Network Loopbacks .............................................................................................1-9

DTE Interface Loopbacks ...................................................................................1-10

Pattern Generation...................................................................................................... 1-10

All Ones ................................................................................................................1-10

All Zeroes .............................................................................................................1-10

1 in 8 (1:8) ............................................................................................................. 1-10

Applications .......................................................................................................................1-11

61203025L1-1 T1 ESF CSU ACE User Manual xiii

Table of Contents

Chapter 2 . Installation

Unpack and Inspect .............................................................................................................2-1

Shipped by ADTRAN...................................................................................................2-1

Provided by Customer .................................................................................................2-1

Power Connection ............................................................................................................... 2-2

Wiring ...................................................................................................................................2-3

RJ-48C Connectors ........................................................................................................2-3

EIA-232 Connector ........................................................................................................ 2-4

Power-Up Testing and Initialization ................................................................................2-4

Self Test...........................................................................................................................2-4

Chapter 3. Operation

Front Panel Operation ........................................................................................................3-2

General Menu Operation ...................................................................................................3-3

Description of Menu Tools ..........................................................................................3-3

Data Field ...............................................................................................................3-3

Display Field ..........................................................................................................3-3

Arrows ....................................................................................................................3-3

Example Menu Operation............................................................................................3-3

Selecting a Main Menu Item ................................................................................3-3

Selecting a Submenu Item ....................................................................................3-4

Setting/Cancelling the Data Field..............................................................................3-5

View Display Only Data Fields...................................................................................3-6

Exiting or Returning to Previous Menus...................................................................3-6

Menu Structure .................................................................................................................... 3-6

The Four Opening Menu Functions ...........................................................................3-8

STATUS ..................................................................................................................3-8

NI PERF RPTS ................................................................................................3-9

NI ERR/ALM ................................................................................................. 3 -9

NI HISTORY ...................................................................................................3-9

T1 ERR/ALM .................................................................................................3-9

T1 HISTORY ...................................................................................................3-9

CONFIG ..................................................................................................................3-9

NETWORK (NI) ............................................................................................. 3-9

UNIT ................................................................................................................3-9

TERMINAL (T1) .............................................................................................3-9

UTIL ........................................................................................................................3-9

TIME/DATE ...................................................................................................3-9

SOFTWARE REV .........................................................................................3-10

REINIT UNIT ...............................................................................................3-10

ADDRESS ......................................................................................................3-10

xiv T1 ESF C SU ACE User Manual 61203025L1-1

Table of Contents

SET PASSCODE ........................................................................................... 3-10

FACT RESTORE ...........................................................................................3-10

REMOTE T-WATCH ...................................................................................3-10

TEST ......................................................................................................................3-10

LOCAL LOOPBACK ...................................................................................3-10

REM LB .........................................................................................................3-10

TEST PATTERN ...........................................................................................3-10

RUN SELFTEST ........................................................................................... 3-11

Detailed Menu Operation ................................................................................................3-11

1)STATUS ............................................................................................................. 3-11

1)NI PERF RPTS, Submenu of 1)STATUS ................................................ 3-12

2)NI ERR/ALM, Submenu of 1)STATUS ................................................3-13

3)NI HISTORY, Submenu of 1)STATUS ..................................................3-14

4)T1 ERR/ALM, Submenu of 1)STATUS ................................................. 3-14

5)TI HISTORY, Submenu of 1)STATUS ................................................... 3-14

2)CONFIG ............................................................................................................ 3-15

1)NETWORK (NI), Submenu of 2)CONFIG ............................................ 3-15

2)UNIT, Submenu of 2)CONFIG ...............................................................3-18

3)TERMINAL (TI), Submenu of 2)CONFIG ............................................ 3-20

3)UTIL ................................................................................................................... 3-21

1)TIME/DATE, Submenu of 3)UTIL ........................................................3-22

2)SOFTWARE REV, Submenu of 3)UTIL ................................................ 3-22

3)REINIT UNIT, Submenu of 3)UTIL .......................................................3-22

4)ADDRESS, Submenu of 3)UTIL .............................................................3-23

5)SET PASSCODE, Submenu of 3)UTIL ..................................................3-23

6)FACT RESTORE, Subm enu of 3)UTIL ..................................................3-23

7)REMOTE T-WATCH, Submenu of 3)UTIL ..........................................3-23

4)TEST ..................................................................................................................3-24

1)LOCAL LOOPBK, Submenu of 4)TEST ................................................ 3-25

2)REM LB, Submenu of 4)TEST ................................................................. 3-25

3)TEST PATTERN, Submenu of 4)TEST ..................................................3-26

4)RUN SELFTEST, Submenu of 4)TEST ...................................................3-26

Appendix A. Pinouts ....................................................................................................... A-1

Appendix B. Specification Summary............................................................................ B-1

Appendix C. Acronyms/Abbreviations........................................................................ C-1

Appendix D. Glossary..................................................................................................... D-1

Index ...........................................................................................................................Index-1

61203025L1-1 T1 ESF CSU ACE User Manual xv

Table of Contents

xvi T1 ESF CSU ACE User Manual 61203025L1-1

List of Figures

Figure 1-1. T1 ESF CSU ACE Application ......................................................................1-2

Figure 1-2. T1 ESF CSU ACE Front View........................................................................1-4

Figure 1-3. Jack Signal Directions.....................................................................................1-5

Figure 1-4. Network Loopback Tests ............................................................................... 1-9

Figure 1-5. DTE Interface Loopback..............................................................................1-10

Figure 1-6. General Data Application.............................................................................1-11

Figure 1-7. General Voice Application...........................................................................1-12

Figure 1-8. Channel Bank Application .......................................................................... 1-12

Figure 2-1. Power Connection .......................................................................................... 2-2

Figure 3-1. T1 ESF CSU ACE Front Panel Layout ......................................................... 3-2

Figure 3-2. Selecting a Menu Item from the Main Menu..............................................3-3

Figure 3-3. Menu with Additional Item(s) Not Shown................................................. 3-4

Figure 3-4. Submenu Indicating Additional Items Not Shown................................... 3-4

Figure 3-5. Editing a Data Field........................................................................................3-5

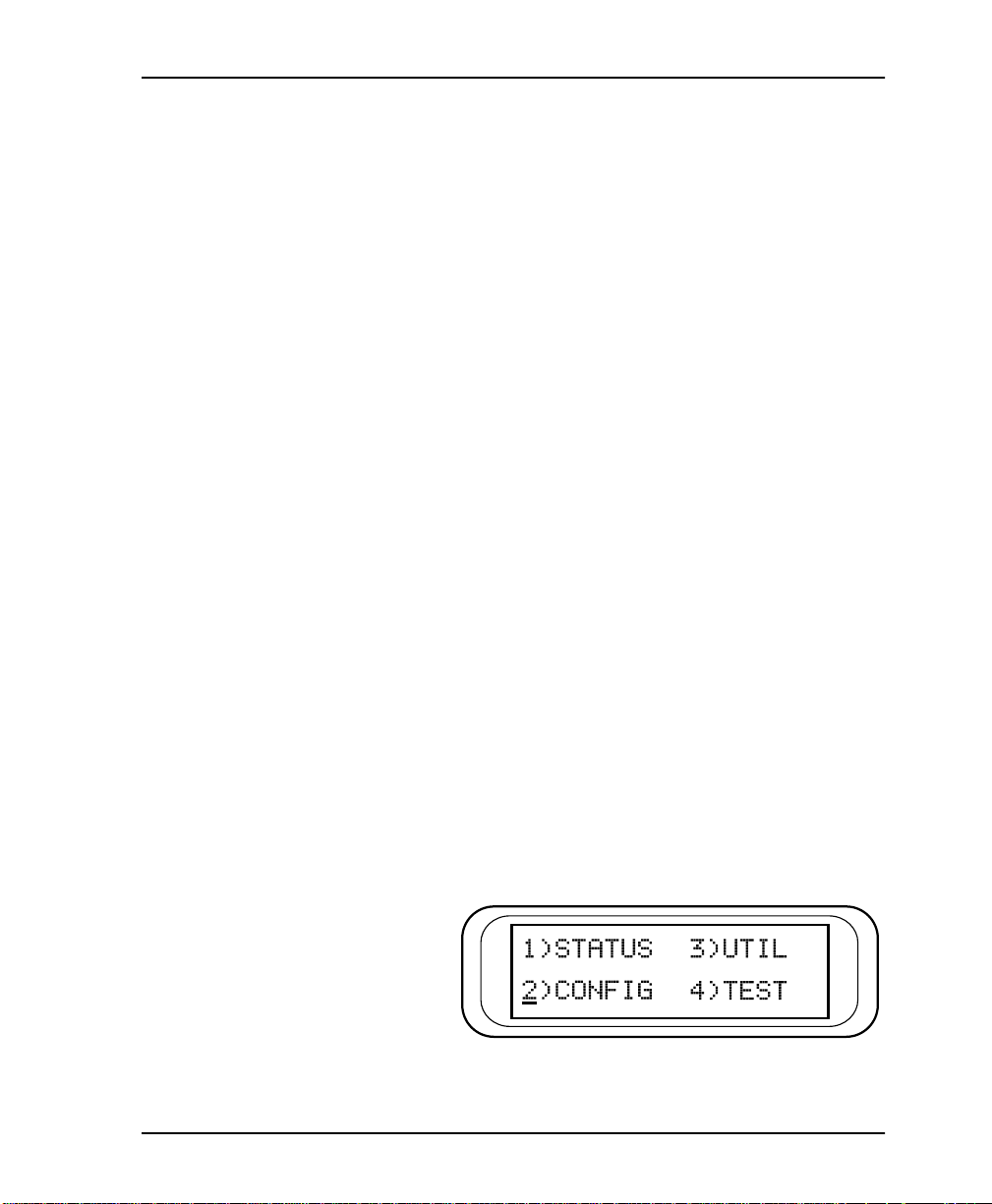

Figure 3-6. The Four Opening Menus .............................................................................3-6

Figure 3-7. T1 ESF CSU ACE Menu Tree......................................................................... 3-7

Figure 3-8. Four Opening Menus and First Level Submenus......................................3-8

Figure 3-9. Status Menu Tree ...........................................................................................3-11

Figure 3-10. First Menu of NI PERF RPTS Menu........................................................... 3-12

Figure 3-11. Performance Co unter Screen ...................................................................... 3-12

Figure 3-12. First Current NI Errors/Alarms Screen.....................................................3-13

Figure 3-13. Clear History Screen.....................................................................................3-14

Figure 3-14. Configuration Menu Tree ............................................................................ 3-15

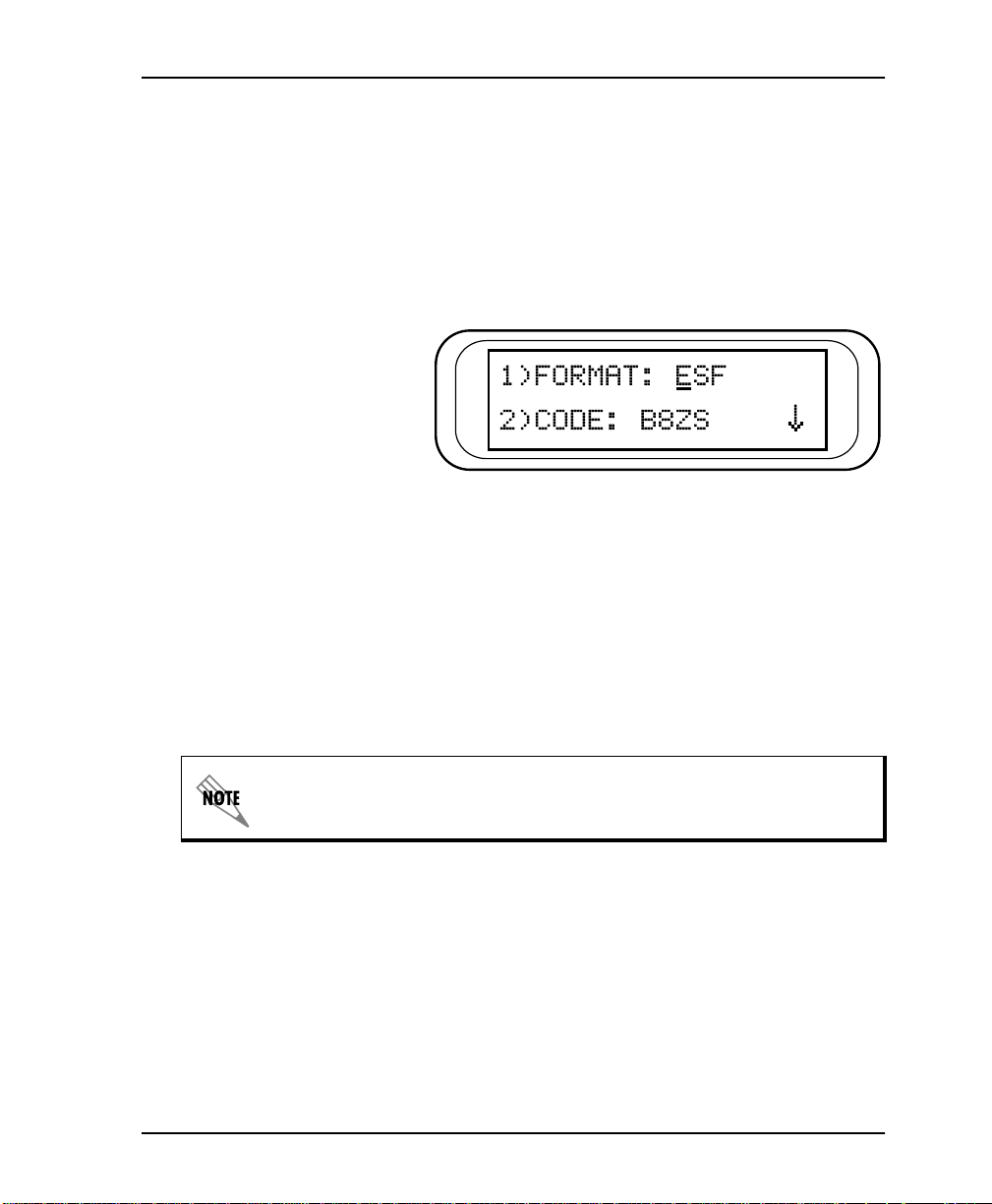

Figure 3-15. Network (NI) Submenu...............................................................................3-16

Figure 3-16. First 2)UNIT Submenu Screen....................................................................3-18

Figure 3-17. Utility Menu Tree..........................................................................................3-21

61203025L1-1 T1 ESF CSU ACE User Manual xvii

List of Figures

Figure 3-18. Time/Data Screen.........................................................................................3-22

Figure 3-19. Re-initialize Unit/Address Screen .............................................................3-23

Figure 3-20. Test Menu Tree...............................................................................................3-24

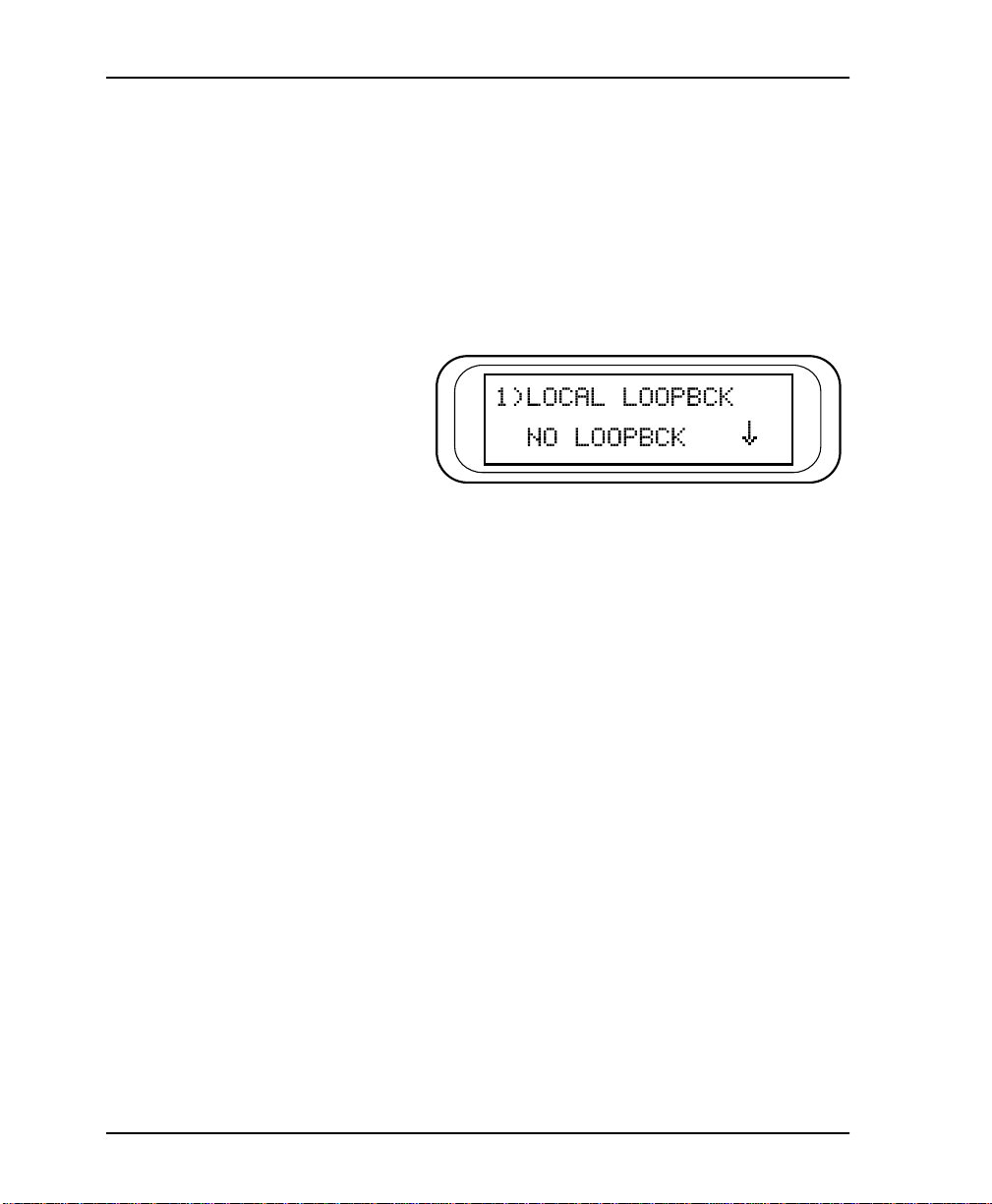

Figure 3-21. Local Loopback Test Screen.........................................................................3-25

Figure 3-22. Self Test Result Screen..................................................................................3-27

Figure A-1. Power Connection Wiring ............................................................................A-1

xviii T1 ESF CSU ACE User Manual 61203025L1-1

List of Tables

Table A-1. RJ-48C Connector Pin Assignments............................................................ A-2

Table A-2. EIA-232 Connector Pin Assignments ......................................................... A-2

61203025L1-1 T1 ESF C SU ACE User Manual xix

List of Tables

xx T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 1

Introduction

T1/FT1 OVERVIEW

T1 digital communication links have been used by telcos for the
transmission of voicesince the early sixties.The D4 channel bank is
an example of a T1 digital carrier system that was introduced in the
mid-seventies and is still widely used by the telcos.
Communication demands of business continued to grow to the
point that the telcos began offering T1 service directly to the public.
D4 channel banks were used for T1 in corporate network
topographies for voice. The technological advances in computer
development also created a demand for T1 data communication
which now is a large part of the T1 traffic.

T1 Service O fferings

T1 is a digital service that is delivered to the user over two pairs of
wires from the service provider. The signal operates at 1.544 Mbps
and is usually extended by repeaters installed approximately every
mile after the first 6000 feet. The T1 signal is divided into 24 time
slots which operate at 64 kbps (DS0s). Each time slot is occupied by
digitized voice or by data.

The T1 signal originally used a type of framing known as D4
superframe (SF), which identifies how the T1 is multiplexed. An
enhancement of that framing format, called exten ded superframe
(ESF), is available. ESF provides a non-disruptive means of full­time monitoring on the digital facility. It was originally used by
service providers to monitor the performanceof their service

61203025L1-1 T1 ESF CSU ACE User Manual 1-1

Chapter 1. Introduction

offering. Since the introduction of ESF, equipment installed in
private networks can also provide this performance information to
the user.

T1 ESF CSU ACE OVERVIEW

Most carriers (regional or local telcos), when supplying a T1 line to
customer premises equipm ent (CPE), require an interface to
monitor the T1 line. The T1 ESF CSU ACE (extended superframe
channel service unit advanced communication equipment)
provides the required interface between the CPE (such as DSUs,
channel banks, T1 multiplexers, and PBXs) and telco or private T1
facilities. See Figure 1-1.

Figure 1-1. T1 ESF CSU ACE Application

1-2 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 1. Introduction

The T1 ESF CSU ACE provides surge protection, signal
regeneration, alarms, and loopbacks necessary for circuit operation
and fault isolation. The unit provides the simultaneous use of
performance report messages of ANSI T1.403 and maintenance
messages of AT&T TR54016. The T1 ESF CSU ACE also provides
conversion from SF to ESF framing formats, allowing older SF data
terminal equipment (DTE) to take advantage of superior diagnostic
capabilities of ESF T1 facilities.

The unit complies with Part 68 of FCC Rules and with applicable
sections of AT&T 62411, ANSI T1.102, and T1.403.

61203025L1-1 T1 ESF CSU ACE User Manual 1-3

Chapter 1. Introduction

Figure 1-2 shows the T1 ESF CSU ACE, and Figure 1-3 shows the
jack signal directions.

Figure 1-2. T1 ESF CSU ACE Front View

1-4 T1 ESF CSU ACE User Manual 61203025L1-1

Features

Chapter 1. Introduction

Figure 1-3. Jack Signal Directions

The fol low ing features give the T1 ESF CSU ACE many advantages
over other products of its kind:

• Smallest T1 ESF CSU ACE in the industry.

• Front panel interface eliminates the need for a terminal to
configure the T1 ESF CSU ACE.

• Automatic ESF to D4 frame conversion

• Wall mount -48 VDC power supply e liminates the need for an
external power supply.

• Power cable enables customers to use their own -48 VDC
supply.

• Can be wall mounted to virtually any surface. There are rubber
feetontheunitforuseonatabletop.

• Can configure a modem so that it does not have to be
configured before installation.

• Backs up configuration data in NVRAM and EEPROM so that
the configuration data is nonvolatile longer than the life of the
lithium battery in the NVRAM. The NVRAM holds
performance monitoring data as well.

• Automatic network interface line build out (LBO) eliminates
confusion over transmit LBO setting (dependent on distance
from last repeater to customer premises).

61203025L1-1 T1 ESF CSU ACE User Manual 1-5

Chapter 1. Introduction

Interface Features

NI (Labeled NET)

The network interface (NI) port complies with the applicable ANSI
and AT&T standards. Its features include the following:

•D4orESFframing

•AMIorB8ZScoding

• Automatic or manual LBO

• Network performance monitoring and reporting

• Local and remote test loopbacks

•Extensiveselftest

T1 (Labeled CPE)

Features of the terminal interface (TI) include the following:

• D4 or ESF framing (independent of NI)

•AMIorB8ZScoding

• Transmit LBO to 655feet

•DTEloopback

Control Port Input (Labeled EIA-232)

Features of the control port include the following:

• EIA-232 input from a PC or a modem for control of the T1 ESF
CSU ACE

•Upto9600baudoperation

• ActsasinputforPCorproxyagentcontrol

• VT-100 terminal interface

1-6 T1 ESF CSU ACE User Manual 61203025L1-1

FOUR METHODS OF CONTROL
Front Panel

The front panel provides complete and easy control of all items that
can be configured through menu guided options. The front panel
LCD displays the status of operation and performance reports for
the unit. A complete discussion of the operation of the front panel
and all the menu options is found in Chapter 3, Operation, on page
3-1.

ADTRANPCProgram

T-Watch is the ADTRAN PC control program. It provides complete
control over the configuration of the T1 ESF CSU ACE using a
graphic interface. The T-Watch program displays the same status
and performance data as the front panel LCD. This data is
displayed in the form of tables and graphs.

The T-Watch program has the following capabilities:

Chapter 1. Introduction

• Interface with modem permits dialing into aremote T1 ESF

CSU ACE location to configure the unit or read the unit’s status
or performance.

• Performance data read from the units can be exported in a file

which is compatible with common spreadsheet programs.

SNMP

The ADTRAN T1 ESF CSU ACE supports the Simple Network
Management Protocol (SNMP) through the ADTRAN Advisor
SNMP Proxy Agent (1950007L1) to a network management system
such as OpenView® or SunNet Manager™. The proxy agent runs
on a PC and can interface to the T1 ESF CSU ACE directly or
through a modem, in the same manner as the T-Watch PC
programs.

61203025L1-1 T1 ESF CSU ACE User Manual 1-7

Chapter 1. Introduction

ASCII Terminal

The ADTRAN T1 ESF CSU ACE recognizes an escape sequence
that puts the unit into the ASCII terminal mode. After receiving the
sequence, the T1 ESF CSU ACE sends front panel information to
the terminal. This interface acts exactly like the front panel, but the
advantage is that it can be accessed remotely (through a modem).
The escape sequence is:

<CONTROL-A><CONTROL-P> <CONTROL-T>

<CONTROL-P> <CONTROL-T> <CONTROL-T>

The terminal or terminalemulation software must be VT-100 compatible.

T1 ESF CSU ACE TESTING

The T1 ESF CSU ACE offers three forms of testing:

or

•Selftest

•Loopbacktests

• Pattern generation

Self Test

The self test checks the integrity of the internal operation of the
electronic components by performing memory tests and by sending
and verifying data test patterns through all internal interfaces.
Although actual user data cannot be pas sed during these tests, the
self test can be run with the network and DTE interfaces in place
and will not disturb any external interface.

The self test automatically executes upon power-up. It can also be
commanded from a front panel menu or from the control port.

In addition to the specified self tests, background tests are run on
various parts of the internal electronics. These run during normal

1-8 T1 ESF CSU ACE User Manual 61203025L1-1

operation to confirm continued correct functioning. The
background tests include the standard background network
performance monitoring as required by ANSI T1.403 andAT&T
54016, for which the results are stored.

Loopback Tests

A number of different loopbacks can be invoked locally from the
front panel, by T-Watch commands, or remotely by using special
inband codes (AT&T network loop-up and loop-down codes).
Additionally, the loopbacks can be remotely controlled by out-of­band commands using the T1 ESF FDL, or from T-Watch using a
modem connection. A discussion of network loopbacks and DTE
interface loopbacks follows.

Network Loopbacks

There are two types of network loopbacks: line loopbacks and
payload loopbacks. These are illustrated in Figure 1-4.

• Line Loopback - Loops all of the received data back toward the

• Payload Loopback - Similar to line loopback, except that the

Chapter 1. Introduction

network. The transmitted data is the identical line code that
was received, including any bipolar violations or framing
errors.

framing is extracted from the received data and then
regenerated for the transmitted data.

Figure 1-4. Network LoopbackTests

61203025L1-1 T1 ESF CSU ACE User Manual 1-9

Chapter 1. Introduction

DTE Interface Loopbacks

Loops all data from the terminal interface (T1) back towards the T1.
This loopback may be initiated using front panel, EIA-232 control
port, or T-Watch commands. The DTE (or external test equipment)
must provide any test pattern in order to check the DTE interface.
SeeFigure1-5.

Figure 1-5. DTE Interface Loopback

Pattern Generation

The T1 ESF CSU ACE offers three test patterns: All Ones, All Zeros,
and 1:8. These patterns can be initiated from the front panel,
through the EIA-232 control port, or remotely via a management
software like T-Watch.

All Ones

The All Ones pattern sends ones in all the payload bits.

All Zeroes

TheAllZerospatternsendszerosinallthepayloadbitsandis
useful for testing line code configuration (AMI/B8ZS mismatches).

1 in 8 (1:8)

Each channel of the T1 has only one bit set. This pattern is used in
conjunction with external test equipment to determine whether the
T1 line is performing acceptably under a stress condition.

1-10 T1 ESF CSU ACE User Manual 61203025L1-1

APPLICATIONS

Three applications are shown in this section. Figure 1-6 shows a
general data application; Figure 1-7 on page 1-12 shows a general
voice application; and Figure 1-8 on page 1-12 shows a channel
bank application.

Chapter 1. Introduction

Figure 1-6. General Data A pplication

61203025L1-1 T1 ESF CSU ACE User Manual 1-11

Chapter 1. Introduction

Figure 1-7. General Voice Application

DSX-1

DSX-1

Figure 1-8. Channel Bank Application

1-12 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 2

Installation

UNPACK AND INSPECT

Carefully inspect the T1 ESF CSU ACE for any shipping damages.
If damage is suspected, file a claim immediately with the carrier
and then contact ADTRAN Technical Support. If possible, keep the
original shipping container to ship the T1 ESF CSU ACE back for
repair or toverify damage during shipment.

Shipped by ADTRAN

The following items are included in the ADTRAN shipment:

•TheT1ESFCSUACE

• Line interface cable: an 8-position/modular to 8-position/

modular

• -48 VDC power supply

•Theusermanual

Provided by Customer

The following items must be supplied by the customer:

•DTEcable(s)

• Cable for the EIA-232, if used

61203025L1-1 T1 ESF CSU ACE User Manual 2-1

Chapter 2. Installation

POWER CONNECTION

The T1 ESF CSU ACE can be powered in one of two ways:

• A wall-mount -48 VDC power supply (supplied with the unit)

• A power cable for use with an on-site -48 VDC power supply

Both have a three-pin receptacle that plugs into the power
connection on the bottom right edge of the T1 ESF CSU ACE. Once
power has been applied to the unit, the power LED turns on. See
Figure 2-1 for an illustration of the cable installation. Refer to Figure
A-1 on page A-1 for power connection wiring.

Figure 2-1. Power Connection

With the T1 ESF CSU ACE face up, plug the cable in with the plug ori­ented as shown in Figure 2-1.

2-2 T1 ESF CSU ACE User Manual 61203025L1-1

WIRING

The connectors are described in this section.

RJ-48C Connectors

Two RJ-48C connectors are located on th e top end of the T1 ESF
CSU ACE. The NET connector connects the unit to the network.
The connector marked CPE connects the unit to the data terminal
equipment. These connectors have exactly the same pinouts.

See Table A-1 on page A-2 for the RJ-48 connector pin assignments.

EIA-232 Connector

The EIA-232 connector is used to connect the T1 ESF CSU ACE to a
proxyagent,T-Watch,anASCIIterminal,oramodem.

See Table A-2 on page A-2 for the connector pin assignments.
Connector Type = Female DB-25

Chapter 2. Installation

61203025L1-1 T1 ESF CSU ACE User Manual 2-3

Chapter 2. Installation

POWER-UP TESTING AND INITIALIZATION

When shipped from the factory, the T1 ESF CSU ACE is set to
factory default conditions; it is not initialized. At the first
application of power, the unit automatically executes self test
followed by an initialization sequence that sets up the unit.

Self Test

Upon a power-up or self test, the LCD displaysADTRAN T1 ESF
CSU ACE INITIALIZING and the LEDs illuminate momentarily.

When the self test is completed with no failures detected, the LCD
momentarily displays ALL TESTS PASSED.If a failure is detected,
it is displayed in the LCD window.The automatic self test
procedure consists of the following steps:

1. Board level tests - RAM tests; EPROM checksum

2. Unit level tests - Front panel LED verification

2-4 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3

Operation

TheT1ESFCSUACEcanbeconfiguredandcontrolledviathelocal
front panel, the EIA-232 control port, or T-Watch. This chapter
describes configuration from the front panel.

61203025L1-1 T1 ESF CSU ACE User Manual 3-1

Chapter 3. Operation

FRONT PANEL OPERATION

The T1 ESF CSU ACE front panel operating functions are shown in
Figure 3-1 and defined in this section.

Figure 3-1. T1 ESF CSU ACE Front Panel Layout

3-2 T1 ESF CSU ACE User Manual 61203025L1-1

GENERAL MENU OPERATION

The T1 ESF CSU ACE uses a multilevel menu structure containing
both menu items and data fields. All menu operations and data are
displayed in the LCD window. The menu items are numbered and
canbeviewedbyusingtheupanddown

Description of Menu Tools

Data Field

A menu item followed by a colon (:) identifies a field available for
editing.

Display Field

This menu field contains alarm or error information.

Arrows

Menus that display small up or down arrows in the lower right
corner indicate that there are more menu items viewable on the
two-line LCD. Access additional menu items with the up or down

.

SCROLL

keys

SCROLL

Chapter 3. Operation

keys.

Example Menu Operation

Selecting a Main Menu Item

To select a menu item from the Main menu, follow these steps:

1. Use the up and down

desired menu item (in this example, 2)CONFIG). See Figure 3-2.

Figure 3-2. Selecting a M enu Item from the Main Menu

61203025L1-1 T1 ESF CSU ACE User Manual 3-3

SCROLL

keys to place the cursor on the

Chapter 3. Operation

2. With the cursor on the number 2), press the Enter key. The unit
responds by displaying the first two available submenu fields.
Thecursorisonthefirstfield.Iftherearemorethantwomenu
fields, a down arrow is visible on the lower right corner. See
Figure 3-3.

Selecting a Submenu Item

To select the desired submenu item (similar to selecting a Main
menu item), follow these steps:

Figure 3-3. Menu with Additional Item(s) Not Shown

1. Use the up and down

SCROLL

keys to place the cursor on the
desired menu item, in this example 1)NETWORK(NI). See
Figure 3-3.

2. The unit responds by displaying the first two available data
field items. The cursor is on the number of the first item. When
there are more than two data field items for the selected
submenu, a down arrow is visible on the lower right corner. See
Figure 3-4.

Figure 3-4. Submenu Indicating Additional Items Not Shown

3-4 T1 ESF CSU ACE User Manual 61203025L1-1

Setting/Cancelling the Data Field

Data fields available for editing are preceded by a colon (:). To set a
data field, perform the following steps:

1. Press Enter while the cursor is located on the submenu item

number. The cursor moves to the data field (to the right of the
submenu item name). See Figure 3-5.

Chapter 3. Operation

Figure 3-5. Editing a Data Field

2. Use the up and down

SCROLL

keys to scan the available value

settings displayed one at a time in the data field position.

3. When the desired value is in the data field position, press Enter

to set the value. The unit now is set for the value shown in the
data field and the cursor moves back to the submenu item
position, indicating that the operation is complete. Another
submenu field may be selected, or use Cancel to return to the
submenu.

Cancelling is available any time during the operation. If Cancel is used
prior to pressing Enter after making a data change, the original data val­ue is restored and the cursor returns to the submenu field.

61203025L1-1 T1 ESF CSU ACE User Manual 3-5

Chapter 3. Operation

View Display O nly Data Fields

An example of a display only data field is found by selecting the
following menu choices:

1. Select 1)STATUS from the Main menu.

2. Select submenu 2)NI ERR/ALM.

3. LOSS OF SIGNAL INACTIVE/ACTIVE is displayed, giving
the currentstate of the alarm.

Exiting or Returning to Previous Menus

Press the Cancel key to exit a menu field or return to a previous
menu level.

MENU STRUCTURE

The T1 ESF CSU ACE uses hierarchical menus to access its many
features. The top-most, or Main menu level (see Figure 3-6 and
Figure 3-8) leads to submenus which are grouped by functionality.
All menu operations are displayed in the LCD window.

Figure 3-6. The Four Opening Menus

Figure 3-7 on page 3-7 shows the complete menu tree. Figure 3-8 on
page 3-8 is a limitedoverview. Following this figure is a detailed
description of each menu item, presented in menu order.

3-6 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

1)NI PERF RPTS

LOSS OF SIGNAL ES

2)NI ERR/ALM

1)STATUS

3)NI HIST

4)T1 ERR ALM*

5)T1 HISTORY**

1)NETWORK (NI)

MAIN MENU 2)UNIT 1)CONTROL PORT 2)DATA RATE

2)CONFIG 2)ALARMS 1)TRAPS

3)TERMINAL (T1) 3)SET LBO

1)TIME/DATE

3)UTIL 2)SOFTWARE REV (Dis-

4)TEST 2)REM LB AT&T FDL PLB

plays current s/w rev)

3)REINIT UNIT

4)ADDRESS

5)SET PASSCODE

6)FACTRESTORE(Returns
all configsto factory settings) 2)SHELF SNMP ID:

7)REMOTET-WATCH 3)SHELFSLOT:

1)LOCAL LOOPBACK

AIS ALARM %AV
OUT OF FRAME CLEAR HISTORY %EF
YELLOW ALARM LOSS OF SIGNAL CVS
RED ALARM AIS ALARM
CODE VIOLATIONS OUT OF FRAME 1)FORMAT
BIPOLAR VIOLATIONS YELLOW ALARM 2)CODE
FRAME BIT ERRORS RED ALARM 3)YEL ALRM

1)REMOTEUNIT (Select
remote unit type)

CODE VIOLATIONS 4)XMIT PRM
BIPOLAR VIOLATIONS 5)KEEP ALIVE
FRAME BIT ERRORS 6)BIT STUFFING

1)MODEM INIT

2)OUTPUT 1)FORMAT

3)TEL NUM 2)CODE

TIME: HH:MM:SS
DATE: MM/DD/YY

NO LOOPBACK
DTE ON
LINE ON NO LOOPBACK
PAYLOAD ON AT&T INBAND LLB

RESET PERF CNTRS
SES

7)SET LBO

8)NET LB

9)RX SENSITIVITY

ANSI FDL LLB

NO PATTERN

3)TESTPATTERN ALL ZEROS

4)RUN SELFTEST

1:8 ALL DS0s
ALL ONES

*T1 ERR/ALM has same menu sub-branches as NI ERR/ALM. **T1 HISTORYh as same as N I HISTORY.

Figure 3-7. T1 ESF CSU ACE MenuTree

61203025L1-1 T1 ESF CSU ACE User Manual 3-7

Chapter 3. Operation

1)NI PERF RPTS

2)NI ERR/ALM

1)STATUS 3)NI HISTORY

4)T1 ERR/ALM

2)CONFIG 1)NETWORK(NI) 5)T1 HISTORY

2)UNIT

MAIN MENU 3)TERMINAL (T1) 1)TIME/DATE

2)SOFTWARE REV

3)UTIL 3)REINIT UNIT

4)ADDRESS:

4)TEST 1)LOCAL LOOPBK: 5)SET PASSCODE:

2)REM LB: 6)FACT RESTORE

3)TEST PATTERN: 7)REMOTE T-WATCH

4)RUN SELFTEST

Figure 3-8. Four Opening Menus and First Level Submenus

Menu flow is normally depicted from left to right. Arrows on the
lower right of the screen indicate the direction of scrolling to view
additional menu items. At every level of the menu, pressing the
Cancel button returns the system to the previous menu level.
Repeatedly pressing the Cancel button returns the system to the
Main menu.

The opening menu is the access point to all other operations. There
are four Main menu items: STATUS, CONFIGURATION, UTILITY,
and TEST. Each Main menu item has several functions and
submenus to identify and access specific parameters. In the
discussions that follow, each Main menu item contains a complete
menu diagram to identify the location of each operation.

3-8 T1 ESF CSU ACE User Manual 61203025L1-1

The Four Opening Menu Functions

STATUS

The Status menu lets you view the status of the T1 ESF CSU ACE
operation. This menu includes the following selections:

NI PERF RPTS

Use to view the user’s set of data on the Network Interface
Performance Reports in compliance with ANSI T1.403 and AT&T
Document TR54016.

NI ERR/ALM

Use to view current network interface errors/alarmsreported by
the T1 ESF CSU ACE.

NI HISTORY

Use to view and clear network interface history errors and alarms.

T1 ERR/ALM

Use to view current terminal interface errors/alarms reported by
the T1 ESF CSU ACE.

Chapter 3. Operation

T1 HISTORY

Use to view and clear terminal history errors and alarms.

CONFIG

Use the Configuration menu to set T1 ESF CSU ACE operational
configuration. This menu includes the following selections:

NETWORK (NI)

Use to set all of the parameters associated with the network
interface.

UNIT

Use to control T1 ESF CSU ACE control port baud rate and to set up
the dial out function.

TERMINAL (T1)

Use to set all parameters associated with the terminal interface.

61203025L1-1 T1 ESF CSU ACE User Manual 3-9

Chapter 3. Operation

UTIL

Use the Utility menu to view and set system parameters. This menu
includes the following selections:

TIME/DATE

Access the display and set the current time and date.

SOFTWARE REV

Display the version number of the current software revision level.
This information is required when requesting assistance from
ADTRAN Customer Service or when updates are needed.

REINIT UNIT

Use to re-initialize the unit. This menu itemwill not restore the
factory default settings, but will simply reset the unit.

ADDRESS

View and change current Unit Address used for control port access.

SET PASSCODE

View and change current passcode used for control port access
only.

FACT RESTORE

Restore factory default settings f or all unit parameters.

REMOTE T-WATCH

Configure the unit for communication with a remote unit via the
FDL (facility data link).

TEST

Use the Testmenu to initiate differenttypes of tests and to view test
results. Test results are displayed in the LCD window.

The execution of tests disrupts some normal operations. See individual
menu items concerning test before executing.

LOCAL LOOPBACK

Use to select loopbacks internal tothe T1 ESF CSU ACE.

3-10 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

REM LB

Use to send remote loopback codes to the far end T1 ESF CSU ACE.

TEST PATTERN

Use to select a test pattern to send out the network interface of the
T1 ESF CSU ACE.

RUN SELFTEST

Usetoinitiateaselftest.

61203025L1-1 T1 ESF CSU ACE User Manual 3-11

Chapter 3. Operation

DETAILED MENU OPERATION

Menu flow is normally depicted from left to right. Arrows on the
lower right of the screen indicate the direction of scrolling to view
additional menu items. At every level of the menu, pressing the
Cancel button returns the system to the previous menu level.
Repeatedly pressing the Cancel button returns the system to the
Main menu.

1)STATUS

The Status menu branch lets you view the status of the T1 ESF CSU
ACE operation. See Figure 3-9.

RESET PERF CNTRS LOSS OF SIGNAL
SES AIS ALARM

1)NI PERF RPTS ES OUT OF FRAME
%AV YELLOW ALARM
%EF RE D ALAR M
CVs CODE VIOLATIONS

2)NI ERR/ALM FRAME BIT ERRORS

BIPOLAR VIOLATIONS

1)STATUS

3)NI HISTORY CLEAR HISTORY
LOSS OF SIGNAL
AIS ALARM
OUT OF FRAME
YELLOW ALARM
RED ALARM
CODE VIOLATIONS
BIPOLAR VIOLATIONS
FRAME BIT ERRORS

4)T1 ERR ALM*

5)T1 HISTORY**

*T1 ERR/ALM has the same menu sub-branches as NI ERR/ALM.
**T1 HISTORY has the same sub-branches as NI HISTORY.

Figure 3-9. Status Menu Tree

3-12 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

1)NI PERF RPTS, Submenu of 1)STATUS

The Network Interface Performance Reports menu item displays
the user copy of the performance data. The T1 ESF CSU ACE
maintains this performance data on the network in compliance
with ANSI T1.403 andAT&T document TR54016. The data
displayedisdataaccumulatedoverthelast15minutesandover
the last 24 hours.

Figure 3-10. First Menu of NI PERF RPTS Menu

These fields cannot be edited, only cleared, as previouslydiscussed.
Only the user copy of the performance data is cleared. The network
management performance data history remainsunaffected.

Separate carrier totals are kept which can only be retrieved and
reset from the network.

DataValues

Figure 3-11. Performance Counter Screen

61203025L1-1 T1 ESF CSU ACE User Manual 3-13

Chapter 3. Operation

TermsthatoccurontheseriesofscreensbeguninFigure3-11
include the following:

SES Number of severely errored seconds
ES Number of errored seconds
%AV Percent of available seconds
%EF Percent of error free seconds
CVs Number of code violations

Continue with standard operation procedures to exit the displa y.

Since only the user’s copy of performance data is cleared by the T1 ESF
CSU ACE, the data displayed here might be different from the data being
sent to the network as maintenance message data.

2)NI ERR/ALM, Submenu of 1)STATUS

The NI ERR/ALM menu is used for viewing currently active/
inactive errors and alarms on the network interface.

Figure 3-12. First Current NI Errors/Alarms Screen

The up and down

SCROLL

keys are used to access the complete
display of the errors/alarms that are currently active. The alarms
and errors which can be seen are shown below:

Loss of Signal No pulses received at NI
AIS Alarm Unframed all-ones received at NI
Out of Frame No framing pattern sync at NI
Yellow Alarm Receiving yellow alarm pattern from NI
Red Alarm LOS (loss of signal)/outof frame (OOF)

causing red alarm at NI

3-14 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

Code Violations Bipolar violations (BPVs), frame bit errors,

and cyclic redundancy check (CRC) errors
in ESF or BPVs and frame bit errors in SF
were received at NI

Bipolar Violations BPVs in SF or ESF at NI
Frame Bit Errors Frame bits received incorrectlyat NI

3)NI HISTORY, Submenu of 1)STATUS

The NI History menu is used for viewing history of errors and
alarms on the network interface. If an alarm has occurred since the
last Clear History selection, the menu will be active. If the condition
hasn’t occurred, the menu will be inactive. The Clear History screen
is shown in Figure 3-13.

Figure 3-13. Clear History Screen

These conditions are the same as for the NI ERR/ALM submenu
except with these are history Alarm/Errors instead of current
Alarm/Errors.

4)T1 ERR/ALM, Submenu of 1)STATUS

The T1 ERR/ALM screens are the same as the N I ERR/ALM
screens except that they correspond to the terminalinterface.

5)TI HISTORY, Submenu of 1)STATUS

TheT1HISTORYscreensarethesameastheNIHISTORYscreens
except that they correspond to the terminal interface.

61203025L1-1 T1 ESF CSU ACE User Manual 3-15

Chapter 3. Operation

2)CONFIG

Use the Configuration menu to set the T1 ESF CSU ACE
operational configuration, including all of the network interface
parameters and the terminal interface parameters. See Figure 3-14.

1)FORMAT

2)CODE

1)NETWORK (NI) 3)YEL ALRM

4)XMIT PRM

5)KEEP ALIVE

6)BIT STUFFING

7)SET LBO

8)NET LB

9)RX S ENSITIVITY

2)CONFIG 1)MODEM INIT

2)UNIT 1)CONTROL PORT 2)DATA RATE

2)ALARMS 1)TRAPS

3)TERMINAL (T1) 1)FORMAT

2)CODE

3)SET LBO

2)OUTPUT

3)TEL NUM

Figure 3-14. Configuration MenuTree

1)NETWORK (NI), Submenu of 2)CONFIG

This menu is used to access the configuration of parameters
associated with the network interface in the T1 ESF CSU ACE.
There are nine submenu items that include setting the format and
thelinebuildout(LBO).

Figure 3-15. Network (NI) Submenu

3-16 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

Continue with standard operating procedures to edit the Network
Interface parameters.

The fields and parameters available are as f ollows:

1)FORMAT

Sets the frame format for the NI. The factory default is ESF.

D4
ESF

D4 is equivalent to superframe format (SF).

2)CODE

SetsthelinecodefortheNI.ThefactorydefaultisB8ZS.

AMI
B8ZS

3)YEL ALRM

Enables and disables the transmission of yellow alarms. The factory
default is ENABLED.

ENABLED
DISABLED

61203025L1-1 T1 ESF CSU ACE User Manual 3-17

Chapter 3. Operation

4)XMIT PRM

Enables and disables the transmitting of performance report
messages (PRM) data on the facility data link (FDL). The PRM data
continues to be collected even if PRM is disabled. (Possible only
with ESF Format.) The factory default is OFF.

OFF
ON

5)KEEP ALIVE

Selects framed or unframed keep alive signal to be transmitted
from NI when TI is in red alarm. The factory default is
UNFRAMED.

FRAMED
UNFRAMED

6)BIT STUFFING

When enabled, bit stuffing causes the T1 ESF CSU ACE to monitor
for ones (1s) density violations and inserts a one (1) when needed to
maintain ones at 12.5 percent. This option should be disabled if
B8ZS is enabled. The factory default is DISABLED.

ENABLED
DISABLED

7)SET LBO

Selects the line build out for the network interface. InAUTO mode,
the T1 ESF CSU ACE sets the LBO based on the strength of the
receive signal. The factory default is 0 dB.

0dB

-7.5 dB

-15 dB

-22.5 dB
AUTO

When interfacing to a Smart jack, the 0 dB setting typically works best
because most Smart jacksexpect a strong receive level. The AUTO setting
should only be used when no Smart jack is present and the T1 ESF CSU
ACE is interfacing to a repeater.

3-18 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

8)NET LB

When enabled, the T1 ESF CSU ACE responds to loopback codes
from the network interface. The factory default is ENABLED.

ENABLED
DISABLED

9)RX SENSITIVITY

Selects the sensitivity of the receiver on the network interface. The
factory default is NORMAL.

NORMAL
EXTENDED

For most applications, the normal sensitivity setting is sufficient. If more
sensitivity is required, the extended sensitivity setting may be used.

2)UNIT, Submenu of 2)CONFIG

This menu is used to change control port and alarm trap options.
SeeFigure3-16.

Figure 3-16. First 2)UNIT Submenu Screen

61203025L1-1 T1 ESF CSU ACE User Manual 3-19

Chapter 3. Operation

1)CONTROL PORT

Used to set up the unit to initialize a modem and the control port
data rate.

1)MODEM INIT - The T1 ESF CSU ACE is capable of
initializing a modem. Prior to modem initialization it
should be physically connected to the T1 ESF CSU ACE
and the power turned on. At this point, an industry­standard AT command s tring is used to initialize the
modem. The string is also used following future power­up sequences. The factory default is DISABLED.

ENABLED
DISABLED

2)DATARATE-Selectsthedatarateforthecontrolport.
This should be consistent with the modem and/or PC/
proxy agent serial port. The factory default is 9600.

1200
2400
9600

2)ALARMS

Used to initialize the method by which the control port handles
alarm conditions.

1)TRAPS - This setting determines whether alarm
conditions should automatically send alarm messages
(traps) to the controlling PC/proxy agent. The factory
default is DISABLED.

ENABLED
DISABLED

3-20 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

2)OUTPUT - Selects whether the alarm traps (if
enabled) are sent directly, or whether the te lephone
number stored in the T1 ESF CSU ACE should be dialed
first (industry-standard AT dial command sent to
modem). The factory default is DIRECT .

DIRECT
DIAL

3)TEL NUM - This is the telephone number dialed to
obtain alarm traps. The string can be up to 20 characters
in length and is terminated with a semicolon (;). A colon
(:) is used to represent a pause in the dial string.

Example: Number 9:5551212; would dial 9, pause
momentarily, and then send 5551212. This pause could
be effected to access an outside line from a PBX, etc.

When editing a specific character, the

SCROLL

keys are
used to scroll from 0 to 9, then (:) and semicolon (;). The
new telephone number is entered into the T1 ESF CSU
ACE only upon pressing Enter after typing the
semicolon (;).
Input - 20 digits (0 through 9, : and ;)

The typed digits are accepted only after pressing Enter. The telephone
numbers can be cleared by entering a semicolon (;) as the first digit.

3)TERMINAL (TI), Submenu of 2)CONFIG

This menu item is used to select and configure the parameters
associated with the T1 ESF CSU ACE terminal interface.

1)FORMAT

Sets the frame format for the T1. The factory default is ESF.

D4
ESF

61203025L1-1 T1 ESF CSU ACE User Manual 3-21

Chapter 3. Operation

3)UTIL

1)TIME/DATE DATE: MM/DD/YY

2)CODE

SetsthelinecodefortheT1.ThefactorydefaultisB8ZS.

AMI
B8ZS

3)SET LBO

Sets the transmit LBO for the T1. The factory default is 0 - 133 feet.

0 - 133 feet
133-266feet
266-399feet
399-533feet
533-655feet

Use the Utility menu to view and set system parameters. See Figure
3-17. This includes setting the time and date and resetting all
parameters to factory values or to re-initialize the unit. This menu
is also used to view the unit’s software revision and ID setting.

TIME: HH:MM:SS

2)SOFTWARE REV (Displays current software rev.)

3)REINIT UNIT

3)UTIL 4)ADDRESS

5)SET PASSCODE

6)FACT RESTORE (Returns all configurations to

7)REMOTE T-WATCH 1)ACCESS TYPE (Select remote unit type.)

factorysettings.)

2)SHELFSNMP ID:

3)SHELFSLOT:

Figure 3-17. Utility Menu Tree

3-22 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

1)TIME/DATE, Submenu of 3)UTIL

This menu option is used to view or edit the current time and date.
Thetimeanddatearemaintainedduringpoweroffconditions.Use
arrow keys and Enter to set the date and the desired hour, minutes,
and seconds.

Figure 3-18. Time/Data Screen

Pressing Enter after any numeric change alwaysrecords the entry
and moves to the next editing position. If Enter is pressed at the
editing position without making any change, the cursor moves to
the next editing position. The up and down

SCROLL

keys also

move the cursor to different fields to edit. Pressing Cancel at any
time can be used to end the editing process.

2)SOFTWARE REV, Submenu of 3)UTIL

Use this submenu to display the current software revision level.
This information is required when requesting assistance from
ADTRAN Customer Service or when updates are needed. The top
line gives the revision of interest. The bottom line d isplays
information of use to ADTRAN only.

Follow standard operating procedures to access the 3)UTIL menu
items.

3)REINIT UNIT, Submenu of 3)UTIL

Use this submenu to re-initialize the unit. This menu item does not
restore factory default settings, but simply resets the unit and
causes it to run through its self test and initialization cycles.

61203025L1-1 T1 ESF CSU ACE User Manual 3-23

Chapter 3. Operation

4)ADDRESS, Submenu of 3)UTIL

Use this submenu to access the current Unit Address setting. Unit
identification numbers must be between 000 and 999. See Figure
3-19.

Figure 3-19. Re-initialize Unit/Address Screen

5)SET PASSCODE, Submenu of 3)UTIL

Use this submenu to access the passcode setting needed to control
port access. The Unit Identification number is limited to four digits
between 0001 and 9999.

6)FACT RESTORE, Submenu of 3)UTIL

Use this submenu to restore factory default settings for all unit
parameters. This restores all parameters to the factory settings.

7)REMOTE T-WATCH, Submenu of 3)UTIL

To communicate with a far-end unit via the FDL (i.e., from a proxy
such as T-Watch), identify the remote unit as a standalone or
rackmount. Use this option to select the remote unit type, ID, and
slot number. The ID and slot number ar e only applicable if the
selected remote unit is rackmount, so these may be left blank if the
remote unit is standalone.

1)ACCESS TYPE (REMOTE UNIT)

1)STANDALONE - The far-end unit is standalone.

2)RACKMOUNT - The far-end is a rackmount.

2)SHELF SNMP ID

Enter the SNMP ID of the far-end rackmount unit (0-255).

3-24 T1 ESF CSU ACE User Manual 61203025L1-1

4)TEST

Chapter 3. Operation

3)SHELF SLO T

Enter the slot number of the far-end rackmount unit (1-16).

This type of communication may not be available with all T1 products.

Use the Test menu to initiate different types of tests of the unit and
view test results. The menu contains four sub-items. See Figure

.

3-20

The execution of tests disrupts some of the normal operation. See individ­ual menu items concerning tests before executing.

NO LOOPBACK

1)LOCAL LOOPBK DTE ON
LINE ON NO LOOPBACK
PAYLOAD ON AT&T INBAND LLB

ANSI FDL LLB

2)REM L B AT&T FDL PLB

4)TEST NO PATTERN
ALL ZEROS

3)TEST PATTERN 1:8 ALL DS0s
ALL ONES

4)RUN SELFTEST

Figure 3-20. Test Menu Tree

61203025L1-1 T1 ESF CSU ACE User Manual 3-25

Chapter 3. Operation

Tests are used to control the activation of loopbacks, the initiation
of data test patterns, and self test execution.

1)LOCAL LOOPBK, Submenu of 4)TEST

Four choices are available for setting the local loopback:

NO LOOPBACK Deactivates the loopback
DTE ON Activates the DTE loopback
LINE ON Activates the line loopback
PAYLOAD ON Activates the payload loopback

Figure 3-21. Local Loopback Test Screen

2)REM LB, Submenu of 4)TEST

Activates the same loopbacks as the LOCAL LOOPBCK but at the
far end. This uses either the inband loop-up code as specified by
AT&T 62411for line loopback (ATT In-Band LLB), or the FDL as
specified in ANSI T1.403 for line loopback codes. An FDL (formerly
TABS) maintenance message corresponding to AT&T TR54016 can
be used for payload loopback as well:

NO LOOPBACK Deactivates the loopback.
AT&T INBAND LLB Activates the line loopback using inband

code.

ANSI FDL LLB Initiates the transmission of an FDL line

loop-up code toward the far end.

AT&T FDL PLB Initiates the transmission of the PLB

maintenance messages on the FDL.

3-26 T1 ESF CSU ACE User Manual 61203025L1-1

Chapter 3. Operation

When a loopback method is selected, the T1 ESF CSU ACE displays
LOOPING in the top right corner of the LCD and the yellow LOOP­BACK LED is turned on. When the T1 ESF CSU ACE determines that
the far-end T1 ESF CSU ACE has looped up, the T1 ESF CSU ACE dis­plays LOOPED. If the T1 ESF CSU ACE does not recognize the remote
T1 ESF CSU ACE looped up after about 10 seconds, the T1 ESF CSU
ACE sends the appropriate loop-down code and displays FAILED, and
the LOOPBACK LED is turned off.

ExcessiveerrorsontheT1linecancausethisfailure.TheFDLloopbacks
fail if the FDL is not intact from one end point to the other. FDL loopbacks
are valid only in the ESF framing mode.

3)TEST PATTERN, Submenu of 4)TEST

Sets the pattern for the test and initiates the transmission of the
pattern. The test is terminated by selecting None.Therearefour
patterns available:

NO P ATTERN Terminates pattern generation.
ALL ZEROS Generates an all zeros pattern inevery

channel.

1:8 ALL DS0s Generates a 1 in 8 pattern in all DS0s.
ALL ONES Generates an all ones pattern in every

channel.

Use up and down

SCROLL

keys

Toselect, forexample,1:8 ALLDS0s.

Press Enter To record selection.
Results The T1 ESF CSU ACE starts to gen-

eratea 1:8test patternand insertsthe
pattern into all DS0s.

Select None To end the test.

4)RUN SELFTEST, Submenu of 4)TEST

Use this menu selection to execute an internal self test. This is the
same self test that is performed automatically at power-up. The
results of the self tests are displayed in the LCD (see Figure 3-22).

61203025L1-1 T1 ESF CSU ACE User Manual 3-27

Chapter 3. Operation

Upon invoking the command, the LCD displays INITIALIZING
and test failures are displayed in the LCD window.

Figure 3-22. Self Test Result Screen

If a failure is detected, note the failure prior to contacting ADTRAN
technical support.

The execution of a self test disrupts normal data flow and prevents remote
communication until the self test is completed (approximately five sec­onds).

3-28 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix A

Pinouts

(Cableplug view,not unit)

123

Number Type Color

1 FrameGND Green
2 48VDC Red
3 GND Black

Figure A-1. Power Connection Wiring

61203025L1-1 T1 ESF CSU ACE User Manual A-1

Appendix A. Pinouts

Pin Description NET CPE

1 R1 Receive data (from net-

2 T1 Receive data (from net-

3 -- N ot used Not used
4 R Transmit data (from CSU

5 T Transmit data (from CSU

7 -- N ot used Not used
8 -- N ot used Not used

Table A-1. RJ-48C Connector Pin Assignments

Transmit data (from

work to CSU)

CSU to DTE)
Transmit data (from

work to CSU)

CSU to DTE)

Receive data (from

to network)

DTE to CS U)
Receive data (from

to network)

DTE to CS U)

Table A-2. EIA-232 Conn ector Pin Assignments

Pin Name Description

2TDDatafromDTEtoCSU
3RDDatafromCSUtoDTE
7 SG Signal ground

A-2 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix B

Specification Summary

SPECIFICATIONS AND FEATURES

Specifications and features of the T1 ESF CSU ACE are provided in
this chapter.

Network Interface

DSI interface per AT&T 62411 and ANSI T1.403

Network Framing Format

D4 (SF) or ESF

Network Line Code

AMI or B8ZS

Network TX LBO

Auto or manual from 0.0 to -22.5 dB

Performance Monitoring

As per ANSI T1.403 a nd AT&T 54016

DTE Interface

DSX-1 interface per ANSI T1.102

DTE Framing Format

D4 (SF) or ESF

DTE Line Code

AMI or B8ZS

DTE TX LBO

DSX-1 up to 655 feet of 22-gauge ADAM cable

61203025L1-1 T1 ESF CSU ACE User Manual B-1

Appendix B. Specification Summary

Monitor and Configuration Access

• Front panel keypad and display

• EIA-232 control port

• T-Watch over FDL (ESF only)

Diagnostics

•SelfTest

•LocalLoopbacks

•RemoteLoopbacks

• Test Patterns

Environment

Temperature:
Operating 0 to 50 deg C

Storage -20 to 70 deg C

Relative humidity: Up to 95%, noncondensing

(32 to 122 deg F)

(-4 to 158 deg F)

Hardware Specifications

• Dimensions: 1.585”H x 7.20”D x 4.05”W

•Weight:1lb.

• Power: -48 VDC @ 50 mA; 115 VAC @ 60 mA

• MTBF: 784,314 hours

• CLEI: NCT1CDJBAA

B-2 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix C

ACK................... acknowledgment

ANSI................. American National Standards Institute

AR...................... access rate

ARP................... address resolution protocol

async ................. asynchronous

BECN ................ backward explicit congestion notification

BOP................... bit oriented protocol

CCITT............... Consultive Committee for International Telephony and Telegraphy

CD ..................... carrier detect

CO ..................... central office

CPE.................... customer premise equipment

CRC................... cyclic redundancy check

CS ...................... clear to send

CSU................... channel service unit

Acronyms/Abbreviations

CTS.................... clear to send

dB....................... decibel

DBU................... dial backup

DCD.................. data carrier detect

DCE................... data communications equipment

DDS................... digital data service

DE...................... discard eligible

61203025L1-1 T1 ESF CSU ACE User Manual C-1

Appendix C. Acronyms/Abbreviations

DLCI.................. data link connection identifier

DSAP................. directory scope analysis program

DSR................... data set ready

DSU................... data service unit

DTE ................... data terminal equipment

DTR................... data terminal ready

FDL.................... facility data link

FECN................. forward explicit congestion notification

FEP..................... front end processor

FIFO................... first in first out

FR....................... frame relay

FRAD ................ frame relay access device

FRF..................... frame relay forum

FSU.................... framerelayserviceunit

HDLC................ high-speed data link control

IP........................ internet protocol

ISDN................. integrated services digital network

ITU..................... International Telecommunications Union

KA...................... keep alive

LAN................... local area network

LED.................... light emitting diode

LLC.................... logical link control

LMI.................... localmanagement interface

LRC.................... lateral redundancy check

MIB.................... management information base

ms....................... millisecond

NRZ................... non-return to zero

NRZI ................. non-return to zero inverted

OCU................... office channel unit

C-2 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix C. Acronyms/Abbreviations

OOS................... out of service

PLAR................. private line automatic ringdown

PPP .................... point to point protocol

PU...................... physical unit

PVC................... permanent virtual circuit

RD ..................... receive data

RDL................... remote digital loopback

RFC.................... request for comments

RFECN.............. remote forward explicit congestion notification

RIP..................... routing information protocol

RMA.................. return material authorization

RR...................... receiver ready

RS ...................... recommended standard

RTS.................... request to send

Rx....................... receive

SAP.................... service access point

SDLC................. synchronous data link control

SLIP................... serial line internet protocol

SNA................... systems network architecture

SNMP ............... simple network management protocol

SNRM............... set normal response mode

SR ...................... data set ready

SVC................... switched virtual circuit

SW56................. switched 56

sync ................... synchronous

TD...................... transmit data

TR...................... data terminal ready

Tx....................... transmit

UNI.................... user-to-network interface

61203025L1-1 T1 ESF CSU ACE User Manual C-3

Appendix C. Acronyms/Abbreviations

VRC................... vertical redundancy check

WAN.................. wide area network

XID .................... exchange identification

XMIT................. transmit

C-4 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix D

4-wire S witched 56

An AT&T proprietary 56/64 kbps switched digital data service offered by telco
service providers and delivered to users over 4 copper wires. Compatible with
the T1 ESF CSU ACE 4-wire Switched 56 DBU option.

ANSI

American National Standards Institute. Devices and proposes recommendations
for international communications standards.

asynchronous

A method of data transmission which allows characters to be sent at irregular
intervals by preceding each character with a start bit, followed by a stop bit.

bandwidth

The bandwidth determines the rate at which information can be sent through a
channel (the greater the bandwidth, the more information that can be sent in a
given amount of time).

BECN

backward explicit congestion notification. A bit set by a frame relay network to
notify an interface device (DTE) that congestion avoidance procedures should be
initiated by the sending device.

Glossary

bridge

A device that supports LAN-to-LAN communications. Bridges may be
equipped to provide frame relay support to the LAN devices they serve. A
framerelaycapablebridgeencapsulatesLANframesinframerelayframesand
feeds them to a frame relay switch for transmission across the network. A frame
relay capable bridge also receives frame relay frames from the network, strips

61203025L1-1 T1 ESF CSU ACE User Manual D-1

Appendix D. Glossary

the frame relay frame off each LAN frame, and passes the LAN frame on to the
end device. Bridges are generally used to c onnect LAN segments to other LAN
segments or to a WAN. They route traffic on the Level 2 LAN protocol (e.g. the
Media Access Control address), which occupies the lower sub-layer of the LAN
OSI data link layer. See also router.

CCITT

Consultive Committee for International Telephony and Telegraphy. A standards orga­nization that devises and p roposes recommendations for international commu­nications. See also ANSI.

CD

carrier detect. A signal generated by a modem or DSU/CSU. CD indicates the
presence o f a carrier signal on a communications link.

clocking

An oscillator-generated signal that provides a timing reference for a transmis­sion link. A clock provides signals used in a transmission system to control the
timing of certain function s. The clock has two functions, (1) to generate periodic
signals for synchronization and (2) to pr o vide a time base.

CPE

customer premise equipment. All telecommunications terminal equipment located
on the customer premises, including telephone sets, private branch exchanges
(PBXs), data terminals, and customer-owned coin-operated telephones.

CRC

cyclic redundancy check. A computational means to ensure the accuracy of frames
transmitted between devices in a frame relay network. The mathematical func­tion is computed, before the frame is transmitted, at the originating device. Its
numerical value is computed based on the content of the frame. This value is
compared with a recomputed value of the function at the destination device. See
also FCS.

CS

See CTS.

CSU

channel service unit. A device used to connect a digital phone line (T1 or
Switched 56 line) coming in from the phone company to either a multiplexer,
channel bank, or directly to another device producing a digital signal; for exam-

D-2 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix D . Glossary

ple, a digital PBX, a PC, or data communications device. A CSU performs cer­tain line-conditioning and equalization functions, and responds to loopback
commands sent from the central office. A CSU regenerates digital signals. It
monitors them for problems, and provides a way of testing the digital circuit.

CTS

clear to send. A signal on the DTE interface indicating that the DCE is clear to
send data.

dB

decibel. A unit of measure of signal strength, usually the relation between a
transmitted signal and astandard signal source.

DCE

data communications equipment. Device that provides all the functions required
for connection to telephone company lines and for converting signals between
telephone lines and DTE. Also see DTE.

DDS

digital data service. A private line digital service, for transmitting data end-to-end
at speeds of 2.4, 4.8, 9.6, and 56 kbps and in some cases 19.2, 38.4, or 64 kbps.
The systems can use central hub offices for obtaining test access, bridging legs of
multipoint circuits, and cross connecting equipment. DDS is offered on an inter­LATAbasis by AT&T and on an intra-LATA basis by the Bell operating compa­nies.

DE

discard eligibility. A user-set bit indicating that a frame may be discarded in pref­erence to other frames if congestion occurs, to maintain the committed quality of
service within the network. Frames with the DE bit set are considered excess
data.

DLCI

data link connection identifier. A unique number assigned to a PVC end point in a
frame relay network. Identifies a particular PVC endpoint within a user's access
channel in a frame relay network and has local significance only to that channel.

DSU

data service unit. A device desig ned to transmit and receive digital data on digital
transmission facilities.

61203025L1-1 T1 ESF CSU ACE User Manual D-3

Appendix D. Glossary

DSU loopback

A telco initiated test which loops the DSU back to the telco and is used to test the
DDS circuit as well as the DSU/CSU.

DTE

data terminal equipment. The end-user terminal or computer that plugs into the
termination point (DCE) of a communications circuit. The main difference
between the DCE and the DTE is that pins two and three are reversed.

encapsulation

A process by which an interface device places an end device's protocol-specific
frames inside a frame rely frame. The networkaccepts only frames formatted
specifically for frame relay; therefore interface devices acting as interfaces to a
frame relay network must perform encapsulation. See also interface device or
frame relay capable interface device.

end device

The ultimate source or destination of data flowing through a frame relay net­work sometimes referred to as DTE. As a source device, it sends data to an inter­face device for encapsulation in a frame relay frame. As a destination device, it
receives de-encapsulated data (i.e., the frame relay frame is stripped off, leaving
only the user's data) from the interface device.

FCS

frame check sequence. The standard 16-bit cyclic redundancy check used for
HDLC an d frame relay frames. The FCS detects bit errors occurring in the bits of
the frame between the opening flag and the FCS, and is only effective in detect­ing errors in frames no larger than 4096 octets. See also CRC.

FDL

facility data link. A 4 kbit/s non-disruptive management channel provided in
ESF framing mode. This data link conforms to ANSI T1.403 and AT&T TR 54016
specifications.

FECN

forward explicit congestion notification. A bit set by a frame relay network to notify
an interface device (DTE) that congestion avoidance procedures should be initi­ated by the receiving device. See also BECN.

D-4 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix D . Glossary

file server

In the context of frame relay network supporting LAN-to-LAN communications,
a device connecting a series of workstations within a given LAN. The device
performs error recover and flow control functions as well as end-to-end
acknowledgment of data during data transfer, thereby significantly reducing
overhead within the frame relay network.

frame-relay-capable interface device

A communications device that performs encapsulation. Frame-relay-capable
routers and bridges are examples of interface devices used to interface the cus­tomer's equipment to frame relay network. Seealso interface device and encapsu-
lation.

frame relay frame

A variable-length unit of data, in frame-relay format that is transmitted through
a frame relay network as pure data. Contrast with packet.SeealsoQ.922A.

frame relay network

A telecommunications network based on frame relay technology. Data is multi­plexed. Contrast with packet switching network.

HDLC

high level data link control. A generic link-level communications protocol devel­oped by the International Organization for Standardization (ISO). HDLCman­ages synchronous code-transparent, serial information transfer over a link
connection. See also SDLC.

hop

A single trunk line between two switches in a frame relay network. An estab­lished PVC consists of a certain number of hops, spanning the distance form the
ingress access interface to the egress access interface within the network.

host computer

The primary or controlling computer in a multiple computer operation.

in-band

Signaling (dialing, diagnostics, management, configuration, etc.) over the same
channel used for data.

61203025L1-1 T1 ESF CSU ACE User Manual D-5

Appendix D. Glossary

ingress

Frame relay frames leaving from an access device ina direction toward the
frame relay network.

interface device

Provides the interface between the end device(s) and a frame relay network by
encapsulating the user's native protocol in frame relay frames and sending the
frames across the frame relay backbone. See also encapsulation and frame-relay-

capable interface de vice.

ISDN

Integrated Services Digital Network. A network architecture that enables end-to­end digital connections. The network supports diverse services through inte­grated access arrangements and defines a limited set of standard, multipurpose
interfacesfor equipment vendors, network providers, and customers. Inter­working with a public switched telephone network is retained.

LAN

local area network. A privately o wned network that offers high-speed communi­cations channels to connect information processing equipment in a limited geo­graphic area.

out-of-band

Signaling that is separated from the channel carrying information (voice, data,
video, etc.). Typically the separation is accomplished by afilter. The signaling
includes dialing and other supervisory signals.

packet

A message containing both control information and data. The control informa­tion is used for routing the packet through a network to its final destination.
Contrast with frame relay frame.

packet-switching network

A telecommunications network based on packet-switching technology, wherein
a transmission channel is occupied only for the duration of the transmission of
the packet. Contrast with frame relay network.

parameter

A numerical code that controls an aspect of terminal and/or network operation.
Parameters control such aspects as page size, data transmission speed, and tim­ing options.

D-6 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix D . Glossary

ping

An internet protocol standard that provides loopback on demand for any device
in an IP network. One device "pings" another by sending a loopback requestto
the device's IP address.

point-to-point

Type of communications link that connects a single device toanother single

device, such as a remote terminal to a host computer.

PVC

permanent virtual circuit. Aframe relay logical link, whose endpoints and class of
service are defined by network management. Analogous to an X.25 permanent
virtual circuit, a PVC consists of the originating frame relay network element
address, originating data link control identifier,terminating frame relay network
element address, and termination data link control identifier. Originatingrefers
to the access interface form which the PVC is initiated. Terminating refers to the
access interface at which the PVC stops. Manydata network customers require a
PVC between two points. Data terminating equipment with a need form contin­uous communion use PVCs. See also DLCI.

remote configuration

A feature designed into ADTRAN DSU/CSU products that allow remote DSU/
CSU to be configured from a local DSU/CSU or VT-100 compatible terminal.

router

A device that supports LAN-to-LAN communications. Routers may be
equipped to provide frame relay support to the LAN devices they serve. A
frame-relay-capable router encapsulates LAN frames in a frame relay frames
and feeds those frame relay frames to a frame relay switch for transmission
across the network. A frame-relay-capable router also receives frame relay
frames from the network, strips the frame relay frame off each frame to produce
the original LAN frame, and passes the LAN frame on to the end device. Rout­ers connect multiple LAN segments to each other or to a WAN. Routers route
traffic on the Level 3 LAN protocol (e.g., the internet protocol address). See also
bridge.

61203025L1-1 T1 ESF CSU ACE User Manual D-7

Appendix D. Glossary

SDLC

synchronous data link control. A link-level communications protocol used in an
international business machines (IBM) systems Network Architecture (SNA)
network that manages synchronous, code-transparent, serial information trans­fer over a link connection. SDLC is a subset of the HDLC protocol developed by
ISO.

service

The provision of telecommunicationsto customers by a common carrier, admin­istration, or private operating agency, using voice, data, and/or video technolo­gies.

SNMP

simple network management protocol. A control and reporting scheme widely used
to manage devices from different vendors. SNMP operates on top of the Internet
protocol.

SR

data set ready. A signal on the EIA-232 interface that indicates if the communica­tions is connected and ready to start handshaking control signals so communica­tions can begin.

statistical multiplexing

Interleaving the data input of two or more devices on a single channel or access
line for transmission through a frame relay network. Interleaving of data is
accomplished using the DLCI.

switched network

The network of d ial-up telephone lines using circuit switching to provide com­munications services to network users.

synchronous

Communications in which the timing is achieved by sharing a single clock. Each
end of the transmission synchronizes itself with the use of clocks and informa­tion sent along with the transmitteddata.

T1

Transmission rate of 1.544 Mbps on T1 communication lines. A T1 facility carri­ers a 1.544 Mbps digital signal. Also referred to as digital signal level 1 (DS-1).
See also E1.

D-8 T1 ESF CSU ACE User Manual 61203025L1-1

Appendix D . Glossary

trunk line

A communications line connecting two frame relay switches to each other.

VT-100

A non-intelligent terminal or terminal emulation mode used for asynchronous
communications. Used to configure the T1 ESF CSU ACE.

61203025L1-1 T1 ESF CSU ACE User Manual D-9

Appendix D. Glossary

D-10 T1 ESF CSU ACE User Manual 61203025L1-1

Inde x

Numerics

1in8pattern1-10

A

ACCESS TYPE ( REMOTE UNIT) 3-23
ACES help desk

how to contact, xi
ADDRESS 3-10
ADTRAN PC program 1-7
affidavit

connection for digital services, iv

connection of CPE equipment, v
ALARMS 3-19
all ones pattern 1-10
all zeroes pattern 1-10
applications 1-11
applications engineering

how to contact, xi
arrows, menus 3-3
ASCII terminal 1-8

,

3-23

B

BIT STUFFING 3-17

C

Canadian emissions requirements, viii
Canadian equipment limitations, ix
CAPs department

how to contact, xi
channel bank application 1-12
CODE 3-16
CONFIG 3-9
Configuration menu 3-15
connectors

control methods 1-7

3-21

,

3-15

,

EIA-232 2-4

RJ-48C 2-3

ASCII terminal 1-8

front panel 1-7

CONTROL PORT 3-19
control port 1-6
customer service xi

D

D4 superframe 1-1
DATA RATE 3-19
display field 3-3
DTE interface loopback 1-10

E

EAI-232 connector 2-4
ESF CSU

applications 1-11
control methods 1-7
features 1-5
front view 1-4
operation 3-1
overview 1-2
T1 application 1-2
testing 1-8

F

FACT RESTORE 3-10,3-23
FCC regulations, vii
features 1-5
FORMAT 3-16
front panel 1-4

control 1-7
operation 3-2

,

3-20

G

general data application 1-11
general menu operation 3-3
general voice application 1-12

I

initialization 2-4
interface loopbacks 1-10
interfaces 1-6

control port 1-6

61203025L1-1 T1 ESF CSU ACE User Manual Index-1

Index

network interface 1-6
T1 (CPE) 1-6

J

jack signal directions 1-5

K

KEEP ALIVE 3-17
