Actron 9640UB User Manual

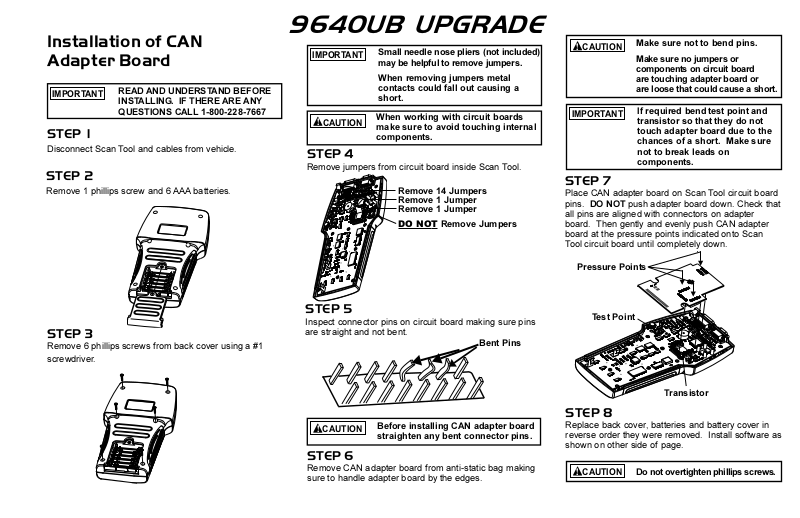

9640UB UPGRADE

Installation of CAN
Adapter Board

IMPORTANT

STEP 1

Disconnect Scan Tool and cables from vehicle.

STEP 2

Remove 1 phillips screw and 6 AAA batteries.

READ AND UNDERSTAND BEFORE
INSTALLING. IF THERE ARE ANY
QUESTIONS CALL 1-800-228-7667

IMPORTANT

!

CAUTION

Small needle nose pliers (not included)
may be helpful to remove jumpers.

When removing jumpers metal
contacts could fall out causing a
short.

When working with circuit boards
make sure to avoid touching internal
components.

STEP 4

Remove jumpers from circuit board inside Scan Tool.

Remove 14 Jumpers
Remove 1 Jumper

Remove 1 Jumper
DO NOT Remove Jumpers

!

CAUTION

IMPORTANT

Make sure not to bend pins.
Make sure no jumpers or

components on circuit board
are touching adapter board or
are loose that could cause a short.

If required bend test point and
transistor so that they do not
touch adapter board due to the
chances of a short. Make sure
not to break leads on
components.

STEP 7

Place CAN adapter board on Scan Tool circuit board
pins. DO NOT push adapter board down. Check that
all pins are aligned with connectors on adapter
board. Then gently and evenly push CAN adapter
board at the pressure points indicated onto Scan
Tool circuit board until completely down.

STEP 3

Remove 6 phillips screws from back cover using a #1
screwdriver.

STEP 5

Inspect connector pins on circuit board making sure pins
are straight and not bent.

Bent Pins

!

CAUTION

Before installing CAN adapter board
straighten any bent connector pins.

STEP 6

Pressure Points

Test Point

Transistor

STEP 8

Replace back cover, batteries and battery cover in
reverse order they were removed. Install software as
shown on other side of page.

Remove CAN adapter board from anti-static bag making
sure to handle adapter board by the edges.

!

CAUTION

Do not overtighten phillips screws.

Installation of
9640UB Software

STEP 4

Press ON/OFF button on Scan Tool then press ENTER
when told.

STEP 7

Click Start then Run on computer.

IMPORTANT

Install the CAN Adapter Board before
installing software

After 9640UB CAN Adapter Board
installation, 9640UB software must be
installed for tool to work correctly.

STEP 1

Remove software serial number and place on CD in
space provided.

STEP 2

Register Software by calling 1-800-228-7667 and receive
an authorization number.

Scan Tool Serial Number:

ENTER
button

ENTER

BACK

EN

T

E

R

ENTER
button

O

N

FUNC

O

ON/OFF

FF

H

E

L

P

button

STEP 5

Place scan tool in Program Mode using the  and ¯ arrows
and pressing ENTER.

Run

Start

STEP 8

Type X:\setup.exe in open box on computer
and press OK.

IMPORTANT

X is the CD-ROM drive letter
on your computer.

Software Serial Number:

Authorization Number:

IMPORTANT

A computer is not required for an
authorization number but a computer,
scan tool serial number and software
serial number are required to update
Scan Tool software.

STEP 3

Connect serial cable from serial port on computer to
Scan Tool

.

M

a

in

M

e

n

u

o

o

l

S

e

t

u

o

o

r

o

p

l

S

e

lf

-

T

e

s

g

r

a

t

m

M

o

d

e

Program

2 P

T
T

Mode

ENTER

BACK

ENTER

UP and
DOWN
arrows

OFF

ON

FUNC

HELP

STEP 6

Close all programs on computer and place CD in drive.

Open box

OK button

STEP 9

Follow screen prompts on computer to complete
software download.

IMPORTANT

If downloading process
stops, repeat STEP 5
through STEP 9.

© 2003 Actron Manufacturing Company

All rights reserved.

0002-000-2516
