Acer ALN-201 User Manual

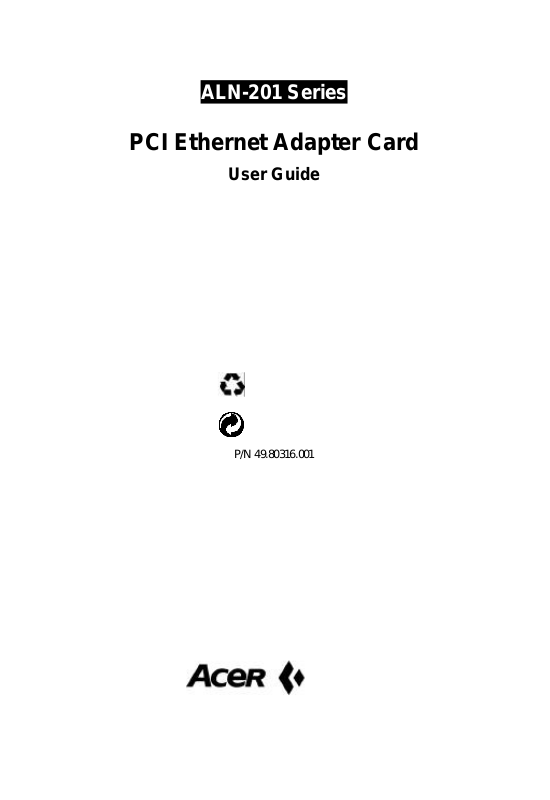

ALN-201 Series

PCI Ethernet Adapter Card

User Guide

P/N 49.80316.001

Federal Communications Commission

Frequency Interference Statement

This equipment generates, uses and radiate radio frequency energy. If not
installed and used in accordance with the instructions in this manual, may cause
interference to radio communications. This equipment has been tested and found to
comply with the limits for a Class A computing device pursuant to Part 15 of the
FCC rules, which are designed to provide reasonable protection against radio
interference when operated in a commercial environment. .

CE Declaration of Conformity:

This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE and EN 50082-1. This meets the essential
protection requirements of the European Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to electromagnetic
compatibility.

Package Contents

.

One Adapter Card

.

This User Guide

.

One Driver Diskette

.

One T-type Connector (for BNC connection)

1. Product Overview

This series card is an Ethernet interface adapter with Peripheral Component
Interface (PCI) local bus. It is fully compatible with the IEEE 802.3
CSMA/CD(Carrier Sense Multiple Access with Collision Detection) 10Mbps
standard and includes two media interfaces, twisted-pair (RJ-45 connector,
10Base-T) and thin Ethernet cable (BNC connector, 10Base2).
