ACER AL707 User Guide

SERVICE MANUAL

17" LCD Monitor

AL707

ACER

THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY
REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS
MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER
THE DATE OF PUBLICATION AND DISCLAIMS RE LIABILITY FOR CHANGES, ERRORS
OR OMISSIONS,

MANUFACTURE DATA : Oct-17-2002
REVISE: Oct-29-2002

1

TABLE OF CONTENTS

PAGE

1. SPECIFICATIONS .................................................................................................... 3

1-1 GENERAL SPECIFICATIONS ...................................................….............. 3

1-2 LCD MONITOR DESCRIPTION .................................................................. 3

1-3 INTERFACE CONNECTOR .................................................................……. 3

2. PRECAUTION AND NOTICES ................................................................................ 5

2-1 ASSEMBLY PRECAUTION ......................................................................... 5

2-2 OPERATIONG PRECAUTION ..................................................................... 5

2-3 STORAGE PRECAUTION …........................................................................ 5

2-4 HIGH VOLTAGE WARNING ....................................................................... 5

3. OPERATING INSTRUCTIONS ................................................................................ 6

4. ADJUSTMENT .......................................................................................................... 7

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS ............................... 7

4-2 ADJUSTMENTS METHOD .& DESCRIPTION.....................…………….. 7-8

4-3 FRONT PANEL CONTROL KNOBS ............................................................ 9

5. CIRCUIT & SOFTWARE DESCRIPTION .............,…………………………….... 10

5-1 SPECIAL FUNCTION WITH PRESS KEY ………………………………. 10
5-2 CIRCUIT FUNCTION DESCRIPTION………………………….……….. 10-11
5-3 SOFTWARE FLOW CHART……………………………………………… 12

6. A). INTERFACE-BOARD TROUBLE-SHOOTING CHART .......…………..... 14-21

B). INVERTER –MODULE SPEC &TROUBLE SHOOTING CHART………. 22-26

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY...................................... 27

8. PARTS LISTING .........................................................................................………... 28-40

9. POWER SYSTEM AND CONSUMPTION CURRENT............................................ 41

10. PCB LAYOUT .....................................................................………………………... 42

11. MAINBOARD SCHEMATIC DIAGRAM ….............................….......…......... 43-47

2

1. SPECIFICATIONS FOR LCD MONITOR

1-1 General specifications

1. LCD-Panel :

Active display area 17 inches diagonal
Pixel pitch 0.264 mm x 0.264 mm
Pixel format 1280 x 1024 RGB vertical stripe arrangement

2. Display Color :

6-bit, 16.2 million colors

3. External Controls :

Power On/Off, Menu-key, Auto key, Left key, Right key
OSD menu Controls
Contras , Brightness, Auto Center, Focus, Clock , H/V-position , DOS mode select, R/G/B,
Color-(C2K,C1K), Languages, Reset

4. Input Video Signal :

Analog-signal 0.7Vpp
Video signal termination impedance 75 OHM

5. Scanning Frequencies :

Horizontal: 30 KHz - 83 KHz
Vertical: 55 Hz – 75 Hz
Pixel clock: 135 MHz

6. Factory Preset Timing : 17

User Timings : 13
Input signal tolerance : H tolerance ± 1 K, V tolerance ± 0.5 Hz

7. Input Power Source :

Switching Mode Power Supply
AC 100 – 240 V, 50/60 Hz Universal Type

8. Operating Temperature : 5°C - 40°C Ambient

Non-operating Temperature : 5°C - 40°C

9. Humidity :

Operating : 10% to 85% RH (non-condensing)
Non Operating : 5% to 85%RH (38.7℃ maximum wet bulb temperature)

10. Weight : 7.6 kg

11. External Connection : 15Pin D-type Connector, AC power-Cord

12. View Angle : x-axis right/left = 70, y-axis up/down = 45 ,65

13. Outside dimension : Width x Height x Thickness = 407x 434 x 173 mm

14. Plug and Play : VESA DDC1/DDC2B

15. Power saving : VESA DPMS

3

1-2 LCD MONITOR DESCRIPTION

The LCD MONITOR will contain an main board, an Inverter module, keyboard, External Adapter which house
the flat panel control logic, brightness control logic, DDC and DC-DC conversion
The Inverter module will drive the backlight of panel .
The Adapter will provides the 12V DC-power 4.16 Amp to Main-board,and Inverter module .

Inverter

AC-IN
100v-240v

1-3 Interface Connectors

(A) AC-Power Cable
(B) Video Signal Connectors and Cable
(C) External Adapter

Main Board or Interface Board

ADAPTER

Monitor Block Diagram

CCFT Drive.

Keyboard

Flat Panel and
CCFL backlight

HOST Computer

RS232 Connector
For white balance
adjustment in
factory mode

Video signal, DDC

4

2. PRECAUTIONS AND NOTICES

2-1 ASSEMBLY PRECAUTION

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface by

touching with bare hands ( Polarizer film, surface of LCD panel is easy to be flawed)

In the LCD panel, the gap between two glass plates is kept perfectly even to maintain display characteristic

and reliability. If this panel is subject to hard pressing, the following occurs :

(a) Uniform color (b) Orientation of liquid crystal becomes disorder
(2) Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
(3) Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately.

They might damage to cause panel surface variation and color change.

(4) Do not apply any strong mechanical shock to the LCD panel.

2-2 OPERATING PRECAUTIONS

(1) Please be sure to unplug the power cord before remove the back-cover. (be sure the power is turn-off)
(2) Please do not change variable resistance settings in MAIN-BOARD, they are adjusted to the most suitable

value. If they are changed, it might happen LUMINANCE does not satisfy the white balance spec.

(3) Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low

temperature than in room temperature.

(4) Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2-3 STORAGE PRECAUTIONS

(1) When you store LCD for a long time, it is recommended to keep the temperature between 5℃-40℃

without the exposure of sunlight and to keep the humidity less than 85% RH.

(2) Please do not leave the LCD in the environment of high humidity and high temperature such as 60℃

90%RH.

(3) Please do not leave the LCD in the environment of low temperature; below -15℃.

2-4 HIGH VOLTAGE WARNING

The high voltage was only generated by INVERTER module, if carelessly contacted the transformer on this
module, can cause a serious shock. (the lamp voltage after stable around 600V, with lamp current around 6.5mA,
and the lamp starting voltage was around 1650V, at Ta=25℃)

5

3. OPERATING INSTRUCTIONS

This procedure gives you instructions for installing and using the LCD monitor display.

1. Position the display on the desired operation and plug–in the power cord into External Adapter AC outlet.

Three-wire power cord must be shielded and is provided as a safety precaution as it connects the chassis
and cabinet to the electrical conduct ground. If the AC outlet in your location does not have prov isions for
the grounded type plug, the installer should attach the proper adapter to ensure a safe ground potential.

2. Connect the 15-pin color display shielded signal cable to your signal system device and lock both screws
on the connector to ensure firm grounding. The connector information is as follow:

1

6

11 15

5

10

15 - Pin Color Display Signal Cable

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1. RED 9. 5V power from VGA-card

2. GREEN 10. GND

3. BLUE 11. SYNC. GND

4. GND 12. SDA

5. GND 13. HORIZ. SYNC

6. GND-R 14. VERT. SYNC

7. GND-G 15. SCL

8. GND-B

3. Apply power to the display by turning the power switch to the "ON" position and allow about thirty
seconds for Panel warm-up. The Power-On indicator lights when the display is on.

4. With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness
and contrast to the most pleasing display, or press auto-key to get the best picture-quality.

5. This monitor has power saving function following the VESA DPMS. Be sure to connect the signal cable to
the PC.

6. If your LCD monitor requires service, it must be returned with the power cord & Adapter.

6

4. ADJUSTMENT

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS

Adjustments should be undertaken only on following function : Contras , Brightness, Black level,

Phase, Clock , H/V-position , Languages, Color-(C2,C1,User), Auto level, OSD-position, Languages, Reset

4-2 ADJUSTMENT METHOD

Press MENU button to activate OSD Menu or make a confirmation on desired function, Press Left/Right button to

select the function or done the adjustment.

1. White-Balance, Luminance adjustment

Approximately 30 minutes should be allowed for warm up before proceeding white balance
adjustment.

Before started adjust white balance ,please setting the Chroma-7120 MEM. Channel 1 to C2 color and
MEM. channel 2 to C1 color, ( our C2 parameter is x = 302 ±20, y = 319 ±20, Y = 200 ±20cd/m2

and C1 parameter is x = 313 ±20, y = 329 ±20, Y = 200 ±20 cd/m

How to setting MEM.channel you can reference to chroma 7120 user guide or simple use “ SC” key and
“ NEXT” key to modify x,yY value and use “ID” key to modify the TEXT description

Following is the procedure to do white-balance adjust

Press MENU button during 1 seconds along with plug in the DC-power cord will activate the factory mode,
and the OSD screen will located at

I. Bias (Low luminance) adjustment :

1. Press “ AUTO” button , and wait for message “ Pass”

2. Set the contrast on OSD window to the value=45 , color (user )R,G,B set to “50”

3. adjust the brightness on OSD until chroma 7120 measurement reach the value Y=240 cd/m

cd/m

2

left top of panel.

2

)

2

±10

7

II. Gain adjustment :

a. adjust C2 color-temperature

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma 7120 Y=240 ±5 cd/m

2. Switch the chroma-7120 to RGB-mode (with press “MODE” button )

3. Switch the MEM.channel to Channel 01 ( with up or down arrow on chroma 7120 )

4. The lcd-indicator on chroma 7120 will show x = 302 ±10, y = 319 ±10, Y = 200 ±5 cd/m

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value
R=100

6. Adjust the Color(user)Mode: GREEN on OSD window, until chroma 7120 indicator reached the value
G=100

7. Adjust the Color(user)Mode: BLUE on OSD window, until chroma 7120 indicator reached the value
B=100

8. repeat above procedure ( item 5,6,7) until chroma 7120 RGB value meet the torlence =100±2

9. switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color (7800) on OSD window to save the adjustment result

b. adjust C1 color-temperature

1 Set the Contrast of OSD function to 45 and Adjust Brightness to chroma 7120 Y=240 ±5 cd/m
2 Switch the chroma-7120 to RGB-mode (with press “MODE” button )

3 switch the MEM.channel to Channel 02 ( with up or down arrow on chroma 7120 )
4 The lcd-indicator on chroma 7120 will show x = 313 ±10, y = 329 ±10, Y = 200 ±5 cd/m
5 Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value

R=100

6 Adjust the Color(user)Mode: GREEN on OSD window, until chroma 7120 indicator reached the

value G=100

7 Adjust the Color(user)Mode: BLUE on OSD window, until chroma 7120 indicator reached th e value

B=100

8 repeat above procedure ( item 5,6,7) until chroma 7120 RGB value meet the tolence =100±2
9 switch the chroma-7120 to xyY mode With press “MODE” button

10 Press Color(C1) on OSD window to save the adjustment result

Turn the POWER-button off to on to quit from factory mode ( in USER-mode, the OSD window location
was placed at middle of screen)

2

2

2

2

8

2. Clock adjustment
Set the Chroma at pattern 63 (cross-talk pattern) or WIN 9 8 / 95 sh ut - down mode (dot-pattern).
Adjust until the vertical-Stripe-shadow as wide as possible or no visible.
This function is adjust the PLL divider of ADC to generate an accurate pixel clock
Example : Hsyn = 31.5KHz Pixel freq. = 25.175MHz (from VESA spec)

The Divider number is (N) = (Pixel freq. x 1000)/Hsyn

From this formula, we get the Divider number, if we fill this number in ADC register (divider register), the
PLL of ADC will generate a clock which have same period with above Pixel freq.(25.175MHz) the
accuracy of this clock will effect the size of screen.(this clock was called PIXEL-CLOCK)

3. Focus adjustment
Set the Chroma at pattern 63 (cross talk pattern) or WIN98 / 95 sh ut do w n mode (dot-pattern).
Adjust the horizontal interference as less as possible
This function is adjust the phase shift of PIXEL-CLOCK to acquire the right pixel data .
If the relationship of pixel data and pixel clock not so match, we will see the horizontal interference on
screen ,we only find this phenomena in crosstalk pattern or dot pattern , other pattern the affect is very light

4. H/V-Position adjustment
Set the Chroma to pattern 1 (crosshatch pattern) or WIN98/95 full-white pattern confirm above item 2 & 3
functions (clock & focus) was done well, if that 2 functions failed, the H/V position will be failed too.
Adjust the four edge until all four-edges are visible at the edge of screen.

5. LANGUAGE function
There have 5 language for selection, press “MENU” to selected and confirm , press “ LEFT” or “ RIGHT”
to change the kind of language ( English , Deutch , Francais, Espanol, Italian)

6. Reset function
Clear each old status of auto-configuration and re-do auto-configuration ( for all mode)

This function also recall C2 color-temperature , if the monitor status was in “ Factory-mode” this reset
function will clear Power-on counter ( backlight counter) too.

7. OSD-LOCK function
Press Left & Right key during switching on the monitor, the access to the OSD is locked, user only has
access to “ Contrast, Brightness, Auto-key “.
If the operator pressed the Left & Right during switching on the monitor again , the OSD is unlocked.

4-3 FRONT PANEL CONTROL KNOBS

Power button : Press to switch on or switch off the monitor.
Auto button : to perform the automatic adjustment from CLOCK, FOCUS, H/V POSITION, but no affect the

color-temperature
Left/Right button : select function or do an adjustment.
MENU button : to activate the OSD window or to confirm the desired function

9

5. CIRCUIT-DESCRIPTION

5-1 SPECIAL FUNCTION WITH PRESS-KEY

A). press Menu button during 2 seconds along with plug-in the DC Power cord:

That operation will set the monitor into “Factory- mode”, in Factory mode we can do the White balance
adjustment with RS232
In Factory mode, OSD-screen will locate in left top of screen.
Press POWER-button off to on once will quit from factory mode and back to user-mode.

B). Press both Left & Right button along with Power button off to on once will activate the OSD-LOCK

function, repeat this procedure will disable OSD-LOCK

In OSD-LOCK function, all OSD function will be lock , except Contrast and Brightness

OSD-INDEX EXPLANATION

1. CABLE NOT CONNECTED: Signal-cable not connected.

2. INPUT NOT SUPPORT:

a. INPUT frequency out of range: H > 83kHz, v > 75Hz or H < 28kHz, v < 55Hz
b. INPUT frequency out of VESA-spec. (out of tolerance too far)

5-2 CIRCUIT FUNCTION DESCRIPTION

1. U200,GMZAN2 ( all-in-one chip solution for ADC, OSD, scalar and interpolation) :

USE for computer graphics images to convert analog RGB data to digital data with interpolation process,
zooming, generated the OSD font , perform overlay function and generate drive-timing for LCD-PANEL.

2. U302,W78E62(WINBOND- MCU, type 8052 series with 64k Rom-size and 512 byte ram) :

Use for calculate frequency, pixel-dot , detect change mode, rs232-communication, power-consumption
control, OSD-index warning , …etc.

3. U203,24LC21 (MicroChip IC) :

EEPROM type, 1K ROM-SIZE, for saving DDC-CONTENT.

4. U300,24C16 (ATMEL IC) :

EEPROM type, 16K ROM-SIZE, for saving AUTO-config data, White-balance data, and Power-key status
and Backlight-counter data.

5. U304,LM2569S( NS brand switching regulator 12V to 5V with 3A load current) .

6. U305,AIC 1084-33CM (AIC brand linear regulator 5V to 3.3V)

7. U905,RT9164(Linear regulator 5V to 2.5V)

8. U600,U601,LVDS ( use NOVATEK N T 7 181F)

Convert the TTL signal to LVDS signal , the advantage of LVDS signal is : the wire can be lengthen and
eliminate wire number , low EMI .LVDS signal is high frequency but low voltage, only 0.35 VPP ,the
frequency is seven times higher than TTL

9. U401, 74F14D(Schmitt triggger)
The 74F14 contains six logic inverters which accept standard TTL input signals and provide standard TTL
Output levels

10

,

MODULE-TPYE COMPONENT:

1. ADAPTER : CONVERSION-module to convert AC 110V-240V to 12VDC, with 4.16 AMP

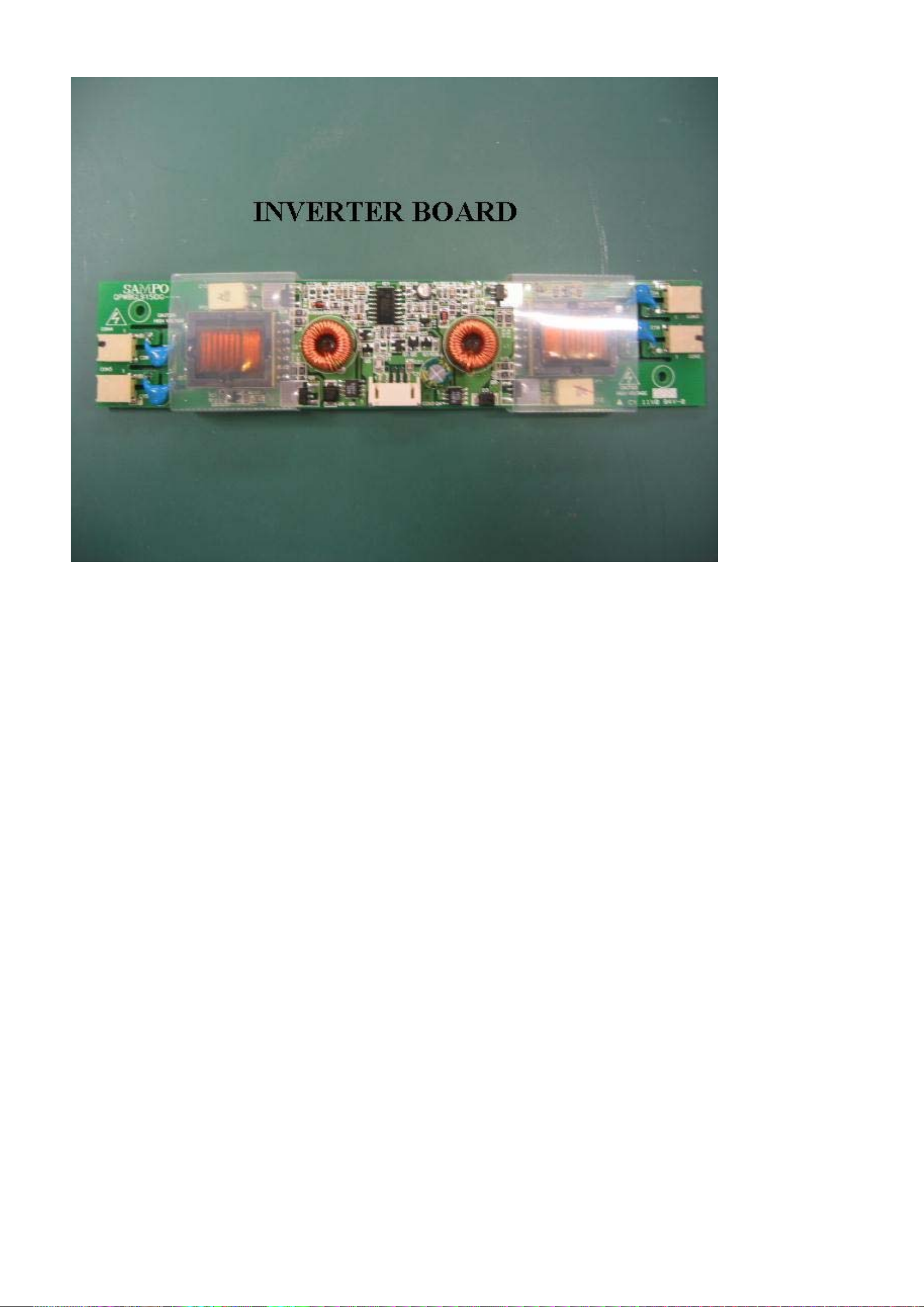

2. INVERTER : CONVERSION-module to convert DC 12V to H igh-Voltage around 1650V, with frequency

Input analog RGB &
H,V,& ddc signal &
Rs232 communication

DDC-chip

DC 12V 4.16Amp

30K-80Khz, 5.6mA-13mA

GMZAN2 (U200)

Oscillator 50 mhz

MCU ( U302 )

Keyboard module

-

Main-board Block diagram

Data Digital RGB

Panel Control Signal:
Phs, Pvs,
PclkA/B

Communication signal:
Hclk,Hfs,Hdata0

Pdispe

Crystal 20 MHz

LVDS chip (U601,
U602)

Panel Power 5V

Panel-Power Control
(U202)

INVERTER module

PANEL

11

5-3 SOFTWARE FLOW CHART

I. Power-On Subroutine CHART

POWER-ON START

Initial MCU I/O, Interrupt vector & Ram

Check Eeprom is empty ?

Check White-balance data(C1 & C2) same with the backup data ?
Check POC( backlight counter) data same with the backup data ?
IF not same, overwrite the data with backup value.

Check Previous power-switch status from Eeprom, & other system status

Initial GMZAN2

Check if in Factory mode?(when power-on,press the
MENU Button will be in FACTORY mode)

Clear factory mode flag

Initial 1.POC (backlight counter)

2. Clr all mode value

MAIN-SUBROTINE LOOP

SET factory mode flag

12

II. MAIN SUBROTINE LOOP

Main loop start

Process Power-saving status ( according to below flow-chart result)

Check GMZAN2 IFM status .is change or not.
And check Signal cable status ( cable not connected or not )
** IFM is the register which measured the HSYN & Vsyn status

Yes, IFM have change

Is current system status in Power-saving ?

Check the IFM result is in the standard
Mode table ?

Check the IFM result is in the user mode
table ?

Out of range ( input not support) be
confirm

confirm the frequency ( Hsyn or Vsyn) from IFM already

Process ( turn off OSD , setting GMZAN2according to
above parameter, set LED status, set backlight status)

Check Auto-config mode flag already been set?

Read Key status and Process on OSD-screen

Monitoring the time-out of osd status ( if no key input persist for
10 sec , the osd time-out counter will trigger )

)

been changed ? ( check the change mode flag)

Check Factory mode flag= 1

Wake-up GMZAN2
(because GMZAN2 was in
partial sleeping state)

Set mode index & parameter
Set change mode flag

Do Auto-config
automatically

if the RS232 buffer is full,
process the command( while
adjust white-balance in factory
mode)

13

p

k

c

e MCU

6 A). INTERFACE-BOARD TROUBLE-SHOOTING CHART

*Use the PC Win 98 white pattern, with some icon on it, and Change the Resolution to 640x480 60 Hz / 31 KHz
**NOTICE : The free-running freq. of our system is 48 KHz / 60 Hz, so we recommend to use another resolution

to do trouble shooting, this trouble shooting is proceed with 640x480 @60Hz 31Khz

I. NO SCREEN APPEAR

DC-Power Part

Measured Input DC-voltage ( J1)= 12 V?
Measured U305 AIC 1084 pin 2 = 3.3V?
Measured U904 LT1117 pin 2= 3.3V?
Measured U905 RT9164 pin 2=2.5v

Check Correspondent component.
Is there any shortage or cold solder?

Disconnected the Signal cable( Loose the
Signal cable ),Is the screen show “Cable Not
Connected” ?

Yes, all DC level exist

Connected the Signal cable again,
Check LED status.

No, nothing is show

Connected the Signal cable again,
Check LED status.

Check the Wire-Harness from CN603
was tight enough?,
check the Wire connection to panel side too

Check Panel-Power Circuit Block

Check U200 Data-output Block

Replace Inverter and Check

Inverter control relative circuit

Re-do White balance adjust

Note: 1. if Replace “MAIN-BOARD” , Please re-do “DDC-content” programmed & “WHITE-Balance”.

OK, U200 data OK

OK

2. if Replace “ INVERTER” only, Please re-do “ WHITE-Balance”

Led Green

OK,Wire tight enough

OK,Panel Power OK

Led Orange

Check Power switch is in Power-on
status , and check if Power switch had
been stuck ?

OK, Keyboard no stuc

Measured RGB (r200,r201,r202) H,V Input at U401

in 9 ,4 ,was there have signal ?

OK,input Normal

OK, Mcu have transition

Replace U200 (Gmzan2)

Led orange

Measured Oscillator Block
Oscillator U201 & Crystal X300

OK,clock normal

Check communication pin between U200 &
MCU pin 2,6,7. , is it have transition?

Replace U302 (MCU)
& check Reset pin 10
must be change from High to
low when first AC power plug­in

OK

NG

NG, no transition

Check Correspondent
component short/open
( Protection Diode )
and Signal cable
bad ?

Repla

Led Green

14

p

PANEL-POWER CIRCUIT

check R225 should have response from 0V to 5V
When we switch the power switch from on to off

Measured the U202 pin 5,6,7,8= 5 V?

OK

OK,R225 have response

NG, no Voltage

INVERTER Control Relative Circuit

Measured the inveter connector CN303
Pin 1,2=12V, pin 3 on/off control=5V (on)

Replace INVERTER to new-one, and
Check the screen is normal ??

OK,& Re-do white balance

OSCILLATOR BLOCK

Measured U201 Oscillator output R215= 50MhZ ?

Measured X300 Crystal output R340= 20MhZ ?

OK

U200-DATA OUTPUT

Measured PCLK(L207,R603)
PVS,PHS,PDISPE (pin 73,74,43 from U200 )
Is there have any transition?
Pclk around 47MHz to 57MHZ ,
PVS=60.09Hz , PHS around 67 KHz ??(refer to
input signal=640x480@60 Hz 31k, and LED is
green)

OK

Check the PPWR panel power relative circuit,
R223,R224, Q200,U202(pin 5,6,7,8)
In normal operation, when LED =green, R223
should =0 v,
If PPWR no-response when the power switch
Turn on and turn off, replace the U200-GMZAN2

Check U202 pin 1,3= 5V

Check U304 relative circuit.(D300,L906..)
Check JP202 shortage

Check the Bklt-On relative circuit, R315, Q304, R311,
In normal operation, when LED =green,
R315 Bklt-On should =0 v,
If Bklt-On no-response when the power switch turn on-off,

Re

lace the MCU

Replace Oscillator U201

Replace Crystal X300

Replace GMZAN2 (U200) or replace
MAINBOARD.

If Main Board being replace , please
do the DDC – content reprogrammed

Replace U202 ( Nmos, SI9953)

15

p

II (a) THE SCREEN is Abnormal , stuck at white screen, OSD window can’t appear, but
keyboard & LED was normal operation.

At general, this symptom is cause by missing panel data or panel power, so we must check our
wire-harness which connected to panel or the panel power controller (U202)

Check if the Wire harness from CN603 loose?
Check the wire on both Panel-side and Main board side.

Tighten it.

Yes, tight enough

Check the Panel-Power circuit as above (page 16)
U202 pin 5,6,7,8 ,must be 5V

Yes, Voltage normal

Check the LVDS-Power L601,L602,L603,L6 04 ,L9 0 0= 3.3V ?

Yes, Voltage normal

Check the both U601 & U602 LVDS-Input pin 31= 45mhz –
65mhz, and pin 27 = Vsyn freq, pin 28 = 45khz- 65 khz

Yes, Frequency normal

Replace both LVDS chip ( U601 & U602)

Check U904,which convert the 5V to

3.3V

Check U200 DATA-OUPUT block as
above ( page 16)

NG, no data output

Check OSCILLATOR Block as
above ( page 16)

OK, all clock is normal

Replace U302 MCU and check it RESET
pin 10 ,must be turn high to low when first
AC

ower-on

OK, reset is normal

Check U200 DATA-OUTPUT block again

NG, still no data out

Replace U200 GMZAN2

16

,

r

II. (b)The screen had the Vertical Straight Line, might be stuck in Red, Green, Blue

That symptom is cause by bad Panel issue ( might be the Source IC from Panel is cold solder or

open loop ) so REPLACE THE PANEL TO NEW ONE.

KEYBOARD BLOCK check

Check U302 MCU pin 43,42,41,40,39 at
High state(5V)? without press any key

NG

Mechanical was stuck, Check !

Press power key and check U302 pin 43
= low (0V) ?

Check U302 pin 38 (LED green) will have
transition from hi to low or low to hi when we
press the power key??

Check U302 pin 20= 20MHz ? and pin 44
(VDD)=5V ? and pin 10 (reset)=0V ? at normal
condition

Without press key and change mode, Check U302
pin 16,17(sda,scl)= hi 5V ? or keep transition ?

Replace U302 MCU

NG, MCU no response

Keep transition, that means eeprom no response

Check main board R303 shortage?
Replace Tact-switch SW105 at keyboard if still
no work replace U302 MCU at main-board and
check MCU relative reset circuit, and crystal

If still no Led green indicator, check Q102,
R106 & LED at keyboard !! cold solder or bad

If one of this item was NG, check the relative
circuit

Check U300 eeprom 24LC16 relative circuit,
check U300 pin 7 = low?

Check JP302 is
connect ?

Check U300 pin 8
(vdd)= 5V, and check
R300

R301 cold solde

Replace eeprom

17

p

POWER-BLOCK check
**Note : the Waveform of U304 pin 2 can determined the power situation

1. stable rectangle waveform with equal duty, freq aroun d 150 K- 1 58 K Hz

that means all power of this interface board is in normal operation
,and all status of 5V & 3.3V is working well

2. unstable or uneven rectangle waveform without same duty, that means ABNORMAL operation was

happened, check 3.3V or 5V ,if short-circuit or ba d component

3. rectangle waveform with large spike & harmonic pulse on front side , means all 3.3v is no load, U200

Gmzan2 was shut- down, and only U302 MCU still working , that means the monitor is in power saving
status , all power system is working well .

Measure input power at U304 LM2596 pin 1=
12V ?

NG

Check ADAPTER and connector if loose?

Check U304 pin 2 is a stable rectangle wave?
Around 150k-158kHz stable rectangle wave
with equal duty without any spike or harmonic
pulse?

The interface board power is good

NG

Check U304 pin 2 is a unstable rectangle wave ?

OK, unstable wave

Check all 3.3V & 5V power, there is
short circuit or bad component was
happened

NG, with
harmonic

ulse

The interface board is in power­saving state, press power key to wake
up & check your signal input

18

pei)

III.ALL SCREEN HAS INTERFERENCES OR NOISE, CAN’T BE FIXED BY AUTO KEY

** NOTE: There is so many kind of interferences, 1). One is cause by some VGA-CARD that not meet VESA spec or

power grounding too bad that influence our circuit

2).other is cause by external interferences, move the monitor far from electronic equipment.( rarely
happened)

Use DOT-pattern, or win98/99 shut-down
mode pattern, press “AUTO” key, was the
interferences disappear ??

Adjust “FOCUS” step by step, until the
horizontal interferences disappear

Does your signal-cable have an additional
cable for extension ??

Does your noise only exist in one mode only?
(ex: only at 1280x1024 @ 75 Hz, other is normal)

That was cause by you VGA-CARD setting, your VGA
card timing back porch / front porch exceed vesa timing
too far, for some new AGP-VGA-CARD such situation
always happened
So in your control-panel icon ,select monitor ,setting ,

advance ,screen-adjust ,at
Size icon, increase step by step slowly, press “”AUTO”

key every step you increase the SIZE . repeat the
procedure( increase/decrease SIZE one-step and press
AUTO) until the interferences disappear, press “APPLY”
to save in your VGA

NO additional extension cable

Yes, only happened on one mode

Yes, has extension

END

END

Put away the additional cable
May be the additional cable grounding is
not quite well

Change the Signal-cable to new-one or
Try other brand VGA-CARD
(make sure just only that brand VGA­CARD has this problem ,contact RD-
Tai

19

There is interferences in DOS MODE

NOTE :the criteria of doing AUTO-CONFIGURATION : must be a full-size screen, if the screen not full , the auto­configuration will fail. So in dos mode ,just set your “CLOCK” in OSD-MENU to zero or use some EDITOR
software which can full fill the whole screen (ex: PE2, HE) and then press “AUTO”
Or you can use “DOS1.EXE” which attached in your Driver disk to optimize DOS mode performance

V. THE PANEL LUMINANCE WAS DOWN

Use white pattern and resolution 1280x1024 @ 60Hz , CHROMA 7120 measured the center of panel

Set Contrast, brightness =maximal, RGB= 50
Quit from OSD-screen, measured Y(luminance)
With chroma 7120, check Y= 240±10 cd/m2 ?

If Y can reach ＞240 cd/m2 that means
The lamp still working well, so we just re-do the
white-balance process
As following procedure

If the Y less than 200 cd/m2 (after the contrast,
brightness = max) then change the LAMP of panel

Use white-pattern, press MENU button along
with AC power-plug in ( you will in factory
mode) The OSD-menu will be at left-top of
screen,

press AUTO button to automatically adjust black
level value, you will see the sign PASS

Follow White-Balance, Luminance adjustment
as above ( page 8),method to more detail procedure
For do a white-balance adjust

20

6 B). INVERTER –MODULE SPEC &TROUBLE SHOOTING CHART

For EN-7100S model , use Hydis panel, and the INVERTER is made by SAMPO

SAMPO Parts No: DIVTL0085-D42 ACER Parts No.: 79LL17-3-S

I. CONNECTOR PIN ASSIGMENT:

A) CON1: INPUT

MODEL NO.: S5B-PH-SM3-TB

PIN SYMBOL DESCRIPTION

1 Vin Input voltage: 12V
2 Vin Input voltage: 12V
3 ON/OFF ON: 3V OFF:0V
4 Dimming Dimming range (0V~+5.0V)
5 GND GND

B) CON2,CON3,CON4,CON5: OUTPUT

MODEL NO.: SM02B-BHSS-1-TB

PIN SYMBOL DESCRIPTION

1 HV OUTPUT Input H.V to lamps
2 RETURN Return to control

C) FUNCTION SPECIFICATIONS:

The data test with the set of SAMPO

DC TO DC CONVERTER

(ROOM TEMPERATURE 25℃ ±4℃)

ITEM SYMBOL MIN. TYP. MAX. UNIT REMARK

Input voltage Vin 10.8 12 13.2 V
Input current Iin -- 2100 2500 mA
output current
adj:0v( min.)

Output current
adj.:5 v(max.)

Frequency

Iout

(min)

Iout

(max)

F 40 50 60 KHZ

2.3

5.5

2.6

6.0

3.3

6.5

mA

mA

FOR 1 CCFL
LOAD:120KΩ
FOR 1 CCFL
LOAD:120KΩ

H.V open Vopen 1550 1700 1850 Vrms NO LOAD
H.V Load Vload 600 700 800 Vrms

RL=120KΩ

21

1

1

D) FUNCTION TEST CIRCUIT:

120KΩ

10Ω

1
2

VT-181

2

120KΩ

CON2

CON3

CON4

CON5

CON1

1
2

2

120KΩ

10Ω

VT

1 2 3 4 5

120KΩ

10Ω

VT-181

10Ω

VT

22

II. TROUBLE SHOOTING BLOCK DIAGRAM

A) NO POWER:

CHECKED ON FUSE
F1 Vin=12

FAIL

TO CHANGED
F1= 4.0A/63V

TO CHECKED Q4 & Q6

PASS FAIL

VOUT = 9V

TO CHANGED
CH1: Q4/Q3/Q11
CH2: Q5/Q6/Q12

PASS

TO CHECKED L1/L2
INPUT 9V TO L1 OR L2

FAIL

TO CHANGED
CH1: Q7/Q8/D12/PT1
CH2: Q9/Q10/C13/PT2

FUNCTION TEST OK !

PASS

B) HIGHT VOLTAGE PROTECTION:

1. SHORT R30 & OPEN LOAD

FAIL

2. TEST PT1 OR PT2 OUTPUT PIN 7 H.V

VOLTAGE Vh=1600 ±100V rms

PASS

TO CHANGE ON PT1
OR PT2

FUNCTION TEST OK!

23

C) OUTPUT CURRENT ABNORMALITY:

CHECK PWM FREQUNCY AT C6

FAIL

CHIP
THE OSCILLATOR FREQUNCY
RANGE = 150 ~ 250 KHZ

PASS

D) ENBALE ABNORMALITY:

IF ENABLE ABNORMALITY

1. TO CHECK IC PIN 9 TURN ON HAVE

FAIL

12 VOLTAGES

TO CHANGE C6 CHIP OR IC
CHIP

FUNCTION TEST OK!

TO CHANGE ON Q1
& Q2

PASS

E) DIMMING CONTROL ABNORMALITY:

IF DIMMING ABNORMALITY TO
CHECK R1/R2/R33/C6 IS FAILD?

PASS

FAIL

FUNCTION TEST OK!

TO CHANGE ON
R1/R2/R33/C6R203

FUNCTION TEST OK!

24

F) TRANSFORMER ABNORMALITY:

IF TRANSFORMER ABNORMELITY TO CHECK
C3 & C4 CHIP OUTLINE OR TRANSFORMER

PASS

G) INSTRUMENTS FOR TEST:

1. DC POWER SUPPLY GPS-3030D

2. AC VTVM VT:-181E

3. DIGITAL MULTIMERTER MODEL-34401

4. HIGHTVOLT PROB MODEL-1137A

5. SCOPE MODEL-V-6545

FAIL

TO CHANGE C3 & C4 OR
TRANSFORMER

FUNCTION TEST OK!

25

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY

26

BILL OF MATERIAL

1 ADPC12416AF LCD ADAPTER ASS'Y 1PCS
1 CBPC782KKZAE1 CONVERSION BOARD FOR T782 1 PCS
1 DCPC780A7 DC POWER BOARD FOR T782K 1 PCS
1 KEPC782KA6 KEY BOARD FOR T782K* 1PCS
1 7L 1 7 WOODEN PALLET 0.0097PCS
1 7L 1 60 WOODEN PALLET 0.0097PCS
1 15L5689 2 A GND CLAMP 1PCS
1 15L5689 3 A GROUND CLAMP 2PCS
1 15L5695 1 REAR BRACKET 1PCS
1 15L5709 3 MAIN FRAME 1PCS
1 15L5791 1 VESA BRACKET 1PCS
1 33L4344 CA 1L HINGE COVER (L) 1PCS
1 33L4344 CA 2L HINGE COVER(R) 1PCS
1 33L4345 CA L CABLE COVER 1PCS
1 33L4362 1 LENS 1PCS
1 33L4447 CB L POWER KEY PAD 1PCS
1 34L 916 CA 3B BACK COVER 1PCS
1 34L 977ACA B FRONT PANEL 1PCS
1 40L 152509 RECYCLE LABEL 0PCS
1 40L 152512 RECYCLE LABEL 0PCS
1 40L 190786 1A ID LABEL 1PCS
1 40L 457716 1A TCO99 LABEL 1PCS
1 40L 459786 1A CARTON LABEL 1PCS
1 40L 581 26704 FOR CARTON/PALLET 0.1PCS
1 41L 68508 A Connalation card 0.2PCS
1 41L1700786 1A MANUAL 1PCS
1 41L7800786 1A WARRANTY BOOKLET 1PCS
1 41L7800786 2A TCO'99 CARD 1PCS
1 44L3231 12 A EVA WASHER 2PCS
1 44L3231 13 EVA WASHER 1PCS
1 44L3705 1 EPS 1PCS
1 44L3705 2 EPS 1PCS
1 44L6000 4 6B SPACE PAPER 0.01PCS
1 44L6002608 1A PAPER PLATE 0.01PCS
1 44L6002608 2A PAPER PLATE 0.01PCS
1 44L9003 9 CORNER PAPER 0.0769 PCS
1 44LS705786 1A CARTON 1PCS
1 45L 76 28 RN pe bag 1PCS
1 45L 77 3 TRANSPARENT SHEET 173CM
1 45L 77500 BARCODE RIBBON 19CM
1 45L 77501 BARCODE RIBBON 0.5CM
1 45L 88606 PE BAG FOR BASE 1PCS
1 45L 88607 PE BAG FOR MONITOR 1PCS

27

1

1 50L 500 1 CABLE TIE 1PCS
1 50L 600 2 HANDLE1 1PCS
1 50L 600 3 HANDLE2 1PCS
1 52L 1186 SMALL TAPE 8CM
1 52L 1208 A TAPE 2PCS
1 52L6019 1 TAPE 15CM
1 52L6020 1 PROTECT FILM 0.1PCS

79L L17 3 S INVERTER SAMPO 1PCS
1 85L 594 1 SHIELD MAIN 1PCS
1 89L 174L1710E SIGNAL CABLE 1PCS

1 89L402C18N GL POWER CORD 1 PCS

89L402C18N YH POWER CORD WALL OUT FOR 0PCS
1 95L8014 5 14 HARNESS 1PCS
1 95L8018 30 5 HARNESS 1PCS
1 B1L1030 5128 SCREW 6PCS
1 M1L 330 6128 SCREW 10PCS
1 M1L1030 10128 SCREW 4PCS
1 M1L1740 12128 SCREW 4PCS
1 Q1L 340 12128 SCREW 8PCS
1 Q1L 340 16120 SCREW 4X16 4PCS
1 Q1L1030 10128 SCREW 2PCS

1 750LLK70300 LCD PANEL HT17E11-300 1PCS

1 705L782KB34016 LCD 　 ASS'Y 1PCS

PART NO: ADPC12416AF LCD ADAPTER ASS'Y

2 ADPC12400AAI LCD ADAPTER ASS'Y FOR AI 1 PCS
2 ADPC12400AD6 LCD ADAPTER A6 ASS'Y 1PCS

LCD ADAPTER ASS'Y FOR

2 ADPC12400ASMT

AI

1PCS

2 GND1 9L6002 1 PIN 1PCS

2 40L 45762412A CBPC LABEL 2PCS
2 52L 1213600 TAPE 1PCS

2 IC903 56L 139 3 PC123FY2 BY SHARP 1 PCS
2 NR901 61L 58080 WT 8 OHM NCTR 1 PCS
2 R911 61L152M10457F MOFR 100KOHM +-5% 2W 1PCS
2 C901 63L 107334 5 0.33UF 0PCS
2 C901 63L107K334 U MPX 0.33UF,275VAC,+-10% 1PCS
2 C902 65L305M1022E3 1000PF +-20% 400VAC BY 1PCS
2 C903 65L305M1022E3 1000PF +-20% 400VAC BY 1PCS
2 C902 65L305M1022EM 1000PF +-20% 250VAC/40 0PCS
2 C903 65L305M1022EM 1000PF +-20% 250VAC/40 0PCS
2 C916 65L305M3322F2 3300PF +-20% 250VAC/40 0PCS
2 C916 65L305M3322F3 3300PF400VAC/250VAC 1PCS
2 C900 65L305M4722B2 4700 +-20% 400VAC ACFY 0PCS
2 C900 65L305M4722B3 4700PF +-20% 400VAC/25 1PCS

28

2 C921 67L 215102 3H 1000UF 16V 1PCS
2 C922 67L 215102 3H 1000UF 16V 1PCS
2 C921 67L 215102 3J 1000UF/16V 0PCS
2 C922 67L 215102 3J 1000UF/16V 0PCS
2 C921 67L 215102 3K 1000UF/16V 0PCS
2 C922 67L 215102 3K 1000UF/16V 0PCS
2 C906 67L305L101 4 100UF +-20% 25V 1PCS
2 C904 67L305S10114H HTR101M2GL33VR 1PCS

2 71L 55 2 A FERRITE BEAD 6.5*5*1.7 1 PCS
2 71L 55 30 FERRITE BEAD 4.0*2*3 1PCS

2 L901 73L 174 26 T1 LINE LILTER 0.45mm 1PCS
2 L902 73L 253 91 H CHOKE COIL 0PCS
2 L902 73L 253 91 L CHOKE BY LI TA 0PCS
2 L902 73L 253 91 S CHOKE COIL 1PCS
2 T901 80L 600 3 L X'FMR BY LI TAI 0PCS
2 T901 80L 600 3 T SRW28EC-T40H017 1PCS
2 LDE1 81L 2 3 2B BL-B2441J-AA 1PCS
2 F901 84L 53 1 FUSE 2A 250V LF-230002 1PCS
2 CN901 87L 501 10 AC SOCKET 1 PCS
2 89L 171506 DC POWER CORD 1PCS
2 BD901 93L 50460 8 BRIDGE 2KBP06M 1 PCS
2 D901 93L 6026T52T RECTIFIER DIODE FR107 1PCS
2 D901 93L 6026W52T FR107 0PCS
2 D902 93L 6038P52T PS102R 1PCS
2 D902 93L 6038T52T FR103 0PCS

2 715L 901 1 4 ADAPTOR 1PCS
2 705L 560 57 03 Q901 ASS'Y 1PCS
2 705L 560 61 03 R930 ASS'Y 1PCS
2 705L 780 93 03 D911 ASS'Y 1PCS

PART NO ADPC12400AA I LCD ADAPTER ASS'Y FO

3 715L 901 1A 3 42WBOARD 1PCS

3 J901 95L 90 23 TIN COATED 0PCS
3 J902 95L 90 23 TIN COATED 0PCS
3 J903 95L 90 23 TIN COATED 0PCS
3 J904 95L 90 23 TIN COATED 0PCS
3 J905 95L 90 23 TIN COATED 0PCS
3 R919 61L 21024352T MFR 24K OHM +- 1% 1/6W 1PCS
3 R925 61L 60220252T CFR 2K OHM+-5% 1/6W 1PCS
3 FB901 71L 55 19 T FERRITE BEAD 9X3.5X0.8 1 PCS
3 IC902 56L 158 2 T 3PIN IC TL431C/T.I. 0 PCS
3 IC905 56L 158 2 T 3PIN IC TL431C/T.I. 0 PCS
3 IC902 56L 158 4 T A HTL431 1 PCS
3 IC905 56L 158 4 T A HTL431 1 PCS
3 C905 65L 1K152 1T 1.5NF/1KV Z5F+-10% 1PCS

29

3 C920 65L517K681 2T 680PF 500V +-10% 25P 1PCS
3 C923 67L 305471 3T 470UF 16V 1PCS
PART NO ADPC12400AD 6 LCD ADAPTER A6 ASS'Y

3 33L6007 1 LENS 1PCS
3 40L 100 EW 1B ADAPTER ID 1PCS
3 40L 154501 1 HI-POT GND LABEL FOR M 1 PCS
3 45L 88525 E PE BAG 1PCS
3 W33L4477 D T TOP COVER 1PCS
3 W33L4478 D T BOTTOM COVER 1PCS

PART NO ADPC12400AS MT LCD ADAPTER ASS'Y FO
3 IC901 56L 379 25 UC3842ADM 1 PCS
3 Q903 57L 417 4 PMBS3904/PHILIPS-SMT 1PCS
3 Q902 57L 417 6 PMBS3906/PHILIPS-SMT 1PCS
3 R928 61L0603102 CHIPR 1K OHM +-5% 1/16 1PCS
3 R937 61L0603243 1F CHIPR 2.43KOHM+-1% 1/1 1PCS
3 R936 61L0603931 1F CHIPR 9.31KOHM+-1% 1/1 1PCS
3 R924 61L0805102 CHIPR 1K OHM +-5% 1/10 1PCS
3 R929 61L0805102 CHIPR 1K OHM +-5% 1/10 1PCS
3 R935 61L0805102 CHIPR 1K OHM +-5% 1/10 1PCS
3 R927 61L0805103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R922 61L0805104 CHIPR 100K OHM+-5% 1/1 1PCS
3 R915 61L0805471 CHIPR 470 OHM+-5% 1/10 1PCS
3 R916 61L0805472 CHIRP 4.7K OHM +-5% 1/ 1PCS
3 R917 61L0805472 CHIRP 4.7K OHM +-5% 1/ 1PCS
3 R918 61L0805472 CHIRP 4.7K OHM +-5% 1/ 1PCS
3 R920 61L0805623 CHIPR 62K OHM +-5% 1/1 1PCS
3 R921 61L0805683 CHIPR 68K OHM+-5% 1/10 1PCS
3 R923 61L1206100 CHIPR 10 OHM+-5% 1/8W 1PCS
3 R931 61L1206100 CHIPR 10 OHM+-5% 1/8W 1PCS
3 R932 61L1206100 CHIPR 10 OHM+-5% 1/8W 1PCS
3 R926 61L1206101 CHIP 100 OHM 5% 1/8W 1PCS
3 R912 61L1206129 CHIP 1.2OHM +-5% 1/8W 1PCS
3 R933 61L1206242 CHIPR 2.4K OHM+-5% 1/8 1PCS
3 R938 61L1206242 CHIPR 2.4K OHM+-5% 1/8 1PCS
3 R905 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R906 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R907 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R908 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R909 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R910 61L1206304 CHIP 300K OHM 1/8W 1PCS
3 R934 61L1206471 CHIPR 470 OHM+-5% 1/8W 1PCS
3 R901 61L1206684 CHIPR 680K OHM+-5% 1/8 1PCS
3 R902 61L1206684 CHIPR 680K OHM+-5% 1/8 1PCS
3 R903 61L1206684 CHIPR 680K OHM+-5% 1/8 1PCS

30

3 R904 61L1206684 CHIPR 680K OHM+-5% 1/8 1PCS
3 C913 65L0603101 31 CHIP 100PF 50V NPO 1PCS
3 C910 65L0603102 31 CHIP 1000PF 50V NPO 1PCS
3 C914 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C927 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C908 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C909 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C911 65L0603152 32 CHIP 1500PF 50V X7R 1PCS
3 C928 65L0805104 22 CHIP 0.1uF 25V X7R 080 1PCS
3 C929 65L0805104 22 CHIP 0.1uF 25V X7R 080 1PCS
3 C924 65L0805104 27 CHIP CAP 0.1uF 25V Y5V 1PCS
3 C912 65L0805105 17 chip ceramic cap 1UF 1 1PCS
3 C915 65L0805474 27 CHIP 0.47UF 25U Y5V 1PCS
3 C926 65L0805474 27 CHIP 0.47UF 25U Y5V 1PCS
3 ZD901 93L 39151 MMSZ5248B-SMT 1 PCS
3 D904 93L 64 32 LL4148 SMD 0PCS
3 D905 93L 64 32 LL4148 SMD 0PCS
3 D904 93L 6432V LL4148-GSO8 1PCS
3 D905 93L 6432V LL4148-GSO8 1PCS
3 ZD901 93L 39S500 T 19VZENER PIODE 0 PCS
PART NO 705L 560 57 03 Q901 ASS'Y
3 Q901 57L 724 4 2SK2996 1PCS

3 90L 39C1 Q HEAT SINK 1 PCS
3 M1L1730 7128 SCREW 1PCS

PART NO 705L 560 61 03 R930 ASS'Y
3 R930 61L 2J47859B WIRE WOUND 0.47 OHM ZW 1PCS

3 96L 29 6 SHRINK TUBE UL/CSA 1PCS

PART NO 705L 780 93 03 D911 ASS'Y

3 90L 39C1 D HEAT SINK 1 PCS

3 D911 93L 60226 STPS 20H1.0 SGS-THOMSO 0PCS
3 D912 93L 60226 STPS 20H1.0 SGS-THOMSO 0PCS
3 D911 93L 60227 MBR20100CT 1PCS
3 D912 93L 60227 MBR20100CT 1PCS

3 M1L1730 6128 SCREW M3x6 2PCS

PART NO CBPC782KKZAE1 CONVERSION BOARD

2 AIC782KKZAE1 LCD MAIN BOARD FOR T782 1 PCS

2 CN303 33L3802 5H WAFER 5P RIGHT ANELE P 1 PCS
2 CN302 33L3802 9H WAFER 9P RIGHT ANELE P 1 PCS
2 R319 33L8009 2 2 PIN MIN.JUMOER 1PCS

2 33L8010 2 L 2PIN SHUNT MINI JUMPER 1

2 CN200 33L8013 14 H PLUG 14P 90 1 PCS
2 CN603 33L801724A H PIN HEADER 24P 2.0mm 1 PCS

2 40L 457624 1A CPU LABEL 1PCS
2 40L 45762412A CBPC LABEL 1PCS

31

2 44L3231 8 A EVA WASHER 1PCS
2 49L 51 1A CLEANING 0.05ML
2 51L 500 1 WHITE GLUE 3G
2 51L6002 2 ACCELERANT 0ML
2 55L 100600 A SOLDER WIRE 0.5G
2 55L 100603 SOLDER 9.1G

2 U302 56L1125101 KJ/56L1125137-KJ WINBOND CPU 1PCS
2 C307 67L305L331 6 330UF +-20% 35V 1PCS
2 C309 67L305L331 6 330UF +-20% 35V 1PCS
2 C310 67L305L331 6 330UF +-20% 35V 1PCS
2 C312 67L305L331 6 330UF +-20% 35V 1PCS
2 C945 67L309L471 3 470UF+-20% 16V 1PCS
2 FB301 71L 55 28 FERRITE BEAD 7.62*5.08 1 PCS
2 L906 73L 253124 L CHOCK 1PCS
2 L905 73L 259 4 200UH +/-5% 1PCS
2 VR501 75L 335103 CFVR 10K OHM +-20% 1 PCS
2 X300 93L 22 55 CRYSTAL 20MHz HC-49US 1PCS
2 U201 93L 22 57 OSCILLATOR 50MHZ - 3.3 1PCS
2 J1 95L 900 31 HARNESS 1PCS
PART NO AIC782KKZAE LCD MAIN BOARD FOR T782K*

3 55L 23520 IPA 0.06ML
3 55L 100600 A SOLDER WIRE 0.5G
3 55L 100602 SOLDER 0.85G

3 U601 56L 561 5 NT7181F 1PCS
3 U602 56L 561 5 NT7181F 1PCS
3 U200 56L 562 12 gmZAN2 1PCS
3 U304 56L 563 1 LM2596S-5.0 SMT 1PCS
3 U305 56L 563 7 AIC1084-33M 1PCS
3 U202 56L 566 6 SI9953DY-T1 1PCS
3 U904 56L 585 4 AIC1117-33CY 1PCS
3 U905 56L 585 5 RT9164-25CG 1PCS
3 U401 56L 74F 14 P N74F14D SMT 1PCS
3 U203 56L1133 16 24LC21A/SN 1PCS
3 U300 56L1133 33 M24C16-MN6T 1PCS

3 Q200 57L 417 4 PMBS3904/PHILIPS-SMT 1PCS

3 Q304 57L 417 4 PMBS3904/PHILIPS-SMT 1PCS
3 RP300 61L 125103 8 CHIP AR 8P4R 10KOHM +- 1 PCS
3 RP301 61L 125472 8 CHIP AR 8P4R 4.7K OHM+ 1 PCS
3 JP301 61L0603000 CHIPR 0OHM +-5% 1/16W 1 PCS
3 L207 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R203 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R207 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R208 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R221 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS

32

3 R229 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R232 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R233 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R234 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R310 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R317 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R340 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R603 61L0603000 CHIPR 0OHM +-5% 1/16W 1PCS
3 R200 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R201 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R202 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R218 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R219 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R220 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R227 61L0603101 CHIPR 100 OHM +-5% 1/1 1PCS
3 R213 61L0603102 CHIPR 1K OHM +-5% 1/16 1PCS
3 R214 61L0603102 CHIPR 1K OHM +-5% 1/16 1PCS
3 R216 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R217 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R223 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R224 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R225 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R300 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R301 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R311 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R313 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R315 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R326 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R327 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R328 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R329 61L0603103 CHIPR 10K OHM +-5% 1/1 1PCS
3 R209 61L0603202 CHIPR 2K OHM+-5% 1/16W 1PCS
3 R210 61L0603202 CHIPR 2K OHM+-5% 1/16W 1PCS
3 R303 61L0603472 CHIPR 4.7K OHM +-5% 1/ 1PCS
3 R204 61L0603750 CHIPR 75 OHM+-5% 1/16W 1PCS
3 R205 61L0603750 CHIPR 75 OHM+-5% 1/16W 1PCS
3 R206 61L0603750 CHIPR 75 OHM+-5% 1/16W 1PCS
3 JP202 61L1206000 CHIPR 0 OHM +-5% 1/8W 1 PCS
3 JP302 61L1206000 CHIPR 0 OHM +-5% 1/8W 1 PCS
3 L204 61L1206000 CHIPR 0 OHM +-5% 1/8W 1PCS
3 L205 61L1206000 CHIPR 0 OHM +-5% 1/8W 1PCS
3 C948 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C949 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C950 65L0603102 32 CHIP 1000PF 50V X7R 1PCS

33

3 C951 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C952 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C953 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C954 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C955 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C956 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C957 65L0603102 32 CHIP 1000PF 50V X7R 1PCS
3 C229 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C230 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C231 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C232 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C233 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C234 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C251 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C606 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C608 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C614 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C616 65L0603103 32 0.01UF+-10% 50V X7R 1PCS
3 C201 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C202 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C204 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C205 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C207 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C208 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C209 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C210 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C211 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C212 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C213 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C215 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C217 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C218 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C219 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C220 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C221 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C222 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C223 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C225 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C226 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C227 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C228 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C237 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C244 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C245 65L0603104 12 0.1UF +-10% 16V X7R 1PCS

34

3 C246 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C300 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C304 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C308 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C311 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C405 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C601 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C602 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C604 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C618 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C619 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C939 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C940 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C941 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C942 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C944 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C946 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C947 65L0603104 12 0.1UF +-10% 16V X7R 1PCS
3 C250 65L0603330 31 33PF+-5% 50V NPO 1PCS
3 C303 65L0603330 31 33PF+-5% 50V NPO 1PCS
3 C306 65L0603330 31 33PF+-5% 50V NPO 1PCS
3 CP301 65L600M102 8T 1000PF+-20% 50V 8P X7R 1 PCS
3 CP302 65L600M102 8T 1000PF+-20% 50V 8P X7R 1 PCS
3 C605 67L 312100 3 SMD 10uf +-20% 16V 1PCS
3 C607 67L 312100 3 SMD 10uf +-20% 16V 1PCS
3 C613 67L 312100 3 SMD 10uf +-20% 16V 1PCS
3 C615 67L 312100 3 SMD 10uf +-20% 16V 1PCS
3 C620 67L 312100 3 SMD 10uf +-20% 16V 1PCS
3 C200 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C203 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C206 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C214 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C216 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C224 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C305 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C403 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C603 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C927 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C928 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C929 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C930 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C943 67L 312101 3 SMD 100UF +-20% 16V 1PCS
3 C313 67L 312220 3 SMD 22UF +-20% 16V 1PCS
3 C314 67L 312220 3 SMD 22UF +-20% 16V 1PCS

35

3 L200 71L 57G601 TI3216JIG601-T17A 1PCS
3 L201 71L 57G601 TI3216JIG601-T17A 1PCS
3 L202 71L 57G601 TI3216JIG601-T17A 1PCS
3 L203 71L 57G601 TI3216JIG601-T17A 1PCS
3 L300 71L 57G601 TI3216JIG601-T17A 1PCS
3 L900 71L 57G601 TI3216JIG601-T17A 1PCS
3 L601 71L 59B121 TB160808B12 SMD 0PCS
3 L602 71L 59B121 TB160808B12 SMD 0PCS
3 L603 71L 59B121 TB160808B12 SMD 0PCS
3 L604 71L 59B121 TB160808B12 SMD 0PCS
3 R215 71L 59B121 TB160808B12 SMD 0PCS
3 R237 71L 59B121 TB160808B12 SMD 0PCS
3 R238 71L 59B121 TB160808B12 SMD 0PCS
3 L601 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 L602 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 L603 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 L604 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 R215 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 R237 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 R238 71L 59C121 B FCM1608C-121T03 SMD 1PCS
3 MTG U 30 87L 202 44 PLCC SMT CONN PD41C-44 1 PCS
3 D200 93L 39146 LL5232B SMT 0PCS
3 D201 93L 39146 LL5232B SMT 0PCS
3 D208 93L 39146 LL5232B SMT 0PCS
3 D209 93L 39146 LL5232B SMT 0PCS
3 D210 93L 39146 LL5232B SMT 0PCS
3 D200 93L 39147 TZMC5V6-GS08 1PCS
3 D201 93L 39147 TZMC5V6-GS08 1PCS
3 D208 93L 39147 TZMC5V6-GS08 1PCS
3 D209 93L 39147 TZMC5V6-GS08 1PCS
3 D210 93L 39147 TZMC5V6-GS08 1PCS
3 D200 93L 39149 MLL5232B BY FULL POWER 0PCS
3 D201 93L 39149 MLL5232B BY FULL POWER 0PCS
3 D208 93L 39149 MLL5232B BY FULL POWER 0PCS
3 D209 93L 39149 MLL5232B BY FULL POWER 0PCS
3 D210 93L 39149 MLL5232B BY FULL POWER 0PCS
3 D300 93L 60211 SMB340 BY FULL POWER 1PCS
3 D300 93L 60212 SMB340 SMT 0PCS
3 D303 93L 60219 BAT54C SMT 0PCS
3 D303 93L 60220 BAT54C-GS08 0PCS
3 D303 93L 60230 BAT54C 1PCS
3 D202 93L 64 32 LL4148 SMD 0PCS
3 D203 93L 64 32 LL4148 SMD 0PCS
3 D204 93L 64 32 LL4148 SMD 0PCS

36

3 D205 93L 64 32 LL4148 SMD 0PCS
3 D206 93L 64 32 LL4148 SMD 0PCS
3 D207 93L 64 32 LL4148 SMD 0PCS
3 D301 93L 64 32 LL4148 SMD 0PCS
3 D302 93L 64 32 LL4148 SMD 0PCS
3 D202 93L 6432U MLL4148 SMD 0PCS
3 D203 93L 6432U MLL4148 SMD 0PCS
3 D204 93L 6432U MLL4148 SMD 0PCS
3 D205 93L 6432U MLL4148 SMD 0PCS
3 D206 93L 6432U MLL4148 SMD 0PCS
3 D207 93L 6432U MLL4148 SMD 0PCS
3 D301 93L 6432U MLL4148 SMD 0PCS
3 D302 93L 6432U MLL4148 SMD 0PCS
3 D202 93L 6432V LL4148-GSO8 1PCS
3 D203 93L 6432V LL4148-GSO8 1PCS
3 D204 93L 6432V LL4148-GSO8 1PCS
3 D205 93L 6432V LL4148-GSO8 1PCS
3 D206 93L 6432V LL4148-GSO8 1PCS
3 D207 93L 6432V LL4148-GSO8 1PCS
3 D301 93L 6432V LL4148-GSO8 1PCS
3 D302 93L 6432V LL4148-GSO8 1PCS

3 715L 820 2 2 TF-1780 LCD MAIN BOARD 1 PCS

PART NO DCPC780A7 DC POWER BOARD FOR T782k*
2 J7 33L3252 3 H WAFER 3P 3.96MM 90 1PCS
2 C71 67L305L331 6 330UF +-20% 35V 1PCS
2 JP2 88L 304 1S DC POWER JACK 0PCS
2 JP2 88L 3041CE DC JACK 1PCS
2 F01 95L 90 23 TIN COATED 1PCS

2 715L 919 2 15" 17" DC-IN BOARD 1 PCS

PART NO KEPC782KA6 KEY BOARD FOR T782*

2 AIK782KA2 KEY BOARD FOR T782* 1PCS
2 AIK782KA2SMT KEY BOARD FOR T782K* 1PCS

2 SW101 77L 600 1GHJ KEY SWITCH 1 PCS
2 SW102 77L 600 1GHJ KEY SWITCH 1 PCS
2 SW103 77L 600 1GHJ KEY SWITCH 1 PCS
2 SW104 77L 600 1GHJ KEY SWITCH 1 PCS
2 SW105 77L 600 1GHJ KEY SWITCH 1 PCS
2 LED1 81L 12 1 GP LED 1PCS
2 JP801 95L8014 9 24 HARNESS 1 PCS
PART NO AIK782KA2 KEY BOARD FOR T782*
3 715L 707 1 2 KEPC 1PCS
3 J101 95L 90 23 TIN COATED 0PCS
3 J102 95L 90 23 TIN COATED 0PCS
3 R109 61L 60210252T CFR 1K OHM+-5% 1/6W 1PCS

37

V

X

U

3 R101 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R102 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R103 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R104 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R105 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R106 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R107 61L 60210352T CFR 10K OHM+-5% 1/6W 1PCS
3 R108 61L 60222152T CFR 220 OHM +-5% 1/6W 1PCS
PART NO AIK782KA2SM KEY BOARD FOR T782K*
3 Q101 57L 417 4 PMBS3904/PHILIPS-SMT 1PCS
3 Q102 57L 417 4 PMBS3904/PHILIPS-SMT 1PCS
3 C101 65L0805104 32 CHIP 0.1UF 50V X7R 1PCS
PART NO 705L782KB34016 LCD ASS'Y

2 12L 381 1 RUBBER FOOT 0PCS
2 15L5711 1 BASE PLATE 1PCS
2 34L 917 CA B STAND FRONT COVER 1 PCS
2 34L 918 CA B STAND BACK COVER 1PCS
2 34L 919 CA B BASE 1PCS
2 37L 448 1 LCD HINGE 1PCS
2 Q1L 140 10128 SCREW 6PCS
2 Q1L1030 10128 SCREW 2PCS
2 Q1L1030 12128 SCREW 4PCS

Key Parts List(AL707)

Location AOC P/N Specification

PANEL

SIGNAL CABLE 89L 174L1710E

EDIO CABLE 95L8018-30-5 HARNESS

Inverter
Adapter
MCU 56L1125101-KT/56L1125137-KT
U200 56L-562-12 gmZAN2
U202 56L-566-6 SI9953DY-T1
U203 56L1133-16 24LC21A/SN
U300
U304

U305
U401
U601

U602

U904

905

300
201 93L 22 57 OSCILLATOR 50MHZ - 3.3

750LLK70300 LCD PANEL HT17E11-300

SIGNAL CABLE

79L L17-3-S INVERTER SAMPO
ADPC12416AF

LCD ADAPTER ASS'Y

WINBOND CPU

56L1133-33
56L-563-1

AT24C04N-10SC SMT
LM2596S-5.0 SMT

56L-563-7 AIC1084-33M
56L-74F-14-P N74F14D SMT
56L-561-5 NT7181F
56L-561-5

NT7181F

56L-585-4 AIC1117-33CY

6L 585 5

3L 22 55

T9164-25CG

RYSTAL 20MHz HC-49US

38

(

(

(

)

9. POWER SYSTEM AND CONSUMPTION CURRENT

ADAPTER MODULE
Input AC 110V, 60Hz/240V, 50Hz
Output DC 12V 5A

LM2596S-5, 12V to 5V (5A SPEC)

Main board power system

INVERTER MODULE
Input DC 12V
Output AC 1500V/30K-80KHz
Current 14mA

5V

AIC1084

5V to 3.3V

5A SPEC)

3.3V

for GMZAN2
consumption

To CPU, Eeprom, 24c21, control-inverter-on.off
860mA when Cable not Connected
841mA when Normal operation
To Hyundai-300 Panel around 1450mA

RT9164
5V to 2.5V

800mA SPEC

3.3V 2.5V

for GMZAN2
consumption

for LVDS consumption

LT1117
5V to 3.3V

800mAspec)

39

G

Input
Connector

AIC1084
5V to 3.3v

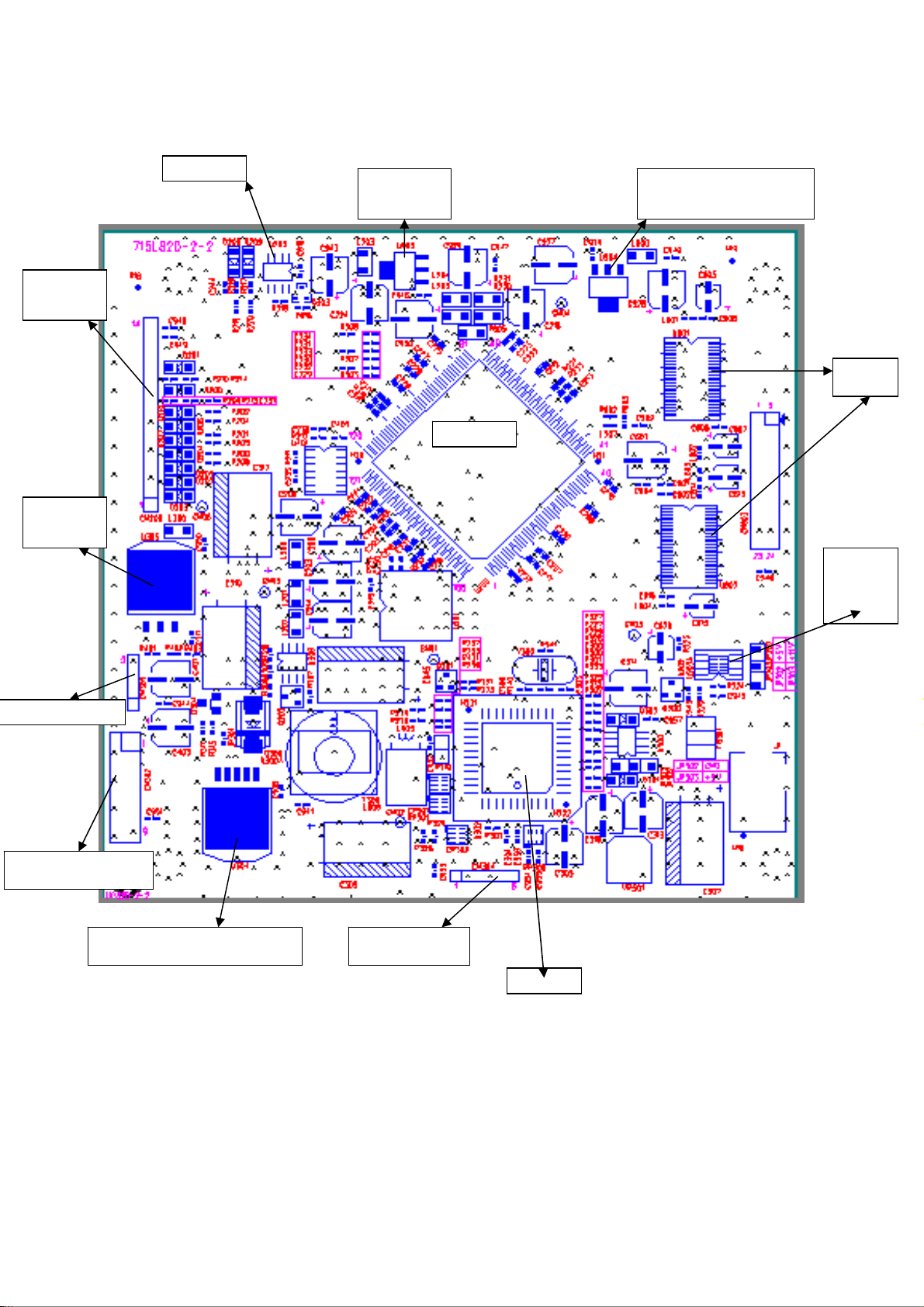

10. PCB LAYOUT

MAIN PCB LAYOUT

DDC chip

RT9164
5V to 2.5v

LVDS power ( LT1117)

5V to 3.3v

LVDS

mzan2

Inverter-connector

Keyboard-connector

LM2596 convert 12V to 5V

Panel­Power
Control

Audio-connector

MCU

40

k

11. SCHEMATIC DIAGRAM

TOP-LEVEL FLOW

+5V

+12V

INPUT

VGA_SDA

SDA

VCC

24LC21A
EEPROM

POWER

12V

AIC1084-3.3V
RT9164-2.5V

LM2596-5.0V

R

G

B

H-SYNC
V-SYNC

/VGA_CON

RXD
TXD

VGA_SCL

SCL

+3.3V
+2.5V

+5V

+3.3V
+2.5V
+5.0V

.Gmzan2 block

+5V

VCC

MFB1

HDATA0

/VGA_CON
RXD
TXD

MICRO CONTROLLER Winbond

MCU

MFB7

MFB8

MFB9

MFB2

+2.5V

+3.3V

ZAN2SCALER

ERED

+3.3V

+2.5V

RED

GREEN

BLUE

HSYNC/CS
VSYNC LVDSEN

HDATA0
MFB1
MFB2
MFB7
MFB8
MFB9

TCLK1

IRQ

IRQ

TCLK1

EGRN

EBLU

PDISPE

PVS
PHS

PCLK

ORED
OGRN

OBLU

TCLK

RST

HCLK

HFS

RST

HFS

HCLK

SDA

SCL

XTAL1

XTAL2

X1

X2

CRYSTAL1 20MHZ

RST1

CRYSTAL2 50MHZ

RST1

EEPROM1 24C16

OUT

SDA

SCL

LVDS bloc

+3.3V

LVDS1

ERED[0-7]

VCC

EGRN[0-7]

TX0-/+E

EBLU[0-7]

TX1-/+E

DENABLE

TX2-/+E

PVS

TX3-/+E

PHS

TXC-/+E
TXCLKIN
/PWRDWN

NT7181

+3.3V

LVDS2

ORED[0-7]

VCC

OGRN[0-7]

TX0-/+O

OBLU[0-7]

TX1-/+O

DENABLE

TX2-/+O

PVS

+5V

VCC

+5V

VCC

TX3-/+O

PHS

TXC-/+O
TXCLKIN
/PWRDWN

NT7181

Title

Size Document Number Rev

B

Monday, July 29, 2002

Date: Sheet of

+5V

PANEL(HYUNDAI-300)

ACER

SIEMENS 43B1-M

BLOCK DIAGRAM

715L820-2-2

VCC

TX0-/+E
TX1-/+E
TX2-/+E
TX3-/+E

TXC-/+E

TX0-/+O
TX1-/+O
TX2-/+O
TX3-/+O

TXC-/+O

A

11

41

GMZAN2 Block

/VGA_CON

CN200

HEADER 14

VGA_5V

C618

0.1 uF

C943
100uF

1
2
3
4
5
6
7
8

9
10
11
12
13
14

ADC-AGND

RXD
TXD

A

24LC21A

GND

C

1
2
3

ADC-AGND

BLUE
/VGA_CON1

VGA_HSYNC
VGA_VSYNC

VGA_SCL

VGA_SDA

+5V

2

D303

NC
NC
NC

GND

VGA_5V

BAT54

84

VCLK

PLL_GNDA

ADC GNDA

RXD
TXD

GND

C619

0.1 uF

Connect two grounds at single point only.

ADC-AGND

+D5V

123

4

RP300

GND

10 K

876

5

VDDA

VSYNC

C236
100 pF(OP)

C235
100 pF(OP)

99
105
104
102

103
101

98

107
106

124
123
109
110
111
112
113

95

C229

94

10 nF
C232

10 nF

91

C230

90

10 nF
C233

10 nF

87

C231

86

10 nF
C234

10 nF

148

150

83

97
130
135
142
145
152
153

+2.5V

PCLKB

C262

+5V

R327

R227

100

C244

0.1 uF

GND

U203

SDA
SCL

VCCGND

10 K

C251

D210

10nF

5.6 V

A C

ADC-AGND

ADC-AGND

C948 CAP
C949 CAP

R218

100 R

+2.5V

+5V

A C

AC

GND

L205

1 2

0

R219
100 R

R216

DDC_SCL

10 K

D208

5.6V

+3.3V

+3.3V

R220

100 R

R217

10 K

DDC_SDA

D209

5.6V

5
6

7

C(OP)

GND

ADC-AGND

+5V

R210
2 K(OP)

R214
1 K(OP)

+5V

+D5V

R209

C405

2 K(OP)

0.1UF

R213
1 K(OP)

+3.3V

C206
100uF

R230
0(OP)

+A2.5V

C216
22uF

L203

600(1206)

ADC-AGND

C207

0.1 uF

C213

0.1 uF

12

C224
100uF

ADC-AGND

D203

1N4148

D206

1N4148

D207

1N4148

11 10

D201

A C

5.6 V

ADC-AGND

1 2

D200

A C

5.6 V

C208

0.1 uF

C217

0.1 uF

C225

0.1 uF

VDDA

D202
1N4148

A C

A C

VDDA

A C

A C

U401E

74LVT14_ADC

+D5V

U401A

74LVT14_ADC

C209

0.1 uF

GND

C218

0.1 uF

ADC GNDA

HDATA0

MFB7
MFB8
MFB9

HCLK

IRQ

HFS

MFB2

VDDA

D204
1N4148

A C

D205
1N4148

A C

ADC-AGND

ADC-AGND

R212

100 (op)

R211 100(op)

C210

0.1 uF

C219

0.1 uF

GND

C226

0.1 uF

R316 NC
R317 0

GND

R206
75

ADC-AGND

R205

75

ADC-AGND

R204

75

ADC-AGND

U401D

9 8

74LVT14_ADC

ADC-AGND

U401B

3 4

74LVT14_ADC

ADC-AGND

C211

0.1 uF

C220

0.1 uF

C227

0.1 uF

R200 0

R203 0

R201 0

R207 0

R202 0

R208 0

C228

0.1 uF

C212

0.1 uF

C221

0.1 uF

C956
1000pF

U200

HDATA
MFB7
MFB8
MFB9

HCLK
IRQ
HFS

MFB5
MFB6

MFB10
MFB11
MFB4
MFB3
MFB2
MFB1
MFB0

RED+

RED-

GREEN+

GREEN-

BLUE+

BLUE-

VSYNC

HSYNC/CS

2

Reserved

3

PSCAN

4

Reserved
Reserved

NC
Reserved
Reserved
XTAL(Reserved)
Reserved
Reserved
STI_TM1

ZAN1

L204

1 2

0

+3.3V

R221

R(OP)

33

4058657779

108

60

RVDD1

RVDD2

RVDD3

RVDD2A

RVDD3A

RVDD2B

CVSS1

RVSS1

CVSS1A

18183041496172114

5

R232

0(OP)

GND

+3.3V

R231
0(OP)

+B2.5V

SRVSS1

ADC_VDD2

RVSS2

CVSS2

+B2.5V

GND

ADC_VDD1

RVSS3

RVSS4

CVSS3

C222

0.1 uF

111221

SRVDD1

CVSS4

126

CVDD2

SRVDD2

DVSS

SVSS

140

125

DVDD

SYN_VSS

151

C223

0.1 uF

+A2.5V

139

SVDD

SRVSS2

158

149

78

SYN_VDD

ADC_GND2

ADC_GND1

CVSS2A

80

59

VDDA

84889296128

ADC_VDDA

ADC_BVDDA

ADC_GVDDA

CVSS5

147

R234
0(OP)

R233
0(OP)

+D5V

C929
100uF

ADC_RVDDA

SUB_GNDA

ADC_GNDA

8182858993

ADC-AGND

DVDDA

129

DAC_DVDDA

ADC_BGNDA

ADC_GGNDA

ADC_RGNDA

C947

0.1uF

PLL_DVDDA

U905
RT9164

3

IN

SVDDA

136

137

PLL_SVDDA

DAC_SVDDA

PLL_DGNDA

131

132

PGND

ADJ

1

GND

SUB_DGNDA

SUB_SGNDA

PLL_SGNDA

133

134

127

OUT

RVDDA

143

PLL_RVDDA

DAC_DGNDA

DAC_SGNDA

PLL_RGNDA

138

144

146

2

SUB_RGNDA

C930
100uF

PDISPE

PCLKA
PCLKB

OSD_CLK
OSD_VREF
OSD_HREF

OSD_DATA2
OSD_DATA1
OSD_DATA0

OSD_FSW

OSD_DATA3

RESETn

STI_TM2

SCAN_IN1

Reserved

SCAN_IN2
SCAN_OUT1
SCAN_OUT2

+2.5V

PBIAS
PPWR

TCLK

141

TCLK

PD47

6

PD47

7

PD46

PD46

PD45

9

PD45

PD44

10

PD44

PD43

13

PD43

PD42

14

PD42

PD41

15

PD41

PD40

16

PD40

PD39

17

PD39

PD38

19

PD38

PD37

20

PD37

PD36

22

PD36

PD35

23

PD35

PD34

24

PD34

PD33

25

PD33

PD32

26

PD32

27

PD31

PD31

PD30

28

PD30

PD29

29

PD29

PD28

31

PD28

PD27

32

PD27

PD26

34

PD26

PD25

35

PD25

36

PD24

PD24

PD23

37

PD23

PD22

38

PD22

PD21

39

PD21

PD20

42

PD20

PD19

46

PD19

PD18

47

PD18

PD17

48

PD17

PD16

50

PD16

51

PD15

PD15

PD14

52

PD14

53

PD13

PD13

54

PD12

PD12

PD11

55

PD11

PD10

56

PD10

57

PD9

PD9

PD8

62

PD8

PD7

63

PD7

64

PD6

PD6

PD5

66

PD5

PD4

67

PD4

PD3

68

PD3

PD2

69

PD2

PD1

70

PD1

PD0

71

PD0

PVS

73

PVS

PHS

74

PHS

75

LVDS EN
PPWR

76

PDISPE

43

CLK

44
45

117
116
115

120
119
118

122

121

100

154
155
156
157
159
160

GND

PPWR

C946

0.1uF

LVDS EN

L207

1 2

L

+D5V

R326
10 K

C314
22 uF

C620
10uF

GND

+3.3V

L200

12

600(1206)

L201

12

600(1206)

L202

12

600(1206)

C237

0.1 uF

PCLKA
PHS

PD[0..47]

PCLKB

R602

R

PCLKA

R603

R

PCLKB

PCLKB

D302

R229

1N4148

A C

GND

R223

10 K

0

C957
1000PF

GND

C942

R224

0.1 uF

10K

3

Q200

1

MMBT3904

2

ACER Electronics Co., Ltd.

Title

Size Document Number Rev

C

Date: Sheet of

C200
100uF

PGND

C203
100uF

PGND

1 4
2

PGND

GND

PCLKA
PHS

PD[0..47]

RST1

R225
10K

GND

Monday, October 21, 2002

C201

C202

0.1 uF

0.1 uF

C205

C204

0.1 uF

0.1 uF

U201

SB VCC

3

OUT

GND

50 MHz

PVS
PDISPE

R229:
Let Zan1 been
reseted twice!

+D5V

4

G2

D2

5

C245

0.1 uF
C246

0.1 uF

ZAN2

715L820-2-2

DVDDA

SVDDA

GND

JP202

123

S1G1S2

D1D1D2

876

PANEL_P

0

U202
SI9933ADY

C214
100uF

R215

bead 120

C250

33 pF

14

PGND

PVS
PDISPE

JP203

R (OP)

C215

0.1 uF

RVDDA

TCLK

+12V

PANEL_P

A

AVDD_3.3

ADC GNDA

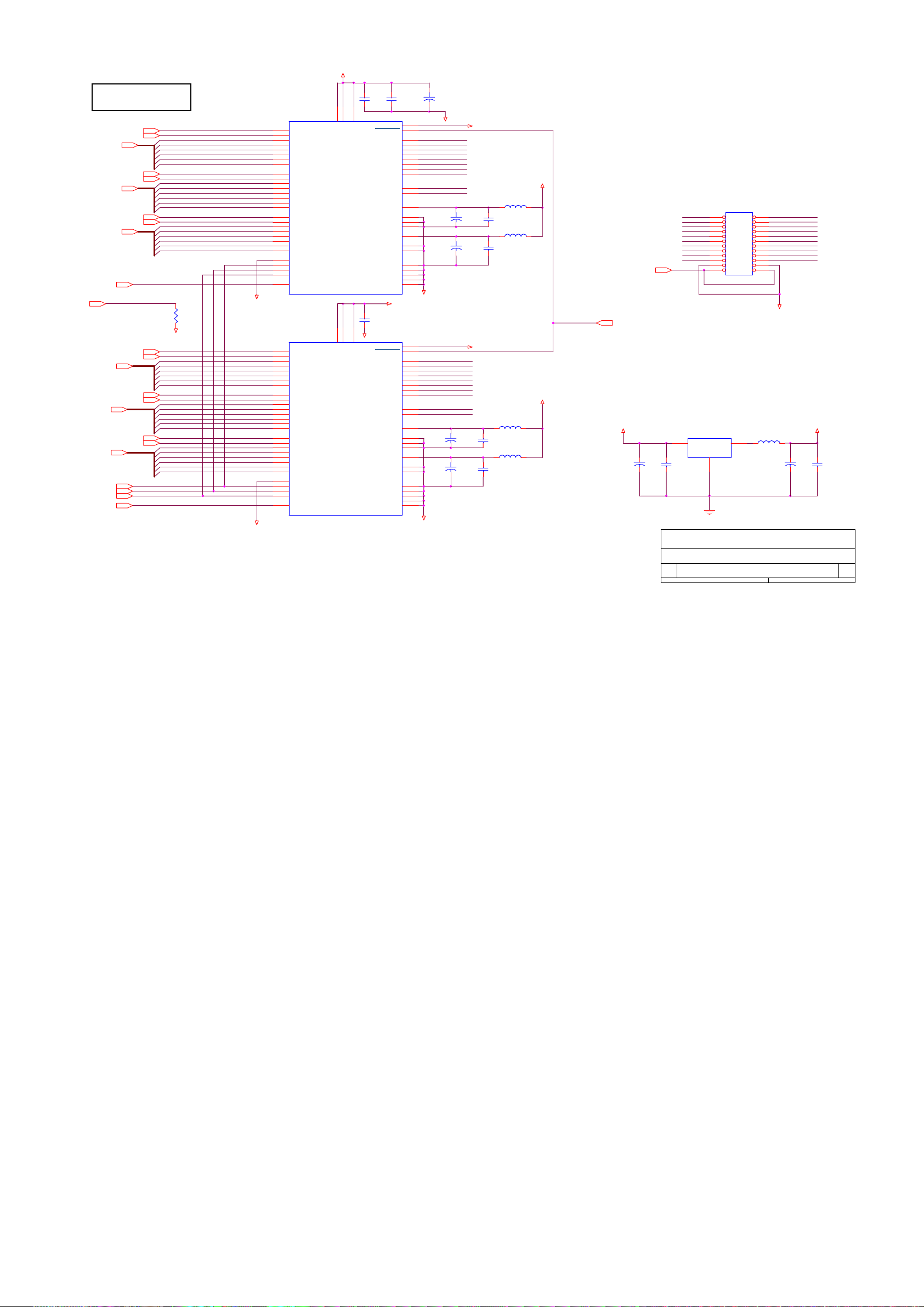

LVDS Block

PD36
PD37

PD[0..5]

PD38
PD39

PD[6..11]

PD40
PD41

PD[12..17]

PCLKA

ADC GNDA

PD42
PD43

PD[18..23]

PD44

PDISPE
PCLKB

PHS

PD45

PD46
PD47

PVS

PD[24..29]

PD[30..35]

ADC-AGND

PD36
PD37
PD0
PD1
PD2
PD3
PD4
PD5

PD38
PD39
PD6
PD7
PD8
PD9
PD10
PD11

PD40

PD41
PD12
PD13

PD14
PD15
PD16
PD17

PD42
PD43
PD18
PD19
PD20
PD21
PD22
PD23

PD44
PD45
PD24
PD25
PD26
PD27
PD28
PD29

PD46
PD47
PD30
PD31
PD32
PD33
PD34
PD35

GND

R605

C602

91726

V

91726

V

C601

0.1uF

0.1uF

V

V

EDGE

PWRDWN

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3-

TXOUT3+

TXCLKOUT-

TXCLKOUT+

LVDSVCC

LVDSGND
LVDSGND
LVDSGND

PLLVCC
PLLGND

PLLGND

GND
GND
GND
GND
GND

AVDD_3.3

C604

0.1uF

GND

V

V

EDGE

PWRDWN

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3-

TXOUT3+

TXCLKOUT-

TXCLKOUT+

LVDSVCC

LVDSGND
LVDSGND
LVDSGND

PLLVCC
PLLGND

PLLGND

GND
GND
GND
GND
GND

EVEN

U601
NT7181

TSSOP56

51

TXIN0

52

TXIN1

54

TXIN2

55

TXIN3

56

TXIN4

3

TXIN6

50

TXIN27

2

TXIN5

4

TXIN7

6

TXIN8

7

TXIN9

11

TXIN12

12

TXIN13

14

TXIN14

8

TXIN10

10

TXIN11

15

TXIN15

19

TXIN18

20

TXIN19

22

TXIN20

23

TXIN21

24

TXIN22

16

TXIN16

18

TXIN17

25

TXIN23

27

TXIN24

28

TXIN25

30

TXIN26

31

TXCLKIN

GND

R

GND

51
52
54
55
56

50

11
12
14

10
15

19
20
22
23
24
16
18

25
27
28
30

31

3
2
4

6
7

8

U602
NT7181

TSSOP56

TXIN0
TXIN1
TXIN2
TXIN3
TXIN4
TXIN6
TXIN27
TXIN5

TXIN7
TXIN8
TXIN9
TXIN12
TXIN13
TXIN14
TXIN10
TXIN11

TXIN15
TXIN18
TXIN19
TXIN20
TXIN21
TXIN22
TXIN16
TXIN17

TXIN23
TXIN24
TXIN25
TXIN26

TXCLKIN

1

ODD

1

+

C603
100uF

GND

32

TX0-E

48

TX0+E

47

TX1-E

46

TX1+E

45
42

TX2-E

41

TX2+E

38

TX3-E

37

TX3+E

TXCK-E

40

TXCK+E

39

44
49

C605
10uF

43

16V

36
34

C607

35
33

10uF

16V

53
29
21
13
5

GND

32

TX0-O

48
47

TX0+O

46

TX1-O

45

TX1+O

42

TX2-O

41

TX2+O

38

TX3-O

37

TX3+O

TXCK-O

40

TXO10

39

44

C613

49

10uF

43

16V

36
34

C615

35

10uF

33

16V

53
29
21
13
5

GND

TXE0
TXE1
TXE2
TXE3
TXE4
TXE5
TXE6
TXE7

TXE8
TXE9

GND

AVDD_3.3

+

C606

0.01UF

+

C608

0.01UF

TXO0
TXO1
TXO2
TXO3
TXO4
TXO5
TXO6
TXO7

TXO8

+

C614

0.01UF

+

C616

0.01UF

GND

L601
BEAD (120)

L602
BEAD (120)

L603
BEAD (120)

L604
BEAD (120)

AVDD_3.3

EVEN

LVDS EN

+D5V

PANEL_P

C927
330uF

C939

0.1uF

HEADER 12X2

OUT

ADJ

1

CN603

2

TXE1

12

TXE3

34

TXE5

56

TXE9

78

TXE7

910

TXO1

1112

TXO3

1314

TXO5

1516

TXO10

1718

TXO7

1920
2122
2324

GND

C928
330uF

AVDD_3.3

C940

0.1uF

L900

L

TXE0

TXE2
TXE4
TXE8
TXE6
TXO0
TXO2
TXO4
TXO8
TXO6

U904
LT1117

3

IN

GND

ACER Electronics Co., Ltd.

Title

Size Document Number Rev
Custom

Monday, October 21, 2002

Date: Sheet of

LVDS

715A820-2-2

66

A

MCU Block

+5V

C313
22 uF

R313
10 K

GND

R300
10 K

SDA

SCL

A C

D301
1N4148

RST

R301
10 K

+A5V

5

6

U300

SI

SCK

24LC04B

BKLT-PWM
VOL

C316
22 uF

VCC

WP

A0
A1
A2

VSS

8

7
1
2
3
4

GND

SDA
SCL

HDATA0

MFB7
MFB8
MFB9

HCLK

HFS

R302
10 K

RXD

TXD
IRQ

MFB2

RST1

/VGA_CON

C303
33 pF

GND

C300

0.1 uF

GND

+5V

RST

X300

20MHz

C306
33 pF

R333

2 K

R340

R341
TEST(OP)

GND

0

PS3

JP303

JP302

R

R(OP)

2
3
4
5
6
7
8
9

10

11
13
14
15
16
17
18
19

20

21

U302

T2/P1.0
T2EX/P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

RST

RXD/P3.0
TXD/P3.1
INT0/P3.2
INT1/P3.3
TO/P3.4
T1/P3.5
WR/P3.6
RD/P3.7

XTAL2

XTAL1

GND

22

/BKLT-ON

8XC51/PLCC

P2.0/A8

P2.1/A9
P2.2/A10
P2.3/A11
P2.4/A12
P2.5/A13
P2.6/A14
P2.7/A15

ALE/PROG

P0.7/AD7
P0.6/AD6
P0.5/AD5
P0.4/AD4
P0.3/AD3
P0.2/AD2
P0.1/AD1
P0.0/AD0

NCNCNC

11223

R315

10 K

PSEN

VCC

EA/VP

NC

34

MMBT3904

+5V

R431

10 K(OP)

R238 0(OP)

(Panel-Select)*

/BKLT-ON

KEY1(ORANGE?)
KEY2(GREEN?)

+5V

C304

0.1 uF

C944

0.1 uF

+5V

W

10 K

GND

2

PS3

PW5V-ON

4.7K Ohm

C403

GND

BKLT ADJ

RP301

R303

4.7K

100uF

R321
0 (OP)

R401

0(OP)

18
27
36
45

+12V

GND

24
25
26
27
28
29
30
31

32
33

36
37
38
39
40
41
42
43

+A5V
44
35

C305

100uF

+5V

R311
10 K

Q304

1

2 3

GND

VR501

GND

R323
0 (OP)

1

8

3

27

6

CN303

1
2
3
4
5

HEADER 5

C401
100uF(OP)

GND

R325
0 (OP)

4

5

R402

1K(OP)

K/E Select

GND

CP301
1000 pF

+5V

R319

1
2

1

8

R403

4.7K(OP)

1

KEY

2

27

BKLT-PWM

+5V

R329

R328

10 K

10 K

4

3

CP302
1000 pF

5

6

GND

VOL
MUTE

STDBY

ACER Electronics Co., Ltd.

Title

Size Document Number Rev

B

Monday, October 21, 2002

Date: Sheet

R237 0(OP)

R236 10 K(OP)

CN302

1
2
3
4
5
6
7
8
9

HEADER 9

GND

+12V

+5V

MUTE

STDBY

+5V

R239

4.7K(OP)

Q201

1

2 3

GND

GND

C951
CAP(OP)

+5V

C954 1000PF(OP)

C955 1000P(OP)

CN304

1
2
3
4
5
6

HEADER 6

R235

4.7K(OP)

MUTE
STDBY

MMBT3904(OP)

GND

MICRO CONTROLLER

715L820-2-2

+12V

C953

CAP(OP)

GND

A

36

of

PW5V-ON

J1

+12V POWER

GND F

R307

4.7K

FB301

2 1
4
6 5

INDUCTOR-P

GND

+A5V

+12V

3

1

2

C952

CAP

R306

10K

Q202
MMBT3904

+12V

3

+5V

1 2

+5V +3.3V

R305

4.7K

GND

L905

CHOKE

C307
330 uF/35V

U306

1
2
3
4

4431

S1
S2
S3
G

C945
470uF/16V

GND

D1
D1
D2
D2

C308

0.1 uF

+D5V

8
7
6
5

U304
LM2596S-5.0 / Si8050

1

VIN

+A5V

+5V

R310

0

TO263

/ON

543

GND

+D5V

330 uF/35V

GND

C310

FBK
Vout

JP301

3
2
1

2

D300
B320

(OP)

C311

0.1 uF

T300

33 uH(OP)
L906

1 2

CHOKE

U305 AIC 1084

VoutVin

GND

1

23

GND

C950

CAP

L300

1 2

(600)

+5V

GND

C309
330 uF/35V

+3.3V

C312
330 uF/35V

C941

0.1 uF

POWER Block

GND

GND

ACER Electronics Co., Ltd.

Title

Size Document Number Rev

A

3

Date: Sheet

Monday, October 21, 2002

POWER

715L820-2-2

A

56

of

Part No.:CBPC782KKZAE1

4

Part No.: 79L L17-3-S

5

Part No.: KEPC782KA6

6

7
