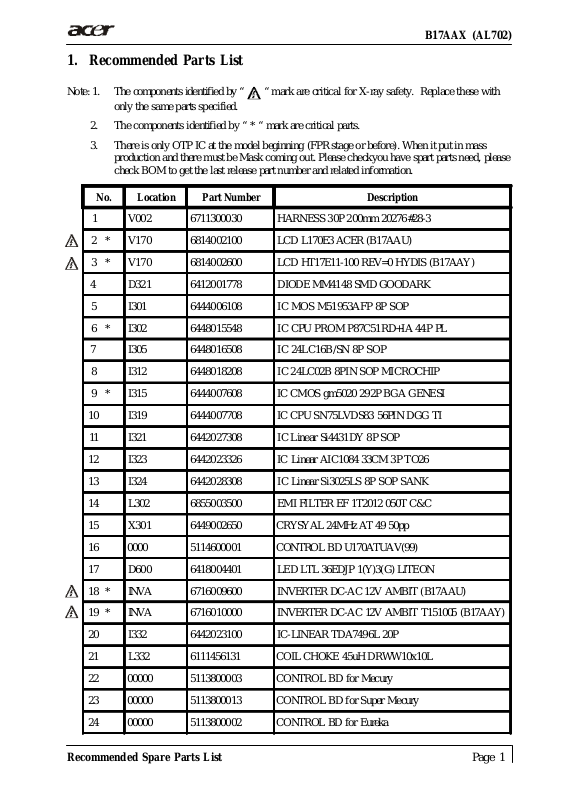

Acer AL702 Schematic
B17AAX (AL702)
1. Recommended Parts List
Note: 1. The components identified by “ “ mark are critical for X-ray safety. Replace these with
only the same parts specified.
2. The components identified by “ * “ mark are critical parts.
3. There is only OTP IC at the model beginning (FPR stage or before). When it put in mass
production and there must be Mask coming out. Please checkyou have spart parts need, please
check BOM to get the last release part number and related information.
No. Location Part Number Description
1 V002 6711300030 HARNESS 30P 200mm 20276#28-3
2 * V170 6814002100 LCD L170E3 ACER (B17AAU)
3 * V170 6814002600 LCD HT17E11-100 REV=0 HYDIS (B17AAY)
4 D321 6412001778 DIODE MM4148 SMD GOODARK
5 I301 6444006108 IC MOS M51953AFP 8P SOP
6 * I302 6448015548 IC CPU PROM P87C51RD+IA 44P PL
7 I305 6448016508 IC 24LC16B/SN 8P SOP
8 I312 6448018208 IC 24LC02B 8PIN SOP MICROCHIP
9 * I315 6444007608 IC CMOS gm5020 292P BGA GENESI
10 I319 6444007708 IC CPU SN75LVDS83 56PIN DGG TI
11 I321 6442027308 IC Linear Si4431DY 8P SOP
12 I323 6442023326 IC Linear AIC1084 33CM 3P TO26
13 I324 6442028308 IC Linear Si3025LS 8P SOP SANK
14 L302 6855003500 EMI FILTER EF 1T2012 050T C&C
15 X301 6449002650 CRYSYAL 24MHz AT 49 50pp
16 0000 5114600001 CONTROL BD U170ATUAV(99)
17 D600 6418004401 LED LTL 36EDJP 1(Y)3(G) LITEON
18 * INVA 6716009600 INVERTER DC-AC 12V AMBIT (B17AAU)
19 * INVA 6716010000 INVERTER DC-AC 12V AMBIT T151005 (B17AAY)
20 I332 6442023100 IC-LINEAR TDA7496L 20P
21 L332 6111456131 COIL CHOKE 45uH DRWW10x10L
22 00000 5113800003 CONTROL BD for Mecury
23 00000 5113800013 CONTROL BD for Super Mecury
24 00000 5113800002 CONTROL BD for Eureka
Recommended Spare Parts List Page 1
