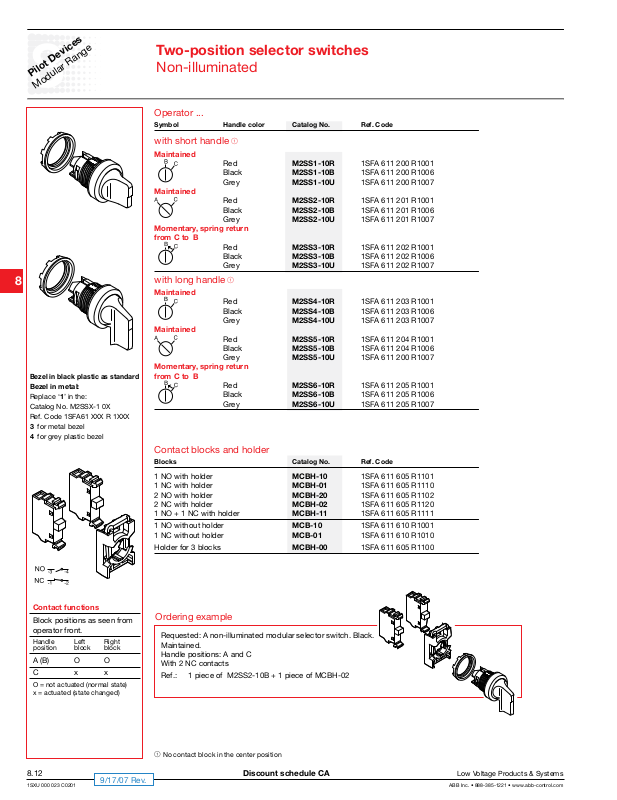

ABB Two-position selector switches Catalog Page
Pilot Devices
8
Modular Range
8
Bezel in black plastic as standard
Bezel in metal:
Replace ‘1’ in the:
Catalog No. M2SSX-1 0X
Ref. Code 1SFA61 XXX R 1XXX
3 for metal bezel
4 for grey plastic bezel
Two-position selector switches
Non-illuminated
Operator ...
Symbol Handle color Catalog No. Ref. Code List Price
with short handle 1
Maintained
Red M2SS1-10R 1SFA 611 200 R1001
Black M2SS1-10B 1SFA 611 200 R1006
Grey M2SS1-10U 1SFA 611 200 R1007
Maintained
Red M2SS2-10R 1SFA 611 201 R1001
Black M2SS2-10B 1SFA 611 201 R1006
Grey M2SS2-10U 1SFA 611 201 R1007
Momentary, spring return
from C to B
Red M2SS3-10R 1SFA 611 202 R1001
Black M2SS3-10B 1SFA 611 202 R1006 14.00
Grey M2SS3-10U 1SFA 611 202 R1007
with long handle 1
Maintained
Red M2SS4-10R 1SFA 611 203 R1001
Black M2SS4-10B 1SFA 611 203 R1006
Grey M2SS4-10U 1SFA 611 203 R1007
Maintained
Red M2SS5-10R 1SFA 611 204 R1001
Black M2SS5-10B 1SFA 611 204 R1006
Grey M2SS5-10U 1SFA 611 200 R1007
Momentary, spring return
from C to B
Red M2SS6-10R 1SFA 611 205 R1001
Black M2SS6-10B 1SFA 611 205 R1006 14.00
Grey M2SS6-10U 1SFA 611 205 R1007
Contact blocks and holder
Blocks Catalog No. Ref. Code List Price
1 NO with holder
1 NC with holder
2 NO with holder MCBH-20 1SFA 611 605 R1102 18.00
2 NC with holder MCBH-02 1SFA 611 605 R1120 18.00
1 NO + 1 NC with holder
1 NO without holder
1 NC without holder MCB-01 1SFA 611 610 R1010 8.00
Holder for 3 blocks MCBH-00 1SFA 611 605 R1100 2.00
$ 11.00
11.00
MCBH-10 1SFA 611 605 R1101 $ 10.00
MCBH-01 1SFA 611 605 R1110 10.00
MCBH-11 1SFA 611 605 R1111 18.00
MCB-10 1SFA 611 610 R1001 8.00
Contact functions
Block positions as seen from
operator front.
Handle Left Right
position block block
A (B) O O
C x x
O = not actuated (normal state)
x = actuated (state changed)
8.12 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
9/17/07 Rev.
Ordering example
Requested: A non-illuminated modular selector switch. Black.
Maintained.
Handle positions: A and C
With 2 NC contacts
Ref.: 1 piece of M2SS2-10B + 1 piece of MCBH-02
1 No contact block in the center position
Discount schedule CA
Bezel in black plastic as standard
43 13
44 14
23 53
24 54
41 11
42 12
21 51
22 52
43 44
23 24
X
X
X
X
13 14
A B C
*
*
41 42
11 12
21 22
X
X
X
X
*
*
A B C
Bezel in metal:
Replace ‘1’ in the:
Catalog No. M3SSX-1 0X
Ref. Code 1SFA611XXX R 1XXX
3 for metal bezel
4 for grey plastic bezel
Pilot Devices
Three-position selector switches
Modular Range
Non-illuminated
Operator ...
Symbol Handle color Catalog No. Ref. Code List Price
with short handle 1
Maintained
Red M3SS1-10R 1SFA 611 210 R1001
Black M3SS1-10B 1SFA 611 210 R1006 $ 11.00
Grey M3SS1-10U 1SFA 611 210 R1007
Momentary, spring return
from A to B and from C to B
Red M3SS2-10R 1SFA 611 211 R1001
Black M3SS2-10B 1SFA 611 211 R1006 14.00
Grey M3SS2-10U 1SFA 611 211 R1007
Momentary, spring return
from C to B
Red M3SS3-10R 1SFA 611 212 R1001
Black M3SS3-10B 1SFA 611 212 R1006 14.00
Grey M3SS3-10U 1SFA 611 212 R1007
Momentary, spring return
from A to B
Red M3SS7-10R 1SFA 611 216 R1001
Black M3SS7-10B 1SFA 611 216 R1006 14.00
Grey M3SS7-10U 1SFA 611 216 R1007
with long handle 1
Maintained
Red M3SS4-10R 1SFA 611 213 R1001
Black M3SS4-10B 1SFA 611 213 R1006 11.00
Grey M3SS4-10U 1SFA 611 213 R1007
Momentary, spring return
from A to B and from C to B
Red M3SS5-10R 1SFA 611 214 R1001
Black M3SS5-10B 1SFA 611 214 R1006 14.00
Grey M3SS5-10U 1SFA 611 214 R1007
Momentary, spring return
from C to B
Red M3SS6-10R 1SFA 611 215 R1001
Black M3SS6-10B 1SFA 611 215 R1006 14.00
Grey M3SS6-10U 1SFA 611 215 R1007
Momentary, spring return
from A to B
Red M3SS8-10R 1SFA 611 217 R1001
Black M3SS8-10B 1SFA 611 217 R1006 14.00
Grey M3SS8-10U 1SFA 611 217 R1007
8
8
Contact blocks and holder
Blocks Catalog No. Ref. Code List Price
1 NO with holder MCBH-10 1SFA 611 605 R1101 $ 10.00
1 NC with holder MCBH-01 1SFA 611 605 R1110 10.00
2 NO with holder MCBH-20 1SFA 611 605 R1102 18.00
2 NC with holder MCBH-02 1SFA 611 605 R1120 18.00
1 NO + 1 NC with holder MCBH-11 1SFA 611 605 R1111 18.00
1 NO without holder MCB-10 1SFA 611 610 R1001 8.00
1 NC without holder MCB-01 1SFA 611 610 R1010 8.00
Contact functions
Block positions as seen from
operator front.
Handle Left Right
position block block
A x O
B O O
C O x
Low Voltage Products & Systems 8.13
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Holder for 3 blocks MCBH-00 1SFA 611 605 R1100 2.00
Center position connection detail
1 No contact block in center position
Discount schedule CA
