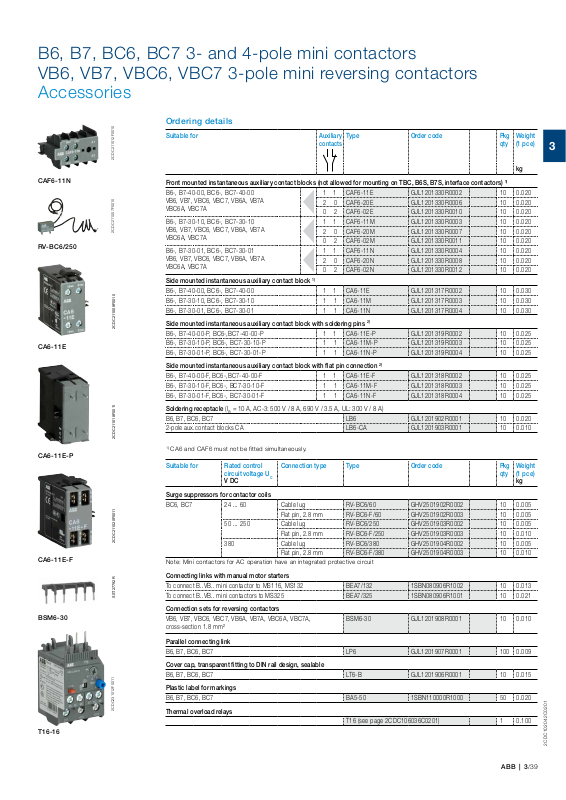

ABB B6, B7, BC6, BC7, VB6 Accessories Catalog
...
B6, B7, BC6, BC7 3- and 4-pole mini contactors
To connect B..VB.. mini contactor to MS116, MS132
BEA7/132
1SBN080906R1002
10
0.013
To connect B..VB.. mini contactors to MS325
VB6, VB7, VBC6, VBC7 3-pole mini reversing contactors
Accessories
Ordering details
Suitable for
Auxiliary
Type Order code
contacts
Pkg
qty
Weight
(1 pce)
3
CAF6-11N
RV-BC6/250
CA6-11E
CA6-11E-P
CA6-11E-F
2CDC211012F0010
2CDC211007F0010
2CDC211008F0010
2CDC211018F0011
2CDC211020F0011
kg
Front mounted instantaneous auxiliary contact blocks (not allowed for mounting on TBC, B6S, B7S, interface contactors)
B6-, B7-40-00, BC6-, BC7-40-00
VB6, VB7, VBC6, VBC7, VB6A, VB7A
VBC6A, VBC7A
B6-, B7-30-10, BC6-, BC7-30-10
VB6, VB7, VBC6, VBC7, VB6A, VB7A
VBC6A, VBC7A
B6-, B7-30-01, BC6-, BC7-30-01
VB6, VB7, VBC6, VBC7, VB6A, VB7A
VBC6A, VBC7A
Side mounted instantaneous auxiliary contact block
1 1 CAF6-11E GJL1201330R0002 10 0.020
2 0 CAF6-20E GJL1201330R0006 10 0.020
0 2 CAF6-02E GJL1201330R0010 10 0.020
1 1 CAF6-11M GJL1201330R0003 10 0.020
2 0 CAF6-20M GJL1201330R0007 10 0.020
0 2 CAF6-02M GJL1201330R0011 10 0.020
1 1 CAF6-11N GJL1201330R0004 10 0.020
2 0 CAF6-20N GJL1201330R0008 10 0.020
0 2 CAF6-02N GJL1201330R0012 10 0.020
1)
1)
B6-, B7-40-00, BC6-, BC7-40-00 1 1 CA6-11E GJL1201317R0002 10 0.030
B6-, B7-30-10, BC6-, BC7-30-10 1 1 CA6-11M GJL1201317R0003 10 0.030
B6-, B7-30-01, BC6-, BC7-30-01 1 1 CA6-11N GJL1201317R0004 10 0.030
Side mounted instantaneous auxiliary contact block with soldering pins
2)
B6-, B7-40-00-P, BC6-,BC7-40-00-P 1 1 CA6-11E-P GJL1201319R0002 10 0.025
B6-, B7-30-10-P, BC6-, BC7-30-10-P 1 1 CA6-11M-P GJL1201319R0003 10 0.025
B6-, B7-30-01-P, BC6-, BC7-30-01-P 1 1 CA6-11N-P GJL1201319R0004 10 0.025
Side mounted instantaneous auxiliary contact block with flat pin connection
2)
B6-, B7-40-00-F, BC6-,BC7-40-00-F 1 1 CA6-11E-F GJL1201318R0002 10 0.025
B6-, B7-30-10-F, BC6-, BC7-30-10-F 1 1 CA6-11M-F GJL1201318R0003 10 0.025
B6-, B7-30-01-F, BC6-, BC7-30-01-F 1 1 CA6-11N-F GJL1201318R0004 10 0.025
Soldering receptacle (Ith = 10 A, AC-3: 500 V / 8 A, 690 V / 3.5 A, UL: 300 V / 8 A)
B6, B7, BC6, BC7 LB6 GJL1201902R0001 10 0.020
2-pole aux.contact blocks CA LB6-CA GJL1201903R0001 10 0.010
1)
CA6 and CAF6 must not be fitted simultaneously.
Suitable for Rated control
circuit voltage U
V DC kg
Connection type Type Order code
C
Pkg
qty
Weight
(1 pce)
Surge suppressors for contactor coils
BC6, BC7 24 ... 60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/60 GHV2501902R0003 10 0.005
50 ... 250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/250 GHV2501903R0003 10 0.010
380 Cable lug RV-BC6/380 GHV2501904R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/380 GHV2501904R0003 10 0.010
Note: Mini contactors for AC operation have an integrated protective circuit
Connecting links with manual motor starters
SST27792R
BSM6-30
2CDC231012F0011
T16-16
BEA7/325 1SBN080906R1001 10 0.021
Connection sets for reversing contactors
VB6, VB7, VBC6, VBC7, VB6A, VB7A, VBC6A, VBC7A,
BSM6-30 GJL1201908R0001 10 0.010
cross-section 1.8 mm²
Parallel connecting link
B6, B7, BC6, BC7 LP6 GJL1201907R0001 100 0.009
Cover cap, transparent fitting to DIN rail design, sealable
B6, B7, BC6, BC7 LT6-B GJL1201906R0001 10 0.015
Plastic label for markings
B6, B7, BC6, BC7 BA5-50 1SBN110000R1000 50 0.020
Thermal overload relays
T16 (see page 2CDC106036C0201) 1 0.100
ABB | 3/39
2CDC102042C0201
K6, KC6 4-pole mini contactor relays
Accessories
Ordering details
Suitable for
3
Auxiliary
Type Order code
contacts
Pkg
qty
Weight
(1 pce)
CAF6-11K
CA6-11K
CA6-11K-P
2CDC211019F0011
2CDC211009F0010
2CDC211011F0010
kg
Front mounted instantaneous auxiliary contact blocks
1)
K6, KC6 1 1 CAF6-11K GJL1201330R0001 10 0.020
2 0 CAF6-20K GJL1201330R0005 10 0.020
0 2 CAF6-02K GJL1201330R0009 10 0.020
Side mounted instantaneous auxiliary contact block
1)
K6, KC6 1 1 CA6-11K GJL1201317R0001 10 0.030
Side mounted instantaneous auxiliary contact block with soldering pins
2)
K6..P, KC6..P 1 1 CA6-11K-P GJL1201319R0001 10 0.025
Side mounted instantaneous auxiliary contact block with flat pin connection
2)
K6..F, KC6..F 1 1 CA6-11K-F GJL1201318R0001 10 0.025
Soldering receptacle ( Ie < 8 A )
K6, KC6 LB6 GJL1201902R0001 10 0.020
2-pole auxiliary contact blocks CA LB6-CA GJL1201903R0001 10 0.010
1)
CA6 and CAF6 must not be fitted simultaneously.
Suitable for Rated control
circuit voltage
U
C
V DC kg
Connection type Type Order code
Pkg
qty
Weight
(1 pce)
Surge suppressors for contactor coils
KC6 24 ... 60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/60 GHV2501902R0003 10 0.005
50 ... 250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/250 GHV2501903R0003 10 0.010
380 Cable lug RV-BC6/380 GHV2501904R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/380 GHV2501904R0003 10 0.010
Note: Mini contactors for AC operation have an integrated protective circuit
Cover cap, transparent fitting to DIN rail design, sealable
K6, KC6 LT6-B GJL1201906R0001 10 0.015
CA6-11K-F
LT6-B
RV-BC6/250
3/40 | ABB
2CDC211010F0010
2CDC211006F0010
2CDC211007F0010
2CDC102042C0201
