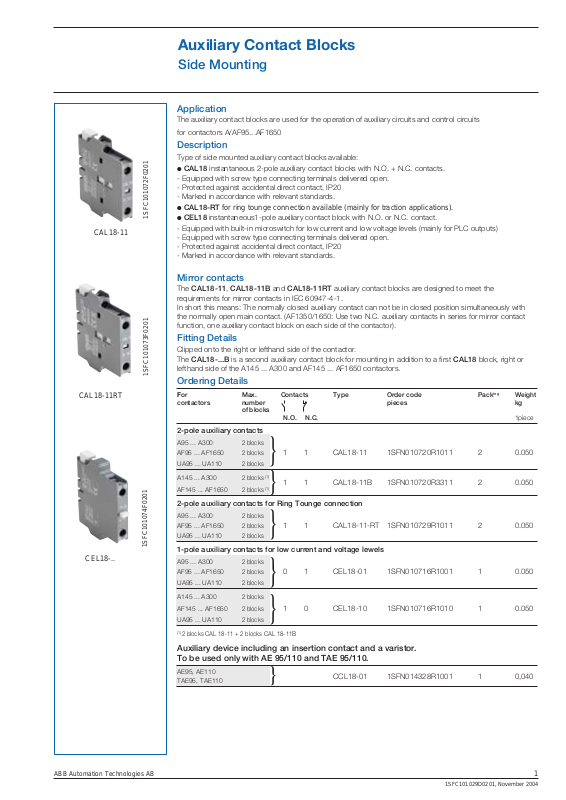

ABB Auxiliary Contact Blocks Data Sheet
CAL18-11
CAL18-11RT
CEL18-..
Auxiliary Contact Blocks
Side Mounting
Application
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits
for contactors A/AF95...AF1650
Description
Type of side mounted auxiliary contact blocks available:
● CAL18 instantaneous 2-pole auxiliary contact blocks with N.O. + N.C. contacts.
- Equipped with screw type connecting terminals delivered open.
- Protected against accidental direct contact, IP20
- Marked in accordance with relevant standards.
1SFC101072F0201
1SFC101073F0201
1SFC101074F0201
● CAL18-RT for ring tounge connection available (mainly for traction applications).
● CEL18 instantaneous1-pole auxiliary contact block with N.O. or N.C. contact.
- Equipped with built-in microswitch for low current and low voltage levels (mainly for PLC outputs)
- Equipped with screw type connecting terminals delivered open.
- Protected against accidental direct contact, IP20
- Marked in accordance with relevant standards.
Mirror contacts
The CAL18-11, CAL18-11B and CAL18-11RT auxiliary contact blocks are designed to meet the
requirements for mirror contacts in IEC 60947-4-1.
In short this means: The normally closed auxiliary contact can not be in closed position simultaneously with
the normally open main contact. (AF1350/1650: Use two N.C. auxiliary contacts in series for mirror contact
function, one auxiliary contact block on each side of the contactor).
Fitting Details
Clipped onto the right or lefthand side of the contactor.
The CAL18-...B is a second auxiliary contact block for mounting in addition to a first CAL18 block, right or
lefthand side of the A145 ... A300 and AF145 ... AF1650 contactors.
Ordering Details
For Max. Contacts Type Order code Pack
contactors number pieces kg
2-pole auxiliary contacts
A95 ... A300
AF95 ... AF1650
UA95 ... UA110
A145 ... A300
AF145 ... AF1650
2-pole auxiliary contacts for Ring Tounge connection
A95 ... A300
AF95 ... AF1650
UA95 ... UA110
1-pole auxiliary contacts for low current and voltage lewels
A95 ... A300
AF95 ... AF1650
UA95 ... UA110
A145 ... A300
AF145 ... AF1650
UA95 ... UA110
(1)
2 blocks CAL 18-11 + 2 blocks CAL 18-11B
Auxiliary device including an insertion contact and a varistor.
To be used only with AE 95/110 and TAE 95/110.
AE95, AE110
TAE95, TAE110
of blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
2 blocks
N.O. N.C. 1piece
11 CAL18-11 1SFN010720R1011 2 0.050
(1)
11 CAL18-11B 1SFN010720R3311 2 0.050
(1)
11 CAL18-11-RT 1SFN010729R1011 2 0.050
01 CEL18-01 1SFN010716R1001 1 0.050
10 CEL18-10 1SFN010716R1010 1 0.050
CCL18-01 1SFN014328R1001 1 0,040
ing
Weight
ABB Automation Technologies AB 1
1SFC101029D0201, November 2004
Auxiliary Contact Blocks
Side Mounting
Technical Data
Types CAL18-... CEL18-...
Compliance with standards IEC 60947-5-1, EN 60947-5-1
Certification and approvals CE, UL, CSA, CCC CE, UL
Rated insulation voltage U
according to IEC 60947-5-1 V 690 250
according to UL/CSA V 690 250
Rated operational voltage U
Conventional free air thermal current I
Rated operational current Ie acc. to IEC 60947-5-1 AC-15 AC-14
Short-circuit protection - A 10 gG type fuses 0.1 FF fuses
Rated making capacity 10 x Ie AC-15 6 x Ie AC-14
Rated breaking capacity 10 x Ie AC-15 6 x Ie AC-14
Rated short-time withstand current Icw1 s A 100 –
θ = 40 °C 0.1 s A 140 –
Power loss per pole at 6 A W 0.15 –
Min. switching capacity V / mA 24 / 50 (0.5 million operating cycles) 3/1
Mechanical durability
– millions of operating cycles
–
max. mechanical switching frequency
Electrical durability
– millions of operating cycles see diagram below 0.7
–
max. electrical switching frequency
Connecting terminals (Delivered in open position. M3.5 (+,-) pozidriv 2 screw with cable clamp
Terminal screws not used should be tightened.) (no cable clamp for -RT version)
Tightening torque
– recommended Nm 1.00
– max. Nm 1.20
Connecting capacity (min. ... max.)
Rigid solid 1 or 2 x mm
Flexible with cable en 1 or 2 x mm
Lugs L mm ≤ 8
Ring Tounge connector L mm ≤ 8 (only for -RT version) –
Degree of protection
i
e
V a.c. 24 to 690 125
th
A 16 0.1
24-127 V a.c. A 6 0.1
220-240 V a.c. A 4–
380-440 V a.c. A 3–
500-690 V a.c. A 2–
DC-13 DC-12
24 V d.c. A 6 0.1
48 V d.c. A 2.8 0.1
72 V d.c. A 1 0.1
110 V d.c. A 0.55 0.1
125 V d.c. A 0.55 –
250 V d.c. A 0.3 –
5 (A/AF95 ... A/AF185), 3 (A/AF210 ... AF750), 0.5 (AF1350/AF1650) 1
cycles / h 3600 1200
cycles / h 1200 1200
2
2
L
l
ø
L
l mm > 3.7
l mm > 3.7 (only for -RT version) –
according to IEC 60529, IEC 60144
1 ... 4
0.75 ... 2.5
IP 20
1)
1) HRC fuses for very fast action (size 6.3 x 32 mm)
CAL18 Electrical Durability for AC-15 Utilization Category
AC-15 utilization category according to IEC 60947-5-1 / EN 60947-5-1:
– making current: 10 x Ie with cos ϕ = 0.7 and U
– breaking current: Ie with cos ϕ = 0.4 and U
These curves represent the electrical durability of the add-on
auxiliary contacts in relation to the breaking current.
e
e
A/AF95...A/AF185
A/AF210...AF750
AF1350/AF1650
30
20
10
Million ops.
5
3
2
1
0.5
0.3
0.2
0.1
0.02 0.05 0.1 0.3 0.5 1 2 4 5 10
0.2
Breaking current (A)
36
2 ABB Automation Technologies AB
1SFC101029D0201, November 2004
