MP8650 Multimedia Projector
Operator’s Guide
MP8650 Appareil de projection multimédia Guide de l’opérateur
MP8650 Multimedia-Projektor Bedienerhandbuch
Portatil Multimedia MP8650 Manual del usuario
MP8650 Projettore multimedia Manuale dell’operatore
MP8650 Multimediaprojektor Brukerhåndbok
MP8650 Multimedia Projector Gebruiksaanwÿzing
All statements, technical information, and recommendations related to Seller’s products are based on information believed to be reliable, but the accuracy or
completeness thereof is not guaranteed. Before utilizing the product, the user should determine the suitability of the product for its intended use. The user assumes all
risks and liability whatsoever in connection with such use.
Any statements or recommendations of the Seller which are not contained in the Seller’s current publications shall have no force or effect unless contained in an
agreement signed by an authorized officer of Seller. The statements contained herein are made in lieu of all warranties, expressed or implied, including but not limited
to the implied warranties of merchantability and fitness for a particular purpose which warranties are hereby expressly disclaimed.
SELLER SHALL NOT BE LIABLE TO THE USER OR ANY OTHER PERSON UNDER ANY LEGAL THEORY, INCLUDING BUT NOT LIMITED TO
NEGLIGENCE OR STRICT LIABILITY, FOR ANY INJURY OR FOR AN DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES SUSTAINED
OR INCURRED BY REASON OF THE USE OF ANY OF THE SELLER’S PRODUCTS.
We’re easy to reach
3M Austin Center
Building A145-5N-01
6801 River Place Blvd.
Austin, TX 78726-9000
3M Canada
P.O. Box 5757
London, Ontario, Canada
N6A 4T1
http://www.mmm.com/presentations
e-mail: presentations@mmm.com
3M Mexico, S.A. de C.V.
Apartado Postal 14-139
Mexico, D.F. 07070
Mexico
3M Europe
Boulevard de l’Oise
9500 Cerge Pontoife Cedex
France
Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we’re the
only transparency manufacturer that offers a recycling program for your
used transparencies. For late-breaking news, handy references and free
product samples, call us toll-free in the continental United States and
Canada, 7:30 a.m. to 5:30 p.m. (CST). Or visit our Internet Web site.
Printed on 50% recycled wastepaper,
including 10% post-consumer wastepaper
Litho in U.S.A.E3M 1997
78-6970-7312-6 Rev. F
Safeguards 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 1: Unpack 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1. Contents of Shipping Box 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2. Inventory List 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3. Keep Your Packing Materials 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4. What’s Next? 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 2: Product Description 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1. Machine Characteristics 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2. Parts Identification List 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 3: Set Up 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1. Cable Connections 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2. Projector Set Up 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-3. Now What? 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 4: Operating the Projector 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1. Turning On the Projector 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-2. Adjusting Image Size and Focus 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3. Adjusting the Volume 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4. Adjusting the Picture 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-5. Memory Function 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-6. Inverting the Image 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-7. Image Position 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8. Video System 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9. Setting Apple Macintosh Monitor Mode (Windowed or Compressed) 14. . . . . . . . . . . . . . . . . . .
4-10. Menu Languages 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-11. Turning Off the Projector 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 5: Remote Control 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1. How to Operate the Remote Control 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 6: Lamp Information 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

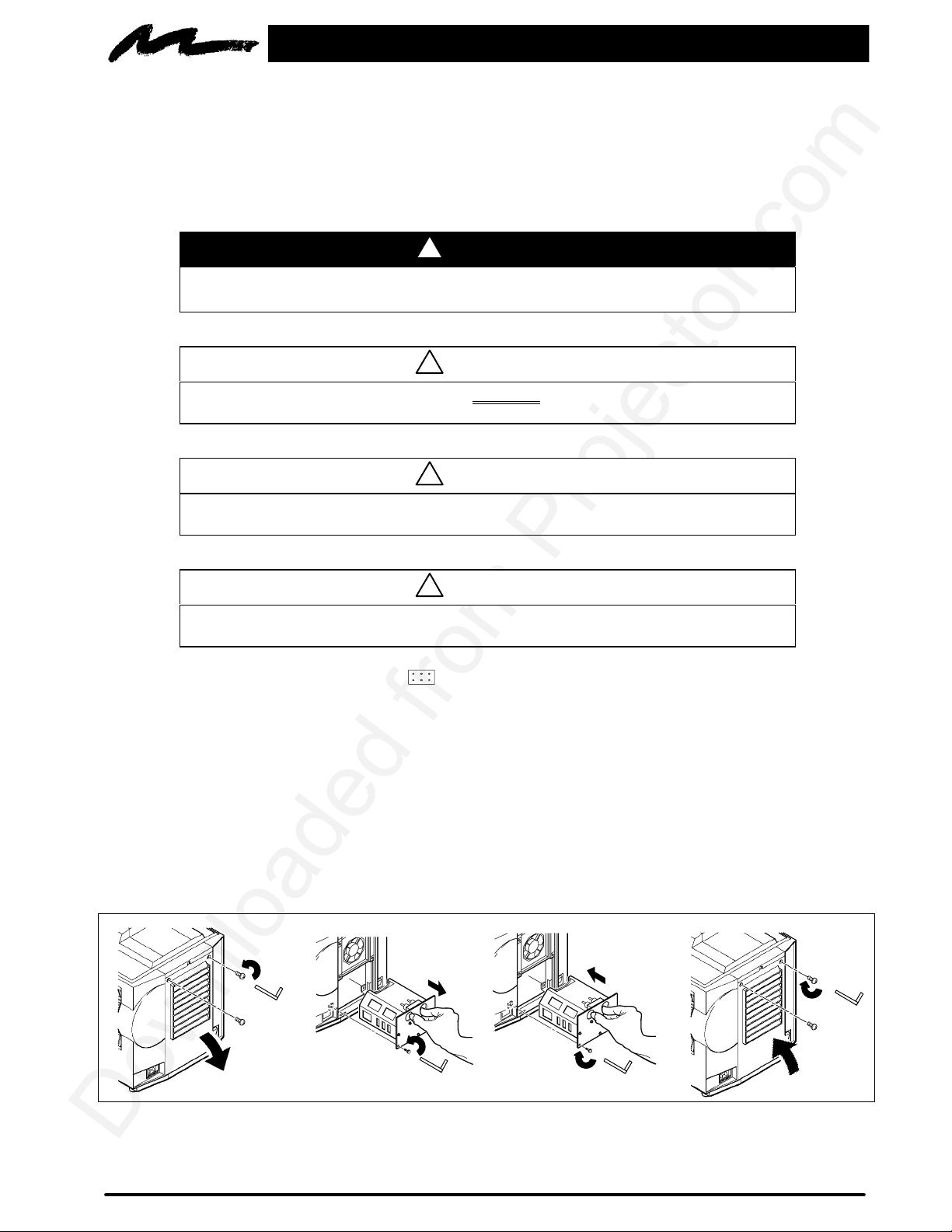

6-1. Metal Halide Projector Lamp 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 7: Maintenance 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-1. Cleaning 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3M 1997
3M Multimedia Projector MP8650
i
Section 8: Troubleshooting 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-1. Service Information 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 9: Technical Specifications 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-1. Specifications 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-2. S-Video Input Signal Terminal 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-3. Projector-to-Screen Distances 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

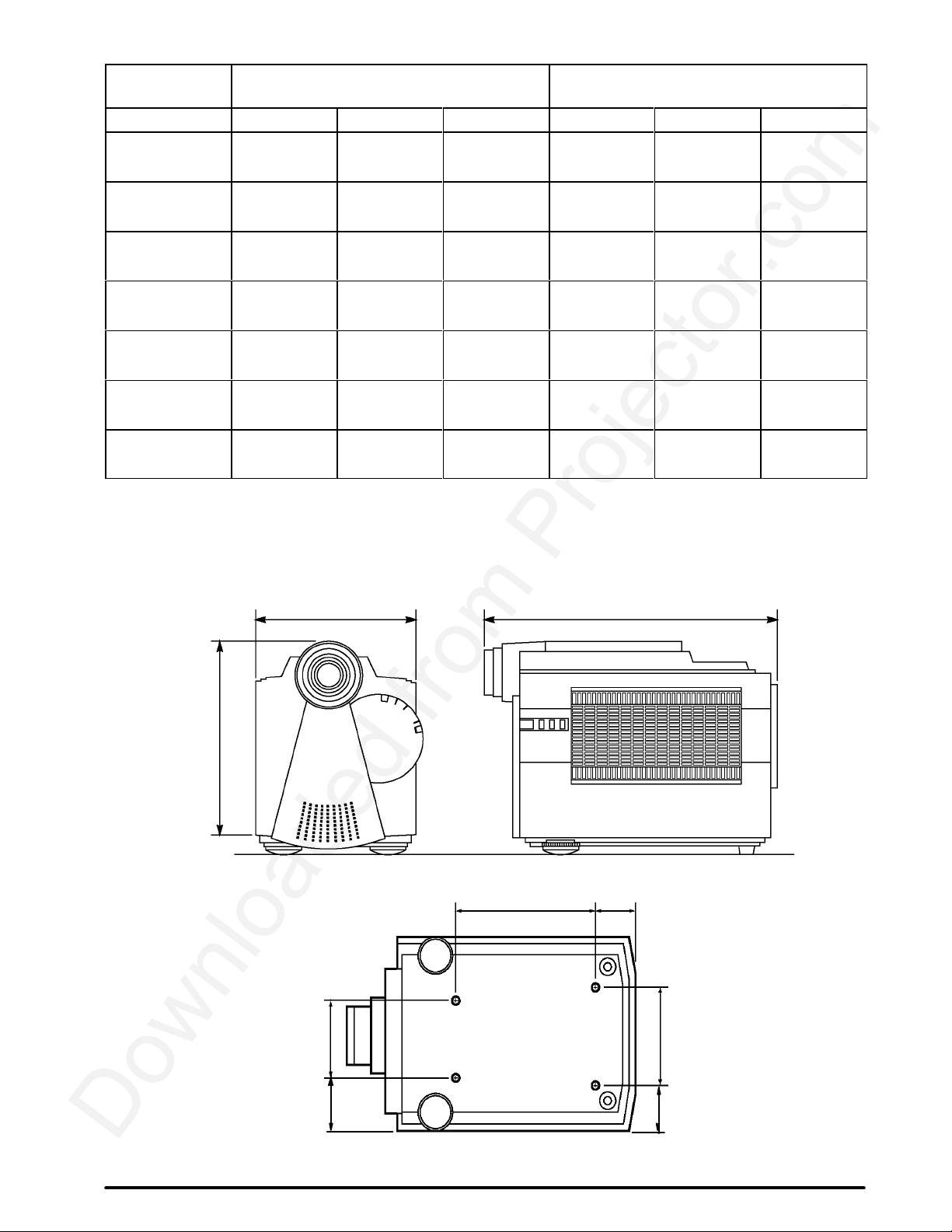

9-4. Physical Dimensions 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-5. Computer Video (RGB) Input Terminal 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-6. Computer (RGB) Signal Connection Modes 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 10: Accessories 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-1. MP8650 Multimedia Projector Accessories 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix: Technical Information A–1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii
3M Multimedia Projector MP8650
3M 1997
Safeguards
INTENDED USE
Before operating the machine, please read the entire manual thoroughly. The 3M Multimedia
Projector MP8650 was designed, built and tested for use indoors, using 3M brand lamps and
nominal local voltages. The use of other replacement lamps, outdoor operation or different
voltages has not been tested and could damage the projector or peripheral equipment and/or
create a potentially unsafe operating condition.
IMPORTANT SAFEGUARDS
1. Read and understand all instructions before using. Pay particular attention to areas where this
symbol
!
result in death or serious injury.
!
in minor or moderate injury. It may also be used to alert against unsafe practices.
2. Close supervision is necessary when any appliance is used by or near children. Do not leave
appliance unattended while in use.
3. Never look directly into the projector lens when the lamp is on. The metal halide lamp produces
a strong light which could damage your eyesight.
!
4. Care must be taken as burns can occur from touching hot parts.
5. Do not operate appliance with a damaged cord or if the appliance has been dropped or
damaged — until it has been examined by a qualified service technician.
!
6. Position the cord so that it will not be tripped over, pulled or contact hot surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to that of the
appliance should be used. Cords rated for less amperage than the appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in
use. Grasp plug and pull to disconnect.
!
is shown.
WARNING – Indicates a potentially hazardous situation which, if not avoided, could
Caution – Indicates a potentially hazardous situation which, if not avoided, could result
9. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
10. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified
technician when service or repair work is required. Incorrect reassembly can cause electric
shock when the appliance is subsequently used.
11. The use of an accessory attachment not recommended by the manufacturer may cause a risk of
fire, electric shock, or injury to persons.
12. Connect this appliance to a grounded outlet.
!
13. This unit is equipped with optical lenses and should not be exposed to direct sunlight.
14. Keep ventilation openings free of any obstructions.
15. Always remove the lens cap when the projection lamp is on.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you operate and maintain your 3M MP8650
Multimedia Projector.
3M 1997
3M Multimedia Projector MP8650
1
W arranty
THANK YOU FOR CHOOSING 3M
Thank you for choosing 3M multimedia projection equipment. This product has been produced in accordance
with 3M’s highest quality and safety standards to ensure smooth and troublefree use in the years to come.
For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using
this high performance product in your meetings, presentations and training sessions.
LIMITED WARRANTY
3M warrants this product against any defects in material and workmanship, under normal use and storage, for
a period of one year from date of purchase. Proof of purchase date will be required with any warranty claim.
In the event this product is found to be defective within the warranty period, 3M’s only obligation and your
exclusive remedy shall be replacement of any defective parts (labor included).
To obtain warranty service, immediately notify the dealer from which you purchased the product of any
defects.
LIMITATION OF LIABILITY
THE FOREGOING W ARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M
SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS. 3M SHALL NOT BE
LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR
INABILITY TO USE THIS PRODUCT.
Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M’s
written instructions. This warranty gives you specific legal rights and you may have other rights which vary
from state to state.
FCC STATEMENT – CLASS A: This equipment generates, uses and can radiate radio frequency energy, and
if not installed and used in accordance with the instruction manual may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class “A” computing device
pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection
against such interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his/her own expense will be required to
take whatever measures may be required to correct the interference.
EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for
EMC (Electro Magnetic Compatibilty) and fulfills these requirements.
Video signal cables: Double shielded coaxial cables (FCC shield cable) must be used and the outer shield
must be connected to the ground. If normal coaxial cables are used, the cables must be enclosed in metal pipes
or in a similar way to reduce the interference noise radiation.
Video inputs: The input signal amplitude must not exceed the specified level. See Section 9.
IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and
Apple Powerbook are registered trademarks of Apple
registered trademarks, and Windows and Windows for Work Groups are trademarks of the Microsoft
Corporation. All other products are trademarks or registered trademarks of their respective companies.
2
3M Multimedia Projector MP8650
Computer, Inc. Microsoft and Windows 95 are
3M 1997
Section 1: Unpack
1-1. Contents of Shipping Box
The 3MMultimedia Projector MP8650 is shipped with the necessary cables required for standard VCR, PC,
Apple Macintosh or laptop computer connections. Carefully unpack and verify that you have all of the items
shown below in Figure 1-1.
VGA
640 x 480
(Grey)
MP8650 Projector
3-Conductor
Video/Audio Cable
Remote Control Transmitter
VGA Cable
(15-15 pin M/M)
Video Cable
(S-Video mini DIN4-pin)
Lens Cap
Power Cord
(US, Euro, UK)
S-VGA
832 x 624
(Black)
Apple Macintosh Adaptor
PC Serial Cable
Figure 1-1. Inventory of Shipping Box
1-2. Inventory List
The shipping carton contains the following items illustrated in Figure 1-1. If any of these items are missing,
please contact your place of purchase.
D MP8650 Multimedia Projector
D Remote control transmitter
(AAA batteries included)
D Lens cap
D Apple Macintosh adaptor (S-VGA, VGA)
D 3-Conductor video/audio cable
D VGA cable (15-15 pin male to male)
D Video cable (S-video mini DIN4-pin)
D Power cord
D PC Serial cable
D Operator ’s Guide (not shown in Figure 1-1)
Note
To operate the Apple Macintosh mouse button functions
via the MP8650 remote control transmitter requires the
Apple Macintosh Mouse Receiver (accessory part). See
Section 10 to order.
1-3. Keep Your Packing Materials
Save the shipping box and packing materials in the event the MP8650 should require shipping to a 3M Service
Center for repair. The zoom lens should be completely retracted before shipping this product.
1-4. What’s Next?
After you have unpacked the MP8650 system and identified all the parts, you are ready to set up the projector.
Take a few minutes to review Section 2 to familiarize yourself with the MP8650 machine characteristics and
then turn to Section 3 to set up the projector.
3M 1997
3M Multimedia Projector MP8650
3
Section 2: Product Description
2-1. Machine Characteristics
The 3MMultimedia Projector MP8650 integrates metal halide lamp and dichroic optics display technology
into a single unit. It accepts input from two different computer sources and two video/audio sources and
projects a bright super crisp image.
The MP8650 Multimedia Projector offers the following features:
D Easy to set up and use
D Portable (suitcase-style carrying handle)
D Metal halide projection lamp
D High brightness lamp output (see note)
D 800 x 600 SVGA/VGA image (NTSC, PAL,
SECAM)
D XGA compatible (60/70 Hz)
D RGBS compatible
D Ability to display 16.7 million colors
D Two computer input connections
D Two video input connections
D Power zoom
D Power focus
D Full function remote control
D PC/Apple Macintosh mouse emulation
D Dealer enabled RS232 control
D Lighted, back-lit remote control keypad
D Built-in speaker (1 Watt)
2-2. Parts Identification List
3
D Horizontal and vertical image inverting
function allows rear projection or ceiling
mount
D Horizontal and vertical image position control
D On-screen menu to adjust video image
contrast, brightness, hue, saturation (color),
sharpness, gamma, coring, horizontal position
D On-screen menu to adjust computer video
(RGB) contrast, brightness, synchronization
and phase and vertical/horizontal position
D Menus display in English, French, or Spanish
D Fixed keystone correction
Note
The MP8650 is one of the brightest projectors in the
marketplace. The brightness of your machine will vary
depending on the ambient room conditions and
contrast/brightness settings.
2
4
5
1
7
Figure 2-1. Identifying MP8650 Parts
1. Remote Control Transmitter
2. Lens
3. Carry Handle
4. Remote Control Sensor
5. Indicator Lights (Temperature, Lamp, Power)
6. Control Panel Keypad
a. Standby Power Switch
b. Input Selection
c. Horizontal Inversion
d. Vertical Inversion
7. Built-In Speaker
8. Height Adjustment Feet
10
11
12
9
8
6
15
13
14
9. Power Cord Connection
10. Computer video (RGB) Input Terminals
a. RGB1/RGB2 (D sub 15-pin)
b. Audio-L/Audio-R (RCA Jack)
11. Video/Audio Input Terminals
a. S-Video1/S-Video2 (Mini DIN 4-pin)
b. Video1/Video2 (RCA Jack)
c. Audio-L/Audio-R (RCA Jack)
12. RGB/Audio L/R (monitor output)
13. Remote (not used)
14. Main Power Switch
15. RS232C Serial Mouse Connection
4
3M Multimedia Projector MP8650
3M 1997
Section 3: Set Up
3-1. Cable Connections
It only takes a few minutes to connect the 3MMultimedia Projector MP8650 to your computer, VCR or other
video device (Figure 3-1).
Desktop or Laptop
Sound System
Laptop or Desktop
Electric Outlet
Figure 3-1. Typical Cable Configuration
Terminal Connection Panel
Take a moment to look over the input connection terminals (Figure 3-2) on the back of the projector. Connect
your first RGB or Video input source to terminal #1 and your second input source to the terminal #2.
Terminal connectors for Computer1 (RGB1) and Computer2 (RGB2) are: RGB, Audio-L, Audio-R.

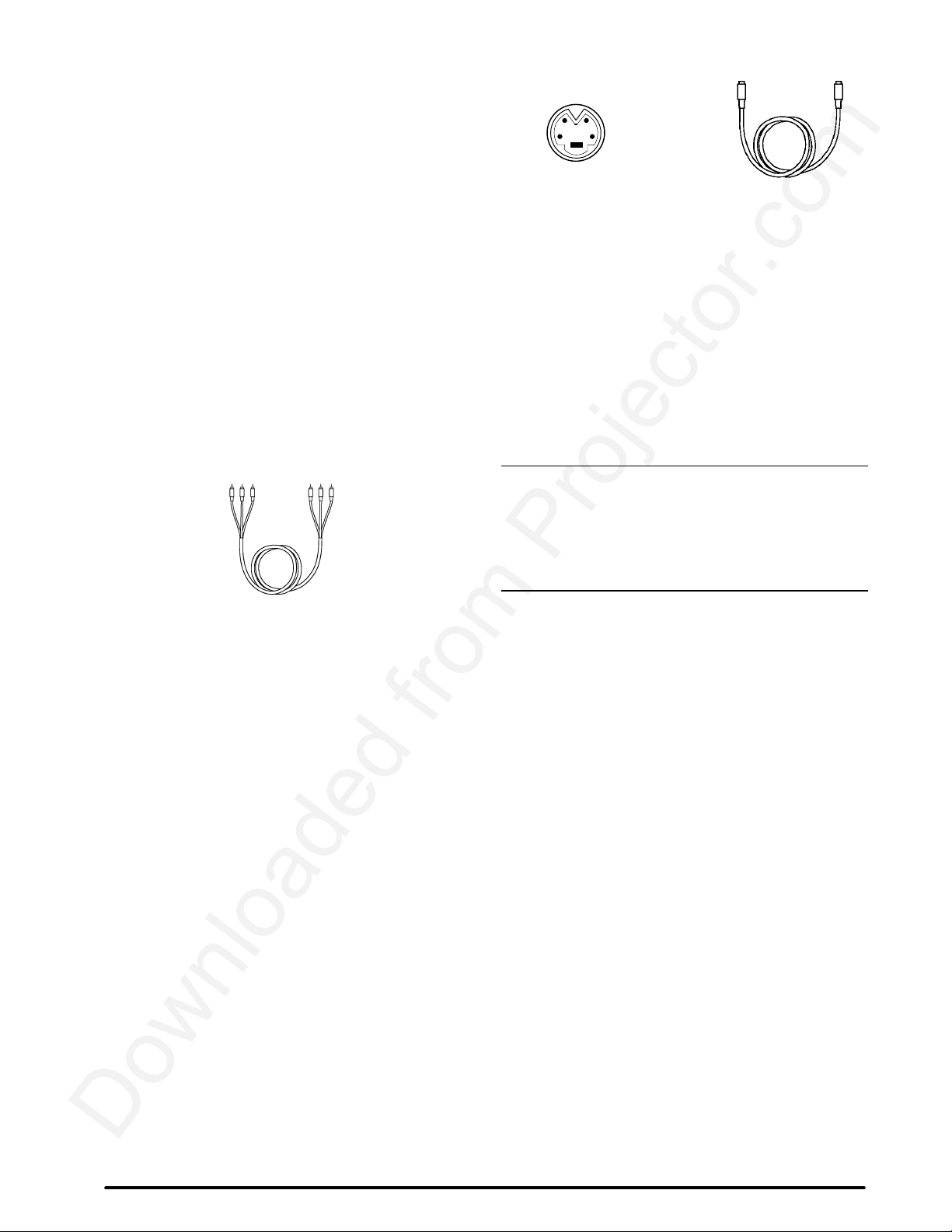

Terminal connectors for VIDEO/AUDIO 1/2 are: S-Video, Video, Audio-L, Audio-R.
Terminal connectors for MONITOR OUTPUT are: RGB, Audio-L, Audio-R.

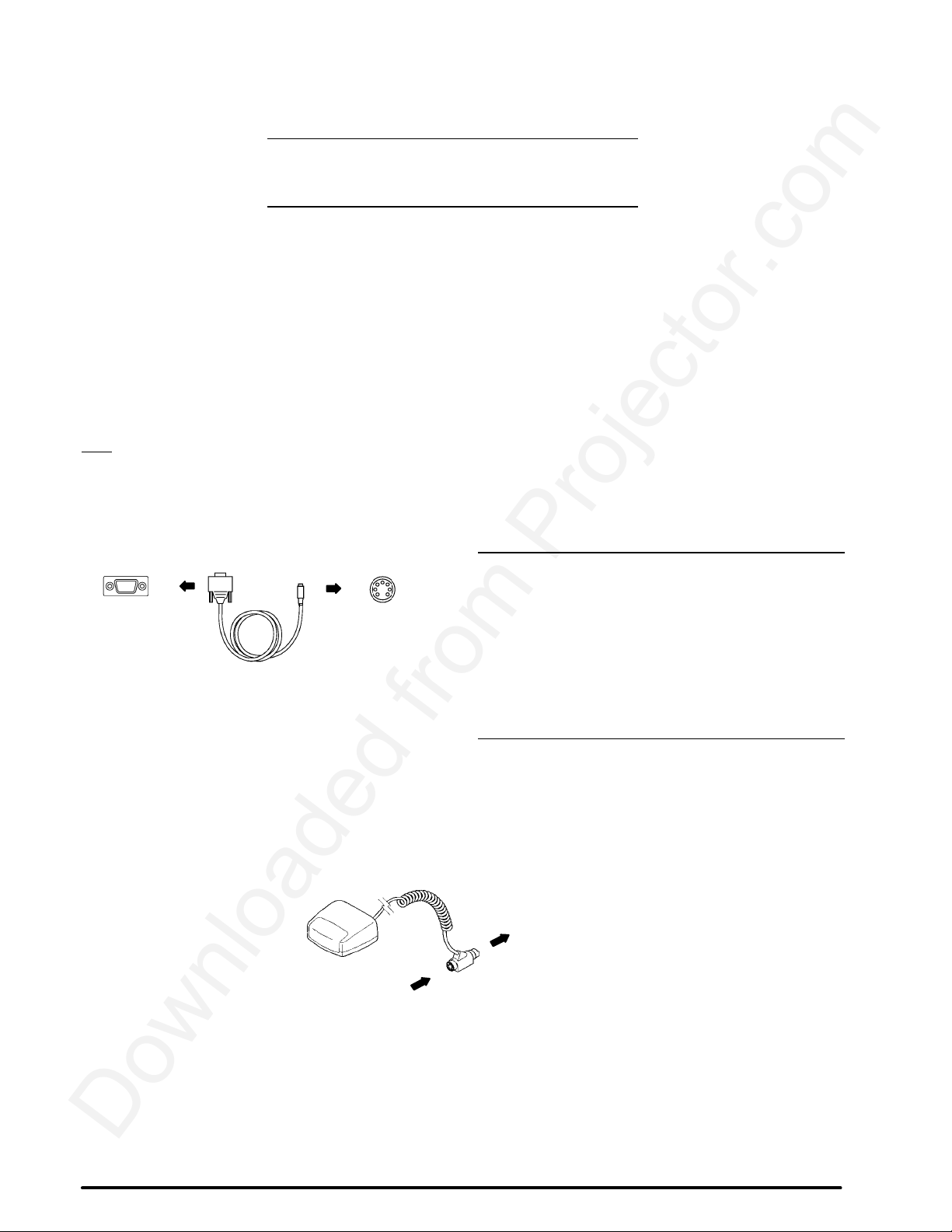

Terminal connector for a PC serial mouse is the RS232C. Apple Macintosh computers require a mouse
receiver (accessory part).
Laserdisc or VCR
(S-VHS output)
VCR (VHS output)
Figure 3-2. Input Connection Terminals
3M 1997
3M Multimedia Projector MP8650
5
Power Connection
!
Caution
To prevent damage to equipment, all power to the
MP8650 and input sources must be turned OFF
during cable hook up.
The power cord (Figure 3-3) is detachable from the
projector and has different connection plugs on each
end. Plug the female end into the power cord
terminal on the projector and the male end into a
properly grounded electrical outlet.
Figure 3-3. Connecting the Power Cord
Computer (RGB) Input Connection
There are two input jacks available for connecting either desktop or laptop computers. Find the cable that fits
your computer type. The MP8650 comes with two computer input cables. The first cable (Figure 3-4) fits
IBM PC and compatible VGA video systems, and the other cable (Figure 3-5) fits on the end of the first
cable and adapts it to fit AppleMacintosh computers and Apple Powerbook laptop computers.
Figure 3-4. IBM Compatible Computer Figure 3-5. Apple Macintosh Computer
Monitor Loop-Through
For IBM compatible computers:
a Power down the computer
b Connect the monitor cable to an RGB output
port on the projector.
For Apple Macintosh type computers (640 x 480 mode):
a Power down the computer
b Connect the 640 x 480 (grey color) adapter
to the monitor output port on the computer
or to the high density end of the laptop
adapter.
Monitor Pass-Through
part number 78-8118-3239-9) is required to complete the connection.
To complete the pass-through connections:
a Connect gender changer to 832 x 642 (black
color) adapator .
b Connect monitor cable to the gender changer.
(640 x 480 mode)
c Turn the power on.
d Select the appropriate RGB input mode on
the projector.
c Connect the VGA cable from the adapter to
the projector
d Turn the power on.
e Select the appropriate RGB input mode on
the projector.
(832 x 624 mode): For Apple Macintosh computers, a gender changer (accessory
c Connect other end of adapter to the projector
monitor out port or connect VGA cable to
adapter and the RGB out port on projector.
d Turn power on.
6
3M Multimedia Projector MP8650
3M 1997
Loading...
