3M MP8640 User Manual

MP8640 Multimedia Projector

Operator's Guide

MP8640 Projecteur multimédia Guide de l'opérateur MP8640 Multimedia-Projektor Benutzerhandbuch Proyector de Multimedia MP8640 Manual del Usuario MP8640 Proiettore Multimediale Manuale dell'operatore MP8640 Bruksanvisning for multimediaprojektor MP8640 Multimedia Projector Gebruiksaanwijzing

Table of Contents

Safeguards .................................................................................................................3

Warranty .................................................................................................................4

Section 1: Unpack .......................................................................................................5

1.1 Contents of Shipping Box............................................................................................ 5

1.2 Optional Accessories ................................................................................................... 5

1.3 Keep Your Packing Materials ...................................................................................... 5

1.4 What's Next?................................................................................................................ 5

Section 2: Product Description ..................................................................................6

2.1 Machine Characteristics............................................................................................... 6

2.2 Main Unit Identification .............................................................................................. 7

2.3 System Setup................................................................................................................ 8

2.4 Remote Control Transmitter Identification ................................................................. 9

Section 3: Basic Operations........................................................................................10

3.1 Installation ................................................................................................................... 10

3.2 Using the Projector ...................................................................................................... 11

3.3 Turn Off Power ............................................................................................................ 12

Section 4: Adjustments and Functions......................................................................13

4.1 Menu ............................................................................................................................ 13

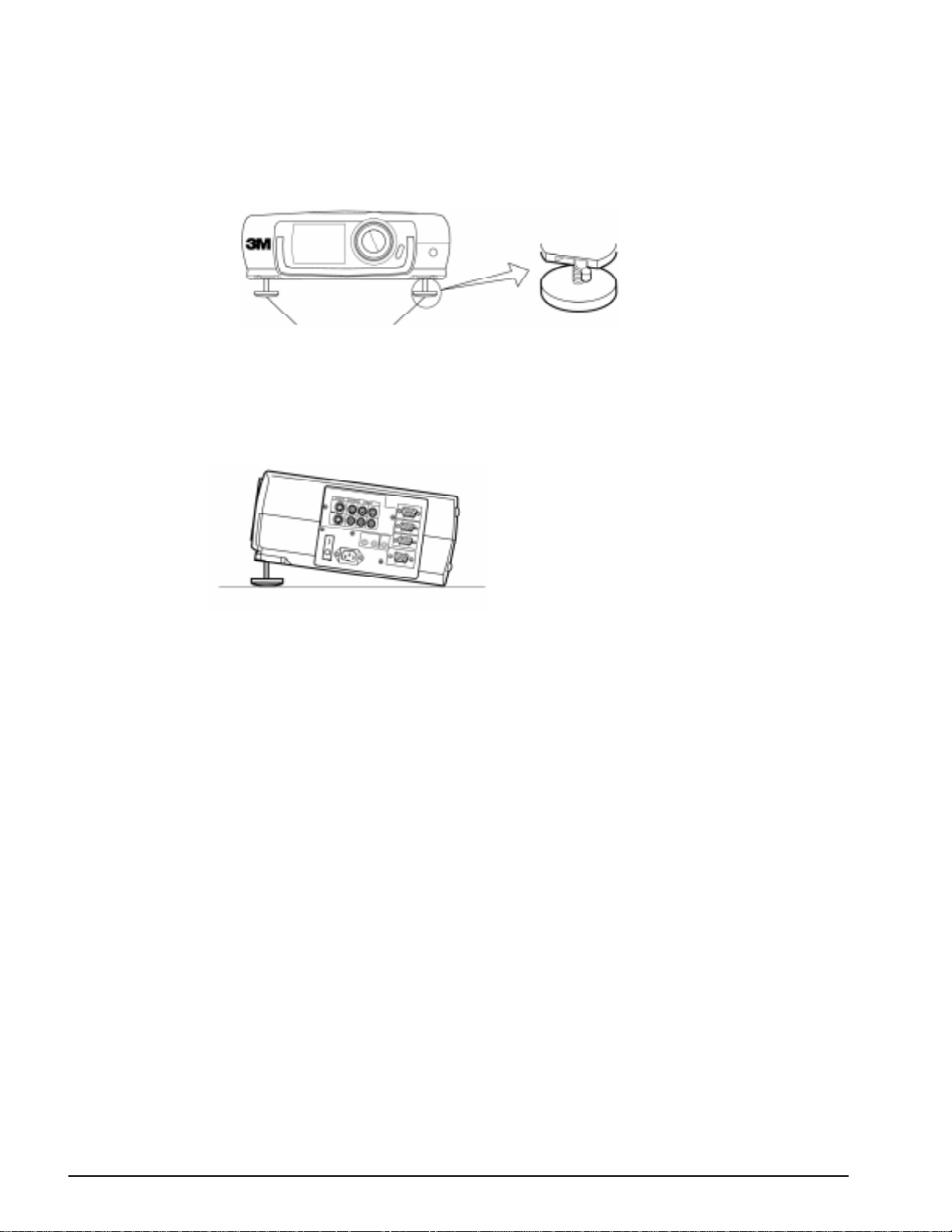

4.2 How To Use Foot Adjusters......................................................................................... 14

4.3 SETUP ......................................................................................................................... 15

4.4 INPUT.......................................................................................................................... 16

4.5 IMAGE ........................................................................................................................16

4.6 OPT.............................................................................................................................. 18

Section 5: Connection to Signal Terminals ...............................................................19

5.1 Connection to the Video Signal Terminal.................................................................... 19

5.2 Connection to the RGB Signal Terminal..................................................................... 19

5.3 Connection to the Control Signal Terminal................................................................. 21

Section 6: Maintenance............................................................................................... 23

6.1 Cleaning the Air Filter ................................................................................................. 23

6.2 Message Table.............................................................................................................. 23

6.3 Lamp ............................................................................................................................ 24

6.4 When You Think Something Is Wrong........................................................................ 25

Section 7: Technical Specifications ............................................................................ 26

7.1 Specifications...............................................................................................................26

7.2 Accessories ..................................................................................................................26

7.3 Dimension Diagram..................................................................................................... 27

3M™ Multimedia Projector MP8640 © 3M 1997

INTENDED USE

Safeguards

Before operating the machine, please read the entire manual thoroughly. The 3M™ Multimedia Projector 8640 was designed, built and tested for use indoors, using 3M local voltages. The use of other replacement lamps, outdoor operation or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition.

™

brand lamps and nominal

IMPORTANT SAFEGUARDS

1. Read and understand all instructions before using. Pay particular attention to areas where this

WARNING - Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution - Indicates a potentially hazardous situation which, if not avoided, could result in

minor or moderate injury. It may also be used to alert against unsafe practices.

2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

3. Never look directly into the projector lens when the lamp is on. The metal halide lamp produces a strong light which could damage your eyesight.

4. Care must be taken as burns can occur from touching hot parts.

symbol is shown.

5. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged – until it has been examined by a qualified service technician.

6. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

7. If any extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect.

9. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.

10. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified technician when service or repair work is required. Incorrect assembly can cause electric shock when the appliance is subsequently used.

11. Connect this appliance to a grounded outlet.

12. Do not expose this projector to direct sunlight, or use it outside.

13. Keep all ventilation openings free of any obstructions.

14. Always open the lens shutter when the projection lamp is on.

SAVE THESE INSTRUCTIONS

The information contained in this manual will help you operate and maintain your 3M MP8640 Multimedia Projector.

Warranty

THANK YOU FOR CHOOSING 3M

Thank you for choosing 3M Multimedia Projector equipment. This product has been produced in accordance with 3M's highest quality and safety standards to ensure smooth and trouble free use in the years to come.

For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using this high performance product in your meetings, presentations and training sessions.

LIMITED WARRANTY

3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of one year from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. In the USA call 1-800-328-1371 for warranty or repair service.

LIMITATION OF LIABILITY

THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTIBILITY AND FITNESS. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT.

Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M's

written instructions. This warranty gives you specific legal rights and you may have other rights which vary from state to state.

FCC STATEMENT - CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class "A" computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

Video signal cables: Double shielded coaxial cables (FCC shield cable) must be used and the outer shield must be connected to the ground. If normal coaxial cables are used, the cable must be enclosed in metal pipes or in a similar way to reduce the interference noise radiation.

Video inputs: The input signal amplitude must not exceed the specified level. IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and Apple

Powerbook are registered trademarks of Apple

trademarks, and Windows and Windows for Work Groups are trademarks of the Microsoft Corporation. All other products are trademarks or registered trademarks of their respective companies. Toshiba is a registered trademark of Toshiba Corporation.

Computer, Inc. Microsoft and Windows 95 are registered

3M™ Multimedia Projector MP8640 © 3M 1997

Section 1: Unpack

1.1 Contents of Shipping Box

The 3M™ MP8640 Multimedia Projector is shipped with the necessary cables required for standard VCR, PC,

™

MAC below in Figure 1.1.

II or laptop computer connections. Carefully unpack and verify that you have all of the items shown

Remote Control Transmitter

(batteries included)

Adapter

with dip switch

Video Cable

(S-Video mini DIN4-pin)

Power Cord

110V – US

220V – UK, Europe

MP8640 Multimedia Projector

3-Conductor

Video/Audio Cable

VGA Cable

(15-15 pin M/M)

Figure 1.1 Inventory of Shipping Box

The shipping carton contains the items illustrated in Figure 1.1. In addition, the following items are also included, but not shown here. If any of these items are missing, please contact your place of purchase.

• PS/2 mouse cable .............. (1)

• ADB mouse cable ............. (1)

• Serial mouse cable ............ (1)

• Stereo mini-jack................(1)

1.2 Optional Accessories

• RS232 control cable.......... (1)

1.3 Keep Your Packaging Materials

Important: Save the shipping box and packing materials in the event the MP8640 should require shipping

to a 3M Service Center for repair.

1.4 What Next?

After you have unpacked the MP8640 system and identified all the parts, you are ready to set up the projector.

Section 2: Product Description

2.1 Machine Characteristics

The MP8640 Multimedia Projector integrates metal halide lamp and polysilicon LCD display technology into a single unit. It accepts input from two different computer sources and two video/audio sources and projects a bright, super crisp image. Switching your presentation from a computer input to a video input, and then back to a computer input simply requires the push of a button on the remote control keypad or control panel keypad.

The MP8640 Multimedia Projector offers the following features:

• 650 lumens (A highly efficient optical system with a metal halide lamp ensures high brightness)

• SVGA resolution (3 separate 800 x 600 LCD panels are used for the R, G and B signals)

• XGA compression (60 Hz and 70 Hz)

• Compact size, light weight for portability

• RGB (computer video) output terminal

• Serial, PS/2 and Apple© Desktop Bus (ADB) mouse emulation

• Power zoom and power focus functions

• Easy to set up and use

• Ability to display 16.7 million colors

• Two computer input connections

• Two video input connections (composite and S-video compatible)

• Full function remote control

• Two built-in stereo speakers (2 watt)

• Horizontal and vertical image inverting function

• Horizontal and vertical image position control

• Fixed keystone correction

• On screen menu with seven languages

• Universal power supply

• IR sensor in front and rear for maximum remote control range

• RS232 control capability

• Optional ceiling mount kit

3M™ Multimedia Projector MP8640 © 3M 1997

2.2 Main Unit Identification

Speakers

Handle

LAMP indicator ON indicator

STANDBY / ON button

Power ON/OFF button.

Remote control sensor

OFF sets the unit in standby mode.

TEMP Indicator

MUTE button.

ZOOM button

Adjusts picture size.

Cooling fan (exhaust)

Lens

Lens shutter

VIDEO input terminal

S-VIDEO input terminal VIDEO input terminal AUDIO L/R input terminal

MAIN POWER switch

Main power ON/OFF switch.

: OFF :ON



Remote control sensor

Cooling fan (inside)

FOCUS button

Adjusts focus.

MENU button

RESET button

Resets unit to factory settings.

INPUT button

To select the input source. Each time this button is pressed, the input source is changed in sequence as shown below. RGB1 RGB2 VIDEO1 VIDEO2

RGB input terminal

RGB input terminal AUDIO input terminal

Stereo mini jack

RGB output terminal

RGB output terminal AUDIO output terminal

(RGB/VIDEO) Stereo mini jack

AC IN socket

Connect the provided power cord.

CONTROL terminal

D-sub 15pin terminal

2.3 System Set Up - connecting various equipment

AC In Socket

VCR with S-VHS out

VCR or Laser Disc

Laptop Computer

Desktop Computer

Caution: Turn power off to all devices before making connections. Never plug anything into the

projector or computer while any device is in operation. The MP8640 must be powered down when making connections. The mouse emulation may

not work if the unit is not powered down before the mouse cable connections are made.

™

2.3.1 Apple

Desktop Mouse - The Macintosh operating system should recognize the MP8640 as a mouse

without any drivers being loaded.

™

Virtual Mouse for PCs - Setting up for most personal computers (IBM

compatible). When setting up the virtual mouse function on the projector, the following must be done, if the operating system fails to recognize the projector as a mouse:

• Change mouse driver information to "Serial Mouse" or "PS/2 Mouse."

™

Windows

95 - Click "Start"; select "Settings"; select "Control Panel". Click on "Mouse"; select the

"General" tab; (see what driver is currently loaded and make note of it); select "Change"; select "Show all devices"; (make note of the current Manufacturer and Model); select "Standard Mouse Type" for Manufacturer; then select "Standard Serial Mouse" or "Standard PS/2 Mouse." Click OK to change and apply the new driver. Restart Windows when prompted.

Windows

™

3.1 - From "Program Manager" click "Main"; then click "Windows Setup", (make note of what

the current mouse driver is); Click "Options"; then "Change Systems Settings". Choose "Mouse". It should be listed as "Microsoft or IBM PS/2".

Note: Always remember , once all PC settings have been made, turn the projector on FIRST , then turn on

and boot the PC/laptop. For some laptop computers you may need to disable the internal pointing device (IPD). This is done

through the BIOS level set up of the particular machine, or it could be listed in a "Utilities" pr ogram group, i.e., "T oshiba Utilities

™

," or "Thinkpad Utilities™."

2.4 Remote Control Transmitter Identification

STANDBY / ON button

Power ON/OFF button. OFF sets the unit in standby mode.

ZOOM button

Adjusts picture size.

STICK SWITCH

If Menu is on screen, stick switch controls movement within menu. If Menu is not displayed, stick switch is used for mouse emulation, i.e. left mouse button and cursor movement.

RESET / RIGHT button

If Menu is on screen, button resets menu to factory default settings. If Menu is not displayed, button is used for mouse emulation, i.e. right mouse button.

TIMER ON / OFF button

Displays or removes TIMER. When the blank screen is displayed, TIMER can not be displayed.

BLANK ON / OFF button

Blanks the screen. Pull down or left on stick switch to reveal screen.

POSITION button

Hold this button and move stick switch to adjust vertical and horizontal image position.

INPUT SELECT buttons

Selects the input source.

MENU ON / OFF button

Displays or removes the on-screen menus.

FOCUS button

Adjusts focus.

VOLUME button

Adjusts volume.

MUTE button

Disables sound.

How to insert batteries:

1. Remove the battery

Insert the provided batteries (AA or R6P) into the remote control transmitter.

2. Insert the batteries as

compartment cover.

Slide the battery compartment cover in the direction of the arrow while pressing slightly down on it.

3. Replace the cover.

illustrated inside the battery compartment.
