3COM Fast EtherLink XL PCI 10-100BASE-TX User Manual

Fast EtherLink® XL PCI 10/100BASE-TX Network Interface Card User Guide

Member of the 3Com Fast EtherLink XL family of network interface cards

http://www.3com.com/

Part No. 09-1363-000 Published February 1998

3Com Corporation ■ 5400 Bayfront Plaza ■ Santa Clara, California ■ 95052-8145

Copyright © 1998, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notiﬁcation of such revision or change.

3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following:

United States Government Legend:

nature and developed solely at private expense. Software is delivered as Commercial Computer Software as deﬁned in DFARS 252.227-7014 (June 1995) or as a commercial item as deﬁned in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.

If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory ﬁle named LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.

3Com, the 3Com logo, EtherDisk, EtherLink, Net Age, Parallel Tasking, SmartAgent, and Transcend are registered trademarks of 3Com Corporation. AutoLink, Dynamic 3Com Corporation. 3ComFacts is a service mark of 3Com Corporation.

Magic Packet is a trademark of Advanced Micro Devices, Inc. Anixter is a trademark of Anixter Bros., Inc. Artisoft and LANtastic are trademarks of Artisoft, Inc. Banyan and VINES are trademarks of Banyan Systems, Incorporated. CompuServe is a registered trademark of CompuServe, Inc. Alpha, DEC, and PATHWORKS are trademarks of Digital Equipment Corporation. Pentium is a registered trademark of Intel Corporation. IBM and OS/2 are trademarks of International Business Machines Corporation. Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation. Novell and NetWare are trademarks of Novell, Inc. Open Desktop and SCO are trademarks of The Santa Cruz Operation, Inc.

Other brand and product names may be registered trademarks or trademarks of their respective holders.

Guide written by Jean Anderson. Edited by Nancy Kurahashi. Technical illustration by Mary Inden. Production by Becky Whitmer.

All technical data and computer software is commercial in

Access

, and PACE are trademarks of

ONTENTS

BOUT THIS GUIDE

Finding Speciﬁc Information in This Guide 1 Conventions 2

NTRODUCTION

Industry-Leading Performance 1-2 DynamicAccess Software 1-2 Remote Wake-up 1-3 Installation and Conﬁguration 1-3 10/100 Mbps Support 1-3 PC and Server Requirements 1-3 How Do I Install the 3C905B-TX NIC? 1-4

NSTALLING THE

Connecting to the Network 2-3 Connecting the Remote Wake-up Cable 2-4

NIC

NSTALLING THE NETWORK DRIVER

Windows 95 3-1

Conﬁrming Installation 3-4

Windows NT 3-5

Windows NT Version 4.0 3-5

Updating the Network Driver 3-5 Installing the Network Driver 3-6

Windows NT Version 3.51 3-7

Updating the Network Driver 3-7 Installing the Network Driver 3-8

NetWare for Windows 3.1x, Windows for Workgroups, and DOS 3-9

AutoLink Requirements 3-9 Running the AutoLink Program 3-9

iii

Installing the Novell NetWare Server Driver 3-10

NetWare Version 4.1 3-10 Multiple NICs 3-11

Supported Network Drivers 3-12

ROUBLESHOOTING

Status LEDs 4-1 3Com NIC Diagnostics Program 4-2

Accessing the 3C905B-TX Help System 4-3 Displaying Release Notes, Frequently Asked Questions,

and the KnowledgeBase 4-3 Running the NIC Self-Test 4-4 Running the Echo Test 4-6 3Com Support Services 4-7 Generating a Problem Report 4-8

Removing the 3C905B-TX NIC PACE and 3NICDIAGS Software 4-11

Windows 95 and Windows NT 4.0 4-11

DOS 4-11 Checking the Remote Wake-up Function 4-11 3Com DOS Diagnostic Program 4-12 Crossover Cable Troubleshooting Tips 4-13

Troubleshooting Hubs with Crossover Cable 4-14 Frequently Asked Questions 4-15 Accessing the 3Com World Wide Web Page 4-19

HANGING CONFIGURATION

Conﬁguration Settings 5-1 Displaying Conﬁguration Settings 5-2 Changing Conﬁguration Settings 5-2 Changing PACE Conﬁguration 5-4

Selecting PACE Applications 5-4

Changing PACE Ranges and Protocols 5-5

PACE Advanced Options 5-6

Setting Fast IP 5-6 Using the DOS Conﬁguration Program 5-6

PECIFICATIONS

Speciﬁcations A-1 RJ-45 Connector Pin Assignments A-2

ECHNICAL SUPPORT

Online Technical Services B-1

World Wide Web Site B-1 3Com Bulletin Board Service B-1

Access by Analog Modem B-2

Access by Digital Modem B-2 3ComFacts Automated Fax Service B-2 3ComForum on CompuServe Online Service B-3

Support from Your Network Supplier B-3 Support from 3Com B-4 Returning Products for Repair B-6

LOSSARY

NDEX

3COM C

FCC C

FCC D

ORPORATION LIMITED WARRANTY

LASS

B S

ECLARATION OF CONFORMITY

3COM END U

TATEMENT

SER SOFTWARE LICENSE AGREEMENT

IGURES

1-1

3C905B-TX NIC 1-1

1-2

3C905B-TX NIC Installation Steps 1-4

2-1

Inserting the NIC 2-2

2-2

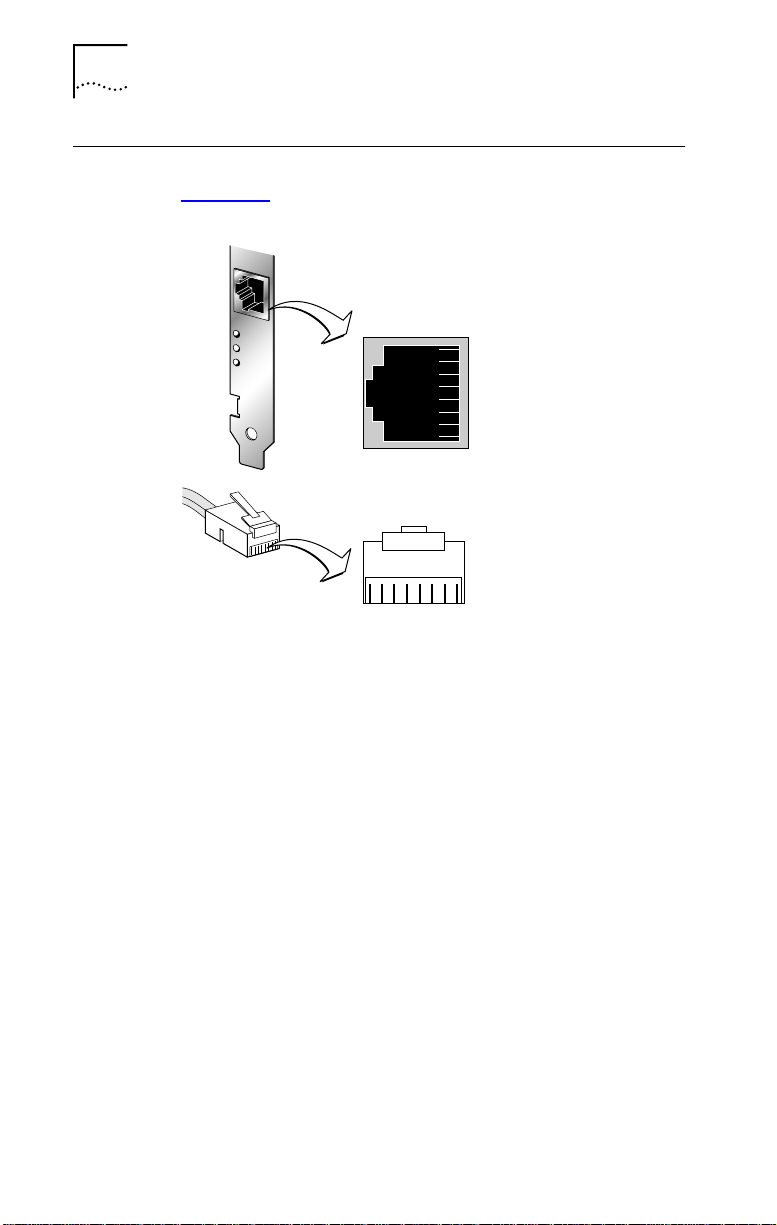

Connecting the Network Cable to the RJ-45 Port 2-3

2-3

Connecting the NIC to the Connector 2-4

4-1

LEDs 4-2

4-2

3Com NIC Diagnostics Program General Screen 4-4

4-3

Diagnostics Screen 4-5

4-4

3Com NIC Diagnostics Program Support Screen 4-7

4-5

Problem Report Main Screen 4-9

4-6

Computer Information Screen 4-9

4-7

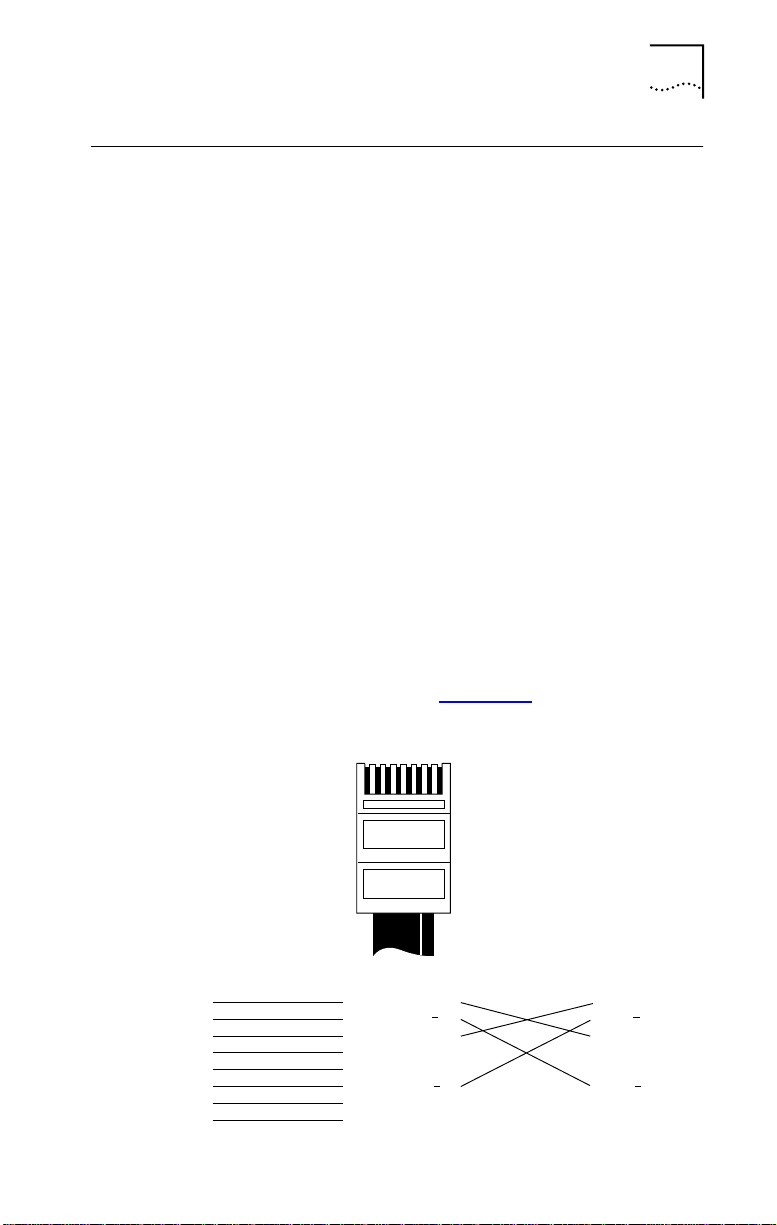

Straight-through and Crossover Cable Pinouts 4-13

5-1

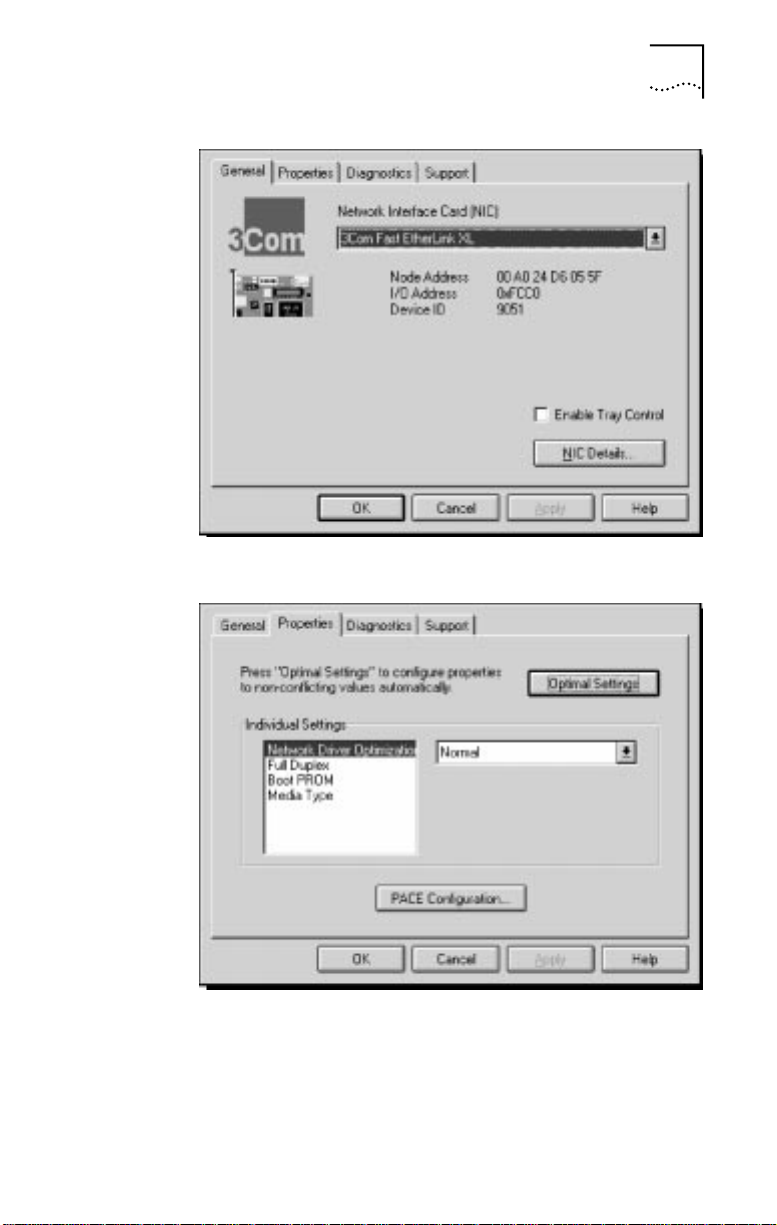

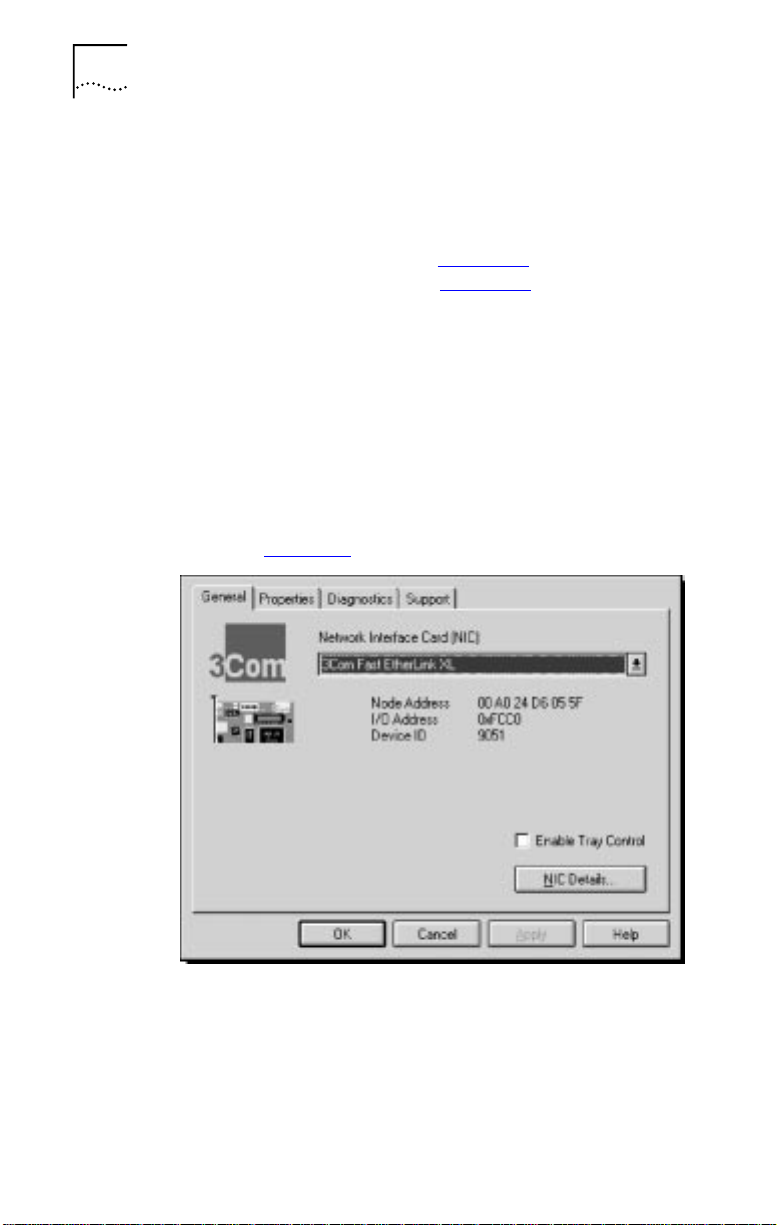

3Com NIC Diagnostics Program General Screen 5-3

5-2

3Com NIC Diagnostics Properties Screen 5-3

A-1

RJ-45 Connector Pin Assignments A-2

vii

ABLES

Notice Icons 2

Text Conventions 2

3-1

Network Driver Text File Names 3-12

4-1

LED Descriptions 4-2

4-2

Frequently Asked Questions 4-15

5-1

Option Settings 5-1

viii

Lifetime Limited Warranty

3Com’s EtherLink®, Fast EtherLink, TokenLink®, TokenLink Velocity®, ATMLink™ PCI, and FDDILink™ network interface cards have a Lifetime Limited Warranty. For further details, please see 3Com’s Limited Warranty statement in this guide.

To ensure the very best 3Com service and support, take the time to complete the product registration card.

Customers in the countries or regions shown below should send the completed registration card to the appropriate address. Customers in other non-U.S. locations should send the registration card to the U.S. address on the front of the card.

■

Asia

3Com Asia Ltd., Marketing Department Room 2506-07, 25/F. Citibank Tower Citibank Plaza, Central Hong Kong

■

Australia, New Zealand

3Com Australia, Marketing Department 99 Walker Street Level 7 North Sydney New South Wales 2060 Australia

■

Belgium, Netherlands, Luxembourg

3Com Benelux B.V., Marketing Department Nevelgaarde 8-9 3436 ZZ Nieuwegein Netherlands

■

France, Israel

3Com France, Marketing Department Immeuble McKinley BP 965 1, Avenue de l’Atlantique 91976 Les Ulis Courtaboeuf Cedex France

■

Japan

3Com Japan, Marketing Department Shinjuku Sumitomo Building 23F 2-6-1 Nishi Shinjuku, Shinjuku-ku Tokyo 163-02 Japan

■

Sweden, Finland, Norway, Denmark

3Com Nordic, Marketing Department Torshamsgatan 39 Box 1110 164 22 KISTA Sweden

■

United Kingdom, Eire

3Com UK Ltd., Marketing Department Pacific House Third Avenue Globe Park Marlow-on-Thames Buckinghamshire, SL7 1YL England

■

Germany, Austria, Switzerland

3Com GmbH, Marketing Department Gustav-Heinemann-Ring 123 D-81739 Muenchen Munich West Germany

■

Italy, Greece, Spain, Portugal, Malta

3Com Mediterraneo Srl, Marketing Department Via Michelangelo Buonarroti, 1 20093 Cologno Monzese MI Italy

BOUT THIS

About This Guide provides an overview of this guide, describes guide conventions, and tells you where to look for speciﬁc information.

This guide describes how to install, conﬁgure, and troubleshoot the 3Com® Fast EtherLink® XL PCI 10/100BASE-TX network interface card (NIC). This NIC is called the 3C905B-TX NIC in this guide.

If the information in the README.TXT ﬁle on the

EtherDisk® diskette shipped with your product differs from

the information in this guide, follow the instructions in the README.TXT ﬁle.

UIDE

Finding Speciﬁc Information in This Guide

This table shows where to ﬁnd speciﬁc information in this guide.

If you are looking for Turn to

NIC features and PC and server requirements Chapter 1 Installation and cabling information Chapter 2 Network driver installation instructions Chapter 3 Troubleshooting Chapter 4 Instructions for changing configuration settings Chapter 5 Specifications and RJ-45 pin assignments Appendix A Technical support Appendix B

2 ABOUT THIS GUIDE

Conventions

Table 1 and Table 2 list conventions that are used

throughout this guide.

Table 1 Notice Icons

Icon Notice Type Description

Information note Important features or instructions

Caution Information to alert you to potential damage to a

Warning Information to alert you to potential personal injury

Table 2 Text Conventions

Convention Description

Commands The word “command” means you must enter the

Screen displays This typeface represents information as it appears on the

The words “enter” and “type”

Menu commands and buttons

Words in italicized type

Words in bold-face type

program, system, or device

command exactly as shown in text and press the Return or

Enter key. Example:

To launch the DOS diagnostics, enter the following command:

a: install

screen.

When you see the word “enter” in this guide, you must

type something, and then press the Return or Enter key.

Do not press the Return or Enter key when an instruction

simply says “type.”

Menu commands or button names appear in italics.

Example:

From the Help menu, select Contents.

Italics emphasize a point or denote new terms at the place

where they are defined in the text.

Bold text denotes key features.

INTRODUCTION

The 3Com® 3C905B-TX network interface card (NIC) provides a high-performance connection to an Ethernet or Fast Ethernet network. This NIC operates at 100 Mbps or 10 Mbps automatically, depending on the speed of the connected hub.

DATA

ACT

L N

100

Figure 1-1 3C905B-TX NIC

There are two types of 3C905B-TX NICs: the 3C905B-TX NIC and the 3C905B-TX-NM NIC.

The 3Com Remote Wake-Up NIC (3C905B-TX), shown in

Figure 1-1, operates as a wake-up NIC only in PCs with the

Remote Wake-Up connector attached to the PC motherboard. This NIC provides a network connection with or without the Remote Wake-Up connector installed.

The 3C905B-TX-NM NIC does not have the Remote Wake-Up connector or functionality.

1-2 CHAPTER 1: INTRODUCTION

Unless speciﬁcally indicated, the name 3C905B-TX is used throughout this guide to refer to both NICs.

This chapter describes the 3C905B-TX NIC features and PC and server requirements.

Industry-Leading Performance

The 3C905B-TX NIC provides the following performance features:

■ Interactive Access technology to minimize CPU utilization

■ Parallel Tasking

low processor utilization

■ Full-duplex 10 Mbps and 100 Mbps support

■ Hardware IP checksum enabled for better Internet and

intranet performance

■ Fast IP switching solution that allows you to

cost-effectively scale internetwork performance as bandwidth requirements increase

■ 32-bit bus master design with full scatter gather and

inﬁnite bursting performance

■ Flow control (IEEE 802.1x), which optimizes performance

in switched networks through efﬁcient data transmissions

II architecture for high throughput and

DynamicAccess Software

DynamicAccess™ software delivers intelligence at the edge of the network to optimize network performance and control.

DynamicAccess features include PACE™ Interactive Access technology, dRMON (distributed RMON) support, and support for PACE real-time and multimedia applications.

PACE class of service drivers enable prioritization of multimedia and business-critical applications like video conferencing and distance learning. With the 3Com PACE drivers, you can set the class of service for each application.

The 3C905B-TX NIC ships with dRMON SmartAgent® intelligent agents that collect remote management information used by the Transcend® Edge Monitor System. Together, they provide full RMON network management information for both switched and Fast Ethernet networks.

Remote Wake-up

Remote Wake-Up support is enabled for the 3C905B-TX NIC. If you are using the 3C905B-TX NIC in a PC that supports Remote Wake-Up through the PCI bus, the 3Com NIC receives wake-up signals and wakes the PC from a sleep state.

Installation and Conﬁguration

The 3Com NIC Diagnostics program allows you to test the 3C905B-TX NIC, conﬁgure it, and display the NIC conﬁguration information. If you are running DOS, you cannot use this program.

The NIC Diagnostics Help system includes the 3C905B-TX Release Notes, Frequently Asked Questions, and KnowledgeBase.

Microsoft Windows 95 detects the 3C905B-TX NIC and installs the network driver from 3Com EtherDisk Diskette #2.

The AutoLink™ installation software automatically installs all Novell NetWare DOS ODI client software into your operating system.

Remote Wake-up 1-3

10/100 Mbps Support

The single RJ-45 connector on the network cable supports 10 Mbps or 100 Mbps speeds.

NWay auto-negotiation enables the 3C905B-TX NIC to automatically run at the speed that the connected hub supports. The 3C905B-TX NIC works with products that comply with IEEE 10BASE-T and 100BASE-TX speciﬁcations.

PC and Server Requirements

Your PC or server must have:

■ An 80386, 80486, Pentium, or Alpha processor

Alpha processors or drivers work only with Windows NT 4.0

■ An available bus mastering PCI slot

■ A minimum of 640K of memory

1-4 CHAPTER 1: INTRODUCTION

Make sure that you are running the latest BIOS for your PC or server , even if your PC is new. Contact your PC manufacturer for more information.

How Do I Install the 3C905B-TX NIC?

To complete installation, install the NIC in your PC or server, connect it to the network, and install the network driver. The installations steps are depicted in Figure 1-2.

Insert

3C905B-TX NIC

Connect NIC

to network

Which

driver installation

instructions

should I use

I do know

Install 3Com

network driver

Reboot

Log on

to network

Chapter 2

I don't know

Chapter 3

Ask

MIS department

Chapter 3

Figure 1-2 3C905B-TX NIC Installation Steps

Proceed to Chapter 2 to install the 3C905B-TX NIC in your PC or server and connect it to the network.

INSTALLING THE NIC

There are two types of 3C905B-TX NICs: the 3C905B-TX NIC and the 3C905B-TX-NM NIC. They are both installed in your PC and connected to the network in exactly the same way.

After you connect the 3C905B-TX NIC to the network, you connect the Remote Wake-Up cable to the motherboard.

Before you begin, make sure that you also have the user guide and the 3C905B-TX EtherDisk diskettes, and that your PC meets the requirements described in Chapter 1.

CAUTION: Each NIC is packed in an antistatic container to protect it during shipment. Before handling the NIC, touch the metal chassis of your PC. Maintain grounding by wearing a wrist strap attached to the chassis. Handle the NIC by its backplate and top edge. Do not touch the edge connector.

To install the 3C905B-TX NIC in your PC or server and connect it to the network, follow these steps:

1 Open the shipping container and inspect each item

for damage.

2 Remove all jewelry from your hands and wrists.

Use only insulated or nonconductive tools. 3 Unplug the PC and disconnect all cables. 4 Remove the PC cover. 5 Choose an empty bus mastering PCI slot.

A sample PCI slot is shown in Figure 2-1. If you do not know

how to identify a PCI slot, check your PC documentation or

ask your system administrator . In most PCs, slots 1 and 2 ar e

bus mastering slots. Use slot 1 for the 3C905B-TX NIC if

possible. If you have a video PCI card, install it in the last slot

(the one farthest from slot 1).

6 Unscrew the screw holding the PCI slot’s backplate

and remove it.

2-2 CHAPTER 2: INSTALLING THE NIC

7 Insert the 3C905B-TX NIC into an empty PCI slot,

shown in Figure 2-1.

Make sure that the NIC is ﬁrmly seated in the slot.

Screw

3C905B-TX NIC

PCI slot

Figure 2-1 Inserting the NIC

8 Secure the NIC with the screw you removed earlier.

If you are installing the Remote Wake-Up connector, go to

“Connecting the Remote Wake-up Cable” at the end of

the chapter before replacing the PC cover.

9 Replace the PC cover and reconnect all previously

connected cables. 10 Turn on the power to the PC. 11 Proceed to the next section, “Connecting to the

Network.”

Connecting to the Network

You must connect the NIC to the network before installing the network driver. To connect the 3C905B-TX NIC to the network cable, follow these steps:

1 Connect the network cable to the RJ-45 port on the

3C905B-TX NIC, as shown in Figure 2-2.

Connecting to the Network 2-3

Data ACT

N K

100

RJ-45 port RJ-45

connector

LEDs

Figure 2-2 Connecting the Network Cable to the RJ-45 Port

2 Connect the other end of the network cable to a

10BASE-T or a 100BASE-TX network port.

3 Check the LEDs, shown in Figure 2-2.

After installation, and before you install the network driver, the LEDs indicate the following:

■ 10 LNK LED - green - 10 Mbps link integrity

■ 100 LNK - green - 100 Mbps link integrity

■ ACT LED - OFF - until the network driver is installed

See Table 4-1 for more LED information. If you are not installing the Remote Wake-Up cable, go to Chapter 3 to install the network driver.

2-4 CHAPTER 2: INSTALLING THE NIC

Connecting the Remote Wake-up Cable

WARNING: Install the NIC in slot 1 in the PC (as described

earlier) before plugging in the 3-pin connector . Only properly

trained and authorized personnel should perform service.

Contact your PC manufacturer for information about safe

service techniques.

1 Insert the cable into the connector on the NIC, shown

in Figure 2-3.

Twist the cable twice before attaching the cable to the

motherboard.

2 Attach the cable to the connector on the PC

motherboard, as shown in Figure 2-3.

The connector is located in different locations depending

on the PC.

Power supply

Connect Remote Wake-Up cable from NIC to motherboard connector

Plug in Remote Wake-Up cable to connector here

Figure 2-3 Connecting the NIC to the Connector

3 Reconnect all cables and replace the PC cover.

The 3C905B-TX Remote Wake-Up NIC is installed. Go back

to the previous section “Connecting to the Network” to

complete installation.

INSTALLING THE

NETWORK DRIVER

This chapter describes how to install the network driver that completes your PC connection to the network. The 3C905B-TX software is installed with the network driver.

Instructions are provided for Windows 95, Windows NT, and NetWare DOS client and server driver installation.

Table 3-1 provides a complete list of supported drivers and

text ﬁles that describe how to install them. Go to the section your MIS department recommends and

follow the instructions to install the network driver on your PC.

You can obtain the latest network drivers on 3Com’s World Wide Web site. To access the Web site, enter the 3Com URL into your Internet browser:

http://infodeli.3com.com/infodeli/swlib/n_i_c.htm/

The drivers are in the Support area. On the Support Welcome screen, scroll down to Latest Drivers and click.

Windows 95

This section describes how to install the network driver when your PC is running Windows 95. This driver supports dRMON and PACE technology.

This driver can be used in Microsoft and NetWare environments, and instructions are included for both.

Y ou need the Windows 95 system installation ﬁles (CAB ﬁles) to complete the installation.

Do not use the AutoLink software to install the driver if you are running Windows 95.

3-2 CHAPTER 3: INSTALLING THE NETWORK DRIVER

Follow these steps to install the network driver in a PC

running Windows 95:

1 Install and conﬁgure Windows 95 before installing

the 3C905B-TX NIC.

2 Install the 3C905B-TX NIC and connect it to the

network, as described in Chapter 2.

3 Restart the PC.

Windows 95 automatically detects the NIC in the PC.

If Windows 95 does not detect the 3C905B-TX NIC, see

Chapter 4,“Troubleshooting.”

4 Select Driver from disk provided by the hardware

manufacturer and click OK.

5 Insert EtherDisk Diskette #2 in your drive and, if the

diskette is in drive A, click OK.

Otherwise, supply the correct drive letter and click OK.

Once the 3Com installation ﬁles are read, Windows 95

prompts you for the Windows 95 network installation ﬁles.

6 Enter the correct path to the Windows 95 ﬁles

(CAB ﬁles) and click OK.

If Windows prompts you to reboot, click No.

7 Open the Windows 95 Control Panel. 8 In the Control Panel, double-click Network.

The Network screen appears.

9 For Microsoft networks, select the Conﬁguration tab.

For Novell NetWare networks, go to step 10.

The default Microsoft network setup contains the following

components:

Client for Microsoft Networks

Client for Novell Networks

3Com EtherLink XL Adapter

3Com dRMON SmartAgent PC software

IPX/SPX compatible protocol

NetBEUI protocol

Windows 95 3-3

If a protocol is missing, follow these steps:

a Select the protocol and click Add. b From the Select Network Protocol menu, select

Microsoft in the left pane. In the right pane, select the protocol and click OK.

If a client is missing, follow these steps:

a Select the client and click Add. b From the Select Network Client menu, select Microsoft

in the left pane, select the client in the right pane, and click OK.

10 For NetWare only, on the Network screen, remove the

following network components, if present:

Microsoft Client for Microsoft Network NetBEUI

The network components should now include:

Client for NetWare Networks 3Com EtherLink XL Adapter 3Com dRMON SmartAgent PC software IPX/SPX Compatible Protocol

If a protocol is missing, follow these steps:

a Select the protocol and click Add. b From the Select Network Protocol menu, select

Microsoft in the left pane. In the right pane, select the protocol and click OK.

If a client is missing, follow these steps:

a Select the client and click Add. b Select Microsoft. c Click Client for NetWare Networks and then Properties.

To select the NetWare server, follow these steps: a Under the General tab, set your preferred server and the

ﬁrst network drive and click OK.

b Set the primary network logon to Client for NetWare

Networks and click OK.

3-4 CHAPTER 3: INSTALLING THE NETWORK DRIVER

11 When the conﬁguration is correct, click the

Identiﬁcation tab.

■ The computer name is the name of your PC. Give your

PC a unique name of up to 15 characters. The PC name cannot include blank spaces.

■ A workgroup (such as your department) is composed of

the PCs you usually communicate with and the workgroup’s shared resources (such as printers).

■ If you use peer group networking, the workgroup name

is your peer group. Peers can see each other when they look in the Network Neighborhood.

For information on peer-to-peer networking, see the W95NDIS3.TXT ﬁle in the HELP directory on EtherDisk Diskette #1.

■ Your computer description is visible to other members

of your workgroup in the Network Neighborhood.

12 Click OK.

The network connection is conﬁgured. Windows 95

prompts you to restart the PC.

13 Click Yes.

After the PC restarts, you can log on to your network.

If you have problems, see Chapter 4.

Conﬁrming Installation

Complete the following procedure to conﬁrm that the

3C905B-TX NIC is properly installed:

1 Double-click the My Computer icon. 2 Double-click the Control Panel icon. 3 Double-click the System icon.

The System Properties box appears, detailing your

system setup.

4 Click the Device Manager tab.

A list of devices appears, arranged by type.

5 Double-click Network Adapters.

The name of the installed 3C905B-TX NIC appears:

3Com EtherLink XL Adapter (3C905B)

+ 54 hidden pages
