CoreBuilderTM 7000 Family
®
ATM Switches
Installation & Startup Guide
Software Version 4.0 (Base)
http://www.3com.com/
Part No. DUA3700-0BAA04
Published October 1998
3Com Corporation
5400 Bayfront Plaza
Santa Clara, California
95052-8145
Copyright © 1998, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced
in any form or by any means or used to make any derivative work (such as translation, transformation, or
adaptation) without written permission from 3Com Corporation.
3Com Corporation reserves the rig ht to revise this documentation and to make changes in content from time
to time without obligation on the part of 3Com Corporation to provide notification of such revision or change.
3Com Corporation provides this documentation without warranty, term, or condition of any kind, either
implied or expressed, including, but not limited to, the implied warranties, terms or conditions of
merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or
changes in the product(s) and/or the program(s) described in this documentation at any time.
If there is any software on removable media described in this documentation, it is furnished under a license
agreement included with the product as a separate document, in the hard copy documentation, or on the
removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy,
please contact 3Com and a copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software described herein are
provided to you subject to the following:
All technical data and computer software are commercial in nature and developed solely at private expense.
Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or
as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are
provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights
only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable.
You agree not to remove or deface any portion of any legend provided on any licensed program or
documentation contained in, or delivered to you in conjunction with, this User Guide.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may
not be registered in other countries.
3Com, the 3Com logo, Net Age, NETBuilder II, SuperStack, Transcend, and TranscendWare are registered
trademarks of 3Com Corporation. ATMLink, CoreBuilder, are trademarks of 3Com Corporation. 3ComFacts is
a service mark of 3Com Corporation.
CompuServe is a registered trademark of CompuServe, Inc. Microsoft, MS-DOS, Windows, and Windows NT
are registered trademarks of Microsoft Corporation.
HP OpenView is a registered trademark of Hewlett-Packard Company. SunNet Manager is a trademark of the
Sun Microsystems, Inc.
All other company and product names may be trademarks of the respective companies with which they are
associated.
Guide written by Joel Harband. Illustrated by Pearl Goldberg. Produced by Teud.
ii
C
ONTENTS
BOUT THIS GUIDE
A
Finding Specific Information in This Guide 1
Conventions 2
Documentation 3
CoreBuilder 7000 Family ATM Switch Documents 3
Related Documents 4
Documentation Road Map 4
Documentation Comments 5
Year 2000 Compliance 6
1
2
VERVIEW
O
CoreBuilder 7000 Family 1-2
CoreBuilder 7000 Switch 1-2
CoreBuilder 7000HD Switch 1-2
Component Summary 1-3
Enclosure 1-3
Power Supply 1-3
Switching Module 1-4
Interface Module 1-4
Fans 1-4
Installing the CoreBuilder 7000 Family ATM Switch 1-4
Starting up the CoreBuilder 7000 Family ATM Switch 1-5
Redundancy in the CoreBuilder 7000 Family ATM Switch 1-5
Troubleshooting 1-6
NPACKING INSTRUCTIONS
U
Unpacking the CoreBuilder 7000 Family ATM Switch 2-1
Taking Inventory 2-2
iii
NSTALLING A COREBUILDER
3
I
Safety Precautions 3-2
Vorsichtsmaßnahmen 3-2
Mesures de sécurité 3-3
Preparation 3-4
Table Top Installation 3-4
Distribution Rack Installation 3-4
Unit and Rack Preparation 3-5
Mounting the CoreBuilder 7000 Family ATM Switch 3-6
NSTALLING AND CONNECTING COREBUILDER MODULES
4
I
Safety Precautions 4-2
Vorsichtsmaßnahmen 4-2
Mesures de sécurité 4-2
Power Supply Module 4-3
Installing a Power Supply Module 4-3
Replacing a Redundant Power Supply Module 4-3
Switch Module 4-4
Installing a Switch Module 4-5
Replacing a Switch Module 4-5
Setting up Switch Module Redundancy 4-6
Setting up Switch Module Hardware Redundancy 4-7
Setting up Switch Module Redundancy and LANE Redundancy 4-8
4-Port Interface Module 4-13
ATM Interface Daughter Cards 4-13
Installing the ATM Interface Daughter Cards 4-15
Installing a 4-Port Interface Module 4-15
Replacing a 4-Port Interface Module 4-16
Fan Tray 4-16
Connecting to Network Devices 4-16
Connecting to an ATM Optical Interface 4-17
Fiber Optic Power Budget of 3Com Products 4-17
Connecting the Control Terminal 4-19
Connecting to the Ethernet Port 4-19
Connecting to the Power Source 4-19
7000 F
AMILY
ATM S
WITCH
iv
OWER-ON
5
P
System States 5-2
System States and Switching Module LEDs 5-2
System Power-on 5-4
Software Loading and Diagnostics 5-4
Indicators 5-4
4-Port Interface Module LEDs 5-5
E3/DS-3 Status LEDs 5-6
6
ONFIGURING THE COREBUILDER
C
Logging in to the LMA 6-2
Integrated Fast Setup 6-3
Setup Modes 6-4
Setup Procedure Sections 6-5
Entering Data 6-6
Navigation Aids 6-6
Integrated Fast Setup Operation 6-6
Additional Switch Configuration 6-20
Viewing Network Statistics 6-22
Storing and Retrieving Configuration Parameters 6-23
Configuration Upload/Download 6-23
Downloading Selected Data Types 6-24
Organizing Configuration Files 6-24
Activating the Downloaded Configuration 6-24
Uploading the Configuration of a Card 6-25
Downloading the Configuration of a Card 6-27
Loading Software and Configuration Data by Batch Utilities 6-29
Batch Upload/Download Utilities 6-29
Batch Downgrade Utilities 6-30
Running a Batch File 6-30
Returning to Operational Mode 6-31
7000 F
AMILY
ATM S
WITCH
7
EDUNDANCY IN THE COREBUILDER
R
WITCH
S
Redundant Power Supply 7-1
Types of Power Supplies 7-1
7000 F
AMILY
AT M
v
Power Supply Operation 7-2
Calculating the Power Consumption of CoreBuilder Switch 7-2
Required Power Supply for Various CoreBuilder Installations 7-5
Providing Redundancy for Various Power Loads 7-6
Power Supply Specifications 7-7
Redundant Switching Module 7-9
Need for a Redundant Switching Module 7-9
Identifying the Active Switching Module 7-9
Conditions for Switch-over to Redundant module 7-9
Switching Module Configuration Database 7-10
Info Based on the MAC Address 7-11
Resetting to Factory Defaults 7-11
ROUBLESHOOTING
8
T
Solving Common Problems 8-1
Power Supply Troubleshooting 8-2
Related Diagnostic Procedures 8-3
A
B
C
vi
OREBUILDER
C
AFETY INFORMATION
S
Bodily Harm B-1
Körperliche Schäden B-2
Dommages corporels B-2
Equipment Damage B-2
Schäden Am Gerät B-3
Dommage causé à l'équipement B-3
ITE REQUIREMENTS
S
Environmental and Safety Requirements C-1
Protective Grounding C-1
Environmental Specifications C-1
Thermal Recommendations C-2
General Recommendations C-2
Power and Heat Specifications C-2
TM
7000 F
AMILY
ATM S
WITCH SPECIFICATIONS
Wiring Closet Considerations C-2
Distribution Rack Requirements C-3
Mechanical Requirements C-3
D
ECHNICAL SUPPORT
T
Online Technical Services D-1
World Wide Web Site D-1
3Com FTP Site D-2
3Com Bulletin Board Service D-2
3ComFacts Automated Fax Service D-3
Support from Your Network Supplier D-3
Support from 3Com D-3
Returning Products for Repair D-5
E
ABLING REQUIREMENTS
C
Installing New Cabling E-1
Cable Labeling and Record Keeping E-1
ATM Cabl i n g E-3
Caring for Fiber Optic Transceivers E-3
Multi-mode Fiber Standards E-4
Calculating Insertion Losses for Unlike Fibers E-5
Verifying Modal Bandwidth E-7
Single Mode Fiber Standards E-8
Comparing Fiber to Specifications E-8
Verifying Maximum Attenuation for Mixed Fibers E-10
DS-3 Coax Cables E-10
Ethernet Cabling E-11
Cable Pinouts E-11
NDEX
I
3COM C
ORPORATION LIMITED WARRANTY
vii
viii
A
BOUT
T
HIS
G
UIDE
Finding Specific
Information in
This Guide
The
CoreBuilder
provides all the information you need for installing and powering
Guide
up the CoreBuilder 7000 family ATM switch in ATM networking
environments.
This guide is intended for the system administrator, network equipment
technician, or network manager who is responsible for installing and
managing network hardware such as the CoreBuilder 7000 family ATM
switch. It assumes a working knowledge of network operations and
familiarity with communications protocols that are used in networks. No
prior knowledge of 3Com’s CoreBuilder 7000 networking equipment is
necessary to understand this manual.
If the information in the release notes that are shipped with this product
differs from the information in this guide, follow the instructions in the
release notes.
This table shows the location of specific information in this guide:
Table 1
If you are looking for Turn to
An overview of the CoreBuilder 7000 family ATM switch and
components
Instructions for unpacking the CoreBuilder 7000 family ATM
switch
Information about installing your CoreBuilder 7000 family ATM
switch
How to install and hot swap modules and cards and connect
cables
The system power-up procedure and initial system checks Chapter 5
How to configure the CoreBuilder 7000 family ATM switch Chapter 6
Information in this Guide
TM
7000 Family ATM Switches Installation and Startup
Chapter 1
Chapter 2
Chapter 3
Chapter 4
A
2
BOUT THIS GUIDE
Conventions
Table 1
How to use the Fast Setup procedure Chapter 6
Installing a redundant power supply Chapter 7
Installing a redundant switching module Chapter 7
How to troubleshoot your system Chapter 8
Hardware and protocol specifications Appendix A
Safety information Appendix B
Site Requirements Appendix C
Getting technical support Appendix D
Information in this Guide (continued)
Table 2 and Table 3 list conventions that are used throughout this guide.
Table 2
Icon Notice Type Description
Notice Icons
Information note Information that describes important features or
instructions
Caution Information that alerts you to potential loss of data or
potential damage to an application, system, or device
Warning Information that alerts you to potential personal injury
Table 3
Convention Description
Screen displays
Syntax
Commands
Text Conventions
This typeface represents information as it appears on the
screen.
The word “syntax” means that you must evaluate the syntax
provided and then supply the appropriate values for the
placeholders that appear in angle brackets. Example:
To enable RIPIP, use the following syntax:
SETDefault !<port> -RIPIP CONTrol =
Listen
In this example, you must supply a port number for <port>.
The word “command” means that you must enter the
command exactly as shown and then press Return or Enter.
Commands appear in bold. Example:
To remove the IP address, enter the following command:
SETDefault !0 -IP NETaddr = 0.0.0.0
Documentation
3
Documentation
Table 3
Convention Description
The words “enter”
and “type”
Keyboard key names If you must press two or more keys simultaneously, the key
Words in
Text Conventions (continued)
When you see the word “enter” in this guide, you must type
something, and then press Return or Enter. Do not press
Return or Enter when an instruction simply says “type.”
names are linked with a plus sign (+). Example:
Press Ctrl+Alt+Del
italics
Italics are used to:
Emphasize a point.
Denote a new term at the place where it is defined in the
text.
Identify menu names, menu commands, and software
button names. Examples:
From the Help menu, select Contents.
Click OK.
This section provides information about supporting documentation,
including:
CoreBuilder 7000 Family ATM Switch Documents
CoreBuilder 7000
Family ATM Switch
Documents
Related Documents
The CD-ROM (No. 3C37091) that comes with your system contains
on-line versions of the documents:
CoreBuilder 7000 Family ATM Switches Installation and Startup
Guide
This guide describes how to install and setup a CoreBuilder 7000
family ATM switch.
CoreBuilder 7000 Family ATM Switches User Guide
This guide explains how to configure and network CoreBuilder 7000
family ATM switch, as well as a detailed explanation of its theory of
operation.
Release Notes
The release notes contain information about the latest software
release.
4
A
BOUT THIS GUIDE
The complete documentation for the CoreBuilder 7000 family is shown in
Table 4.
Related Documents
.
Table 4
Document 3Com Part Number
CoreBuilder 7000 Family ATM Switches User Guide DUA3700-0AAA03
CoreBuilder 7000 Family ATM Switches Installation
and Startup Guide
CoreBuilder 7000HD Switch Release Notes
CoreBuilder 7000 Documentation
DUA3700-0BAA03
Documentation related to the CoreBuilder 7000 family ATM switch is
presented in Table 5.
.
Table 5
Document 3Com Part Number
CoreBuilder 7200 Ethernet/ATM Interface Card
Installation and Administration Guide
CoreBuilder 7200 Ethernet/ATM Interface Card
Operation Guide
CoreBuilder 7400 Ethernet/ATM Interface Card User
Guide
CoreBuilder 7600 Fast Ethernet Interface Card User
Guide
8-Port Board ATM Interface Card User Guide DUA3708-0AAA01
622 Mbps ATM Interface Module User Guide DUA3762-1AAA01
DS-3 Interface Module Installation Guide DIA00DS-1AAA01
FastBUS Board User Guide DUA37FB-1AAA01
SuperStack II Switch 2700 Operation Guide DUA2700-0AAA02
SuperStack II Switch 2700 Installation & Setup Guide DUA2700-0BAA02
SuperStack II Switch 2700 Adminstration Guide DUA2700-OCAA02
ATMvLAN Manager User Guide (UNIX 4.22) 09-1046-002
ATMvLAN Manager User Guide ('97 Windows NT) 09-1112-001
Related Documentation
DUA7200-0BAA01
DUA7200-0AAA01
DUA7400-0AAA01
DUA7600-0AAA01
Documentation Road
Map
The following table helps you locate the information you need.
Documentation Comments
If you want to... Read...
Learn about new features or corrections in the
CoreBuilder 7000 family ATM switch software.
Learn about changes to the CoreBuilder 7000
family ATM switch’s documentation.
Get an overview of the CoreBuilder 7000 family
ATM switch system components.
Prepare your site for CoreBuilder 7000 family
installation.
Learn about various configurations in which you
can install your CoreBuilder 7000 family ATM
switch.
Install and power up your CoreBuilder 7000 family
ATM switch.
Learn about how you administer and manage the
CoreBuilder 7000 family ATM switch.
Learn about ATM and how it is implemented in the
CoreBuilder 7000 family ATM switch.
Learn about LAN Emulation and how it is
implemented in the CoreBuilder 7000 family ATM
switch.
Find out what type of configuration tasks you can
perform on the CoreBuilder 7000 family ATM
switch.
Quickly set up your CoreBuilder 7000 family ATM
switch for management access.
Perform configuration or administration tasks using
the Administration Console.
Get assistance. Technical Support Appendix in
the
Release Notes
the
Release Notes
Installation and Startup Guide
Installation and Startup Guide
Installation and Startup Guide
Installation and Startup Guide,
User Guide
User Guide
User Guide
User Guide
Installation and Startup Guide
User Guide
any guide
5
Documentation
Comments
Your suggestions are very important to us. They help us make our
documentation more useful to you.
Please send e-mail comments about this guide to:
sdtech pubs_ comm ents @3Co m.com
Please include the following information when commenting:
Document Title
A
6
BOUT THIS GUIDE
Document Part Number (found on back page of each document and
in Table 4)
Page Number (if appropriate)
Year 2000 Compliance
For information on Year 2000 compliance and 3Com products, visit the
3Com Year 2000 Web page:
http://www.3com.com/products/yr2000.html
1
O
VERVIEW
This chapter contains an overview of the CoreBuilderTM 7000 family ATM
switches including:
CoreBuilder 7000 Family
Component Summary
Installing the CoreBuilder 7000 Family ATM Switch
Starting up the CoreBuilder 7000 Family ATM Switch
Redundancy in the CoreBuilder 7000 Family ATM Switch
Troubleshooting
For an overview of the operation of the switch, see Chapter 1 of the
CoreBuilder 7000 Family ATM Switches User Guide
.
1-2
C
HAPTER
1: O
VERVIEW
CoreBuilder 7000 Family
CoreBuilder 7000
Switch
CoreBuilder 7000HD
Switch
The CoreBuilder 7000 family ATM switches are modular,
high-performance ATM switches designed to increase the capacity and
manageability of enterprise networks. This allows you to scale
performance to extremely high levels as your network grows and evolves.
The CoreBuilder 7000 family ATM switches includes the CoreBuilder
7000 ATM switch and the CoreBuilder 7000HD High Density ATM switch.
The CoreBuilder 7000 switch has all the features and flexibility necessary
to handle a range of needs on both the ATM backbone and the ATM
network boundary. It provides a backbone solution for small and medium
size networks. It is a modular platform that provides a switching fabric for
ATM, Ethernet/ATM and Fast Ethernet interface cards. The 2.5 Gbps
CoreBuilder 7000 switching engine supports switched LAN interfaces in
the wiring closets of large networks, and is well suited for the backbone
of small to medium-sized networks.
The CoreBuilder 7000HD switch supports demanding enterprise
backbones and high-density data center applications, providing
high-performance ATM switching at both the network core and
boundary. The CoreBuilder 7000HD platform features a 5.0 Gbps
switching engine that provides capacity for up to 32 non-blocking OC-3
155 ports or up to 8 non-blocking OC-12 622 Mbps ports. Using an
enhanced i960CF processor, the CoreBuilder 7000HD switch supports
faster signaling, expanded memory, and higher performance LAN
Emulation services. The switch also accommodates scalable, high density
Ethernet/ATM, Fast Ethernet and Gigabit Ethernet interface cards. The
four-slot chassis allows for a mixture of port types with versatile media
options for a wide range of network configurations.
Component Summary 1-3
Component Summary
TM
CoreBuilder
7000
7000 HD
SWITCH
7000 HD
SWITCH
8 ATM
Port M odu le
7400 E th/A TM
I/F Card
7600 Fas t Eth
I/F Card
PWR
FAIL
ACT
32 x 32
PWR
FAIL
ACT
32 x 32
PWR
FAIL
ACT
PWR
FAIL
ACT
SYS
P
F
A
SYS
P
F
A
10BASE-T Status
Servi ce
Status
Control Status
10BASE-T Status
Servi ce
Status
Control Status
56 87
Link Status
12 43
Link Status
ATM
C
L
F
A
AB
910111213141516
1 2 3 4 5 6 7 8
Figure 1-1 shows the components of the CoreBuilder 7000 family ATM
switch.
Power Supplies
5 6 8
ATM
Fail
Act
ATM
Fail
Act
RX TXMMRX TX
RX T XMMRX TX
RX TX
OC-3MM
RX T X
OC-3MM
1 2 43
A 1-12 B 13-2 4
5 6 87
100 FX
100 FX
1 2 43
OC-3MM
OC-3MM
100 FX
RX T XMMRX T X
100 FX
RX T XMMRX T X
RX TX
RX TX
7
RX T X
OC-3MM
RX
TX
OC-3MM
100 FX
RX T XMMRX TX
100 FX
RX T XMMRX TX
HD
HD
Management Service Port
RS232 RS232
10Base-T
Management Service Port
RS232 RS232
10Base-T
RX
TX
OC-3MM
RX TX
OC-3MM
100 FX
RX TXMMRX T X
100 FX
RX TXMMRX T X
Control Terminal
Control Terminal
CB7000HD
Switch Module
CB7000HD
Switch Module
8 Port Board ATM
Interface Module
CB7400 ATM/Eth
Interface Module
CB7600 Fast Eth
Interface Module
SYS
PWR
FAIL
12 43
ACT
7800 Gigabit
Ethernet
I/F card
Enclosure
Power Supply
1000 BASE-SX
1
Figure 1-1
1000 BASE-SX
1000 BASE-SX
2
3
1000 BASE-SX
4
Components of the CoreBuilder 7000 Family ATM Switch
CB7800 Giga Eth
Interface Module
The housing for the CoreBuilder 7000 family ATM switch contains 2 slots
for switching modules and 4 slots for interface cards, 2 places for power
supplies and a ventilator fan tray. The high speed ATM switching
backplane is located inside the back of the surrounding enclosure.
Located at the top of the front panel. The unit is switched on and off
simply by connecting and disconnecting the power cord on the face of
the power supply unit. A second power supply may be installed for
redundancy.
1-4
C
HAPTER
1: O
VERVIEW
Switching Module
Interface Module
Fans
Installing the CoreBuilder 7000 Family ATM Switch
The two slots just under the power supply contain switching modules,
one slot for the active switching module and one slot for the redundant
switching module.
The switching module is the core switching engine of the CoreBuilder
7000 family ATM switch, controlling and monitoring passive backplane
and ATM activity. The switching module has a control port for connection
to a terminal, a management port for connection to a network
management station, and a service port for use by 3Com technicians.
The next four slots contain interface modules. These can be of many
different types; some are shown in the figure (see the
Family ATM Switches User Guide
for details).
CoreBuilder 7000
For ventilation a fan tray with 6 fans is located at the left side of the unit.
You install the CoreBuilder 7000 family ATM switch in the stages shown
Ta b l e 1 -1 .
Ta b le 1- 1
Installation Stage Chapter
Unpacking the CoreBuilder 7000 family ATM switch
1
Installing the CoreBuilder 7000 family ATM switch chassis
2
either on table-top or in a distribution rack
Installing a main and redundant power supply module in the
3
CoreBuilder 7000 family ATM switch chassis
Installing a main and redundant switch module in the
4
CoreBuilder 7000 family ATM switch chassis
Setting up switch module hardware redundancy and LANE
5
redundancy
Installing 4-Port interface modules in the CoreBuilder 7000
6
family ATM switch chassis
Installing or replacing other interface modules in the
7
CoreBuilder 7000 family ATM switch chassis
Installing or replacing the fan tray
8
Connecting to network devices, ATM optical interface,
9
control terminal, Ethernet port and power source
Installing the CoreBuilder 7000 Family ATM Switch
2
4
5
5
5
5
See respective
manual
5
5
Starting up the CoreBuilder 7000 Family ATM Switch 1-5
Starting up the CoreBuilder 7000 Family ATM Switch
Redundancy in the CoreBuilder 7000 Family ATM Switch
You power-on and configure the CoreBuilder 7000 family ATM switch in
the stages shown in Table 1-2.
Ta b le 1- 2
Switch
Stage Chapter
Powering up the CoreBuilder 7000 family ATM switch
1
Understanding system states and switching module LEDs
2
Logging in to the LMA
3
Configuring the CoreBuilder 7000 family ATM switch by the
4
Integrated Fast Setup procedure
Performing additional configuration of the CoreBuilder 7000
5
family ATM switch by individual LMA commands
Viewing network statistics
6
Powering-on and Configuring the CoreBuilder 7000
Family ATM
6
6
7
7
7
7
The CoreBuilder 7000 family ATM switch is designed to meet the
requirements of environments where network interruptions cannot be
tolerated. The CoreBuilder 7000 family ATM switch platform has a fully
redundant design, with dual load-sharing power supplies and redundant
switching engines. All CoreBuilder 7000 family interface cards and
switching engines are hot swappable to ensure continuous operation
during configuration and servicing.
For information about determining the required power supply for various
CoreBuilder 7000 family ATM switch installations and providing
redundancy for various power loads see “Redundant Power Supply” on
page 7-1.
For information about using the redundant switching module see
“Redundant Switching Module” on page 7-9.
In addition to hardware redundancy, the CoreBuilder 7000 family ATM
switch also provides redundant LANE services which are managed by the
Transcend Network Management System. Each switch contains a
complete set of LES and LECS functionality. In case of failure, LANE
services can be transferred to another CoreBuilder 7000 family ATM
switch elsewhere in the network.
1-6
C
HAPTER
1: O
VERVIEW
Troubleshooting
This manual contains a number of troubleshooting procedures for solving
common problems. For information about troubleshooting, see
Chapter 8.
2
U
NPACKING INSTRUCTIONS
This chapter describes how to unpack the CoreBuilderTM 7000 family
ATM switch and contains the following topics:
Unpacking the CoreBuilder 7000 Family ATM Switch.
Taking Inventory
Unpacking the CoreBuilder 7000 Family ATM Switch
Before unpacking the CoreBuilder 7000 family ATM switch, examine it
carefully for any signs of damage. After unpacking the system as
described below, you may begin the appropriate installation procedure in
Chapter 3.
If there are any visible signs of damage to the system packaging, do not
begin installation. Contact 3Com Technical Support or your distributor for
assistance.
To unpack the CoreBuilder 7000 family ATM switch, follow these
instructions:
Remove the clips that attach the shipping container to the shipping tray
1
of the packaging. The clips are located on opposite sides of the shipping
container (two per side).
Slowly lift the shipping container off the shipping tray. The device is now
2
visible.
Remove the accessory box and the mounting brackets from the top foam.
3
The mounting brackets are recessed into the foam.
Lift the top foam off the device.
4
Two persons are required for this step. With each person grasping the
5
hand-hold of the sling with one hand and holding the side of the system
with the other hand, slowly pull the device out of the foam and place it
where desired.
2-2
C
HAPTER
2: U
NPACKING INSTRUCTIONS
Save the packaging in the event that you must return the CoreBuilder
7000 Family to 3Com or your distributor.
Taking Inventory
The CoreBuilder 7000 family ATM switch package should contain the
items described in the following list. Check these items against the
packing slip. Contact 3Com Technical Support at 1-800-992-2446 if any
item is missing.
1 CoreBuilder 7000 family ATM switch
1 two volume documentation set (includes:
ATM Switches Installation & Startup Guide
CoreBuilder 7000 Family
and
CoreBuilder 7000
Family ATM Switches User Guide)
1 hardware kit including:
1 pair of mounting brackets (for distribution rack installation)
10 screws, M4 x 8 Phillips (for mounting brackets)
4 rubber feet (for table installation)
4 screws, M4 x 8 Phillips (for rubber feet)
1 or 2 power cord(s) (2.5 meters each)
1 strain relief bracket per power cord
3 screws, M3 x 8 Phillips
Optional accessories that you ordered with your system may be shipped
separately.
Check the packing slip for other items that you ordered.
I
NSTALLING A COREBUILDER
7000
3
F
AMILY
This chapter contains instructions for installing the CoreBuilderTM 7000
family ATM switch on a table top or in a distribution rack and making the
necessary hardware connections. The topics covered in this chapter
include:
Safety Precautions
Preparation
Table Top Installation
Distribution Rack Installation
ATM S
WITCH
3-2
C
HAPTER
3: I
NSTALLING A COREBUILDER
Safety Precautions
7000 F
AMILY
ATM S
WITCH
Read the following safety precautions carefully to reduce the risk of
electric shock and fire.
All servicing should be undertaken ONLY by qualified service
personnel. There are no user serviceable parts inside the unit.
The CoreBuilder 7000 family ATM switch internal power supply
provides for automatic selection of either 100-120 VAC or 200-240
VAC, 60/50 Hz, as indicated on the safety label adjacent to the power
inlet. ENSURE that the available voltage supply at the mains is within
one of these two ranges.
DO NOT operate the unit in a location where the maximum ambient
temperature exceeds 40 degrees C.
Ensure that the chassis ventilation openings in the unit are NOT
BLOCKED.
DO NOT plug in, turn on or attempt to operate an obviously damaged
unit.
Vorsichtsmaßnahmen
Unplug the power supply cord from the wall socket BEFORE
attempting to remove and/or replace the power supply.
The system has a redundant power supply option. Disconnecting one
power supply cord disconnects one power supply module only. To
isolate the unit completely from the mains, disconnect all power
supply cords.
Lesen Sie die folgenden Vorsichtsmaßnahmen sorgfältig, um das Risiko
von Stromschlag oder Brandgefahr zu vermindern.
Jede Wartung sollte NUR von befugtem Wartungspersonal
durchgeführt werden. Das Aggregat enthält keine vom Anwender zu
wartenden Teile.
Das interne Netzteil des CoreBuilder 7000 family ATM switch
ermöglicht automatische Wahl von 100-120 V AC oder 200-240 V
AC, 60/50 Hz, wie auf dem Sicherheitsetikett beim Netzeingang
vermerkt. VERGEWISSERN SIE SICH, daß der vom Netz gelieferte
Strom einer von diesen beiden Spannungsbereichen entspricht.
Mesures de sécurité
Mesures de sécurité
Nehmen Sie das Gerät NICHT in Betrieb, falls die Temperatur der
Umgebung 40 Grad C übersteigt.
Gehen Sie sicher, daß die Lüftungsöffnungen am Gehäuse NICHT
BLOCKIERT sind.
Eine offensichtlich schadhafte Einheit soll weder angeschlossen,
eingeschaltet noch in Betrieb genommen werden.
Ziehen Sie das Netzkabel aus Steckdose an der Wand, BEVOR Sie
versuchen, das Netzteil zu entfernen und/oder zu ersetzen.
Das System verfügt über ein wahlweises Ersatzstromaggregat. Das
Trennen der Verbindung eines Netzkabels unterbricht die Verbindung
nur mit einem Netzteil-Modul. Um das Gerät völlig vom Stromnetz zu
trennen, müssen alle Netzkabel gelöst werden.
Lire attentivement les mesures de sécurité afin de réduire les risques
d'électrocution et d'incendie.
3-3
Le service après-vente ne devra être effectué que par un personnel
qualifié. Aucune pièce de l'unité ne peut être réparée par le simple
utilisateur.
Le CoreBuilder 7000 family ATM switch d'alimentation interne permet
une sélection automatique de 100 -120 VAC ou 200-240 VAC,
60/50Hz comme stipulé sur le label de sécurité placé près de
l'ouverture d'alimentation. Veiller à ce que le voltage du secteur soit
bien compris entre les valeurs mentionnées ci-dessus.
Ne pas faire fonctionner l'unité dans un endroit où la température
ambiante maximale dépasse 40 degrés C.
Ne jamais essayer de brancher, allumer ou faire fonctionner une unité
apparemment endommagée.
S'assurer que les ouvertures de la ventilation du chassis de l'unité ne
sont pas bloquées.
Débrancher le fil d'alimentation au secteur de la prise murale AVANT
d'essayer de déplacer ou de remplacer l'unité d'alimentation.
Le système dispose d'un système redondant d'alimentation au secteur.
Le fait de débrancher l'une des sources d'alimentation ne débranche
que l'un des modules d'alimentation au secteur. Pour isoler
3-4
C
HAPTER
3: I
NSTALLING A COREBUILDER
7000 F
AMILY
ATM S
WITCH
entièrement l'unité de toute alimentation, débrancher tous les câbles
d'alimentation.
Preparation Before beginning the installation procedures in this chapter, ensure that
the CoreBuilder 7000 family ATM switch is placed close to the location
where it will be installed and that the mounting brackets and hardware
kit supplied with the system are readily available. You will also need a No.
2 Phillips screwdriver.
The hardware kit contains:
1 pair of mounting brackets (for distribution rack installation)
10 screws, M4 x 8 Phillips (for mounting brackets)
4 rubber feet (for table installation)
4 screws, M4 x 8 Phillips (for rubber feet)
Ta b l e To p Installation
Distribution Rack Installation
The CoreBuilder 7000 family ATM switch is ready for table top installation
as shipped.
To provide a firmer base for the unit, you can choose to attach four
rubber feet to the switch chassis. Use the rubber feet and the four M4 x 8
Phillips screws included in the hardware kit.
To insert the power supply, switching modules, and interface cards,
configure optical ports for the interface modules and connect network
cabling and power to the unit see Chapter 4.
You can mount the CoreBuilder 7000 family ATM switch in a 19-inch
distribution rack. This section describes how to prepare the unit and the
distribution rack, and mount the unit in the distribution rack. Please read
all of the instructions carefully before beginning the installation.
For the basic mechanical and space requirements for the distribution rack
“Distribution Rack Requirements” on page C-3.
Distribution Rack Installation
3-5
Unit and Rack
Preparation
To prepare the CoreBuilder 7000 family ATM switch and distribution rack
for installation:
Attach the mounting brackets onto the sides of the CoreBuilder 7000
1
family ATM switch using the mounting bracket screws (M4 x 8 Phillips).
Determine whether or not the distribution rack has threaded holes. If the
2
holes are threaded, “Mounting the CoreBuilder 7000 Family ATM
Switch” on page 3-6.
If the holes are not threaded, you must insert “G” clips. To determine
3
where to insert “G” clips, locate the top of a universal mounting hole
pattern on the left mounting rail. In the universal rail pattern, the spacing
between holes is 1/2 inch, 5/8 inch, 5/8 inch, and 1/2 inch. To find the top
of the pattern, locate the midpoint between any two holes that are
spaced half an inch apart. Figure 3-1 shows the universal mounting hole
pattern.
Top of a universal m ounting
hole pattern
1/2-inchspacing
Universal mounting
hole pattern
5/8-inch spacing
5/8-inch spacing
1/2-inch spacing
Figure 3-1
From the top of the universal mounting hole pattern, insert “G” clips in
4
Universal Mounting Hole Pattern
the holes designated for the unit model.
Repeat steps 3 and 4 for the right rail. Ensure that you start on the same
5
hole space.
You are now ready to mount the CoreBuilder 7000 family ATM switch
into the distribution rack.
3-6
C
HAPTER
3: I
NSTALLING A COREBUILDER
7000 F
AMILY
ATM S
WITCH
Mounting the
CoreBuilder 7000
Family ATM Switch
Once the distribution rack is ready, you can mount the CoreBuilder 7000
family ATM switch into the rack.
To mount the CoreBuilder 7000 family ATM switch into the distribution
rack:
Carefully lift the CoreBuilder 7000 family ATM switch into place, aligning
1
the mounting brackets to the holes you have designated for mounting.
A fully-configured CoreBuilder 7000 family ATM switch weighs 43
pounds as shipped. To avoid personal injury, do not lift the unit without
assistance.
While holding the CoreBuilder 7000 family ATM switch in place, firmly
2
insert the mounting screws (10/32 x 1/2 Phillips) into the mounting holes
on both sides of the rack.
The unit is now installed in the distribution rack.
To insert the power supply, switching modules, and interface cards,
configure optical ports for the interface modules and connect network
cabling and power to the unit see Chapter 4.
I
NSTALLING AND
C
ONNECTING
4
C
OREBUILDER
This chapter describes how to install and replace the CoreBuilderTM 7000
family modules. The following modules are covered.
Power Supply Module
Switch Module
4-Port Interface Module
Fan Tray
Connecting to Network Devices
The installation procedures of the other modules of the CoreBuilder 7000
family modules are described in their respective User Guides.
This chapter also describes how to connect the CoreBuilder 7000 family
ATM switch to network devices.
M
ODULES
4-2
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
Safety Precautions
When handling replacement parts, 3Com recommends that you always
use a wrist strap connected to a proper ground. This helps prevent the
module from being damaged by electrostatic discharge. Additionally,
when not in use, the module should be stored in an antistatic bag.
If the system is powered on when you are replacing a module, do not
insert any metal objects, such as a screwdriver or a finger with jewelry, in
the open slot. This could cause burns or other bodily harm, as well as
system damage.
Vorsichtsmaßnahmen
Mesures de sécurité
Wenn Sie Ersatzteile handhaben, benutzen Sie immer ein Band am
Handgelenk, daß gut geerdet ist. Das hilft vermeiden, daß das Ersatzteil
durch elektrostatische Entladung beschädigt wird. Darüber hinaus sollte
ein Modul, wenn nicht benutzt, in einem antistatischen Beutel
aufbewahrt werden.
Steht das System unter Strom, wenn sie ein Modul installieren oder
auswechseln, führen Sie keine Metallgegenstände, wie einen
Schraubenzieher oder einen Finger mit Schmuck in den offenen Schlitz
ein. Das könnte zu Verbrennungen oder anderen Körperschäden führen,
sowie auch zu Schäden am System.
Lors de la manipulation des pièces de rechange, 3 Com recommande de
toujours utiliser une bande attachée au poignet et reliée à la terre. Cela
aidera à éviter que la pièce ne soit endommagée par une décharge
électrostatique. De plus, lorsqu'il n'est pas utilisé, le module doit être
conservé dans un emballage antistatique.
Si le système est alimenté lors de l'installation ou du remplacement d'un
module, ne jamais insérer d'objet métallique tel qu'un tourne-vis ou un
doigt portant un bijou dans la fente. Cela est susceptible de provoquer
brûlures ou autres dommages corporels, et d'endommager le système.
Power Supply Module
4-3
Power Supply
Module
Installing a Power
Supply Module
The CoreBuilder 7000 family ATM switch provides a dual load-sharing
power supply capability where the second unit can serve as a redundant
power supply. For more information, see “Redundant Power Supply” on
page 7-1.
For certain combinations of installed interface cards, the second power
supply cannot be used as a redundant supply (see “Providing Redundancy
for Various Power Loads” on page 7-6).
This section discusses the following topics:
Installing a Power Supply Module
Replacing a Redundant Power Supply Module
To install a power supply module:
Orient the module so that its sides enter the guides on either side of the
1
chassis slot.
Slide the module into the chassis until the face panel is flush with the
2
enclosure.
Secure the screws on either side of the front panel.
3
If a redundant power supply is not installed in the second power supply
4
slot, cover the slot with a blank panel for safety.
Replacing a
Redundant Power
Supply Module
This section describes how to replace a redundant power supply module.
You can replace the redundant power supply without having to turn off
the system (hot-swap). For more information on the operation of the
redundant power supply module, see “Redundant Power Supply” on
page 7-1.
To replace a redundant power supply module:
Disconnect the power cord from the power supply.
1
Loosen the screws at the extreme right and left of the power supply, near
2
the handles (refer to Figure 4-1).
Grasp the handles of the redundant power supply you want to replace
3
and pull them outward. This ejects the power supply.
Remove the new power supply from its antistatic bag. Place the old
4
power supply in the antistatic bag and set it aside in a safe place.
4-4
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
Orient the power supply so its labelling is upright.
5
Insert the power supply into the chassis by placing it between the guides
6
of the slot and sliding it until it stops.
Tighten the power supply’s securing screws.
7
Connect the power cord to the power supply.
8

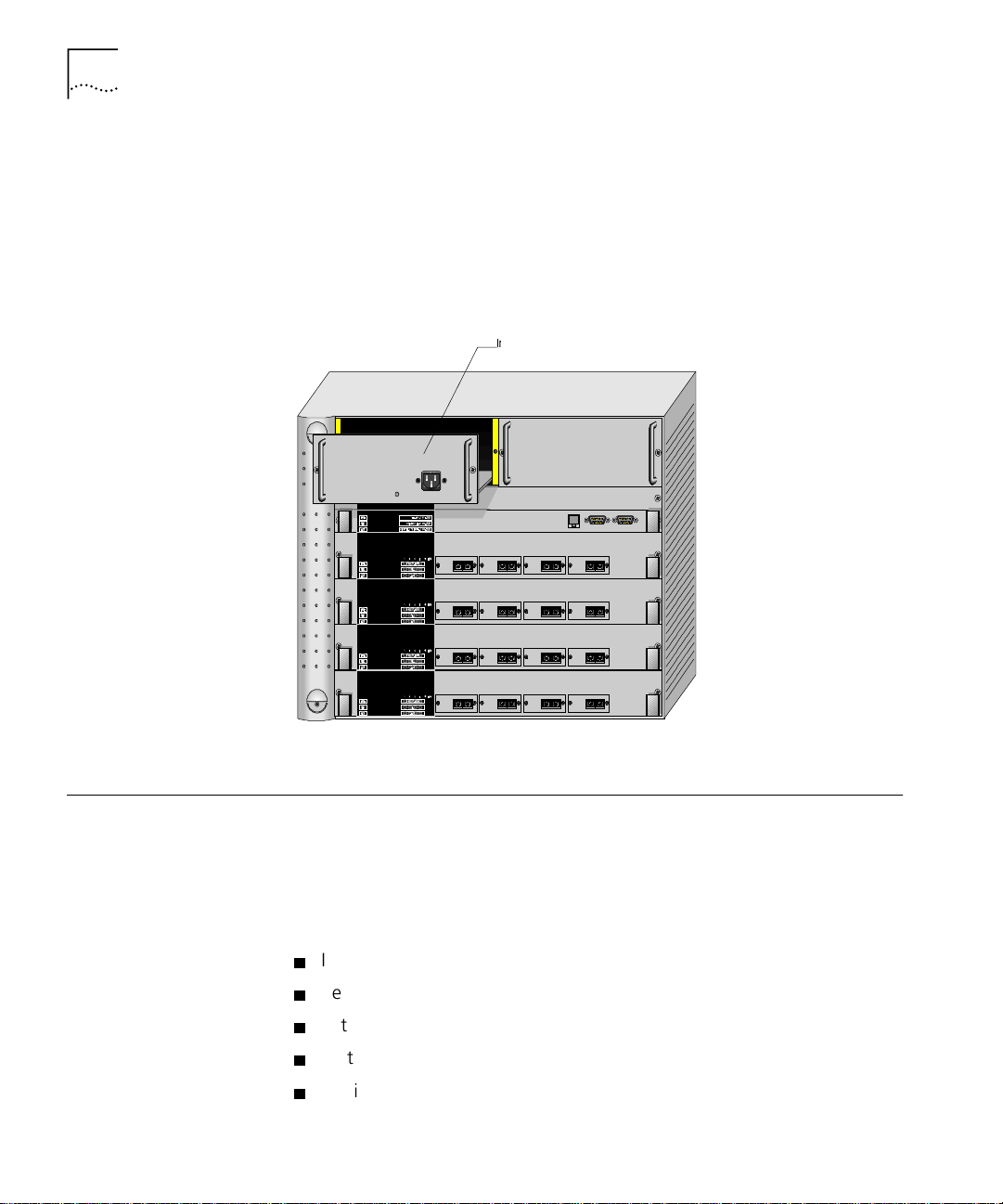

Inserting the power supply
Figure 4-1
Hot-Swapping a Redundant Power Supply
Switch Module The CoreBuilder 7000 family ATM switch provides for a redundant switch
module to ensure continued operation should the main switch module
fail. For more information on the operation of the redundant switch
module, see “Redundant Switching Module” on page 7-9.
This section includes the following topics:
Installing a Switch Module
Replacing a Switch Module
Setting up Switch Module Redundancy
Setting up Switch Module Hardware Redundancy
Setting up Switch Module Redundancy and LANE Redundancy
Switch Module
4-5
Installing a Switch
Module
Replacing a Switch
Module
To install a switch module in the CoreBuilder 7000 family ATM switch
chassis:
Remove the new card from its antistatic bag.
1
Orient the card so its labelling is upright and make sure the inject handles
2
are in the outward position.
Insert the card into the chassis by placing it between the guides of the
3
selected slot and sliding the card until it stops.
Grab both inject handles and push them inward. This locks the card into
4
the chassis. You may have to apply considerable pressure to the handles.
An audible “click” indicates that the connectors have engaged.
Tighten the card’s securing screws. You are now ready to connect cables
5
to the appropriate ports.
To hot-swap the switch module:
Disconnect the cables from the card's ports. Ensure that there is a record
1
of where the cables are attached so that you can correctly re-connect
them to the new card.
Loosen the screws at the extreme right and left of the card, near the
2
insert/eject handles.
Grasp the insert/eject handles of the card you want to replace and push
3
them outward. This ejects the card. You may have to apply considerable
force to the handles. You will hear a “click” to indicate that the
connections have separated, and the card will slide slightly forward out of
the CoreBuilder chassis.
Remove the new card from its antistatic bag. Place the old card in the
4
antistatic bag and set it aside in a safe place.
Orient the card so its labelling is upright and make sure the inject handles
5
are in the outward position.
Insert the card into the chassis by placing it between the guides of the
6
selected slot and sliding the card until it stops.
Grab both inject handles and push them inward. This locks the card into
7
the chassis. You may have to apply considerable pressure to the handles.
An audible “click” indicates that the connectors have engaged. Verify
that the card has been properly installed by observing its LEDs.
Tighten the card’s securing screws.
8
4-6
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
Connect cables to the appropriate ports.
9
Figure 4-2
Hot-Swapping a Switch Module or Interface Module
Inserting an interface card
Setting up Switch
Module Redundancy
This section describes procedures for installing and setting up both a
main and redundant switch module together.
Two different setup procedures are described. The first procedure covers
setting up the main and redundant switch module hardware redundancy
without setting up LANE redundancy. This procedure only requires
operating the Local Management Application (LMA). The LMA is
described in the CoreBuilder 7000 Family ATM Switch User Guide. The
second procedure sets up the main and redundant switch module
hardware redundancy as well as LANE redundancy. It requires both the
LMA and the Transcend Enterprise Manager.
There are two situations where you would use the procedures of this
section:
The initial installation of main and redundant cards.
1
The main card in the first slot has failed and the redundant card in the
2
second slot has taken over as the main card. The failed card in the first
slot has been replaced by a new card and this new card is now the
redundant one.
Switch Module
4-7
Setting up Switch
Module Hardware
Redundancy
Use the following procedure to set up the switch module hardware
redundancy.
Designate and mark the main and redundant switch modules.
1
Insert the switch module you marked as “redundant” in slot 2. Do not
2
insert the switch module you marked as “main” yet.
Turn on the CoreBuilder 7000 family ATM switch.
3
The switch module in slot 2 becomes active.
Run the Integrated Fast Setup procedure (see “Integrated Fast Setup” on
4
page 6-3) using the LMA command
(9) FST
Insert the main switch module in slot 1.
5
Wait five minutes for configuration information to pass between the two
6
switch modules (see “Switching Module Configuration Database” on
page 7-10 for a list of configuration items that pass between the switch
modules).
Reboot the CoreBuilder 7000 family ATM switch using the LMA menu
7
sequence:
(1) SYS / (7 ) RB O.
The switch module in slot 1 becomes active.
Verify main and redundant switch module status using the LMA
8
command
(1) SYS / (4) SWM
You should see the following display.
Slot id Slot status Switch type Switch mode Memory size
------- ----------- ---------------- ------------ -----------
1 Occupied 32X32 ATM switch Active 16M
2 Occupied 16x16 ATM switch Redundant 8M
Run the Integrated Fast Setup procedure using the LMA command
9
(9) FST to verify the configuration in the main switch module.
Add the following configuration information that did not pass between
10
the switch modules in step 6 (see “Switching Module Configuration
Database” on page 7-10).
4-8
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
LECS topology database (including: LES list and addresses, ELAN
names, connection type)
Static ATM addresses
PVC configurations, UNI version, UNI profile, signaling.
The switch is now operational.
Setting up Switch
Module Redundancy
and LANE
Redundancy
This section presents a procedure for setting up both switch module
hardware redundancy and LANE redundancy in the same session. Both
the LMA and the Transcend Enterprise Manager are used.
General Description of the Procedure
The following is a general description of the procedure for orientation
purposes only. When you perform the procedure, use the detailed steps
in the following sections.
Install both switches in chassis and run RESETCFG.BAT on each one.
1
Connect Ethernet ports of each switch module and install at least one
interface card in the chassis.
Configure the first switch using the Integrated Fast Setup of the LMA and
2
do not reboot the switch in the Integrated Fast Setup.
Reboot the switch after one minute using the LMA menu.
3
Answer “no” to the prompt “Erase the setup parameters?” and use the
4
LMA to check that all configuration parameters (i.e., database, IP, NNI
etc.) have passed successfully to the second switch module.
Configure LANE redundancy in the first switch using the Transcend
5
Backbone and Services Setup window and close the window when
finished.
Reboot the switch after one minute
6
Configure LANE redundancy in the second switch module using the
7
Transcend Backbone and Services Setup window and close the window
when finished.
After one minute use the MIB browser to check the LECS order list and
8
the Backbone and Services Setup window to check the LECS database.
Reboot the box.
9
Check the second switch using the MIB browser to check the LECS order
10
list and the Backbone and Services Setup window to check the LECS
database.
Switch Module
Preparatory Steps
Carry out the following preparatory steps.
Install main and redundant switch modules in the switch module slot 1
1
and slot 2 respectively (see “Installing a Switch Module” on page 4-5). Do
not run the Integrated Fast Setup yet.
Each time the switch is rebooted during this procedure the cards change
roles. The main card becomes the redundant card and vice versa. The
main card can always be identified by its ACT LED flashing once every
two seconds. The ACT LED of the redundant card flashes at a lower rate.
Verify that at least one interface card of any type is installed in the
2
CoreBuilder chassis in any interface card slots 3-6. Data is transferred
between switch modules via a communications chip on an interface card.
Verify that the Ethernet management ports in both switches are
3
connected to the NMS station. They can either be connected through a
hub to the NMS station or through an Ethernet interface card in the same
chassis, such as the CoreBuilder 7400 High Density Ethernet/ATM
interface card, to the NMS station.
4-9
During the procedure you will need to verify connectivity between the
NMS station and the switch by pinging the switch module from the NMS
station.
Connectivity between the switch module and its attached devices is
established by an RARP transmitted by the switch module when it boots.
The RARP causes a device to learn the MAC address of the switch
module. However, there are certain devices, for example, a Solaris station,
which will not learn a new MAC address for an IP when one already
exists. If you are using one of these devices as an NMS station, and you
are unable to ping the switch module, try erasing the switch module’s
MAC address from the device’s ARP table and ping again.
Verify that the RS-232 terminal line is connected to the console port on
4
the main switch module.
Procedure Execution
Reset the configuration of both switch modules by executing the
1
RESETCFG.BAT file supplied with your software.
Do not use the LMA menu (1) SYS / (2) RES to reset the switch module
configuration.
4-10
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
To execute the RESETCFG.BAT file proceed as follows:
Perform the LMA command (1) SYS / (3) LOA / (3) LCL / 1 to put the
a
system in Load Mode: Load.
Reboot the switch using the LMA menu command: (1) SYS / (7) RBO.
b
The switch will reboot in debug mode.
Transfer the RS-232 cable to the service port of the main switch
c
module.
From a DOS window on the LMA terminal execute
d
resetcfg com speed
>
where “com” is the communications port you are using and “speed”
is 115200 for a CoreBuilder 7000HD switch module and 57600 for a
CoreBuilder 7000 switch module.
Transfer the RS-232 cable to the service port of the redundant switch
e
module.
Repeat step d)
f
Transfer the RS-232 cable to the console port of the main switch
g
module.
Switch Module Redundancy Setup
Set up the main switch module using the Integrated Fast Setup (see
2
“Integrated Fast Setup” on page 6-3). Do not reboot the switch from the
Integrated Fast Setup procedure (answer “no” to the prompt).
The main menu appears.
Wait for one minute to allow the configuration data to transfer from the
3
main switch module to the redundant switch module.
Reboot the switch using the LMA menu sequence: (1) SYS / (7) RBO. This
4
causes the configuration data to be recorded in flash memory and also
causes the redundant switch module to become the main switch module.
After the switch reboots, answer “no” to the prompt: “Do you wish to
5
erase the setup parameters”.
Run the Integrated Fast Setup procedure as in step 2) to verify that the
6
setup parameters have been transferred correctly to the second switch
(the Integrated Fast Setup procedure now displays the setup parameters
resident in the second switch module). Press Enter repeatedly to verify
these parameters; do not enter new values.
Switch Module
Verify that the ELAN names in the LECS database are identical in both
7
switch modules. Use menu item (2) LEM/(1) LCS/(5) LNT to check that the
LECS database of the second switch includes the ELAN name of the first
switch. For example, Elan6666_0 - Elan6666_15
LANE Redundancy Setup
Verify connectivity between the switch module and the NMS station by
8
pinging the switch module from the NMS station.
Load the Transcend application and open the Wizard Tool from the
9
ATMvLAN tool bar
Open the Backbone and Services Window.
10
Configure the LECS order as desired and press the Apply button.
11
Configure the LECS database. Add all the primary and redundant ELAN
12
names desired to the LECS database and press Apply. Make a list of the
ELAN names you have selected. You will need them for setting up the
other switch module.
When finished, close the Backbone and Services window.
13
4-11
Wait one minute to allow the LECS order database to transfer to the
14
other switch module.
The LECS ELAN database does not transfer automatically.
Reboot the switch using the LMA menu sequence:
15
(1) SYS / (7) RBO.
The purpose of this step is to make the first switch module active in order
to set up the LANE services there.
After the first switch boots, check its connectivity with the NMS station as
16
in step 8).
Perform steps 10) and 12) using the same list of ELANs.
17
Wait one minute.
18
Verifying LANE Redundancy Setup
Use the MIB browser under the Transcend tools menu and browse
19
through the MIB to verify that all the information regarding the LECS
order list has been transferred correctly.
Look in the following MIB location:
private.
enterprises.
atmForum.
4-12
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
atmForumNetworkManagement.
atmLanEmulation.
elanMIB.
elanLecsGroup.
elanLecsConfGroup.
lecsConfTable.
lecsConfEntry.
lecsAtmAddrSpec.
Press start query. The LECS order list is displayed on the bottom window.
Close the Backbone and Services Select window.
20
Open the Backbone and Services Select window again and use it to check
21
that the LECS database is correct.
This item could be done through the LMA but it is preferred to do so
through the NMS since the LMA will not show any redundant LES that
exists.
Reboot the switch using the LMA menu sequence: (1) SYS / (7) RBO. The
22
purpose of this step is to make the second card active in order to check
the LANE services there.
After the second switch module boots, verify connectivity with the NMS
23
station as in step 8).
Perform step 19) and 20) to verify LECS order.
24
Open the Backbone and Services Select window again and use it to check
25
the LECS database is correct.
The hardware and LANE redundancy procedure is finished.
4-Port Interface Module
4-13
4-Port Interface
Module
ATM Interface
Daughter Cards
This section contains the following topics:
ATM Interface Daughter Cards
Installing the ATM Interface Daughter Cards
Installing a 4-Port Interface Module
Replacing a 4-Port Interface Module
Each of the four ATM interface receptacles of the 4-Port ATM Interface
module can be configured to support the following types of ATM
daughter cards:
OC-3 multi-mode (MM) fiber link, single-mode (SM) fiber link
OC-3 Category 5 UTP
DS-3 coaxial cable
E-3 ATM 34.368 Mbits/sec WAN interface
Figure 4-3 shows the OC-3 daughter card.
Figure 4-3
OC-3 Daughter Card
Figure 4-4 shows the E-3/DS-3 daughter card.
4-14
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
Figure 4-4
E-3/DS-3 Daughter Card
4-Port Interface Module
4-15
Installing the ATM
Interface Daughter
Cards
The 4-port ATM interface module can hold up to four ATM interface
daughter cards. The installation procedure of the 4-port ATM interface
module comprises two stages. First, you install the ATM interface
daughter cards in the 4-port ATM interface module. Then, you install the
4-port ATM interface module into the CoreBuilder 7000 family ATM
switch chassis.
To install the ATM interface daughter cards perform the following
procedure:
1 Select the individual daughter cards that are to occupy the interface card’s
four openings.
2 Align each module with the front panel aperture as shown in Figure 4-5
and press down to engage the strip connectors on the underside of the
module. Three screws anchor each module to its seat on the interface
card. Interface openings reserved for future use should be covered with
blank panels. Used interfaces should use the coax or optical panels as
covers.
Installing a 4-Port
Interface Module
Figure 4-5
4-Port ATM Interface Module
When the ports of the interface module have been fitted with the
appropriate daughter card, you install the 4-Port interface module into
the CoreBuilder 7000 family ATM switch chassis.
To install the 4-port interface module:
1 Orient the interface module so its labelling is upright and make sure the
inject handles are in the outward position.
2 Insert the card into the chassis by placing it between the guides of the
selected slot and sliding the card until it stops.
3 Make sure the card sits in the guide slots on either side. Be sure that the
loose screws do not interfere with card insertion.
4-16
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
4 Grab both inject handles and push them inward. This locks the card into
the chassis. You may have to apply considerable pressure to the handles.
An audible “click” indicates that the connectors have engaged.
5 Tighten the card’s securing screws. You are now ready to connect cables
to the appropriate ports of the module.
Replacing a 4-Port
Interface Module
Fan Tray
To replace individual daughter cards, or to replace the entire interface
module:
1 Disconnect the cables from the card's ports. Ensure that there is a record
of where the cables are attached so that you can correctly re-connect
them to the new card.
2 Loosen the screws at the extreme right and left of the card, near the
insert/eject handles.
3 Grasp the insert/eject handles of the card you want to replace and push
them outward. This ejects the card. You may have to apply considerable
force to the handles. You will hear a “click” to indicate that the
connections have separated, and the card will slide slightly forward out of
the CoreBuilder chassis.
4 If you are replacing the entire interface card, remove the new card from
its antistatic bag. Place the old card in the antistatic bag and set it aside in
a safe place.
To replace the fan tray:
1 Loosen the screws at the top and bottom of the fan tray.
2 Pull the fan tray out of the chassis.
3 Remove the new fan tray from its antistatic bag. Place the old fan tray in
the antistatic bag and set it aside in a safe place.
Connecting to Network Devices
4 Orient the fan tray so its labelling is upright.
5 Insert the new fan tray into the chassis by placing it between the guides
of the slot and sliding it until it stops.
6 Tighten the fan tray’s securing screws.
This section shows how to connect the CoreBuilder 7000 family ATM
switch to various network devices.
Four types of connections are required:
Connecting to an ATM Optical Interface
Connecting the Control Terminal
Connecting to the Ethernet Port
Connecting to the Power Source
Connecting to Network Devices
4-17
Connecting to an
ATM Optical Interface
Fiber Optic Power
Budget of 3Com
Products
Ta b le 4- 1
Product
4-Port/8-Port
OC-3 MM
4-Port/8-Port
OC-3 SM
CoreBuilder
7201 (ATM port)
CoreBuilder
7201 (ATM port)
Fiber Power Budget for Various 3Com Products
Mode
(nm)
MM-1300 -19 -30 11 2 HP#:HFBR-5205
SM-1300 -15 -33 18 15 SDX-1155B
MM-1300 -19 -30 11 2 HP#:HFBR-5205
SM-1300 -15 -33 18 15 SDX-1155B
To connect a CoreBuilder 7000 family ATM switch port to another
CoreBuilder unit, to a LinkSwitch 2700 ATMLink adapter, or to any device
with an ATM optical interface:
1 Prepare an optical cable (Tx Rx). You may want to mark the ends of the
cable so you can identify them.
2 Snap the cable into a CoreBuilder 7000 family ATM switch port in one of
the interface modules.
3 Snap the other end of the cable into the selected optical interface of the
other ATM device. Make sure that each wire connects to Rx on one end
and Tx on the other.
4 Repeat steps 1-3 for all ATM port connections to the CoreBuilder.
Perform steps 1-4 above when connecting a DS-3 coax cable set (Rx and
Tx).
Table 4-1 shows the power budget of various 3Com products. Use this
table when you calculate the fiber optic cable you need to connect to the
CoreBuilder 7000 family ATM switch. See fiber optic cable manufacturers
data for more information.
.
Min TX.
O-Pwr
(dBM)
Receiver
Sens.
(dBM)
Budget
(dB)
Distance
(KM)
Specification
4-18
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
Ta b le 4- 1
Product
CoreBuilder
7200F - Ethernet
CoreBuilder
Fiber Power Budget for Various 3Com Products (continued)
Mode
(nm)
Min TX.
O-Pwr
(dBM)
Receiver
Sens.
(dBM)
Budget
(dB)
Distance
(KM)
Specification
MM-820 -7.6 -15.1 7.5 HP#:HFBR-2416TC
HP#:HFBR-1414T
MM-1300 -19 -31 12 HP#:HFBR-5103
7600FX
OC-12 MM-1300 -19 -26 7 0.8 HP#:HFBR-5208
OC-12 SM -15 -28 13 15 HP#:SDX-1622
Connecting to Network Devices
4-19
Connecting the
Control Terminal
Connecting to the
Ethernet Port
The CoreBuilder 7000 family ATM switch can be configured via the LMA
using the Administration Console terminal (VT100) or terminal emulator
(Windows). To connect a terminal to the CoreBuilder 7000 family ATM
switch control port:
1 Prepare an RS-232 shielded cable (9 pin-to-9 pin or 9 pin-to-25 pin, as
dictated by the terminal you wish to use).
2 Configure the terminal: 19200 baud, 8 data bits, 1 stop bit, no parity,
xon/xoff flow control.
3 Push the DCE side of the cable onto the Control port of the switch
module and screw it into place.
4 Connect the other end of the cable to the terminal.
In case you have installed a redundant switch unit, it is sufficient to
connect the RS-232 line to either the active switch control port or to the
redundant switch control port.
The Ethernet port is used for connecting directly to a Transcend NMS
terminal for management purposes.
In case you have installed a redundant switch module, its Ethernet port
must also be connected directly to the Transcend NMS terminal.
Connecting to the
Power Source
Another way of connecting the Ethernet port to an out-of-band Ethernet
network is to connect it to a CoreBuilder 7200 Ethernet/ATM Interface
Card or a CB7400 High Density Ethernet/ATM Interface Card installed in
the same chassis.
This section describes how to connect the CoreBuilder 7000 family ATM
switch to the power source.
Selecting a Power Cord
The following power cords and accessories are supplied with the unit:
1 or 2 power cord(s) (2.5 meters each)
1 strain relief bracket per power cord
3 screws, M3 x 8 Phillips
The power cord supplied with the unit can be used with loads of up to 5
Amps AC.
4-20
C
HAPTER
4: I
NSTALLING AND CONNECTING COREBUILDER MODULES
If power cord(s) WERE NOT supplied with the unit, choose a cord based
on the following information:
For units installed in the USA or Canada: Select a flexible,
three-conductor power cord that is UL-listed and CSA-certified, with
individual conductor wire size of #18 AWG, and with a maximum
length of 4.5 meters. The power cord terminations should be NEMA
Type 5-15P (three-prong earthing) at one end and IEC appliance inlet
coupler at the other end.
Any of the following types are acceptable: SV, SVE, SVO, SVT, SVTO,
SVTOO, S, SE, SO, SOO, ST, STO, STOO, SJ, SJE, SJO, SJOO, SJT,
SJTOO, SP-3, SPE-3, SPT-3, G, W.
For units installed in all other countries: Select only a flexible,
three-conductor power cord, approved by the cognizant safety
organization of your country. The power cord must be of the type
HAR (Harmonized), with an individual conductor wire size of 0.75
sq.mm. The power cord terminations should be a suitably-rated
earthing-type plug at one end and an IEC appliance inlet coupler at
the other end. Both of the power cord terminations must carry the
certification label (mark) of the cognizant safety organization of your
country.
Plugging in the Unit
To plug in the unit:
1 Plug the power cord into the power source.
2 Plug the other end of the cord into the AC inlet located in the topmost
section of the CoreBuilder 7000 family ATM switch front panel. Make
sure the power cord is fully seated. A green power LED on the power
supply should be lit. The unit is automatically powered up when the
power cord is plugged in.
3 Make sure the fans are working. If the fans are not working, unplug the
unit immediately and see “Fans do not rotate” on page 8-2.
5
P
OWER
This chapter describes the system states of the CoreBuilderTM 7000 family
ATM switch including power-on and some basic diagnostic information to
help you verify normal operation of your CoreBuilder system.
This chapter includes the topics:
System States
System Power-on
4-Port Interface Module LEDs
-O
N
5-2
C
HAPTER
5: P
OWER-ON
System States
System States and
Switching Module
LEDs
This section describes the different system states of the 8-Port Board and
how they are indicated on the LED display.
The system states are:
Power-on
Normal operation
Hardware fault
Software fault
No power to unit
LED indicators are located on the front panels of the CoreBuilder 7000, its
power supply, switching modules, and interface modules. These LEDs
indicate the current system state of the CoreBuilder unit and its
components. Front panel LEDs can be extremely useful in determining the
cause of specific problems.
The system state in which the CoreBuilder 7000 unit is currently
operating is displayed by the switching module system status LEDs.
Referring to Figure 5-1, these are the three LEDs: PWR, FAIL, and ACT(ive)
on the left side of the LED panel. Table 5-1 shows the correlation
between the current system state and SYS LEDs display. For example,
during normal operation the PWR LED is on, the FAIL LED is off and the
ACT LED is flashing. The LEDs on the right side of the panel indicate the
status of the Ethernet port, the Service port and the Control port.
PWR
FAIL
ACT
Figure 5-1
10BASE-T
Service
Control
Switching Module LEDs
Status
Status
Status
System States
5-3
Ta b le 5- 1
System State
Power-on On Off On On Flashing Flashing
Normal operation On Off Flashing On On On
Hardware fault On On Off Off Off Off
Software fault On Off Not
No power to unit Off Off Off Off Off Off
CoreBuilder System States
Power
(green)
Fail
(red)
Activity
(yellow)
flashing
10BASE-T
Status
(green)
Undetermined Undetermined Undetermined
Service Port
Status
(green)
Control
Terminal Status
(green)
The following table also provides information about the LED display of
system states but is organized by system status LED.
Ta b le 5- 2
LED Color Description Source
PWR (Power) Green DC power input active. Hardware
ACT (Activity) Yellow Should blink continuously when
FAIL Red CPU failure. Hardware
10BASE-T
STATUS
SERVICE PORT
STATUS
CONTROL
TERMINAL
STATUS
Description of Switching Module LEDs
operational.
Green 10BASE-T link OK. The Ethernet link is
active.
Green RS232 service port link OK – should be
blinking during power on.
Green RS232 control terminal port link OK –
should be blinking during power on.
Software
CPU or
Watchdog
Hardware
Ethernet
controller
Software
Software
5-4
C
HAPTER
5: P
OWER-ON
System Power-on
Software Loading
and Diagnostics
Indicators All interface and switching unit indicators light at the start of the
This section describes the stages of system power-on of the CoreBuilder
7000 family ATM switch.
Apply electrical power to the system by inserting the power cord in the
power supply unit. The power supply indicator lights and the CoreBuilder
7000 family ATM switch automatically runs diagnostic software. This
software verifies that every component in the system is fully functional
before the system becomes active on the network. Diagnostics should
take sixty seconds or less.
If any component fails power-on diagnostics, the system either fails to
power on or it keeps faulty modules off-line. Once the system comes up,
you can check to see which modules, if any, have failed diagnostics by
checking the LED panels; in-depth information is available by viewing the
system configuration screens on the administration console.
power-on diagnostic sequence, then go out briefly. General activity LEDs
light up as the system checks the switching and interface modules.
Finally, individual port indicators go on as the system discovers active
connections residing on the interface modules. The 10BaseT indicator on
the interface module is on during normal function, even if there is no
active 10BaseT management link.
4-Port Interface Module LEDs
5-5
4-Port Interface
Module LEDs
Figure 5-2 shows the 4-port interface module LEDs. Table 5-3 and
Table 5-4 list the permanent 4-port interface module panel LEDs.
Figure 5-2
Ta b le 5- 3
LED Color Description Source
PWR (Power) Green DC power input active. Hardware
FAIL Red CPU failure. Hardware
ACT (Activity) Yellow Should blink continuously when
Interface Module LEDs
Description of Interface Module LEDs
CPU or
Watchdog
Software
operational.
Ta b le 5- 4
LED Color Description Source
LINK STATUS Green ATM physical layer is connected and
FAIL Red ATM interface port test failure. Software
ACT (Activity) Yellow Reception and transmission of cells on
Description of Interface Module LEDs for Each Port
Software
has no error.
Software
ATM link – should flash to indicate
traffic.
5-6
C
HAPTER
5: P
OWER-ON
E3/DS-3 Status LEDs The E3/DS-3 status LEDs are found on the front panel of the E3/DS-3
piggy (Figure 5-3). Table 5-5 lists the LEDs of the E3/DS-3 piggy.
Figure 5-3
Ta b le 5- 5
LED Color Description
LOS
Loss of Signal
FERF
Far End Rx Failure
Signal
AIS
Alarm Indication
Signal
LOF
Loss of Frame
E3/DS-3 Status LEDs
E3/DS-3 Status LEDs
Green
Yellow
Blue
Red
There is a signal on Rx (normal state).
On:
No signal on Rx (problem with Rx).
Off:
FERF in incoming frames (the peer reports
On:
about its Rx problem).
No FERF in incoming frame.
Off:
AIS signal is present for at least 5 sec. (the
On:
peer reports about its problem).
No AIS signal present for at least 5 sec.
Off:
(normal state).
LOF is present for at least 5 sec. (problems
On:
with Rx).
No LOF for at least 15 sec.
Off:
C
ONFIGURING THE
6
C
OREBUILDER
S
WITCH
This chapter describes the initial configuration of the CoreBuilderTM 7000
family ATM switch. Using the terminal connected to the control port, you
log into the system and assign network addresses to the CoreBuilder
7000 family ATM switch. This enables the management of the site to
recognize and communicate with the CoreBuilder 7000 family ATM
switch. You also specify ATM connections between addresses, using the
ATM protocol you have selected.
The topics covered in this chapter include:
Logging in to the LMA
Integrated Fast Setup
Additional Switch Configuration
Viewing Network Statistics.
Storing and Retrieving Configuration Parameters
Loading Software and Configuration Data by Batch Utilities
7000 F
AMILY
ATM
6-2
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Logging in to the LMA
When you boot the CoreBuilder 7000 family ATM switch the following
login screen appears:
------ -------------------------
- CoreBuilder 7000 -
- -
- ATM Backbone Switch -
------------------------------Access level (read, write, admin):admin
Password:
To login to the LMA:
1 Enter your access level (default is admin)
2 Enter your password
After a successful login the LMA Main Menu is displayed as shown in
Figure 6-1.
CB7000 switch module - Main Menu:
==========
(1) SYS: Platform config ->
(2) LEM: Lan Emulation ->
(3) CON: Connections ->
(4) STS: Statistics ->
(5) DIA: Testing & Diagnostics ->
(6) FTR: ATM features
(7) LOG: Logout
(8) VER: Version
(9) FST: Fast Setup
Figure 6-1
LMA Main Menu
Integrated Fast Setup
6-3
Integrated Fast
Setup
This section describes the Integrated Fast Setup procedure and contains
the following topics:
Setup Modes
Setup Procedure Sections
Entering Data
Navigation Aids
Integrated Fast Setup Operation
You use the Integrated Fast Setup procedure to configure the minimum
set of parameters needed to enable the CoreBuilder 7000 family ATM
switch and its attached devices to function in the network.
With this procedure you can configure both the CoreBuilder 7000 family
ATM switch card and all CoreBuilder 7X00 interface cards installed in it in
one session.
In certain cases you will need to use the Fast Setup procedure of
individual CoreBuilder 7X00 interface cards, in addition to the Integrated
Fast Setup procedure, to correctly configure your system.
This section presents the Integrated Fast Setup of the CoreBuilder 7000
family ATM switch card. It also explains when to use the Integrated Fast
Setup of the CoreBuilder 7000 family ATM switch card and when to use
the Fast Setup of an individual Corebuilder 7X00 interface card. For
detailed information about how to use the Fast Setup of an individual
Corebuilder 7X00 interface card see the User Guide of the specific
interface card.
Chassis-oriented Setup
The Integrated Fast Setup procedure is based on the concept that the
CoreBuilder 7000 family ATM switch chassis together with its installed
interface cards is viewed as an integrated unit. The advantage of this
point of view is its simplicity: it is not necessary to remember in which slot
each interface card is installed or even which type of interface card is
installed. Attention is focussed on configuring the ports of the chassis.
The procedure automatically determines the ports that are available in the
chassis and presents them by type (Ethernet, Fast Ethernet, ATM) for
configuration. The port location is displayed by the notation <slot.port>
.
For example <3.1> refers to slot #3, port #1.
6-4
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Chassis-wide vLANs
With the Integrated Fast Setup, Virtual LANs (vLANs) can be created
across the entire chassis. vLANs are set up in two stages. First, in the LE
Client section, a number of
requirement of the network. Next, in the Virtual Network Configuration
section, the potential vLANs become actual vLANs by having ports
assigned to them.
You need to define an administration “admin” vLAN to maintain SNMP
connectivity to each device in the network. Using the Integrated Fast
Setup you define one admin vLAN for the chassis; there is no need to
define separate admin vLANs for each interface card.
Note that from software version 3.5 on, the “admin” vLAN can now be
called by any other name providing the same name is used consistently in
the CB7000 and in all installed CB7X00 interface cards. When using the
Integrated Fast Setup, the name for the admin vLAN which is specified for
the switch module will be automatically chosen for the other modules
housed in the same CoreBuilder 7000 family ATM switch chassis,
overriding any existing admin vLAN names.
7000 F
AMILY
ATM S
potential
WITCH
vLANs are created according to the
Setup Modes The Integrated Fast Setup provides two setup modes: the “Full” setup
mode and the “Switch” setup mode.
Full Setup Mode
The Full setup mode configures both the CoreBuilder 7000 family ATM
switch and the installed interface cards. It sets the required parameter
values in all the installed interface cards. The Full setup mode presents
only the most critical parameters; default values are assumed for the
remaining parameters.
This method is recommended for most users, especially for initial setup.
Only those systems that require specific parameter settings in one or
more of the installed interface cards will require the Switch setup mode
described in the next section.
Switch Setup Mode
The Switch setup mode focuses only on the CoreBuilder 7000 family ATM
switch and its ATM ports. The Switch setup mode is provided to allow you
to retain special settings in the interface cards; it does not allow any of
the installed interface card configurations to be changed. If you wish to
Integrated Fast Setup
6-5
alter the settings in an interface card you can use the Fast Setup of that
interface card after you are finished using the Switch setup procedure.
Setup Mode Selection
If one of the following situations is detected, the operator is prompted to
choose between the Switch and Full setup modes:
A Subnet Mask, Default Gateway or NMS Address different from that
of the CoreBuilder 7000 family ATM switch
A vLAN whose ATM connection is set to “No”
The name of the ELAN to which the default admin port (Port #1 in
each slot) is attached is not the same in all interface cards.
If none of these situations is detected, Full setup mode is automatically
selected.
If Full setup is selected, the parameters in the interface cards revert to
their default values.
Setting Special Parameters
If one or more individual interface cards requires one of the special
situations referred to in the previous section or needs to remain
unaltered, you need to do one of the following:
Setup Procedure
Sections
Use the Switch setup mode of the Integrated Fast Setup to set up the
CoreBuilder 7000 family ATM switch only and then use the Fast Setup
of each installed interface card separately.
Use the Full setup mode of the Integrated Fast Setup to configure the
CoreBuilder 7000 family ATM switch and all installed interface cards
and then use the Fast Setup for the particular interface card in order to
restore its special parameter values.
The Integrated Fast Setup procedure contains the following sections:
Ta b le 6- 1
Setup Section Description
1
Network Prefix
2
LE Parameters
3
LECS Address
Setup Procedure Sections
Set Network Prefix for CoreBuilder 7000
Set LE Parameters for CoreBuilder 7000 (LECS
and LES states)
Set resident active LECS address for CoreBuilder
7000
6-6
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Ta b le 6- 1
Setup Section Description
4
FastBUS Configuration
5
Interface Type
6
LE Client Configuration
7
Virtual Network
Configuration
8
Admin VN Management
Configuration
9
Confirmation
Setup Procedure Sections (continued)
Configure the FastBUS card if installed.
Set the interface type port parameters for
CoreBuilder 7000
Define potential vLANs by assigning names to
ELANs. Exit this section by pressing Enter only.
Assign chassis ports to potential vLANs.
Set up admin vLAN in all modules including
setting IP address
Confirm setup
Entering Data The Integrated Fast Setup procedure runs sequentially through the
relevant data for all of the sections, displaying a prompt for each data
item and a default value. If you want to change the default, enter the
desired value in place of the default. If you want to accept the default,
press Enter.
Default Parameter Values
The default parameter value displayed at the prompt is the value stored in
flash memory. In case there is no value in flash memory, the factory
default value is displayed.
Navigation Aids Table 6-2 lists the short-cut characters you can use to move between
sections of the Integrated Fast Setup procedure:
Integrated Fast Setup Procedure Navigation Aids
title
Integrated Fast Setup
Operation
Ta b le 6- 2
Type: To Go:
< Back to previous section
> To next section
>S To section indicated by double-underlined identifier letter S in section
\ Back to beginning of setup
$ To end of setup
You initiate the Integrated Fast Setup from the LMA Main Menu of the
Corebuilder 7000 family ATM switch (see Figure 6-1).
Integrated Fast Setup
To begin the Integrated Fast Setup process, select the menu item:
(9) FST: Fast Setup
Note that the Integrated Fast Setup “Full” setup mode may override any
specific configurations that have previously been carried out in any of the
installed interface cards (see “Setup Modes” on page 6-4). The following
warning message is displayed when this is about to occur:
***Note: Full fast setup, special module configuration will
be overridden.
The following message appears on the screen.
Now reading the modules configuration, please wait ...
Special module configuration will be overridden by fast setup.
continue full fast setup or only switch fast setup (S<witch>, F<ull>): F
***Note: Full fast setup, special module configuration will be overridden.
6-7
Fast Setup Utility
==================
The flash configuration will be displayed below;
Update if needed, and then hit Enter.
To move between sections, enter the following characters at end of line:
< > - Back and forth in sections >S - Jump to section ID S
\ - Back to beginning of setup $ - To end of setup
Only in Virtual Network Configuration section (group=slot; item=port):
}G - Jump to group #G +I - Jump to item #I
* - Update all group items ** - Update all section items
.T - Assign a VLT tag #T
6-8
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Network Prefix Section In this section you are prompted for the
network prefix of the switch. Enter values as appropriate. The following
example shows a typical network prefix configuration.
Network Prefix
=-------------
*** Note: Recommended Network Prefix ->
47.00.00.00.00.00.3c.00.00.a*
Network Prefix(In HEX): 47.00.00.00.00.00.3c.00.00.a*
LE Parameters Section In this section you are prompted to enable or
disable the resident LECS and LES of the switch. Enter values as follows:
7000 F
AMILY
ATM S
WITCH
1 At the “Resident LECS state” prompt, enter
or enter
0 to disable the resident LECS.
1 to enable the resident LECS
If you enter 1, the resident LES will be enabled automatically and no
further prompt will be displayed. If you enter 0, the “LES state” prompt
will be displayed.
2 At the “LES state” prompt, enter
1 to enable the resident LES or enter 0
to disable the resident LES.
The following example shows a typical LAN Emulation configuration.
LE para met er s
=----------- Resident LECS state (1-Enable, 0-Disable): 0
LES state (1-Enable, 0-Disable): 1
Integrated Fast Setup
6-9
LECS Address Section This section prompts you for the ATM address
of the LECS. Enter the user part of the LECS address; the network prefix is
identical to the network prefix of the switch. The following example
shows a typical LECS Address configuration:
LECS Address
--=--------Resident LECS User Part(In HEX): 00.a0.3e.00.00.01.00
Active LECS addr - net prefix: 47.00.00.00.00.00.3c.00.00.a*
Active LECS addr - user part: 00.a0.3e.00.00.01.00
6-10
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
FastBUS Configuration Section This section prompts you to
configure the FastBUS module. If no FastBUS module is installed, this
section is skipped by the Integrated Fast Setup.
To configure the FastBUS:
7000 F
AMILY
ATM S
WITCH
1 At the prompt, enter
1 to enable the FastBUS module or enter 0 to
disable it.
2 At the prompt, enter a number in the range
1-4 to select the capacity of
Bank 1 from the list of four possibilities:
Options: 1-6*10MB/s
2-3*20MB/s
3-2*30MB/s
4-1*60MB/s
The factory default is 4.
Your choice is displayed.
3 As in step 2, select the capacity of Bank 2.
4 For each of the 16 resident ELANs, enter a number in the range
select the bank assignment for the ELAN from the list of three
possibilities:
Options: 0 - Conventional
1 - Bank 1 (1*60MB/s)
2 - Bank 2 (1*60MB/s)
The factory default is 0.
Your choices are displayed.
The following is an example of the FastBUS configuration.
0-2 to
Integrated Fast Setup
6-11
Fast BUS Configuration
=-------------------- Fast BUS state (1-Enable, 0-Disable): 0 1
2 FastBUS banks available. Select bank's capacity:
Options: 1-6*10MB/s
2-3*20MB/s
3-2*30MB/s
4-1*60MB/s
Bank 1, slot 4: 4
Bank 1 is configured: (1*60MB/s)
Bank 2, slot 4: 4
Bank 2 is configured: (1*60MB/s)
Fast BUS: ELAN assignments
-----=-------------------Options: 0 - Conventional,
1 - Bank 1 (1*60MB/s)
2 - Bank 2 (1*60MB/s)
elan7674_0: 0
...
elan76 74 _15 : 0
------ -- --- -------- -- --------- -- -------- --------- -- ----|ELAN ID |ELAN Name |Capacity |
|--------|-------------------------------|-------------|
| 1 |elan7674_0 |Conventional |
| 2 |elan7674_1 |Conventional |
| 3 |elan7674_2 |Conventional |
| 4 |elan7674_3 |Conventional |
| 5 |elan7674_4 |Conventional |
| 6 |elan7674_5 |Conventional |
| 7 |elan7674_6 |Conventional |
| 8 |elan7674_7 |Conventional |
| 9 |elan7674_8 |Conventional |
| 10 |elan7674_9 |Conventional |
| 11 |elan7674_10 |Conventional |
| 12 |elan7674_11 |Conventional |
| 13 |elan7674_12 |Conventional |
| 14 |elan7674_13 |Conventional |
| 15 |elan7674_14 |Conventional |
6-12
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Interface Type Section This section prompts you for the ATM
interface type configuration of the ports on the Interface Modules which
are installed in the CoreBuilder 7000 family ATM switch chassis.
There are three interface types: UNI, E-IISP and IISP. The UNI type is
normally used when an edge device is connecting to a switch, the E-IISP
type is normally used when connecting to another CoreBuilder 7000 or
9000 switch, and the IISP type is used to connect to a device which does
not recognize the E-IISP protocol used by the CoreBuilder 7000 family
ATM switch such as switches of other vendors.
To enter the interface type configuration:
1 At the NNI type of port prompt, enter the NNI type for the port you just
specified. Enter “U” for UNI, enter “E” for IISP, or enter “I” for IISP.
2 Repeat step 2 until you have specified the interface type for all of the
ports that are in the Corebuilder 7000 family ATM switch chassis.
Interface type
=------------ NNI type of por t <3 .1> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .2> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .3> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .4> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .5> (U<NI>, E<I ISP>, I<ISP >) : E
NNI type of por t <3 .6> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .7> (U<NI>, E<I ISP>, I<ISP >) : U
NNI type of por t <3 .8> (U<NI>, E<I ISP>, I<ISP >) : U
7000 F
AMILY
ATM S
WITCH
Integrated Fast Setup
6-13
3 The LMA automatically prompts you to enter ATM addresses for the
ports that you have specified as IISP. These are ATM addresses of
network devices that you want the IISP port to recognize for routing
purposes. They are placed in the routing table of the port. You need to
enter these addresses manually because the IISP protocol does not
automatically recognize them. You can enter more than one address;
press Enter to end the sequence of addresses.
*** The following are addresses of ports you have defined as IISP.
You may enter more than one address per port.
When you have finished press <Enter>:
ATM address for port <5.2> (19 bytes-When less: end with '.*'):
47.00. 00. 00 .00.00.3 e. 00.00.b0. 00 .c0.da.69 .11.22.0 00 00000c0.d a.11.22. 00
ATM address was set for port <5.2>
ATM address for port <5.2> (19 bytes-When less: end with '.*'):
47.00. 00. 00 .00.00.3 e. 00.00.b0. 00 .00.00.00 .c0.da.1 1. 22.0033
ATM address was set for port <5.2>
ATM address for port <5.2> (19 bytes-When less: end with '.*'):
4 The LMA automatically prompts you for the NNI type of the ports that
you have specified as IISP. Specify the NNI type as User or Network.
*** The following is a profile of ports you have defined as Gateway:
Profile of port <5.2> (U<ser>, N<etwork>): N
5 Repeat until you have specified all the IISP ports.
6-14
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
LE Client Configuration Section This section prompts you for the
LAN Emulation Client configuration. You give names to the ELANs that
you want to be active in the network. In the Virtual Network
Configuration section, you will assign Ethernet ports to the ELANs you
have named in this section to create vLANs. Until then, the ELANs are
considered
You can enter the names of resident ELANs of the switch you are setting
up and you can enter names of ELANs from other devices in the network.
You can define any number of potential ELANs. To end the sequence,
press Enter.
The names of the ELANs resident on a particular switch all have the form
elanXXXX_n
the sequential number of the ELAN. This is the form you need to use for
ELANs that you enter in this section (except for the admin ELAN).
You are first prompted for the name of the admin vLAN. The default
name displayed is the name of the admin vLAN of the CoreBuilder 7X00
which is installed in the highest occupied slot in the CoreBuilder chassis.
You can change it if you wish.
7000 F
potential
where “XXXX” is a number unique to the switch and “n” is
ATM S
AMILY
ELANs.
WITCH
The name for the admin vLAN which is specified in this section will be
automatically chosen for the other modules housed in the same
CoreBuilder 7000 family ATM switch chassis, overriding any existing
admin vLAN names.
For this section and the Virtual Network Configuration section to operate
correctly, at least one CoreBuilder 7X00 interface card must be installed in
the CoreBuilder 7000 family ATM switch chassis.
The following shows a typical LE Client Configuration section. Make a list
of the ELAN names and the numbers to which they are assigned in this
section. You will use it in the Virtual Network Configuration section.
Integrated Fast Setup
6-15
LE Client Configuration
-=---------------------
*** Hit Enter after VN #2 for end of potential ELAN names list.
VN #1 ELAN Name: admin
VN #2 ELAN Name: elan8460_1
VN #3 ELAN Name: elan67791 _5
VN #4 ELAN Name: elan1234_5
VN #5 ELAN Name: elan1234_6
VN #6 ELAN Name: elan1234_7
VN #7 ELAN Name: elan6789_0
VN #8 ELAN Name: elan6789_1
VN #9 ELAN Name: elan1357_1 0
VN #10 ELAN Name: elan2468_1
VN #11 ELAN Name: elan1111_1
VN #12 ELAN Name: elan2222_2
VN #13 ELAN Name: elan3333_3
VN #14 ELAN Name: elan4444_4
VN #15 ELAN Name: elan5555_5
VN #16 ELAN Name: elan6666_6
VN #17 ELAN Name: elan7777_7
VN #18 ELAN Name:
6-16
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Virtual Network Configuration Section This section prompts you for
the virtual network configuration. In this section, you assign Ethernet
ports to the ELANs you entered in the LE Client Configuration section.
The Ethernet ports of the CoreBuilder 7X00 interface cards installed in
the CoreBuilder 7000 family ATM switch chassis are displayed
sequentially. For each port, you enter the number of the ELAN to which
you want that port to belong. To end the sequence, press Enter.
At the end of the section, a list of the ELANs that were entered in the LE
Client Configuration section but did not have ports assigned to them in
this section is displayed.
Table 6-3 lists the short-cut characters you can use to move between
sections of the Virtual Network Configuration procedure:
7000 F
AMILY
ATM S
WITCH
Ta b le 6- 3
Type: To perform:
}G Jump to group #G.
* Update all group items.
+I Jump to item #I
** Update all section items.
.T Assign a VLT tag #T
Virtual Network Configuration Procedure Navigation Aids
The following shows a typical virtual network configuration.
Integrated Fast Setup
Virtual Network Configuration
=---------------------------Fast Ethernet <4.1> belongs to VN # (1-17): 1 < Admin VN >
Fast Ethernet <4.2> belongs to VN # (1-17): 2
Fast Ethernet <4.3> belongs to VN # (1-17): 3
*** Note: A new VN has been created.
Fast Ethernet <4.4> belongs to VN # (1-17): 4
*** Note: A new VN has been created.
Fast Ethernet <4.5> belongs to VN # (1-17): 5
*** Note: A new VN has been created.
Fast Ethernet <4.6> belongs to VN # (1-17): 2
Fast Ethernet <4.7> belongs to VN # (1-17): 17
*** Note: A new VN has been created.
Fast Ethernet <4.8> belongs to VN # (1-17): 3
Fast Ethernet <4.9> belongs to VN # (1-17): 18
*** No such VN No.
Fast Ethernet <4.9> belongs to VN # (1-17): 7
*** Note: A new VN has been created.
Fast Ethernet <4.10> belongs to VN # (1-17): 2 8
*** Note: A new VN has been created.
Fast Ethernet <4.11> belongs to VN # (1-17): 9
*** Note: A new VN has been created.
Fast Ethernet <4.12> belongs to VN # (1-17): 2
Fast Ethernet <4.13> belongs to VN # (1-17): 2
Fast Ethernet <4.14> belongs to VN # (1-17): 2
Fast Ethernet <4.15> belongs to VN # (1-17): 2
Fast Ethernet <4.16> belongs to VN # (1-17): 2
Ethern et p ort <5. 1> b elon gs to VN # (1-17) : 1 < Admi n VN >
Ethernet port <5.2> belongs to VN # (1-17): 2
Ethernet port <5.3> belongs to VN # (1-17): 3
Ethernet port <5.4> belongs to VN # (1-17): 4
Ethernet port <5.5> belongs to VN # (1-17): 5
Ethernet port <5.6> belongs to VN # (1-17): 6
*** Note: A new VN has been created.
Ethernet port <5.7> belongs to VN # (1-17): 7
Ethernet port <5.8> belongs to VN # (1-17): 1
Ethernet port <5.9> belongs to VN # (1-17): 1
Ethernet port <5.10> belongs to VN # (1-17): 1
Ethernet port <5.11> belongs to VN # (1-17): 1
Ethernet port <5.12> belongs to VN # (1-17): 1
*** Note: no ports assigned to VN #10 - ELAN : elan2468_1
*** Note: no ports assigned to VN #11 - ELAN : elan1111_1
*** Note: no ports assigned to VN #12 - ELAN : elan2222_2
*** Note: no ports assigned to VN #13 - ELAN : elan3333_3
6-17
6-18
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Admin VN Management Configuration Section. In this section you
are prompted for the Admin VN Management Configuration
parameters: IP address, slot IP address, NMS address, default gateway,
and subnet mask. Enter values as appropriate. These parameters
support an NMS (Network Management Station) station which is
connected to the CoreBuilder 7000 family ATM switch through its
Ethernet port. The following example shows a typical Admin VN
Management Configuration. Default values are displayed.
Admin VN Management Configuration
----------=---------------------- Switch IP address: 100.0.0.1
Slot #3 IP address: 100.0.0.100
NMS address: 255.255.255.0
Default Gateway: 255.255.255.255
Subnet Mask: 255.255.255.0
7000 F
AMILY
ATM S
WITCH
Integrated Fast Setup
Confirmation Section This section prompts you to save all changed
parameters and then prompts you to reboot the switch.
Accept Changes
=-------------
*** Note: Change of some parameters will take effect now!!
6-19
Prompt to
save changes
Saving the
switch
configuration
Saving the
edge device
configuration
Prompt for
reboot
Save changes (Y/N)? Y
Are you sure (Y/N)? y
Saving NMS parameters...
Saving LE parameters...
Saving Network Prefix...
Saving resident LECS Address...
Saving active LECS Address...
Saving NNI parameters...
The switch new configuration has been saved.
Now applying the module in slot #4 ...
Due to new VN configuration, some saved static
entries in slot #4 have been invalidated.
The new VN configuration in slot #4 has been applied and saved.
Now applying the module in slot #5 ...
The new VN configuration in slot #5 has been applied and saved.
All the modules new configuration has been applied.
Reboot the system (Y/N)? y
This will reset and reboot the device!
Are you sure (Y/N)? y
*** System will reboot in about one minute...
6-20
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Additional Switch Configuration
The Integrated Fast Setup configures a minimum set of network
parameters - enough to get you started.
If you need to make changes or to perform additional configuration
tasks, use individual items of the LMA menus. These are all described in
the
CoreBuilder 7000 Family ATM Switches User Guide.
Some additional configuration tasks might be:
Configuring SVCs
CoreBuilder 7000 family ATM switches use standard UNI 3.0 or 3.1
switched virtual channel (SVC). SVC mode can be used when CoreBuilder
is in a backbone or workgroup topology, with PVC used whenever
necessary. ILMI enables automatic address registration for SVC. Addresses
can be registered manually via the LMA menus
Setting the Mode
The CoreBuilder will run UNI 3.0 SVC by default. You can work in UNI 3.1
by choosing this option in the signalling setup menu.
Setting Network Prefix and ATM Addresses
ATM addresses are essential for establishing a connection using SVC.
Most devices that support SVC, also support automatic address
registration through the ILMI protocol.
A network prefix is essential for address registration to be executed. Refer
to
CoreBuilder 7000 Family ATM Switches User Guide
for proper network
prefix setting.
For connectivity with devices that do not support ILMI, ATM addresses
can be set manually using the Add ATM address function under ATM
address setup in the Administration Console menus.
Configuring a PVC
Permanent Virtual Channels (PVC) can be used to connect to devices that
do not support switched virtual channels (SVC) standard protocols. In the
CoreBuilder 7000 family ATM switch you can create point-to-point (P2P)
and point-to-multipoint (P2M) connections. Use the Setup and
Configuration Connections menu, to create a PVC call, PTP or PTM. You
can also create an out VC in a PTM call, release a PVC call, release an out
Additional Switch Configuration
VC from call, save PVC connections in flash memory and reset saved
connections.
6-21
6-22
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Viewing Network Statistics
At any time after configuring the CoreBuilder 7000 family ATM switch,
you can view the available statistics to see how the network is
functioning. For example, you may want to display the general statistics
for an overview of the network, or the signalling statistics for protocol
information on specific ports. Table 6-4 lists the types of statistics
available. To view a specific statistic, enter the menu path shown in the
table. For more information, see the
User Guide
Ta b le 6- 4
Menu Option Path Description
Display General Statistics (4) STS: Statistics
Display Physical Layer
Statistics
Reset Physical-Layer
Statistics
Display ATM-Layer Port
Statistics
Reset ATM-Layer Port
Statistics
Display ATM-Layer VPI/VCI
Statistics
Reset ATM-Layer VCI/VPI
Statistics
AAL5 Control Statistics (4) STS: Statistics
Reset AAL5-Layer Control
Statistics
Display Signaling Protocol
Statistics
Reset Signaling Statistics (4) STS: Statistics
Statistics Available
(1) GEN: General switch stats
(4) STS: Statistics
(2) PHY: Physical layer
(4) STS: Statistics
(8) PHR: Phy layer-reset counters
(4) STS: Statistics
(3) ATM: ATM layer
(1) PRT: Stats per port
(4) STS: Statistics
(9) ATR: ATM layer-reset counters
(1) PRT: Reset counters per port
(4) STS: Statistics
(3) ATM: ATM layer
(2) VPC: Stats per VPI/VCI
(4) STS: Statistics
(9) ATR: ATM layer-reset counters
(2) VCC: Reset counters per
VPI/VCI
(5) CTL: Control frames
(1) GET: Get Control frames
(4) STS: Statistics
(5) CTL: Control frames
(2) RES: Reset Control frames
(4) STS: Statistics
(6) SIG: Signaling
(10) SIR: Signaling-reset counters
.
CoreBuilder 7000 Family ATM Switch
Displays statistical totals for the switch.
Displays the physical layer statistics for a specified
port.
Resets physical statistics counters.
Displays the ATM layer statistics for a specified
port. Provides information on the capacity of traffic
within ports.
Resets the ATM-layer counters for a specified port.
Displays the ATM layer statistics for a VPI/VCI of a
specified port.
Resets counters for an individual and every VPI/VCI
for a specified port.
Displays the control frames (AAL5 layer) statistics,
including protocol information, for a specified port.
Resets AAL5-layer control statistics for a specified
port.
Displays the signaling protocol statistics for a
specified port.
Resets the signaling counters for a specified port.
Storing and Retrieving Configuration Parameters
6-23
Storing and
Retrieving
Configuration
Parameters
Configuration
Upload/Download
This section discusses the configuration upload/download facility and
includes the following topics:
Configuration Upload/Download
Downloading Selected Data Types
Organizing Configuration Files
Activating the Downloaded Configuration
Uploading the Configuration of a Card
Downloading the Configuration of a Card
Loading Software and Configuration Data by Batch Utilities
You can store (upload) the configuration of an installed card from its flash
memory to an external disk and restore it (download) to the flash
memory of the original card — or to the flash memory of a different card
of the same type — at a later time. You can perform this operation only
through the LMA and not via a SNMP management application like
Tr an s ce nd .
When the switch operates in single-IP Mode, you can use this facility to
upload the configuration of any of the installed cards through the LMA of
the switch card. When the switch is operating in multiple-IP mode, you
can use this facility to upload the configuration of the switch card only.
This feature lets you:
Backup your switch configuration in case of switch failure
Transfer the configuration from one switch to another
Maintain various standard configuration templates which can be
loaded according to requirement
The configuration upload works for individual cards installed in the
CoreBuilder 7000: either the active switch card or a CoreBuilder 7X00
Interface Card. You select the card whose configuration you want to
download or upload from a list of installed cards.
You cannot upload or download configuration parameters to a switch
card while it is installed as a redundant switch card. You need to remove
the card from the chassis, install it in a different switch chassis as the
active switch card and then perform the upload/download operation, as
6-24
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
described below. Afterwards, return the card to its slot in the original
chassis.
7000 F
AMILY
ATM S
WITCH
Downloading
Selected Data Types
Organizing
Configuration Files
The CoreBuilder 7000 allows you to upload selected types of
configuration data. The types of configuration data you can upload
depends on the card you selected. For the switch card, the types of
configuration data you can upload are as follows:
All Configuration Data
Platform Parameters
ATM Addresses
PNNI Configuration
LANE Security
PVC Connections
LECS Topology
LECS Order List
For a CoreBuilder 7X00 card, the data types are as follows:
Platform Parameters
Static
The uploaded configuration files can be named using a naming
convention of your choice. Normally, you will want to include information
about the data type, the card type and a date or other identifier in the file
name. For example, you might use file names like cfg_7000_12jun98 and
static_7600_1.
Activating the
Downloaded
Configuration
When you download configuration data from the files on the disk to the
card, you designate the card by its slot number. The slot can contain the
original card from which the data was uploaded, or it can contain
another card of the same type.
If you try to download configuration data which was uploaded from one
type of card type to another type of card, an appropriate error message is
issued.
When the configuration files are downloaded into flash memory, they
overwrite the previous information. The new parameters are not
activated immediately, but rather after the next reboot when they are
Storing and Retrieving Configuration Parameters
6-25
read from the flash memory. The CoreBuilder 7000 assumes that the user
wants to reboot the switch as soon as possible to activate the new
configuration parameters. Therefore, subsequent to a configuration
download, all LMA and SNMP set operations are blocked until the next
reboot – except for the configuration upload/download and reboot
operations.
It is recommended, therefore, to perform a configuration download only
when you are ready to reboot and activate the new parameters.
Cards should not be “hot swapped” after a configuration download until
after the next reboot.
Uploading the
Configuration of a
Card
To store (upload) the configuration of a card installed in the CoreBuilder
chassis from flash memory to disk, first make sure that the switch is
connected to the TFTP server and that it is in single-IP mode and then
perform the following steps:
1 Perform the LMA menu command:
(1) SYS\ (3) LOA \(6) TCU
2 The LMA automatically presents you with a list of the installed cards
whose configuration you can upload to disk, for example:
Module Types:
1<Switch module 7000>
2<Slot 3 - 76 00 >
3<Slot 4 - 76 00 >
4<Slot 5 - 74 00 >
5<Slot 6 - 72 00 >
Select Module: 1
Select the appropriate card from the list—for example, if you want to
upload the configuration of the active switch card, select 1 from the
menu.
3 The types of configuration data you can upload are displayed as follows.
File Types:
1<All>
2<Box Profile>
3<ATM Addresses>
4<PNNI Configuration>
5<LANE Security>
6<PVC Connections>
7<LECS Topology>
8<LECS Order List>
6-26
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
9<Other>
Select File type:
Enter the number of the type of configuration parameters you want to
upload. For example, if you want to upload all configuration parameters,
select File type 1.
4 Enter the IP address of the TFTP server:
Server IP address: 100.0.0.111
5 Enter the name of the file to receive the data on disk:
Name of file to be uploaded: 7000_cfg
Enter a file name without an extension. For the “All” option, the system
adds sequential extensions.
6 Confirm the upload.
Start upload to 100.0.0.111, file name 7000_cfg, (Y/N)? y
The following messages are displayed for each data type:
Loading, file name switch/cfg/24_7_cfg.1, file type Box
Profile
Load process of file type Box Profile completed successfully
7000 F
AMILY
ATM S
WITCH
7 Verify the success status of the upload by the LMA menu item:
(1) SYS:\ (3) LOA: \(1) STS
The upload status is displayed as follows:
Load process completed successfully.
The status will be “success” only if all the files were successfully loaded.
In case of failure to load a file, the “load all” process will be stopped
without continuing to the next file, a failure indication is displayed, and
the display status option displays the error message:
General Error occurred while loading
Loading a Single Configuration Data Type
If you want to upload a single data type instead of the entire
configuration, proceed as follows from step 3
3
Select File type: 2
4 Server IP address: 100.0.0.111
5
Name of file to be uploaded: switch/cfg/box_prof.cfg
For loading a single item you can enter a full file name.
Storing and Retrieving Configuration Parameters
6 Start upload to 100.0.0.111, file name
switch/cfg/box_prof.cfg, Box Profile (Y/N)?
6-27
y
Downloading the
Configuration of a
Card
Load process started..
.
Loading the “Other” Data Type
The “Other” item allows you to specify a file type by code number. This
option is relevant to configuration data items in the CoreBuilder 7X00
cards and are specified in the Release Notes for those products; the
configuration data item and its number (0–9999) are specified there.
If you want to upload the “Other” data type, proceed as follows from
step 3
3
Select File type: 9
4 Insert file type (0-9999): 1001
5
Server IP address: 100.0.0.1 11
6 Name of file to be uploaded: switch/cfg/unknown.cfg
7
Start upload to 100.0.0.111, file name
switch/cfg/unknown.cfg, 1001 (Y/N)? y
Load process started...
To retrieve (download) the configuration of a card installed in the
CoreBuilder chassis from disk to flash memory, first make sure that the
switch is connected to the TFTP server and then perform the following
steps:
1 Perform the LMA menu command:
(1) SYS\ (3) LOA \(7) TCD
2 The LMA automatically presents you with a list of the installed cards
whose configuration you can download from disk, for example:
Module Types:
1<Switch module 7000>
2<Slot 3 - 76 00 >
3<Slot 4 - 76 00 >
4<Slot 5 - 74 00 >
5<Slot 6 - 72 00 >
Select Module: 1
Select the appropriate card from the list—for example, if you want to
download the configuration of the active switch card, select 1 from the
menu.
6-28
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
Make sure you select a type of card that matches the configuration data
on the files you want to download. In this case, the data on the files must
have been uploaded from a switch card. If you choose the wrong type,
the data will not be downloaded and you will get an error message.
3 The types of configuration data you can download are displayed as
follows.
File Types:
1<All>
2<Box Profile>
3<ATM Addresses>
4<PNNI Configuration>
5<LANE Security>
6<PVC Connections>
7<LECS Topology>
8<LECS Order List>
9<Other>
Select File type:
Enter the number of the type of configuration parameters you want to
download. For example, if you want to download all configuration
parameters, select File type 1.
7000 F
AMILY
ATM S
WITCH
4 Enter the IP address of the TFTP server:
Server IP address: 100.0.0.111
5 Enter the name of the file to receive the data on disk:
Name of file to be downloaded: 7000_cfg
Enter a file name without an extension. For the “All” option, the system
adds sequential extensions.
After you confirm the download, all LMA and SNMP set operations are
disabled until the download is finished and you reboot the system. The
following warning is displayed:
Warning: This action will disable set operations on the
target Device.
6 Confirm the download.
Start download to 100.0.0.111, file name 7000_cfg, (Y/N)? y
The following messages are displayed for each data type:
Loading, file name switch/cfg/24_7_cfg.1, file type Box
Profile
Load process of file type Box Profile completed successfully
7 Verify the success status of the download by the LMA menu item:
Loading Software and Configuration Data by Batch Utilities
(1) SYS:\ (3) LOA: \(1) STS
6-29
The download status is displayed as follows:
Load process completed successfully.
The status will be success only if all the files were successfully loaded. In
case of failure to load a file, the “load all” process will be stopped
without continuing to the next file, a failure indication is displayed, and
the display status option will display the error message:
General Error occurred while loading
Loading Software
and Configuration
Data by Batch
Utilities
Batch
Upload/Download
Utilities
This section describes an alternative to the method of the previous
section: RS-232 batch-file utilities you can use to download and upload
the executable software and the system configuration parameters for the
CoreBuilder 7000 family ATM switch to an external disk via the RS-232
service port. It contains the following topics:
Batch Upload/Download Utilities
Batch Downgrade Utilities
Running a Batch File
Returning to Operational Mode
This ability allows you to easily restore the configuration to a switch
which has failed or to configure a new switch with a standard
configuration stored on disk.
The utility is performed by running the appropriate batch file via the
RS-232 service port.
Table 6-5 shows the utilities and the batch file names.
Ta b le 6- 5
Utility Batch file name
General flash utility fls_utl.bat
Format all configuration parameters groups in flash
memory according to the mapping of version 4.0
Upload all configuration parameters groups from the
switch engine flash memory to PC file
Utilities for Upload/Download
cfgfrmat.bat
cfg_upld.bat
6-30
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Batch
Downgrade
Utilities
Ta b le 6- 5
Utility Batch file name
Download all configuration parameters groups from
PC file to the switch engine flash memory
Upload a configuration parameter group from the
switch engine flash memory to PC file
Download a configuration parameter group from the
PC to the switch engine flash memory
Erase a configuration parameter group in the switch
engine flash memory
Set debug flag to ON dbgon.bat
Set debug flag to OFF dbgoff.bat
Download all software executable files to the flash
memory
Download all SW executables except atmsw.fls downpart.bat
Download only atmsw.fls downmain.bat
Download all software executable files to the flash
memory and erase the configuration in flash memory
Utilities for Upload/Download
cfg_down.bat
grp_upld.bat
grp_down.bat
grperase.bat
down_all.bat
downoper.bat
A batch utility is also provided to let you downgrade your system from
version 4.0 to the previous version 3.5. The name of the batch file is:
V_35back.bat
Running a Batch File To run a batch file (.bat) on your CoreBuilder 7000 family ATM switch, do
the following:
1 Perform the menu item:
(1) SYS \(3) LOA \(3) LCL \ 1
2 Reboot the CoreBuilder 7000 family ATM switch.
3 Connect your PC to the Service Port of the CoreBuilder 7000 family ATM
switch.
4 In the PC, change the directory to the one containing the appropriate
files.
5 Run the appropriate batch file from Table 6-5:
a Type the name of the batch file
b Type the appropriate ComPort switch (com1/com2)
c Type the appropriate Speed switch (19200/57600/115200)
Loading Software and Configuration Data by Batch Utilities
d Press Enter
e Choose desired option at a prompt(s) (if at all)
6-31
Returning to
Operational Mode
After the software has been stored or retrieved, the system will still be in
load mode. To return the system to normal operational mode, use one of
the following methods.
Method 1 - Shift “O”
1 Reboot the switch
2 Within 3 seconds of rebooting press Shift “O”
3 Perform the menu item
(1) SYS \(3) LOA \ (3) LCL \ 0
The system is now in operational mode.
Method 2 - dbgoff.bat
1 Run the batch file dbgoff.bat:
a Type dbgoff.bat
b Type the appropriate ComPort switch (com1/com2)
c Type the appropriate Speed switch (19200/57600/115200)
d Press Enter
e Wait for completion
2 Reboot the switch
The system is now in operational mode.
6-32
C
HAPTER
6: C
ONFIGURING THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
R
EDUNDANCY IN THE
7
Redundant Power Supply
C
OREBUILDER
S
WITCH
This chapter describes redundancy in the CoreBuilderTM 7000 family ATM
switch. The operation of each redundant device is described. For
information on installing redundant devices, see Chapter 4.
This chapter includes the following topics:
Redundant Power Supply
Redundant Switching Module
This section discusses the following topics:
Types of power supplies available
Power requirements of the CoreBuilder 7000 family switching and
interface cards
Using redundant switching cards and redundant power supplies.
7000 F
AMILY
ATM
Typ e s of P o w e r
Supplies
The CoreBuilder 7000 family supports three kinds of power supplies: an
AC unit rated at 90A, and two DC units rated at 90A and 40A. You can
use each one of them in any CoreBuilder 7000 family ATM switch. The
power supply supports two output channels: one 5V DC channel which
supplies the CoreBuilder switch and the interfaces cards, and one 12V DC
channel which supplies the fans.
The CoreBuilder 7000 family power supplies are shown in Table 7-1.
Ta b le 7- 1
Power Supply Current
CoreBuilder 7000/7000HD AC Power Supply 90A 3C37010A
CoreBuilder 7000/7000HD DC Power Supply 90A 3C37027
CoreBuilder 7000 Family Power Supplies
3Com
Number
7-2
C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Power Supply
Operation
Calculating the Power
Consumption of
CoreBuilder Switch
Load Sharing
The power supplies can operate in load-sharing mode; two 90A power
supplies can produce up to 180A. Providing that the power consumption
of the unit does not exceed 90 A, load-sharing allows one power supply
to serve as a backup.
Overloading
When the installed power supply is rated for less than the required power
consumption of the CoreBuilder module, the CoreBuilder will not
succeed in powering up. It will attempt to power up, hit the current
overload rate and turn the power supply off, going through this cycle
repeatedly until the load is reduced.
The power consumption of an entire CoreBuilder 7000 family ATM switch
unit is calculated by adding up the power consumption of the switching
card(s) and interface cards installed in the chassis. Normally, the values for
typical power consumption can be used in the calculation. Table 7-2
shows the typical power consumption values for the CoreBuilder 7000
family ATM switching cards and interface cards
Redundant Power Supply
7-3
Ta b le 7- 2
Typical Power Consumption of CoreBuilder 7000 Family Cards
Typical* Power
Consumption
(Amp)
Component Description
3Com
Number
CoreBuilder Kit and Switching Card
CoreBuilder 7000 Kit (one switching card and
3C37000 6.3
one power supply)
CoreBuilder 7000 Redundant Switching Card
CoreBuilder 7000HD Kit (one switching card and
†
3C37016 6.3
3C37001 8.1
one power supply)
CoreBuilder 7000HD Redundant Switching Card 3C37032 8.1
4-port and 8-port ATM Interface Cards
CoreBuilder 7000 4-port ATM interface card with
4 OC-3c multimode fiber interfaces
CoreBuilder 7000HD 8-port interface card with
4 OC-3 multimode ATM interfaces installed
4 ATM interface receptacles unoccupied
CoreBuilder 7000HD 8-port interface card with
8 OC-3 multimode ATM interfaces installed
CoreBuilder 7000HD 8-port interface card with
4 OC-3 single mode ATM interfaces
CoreBuilder 7000HD 8-port interface card with
8 OC-3 single mode ATM interfaces
CoreBuilder 7000HD 8-port interface card with
8 155 cat 5 UTP ATM interfaces
2 622 ATM interfaces
3C37052 5.4
3C37152 6.3
3C37158 11.7
3C37153 8.0
3C37159 12.0
3C37160 11.0
ATM Physical Modules
CoreBuilder 7000 622 OC-12 MM Physical
3C37080 5.0
Module
CoreBuilder 7000 622 OC-12 SM Physical
3C37081 5.0
Module
CoreBuilder 7000 OC-3c SM Physical Module 3C37058 1.4
CoreBuilder 7000 OC-3c MM Physical Module 3C37060 0.9
CoreBuilder 7000 DS-3 Physical Module 3C37061 0.9
CoreBuilder 7000 TP 155M Physical Module 3C37061 0.9
CoreBuilder 720X Ethernet/ATM Interface Card
7-4 C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Ta b le 7- 2
Typical Power Consumption of CoreBuilder 7000 Family Cards
7200 Ethernet/ATM interface card with
12 10Base-T, RJ-45 interfaces
3 OC-3c multimode ATM interfaces
7201 Ethernet/ATM interface card with
12 10Base-T, RJ-45 interfaces
3 ATM interface receptacles unoccupied
7200F Fiber Ethernet/ATM Interface card with
12 10Base-FL ports, ST con.
3 OC-3 multimode ATM interfaces
7201F Fiber Ethernet/ATM Interface card with
12 10Base-FL ports, ST con.
1 OC-3 multimode ATM interface
2 ATM interface receptacles unoccupied
CoreBuilder 74XX Ethernet/ATM Interface Card
7400 Ethernet/ATM interface card with
24 Ethernet ports (2 RJ-21 connectors)
ATM interface receptacle unoccupied
7412 Ethernet/ATM Expansion Module with
12 Ethernet ports (1 RJ-21 connector)
ATM interface receptacle unoccupied
7436 Ethernet/ATM Expansion Module with
36 Ethernet ports (3 RJ-21 connectors)
ATM interface receptacle unoccupied
CoreBuilder 76XX Fast Ethernet Interface Card
7600F Fast Ethernet Interface Card with
16FX Fast Ethernet ports
7608F Fast Ethernet Interface Card with
8FX Fast Ethernet ports
8 Fast Ethernet ports unoccupied
7660F Fast Ethernet Interface Card with
2FX Fast Ethernet ports
14 Fast Ethernet ports unoccupied
7600T Fast Ethernet Interface Card
16TX Fast Ethernet ports
3C37262 7.2
3C37263 4.5
3C37264 10.8
3C37266 8.1
3C37400 4.5
3C37412 3.6
3C37436 8.1
3C37600 23.4
3C37608 16.2
3C37660 1.8
3C37601 20.7
Redundant Power Supply 7-5
Required Power
Supply for Various
CoreBuilder
Installations
Ta b le 7- 2
7608T Fast Ethernet interface card
8TX Fast Ethernet ports
8 Fast Ethernet ports unoccupied
7662T Fast Ethernet module
2TX Fast Ethernet ports
14 Fast Ethernet ports unoccupied
* The typical power consumption values represent typical traffic, load and line speed of the
CoreBuilder and interface cards
than the typical values, and occurs when all card ports are working at full rate
† A redundant switch has the same power requirements as the active switch
Typical Power Consumption of CoreBuilder 7000 Family Cards
3C37617 15.3
3C37662 1.4
Maximum power consumption of the cards is 10% higher
.
Table 7-3, which is calculated from Table 7-2, shows the number of
power supplies required (Single or Dual) for various CoreBuilder 7000
installations. The first column describes the particular combination of
cards installed and covers the most common applications. The second
column shows the number of power supplies required if a redundant
switch is not installed; the third column shows the number of power
supplies required if a redundant switch is installed.
Ta b le 7- 3
Cards Installed in CoreBuilder Chassis
Data Center - High-density Fast Ethernet and ATM
CB7000 HD Switching Card
4 X CB7600F Fast Ethernet Interface Card
CB7000 HD Switching Card
4 X CB7600T Fast Ethernet Interface Card
CB7000 HD Switching Card
3 X 7600F Fast Ethernet Interface Card
1 X 8-port ATM Interface Card
CB7000 HD Switching Card
3 X 7600T Fast Ethernet Interface Card
1 X 8-port ATM Interface Card
Data Closet - Ethernet
CB7000 Switching Card
4 X 7436 ATM Interface Card
Required Power Supply for Various Installations
No Redundant
Switch
Installed
Dual 90A Dual 90A
Single 90A Dual 90A
Single 90A Dual 90A
Single 90A Single 90A
Single 90A Single 90A
Redundant
Switch
Installed
7-6 C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Providing
Redundancy for
Various Power Loads
Ta b le 7- 3
CB7000 Switching Card
3 X 7436 ATM Interface Cards
Required Power Supply for Various Installations (continued)
Single 90A Single 90A
ATM Data Center with high-density Fast Ethernet
CB7000HD Switching Card
1 X 7600F ATM Interface Card
3*8 port ATM Interface Cards
CB7000HD Switching Card
1 X 7600T ATM Interface Card
3*8 port ATM Interface Cards
Single 90A Single 90A
Single 90A Single 90A
Other applications
CB7000 Switch Card
4 X 7262 Ethernet/ATM Interface Card
Single 90A Single 90A
This section describes when redundant switch cards and redundant
power supplies can be used in a CoreBuilder switch.
In order to determine whether a redundant switch card and/or an
redundant power supply can be used in a CoreBuilder switch, the total
power consumption of all installed cards must be examined. According to
the total power consumption, there are three possibilities, as the
following examples illustrate:
Installation I:
The total power consumption of a single switching card
(that is, no redundant card installed) and all interface cards exceeds 90A.
In this case, a Dual 90A supply is required so that the second power
supply cannot be redundant. A redundant switch card can be installed.
This “heavy load” installation is illustrated by the first example installation
in Table 7-3.
Installation II:
The total power consumption of two
switching cards
(i.e., redundant card installed) and all interface cards exceeds 90A but
without the second switching card the consumption is less than 90A. In
this case, either a redundant switch card or a redundant power supply
can be installed, but not both. This “medium load” installation is
illustrated by the second example installation in Table 7-3.
Installation III:
The total power consumption of two switching cards
and all interface cards does not exceed 90A. In this case, both a
redundant switch card and a redundant power supply can be installed.
Redundant Power Supply 7-7
The light load installation is illustrated by the fourth example installation
in Table 7-3.
In all installations that do not include multiple CB7600 cards both
redundant switch cards and redundant power supplies can be installed.
Power Supply
Specifications
90A AC Power Supply
Ta b le 7- 4
Parameter Channel 1 Channel 2
Nominal output voltage (V) 5 12
Output voltage range (V) 5 +/- 5% 12 +/- 3%
Maximum output current (A) 90 2
Minimum output current (A) 0 0
Maximum output power (W) 450 24
Input voltage range (V) 85 – 265
Input current range (A) 6.8A@100VAC
Inrush current (A) 25A@100VAC
Frequency (Hz) 47 ~ 63
Operating temperature (Celsius) -10 ~ 40
Safety UL1950,
Efficiency (%) 75
Max power input (W) 632
P.S Heat Dissipation (W) 158
Heat Dissipation (BTU) 2156
CoreBuilder 7000 (
3C37010A)
Enhanced Power Supply Specifications
3.4A@200VAC
50A@200VAC
EN60950
90A DC Power Supply
Ta b le 7- 5
Parameter Channel 1 Channel 2
Nominal output voltage (V) 5 12.3
Output voltage range (V) 5 +/- 5% 12.3 +/- 3%
Maximum output current (A) 90 2
Minimum output current (A) 0 0
Maximum output power (W) 450 24
CoreBuilder DC (
3C37027
) Power Supply Specifications
7-8 C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
Ta b le 7- 5
CoreBuilder DC (
3C37027
) Power Supply Specifications
Input voltage range (V) 36-72
Input current range (A) 13.0A@48VDC
Inrush current (A) 35A@48VDC
Operating temperature (Celsius) 0 ~ 40
Safety UL478, 1950/CSA22.2/TUV
EN60950
Efficiency (%) 76
Max power input (W) 625
P.S Heat Dissipation (W) 150
Heat Dissipation (BTU) 2123
Redundant Switching Module 7-9
Redundant Switching Module
Need for a
Redundant Switching
Module
Identifying the Active
Switching Module
This section covers the following topics:
Need for a Redundant Switching Module
Identifying the Active Switching Module
Conditions for Switch-over to Redundant module
Switching Module Configuration Database
Info Based on the MAC Address
Resetting to Factory Defaults
A
redundant
switching module is a backup switching card that is capable
of performing all the tasks of the currently active switching module
should it fail. For this purpose, the redundant module’s data base is kept
up-to-date with network parameters that are configured in the active
switching module.
The redundant switching module is a necessary requirement in a
critical-mission network. When a switch module fails in such a network,
loss of data and interruption in transmission must be kept to an absolute
minimum.
As the CoreBuilder 7000 boots, the first of the two switch modules to
begin operating becomes the active switch module.
Conditions for
Switch-over to
Redundant module
Once the unit has booted, the active switch module can be identified by
the LMA command (1) SYS (4) SWM:
Active Switch: ACT LED flashes rapidly
Redundant Switch: ACT LED flashes once every 2 secs.
or by the ACT LED as follows:
The redundancy feature works for any combination of the CoreBuilder
7000 and CoreBuilder 7000HD switch modules installed in the chassis.
The switch-over to the redundant module will occur in the following
situations:
Removal of the main switching module from the chassis.
Malfunction of the main switching module.
Manual reboot of the CoreBuilder 7000 by LMA, Telnet (soft reboot)
or Transcend NMS.
7-10
C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
During the switch-over, the redundant switch reboots itself and comes up
as the active one. A temporary dropping of all connections will occur
during the switch-over. The connections are re-established after the
switch-over process is complete.
7000 F
AMILY
ATM S
WITCH
Switching Module
Configuration
Database
Each switching module contains a configuration data base where the
switch configuration data is stored. In order that the redundant switching
module be ready to assume the role of the active switch, its configuration
database is updated from the active switch. This occurs in the following
situations:
When the switch is booted.
When the switch configuration is changed.
Not all of the configuration data is transferred from the active to the
redundant switch. The data that was not transferred must be updated
manually. The following table presents data which is transferred and data
which must be updated manually (see “Setting up Switch Module
Hardware Redundancy” on page 4-7).
.
Ta b le 7- 6
Data Transferred from Active to
Redundant Switch
CoreBuilder 7000 IP address LECS topology database (include: LES list
NMS IP address Static ATM addresses
Default gateway IP address PVC configurations, UNI version, UNI
LECS state
LECS order list database (SW Ver. 3.50
and up)
LES state
CoreBuilder 7000 network prefix
Network prefix significant length
CoreBuilder 7000 active LECS address
Built-in LES ATM addresses
Built-in LES names elanXXXX_Y (ELAN
name)
NNI/UNI port setup
Updating Configuration Database
Data to be Updated Manually in
Redundant Switch
and addresses, ELAN names, connection
type)
profile, signaling.
Redundant Switching Module 7-11
Info Based on the
MAC Address
Ta b le 7- 6
Data Transferred from Active to
Redundant Switch
NNI maximum number of hops for all
ports
Updating Configuration Database (continued)
Data to be Updated Manually in
Redundant Switch
Each switching module board has a unique MAC address burned into its
EPROM. This MAC address is used by the CoreBuilder 7000 for three
purposes:
For the IP stack
For the LES ATM address user part
For calculating a unique number to be assigned to the ELAN name.
xxxx
The ELAN names have the format ELANxxxx_y where
is a unique
number calculated using the MAC address and y is an integer from 0 to
15 automatically assigned to each of the 16 default LESs of the
CoreBuilder 7000. In this way, each LES has a unique ELAN name and
unique ATM address.
When a redundant switching card takes over after the primary switching
card fails, the IP address, the ELAN names and LES address remain the
same as they were in the primary switch.
Resetting to Factory
Defaults
Publishing the New MAC Address
A redundant switch that has become active sends a reverse ARP (RARP) to
publish its MAC address to the network devices.
For devices that do not learn MAC addresses from a RARP, you will need
to reset the IP address entry of the CoreBuilder 7000 in their device table.
The ELAN names and LES addresses (user part) will be changed only if the
user performs a reset to factory defaults by LMA (or TELNET).
After resetting to factory defaults, the MAC address burned in the active
switch EPROM will supersede the one stored in the FLASH memory
resulting in new ELAN names and LES addresses.
Resetting to factory default will cause all connections to be dropped until
the new ELAN names are updated in the LECs.
7-12
C
HAPTER
7: R
EDUNDANCY IN THE COREBUILDER
7000 F
AMILY
ATM S
WITCH
8
T
ROUBLESHOOTING
This chapter explains how to troubleshoot specific problems you may
encounter during power-on and system operation. It also shows how to
perform related diagnostic tasks, such as replacing fuses or cleaning fiber
optic cables.
If you experience problems that are not addressed in this chapter, contact
3Com Technical Support. See Appendix D.
Solving Common Problems
Ta b le 8- 1
Problem Recommended Action
Terminal does not
show anything
Port cables do not
work
ACT LED not blinking When the CoreBuilder 7000 family ATM switch is activated, the switch module and
Recommended Action for Common Problems
The following problems may arise while working with the CoreBuilderTM
7000 family ATM switch. If your problem does not appear on this list,
view relevant statistics and parameters using the Administration Console
menus (refer to
can also contact 3Com Technical Support. Also, be sure to read through
the release notes.
If the control terminal is physically connected to the CoreBuilder 7000 family ATM switch,
but does not load the Administration Console Menus, verify that your terminal setup
matches the specifications (see “Connecting the Control Terminal” on page 4-19). Also,
make sure your cable is configured as DCE (see “Ethernet Cabling” on page E-11).
If the cables attached to the CoreBuilder 7000 family ATM switch interface ports do not
work, check that the connectors are firmly snapped in place. Also, make sure that each
wire connects to Rx on one end and Tx on the other.
interface cards ACT LEDs should be blinking. If not, verify that the switch module and
interface cards are properly inserted. Make sure that the control terminal is connected to
the control port correctly, as an incorrect connection of this cable sometimes results in the
inability of the system to function properly.
CoreBuilder 7000 family ATM switches User Guide
). You
8-2
C
HAPTER
8: T
ROUBLESHOOTING
Ta b le 8- 1
Recommended Action for Common Problems (continued)
Problem Recommended Action
Interface Card fails If one of the interface cards fails, use the Initialize Interface (INI) option in the System (SYS)
menu, Interface (IFC) option to reinitialize the interface. If this fails, you can try to restart
the whole unit again. If neither of these actions correct the problem you should contact a
3Com service person.
When handling modules, always use a wrist strap that is connected to a proper ground.
This prevents the module from being damaged by electrostatic discharge.
Fans do not rotate If the fans do not work when the unit is powered up, the fan tray may not be inserted
properly. Unplug the power cord and reinsert the fan tray properly against the enclosure.
Power Supply Troubleshooting
Ta b le 8- 2
Problems Related to the Power Supply
This section discusses common problems related to the CoreBuilder 7000
family ATM switch power supply.
Problem Possible Cause Recommended Action
CoreBuilder 7000 family
ATM switch not receiving
power
The CoreBuilder 7000
family ATM switch is
not connected
to/receiving external
power.
The power supply
malfunctioned.
A fuse is blown.
1 Check that the power cord is firmly plugged into both
the system and the building’s power outlet.
2 Check that the power cable meets the requirements
described in the Safety Rules section of Chapter 3.
3 Restart the system by replugging the power cord.
4 If the problem persists, consider replacing the power
cable, replacing the power supply and checking the
power supply fuse; the fuse resides within the power
supply. You have to extract the power supply in order
to check and replace a fuse.
5 If the system is still not operating, contact 3Com
Technical Support or your service person.
Circuit breaker has trippedExternal wiring
problem
Power supply failure
1 Unplug the power cord of the system.
2 Verify that the system is properly connected to AC
power with the correct voltage. See Appendix A:
CoreBuilder 7000 Family ATM Switch Specifications.
3 If the power connection is the problem, replace the
cable. If the problem remains, contact 3Com Technical
Support.
