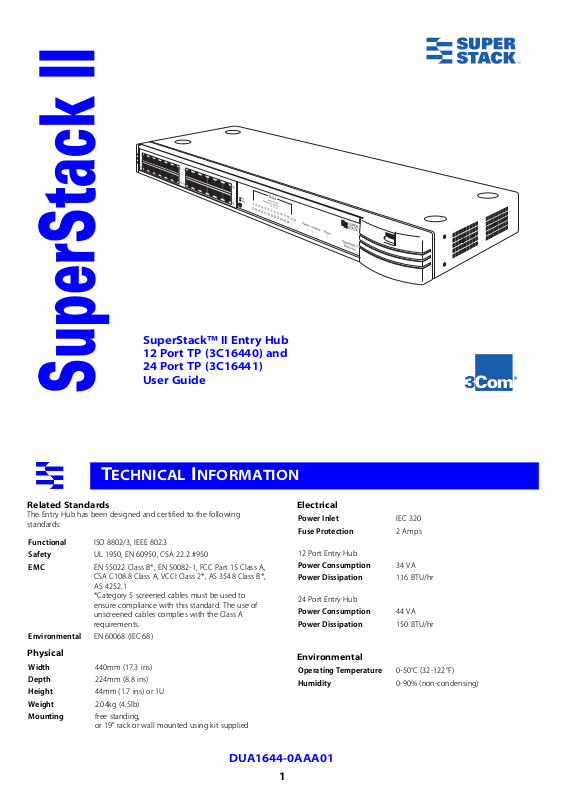

SuperStack™ II Entry Hub
12 Port TP (3C16440) and
24 Port TP (3C16441)
User Guide
T
ECHNICAL INFORMATION
Related Standards
The Entry Hub has been designed and certified to the following
standards:
Functional
Safety
EMC
Environmental EN 60068 (IEC 68)
ISO 8802/3, IEEE 802.3
UL 1950, EN 60950, CSA 22.2 #950
EN 55022 Class B*, EN 50082-1, FCC Part 15 Class A,
CSA C108.8 Class A, VCCI Class 2*, AS 3548 Class B*,
AS 4252.1
*Category 5 screened cables must be used to
ensure compliance with this standard. The use of
unscreened cables complies with the Class A
requirements.
Electrical
Power Inlet
Fuse Pro tection
12 Port Entry Hub
Power Consumption
Power Dissipation
24 Port Entry Hub
Power Consumption
Power Dissipation
IEC 320
2 Amps
34 VA
116 BTU/hr
44 VA
150 BTU/hr
Physical
Width
Depth
Height
Weight
Mounting
440mm (17.3 ins)
224mm (8.8 ins)
44mm (1.7 ins) or 1U
2.04kg (4.5lb)
free standing,
or 19" rack or wall mounted using kit supplied
DUA1644-0AAA01
Environmental
Operating Temperature 0-50 ° C (32-122 ° F)
Humidity
0-90% (non-condensing)
Page 2
†
†
5
S
AFETY INFORMATION
Please read the following safety information carefully before installing the
Entry Hub.
WAR NIN G: Installation and removal of the unit must be carried out by
qualified personnel only .
■
If installing the unit in a stack with SuperStack II units, it must be installed
below the narrower units.
■
Connect the unit to an earthed power supply to ensure compliance with
safety standards.
■
It is essential that the socket outlet is near to the unit and is accessible.
You can only disconnect the unit by removing the appliance coupler from
the unit.
■
This unit operates under SELV conditions (Safety Extra Low Voltage)
according to IEC 950, the conditions of which are maintained only if the
equipment to which it is connected is also operational under SELV.
■
The appliance coupler, that is, the connector to the device itself and not
the wall plug, must have a configuration for mating with an
EN60320/IEC320 appliance inlet.
■
Under no circumstances should the unit be connected to an A.C. outlet
(power supply) without an Earth (Ground) conection.
France and Peru Only
This unit cannot be powered from IT
unit should be powered by 230V (2P+T) via an isolation transformer ratio 1:1,
with the secondary connection point labelled Neutral, connected directly to Earth
(Ground).
Impédance à la terre
UK Only
The unit is covered by Oftel General Approval, NS/G/12345/J/100003, for indirect
connection to a public telecommunications system. This can only be achieved
using the serial port on the unit and an approved modem.
Power Cord Set
This must be approved for the country where it will be used.
USA and
Canada
Denmark
Switzerland
The cord set must be UL-approved and CSA certified.
■
The minimum specifications for the flexible cord are:
■
No. 18 AWG
Type SV or SJ
3-conductor
The cord set must have a rated current capacity of at least
■
10A.
The attachment plug must be an earth-grounding type with
■
a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V)
configuration.
The supply plug must comply with Section 107-2-D1,
■
Standard DK2-1a or DK2-5a.
The supply plug must comply with SEV/ASE 1011.
■
supplies. If your supplies are of IT type, this
L’
INFORMATION DE SÉCURITÉ IMPORTANTE
Veuillez lire à fond l'information de la sécurité suivante avant d'installer le
Entry Hub.
AVERTISSEMENT: L'installation et l'enlèvement de l'unité doivent être
faits seulement par le personnel qualifié.
■
Si vous entassez l'unité avec les unités SuperStack II, l'unité doit être
installée en dessous des unités Hub plus étroites.
■
Brancher l'unité à une source de courant mise à la terre pour assurer la
conformité aux normes de sécurité.
■
C'est essentiel que le socle soit installé près de l'unité et soit accessible.
Vous pouvez seulement débrancher l'unité en enlevant la fiche
d'alimentation de la prise de courant.
■
Cette unité marche sous les conditions SELV (Safety Extra Low Voltage)
conformément à IEC950, ces conditions sont maintenues seulement si le
matériel auquel elle est branchée, est aussi en exploitation sous SELV.
■
Le socle de connecteur, c'est-à-dire, le connecteur à l'appareil lui-même et
non pas la prise murale, doit avoir une configuration pour le branchement
avec une admission d'appareil EN60320/IEC320.
W
ICHTIGE SICHERHEITSINFORMATIONEN
Bitte unbedingt vor dem Einbauen des Entry Hub Einheit die folgenden
Sicherheitsanweisungen durchlesen.
Ein- und Ausbau des Gerätes ist nur von Fachpersonal vorzunehmen.
■
Wenn die Dual Speed Hub Einheit in einer Stapel mit anderen SuperStack
II Einheiten eingebaut werden soll, muß die Entry Hub Einheit unter die
schmaleren Hub Einheiten eingebaut werden.
■
Das Gerät an geerdete Stromversorgung anschließen, um eine
Übereinstimmung mit den Sicherheitsbestimmungen zu gewährleisten.
■
Es ist wichtig, daß der Netzstecker sich in unmittelbarer Nähe zum Gerät
befindet und leicht erreichbar ist. Das Gerät kann nur durch Herausziehen
des Verbindungssteckers aus der Steckdose vom Stromnetz getrennt
werden.
■
L'unité ne devrait pas être branchée à une prise de courant C.A. (source de
courant) sous aucun prétexte sans un branchement mis à la terre (mis à la
masse).
Seulement Pour La France et Le Pérou
Cette unité ne peut pas être mise en marche des sources de courant IT
(Impédance à la terre). Si vos sources de courant sont de type IT, cette unité doit
être alimentée par 230V (2P+T) via un rapport de transformation d'isolation de
1:1, avec un point de connexion secondaire étiqueté Neutre, branché directement
à la Terre (à la Masse).
Le Cordon d'Alimentation Surmoulé
Celui-ci doit être approuvé pour le pays auquel il sera utilisé.
USA et le
Canada:
■
■
■
■
■
Le cordon surmoulé doit être UL Certifié et CSA Certifié.
■
Les spécifications minimales pour le cordon souple sont:
■
No. 18 AWG
Type 5V ou SJ
3-conducteur
Le cordon surmoulé doit avoir une capacité de courant calculée
■
au moins de 10A.
La fiche de fixation doit être un type mis à la terre avec une
■
configuration NEMA 5-15P (15A, 125V) ou NEMA 6-15P (15A,
250V).
Das Gerät wird mit Sicherheits-Kleinspannung nach IEC 950 (SELV = Safety
Extra Low Voltage) betrieben. Angeschloßen werden k ö nnen nur Geräte,
die ebenfalls nach SELV betrieben werden.
Das Gerät ist unter keinen Umständen an einen Wechselstrom (A.C.)
Netzstecker anzuschließen ohne Erdungsleitung.
Um Übereinstimmung mit den europäischen Sicherheitsnormen zu
gewährleisten, darf am Zuführungstecker des Gerätes keine
Ersatzsicherung angebracht werden. Nur Sicherungen der gleichen
Herstellung und Marke sowie des gleichen Typs für das Gerät verwenden.
Die Anordnung der Gerätsteckvorrichtung, d.h. die Steckverbindung am
Gerät selbst im Gegensatz zum Wandstecker, muß in den
EN60320/IEC320 Zuführungsstecker am Gerät passen.
Der Anschlußkabelsatz muß mit den Bestimmungen des Landes
übereinstimmen, in dem er verwendet werden soll.
Page 3
2
I
NTRODUCTION
The SuperStack™ II Entry Hub is a flexible unmanaged Ethernet repeater
which is very easy to use. It can be used in a variety of ways, from
building a small network to expanding a larger, more established
network.
The SuperStack II Entry Hub 12 Port TP (3C16440) has 12 dedicated
shielded twisted pair (TP) ports on the front panel. The SuperStack II
Entry Hub 24 Port TP (3C16441) has 24 dedicated shielded twisted pair
(TP) ports on the front panel. The rear panel also has a slot for a 3Com
Transceiver Module or Bridge MicroModule; if fitted, the Module will
operate in addition to the TP ports. A range of different media
Transceiver Modules is available from 3Com (see “ Products and Bulletin
Boards ” ).
The Entry Hub is suited for office use where it can be wall-mounted,
rack-mounted, or free standing. Alternatively, the unit can be
rack-mounted in a wiring closet or equipment room. A mounting kit is
supplied.
The Entry Hub can be powered either from the AC mains supply, or
through an optional 3Com SuperStack II Advanced RPS (Redundant
Power System). Contact your supplier for details.
The Entry Hub comes with:
■
One power cord for use with the Entry Hub
■
Four standard height and two reduced height self-adhesive
rubber pads
■
Mounting Kit
■
A Warranty Registration card for you to fill out and return
Network Connections
The Entry Hub can be used stand-alone or linked with other hubs.
Because each Entry Hub is a single IEEE 802.3 Ethernet repeater hub,
there can be a maximum of four Entry Hubs between any two pieces of
Data Terminal Equipment (DTE) (workstations or other equipment) on
the same network.
The Entry Hub is ready to use. You can connect the Hub to any DTE
fitted with a 10BASE-T network adapter or a 10BASE-T transceiver.
Connect one end of the twisted pair cable to the RJ45 port on the unit
and the other end to the RJ45 port on your network adapter or
transceiver. You can attach up to 12 or 24 twisted pair segments to the
front of the unit.
The Entry Hub can use both shielded 150 ohm, and unshielded or
shielded 100 ohm twisted pair cables. To remain within 802.3 10BASE-T
rules, the maximum length of cable between the unit and any DTE
should not be greater than 100m (328 feet). Consult your supplier's
technical support department if you need to use twisted pair cables
over greater distances.
You can fit one of the 3Com Transceiver Modules or a Bridge
MicroModule into the slot on the rear panel (see “ Products and Bulletin
Boards ” ) to provide an additional 13th or 25th port.
You can connect the Entry Hub to any other 10BASE-T hub or unit using

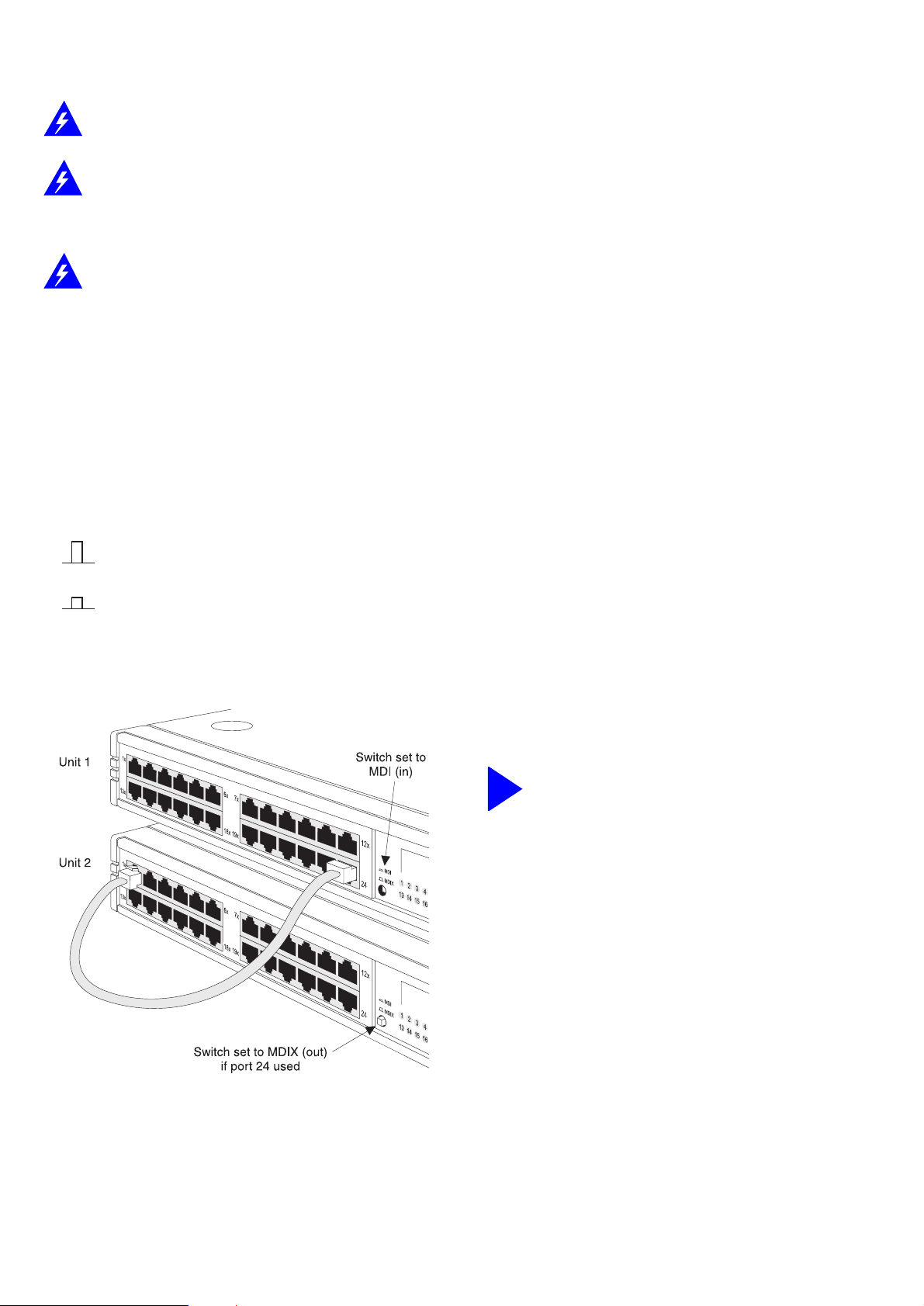

port 12 or 24, to form an inter-repeater link. You must switch port 12 or
24 to MDI to bypass the internal cross-over normally implemented by
10BASE-T unit ports. See “ MDI Sw itch ” for information on connecting
hubs and switching port 12 or 24 between MDI and MDIX.
Repeater Functions
The Entry Hub has been designed to conform to the IEEE 802.3 Ethernet
standard for Local Area Networks, and provides all the standard
functions of an 802.3 repeater, including:
■
Signal retiming
■
Preamble regeneration
■
Fragment extension
■
Automatic partition/reconnection
H
OW TO
USE
THE ENTRY
H
UB
Numbered elements in this diagram refer to numbered sections in the text.
These numbers, in bold, are used as references.
Page 4
1
i
.
2
3
4
5
6
In
3 7
Front Panel
12 or 24 RJ45 Ports
WARNING: RJ45 ports. These are shielded RJ45 data sockets.
They cannot be used as telephone sockets. Only connect RJ45
data connectors to these sockets.
AVERTISSEMENT:
courant de données RJ45 protégées. Ils ne peuvent pas être
utilisés comme prises de courant téléphoniques. Brancher
seulement les connecteurs RJ45 de données à ces prises de
courant.
WARNUNG: RJ45 Ports
abgeschmirte RJ45 Datenbuchsen, die nicht als Telefonbuchsen
verwendbar sind. Nur RJ45 Datensteckverbinder an diese
Buchsen anschließen.
Either shielded or unshielded data cables with shielded or unshielded
jacks can be connected to these data sockets.
Les ports RJ45.
Hierbei handelt es sich um
MDI Switch
Ports 1 to 11 (12 port hub) and 1 to 23 (24 port hub) are fixed as MDIX
ports so that they can be connected directly to DTE (workstations or
other equipment) which have MDI ports using normal ‘straight through’
TP cables.
Port 12 (12 port hub) and 24 (24 port hub) are switch selectable using
the MDI Switch. The ports can be MDIX ports (to connect directly to DTE
like the other ports), or MDI ports (to connect to other repeaters using a
normal ‘straight through’ TP cable).
Out In this position you can connect port 12 or 24 to a
workstation or any other DTE using a normal
MDIX
MDI
To connect two Entry Hubs, connect port 12 or 24 on unit 1 to any port
on unit 2. Ensure that the MDI switch on unit 1 is IN (MDI) and that if
port 12 or 24 is used on unit 2, the MDI switch is OUT (MDIX).
‘straight through’ TP cable.
In this position you can connect port 12 or 24 to
any MDIX port on another 10BASE-T repeater
using a normal ‘straight through’ TP cable.
Ceux-ci sont les prises de
TP STATUS LEDs
The TP STATUS LEDs show the partition state of a port and whether or
not the Link Pulse signal is present on the segment connected to a port:
Green
Flashing
green
Off
If these checks do not identify the cause of a problem, it may be that the
Entry Hub or the device connected to the port is faulty. Contact your
supplier for further advice.
The Link Pulse signal is being received and the segment
attached to the port is functional.
The port is partitioned from the network.
■
Check the connections and the cable for any breaks in
the segment.
■
Make sure the transceiver attached to the DTE is
correctly connected and powered up.
■
Check for illegal 802.3 configurations, in particular,
loops.
If the cause of the partition is found and corrected, the
segment is reconnected automatically, after the first valid
packet is transmitted to, or received from the segment.
The Link Pulse signal is not being received.
■
Check that the attached DTE is switched on.
■
Check that the attached transceiver is not faulty.
■
If it is port 12 or 24 or an inter-repeater link, check the
setting of the MDI switch.
■
Carry out the checks recommended for when a
STATUS LED is flashing green.
■
Check for no more than 4 repeater stacks in series,
and that cable lengths do not exceed the maximum
specified in the standard for that medium.
Transceiver Module STATUS LED
If a Twisted Pair or Fiber Transceiver Module has been fitted, the LED
behaves the same as the TP STATUS LEDs, see 3 .
For other Transceiver Modules, the LED shows these states:
Green
Flashing
green
Off
Transceiver Module fitted correctly and not partitioned.
Transceiver Module partitioned.
Transceiver Module is faulty or fitted incorrectly.
A Transceiver Module port connected to a coaxial cable
segment may partition if the segment is incorrectly terminated.
The Transceiver Module port may partition if the SQE test pulse
is enabled on its transceiver. SQE test should be disabled on
transceivers used to connect 802.3 repeaters to the network.
Packet LED
The Packet LED flashes green whenever a packet is received on one of
the twisted pair ports or the Transceiver Module port.
If this LED does not flash, there are no packets being received by the
unit. If the unit is receiving packets but the LED does not flash, the LED
has failed . Contact your supplier.
Collision LED
The Collision LED flashes yellow when a packet collision has been
detected on a segment connected to one of the twisted pair ports or
the Transceiver Module port.
Under normal 802.3 Ethernet operation, collisions occur and cause the
Collision LED to flash. The probability of collisions increases during heavy
activity on the network. The Auto Partition/Reconnection function
partitions a segment from the rest of the network if more than
32 consecutive collisions are detected on that segment.
If the Collision LED lights for long periods of time, it indicates a high
amount of collisions which can slow your network down. If this happens,
you may need to separate parts of your network with a switch. Contact
your supplier.
Page 5
i
8
9
10
11
4
Power LED
The Power LED lights green to indicate the power supply to the unit is
correct. If it is not lit, and:
None of the ports work
The Transceiver Module
port does not work, but the
twisted pair ports work
All ports function normally The LED has failed. Contact your supplier.
There is a problem with the fuse within
the power cord’s plug.
The internal fixed fuse for the power
supply to the Transceiver Module port has
blown. Contact your supplier.
Rear Panel Connections
Power Supply
The Entry Hub automatically adjusts to the supply voltage. Only use the
power cord that is supplied with the Entry Hub.
Socket for Redundant Power System
Only connect a 3Com SuperStack II Advanced RPS (Redundant Power
System) to this socket. For details, follow the installation instructions in
the guide accompanying the Redundant Power System.
Transceiver Module Slot
A variety of 3Com plug-in Transceiver Modules or the Bridge
MicroModule can be installed in the Entry Hub (see “ Products and
Bulletin Boards ” ). Transceiver Modules provide direct network
connections to different media.
CAUTION: Do not remove the Transceiver Module blanking
plate while the hub is connected to a power source.
Ensure that SQE test is disabled on the Transceiver Module that you are
using.
To install a Transceiver Module, refer to the guide that accompanies it. If
you subsequently remove the Transceiver Module, you must replace the
blanking plate to aid the circulation of cooling air and prevent the entry
of dust and debris.
Self-adhesive Pads
The Entry Hub is supplied with four standard height and two reduced
height self-adhesive rubber pads. Usage of the feet depends on where
the Entry Hub is placed:
■
Use the four standard height pads if the unit is to be placed on a
flat surface or stacked with another SuperStack II product of the
same dimensions.
■
Use the two reduced height pads and two of the standard height
pads if the unit is to be stacked on a SuperStack II unit of different
dimensions — Line up the front of the units, and use the two
standard height pads at the front (to fit the recess of the unit
beneath) and use the two reduced height pads at the back.
Do not apply the pads if you intend to rack or wall mount the
hub.
If the hub is to be part of a free standing stack, apply the pads to each
marked corner area on the underside of the hub. Place the hub on top
of the lower unit, ensuring that the pads of the upper unit locate with
the recesses of the lower unit.
Positioning the Entry Hub
CAUTION: When installing the Entry Hub in a stack of different
size units, the Entry Hub must be installed below the narrower
units.
When deciding where to position the Entry Hub ensure:
■
It is accessible and cables can be connected easily.
■
Cabling is away from:
sources of electrical noise such as radios, transmitters and
■
broadband amplifiers.
power lines and fluorescent lighting fixtures.
■
■
Water or moisture cannot enter the case of the unit.
■
Air flow around the unit and through the vents in the side of the
case is not restricted (3Com recommend that you provide a
minimum of 25mm (1 inch) clearance).
To prolong the operational life of your units:
■
Never stack units more than six high if free standing, and ensure
that cables are supported so that they do not cause the stack to
fall over.
■
Do not place objects on top of any unit or stack.
■
Do not obstruct any vents at the sides of the case.
Rack or Wall Mounting
The Entry Hub can be mounted in a 19 inch equipment rack, or
wall-mounted using the Mounting Kit. See “ Mounting Kit Instructions ” .
Power Up
Use the following sequence to power up the Entry Hub:
■
Check the network connections and cables.
■
Connect the power supply cable to the appropriate power socket
on the rear panel of the unit, see 8 or 9 .
■
Connect the plug to the power supply outlet socket and switch
on the power supply at the socket. If you are using a 3Com
Redundant Power System, ensure that it is switched on.
When the Entry Hub is powered on, the Power LED should be lit. If it is
not, refer to “ Power LED ” , 7 .
Spot Checks
At frequent intervals you should visually check the Entry Hub. Regular
checks can give you an early warning of a possible failure; any problems
can then be attended to when there will be least effect on users. Check
the following:
Cabling
Cooling fans
Transceiver Module Check that the Transceiver Module is connected
Check that all external cabling connections are
secure and that no cables are pulled taut.
Check that the cooling fan is operating by
listening to the unit. The fan is fitted near to the
front right hand side of the unit (when viewed
from the front).
securely. Refer to the guide that accompanies
the Transceiver Module.
What To Do Next?
If the Entry Hub fails to operate successfully, contact your supplier with
the following information before returning the unit:
■
product number and serial number
(printed on a label on the back of the unit)
■
a brief description of the fault
When returning any equipment to your supplier ensure that the
equipment is packed suitably for transit.
Page 6
“
1
2
3
1
2
3
1
2
1
2
3
4
5
6
M
OUNTING KIT INSTRUCTIONS
Introduction
The Entry Hub is supplied with two mounting brackets and four screws.
These are used for rack mounting and wall mounting the unit. When
mounting the unit, you should take note of the guidelines given in
Positioning the Entry Hub ” overleaf.
Wall Mounting the Units
CAUTION: Disconnect all cables from the unit(s) before
continuing. Remove the self-adhesive pads from the underside
of the unit(s), if already fitted.
Fitting the brackets to wall mount one unit:
Place the unit the right way up on a hard, flat surface with the
front facing towards you.

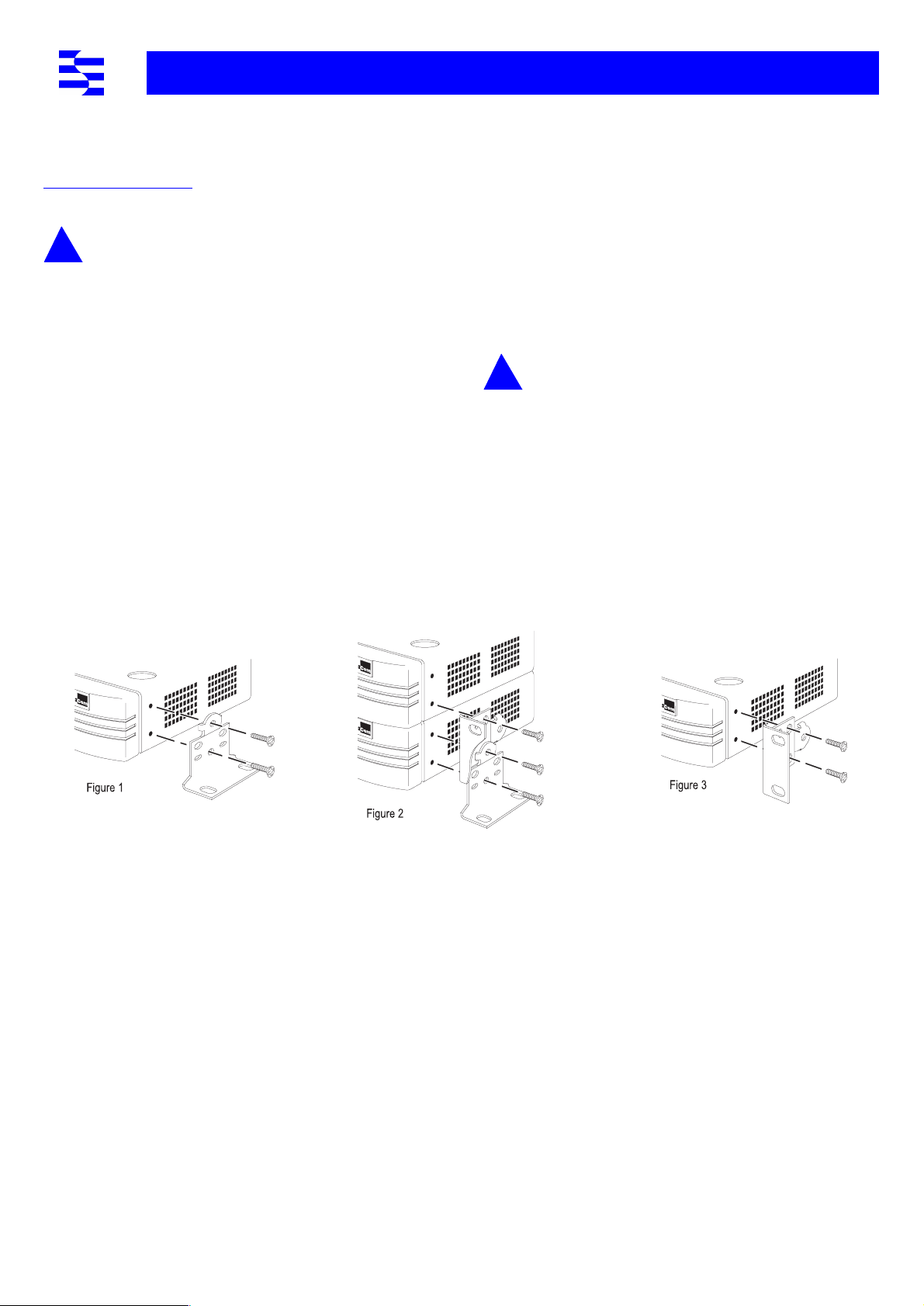

Locate a mounting bracket over the mounting holes on one side
of the unit, as shown in figure 1 below.
Insert the two screws and fully tighten with a screwdriver.
Repeat the last two steps for the other side of the unit.
Fitting the brackets to wall mount two units:
Stack the units the right way up on a hard, flat surface with the
front facing towards you.
Locate two mounting brackets over the mounting holes on one
side of the units, as shown in figure 2 below.
Insert the three screws and fully tighten with a screwdriver.
Repeat the last two steps for the other side of the units.
To wall mount the unit(s):
Ensure that the wall you are going to use is smooth, flat, dry and sturdy.
Attach a piece of plywood (12" x 20" x 0.5") securely to the wall if
necessary, and mount the unit(s) as follows:
Position the unit(s) against the wall (or plywood) ensuring that
the ventilation holes face sideways. Mark on the wall the position
of the screws holes for both wall brackets. Drill the four holes.
Using suitable fixings and screws (not provided), attach the unit(s)
securely to the wall (or plywood).
Reconnect all cables.
Rack Mounting the Units
The Entry Hub is 1U high and will fit a standard 19 inch rack.
CAUTION: Disconnect all cables from the unit before
continuing. Remove the self-adhesive pads from the underside
of unit, if already fitted.
Place the unit the right way up on a hard, flat surface with the
front facing towards you.
Locate a mounting bracket over the mounting holes on one side
of the unit, as shown in figure 3 below.
Insert the two screws and fully tighten with a suitable screwdriver.
Repeat the two previous steps for the other side of the unit.
Insert the unit into the 19" rack and secure with suitable screws
(not provided).
Reconnect all cables.
Page 7
7
L
IFETIME LIMITED
W
ARRANTY
For first five years +5 Lifetime Limited Warranty
The SuperStack II Entry Hub (3C16440 and 3C16441) benefits from 3Com’s enhanced
+5 Lifetime Limited Warranty. This provides a full 5 years of advanced hardware
exchange from your date of purchase in accordance with 3Com’s standard terms and
conditions. To qualify, you must submit your warranty registration card to 3Com. After
the initial 5 year period, the warranty reverts to 3Com’s standard lifetime limited
warranty. The +5 Lifetime Limited Warranty is not offered or is void where restricted or
prohibited by la w.
After first five years Lifetime Limited Warranty
The duration of the 3Com standard li fetime limited warranty is lifetime, excluding the
power supply and fans. See below for terms and conditions of this warranty.
HARDWARE:
workmanship and materials, under normal use and service, for the following lengths of
time from the date of purchase from 3Com or its Authorized Reseller:
If a product does not operate as warranted above during the applicable warranty period,
3Com shall, at its option and expense, repair the defective product or part, deliver to
Customer an e quivalent produc t or pa rt to replace the defec tive item, or refund to
Customer the purchase price paid for the defective product. All products tha t are
replaced will become the property of 3Com. Replacement products may be ne w or
reconditioned. Any replaced or repaired product or part has a ninety (90) day warranty
or the remainder of the initial warranty period, whichever is longer.
3Com shall not be responsible for any software, firmware, information, or memory data
of Customer contained in, stored on, or integrated with any products returned to 3Com
for repair, whether under warranty or not.
SOFTWARE:
substantial conformance to the program specifications therefor for a period of ninety
(90) days from the date of purchase from 3Com or its Authorized Reseller. 3Com
warrants the media containing software against failure during the warranty period. No
updates are provided. 3Com's sole obligation with respect to this express warranty shall
be (at 3Com's discretion) to refund the purchase price paid by Customer for any
defective software products, or to replace any defective media with software which
substantia lly conforms to 3Com' s applicable published specifications. Customer assumes
responsibility for the selection of the appropriate applications program and associated
reference materials. 3Com makes no warranty or representation that its software
products will work in combination with any hardware or app lications software products
provided by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software products will be corrected.
For any third party products listed in the 3Com software product documentation or
specifications as being compati ble, 3Com will make reas onable efforts to provide
compatibi lity, except where the non-compa tibility i s caused by a "bug" or defect in the
third party's product.
3Com warrants its hardware products to be free from defects in
Network adapters
Other hardware products
Spare parts and spares kits
3Com warrants that the software programs licensed from it will perform in
Lifetime
One year (unless otherwise specified above)
90 days
STANDARD WARRANTY SERVICE:
be obtained by delivering the defective product, accompanied by a copy of the dated
proof of purchase, to 3C om's Corpo rate Serv ice Ce nter or to an Authorized 3Com S erv ice
Center during the applicable warranty period. Standard warranty service for software
products may be obtained by telephoning 3Com's Corporate Service Center or an
Authorized 3Com Service Center, within the warranty period. Products returned to
3Com's Corporate Service Center must be pre-authorized by 3Com with a Return
Material Authorization (RMA) number marked on the outside of the package, and sent
prepaid, insured, and packaged appropriately for safe shipment. The repaired or
replaced item will be shipped to Cus tomer, at 3Com's expense, not later than thir ty (30)
days after receipt of the defective product by 3Com.
WARRANTI ES EXCLUSIVE:
ABOVE, CUSTOMER'S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR,
REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT 3COM'S OPTION. TO THE
FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR CONDITIONS,
EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR
OTHERW ISE, INC LUDING WARRANTIES, TERMS, OR CONDITIONS OF MERC HANTABILIT Y,
FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. 3COM NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS
PRODUCTS.
3COM SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION
DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS
CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED AT TEMPTS TO REPAIR OR MODIFY, OR ANY
OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE,
LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY:
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT
OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE,
USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF 3COM OR
ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES,
AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE
PRICE PAID, AT 3COM'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL
NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL
PURPOSE.
Some countri es, states, or provinces do not allow the exclusion or limitation of implied
warranti es or the limitation of incidental or consequential damages for certa in produc ts
supplied to consumers or the limitation of liability for personal injury, so the above
limitations and exclusions may be limited in their application to you. This warranty gives
you specific legal rights which may vary depending on local law.
GOVERNING LAW:
California.
3Com Corporation
764-5000
9/1/96
This Limited Warranty shall be governed by the laws of the state of
, 5400 Bayfront Plaza, Santa Clara, CA 95052-8145 U.S.A. Tel: 1 (408)
Standard warranty service for hardware products may
IF A 3COM PRODUCT DOES NOT OPERATE AS WARRANTED
TO THE FULL EXTENT ALLOWED BY LAW 3COM ALSO
E
LECTRO
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference to radio communications, in which case the user will be required to
correct the interference at their own expense.
CSA Statement
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Information To The User
If this equipment does cause interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
■
Reorient the receiving antenna.
■
Relocate the equipment with respect to the receiver.
■
Move the equipment away from the receiver.
■
Plug the equipment into a different outlet so that equipment and receiver
are on different branch circuits.
-M
AGNETIC COMPATABILITY
If necessary, the user should consult the dealer or an experienced radio/television
technician for additional suggestions. The user may find the following booklet
prepared by the Federal Communications Commission helpful:
How to Identify and Resolve Radio-TV Interference Problems
This booklet is available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
In order to meet FCC emissions limits, this equipment must be used only with
cables which comply with IEEE 802.3.
VCCI Statement
Page 8
P
RODUCTS AND BULLETIN BOARDS
Products
The SuperStack II Entry Hub is part of the SuperStack II range of 3Com
products. Contact your supplier for the latest product information.
Hub 10 Hubs
3C16670 SuperStack II Hub 10 12Port TP
3C16671 SuperStack II Hub 10 24Port TP
3C16672 SuperStack II Hub 10 24Port Telco
3C16665 SuperStack II Hub 10 6Port ST Fiber Optic
Hub 10 Management
3C16630A SuperStack II Hub 10 Management Module
3C16632 SuperStack II Hub 10 Advanced RMON Module
Port Switch Hubs
3C16400 SuperStack II Hub 10 12Port - single segment TP hub
3C16401 SuperStack II Hub 10 24Port - single segment TP hub
3C16405 SuperStack II Hub 40 12Port - four segment TP hub
3C16406 SuperStack II Hub 40 24Port - four segment TP hub
Transceiver Modules
3C12060 Female AUI
3C12063 TP
3C12064 Fan Out (male AUI)
3C16060 Bridge MicroModule
3C12065 Fiber Optic (ST)
3C12066 Coaxial
3C12067 FB
Bulletin Boards
Management agent software upgrades are available from these 3Com
bulletin boards.
Australia (61) (2) 9955 2073 Mexico (52) (5) 520 7853
Brazil
France
Germany (49) (89) 627 32 188 Taiwan (886) (2) 377 5840
Hong Kong (852) 2537 5608
Italy
Japan
3Com Corporation
P.O. Box 58145
5400 Bayfront Plaza
Santa Clara
CA 95052-8145
USA
(55) (11) 547 9666 P. R. of
China
(33) (1) 69 86 69 54 Singapore (65) 534 5693
U.K.
(39) (2) 273 00680
(fee required)
(81) (3) 3345 7266
U.S.
3Com Centre
Boundary Way
Maylands Park South
Hemel Hempstead
Herts HP2 7YU
UK
(86) (10) 684 92351
(44) (1442) 278278
(1) (408) 980 8204
L
EGAL
3Com Corporation, 5400 Bayfront Plaza, Santa Clara, California 95052-8145
© 3Com Ireland, October 1996. All rights reserved. No part of this documentation may be
reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation, or adaptation) without permission from 3Com Ireland.
3Com Ireland reserves the right to revise this documentation and to make changes in
content from time to time without obligation on the part of 3Com Ireland to provide
notification of such revision or change.
3Com Ireland provides this documentation without warranty of any kind, either implied
or expressed, including, but not limited to, the i mplied warranties of merchantability and
fitness for a particular purpose. 3Com may make improvements or changes in the
product(s) and/or the program(s) described in this documentation at any time.
UNITED STATES GOVERNMENT LEGENDS:
If you are a United States government agency, then this documentation and the
software described herein are provided to you subject to the following restricted rights:
For units of the Department of Defense:
Restricted Rights Legend: Use, duplication or disclosure by the Government is subject to
restrictions as set forth in subparagraph (c) (1) (ii) for restricted Rights in Technical Data
and Computer Software clause at 48 C.F.R. 52.227-7013. 3Com Ireland, c/o 3Com Centre,
Boundary Way, Maylands Park South, Hemel Hempstead, Hertfordshire, HP2 7YU, UK.
N
OTICES
For civilian agencies:
Restricted Rights Legend: Use, reproduction or disclosure is subject to restrictions as set
forth in subparagraph (a) through (d) of the Commercial Computer Software - Restricted
Rights Clause a t 48 C.F.R. 52.227-19 and the li mitations set forth in 3Com Corporation's
standard commercial agreement for the software. Unpublished rights reserved under the
copyright laws of the United States.
Unless otherwise indicated, registered trademarks are registered in t he United States and
may or may not be registered in other countries.
3Com and LinkBuilder are registered trademarks of 3Com Corporation. SuperStack and
FMS are trademarks of 3Com Corporation. Other brand and product names may be
registered tra demarks or trademarks of their respective holders.
The technology behind 3Com's LAN Security Architecture is protected by U.S. patents
5,161,192 and 5,386,470 (foreign patents applied for).
Part Number: DUA1644-0AAA0 1
Revision: 00
Publishe d: November 1996
8
Loading...
