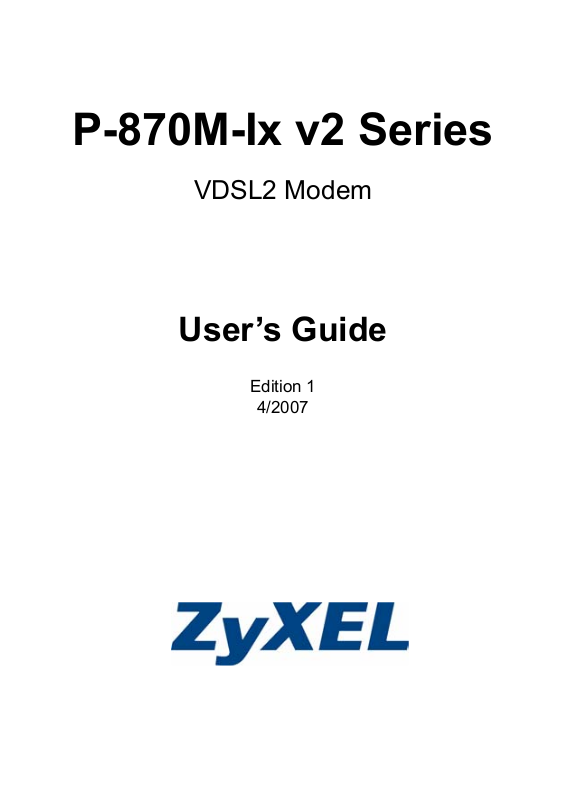

ZyXEL Communications P-870M-Ix User Manual

P-870M-Ix v2 Series

VDSL2 Modem

User’s Guide

Edition 1

4/2007

P-870M-Ix v2 Series User’s Guide

Overview

The P-870M-Ix v2 Series (“P-870M-Ix v2”) is a VDSL2 (Very­high-speed Digital Subscriber Line 2) modem that provides
high-speed Internet access up to 100 Mbps (each way)
through a telephone line and supports Triple Play services.
The P-870M-Ix v2 Series consists of the following models:

• P-870M-I1 v2, a VDSL2 modem for regular (POTS) lines

• P-870M-I3 v2, a VDSL2 modem for ISDN lines

Triple Play service is the provisioning of high-speed Internet
access, television (Video on Demand or regular broadcasts)
and telephone service over a single broadband connection. In
the following figure, the P-870M-Ix v2 (Z) delivers a fast VDSL
Internet access connection to ensure enough bandwidth for
these sevices (A, B and C respectively).

No configuration is required. Just connect the hardware and
you are ready for high-speed Internet access.

2

P-870M-Ix v2 Series User’s Guide

1 Hardware Connections

Take the following steps to connect your P-870M-Ix v2.

1 Use the gray telephone wire to connect the P-870M-Ix v2

DSL port to the DSL port to a telephone jack (or a splitter,

if one is already installed.)

2 Use the Ethernet cable to connect the P-870M-Ix v2

ETHERNET port to the computer for Internet access.

3 Use the included power adaptor to connect the P-870M-Ix

v2 POWER socket to an appropriate power source.

4 After you’ve made these connections, push in the power

button.

3

P-870M-Ix v2 Series User’s Guide

If the POWER, ETHERNET, and DSL lights are on (or
blinking), you have set up the P-870M-Ix v2 correctly. Test
your Internet connection by visiting http://www.zyxel.com (or
another web site).

If the lights behave differently or if you cannot connect to the
Web site, make sure the connections are correct. If the lights
are still different, turn off the device, wait a few seconds, and
turn it on again. If the problem continues, contact your local
vendor.

2 LEDs

The following figure shows the P-870M-Ix v2’s LEDs.

The following table describes the LEDs.

Light Status Description

POWER Green The P-870M-Ix v2 is receiving power and

Off The P-870M-Ix v2 is not receiving power.

ready for use.

4

P-870M-Ix v2 Series User’s Guide

Light Status Description

ETHERNET Green The P-870M-Ix v2 has an Ethernet

connection with a computer.

Blinking The P-870M-Ix v2 is sending/receiving

data to /from the computer.

Off The P-870M-Ix v2 does not have an

Ethernet connection with a computer.

DSL Green The P-870M-Ix v2 has a DSL connection.

Blinking The P-870M-Ix v2 is trying to establish a

DSL connection.

Off The DSL line is down.

3 Wall-mounting Instructions

Complete the following steps to hang the P-870M-Ix v2 on a
wall.

1 Select a position free of obstructions on a sturdy wall.
2 Drill two holes for the screws (M3*10). The centers of the

holes should be 120 mm apart.

Note: Be careful to avoid damaging pipes or cables

located inside the wall when drilling holes for the
screws.

3 Do not screw the screws all the way into the wall. Leave a

small gap of about 0.5 cm between the heads of the
screws and the wall.

5

P-870M-Ix v2 Series User’s Guide

4 Make sure the screws are snugly fastened to the wall.

They need to hold the weight of the P-870M-Ix v2 with the
connection cables.

5 Align the holes on the back of the P-870M-Ix v2 with the

screws on the wall. Hang the P-870M-Ix v2 on the screws.

4 Specifications

The following values are accurate at the time of writing.

Table 1 Device Specifications

Feature Specification

Dimensions (W x D x H) 132 mm x 189 mm x 40 mm

Weight 265 g

DSL Port (P-870M-I1 v2) RJ11 connector for POTS

(P-870M-I3 v2) RJ-45 connector for ISDN

ETHERNET Port RJ-45 connector

10/100 Mbps
Auto-sensing, auto-cross-over MDI/ MDI-X

Power Supply AC 9 V, 1 A

Power Consumption 10 W

Operation Temperature 0º C ~ 40º C

Operation Humidity 20% ~ 85% RH (non-condensing)

Storage Temperature -20º ~ 60º C

Storage Humidity 20% ~ 90% RH (non-condensing)

6

P-870M-Ix v2 Series User’s Guide

Table 2 North American Plug Standards

Feature Specification

AC Power Adaptor Model AA-091A

Input Power AC 120 V, 60 Hz, 1 A

Output Power AC 9 V, 1 A

Power Consumption 7 W

Safety Standards UL, CUL (UL 1310, CSA 22.2 No.

223)

Table 3 European Plug Standards

Feature Specification

AC Power Adaptor Model AA-091ABN

Input Power AC 230 V, 50 Hz, 1 A

Output Power AC 9 V, 1 A

Power Consumption 7 W

Safety Standards TUV, CE (EN 60950-1)

Table 4 United Kingdom Plug Standards

Feature Specification

AC Power Adaptor Model AD-0901000AK

Input Power AC 230 V, 50 Hz, 1 A

Output Power AC 9 V, 1 A

Power Consumption 7 W

Safety Standards TUV, CE (EN 60950-1, BS7002)

7

P-870M-Ix v2 Series User’s Guide

Table 5 Australia and New Zealand Plug Standards

Feature Specification

AC Power Adaptor Model AA-091AE

Input Power AC 240 V, 50 Hz, 1 A

Output Power AC 9 V, 1 A

Power Consumption 7 W

Safety Standards EN 60950-1

5 Safety Warnings

For your safety, be sure to read and follow all warning notices
and instructions.

• To reduce the risk of fire, use only No. 26 AWG (American
Wire Gauge) or larger telecommunication line cord.

• Do NOT open the device or unit. Opening or removing cov­ers can expose you to dangerous high voltage points or
other risks. ONLY qualified service personnel can service the
device. Please contact your vendor for further information.

• Use ONLY the dedicated power supply for your device. Con­nect the power cord or power adaptor to the right supply volt­age (110V AC in North America or 230V AC in Europe).

• Do NOT use the device if the power supply is damaged as it
might cause electrocution.

• If the power supply is damaged, remove it from the power
outlet.

• Do NOT attempt to repair the power supply. Contact your
local vendor to order a new power supply.

8

P-870M-Ix v2 Series User’s Guide

• Place connecting cables carefully so that no one will step on
them or stumble over them. Do NOT allow anything to rest
on the power cord and do NOT locate the product where
anyone can walk on the power cord.

• Do NOT install nor use your device during a thunderstorm.
There may be a remote risk of electric shock from lightning.

• Do NOT expose your device to dampness, dust or corrosive
liquids.

• Do NOT use the device near water, for example, in a wet
basement or near a swimming pool.

• Make sure to connect the cables to the correct ports.

• Do NOT obstruct the device ventilation slots, as insufficient
airflow may harm your device.

• Do NOT store things on the device.

• Connect ONLY suitable accessories to the device.

• Do not use the device outside, and make sure all the connec­tions are indoors. There may be a remote risk of electric
shock from lightning.

6 Related Documentation

Please go to http://www.zyxel.com for product news, firmware,
documentation, and other support materials.
